Siemens PSU300B User manual

SITOP PSU300M/300B
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
___________________
SITOP power supply
SITOP PSU300M/300B
Manual
SITOP PSU300M 24 V/20 A
6EP1436
-3BA10
SITOP PSU300M 48 V/10 A
6EP1456
-3BA00
SITOP PSU300B 12 V/20 A
6EP1424
-3BA00
SITOP PSU300B 24 V/17 A
6EP1436
-3BA20
SITOP PSU300B 24 V/30 A
6EP1437-3BA20
11.2014
C98130
-A7574-A2-2-7629
Overview
Safety notes
1
Description, device design,
dimension drawing
2
Mounting/disassembly
3
Mounting position, mounting
clearances
4
Installation
5
Technical data
6
Safety, approvals, EMC
7
Ambient conditions
8
Applications
9
Environment
10
Service & Support
11

Siemens AG
Division Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
C98130-A7574-A2-2-7629
Ⓟ
12/2014 Subject to change
Copyright © Siemens AG 2014.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 3

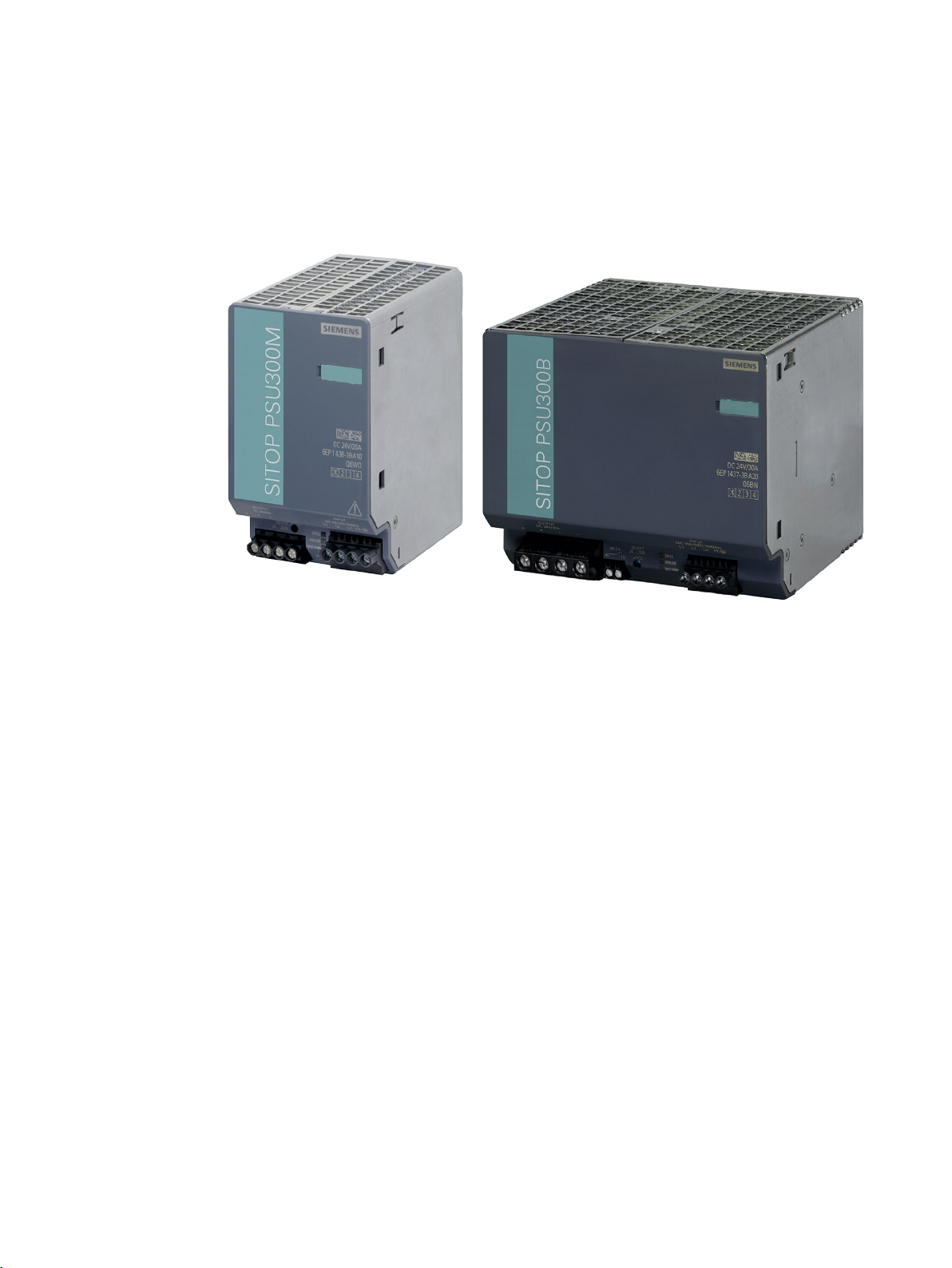

Overview
The 3-phase power supply from the SITOP PSU300M/300B is a powerful, stabilized
technology power supply for automated machines and systems.
The key benefits of the product include:
●3-phase 320 to 575 VAC wide-range input
●Power boost during operation 300% for 25 ms (only PSU300M and PSU300B 12 V/20 A)
●No lateral mounting clearances are required
●150% extra power when loads with high input current are switched on (PSU300M and
PSU300B 12 V/20 A only)
●Ambient temperature -25 (-10)...+70 °C
●48 V / 10 A permits small cable cross-sections
●Selectable short-circuit behavior
●Soft characteristic curve for parallel switching or battery charging can be selected
●Display of the operating state using 3 LEDs
●Integrated signaling contact "DC 12 V O.K." / "DC 24 V O.K." / "DC 48 V O.K."
●The properties of the PSU300B power supplies makes them ideal for battery charging
●To increase the system availability, some reliable power supplies can be expanded using
SITOP supplementary modules (redundancy module, selectivity module, buffer module),
as well as SITOP DC-UPS modules.

Overview
SITOP PSU300M/300B
4Manual, 11.2014, C98130-A7574-A2-2-7629
Ordering data
The following device versions are available:
Regulated SITOP PSU300M/300B power supply
Type
Order number
3-phase 400-500 V AC input,
Output 24 V DC / 20 A
6EP1436-3BA10
3-phase 400-500 V AC input,
Output 48 V DC / 10 A
6EP1456-3BA00
3-phase 400-500 V AC input,
Output 12 V DC / 20 A
6EP1424-3BA00
3-phase 400-500 V AC input,
Output 24 V DC / 17 A
6EP1436-3BA20
3-phase 400-500 V AC input,
Output 24 V DC / 30 A
6EP1437-3BA20
Accessories
Type
Order number
Device identification labels 20 mm × 7 mm, pastel turquoise
3RT1900-1SB20

SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 5
Table of contents
Overview................................................................................................................................................. 3
1 Safety notes............................................................................................................................................ 7
2 Description, device design, dimension drawing........................................................................................ 9
2.1 Device description.....................................................................................................................9
2.2 Connections and terminal designation....................................................................................10
2.3 Potentiometer..........................................................................................................................11
2.4 Status displays and signaling .................................................................................................12
2.5 Change-over switch ................................................................................................................15

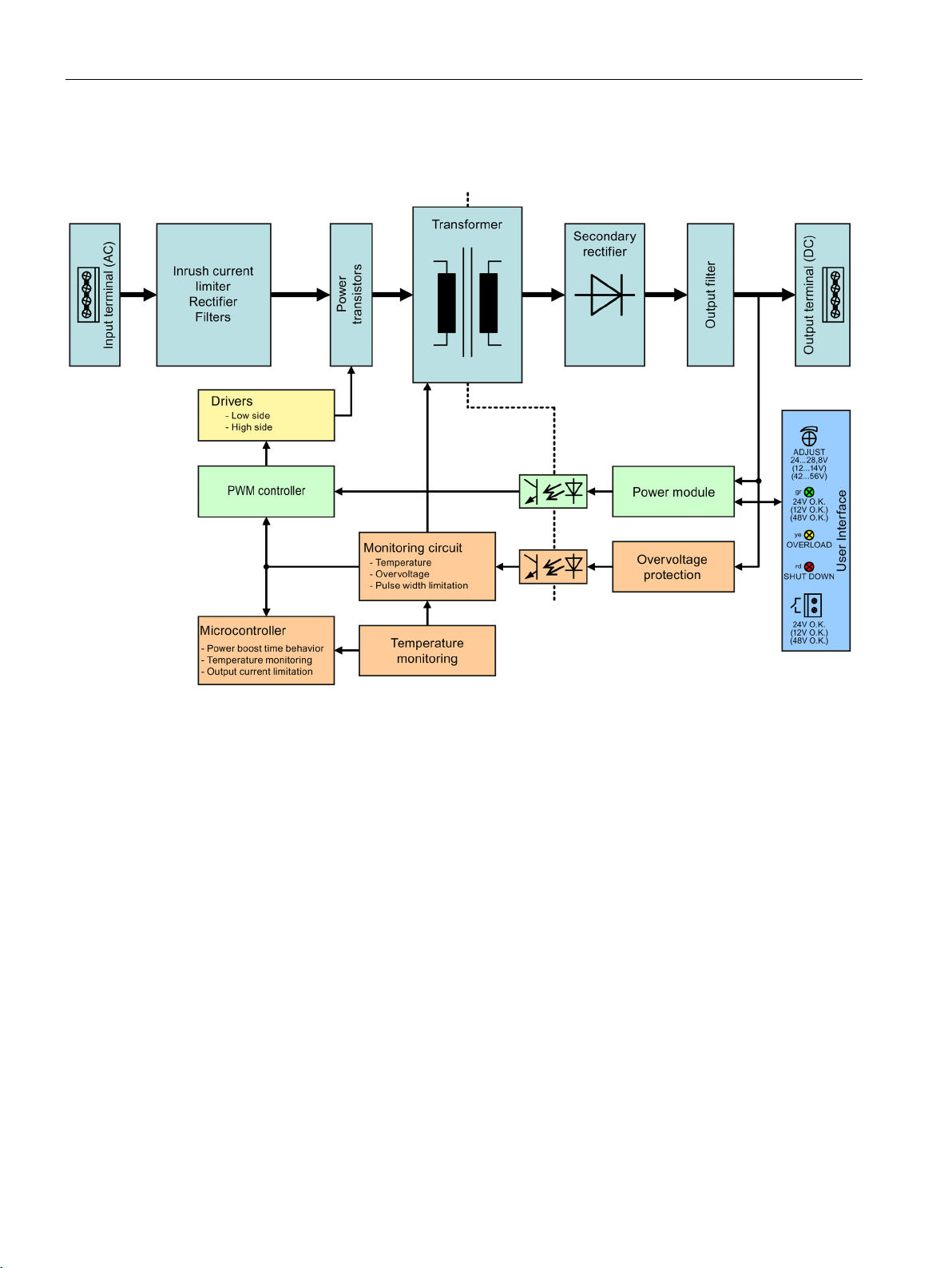

2.6 Block diagram .........................................................................................................................16
2.7 Dimensions and weight...........................................................................................................17
3 Mounting/disassembly........................................................................................................................... 19
4 Mounting position, mounting clearances................................................................................................ 21
4.1 Standard mounting position ....................................................................................................21
4.2 Other mounting positions........................................................................................................24
4.2.1 6EP1436-3BA10 .....................................................................................................................24
4.2.2 6EP1456-3BA00 .....................................................................................................................26
4.2.3 6EP1424-3BA00 .....................................................................................................................28
4.2.4 6EP1436-3BA20 .....................................................................................................................30
4.2.5 6EP1437-3BA20 .....................................................................................................................32
5 Installation ............................................................................................................................................ 35
5.1 Line-side connection ...............................................................................................................35
5.2 Output-side connection ...........................................................................................................37
6 Technical data ...................................................................................................................................... 39
6.1 Input ........................................................................................................................................39
6.2 Output .....................................................................................................................................41
6.3 Efficiency.................................................................................................................................50
6.4 Closed-loop control .................................................................................................................53
6.5 Protection and monitoring.......................................................................................................54
6.6 MTBF ......................................................................................................................................55
6.7 Mechanical system .................................................................................................................55
6.8 Accessories.............................................................................................................................57
6.9 Dimension drawing .................................................................................................................57

Table of contents
SITOP PSU300M/300B
6Manual, 11.2014, C98130-A7574-A2-2-7629
7 Safety, approvals, EMC ........................................................................................................................ 59
7.1 Safety ..................................................................................................................................... 59
7.2 Test voltage............................................................................................................................ 60
7.3 Approvals ............................................................................................................................... 61
7.4 EMC ....................................................................................................................................... 61
8 Ambient conditions................................................................................................................................ 63
9 Applications .......................................................................................................................................... 65
9.1 Parallel connection to increase power rating ......................................................................... 65
9.2 Parallel connection for redundancy ....................................................................................... 67
9.3 Series connection for increased voltage................................................................................ 69
9.4 Overload protection in the 24 V output circuit........................................................................ 70
9.5 Protection against short-time voltage dips............................................................................. 71
9.6 Protecting against longer power failures................................................................................ 72
9.7 Battery charging with SITOP PSU300B................................................................................. 74
10 Environment ......................................................................................................................................... 77
11 Service & Support ................................................................................................................................. 79

SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 7
Safety notes
1
WARNING
Correct handling of the devices
When operating electrical devices, it is inevitable that certain components will carry
dangerous voltages.
Therefore, failure to handle the units properly can result in death or serious physical injury
as well as extensive property damage.
Only appropriately qualified personnel may work on or in the vicinity of this equipment.
Perfect, safe, and reliable operation of this equipment is dependent on proper
transportation, storage, installation and mounting.
Before installation or maintenance work can begin, the system's main switch must be
switched off and measures taken to prevent it being switched on again.
If this instruction is not observed, touching live parts can result in death or serious injury.

Safety notes
SITOP PSU300M/300B
8Manual, 11.2014, C98130-A7574-A2-2-7629

SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 9
Description, device design, dimension drawing
2
2.1
Device description
SITOP PSU300M/300B is a primary-clocked power supply for connection to a 3-phase AC
line supply. An electronically regulated DC voltage that can be set via a potentiometer is
available at the output of the device. The output of the device is isolated, no-load proof and
short-circuit proof. The LED displays indicate the operating state. The operating state of the
device can be processed via the signaling contact. The PSU300B devices are optimized to
charge batteries.
①
Line input
②
DC output
③
Signaling contacts
④
Potentiometer 12 ... 14 V, 24 ... 28.8 V, 42 ... 56 V
⑤
Pilot lamps (12/24/48 V OK, OVERLOAD, SHUT DOWN)
⑥
Selector switch
⑦
DIN rail slider
⑧
Convection
⑨
Clearance above/below
Figure 2-1 Design

Description, device design, dimension drawing
2.2 Connections and terminal designation
SITOP PSU300M/300B
10 Manual, 11.2014, C98130-A7574-A2-2-7629
2.2
Connections and terminal designation
The line input terminals ①can be used to establish the connection to the supply voltage.
The output terminals ②are used to connect to the loads to be supplied (see also Section
Installation (Page 35)).
Connections and terminal designations
①
Line input L1, L2, L3, PE One screw terminal each
②
output "+" 2 screw terminals
②
output "–" 2 screw terminals
③
signaling contacts 13, 14 One screw terminal each
*1)
Do not subject the end stop to higher loads
Figure 2-2 Terminal data for 6EP1436-3BA10, 6EP1456-3BA00, 6EP1424-3BA00, 6EP1436-3BA20
*1)
Do not subject the end stop to higher loads
Figure 2-3 Terminal data for 6EP1437-3BA20

Description, device design, dimension drawing
2.3 Potentiometer
SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 11
2.3
Potentiometer
The potentiometer ④on the front of the device is used to adjust the output voltage. The
output voltage is set to 12 V, 24 V or 48 V in the factory, and can be adjusted in the range
12 ... 14 V, 24 ... 28.8 V or 42 ... 56 V; for example, to compensate voltage drops across long
supply lines to the connected load.

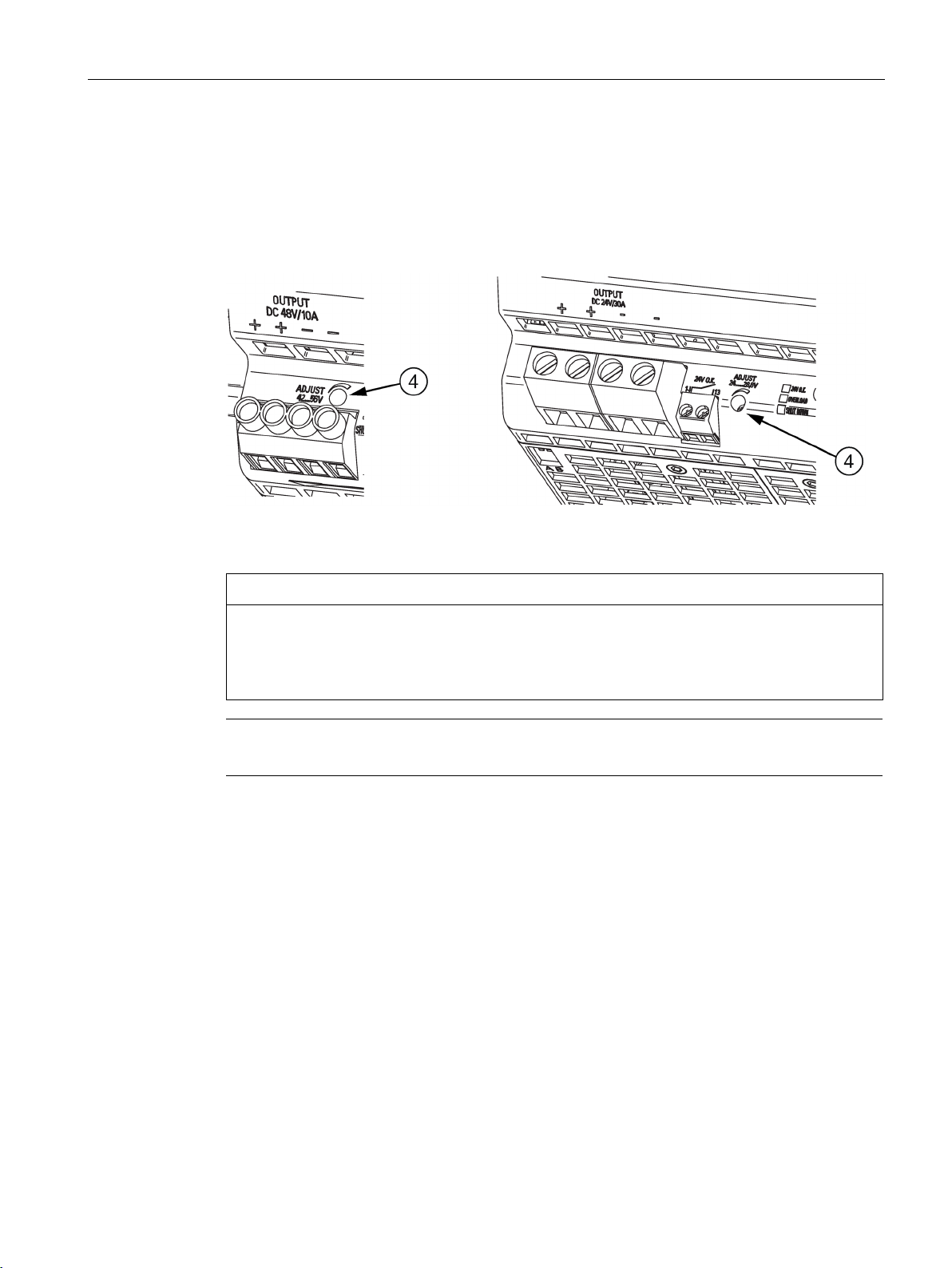

Figure 2-4 Potentiometer (example 6EP1456-3BA00 / 6EP1437-3BA20)
NOTICE
Thermal overload possible
When adjusting the output voltage to >24 V (>48 V), the output current must be derated by
4 %/V or the permissible ambient temperature must be taken into account with 3 K/V
(applies to PSU300M devices).
Note
It is only permissible to use an insulated screwdriver when actuating the potentiometer.
For notes on actuating the potentiometer (screwdriver, torque), see Figure 2-2 Terminal data
for 6EP1436-3BA10, 6EP1456-3BA00, 6EP1424-3BA00, 6EP1436-3BA20 (Page 10) and
Figure 2-3 Terminal data for 6EP1437-3BA20 (Page 10).

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU300M/300B
12 Manual, 11.2014, C98130-A7574-A2-2-7629
2.4
Status displays and signaling
6EP1436-3BA10 (24 V / 20 A)
6EP1456-3BA00 (48 V/10 A)
Operating display LED green for "24 V O.K."
Yellow LED for "overload"
Red LED for "latching shutdown"
LED green for "48 V O.K."
Yellow LED for "overload"
Red LED for "latching shutdown"
Signaling contact Relay contact (NO contact, rating
60 V DC / 0.3 A) for "24 V O.K."
Relay contact (NO contact, rating
60 V DC / 0.3 A) for "48 V O.K."
6EP1424-3BA00 (12 V/20 A)
6EP1436-3BA20 (24 V/17 A)
6EP1437-3BA20 (24 V / 30 A)
Operating display LED green for "12 V O.K."
Yellow LED for "overload"
Red LED for "latching shutdown"
LED green for "24 V O.K."
Yellow LED for "overload"
Red LED for "latching shutdown"
Signaling contact Relay contact (NO contact, rating
60 V DC / 0.3 A) for "12 V O.K."
Relay contact (NO contact, rating
60 V DC / 0.3 A) for "24 V O.K."
Figure 2-5 Operating display and signaling (example 6EP1456-3BA00 / 6EP1437-3BA20)
Signaling
6EP1436-3BA10 (24 V / 20 A)
6EP1456-3BA00 (48 V/10 A)
Green LED ⑤lit
Signaling contact ③,
contacts 13-14 closed
Normal operation,
output voltage > 20.5 V
Normal operation, output voltage > 41 V
LED
⑤
off
Signaling contact ③,
contacts 13-14 open
(quiescent position)
No supply voltage No supply voltage

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 13
Signaling
6EP1436-3BA10 (24 V / 20 A)
6EP1456-3BA00 (48 V/10 A)
Yellow LED
⑤
lit
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Overload, output voltage < 20.5 V
(only in "constant current" mode)
Overload, output voltage < 41 V
(only in "constant current" mode)
Yellow and green LED lights
Signaling contact ③,
contacts 13-14 closed
Phase failure, output voltage O.K. Phase failure, output voltage O.K.
Red LED ④lit
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Latching shutdown
(only in "Shutdown" mode)
Latching shutdown
(only in "Shutdown" mode)
Red LED
④
flashes
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Overtemperature → power OFF/ON after
3 min
Overtemperature → power OFF/ON after
3 min
Signaling
6EP1424-3BA00
(12 V / 20 A)
6EP1436-3BA20
(24 V / 17 A)
6EP1437-3BA20
(24 V / 30 A)
Green LED ⑤lit
Signaling contact ③,
contacts 13-14 closed
Normal operation
Output voltage > 10.0 V
Normal operation, output
voltage > 20.5 V
Normal operation, output
voltage > 20.5 V
LED
⑤
off
Signaling contact ③,
contacts 13-14 open
(quiescent position)
No supply voltage No supply voltage No supply voltage
Yellow LED
⑤
lit
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Overload, output voltage
< 10.0 V (only in "constant
current")
Overload, output voltage
< 20.5 V (only in "constant
current" mode)
Overload, output voltage
< 20.5 V (only in "constant
current" mode)
Yellow and green LED lights
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Phase failure, output voltage
O.K.
Phase failure, output voltage
O.K.
-

Description, device design, dimension drawing
2.4 Status displays and signaling
SITOP PSU300M/300B
14 Manual, 11.2014, C98130-A7574-A2-2-7629
Signaling
6EP1424-3BA00
(12 V / 20 A)
6EP1436-3BA20
(24 V / 17 A)
6EP1437-3BA20
(24 V / 30 A)
Red LED
④
lit
Signaling contact ③,
contacts 13-14 open
(quiescent position)
Latching shutdown (only in
"Shutdown" mode)
Latching shutdown (only in
"Shutdown" mode)
Latching shutdown (only in
"Shutdown" mode)
Red LED ④flashes
Signaling contact ③,
contacts 13-14 closed
Overtemperature → power
OFF/ON after 3 minutes
Overtemperature → power
OFF/ON after 3 minutes
Overtemperature → power
OFF/ON after 3 minutes

Description, device design, dimension drawing
2.5 Change-over switch
SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 15
2.5
Change-over switch

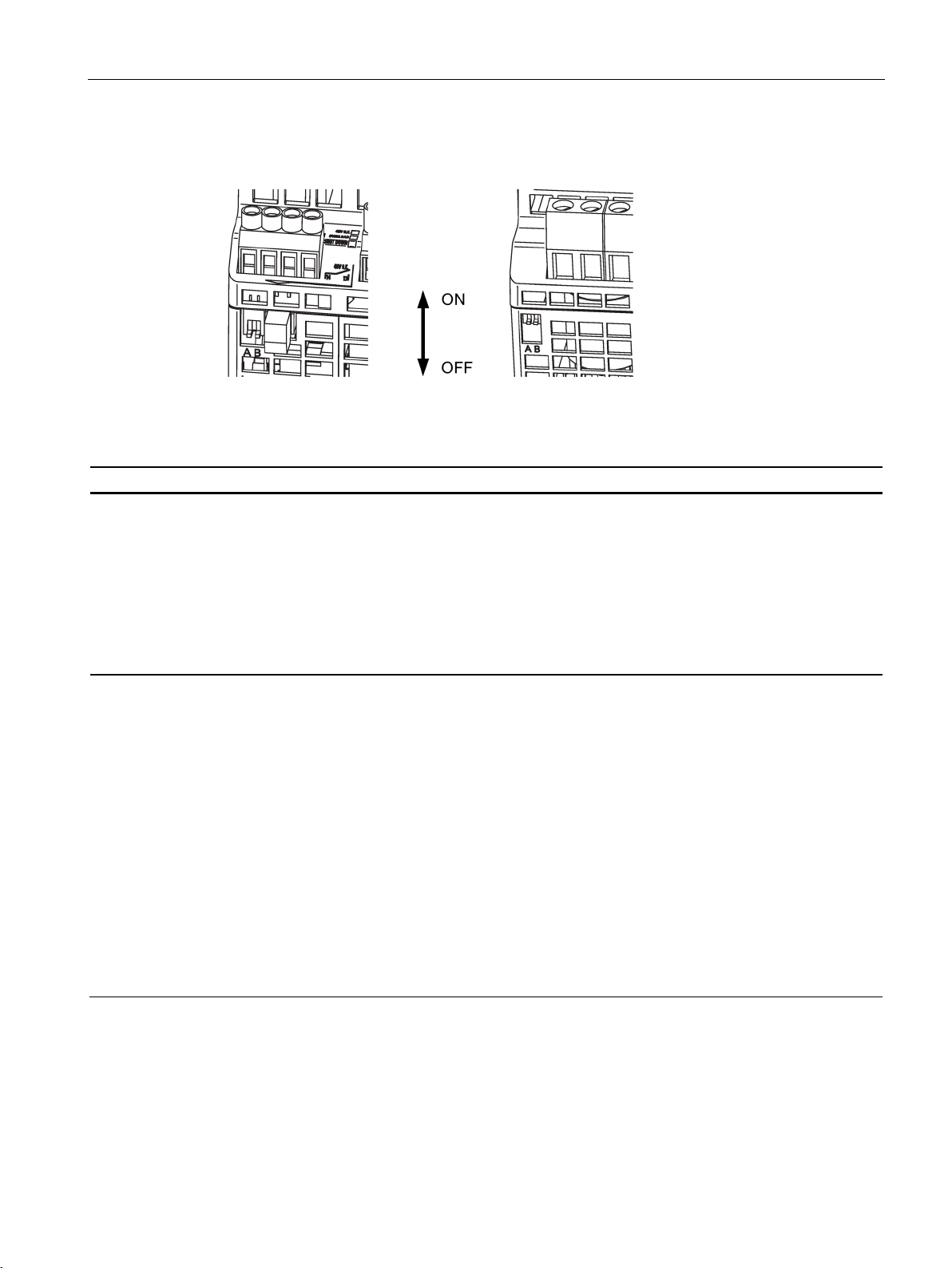

Figure 2-6 Selector switch (example 6EP1456-3BA00 / 6EP1437-3BA20)
The two switches A and B are used to influence the output characteristic curve:
Switch
ON
OFF
A
influences the output
characteristic
in the load range
Parallel operation:
'Soft' characteristic curve (see, e.g. Figure 6-8
6EP1436-3BA10 parallel operation output char-
acteristic curve (Page 46)) for the parallel oper-
ation of two or more devices: The output
voltage falls with increasing output current
(namely, also for the overcurrent pulse!).
This means that for full output current the high-
est output voltage can normally no longer be
attained.
Single operation:
Delivery state
'Hard' characteristic curve (see, e.g. Figure 6-3
6EP1436-3BA10 single operation output char-
acteristic curve (Page 44)) for normal operation
(single operation): The output voltage is inde-
pendent of the output current.
B
influences the output
characteristic
in the overload range
Latching shutdown:
If the output current rises above the rated value
and above the current limit, the device reduces
the output voltage (see, e.g. Figure 6-13
6EP1436-3BA10 latching shutdown output
characteristic curve (Page 48)). If the output
voltage falls below (10 V), (20 V), (40 V), the
device shuts down latching, the red LED lights.
This limit voltage of (10 V), (20 V), (40 V) is
independent of the set output voltage. The
'Short-time overload current' feature is not
available in this operating mode. In order to
also be able to charge large capacitances in
this operating mode at the output, non-latching
shutdown is performed during the first ten sec-
onds after power on. During these first 10 s, the
device responds for overload as if the switch is
OFF.
Constant current:
Delivery state
If the output current rises above the rated value
and above the current limit, the device reduces
the output voltage. The yellow LED lights if the
output voltage falls below
(10 V), (20 V), (40 V).
Delivery state: A-OFF; B-OFF

Description, device design, dimension drawing
2.6 Block diagram
SITOP PSU300M/300B
16 Manual, 11.2014, C98130-A7574-A2-2-7629
2.6
Block diagram
Figure 2-7 Block diagram

Description, device design, dimension drawing
2.7 Dimensions and weight
SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 17
2.7
Dimensions and weight
Figure 2-8 6EP1424-3BA00, 6EP1436-3BA20, 6EP1436-3BA10, 6EP1456-3BA00 dimensioned
drawing
Figure 2-9 Dimension drawing 6EP1437-3BA20
6EP1424-3BA00 (12 V / 20 A)
6EP1436-3BA20 (24 V / 17 A)
6EP1436-3BA10 (24 V / 20 A)
6EP1456-3BA00 (48 V / 10 A)
6EP1437-3BA20 (24 V / 30 A)
Dimensions (W × H × D) in mm
70 × 125 × 125
150 × 125 × 150
Weight
approx. 1.2 kg
approx. 3.4 kg

Description, device design, dimension drawing
2.7 Dimensions and weight
SITOP PSU300M/300B
18 Manual, 11.2014, C98130-A7574-A2-2-7629

SITOP PSU300M/300B
Manual, 11.2014, C98130-A7574-A2-2-7629 19
Mounting/disassembly
3
WARNING
Installing the device in a housing or a control cabinet
The SITOP PSU300M/300B power supply is a built-in device. It must be installed in a
housing or control cabinet, to which only qualified personnel have access.
The device can be mounted in a control cabinet on standard mounting rails according to
EN 60715.
Mounting
To mount the device, position it with the mounting rail guide at the upper edge of the
standard mounting rail and press down to lock it into place. If this is too difficult, press slider
①at the same time, as described under "Removal".
Removal
To remove, pull up the slider ①using a screwdriver ②and disengage the device at the
bottom edge of the standard mounting rail. Then you can remove the device from the upper
edge of the standard mounting rail.
Figure 3-1 Mounting/removal (example 6EP1456-3BA00)

Mounting/disassembly
SITOP PSU300M/300B
20 Manual, 11.2014, C98130-A7574-A2-2-7629
WARNING
Use in hazardous zones
If the devices are to be used in hazardous zones (Ex II 3G Ex nA nC IIC T4) they must be
installed in a distribution box with degree of protection IP54 or higher.
