SITOP Power Supplies
SITOP PSU8600
Firmware V1.4: Faceplates and
Communication Blocks V2.4 for
SIMATIC STEP 7 V14 SP1, V15
and V15.1 (TIA)
Function Manual
11.2018
A5E37763954
-09-76
Warranty and liability
1
Preface
2
Overview of the library
3
Hardware and software
requirements
4
SIMATIC STEP 7 function
blocks
5
WinCC Faceplates
6
Working with the library
7

Siemens AG
Division
Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E37763954-09-76
Ⓟ
11/2018 Subject to change
Copyright © Siemens AG 2018.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 3
Table of contents
1 Warranty and liability............................................................................................................................... 5
1.1 Security information ..................................................................................................................6
2 Preface ................................................................................................................................................... 7
3 Overview of the library ............................................................................................................................ 9
4 Hardware and software requirements.................................................................................................... 13
5 SIMATIC STEP 7 function blocks.......................................................................................................... 15
5.1 Introduction .............................................................................................................................15

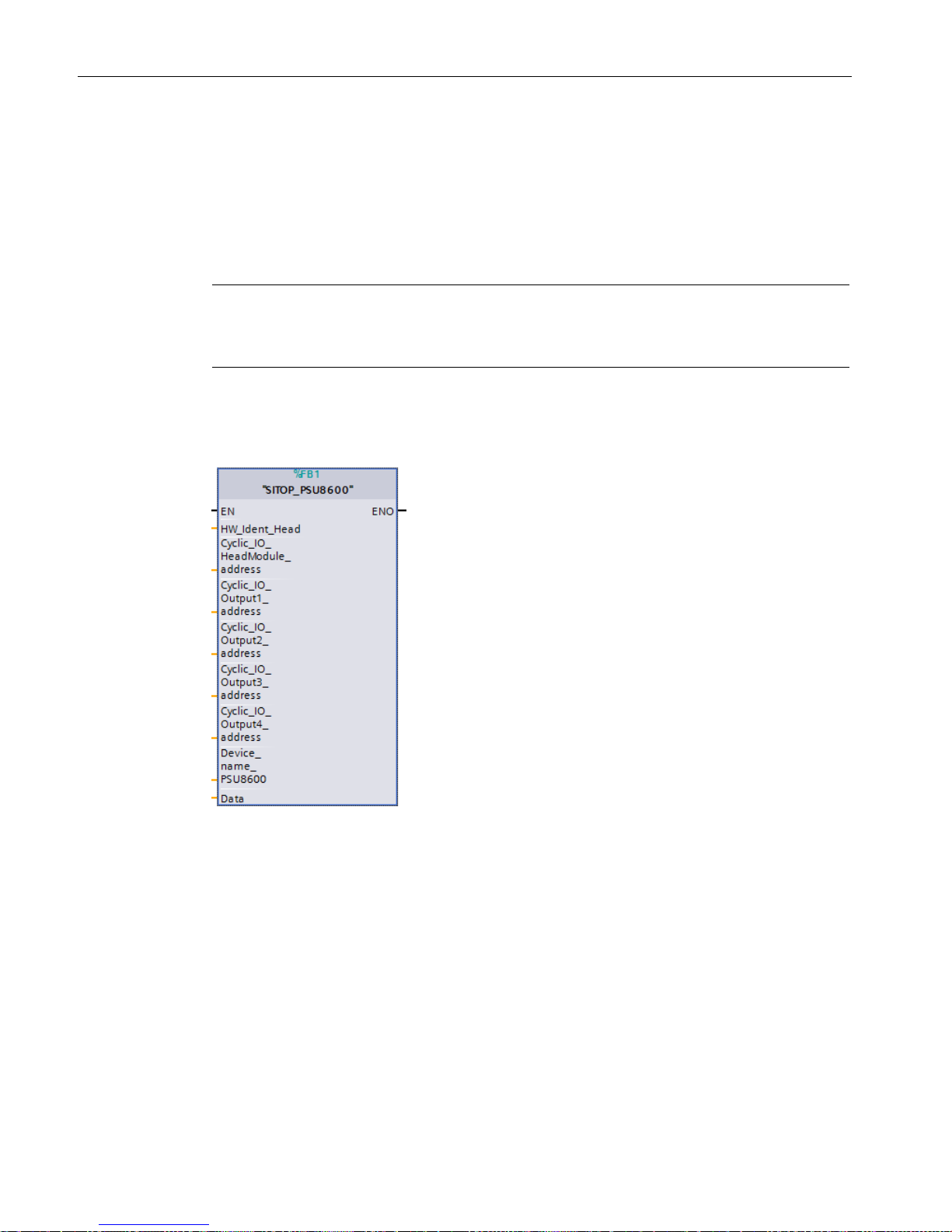

5.2 FB SITOP_PSU8600/SITOP_PSU8600_1 .............................................................................16

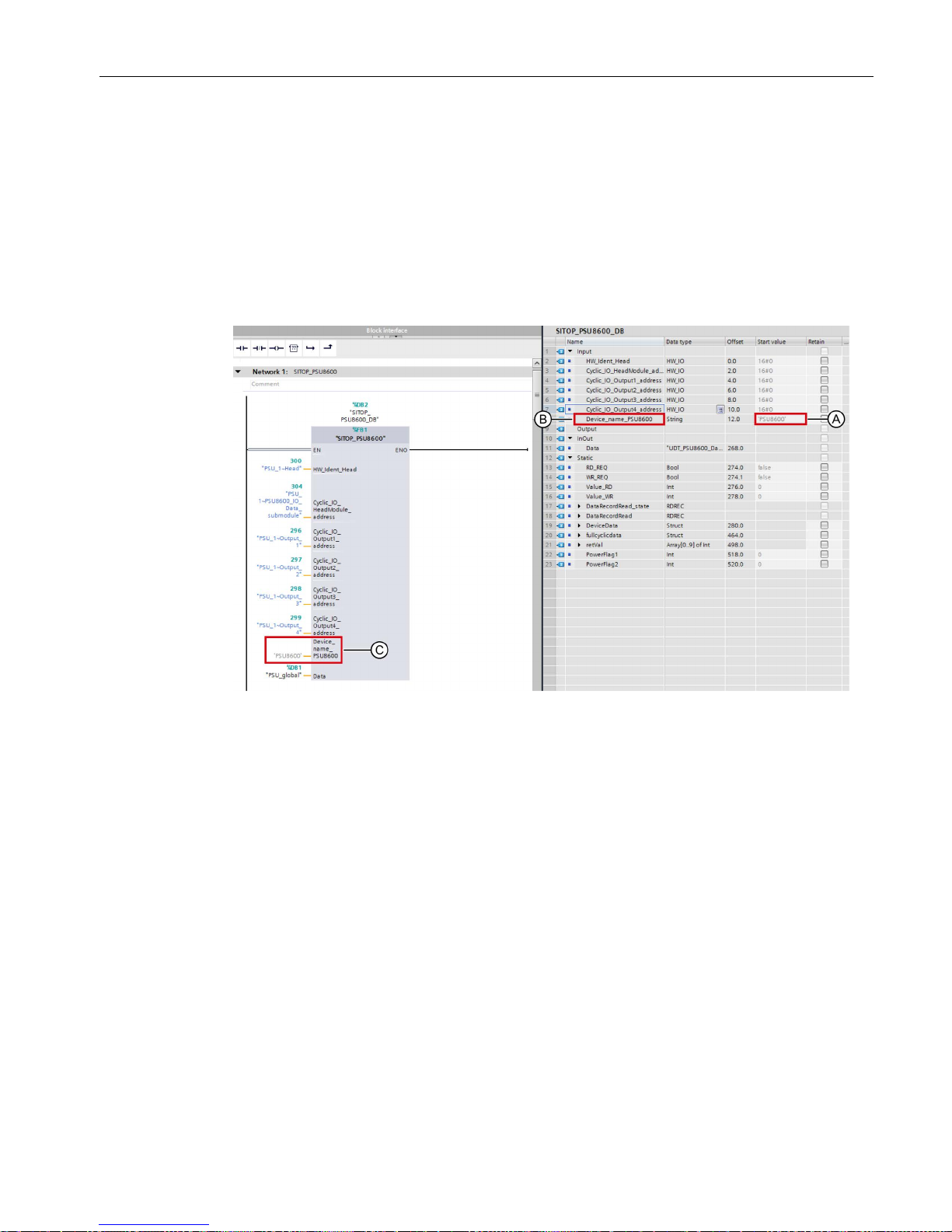

5.2.1 Naming the PSU8600 device for S7-300/400.........................................................................19
5.2.2 Data type HW_IO for S7-300/400 ...........................................................................................20
5.3 FB SITOP_CNX8600 ..............................................................................................................22
5.4 FB SITOP_CNX8600_8X........................................................................................................25
5.5 FB SITOP_BUF8600_MS .......................................................................................................28
5.6 FB SITOP_PSU8600_MainUnit ..............................................................................................31
5.7 FB SITOP_PSU8600_Output..................................................................................................37
5.8 FB SITOP_PSU8600_S/SITOP_PSU8600_S1.......................................................................42
5.9 FB SITOP_BUF8600_S ..........................................................................................................45
5.10 FB SITOP_PSU8600_MainUnitSingle ....................................................................................48
5.11 FB SITOP_PSU8600_Buffering ..............................................................................................54
5.12 FB SITOP_UPS8600 ..............................................................................................................58
5.13 FB SITOP_PSU8600_Buffering_1 ..........................................................................................63
5.14 FB SITOP_BAT_3P.................................................................................................................68
5.15 FB SITOP_BAT8600...............................................................................................................72
5.16 UDT_PSU8600_Data ..............................................................................................................75
6 WinCC Faceplates ................................................................................................................................ 77
6.1 Introduction .............................................................................................................................77
6.2 View: State, main module .......................................................................................................79
6.3 View: State, UPS8600 ............................................................................................................81
6.4 View: State, expansion modules.............................................................................................88
6.5 View: State, buffer modules....................................................................................................91
6.6 View: State, Information..........................................................................................................93
6.7 View: Trends, main module ....................................................................................................94

Table of contents
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
4Function Manual, 11.2018, A5E37763954-09-76
6.8 View: Trends, expansion modules......................................................................................... 95
6.9 View: Trends, UPS8600......................................................................................................... 97
6.10 View: Alarms .......................................................................................................................... 98
7 Working with the library......................................................................................................................... 99
7.1 Opening the library in TIA Portal............................................................................................ 99
7.2 SIMATIC STEP 7 ................................................................................................................. 101
7.2.1 Integrating the library blocks into SIMATIC STEP 7............................................................ 101
7.2.2 Calling up blocks .................................................................................................................. 106
7.3 WinCC Comfort/Advanced................................................................................................... 112
7.3.1 Inserting faceplates into a WinCC project............................................................................ 112
7.3.2 Creating a connection to the data block for global data exchange...................................... 116
7.3.3 Connecting the trends of the faceplate with data sources................................................... 118
7.3.4 Configuring alarms displays................................................................................................. 122
7.4 WinCC Professional............................................................................................................. 127
7.4.1 System requirements ........................................................................................................... 127
7.4.2 Inserting HMI tag table in WinCC......................................................................................... 128
7.4.3 Inserting screen in a WinCC project .................................................................................... 131

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 5
Warranty and liability
1
Note
The
application examples are not binding and do not claim to be complete with regard to
configuration, equipment or any contingencies. The application examples do not represent
customer
-specific solutions. They are only intended to provide support for typical
applications, you are responsible for the correct operation of the described products. These
application examples do not relieve you from responsibilities of using, installing, operating
and servicing the equipment safely and professionally. When using the
se application
examples, you recognize that we are not liable for any damage/claims beyond the liability
clauses described.
We reserve the right to make changes to these application examples at any time and without
prior notice. If there are any deviations
in the recommendations provided in this application
example and other Siemens publications, for example catalogs, the contents of the other
documents shall have priority.
We do not accept any liability for the information contained in this document. Any claims
against us – based on whatever legal reason – resulting from the use of the examples,
information, programs, engineering and performance data etc., described in this application
example shall be excluded. Such an exclusion shall not apply in the case of mandatory
liability, for example under the German Product Liability Act ("Produkthaftungsgesetz"), in
case of intent, gross negligence, or injury of life, body or health, guarantee for the quality of a
product, fraudulent concealment of a deficiency or breach of fundamental contractual
obligations ("wesentliche Vertragspflichten").
The compensation for damages due to a breach of a fundamental contractual obligation is,
however, limited to the foreseeable damage, typical for the type of contract, except in the
event of intent or gross negligence or injury to life, body or health. The above provisions do
not imply a change of the burden of proof to your detriment. Any form of duplication or
distribution of these application examples or excerpts hereof is prohibited without the
expressed consent of Siemens AG.

Warranty and liability
1.1 Security information
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
6Function Manual, 11.2018, A5E37763954-09-76
1.1
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines, and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions only form one element of such a concept.
Customer is responsible to prevent unauthorized access to its plants, systems, machines
and networks. Systems, machines and components should only be connected to the
enterprise network or the internet if and to the extent necessary and with appropriate security
measures (e.g. use of firewalls and network segmentation) in place.
Additionally, Siemens’ guidance on appropriate security measures should be taken into
account. You can find more information about industrial security by visiting:
https://www.siemens.com/industrialsecurity.
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends you apply product updates as soon as available and
always use the latest product versions. Use of product versions that are no longer supported,
and failure to apply latest updates may increase customer’s exposure to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under
https://www.siemens.com/industrialsecurity.

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 7
Preface
2
Purpose of this documentation
This document describes the PSU8600 TIA Portal Block Library. The block library provides
tested code with clearly defined interfaces. You can use it as the basis for the task you wish
to realize.
The main focus of this document is to describe:
●All blocks pertaining to the block library
●The functionality implemented through these blocks
The documentation furthermore illustrates the possible applications of the library, and step-
by-step instructions to help you integrate the library into your SIMATIC STEP 7 project.
Note
In this document, the function blocks for
S7-1200/1500 are described. Any deviations in the
function blocks for S7
-300/400 will be pointed out where applicable.
Note
Difference between TIA V14 SP1, TIA V15 and TIA V15.1
In this document, working with function blocks in TIA V14 SP1, TIA V15 an
d TIA V15.1 is
described keeping TIA V15.1 Portal as reference. To work with TIA V14 SP1 you need to
import library package "PSU8600_Library_V14_SP1_V2
-4" block library, to work with TIA
V15 you need to open library package "PSU8600_Library_V15_V2
-4" block library and to
work with TIA V15.1 you need to open library package "PSU8600_Library_V15
-1_V2-4"
block library.
References
For more information on SITOP manuals and documentation, refer to the following links:
●Siemens Industry Online Support (https://support.industry.siemens.com)
●SITOP PSU8600: Faceplates and Communication Bocks (TIA Portal, STEP 7 and
WinCC) (https://support.industry.siemens.com/cs/ww/en/view/102379345)
●SITOP PSU8600 Power Supply System Manual: Basic devices with four outputs
(https://support.industry.siemens.com/cs/ww/en/view/105867947)
●SITOP PSU8600 Power Supply System Manual: Basic devices with one output
(https://support.industry.siemens.com/cs/ww/en/view/109482936)

Preface
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
8Function Manual, 11.2018, A5E37763954-09-76

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 9
Overview of the library
3
Introduction
SITOP PSU8600 allows you to integrate the power supply into your automation network.
In the PROFINET network, SITOP PSU8600 behaves as an Input/Output (I/O) device.
Controllers and Human Machine Interface (HMI) systems can communicate with SITOP and
exchange data.

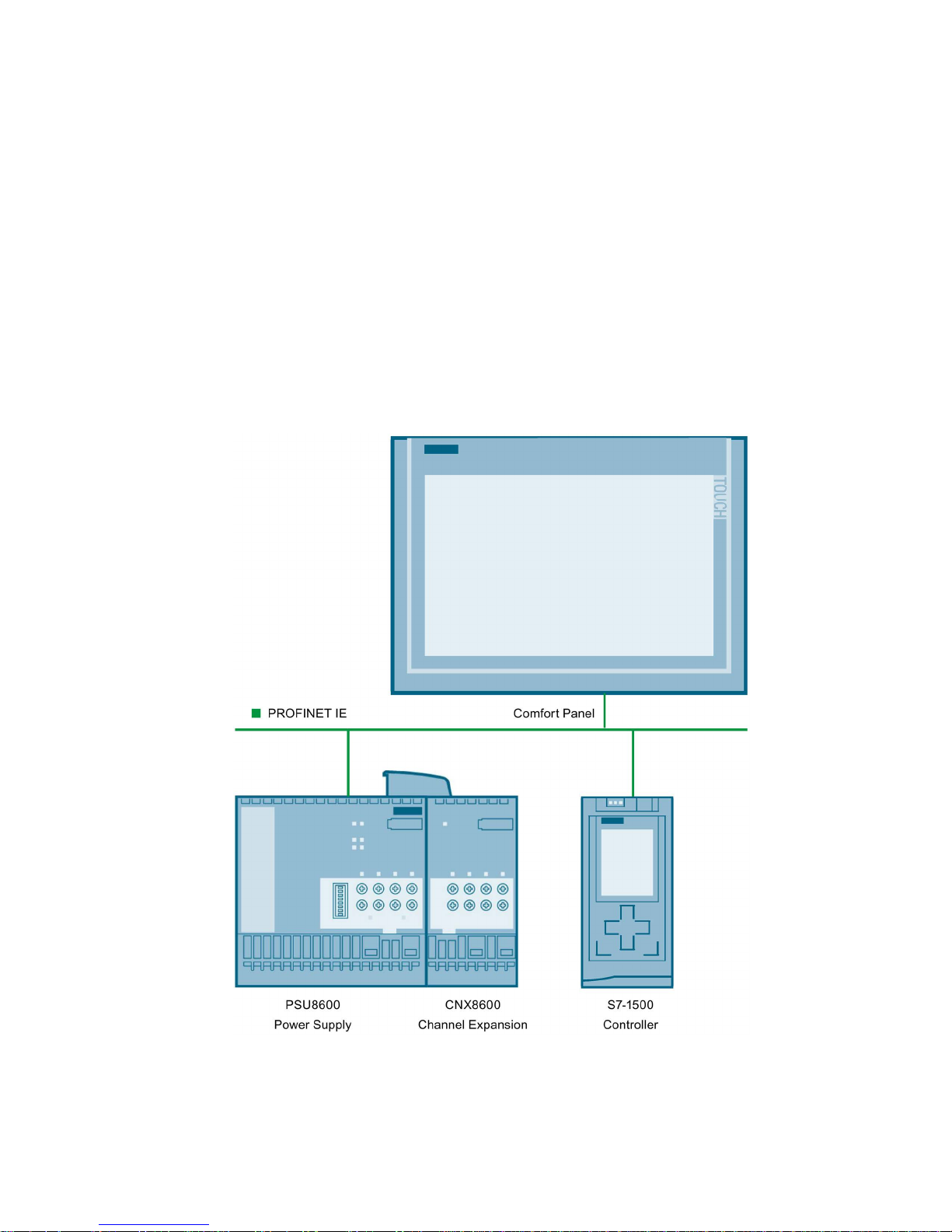

Example with S7-1500 and Comfort Panel
Figure 3-1

Overview of the library
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
10 Function Manual, 11.2018, A5E37763954-09-76
Scope of the library
The library is basically divided into two parts: SIMATIC STEP 7 and WinCC. Each of the
parts contains individual library elements for the respective control and HMI system.
Figure 3-2

Overview of the library
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 11
Possible field(s) of application for the library
●State and diagnostics of SITOP at the HMI system
●Interaction of the automation process with the power supply, for example, setting the
voltage (4 to 28 V, for a DC drive) or switching an output (in shift pauses).
Scope of validity of the library
●SIMATIC STEP 7 V15.1, V15 and V14 SP1
●WinCC V15.1, V15 and V14 SP1

Overview of the library
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
12 Function Manual, 11.2018, A5E37763954-09-76

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 13
Hardware and software requirements
4
Hardware requirements
Table 4- 1
Component
Article number
No. of compo-
nents required
Alternative
S7-1516
6ES7516-3AN00-0AB0
1
Other S7-1200 or S7-1500
Comfort Panel TP1200
Comfort
6AV2124-0MC01-0AX0 1 Other Comfort Panels
SITOP PSU8600 6EP3437-8MB00-2CY0 1 Alternatively, you can also use:
6EP3436-8MB00-2CY0
6EP3436-8SB00-2AY0
6EP3437-8MB00-2CY0
6EP3437-8SB00-2AY0
SITOP CNX8600 6EP4437-8XB00-0CY0 4 Optional
Alternatively, you can also use:
SITOP CNX8600 (4 x 5 A).
6EP4436-8XB00-0CY0
SITOP CNX8600 (8 x 2.5 A).
6EP4436-8XB00-0DY0
SITOP BUF8600
(100 ms/40 A)
6EP4297-8HB00-0XY0 2 Optional
Alternatively, you can also use
SITOP BUF8600
(300 ms/40 A).
(6EP4297-8HB10-0XY0) or
SITOP BUF8600 (4 s/40 A).
(6EP4293-8HB00-0XY0) or
SITOP BUF8600 (10 s/40 A).
(6EP4295-8HB00-0XY0).
SITOP UPS8600 6EP4197-8AB00-0XY0 2 Either two BUF8600 only or two
UPS8600 only or one BUF8600
and one UPS8600 can be add-
ed to PSU8600.
SITOP BAT8600
LiFePO4
6EP4143-8JB00-0XY0 5 Five BAT8600 LiFePO4 can be
added to UPS8600. Alternative-
ly you can use BAT8600 Pb
battery. All the batteries
plugged should be of the same
type.
Third-party battery 1 Only one battery can be con-
nected to UPS8600.

Hardware and software requirements
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
14 Function Manual, 11.2018, A5E37763954-09-76
Software requirements
Table 4- 2
Component
Article number
Number
WinCC Comfort (for configuring Comfort
Panels)
6AV2101-0AA03-0AA5 Depending on the required
target system.
WinCC Advanced (for configuring WinCC
Runtime Advanced)
WinCC Runtime Advanced
6AV2102-0AA03-0AA5
6AV2104- ... 3-0
WinCC Professional (for configuring WinCC
Runtime Professional)
WinCC Runtime Professional
6AV2105- ... 3-0
SIMATIC STEP 7 V15.1/V15 and V14 SP1
6ES7822-1...03-...

SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 15
SIMATIC STEP 7 function blocks
5
5.1
Introduction
Variants
The library contains two variants of the Function Blocks (FB) and User Data Types (UDT) for
the following controllers:
●S7-1200/1500
●S7-300/400
The function blocks and UDTs have the same tasks and are almost identical.
Occupancy of the individual blocks
Table 5- 1
Block
Symbol
Size of Load/Work-Memory
Firmware Version
Compatibility
FB SITOP_PSU8600 61.362/4.269 KB 1.1-1.3
FB
SITOP_CNX8600
31.635/2.591 KB
1.1-1.4
FB
SITOP_CNX8600_8X
27.936/2.254 KB
1.3-1.4
FB
SITOP_BUF8600_MS
11.350/0.280 KB
1.1-1.4
FB
SITOP_PSU8600_MainUnit
26.096/0.764 KB
1.1-1.4
FB
SITOP_PSU8600_Output
30.352/1.325 KB
1.1-1.4
FB
SITOP_PSU8600_S
54.951/3.924 KB
1.1-1.3
FB
SITOP_BUF8600_S
13.540/0.466 KB
1.1-1.4
FB
SITOP_PSU8600_MainUnitSingle
24.282/0.756 KB
1.1-1.4
FB
SITOP_PSU8600_Buffering
24.468/0.828 KB
1.1-1.3
UDT
UDT_PSU8600_Data
5.048/1.418 KB
1.1-1.4
FB
SITOP_UPS8600
30/1.86 KB
1.4
FB
SITOP_BAT8600
17.4/0.7 KB
1.4
FB
SITOP_BAT_3P
13.26/0.35 KB
1.4
FB
SITOP_PSU8600_1
61.479/4.269 KB
1.4
FB
SITOP_PSU8600_S1
61.464/4.269 KB
1.4
FB
SITOP_PSU8600_Buffering_1
26.538/0.908 KB
1.4

SIMATIC STEP 7 function blocks
5.2 FB SITOP_PSU8600/SITOP_PSU8600_1
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
16 Function Manual, 11.2018, A5E37763954-09-76
5.2
FB SITOP_PSU8600/SITOP_PSU8600_1
Function principle
The block reads data from the SITOP PSU8600 main module (power supply with 4 outputs)
and writes it to the global transfer data block.
Note
SITOP_PSU8600 is compatible with
Firmware version 1.1 - 1.3.
SITOP_PSU8600_1 is compatible with Firmware version 1.4.
Block diagram
Figure 5-1

SIMATIC STEP 7 function blocks
5.2 FB SITOP_PSU8600/SITOP_PSU8600_1
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 17
Function characteristics
Figure 5-2
Input parameters
Table 5- 2
Parameter
Data type
Description
HW_Ident_Head
HW_IO Start address of the entire main module.
(Reference, system tag: here, "PSU_1" refers to
the assigned PROFINET device name of the PSU
main module)
Cyclic_IO_HeadModule_address
HW_IO Address of the main module IO data submodule.
(Reference, system tag: <PSU Device
Name>~PSU8600_IO_Data_submodule. For ex-
ample: PSU_1~PSU8600_IO_Data_submodule)
Cyclic_IO_Output1_address
HW_IO Start address of main module output 1.
(Reference, system tag: "Output_1". For example:
PSU_1~Output_1)
Cyclic_IO_Output2_address
HW_IO Start address of main module output 2.
(Reference, system tag: "Output_2")
Cyclic_IO_Output3_address
HW_IO Start address of main module output 3.
(Reference, system tag: "Output_3")
Cyclic_IO_Output4_address
HW_IO Start address of main module output 4.
(Reference, system tag: "Output_4")
Device_name_PSU8600
String Device names of SITOP PSU8600. (String with
maximum of 30 characters. Enter PSU name to be
displayed in the HMI in plain text. For example:
PSU8600)

SIMATIC STEP 7 function blocks
5.2 FB SITOP_PSU8600/SITOP_PSU8600_1
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
18 Function Manual, 11.2018, A5E37763954-09-76
Note
For S7-300/400
•
The procedure for naming the device is slightly different from S7-1200/1500.
•
The data type HW_IO is not used in S7-300/400.
For more details, refer to the sections
Device_name_PSU8600 (Page 19)
and
Data type
HW_IO
(Page 20).
Input/Output parameters
Table 5- 3
Parameter
Data type
Description
Data
UDT_PSU8600_Data DB for global data exchange.
DB must follow the UDT structure.
Note
The DB attribute "Optimized block access" must be unchecked. To do this, right click on the
global DB in your project in the "Project tree" window and select "Properties". Navigate to
"General >
Attributes", clear the "Optimized block access" check box.
(Reference, symbolic name of the DB for global data exchange)
Note
For S7-300/400
For S7
-1200/1500 controller, it is sufficient to drag the appropriate DB onto the parameter.
For S7
-300/400 controllers, the procedure may change.
1.
In the "Cyclic interrupt" window, click on the Data IO parameter field for manual
specification entry.
2.
Select the symbolic name of your data block. A list of global DB contents is displayed.
3.
Select "UDT_PSU8600_Data" data type.

SIMATIC STEP 7 function blocks
5.2 FB SITOP_PSU8600/SITOP_PSU8600_1
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
Function Manual, 11.2018, A5E37763954-09-76 19
5.2.1
Naming the PSU8600 device for S7-300/400
Device_name_PSU8600
The device name of SITOP PSU8600 must be entered in the instance data block of
FB SITOP_PSU8600 as a start value (A) of input parameter Device_name_PSU8600 (B).
Use the address of the input parameter as the address for the device name at
FB SITOP_PSU8600 (C).
Figure 5-3

SIMATIC STEP 7 function blocks
5.2 FB SITOP_PSU8600/SITOP_PSU8600_1
SITOP PSU8600 Firmware V1.4: Faceplates and Communication Blocks V2.4 for SIMATIC STEP 7 V14 SP1, V15 and V15.1 (TIA)
20 Function Manual, 11.2018, A5E37763954-09-76
5.2.2
Data type HW_IO for S7-300/400
Data type HW_IO
The data type HW_IO
does not exist in S7-300/400 systems. Data type Word is used here.
The addresses are available in the Hardware (HW) configuration of the respective modules.

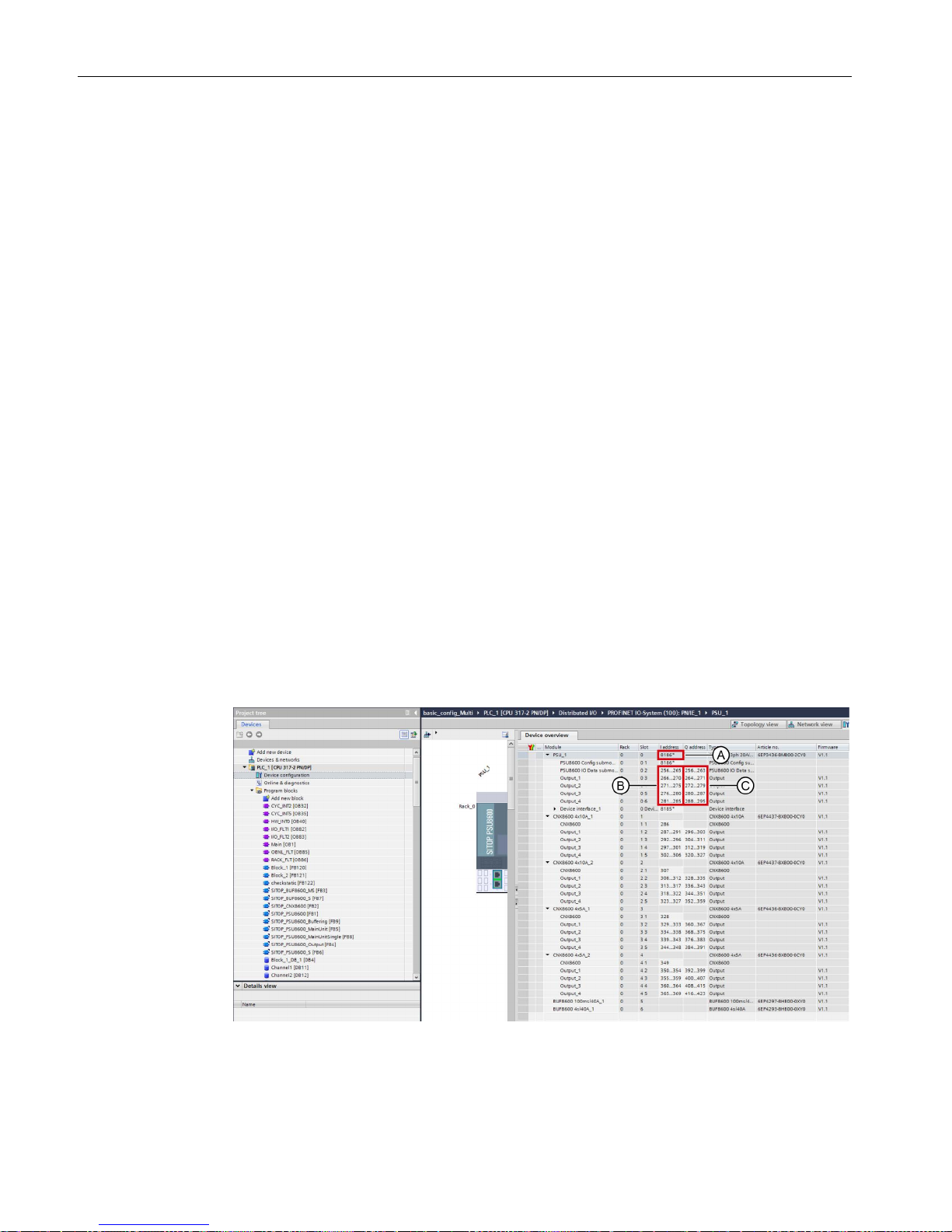

1. In the "Device configuration", click "Device view > Device overview" tab.
2. Note down the start address of the SITOP main module (A).
3. Note down the start address of the I/O area of the individual outputs. Skip the PROFINET
interface of the main module (B).
The following addresses for the individual outputs (B and C) are displayed on the screen.
–Main module, start address (A): "8186"
–Main module cyclic Input address(B): "256"
–Cyclic Input address/HW identification address(B) for Output 1, "266"
–Cyclic Input address/HW identification address(B) for Output 2, "271"
–Cyclic Input address/HW identification address(B) for Output 3, "276"
–Cyclic Input address/HW identification address(B) for Output 4, "281"
–Main module Cyclic Output address: "256"
–Cyclic Output address for Output 1, "264"
–Cyclic Output address for Output 2, "272"
–Cyclic Output address for Output 3, "280"
–Cyclic Output address for Output 4, "288"
Figure 5-4
