Installation Instructions
Models OP121/OH121
Photoelectric Smoke Detector and Photo
Smoke/Thermal Detector

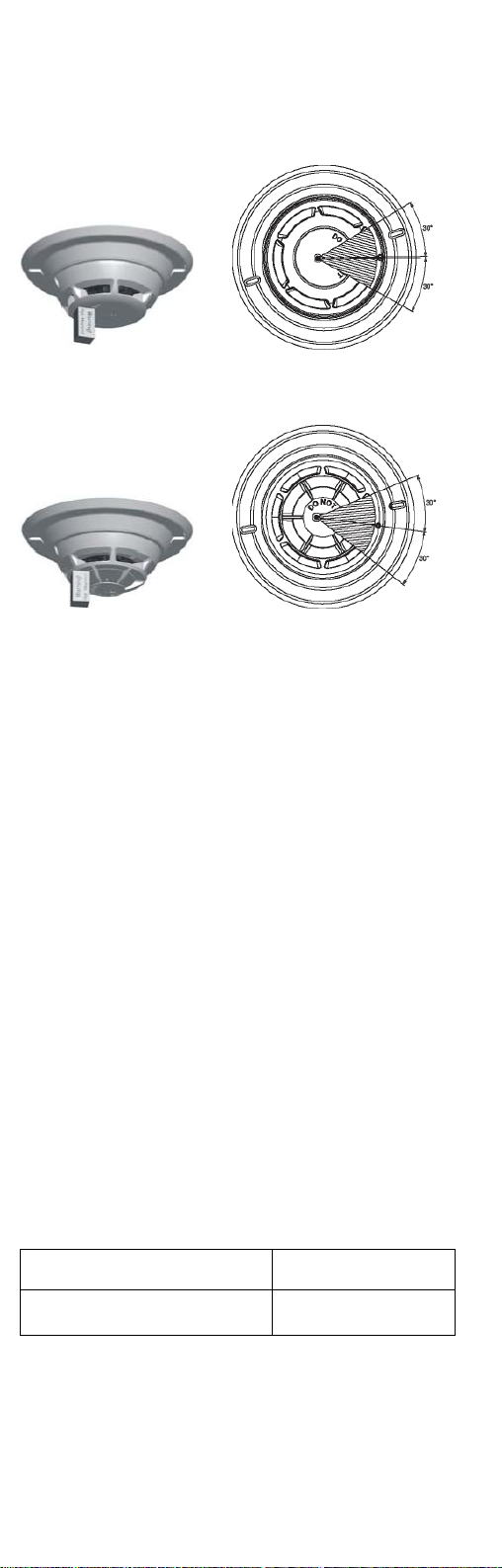

Figure 1 OP121 Photoelectric Figure 2 OH121 Photo Smoke
Smoke Detector Thermal Detector
These instructions are written in accordance with the
installation guidelines of NFPA No. 72, National Fire Alarm
Code, and CAN/ULC-S524, The Installation of Fire Alarm
Systems.
DETECTOR PLACEMENT
For a clear air, 0 to 4000 ft/min velocity application, use 30
foot center spacing (900 sq ft) from NFPA Standard 72
initiating devices chapter and CAN/ULC-S524 as a starting
point for a detector installation layout. This spacing, however,
is based on ideal conditions – smooth ceiling, no air
movement, and no physical obstructions. In some
applications, considerably less area is protected adequately
by each smoke detector. In all installations, place the
detector on the ceiling, a minimum of 6 inches from a side
wall, or on a wall, 6 inches from the ceiling.
Follow the drawings provided or approved by Siemens
Industry, Inc. or by its authorized distributors. See NFPA 72,
National Fire Alarm Code, initiating devices chapter for
additional guidance on special issues such as beamed
construction and high stockpiling.
TO AVOID NUISANCE ALARMS:
DO NOT locate the OP121/OH121 detector where
excessive smoke concentrations exist under normal
conditions, or in areas of prolonged high relative humidity
where condensation occurs.
DO NOT locate the OP121/OH121 detector next to an oil
burner, kitchen, or garage where exhaust fumes can trigger
an alarm. Other causes of false alarms are dust
accumulation, heavy concentrations of steam, heavy pipe
or cigar smoke, and certain aerosol sprays.
AIR CURRENTS
Before a detector can sense a fire, the products of com-
bustion or smoke must travel from the fire to the detector.
Since their travel is especially influenced by air currents,
consider the movement of air in the design of the system.
While combustion products tend to rise, drafts from hallways,
air diffusers, fans, etc., may help or hinder the travel of
combustion products to the detector. When positioning a
detector at a particular location, give consideration to
windows and doors, both open and closed, and to influencing
air movement. Never install a detector in the air stream of a
room air supply diffuser. It is better to position a detector
closer to an air return.
A6V10281367_b_en--
SPECIFICATIONS
Environmental
Operating Temperature (Model OP121): 320F (00C) to 1200F
(490C)
Operating Temperature (Model OH121): 320F (00C) to 1000F
(380C)
Humidity: Up to 95% RH, non condensing
Air Pressure: No effect
Air Velocity: 0 to 4000 ft/min. For open area protection and direct
air duct application.
Thermal Alarm Temp. (Model OH121): 1350F (570C)
UL listed with STI Mechanical Protection Guard Model: STI-9604
(see www.STI-USA.com for details)
Electrical
Voltage: 16-27 VDC
Ripple: 3V peak-to-peak
Supervisory Current: 100μA max
Alarm Current: 30-50mA
Start-up Time: 30 seconds max
DETECTOR WIRING
The OP121/OH121 should be connected as shown in Figure 3 using
the separate mounting base, Model DB-11. Follow the control panel
wiring connection drawing installed on the inside face of each
control panel cover. See DB-11 instruction, P/N 315-094193, for
base mounting. Duplicate wiring information is also in the
Installation, Operation, and Maintenance Manual provided with
every control panel. Note any limitations on the number of
detectors and restrictions on the use of remote devices
permitted for each circuit.
END OF
LINE
DEVICE
(NOTE
POLARITY
WHEN
APPLICABLE)
1a 1b
1b 1b
5
5
6
6
5
+
DB-1
1/DB-1
1E
[WITH REMOTE DEVICE(S)]
+
-
TO INITIATING
CIRCUIT OF
SIEMENS
INDUSTRY, INC.
CONTROL PANEL
(SEE CAUTION 1)
MULTIPLE REMOTE DEVICES
SEE REMOTE DEVICE INSTRUCTIONS
FOR WIRING DETAILS:
each detector/base may have up to 2 remote devices
with the followin g configurations and restrictions only:
If remote devices are supported by the initiating circuit,
DEVICE
RR-11
RLC-11, RLW-11
RSAC-11, RSAW-11
ADB-11
Device 1
Remote
R R -11
R R -11
R LC - 11 , R LW -11
R LC - 11 , R LW -11
Device 2
Remote
RLC-11, RLW-11
RSAC-11, RSAW-11
RSAC-11, RSAW-11
RLC-11, RLW-11
Restrictions
See Caution 2
See Caution 2
Wire from base to
RSAC-11/RSAW-11
to RL-11
INSTRUCTIONS
INSTALLATION
P/N 315-094924
P/N 315-094925
P/N 315-094926
P/N 315-096162
DB-1
1/DB-1
1E
[NO REMOTE DEVICE]
-

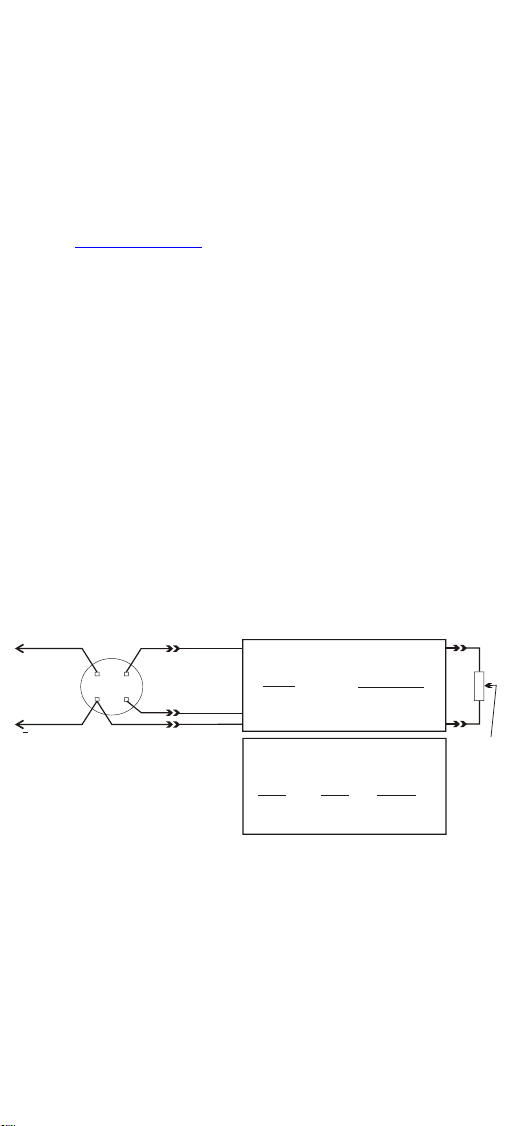

Figure 3 Installations and Wiring Diagram for OP121/OH121
Conventional Detectors
Siemens, Industry, Inc.
Building Technologies Division
WARNING: CONNECT DETECTOR ONLY TO CIRCUITS SPECIFIED IN DETECTOR
AND PANEL
LITERATURE OR SYSTEM MAY NOT OPERATE.
CAUTION:
1. Do not use looped wire under base
terminal 5. Break wire run to provide
supervision of connection.
2. When a remote relay is used to
control a critical system function, the
relay and its associated detector and
optional module(s) must be the ONLY
devices on the initiating circuit.
