Siemens REV23RF16A User manual

CE1N2269en
09.10.2003
Siemens Building Technologies
HVAC Products
2269
REV23RF REV-R.02/16A
REV23RF16A/SET

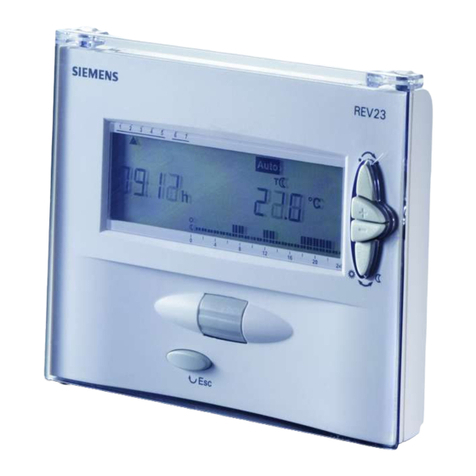

Self-learning Room
Temperature Controller REV23RF
Receiver REV-R.02/16A
Consisting of controller (with integrated radio transmitter) and receiver
(switching unit with relay outputs)
• Mains-independent room temperature controller
• Straightforward, self-explanatory menu selection via roller selector
• Self-learning 2-position controller providing PID mode (patented)
• Choice of operating modes:
Automatic with maximum 3 heating or cooling periods, continuously comfort,
continuously economy, frost protection with one 24-hour operating mode in-
cluding one heating or cooling period
• In automatic mode, one temperature setpoint can be entered for each heating
or cooling period
• Optional control of cooling equipment
• Advantageous for retrofitting and upgrading projects
(wireless room unit)
• Switching capacity of relay: AC24...250 V, 16 (2) A
suited for the control of resistive loads (electrical heating elements)
Use
For control of the room temperature in:
• Apartments, single-family or holiday houses
• Offices, individual rooms, consulting rooms or commercially used spaces

2/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
For control of the following pieces of equipment:
• Solenoid valves of instantaneous water heaters
• Solenoid valves of atmospheric gas burners
• Forced draft gas or oil burners
• Smaller circulating pumps of heating systems, zone valves
• Electrical heating elements
• Thermal actuators
• Cooling and refrigeration equipment
Functions
• Radio signal transmission
• PID control with self-learning or selectable switching cycle
• 2-position control
• Automatic mode with 7-day switching program for 24-hour, working day, weekend or
7-day operation with up to 3 heating or cooling periods per day
• Each heating or cooling period has its own temperature setpoint
• One 24-hour operating mode with one heating or cooling period
• Override button
• Sensor calibration and reset function
• Frost protection or overtemperature protection
• Limitation of the minimum setpoint
• Holiday mode
• Heating or cooling mode
• Periodic pump run
• Optimum start control with the first heating period
Type summary
Radio signal equipment consisting of:
Room temperature controller (transmitter), receiver
(switching unit) and support REV23RF16A/SET
Room temperature controller (transmitter) and support REV23RF
Receiver (switching unit) REV-R.02/16A
Ordering
When ordering, please give the type references according to «Type summary».
The controller / transmitter REV23RF is supplied complete with batteries.
Technical design
Display and
operating elements

3/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Operating elements
Selection of operating mode (see below)
«Warmer» button
«Colder» button
Override button (see below)
Roller selector for the menu, submenu and the settings
Confirm by pressing
Leaving the current menu level and returning to the menu level
previously active (settings currently displayed will be ac-
cepted)
Displays
Time of day
° C
Room temperature
Change batteries (display appears about 3 months before bat-
teries are exhausted)
Holiday mode active
Selection of operating mode (only one operating mode active)
Automatic mode
Comfort mode
Economy mode
Frost protection or overtemperature protection
24-hour mode with one heating or cooling period
(heating or cooling period is automatically generated from the
current 24-hour program)
Temporary change of the current setpoint temperature
(change only active until the next switching point is reached)
° C
Press the + or – button once to display the adjusted tempera-
ture setpoint. It can be readjusted in increments of 0.2 °C (max.
+/- 4 °C)
Override button
In operating modes and , this button can be used to manually switch
from comfort to economy temperature, or vice versa. The selection is automati-
cally reset when the next switching point is reached or when the operating
mode is changed

4/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Menu-driven user settings: 4 main menus are available
Time of day and weekday Main menu Submenu Settings
hCurrent time
Current weekday
Temperature Main menu Submenu Default settings – heating / cooling
T Setpoint of comfort mode 19 °C 23 °C
Setpoint of economy mode 16 °C 29 °C
Setpoint frost or
overtemperature protection 5 °C 35 °C
Setpoint remote operation is
not used with this unit (10 °C) (30 °C)
Time switch Main menu Submenu Settings
Selection of weekday, working day,
weekend or week
Selection of the number of heating
or cooling periods (max. 3 periods
per day)
h
Selection of the heating / cooling period’s start and end time
° C
T
Selection of the heating / cooling period’s temperature setpoint
Absence Main menu Submenu
Entry of holidays or periods of absence. Number
of days with economy mode setting / max. 99
days
Temperature setpoint during absence.
Default setting is 12 °C for heating and 30 °C for
cooling

5/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Menu-driven heating Menu items Settings
CAL Sensor calibration
Setpoint limitation
Optimum start control for the first heating period
(in unit of time per 1 °C)
2-position control
PID mode, self-learning
PID mode, switching cycle 6 or 12 minutes
/Periodic pump run off / on
Heating / cooling mode
In automatic operating modes, the temperature setpoints can be individually adjusted
for every comfort period and for the continuous operating modes. The temperature
setpoint of economy mode is the same in automatic and continuous operation.
In frost or overtemperature protection mode, the room temperature is constantly moni-
tored. If it falls (rises) below (above) the adjusted setpoint, control to the adjusted frost
or overtemperature protection setpoint will be ensured.
The controller generates the 24-hour operating mode from its current 24-hour program.
It automatically selects the switch-on time of the first heating / cooling period and the
switch-off time of the last heating / cooling period to generate and display a complete
heating / cooling period. The comfort setpoint used by the controller is the currently
stored standard setpoint of continuous operating mode . The self-generated 24-hour
operating mode is maintained until another operating mode is selected.
2264Z01
°C
18
20
22
08 10 18 22 h
T
T
Automatically generated 24-hour switching program when 24-hour
24-hour operating mode operating mode is activated
Temperature
setpoints
Protective function
24-hour operating
mode
Example

6/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
The switching program can be used as a 7-day or 24-hour program, depending on
programming. It is also possible to select one of the continuous operating modes
with which the switching program is not used.
With the 7-day program, all individual days, working days (1-5), weekend (6-7), or the
entire week (1-7) can be programmed.
For each heating / cooling period, 3 different switching patterns are available.
There is a choice of 1, 2 or 3 heating / cooling periods. For each heating / cooling pe-
riod, the start time, end time and comfort setpoint are to be entered.
In between heating / cooling periods, it is always the same economy temperature set-
point that is used. This economy temperature setpoint can be adjusted on the tempera-
ture menu.
2261Z02
16
°C
18
20
22
08 10 18 22 h
Heizphase 1
Heizphase 2
The holiday function is to be selected on the user menu. Set the start of the holiday
period (day of departure / /weekday), the duration of the holiday period and
the temperature setpoint ( ). This will enable the controller to maintain the adjusted
temperature for a period of up to 99 days. Every day at midnight, the counter subtracts
one day.
When the holiday period is over, the counter reads 00, and the controller will automati-
cally resume the operating mode selected last.
To be flexible, the REV23RF has no connection facility for remote operation.
Switching times Temperatures in ° C
1st
period
2nd
period
3rd
period
Oper-
ating
mode
Block /
week-
days 1st period 2nd period 3rd period
Auto
1-5
Mo-Fr
6-7
Sa-Su
06:00
07:00
08:00
23:00
11:00 13:00 17:00 22:00
19
19
23
23
20 23 21 23 16
16
29
29
1-7
Mo-Su 00:00 24:00 19 23
1-7
Mo-Su 00:00 24:00 16 29
1-7
Mo-Su 00:00 24:00 5 35
Absence 12 30
Switching program
Example with 2 heating
periods per day
Holiday function
Remote operation
Factory settings

7/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Setpoint limitation
PID mode, self-learning
Optimum start control
Periodic pump run off
Heating active
Heating engineer level
To access the heating engineer level, keep the «Warmer» and «Colder» buttons de-
pressed and simultaneously roll the roller selector away from the display and then to-
ward the display.
If the displayed temperature does not agree with the room temperature effectively
measured, the temperature sensor can be recalibrated (recalibration to be made on the
heating engineer level.)
The displayed temperature can be matched to the effective room temperature in incre-
ments of 0.2 °C (max. ± 2 °C).
Minimum setpoint limitation to 16 °C prevents undesired heat transfer to neighboring
apartments in buildings with several heating zones. The setting is to be made on the
heating engineer menu.
Optimization brings forward the switch-on point of the first heating period such that the
adjusted setpoint will be reached at the required time.
The setting depends on the type of controlled system, that is, on heat transmission
(type of piping system, radiators), building dynamics (building mass, insulation), and
heat output (boiler capacity, flow temperature).
Optimum start control is switched off at
t
T
17
18
19
- 4 - 2
2264D03
16
- 3
1/4h/°C
1/2h/°C
1h/°C
Start
- 2 - 1 - ½ - 1½
- 1 - ½ - ¼ - ¾
Pon
20
°C
- 1 h
h
h
TRx
h
h
h
h
h
h
h
h
h
1st heating period
(slow controlled system)
(medium controlled system)
(fast controlled system)
(no impact)
Optimum start controll Off
T
T Temperature (°C) TRxActual valve of room temperature
t Forward shift of switch-on point (h) Pon Starting point of optimum start control
REV23RF is a 2-position controller providing PID mode. The room temperature is con-
trolled by the cyclic switching of an actuating device.
The controller generates the positioning signals depending on the deviation of the set-
point from the actual value acquired by the built-in temperature sensor.
Factory settings
Heating engineer level
Access
Sensor calibration
CAL
Setpoint limitation
Optimum start control
Example using an actual
room temperature of 18 °C
and a setpoint of 20 °C
Control

8/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
The rate of response to the deviation depends on the selected control algorithm:
The controller is supplied with an active self-learning mode, enabling it to automatically
adapt to the type of controlled system (building construction, type of radiators, size of
the rooms, etc.). After a certain learning period, the controller optimizes its parameters
and then operates with the parameters it has learned.
In exceptional cases, where the self-learning mode may not be ideal, it is possible to
select PID 12, PID 6 or 2-Pt mode:
PID 12 mode Switching cycle of 12 minutes for normal or slow controlled systems
(massive building structures, large spaces, cast-iron radiators, oil
burners).
PID 6 mode Switching cycle of 6 minutes for fast controlled systems (light building
structures, small spaces, plate radiators or convectors, gas burners).
2-Pt mode Pure 2-position control with a switching differential of 0.5 °C (±0.25 °C)
for very difficult controlled systems with considerable outdoor tempera-
ture variations.
Protects the pump against seizing during longer off periods. Periodic pump run is acti-
vated for one minute every 24 hours at midnight. This function can be selected on the
heating engineer menu.
(Caused by the smaller inductive switching load of the relay, we recommend to control
smaller inductive loads only, like smaller pumps.)
Periodic pump run active: / periodic pump run inactive:
The controller is suited for cooling applications.
The function can be selected on the heating engineer menu.
The controller comes set for heating operation (refer to section «Factory settings»).
User-defined data:
Press the button behind the pin opening for at least one second: This resets the user-
specific settings to their default values (heating engineer settings will not be changed).
The clock starts at 12:00. During the reset time, all sections of the display are lit, ena-
bling them to be checked.
All user-defined data plus the heating engineer settings:
Press the button behind the pin opening together with the warmer and colder buttons
for at least one second.
After the reset, all factory settings will be reloaded (also refer to section «Factory
settings»).
Mechanical design
The REV23RF has a plastic housing with a large display and easily accessible operat-
ing elements. The controller is removed from its base by sliding it upward. It is thus
possible to replace the two type AA 1.5 V alkaline batteries contained in the compart-
ment at the rear of the controller.
About 3 months before the batteries are exhausted, battery symbol appears on
the display, but all functions are fully maintained. When replacing the batteries, the
current data will be retained for a maximum of one minute.
Plastic housing with easily accessible operating elements and removable cover. The
unit can be fitted to all commercially available recessed conduit boxes or directly on the
wall. A relay with a potential free changeover contact, the connection terminals and the
receiving antenna are integrated in the housing.
Self-learning mode
Exceptions
Periodic pump run
/
Operating mode
Heating / cooling
/
Controller
Battery change
Receiver
REV-R.02/16A

9/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
The base can be fitted to most types of commercially available recessed conduit boxes
or directly on the wall.
The support supplied with the controller enables the unit to be put on a shelf. It can be
easily fitted to the controller with no need for tools.
Notes
• The room unit should be located in the main living room (on the wall or free-standing
using the support provided) while giving consideration to the following points:
• The distance to the receiver should not exceed 20 m or 2 floors
• The unit should be located such that the sensor is able to capture the room tempera-
ture as accurately as possible, without getting affected by direct solar radiation or
other heat or refrigeration sources (in the case of wall mounting, about 1.5 m above
the floor)
• The unit should be located such that it can transmit signals with as little interference
as possible. For this reason, the following points should be observed:
− Do not mount the unit on metal surfaces
− Not in the vicinity of electrical cables and equipment such as PCs, TV sets, mi-
crowave appliances, etc.
− Not in the vicinity of large metal structures or construction elements with fine
metal meshes like special glass or special concrete
• In the case of wall mounting, ensure that there is sufficient clearance for removing the
controller from its base, and for replacing it
min.
10 cm
2261Z03
• The receiver and switching unit should preferably be mounted near the controlled
device
• The unit should be located such that it can receive signals with as little interference
as possible. For this reason, the following points should be observed (same as with
the transmitter):
− Not in control panels
− Not on metal surfaces
− Not in the vicinity of electrical cables and equipment such as PCs, TV sets, mi-
crowave appliances, etc.
− Not in the vicinity of large metal structures or construction elements with fine
metal meshes like special glass or special concrete
• The location where the unit is mounted should be dry and free from splash water
• The unit can be fitted to most commercially available recessed conduit boxes or di-
rectly on the wall
• First, fit the base. Then, engage the controller from the top. The base can be fitted to
most commercially available recessed conduit boxes or directly on the wall
Base
Support
Planning
Controller /
transmitter REV23RF
Wall mounting
Planning
Receiver
REV-R.02/16A
Wall mounting of
controller / transmitter
REV23RF

10/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Refer to the Installation Instructions printed on the package.
The receiver must be wired with the power supply switched off.
Mains voltage may be switched on again only after the unit is completely
mounted.
• When mounting the unit, the base must first be fitted and wired (L/N = AC 230 V
mains supply, LX/L1 = consumers). Then, engage the unit at the top, swing it down-
ward and secure it with a screw
• For more detailed information, refer to the Installation Instructions supplied with the
unit
For the electrical installation, the local safety regulations must be complied with.
It is recommended to first commission and switch on the receiver, then the transmitter.
• Switch on mains supply
a) Press the «Reset» button (= delete) for about 3 seconds, LED flashes for about 5
seconds (deleting the stored address)
b) Press «Set» button (= setting / learning) for about 1 second until the LED lights
up
c) The duration of the receiver’s learning readiness is a maximum of 25 minutes.
If no signal is received from the transmitter during that period of time, repeat
steps b) and c)
d) Mount transmitter and put it into operation
e) When the receiver receives a signal from the transmitter, the LED flashes briefly
f) When the LED is steady on, the relay is energized = controlled device ON
g) When the LED is dark, the relay is deenergized = controlled device OFF
h) In the event of a power failure at the receiver, the relay will automatically be de-
energized.
The transmitter repeats the ON or OFF signal at 20-minute intervals, depending
on the operating state. This means that the relay will be energized / deenergized
again after 20 minutes at the latest. This interval was selected to extend battery
life.
If the REV-R.02/16A receives no signal from the controller / transmitter for 60 minutes,
the relay will drop out so that the controlled device will automatically be switched off.
It is recommended to first commission the receiver and then the transmitter.
• If the reference room is equipped with thermostatic radiator valves, they must be fully
opened
a) Remove the battery transit tab, which prevents inadvertent operation of the unit
during transport and storage. The unit switches on
b) When – immediately after switching on – symbol or appears on the
display (controlled device ON), the first signal has already been sent to the re-
ceiver and communication has been opened
c) Make the settings according to the Operating Instructions
d) If symbol or does not appear on the display (controlled device OFF), it
must first be activated for signal transmission
e) Select operating mode (comfort mode)
f) On menu T, select the setpoint for comfort mode
g) Use the roller selector to adjust the setpoint to 29 °C and confirm by pressing
h) Heating ON symbol or appears on the display after a maximum of one
minute
i) The first signal transmission to the receiver has taken place
j) After 10 seconds, the transmitter sends another signal
Support
Mounting and installa-
tion of receiver
REV-R.02/16A
Commissioning
Receiver
REV-R.02/16A
Commissioning
Controller / transmit-
ter REV23RF

11/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
k) The ON / OFF signal will then be repeated every 20 minutes (the 20-minute in-
terval has been chosen to extend battery life)
l) Reset the setpoint according to f) and g)
m) Press to reset the operating mode to the required position
The receiver’s readiness to learn is a maximum of 25 minutes. If no signal is received
from the transmitter during that period of time, repeat steps d) through m) above.
The control mode can be changed via the menu-driven heating engineer settings.
If the room temperature displayed does not agree with the room temperature effectively
measured, the temperature sensor should be recalibrated (refer to «Calibration of sen-
sors»).
Technical data controller / transmitter REV23RF
Operating voltage DC 3 V
Batteries (alkaline AA)
Battery life
Backup for battery change
2 x 1.5 V
approx. 2 years
max. 1 min
Sensing element NTC
Measuring range
Time constant
NTC 10 kΩat 25 °C ±1 %
0…50 °C
max. 10 min
Setpoint setting ranges
Normal temperature
Economy temperature
5 … 29 °C
5 … 29 °C
Frost protection setpoint
Setting range
Factory setting
5...29 °C
5 °C
Resolutions of settings and display
Setpoints
Switching times
Measurement of actual value
Display of actual value
Display of time
0.2 °C
10 min
0.1 °C
0.2 °C
1 min
SRD band
Transmit frequency REV23RF
Max. transmitter power
Max. data throughput
Modulation
Frequency stability
Address range
(preset in the factory)
868.7 to 869.2 MHz
868.95 MHz
< 10 mW / typically 4 mW
19200 symbol/s = 38400 Bit/s
binary frequency changeover BFSK
< ±20 ppm (±17 kHz)
16 Bit (0...65535)
Operation
Climatic conditions
Temperature
Humidity
to IEC 60 721-3
class 3K3
5...+40 °C
<85 % r. h.
Transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
to IEC 60 721-3
class 2K3
−25...+70 °C
<93 % r. h.
class 2M2
Important:
General data
controller / transmitter
General data controller
General data transmitter
Environmental
conditions

12/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
conformity
EMC directive
R&TTE directive
89/336/EEC
EN 301 489-3
Product safety
Radio equipment EN 301 489-3
Automatic electrical controls for
household and similar use EN 60 730-1
Electromagnetic compatibility
Immunity
Emissions
Radio equipment
EN 50 082-1
EN 50 081-1
EN 300 220-3
Approvals
In the following countries
0359 !
all ECC countries,
Norway, Iceland and Switzerland
Devices of safety class
Degree of pollution
II to EN 60 730-1
normal
Weight (incl. package)
REV23RF
REV23RF/SET
0.37 kg
0.68 kg
Color
Housing signal-white RAL 9003
Base grey RAL 7038
Dimensions 140x103x30 mm
Technical data receiver REV-R.02/16A
Operating voltage
Power
AC 230 V +10/−15 %
< 10 VA
Frequency 45...65 Hz
Switching capacity of relays
Voltage
Current
cos (Phi)
AC 24...250 V
16 (2) A
0.9
Operation
Climatic conditions
Temperature
Humidity
to IEC 60 721-3
class 3K3
0...+45 °C
<85 % r. h.
Mounting
Operating temperature of
mounting surface max. 85 °C
Storage and transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
to IEC 60 721-3
class 2K3
−25...+70 °C
<93 % r. h.
class 2M2
Norms and standards
General unit data
Environmental conditions

13/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
conformity
EMC directives
Low-voltage directives
R&TTE directives
89/336/EEC
73/23/EEC
EN 301 489-3
Product safety
Radio equipment
Automatic electrical controls
for household and similar use
Special requirements placed on
energy controllers
EN 301 489-3
EN 60 730-1
EN 60 730-2-11
Electromagnetic compatibility
Immunity
Emissions
Radio equipment
EN 50 082-1
EN 50 081-1
EN 300 220-3
Approval
In the following countries
0359 !
all ECC countries,
Norway, Iceland and Switzerland
Devices of safety class
Degree of pollution
II to EN 60 730-1
normal
Weight (incl. package)
REV-R.02/16A
REV23RF/SET
0.24 kg
0.68 kg
Color
Unit front
Base
Signal-white RAL 9003
grey RAL 7038
Dimensions 83x104x32 mm
Norms and
standards

14/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Connection diagram receiver REV-R.02/16A
L Live conductor, AC 230 V
N Neutral conductor, AC 230 V
Lx Live, AC 24...250 V
L1 N.O. contact,
AC 24...250 V / 16 (2) A
L2 N.C. contact,
AC 24...250 V / 16 (2) A
M1 Smaller circulating pump
N2 Receiver REV-R.02/16A
Lx
L1
Y1
M1
N2
Nx
L
NL2
2255A01
AC 230 V
AC 24...250 V
Lx
Nx
N
L
Y1 Actuating device
Application examples
T
T
F1
F2
N2
M1
Y2
2255S01
N1
T
F1
F2
N2
M1
Y2
2255S02
T T
T
N1
Instantaneous hot water heater Atmospheric gas burner
N1
Y4
2255S03
Y3
N2
T
N4
T
N3
TN1
2255S05
E1
N2
Zone valve Cooling equipment

15/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Y1
2252S04
M1
N2
T
N1
Smaller circulating pump with precontrol by manual mixing valve
N2
T
N1
Y5
Y6
Electrical heating element
E1 Cooling unit
F1 Thermal reset limit thermostat
F2 Safety limit thermostat
M1 Smaller circulating pump
N1 Room temperature controller (transmitter) REV23RF
N2 Receiver REV-R.02/16A
N3 Room temperature controller (transmitter) REV23RF
N4 Receiver REV-R.02/16A
Y1 3-port valve with manual adjustment
Y2 Solenoiod valve
Y3 Motorized 3-port valve
Y4 Motorized 2-port valve
Y5 Electrical heating element
Y5 Fan

16/16
Siemens Building Technologies Room Temperature Controller REV23RF16A/SET CE1N2269en
HVAC Products 09.10.2003
Dimensions
127
140
78.8
104.5
83.50
56
12
11.75
2265M03
30
Ø
60
84
104
32
2265M01
60
60
2265M02
Controller / transmitter REV23RF
Receiver REV-R.02/16A
2003 Siemens Building Technologies AG Änderungen vorbehalten
