s

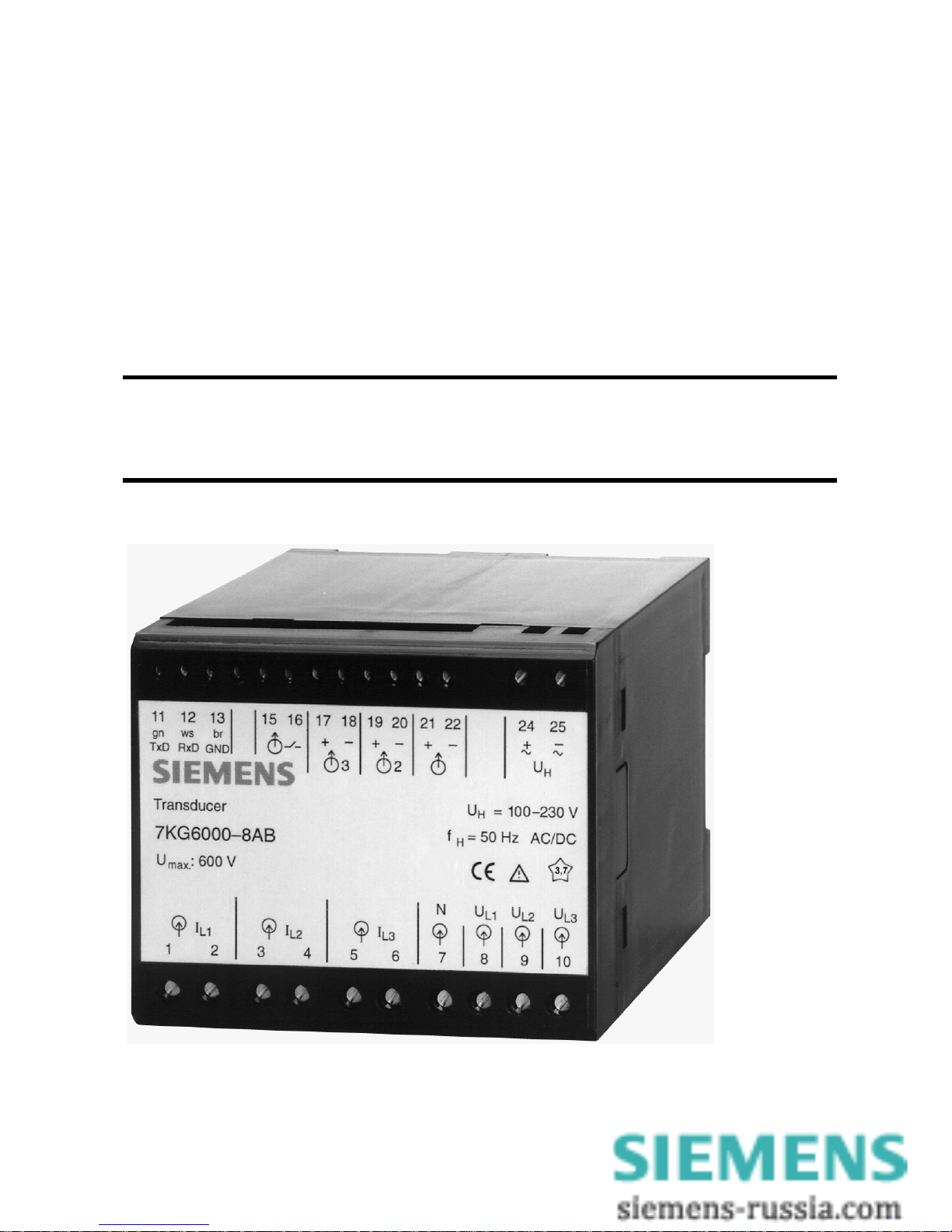

SIMEAS
Universal Transducer
Универсальный измерительный преобразователь
7KG6000-8AA - 7KG6000-8EB
Operating Instructions Order Number / Номер заказа:
E50417-K109U-C322-A1
Руководство по эксплуатации
Release 03/2009 Document version/
Дата выпуска 03/2009 Версия документа: V01.00.01

2 SIMEAS E50417-K109U-C322-A1
Operating Instructions............................................................ 4
1.1 Conformity.................................................................... 4
1.2 General information ...................................................... 5
1.2.1 Qualified personnel ............................................... 7
1.3 Field of use.................................................................... 8
1.4 Measuring signals.......................................................... 8
1.5 Mode of operation......................................................... 9

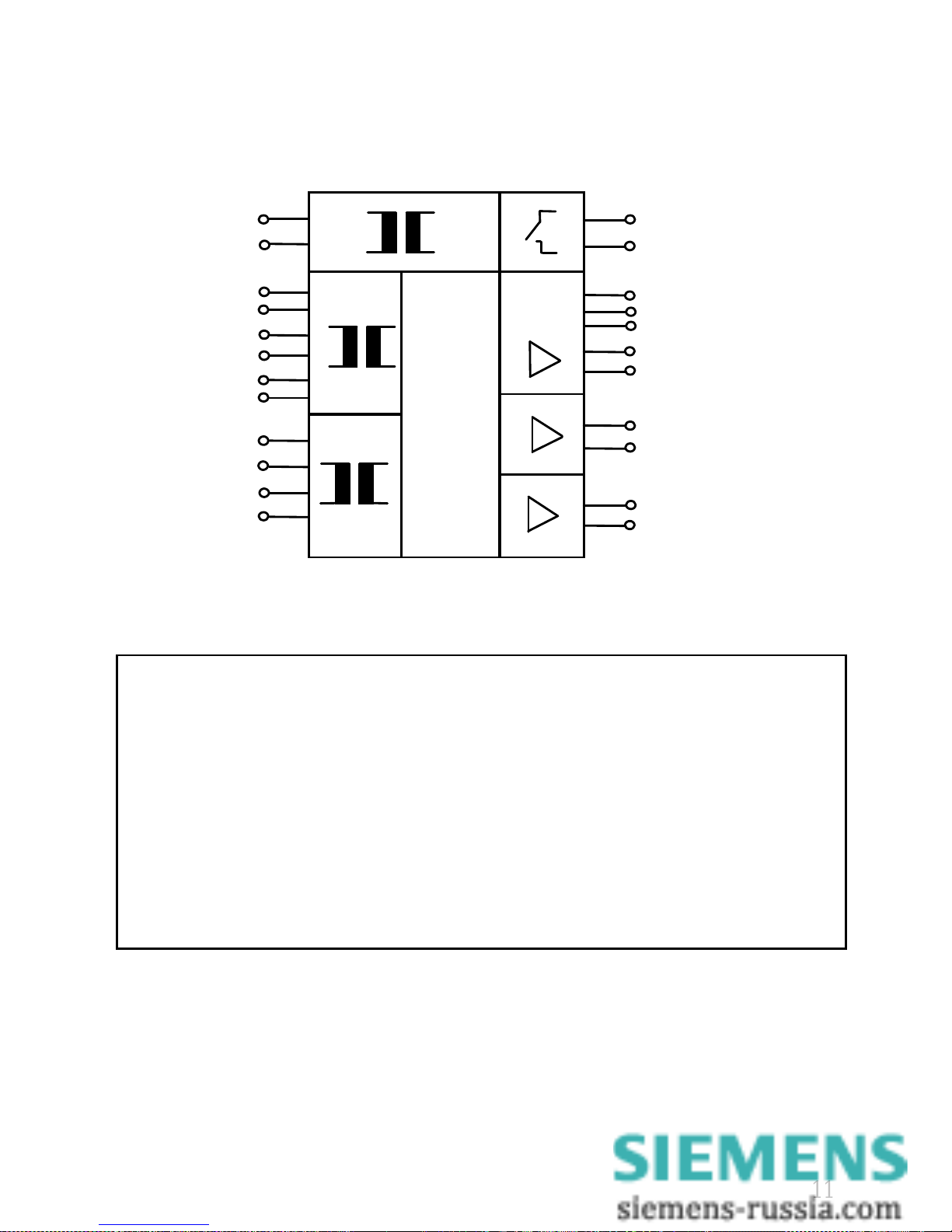

1.6 Block diagram............................................................. 11
1.7 Technical specifications .............................................. 11
1.8 Description.................................................................. 18
1.8.1 Data..................................................................... 18
1.8.2 Dimensions.......................................................... 19
1.8.3 Electric connection.............................................. 20
1.9 Order information........................................................ 20
1.10 Mounting and operation.......................................... 22
1.11 Storage..................................................................... 23
1.12 Electrical connection............................................... 24
1.13 Changing the analog output signal.......................... 25
1.14 Examples for connecting the measuring inputs....... 27
1.15 Commissioning........................................................ 31
1.16 Servicing ................................................................. 31
1.17 Configuration .......................................................... 32
1.18 Test and calibration................................................. 33
1.19 The SIMEAS PAR software.................................... 34
1.20 Appendix I............................................................... 35

E50417-K109U-C322-A 1 SIMEAS 3
Руководство по эксплуатации................................................41
1.1 Соответствие требованиям стандартов ....................41
1.2 Общая ин ормация....................................................42
1.2.1 Квали ицированный персонал .........................44
1.3 Область применения ..................................................45
1.4 Измеряемые сигналы .................................................45
1.5 Режим работы.............................................................46
1.6 Блок-схема ..................................................................48
1.7 Техническая специ икация.......................................48
1.8 Описание.....................................................................56
1.8.1 Данные ................................................................57
1.8.2 Размеры...............................................................57
1.8.3 Электрические подключения ............................58
1.9 Специ икации заказа устройства .............................59
1.10 Монтаж иэксплуатация.........................................61
1.11 Хранение устройства .............................................62
1.12 Электрические подключения ................................63
1.13 Изменение выходного аналогового сигнала ........64
1.14 Примеры подключения измерительных входов ..66
1.15 Ввод вэксплуатацию .............................................70
1.16 Обслуживание.........................................................70
1.17 Кон игурирование.................................................71
1.18 Проверка икалибровка ..........................................72
1.19 Программное обеспечение SIMEAS PAR............73
1.20 Приложение I..........................................................74

4 SIMEAS E50417-K109U-C322-A1
1. Operating Instructions
1.1 Conformity
The product is in conformity with the directives of the Council of
the European Communities on the approximation of the laws of
the Member States relating to electro-magnetic compatibility
(EMC Council Directive 89/336/EEC) and concerning electrical
equipment for application within specified voltage limits (Low
Voltage Directive 73/23/EEC).
Conformity is proved by tests that had been performed according
to article 10 of the Council Directives in accordance with the
generic standards EN 61000-6-4 and EN 61000-6-2 (for EMC
Directive) and the standard EN 61010-1 for Low Voltage
Directive by Siemens AG.
The device is designed and manufactured for application in
industrial environment.
The product is designed and manufactured in accordance with the
international standard IEC 60688.

E50417-K109U-C322-A 1 SIMEAS 5
1.2 General information
These operator instructions include the information required for
appropriate use of the described products. They address
technically qualified personnel with sufficient qualification or
knowledge in the range of instrumentation and control
engineering, in the following referred to as automation
engineering.
The knowledge and technically correct application of the safety
information and warnings described in this document are a basic
requirement for safe installation and commissioning, as well as
safe operation and maintenance of the described product. Only
qualified personnel according to the following description
possesses the expert know-how required to apply the general
safety information and warnings of this document correctly in any
specific and individual case.
The operator instructions are included in the scope of supply.
However, not every detail of the different models of the described
product and not any particular installation, operation, and
maintenance condition can be considered.
If more information is required or if specific problems arise which
are not discussed in this document, additional information can be
requested from your local Siemens subsidiary or from any one of
the addresses given on the back cover of this guide.

6 SIMEAS E50417-K109U-C322-A1
Furthermore, the contents of this product documentation are not
part of an earlier or existing agreement, consent, or a legal
regulation and do not represent a modification of any of these. All
commitments of Siemens are specified in the specific purchase
contract, which also includes the entire and unique warranty
regulations. The contractual warranty regulations are neither
extended nor restricted by the descriptions in this document.
WARNING!
During operation of electric devices, dangerous voltages are applied to
certain parts. Ignoring the warning notes can result in severe injury or
damage.
Only qualified personnel is allowed to operate this device. Appropriate
transportation, storage, installation, and assembly, as well as cautious
operation and maintenance are basic requirements for proper and safe
operation of this device.
The insulation of the devices has been routine tested according to the
standard IEC 61010-1 at 50 Hz with 2.2 kV or 3.25 kV respectively
(cf. Other technical specification); their output circuits, however, do
not carry any functional extra-low voltage with safe isolation.
This must be considered when using the devices.

E50417-K109U-C322-A 1 SIMEAS 7
1.2.1 Qualified personnel
are persons which are familiar with installation, assembly,
commissioning, and operation of the product and who possess the
appropriate qualification, e.g.:
•training or instruction/authority to operate and service
devices/systems according to the standards of safety
engineering for electric circuits, high pressures, and
aggressive media;
•education or instruction in maintenance and use of appropriate
safety equipment according to safety engineering standards;
•first aid training.

8 SIMEAS E50417-K109U-C322-A1
1.3 Field of use
The universal transducer is designed for acquisition of all the
important measuring signals in any kind of power system. It is
used, e.g., in the field of power supply where measuring signals
are transferred over long distances and made available to several
applications.
Each one of the analog outputs can be assigned any measuring
signal (current, voltage, active/reactive/apparent power, ...), as
well as any measuring range. Every output can be connected to
several devices, e.g. recorders, indicators, controllers, telecontrol
units, or process computers.
An impulse output can be used as a limit monitoring indicator or
for power measurement.
Inputs and outputs, as well as the auxiliary power supply are
electrically isolated.
0 to 20 mA, ±20 mA, 4 to 20 mA, ±10 V, and 0 to 10 V can be
selected as output signals.
1.4 Measuring signals
Current, voltage
Active/reactive/apparent power
Frequency
Power factor
Phase angle
Energy pulses, limit signal

E50417-K109U-C322-A 1 SIMEAS 9
1.5 Mode of operation
The measuring signals, voltages and currents, are converted into
digital signals. From the values recorded, a microprocessor
calculates up to 15 derived values. The effective scan rate is 96
times the frequency of the measuring signal. This guarantees
correct results not only for sinusoid curves but also for distorted
waveforms.
The rms-values are the squared mean values of the sampling
values over three periods each.
The active power is the mean value obtained from the
multiplication of the current and voltage values. To determine the
reactive power, a frequency-independent phase angle of 90°
between voltage and current is provided internally. The apparent
power results from the summation of current and voltage
multiplications.
The power factor and phase angle between current and voltage are
calculated from the active and reactive power values. The
frequency is calculated from the duration of three system periods
each and filtered in order to avoid the influence of sudden phase
changes. The device determines the frequency by the voltage of
U1. For measuring the frequency, a minimum voltage of 30% of
the nominal value of the voltage is required.
The analog outputs are electrically isolated and carry load-
independent current or, optionally, internally configured load-
independent voltage.

10 SIMEAS E50417-K109U-C322-A1
The binary output can either indicate the ready state of the device
or the limit violation of a measuring signal, or be used as a pulse
output for measuring the electric energy.
Calibration and configuration of the device, both, occur via a
serial interface using a PC. The correction values of every input
and output are saved in the device, just like the parameters. The
device is factory-calibrated. The configuration, i.e. the selection of
the measuring mode and the allocation of the outputs, can be
carried out either at the factory or by the user.
The serial interface is designed according to RS232C (V.24) and
provides communication with the PC for configuration,
calibration, and output of data and measuring signals. With the
optional RS485 interface design, bus operation is possible.
The individual supply voltages with electric separation by a
converter are generated from the auxiliary voltage, the DC- or the
AC-voltage.
Caution!
The serial interface is electrically connected to the analog output
1. Do not connect the ground of the interface with the ground of
the analog output 1.

E50417-K109U-C322-A 1 SIMEAS 11
1.6 Block diagram
1.7 Technical specifications
Input only for connection to AC systems
Maximum nominal mains voltage Y 230 /∆400V and ∆500V
Admissible control range U L-L = 600 V
I E = 10 A
Nominal frequency f EN 50 Hz, 60 Hz,
(16 2/3 Hz)
Nominal frequency range f E ± 5 Hz (for f EN = 50 / 60 Hz)
Waveform sinusoid, harmonics to the 32nd
U H
Pulse output
Serial interface
I L1
RS 232/
RS 485
I L2
µ
µµ
µP
Analog output 1
I L3
U L1
Analog output 2
U L2
U L3 Analog output 3
U N

12 SIMEAS E50417-K109U-C322-A1
AC current input I
E
Nominal input current I EN min. 1 A, max. 5 A
Input current range I E 0 to 10 A
Continuous overload capacity
1
12 A
Power consumption per current
path approx. 0.01VA at I
L = 1 A
approx. 0.05VA at I L = 5 A
approx. 0.1VA at I L = 10 A
Surge withstand capability
1
200 A for 1 s
AC voltage input U
E
Nominal voltage U EN max. 500 V ∆
max. 288 V Y
and mono-phase
Power consumption
per line U L-N ≤0.02 VA at U
E = 100/√3 V
≤0.33 VA at U E = 230 V
Continuous overload capacity
1
U L-L = 600 V
Surge withstand capability
1
U
L-L ≤850 V / 5 surges 1 s in 5 s
steps
Auxiliary power
Type 1: U HN 24 V to 60 V DC
Range: U H ±20 % of U
HN
Type 2: U HN 100 to 230 V AC /45-65 Hz
Range: U H ±10 % of U
HN
or
U HN 110 to 250 V DC
U H ±20 % of U
HN
Power consumption approx. 3 W, depending on the
output load
1
Continuous and surge overload capacity apply only under reference conditions.

E50417-K109U-C322-A 1 SIMEAS 13
Analog outputs
electrically isolated Bipolar, optional load-independent DC current or DC voltage, short-
circuit-proof, open-circuit-proof
Nominal output current I AN 20 mA
Nominal control range 0 to I AN
Admissible control range ±1,2 I AN
(up to a permissible burden-voltage of
15 V; the burden-resistance includes the
resistance of the cables.)
Open-circuit voltage U AL ≤25 V
Nominal load resistor R BIN 7.5 V/I AN
Operating load resistor R B 0 to 15V/I Aact
Nominal output voltage U AN 10 V
Nominal control range 0 to U AN
Admissible control range ± 1.2 U AN
Short-circuit current ≤50 mA
Nominal load resistor R BUN U AN /2.5 mA
Compliance current ≤20 mA
Residual ripple content i SS ≤0.5 % peak to peak of I
AN
Response time t 99 ≤0.3 s
1
1
Exception for frequencies: applies only for df/dt ≤8 Hz/s

14 SIMEAS E50417-K109U-C322-A1
Serial interface RS 232 C (V.24) optional RS485
For configuration, calibration,
data output 2400 bauds, 8N1
Option RS485
for communication according to
IEC 870-5-103
9600 and 19200 bauds, 8E1
The interface must be operated via a
shielded cable
Binary output via Optical MOS Relay
Admissible voltage 100 V DC or
100 V AC
Admissible current 120 mA continuous
300 mA for 100 ms
Internal resistance ≤50 Ω
Admissible operating frequency ≤10 Hz
Faults and influence effects according to IEC 60688
The relative fault specifications
have the sign ±
Faults under reference conditions related to I AN or U AN
Current, voltage ≤0.2 % typical
≤0.5 % max.
Active/reactive/apparent power ≤0.3 % typical
≤0.5 % max.
Phase angle ≤0.5 %
Power factor ≤1 %
Frequency absolute ≤3 mHz
± 0.2 % of the output range

E50417-K109U-C322-A 1 SIMEAS 15
Reference conditions
Input current I E I EN ± 1 %
Input voltage U E U EN ± 1 %
Frequency f E f EN ± 1 %
Waveform sinusoid, harmonic distortion ≤5 %
Load resistor R B R BN ± 1 %
Ambient temperature T U 23 °C ± 1°C
Auxiliary voltage U H U HN
Warm-up time ≥15 min
External fields / external
interference none
Influence effects of the related to A N
(other signals at reference conditions)
input measuring voltage
from U EN to 1.2U EN ≤0.2 %
input measuring current
from I EN to 1.2 I EN ≤0.2 %
the auxiliary voltage
0.8 to 1.2 U HN at DC ≤0.1 %
0.9 to 1.1 U HN at AC ≤0.1 %
ambient temperature ≤0.2 % / 10 K
frequency (45-65 Hz) ≤0.03 % / Hz
harmonics
(to the 32nd harmonic) ≤0.02 % every 10 % harmonic
distortion
load resistor ≤0.1 % for load changes from 0Ωto
15V/I AN
warm-up ≤0.3 %

16 SIMEAS E50417-K109U-C322-A1
Other technical specifications
Insulation tests,
type tests according to IEC 61010-1
Inputs (currents against currents
and voltages) 3.7 kV; 50 Hz; sinusoid; 6.8 kV surge voltage;
1.2/50 µs; R i = 500 Ω
Inputs against all analog outputs,
interface, pulse output, and
auxiliary voltage
5.55 kV; 50 Hz; sinusoid;
10.2 kV surge voltage;
1.2/50 µs; R i = 500 Ω
Auxiliary voltage against all analog
outputs, interface and pulse output 3.7 kV; 50 Hz; sinusoid; 6.8 kV surge voltage;
1.2/50 µs; R i = 500 Ω
Insulation tests,
routine tests according to IEC 61010-1
Inputs (currents against currents
and voltages) 2.2 kV; 50 Hz; sinusoid
Inputs against all analog outputs,
interface, pulse output, and
auxiliary voltage
3.25 kV; 50 Hz; sinusoid
Auxiliary voltage against all analog
outputs, interface and pulse output 2.2 kV; 50 Hz; sinusoid
Analog outputs, interface and pulse
output mutually 700 V DC
Caution!
Analog output 1 is electrically connected to the interface

E50417-K109U-C322-A 1 SIMEAS 17
Operating temperature according to IEC 60688
The admissible maximum operating
temperature depends on the output
load and the installation method
cf. Appendix I
Example:
Measuring voltage U L-L = 3 * 100 V;
output load 3 * 10 mA at rated burden (R
BIN
= 375 Ω)
Mounting without spacing T U = -10°C to 55°C
In accordance with IEC 60688
usage group III
Storage and transport
temperature range According IEC 60688 -40 °C to +85 °C
Electromagnetic compatibility
Emission
according to generic standard EN 61000-6-4 (IEC-CISPR 11 / A)
Immunity
according to generic standard EN 61000-6-2
(IEC 61000-4-2, -3, -4, -6; level 3)
according to product standards
IEC 60255-22-1, -3
and
IEC 60688
Mechanical resistance according to IEC 61010-1
Vibration tests
during operation
during transport
seismic vibration
IEC 60255-21-1, class 2
IEC 60255-21-1, class 1
IEC 60255-21-3, class 1
Shock test IEC 60255-21-2, class 1

18 SIMEAS E50417-K109U-C322-A1
Safety IEC 61010-1
Plastic housing
Protection type
Terminals
Housing
Build-in in a distributor box or
control cabinet
IEC 60529
IP 20
IP 40
Pollution class 2
Overvoltage category III
1.8 Description
The transducers are hard-wired and tested function units. They
include a snap-on mounting system for 35 mm supporting rail
according to EN 50022. The inputs and outputs are connected to
safe screw-type terminals.
The measuring signals and measuring ranges are configured via
PC.
1.8.1 Data
Weight: 0.7 kg
Connection: screw-type terminals
current input: 4 mm
2
max.
voltage input: 2.5 mm
2
max.
auxiliary voltage: 2.5 mm
2
max.
outputs: 2.5 mm
2
max.

E50417-K109U-C322-A 1 SIMEAS 19
1.8.2 Dimensions
90 mm
75mm
Transducer SIMEAS
7KG 6000
s
1 3 4 5 6 7 8 9 102
11 1213 15 16 17 18 19 20 21 22 24 25
90 mm
105 mm
Terminal connection level

20 SIMEAS E50417-K109U-C322-A1
1.8.3 Electric connection
11
13
14
15
16
12
17
18
19
20
21
22
24
25
1 2 3 4 5
6 7 8 9
10
TXD
RXD
GND
3+
3-
2+
2-
1+
1-
+
-
~
~
Bus Outputs Power
AC-Inputs: Current AC-Inp: Voltage
I
L1
I
L1
I
L2
I
L2
I
L3
I
L3
s
Transducer SIMEAS
7KG 6000
U
LN
U
L1
U
L2
U
L3
Inputs and outputs not required remain vacant.
1.9 Order information
The device can be ordered either pre-configured or in a basic
version. In the basic version, the user can select the operating
mode, the measuring ranges, and the allocation of the outputs with
the WINDOWSprogram "SIMEAS PAR".
