Echomax XPS/XCT Operation Manual
This manual outlines the essential features and functions of the Echomax XPS/XCT Series
transducers. This manual, and the
Transducer Applictions Manual , are also available on our
website: www.siemens.com/processautomation. Printed copies are available from your local
Siemens Milltronics representative.
MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments
Safety Guidelines
Warning notices must be observed to ensure personal safety as well as that of others,
and to protect the product and the connected equipment. These warning notices are
accompanied by a clarification of the level of caution to be observed.
Questions about the contents of this manual
can be directed to:
European Authorized Representative
Siemens Milltronics Process Instruments Siemens AG
1954 Technology Drive, P.O. Box 4225 Industry Sector
Peterborough, Ontario, Canada, K9J 7B1 76181 Karlsruhe
Email: [e-mail] Deutschland
Copyright Siemens Milltronics
Process Instruments 2013.
All Rights Reserved
Disclaimer of Liability
We encourage users to purchase
authorized bound manuals, or to view
electronic versions as designed and
authored by Siemens Milltronics Process
Instruments. Siemens Milltronics
Process Instruments will not be
responsible for the contents of partial or
whole reproductions of either bound or
electronic versions.
While we have verified the contents of this manual
for agreement with the instrumentation described,
variations remain possible. Thus we cannot
guarantee full agreement. The contents of this
manual are regularly reviewed and corrections are
included in subsequent editions. We welcome all
suggestions for improvement.
Technical data subject to change.
WARNING: relates to a caution symbol on the product, and means that failure to
observe the necessary precautions can result in death, serious injury, and/or
considerable material damage.
WARNING: means that failure to observe the necessary precautions can result in
death, serious injury, and/or considerable material damage.
CAUTION: means that failure to observe the necessary precautions can result in
considerable material damage.
Note: means important information about the product or that part of the operating manual.

Page EN-2 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
Unit Repair and Excluded Liability
• The user is responsible for all changes and repairs made to the device by the user or
by the user’s agent.
• All new components are to be provided by Siemens Milltronics Process Instruments
Inc.
• Restrict repair to faulty components only.
• Do not reuse faulty components.

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-3
mmmmm
English
Introduction
The Echomax XPS/XCT series of transducers operate with
Siemens Milltronics ultrasonic level monitoring products.
The transducer converts the electrical transmit pulse from
the transceiver into acoustical energy. It then converts the
acoustical energy of the echo back into electrical energy
for the controller.
The transducer face emits acoustical energy radiating
outward, decreasing in amplitude at a rate inversely
proportional to the square of the distance. Maximum
power radiates perpendicularly from the transducer face
on the axis of transmission. Where power is reduced by
half (– 3 dB), a conical boundary centered around the axis
of transmission defines the sound beam, the diameter of
which is the beam angle.
The XPS/XCT transducers have an integrated temperature sensor that reports the air
temperature at the transducer to the controller.
General Guidelines
XPS/XCT Series – Certificate SIRA 99ATEX5153X
This equipment may be used in hazardous areas associated with all gases with
temperature classes T1, T2, T3 and T4 for the XPS series (XPS-10, XPS-15, XPS-30, and
XPS-40) and T1, T2, and T3 for the XCT series (XCT-8 and XCT-12). The XPS series is only
certified for use in ambient temperatures in the range of - 40 °C to 95 °C and the XCT
series is only certified for use in ambient temperatures in the range of -40 °C to 145 °C.
Neither should be used outside of their respective temperature ranges.
Installation shall be carried out in accordance with the applicable code of practice, and
by suitably trained personnel.
These devices should only be supplied from a circuit containing a suitably-rated fuse that
has a breaking capacity of 4000A. This fuse is included in Siemens Milltronics controllers.
Repair of this equipment shall be carried out in accordance with the applicable code of
practice.
This product is intended for use in industrial areas. Operation of this
equipment in a residential area may cause interference to several frequency
based communications
.
WARNING: Materials of construction are chosen based on their chemical
compatibility (or inertness) for general purposes. For exposure to specific
environments, check with chemical compatibility charts before installing.
transducer
transducer face
–3 db boundary
axis of
transmission,
perpendicular
to transducer
face

Page EN-4 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
The certification of this equipment relies on the following materials used in their
construction:
For manual override, use the disconnect switch provided in the building installation of the
associated controller.
XPS 30/40 Series – Certificate SIRA 01ATEX5153X
This equipment may be used in hazardous dust zones with all conductive and non-
conductive dusts. The XPS-30 and XPS-40 type series transducers have a maximum
surface temperature of 135 °C (275 °F) (Temperature Class T4). These units are certified
for use in ambient range of -40 to 95 °C (-40 to 203 °F). The transducers should not be
used outside this temperature range. The XPS-30 and XPS-40 ultrasonic transducers
must be installed so the face of the transducer is not substantially subjected to light.
Installation shall be carried out in accordance with the applicable code of practice, and
by suitably trained personnel. Repair of the equipment shall be carried out in accordance
with the applicable code of practice and installation instructions.
These devices should only be supplied from a circuit containing a suitably rated fuse that
has a breaking capacity of 4000A. This fuse is included in Siemens Milltronics controllers.
The certification of this equipment relies on the following materials used in their
construction:
For manual override, use the disconnect switch provided in the building installation of the
associated controller.
Product Marking
XPS Series XCT Series
Enclosure Kynar®1710
1. Kynar®is a registered trademark of ELF Atochem.
Durapot®is a registered trademark of Cotronics Corporation.
Kynar®710
Encapsulant Stycast LA-9823-76 Durapot® 861-F3 & 864
Enclosure: Kynar®710
Encapsulant: Stycast LA-9823-76
Note: Kynar®polyvinylidene flouride is resistant to attack from most chemicals under the
described operating conditions. However, for exposure to specific environments, check
with chemical compatibility charts prior to installation.
WARNING: This product is designated as a Pressure Accessory per Directive 97/
23/EC and is
not intended for use as a safety device.

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-5
mmmmm
English
XCT-8
XCT-12
Note:
• Product configuration number shown for example only.
• Serial number shown for example only.
XCT-8 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40 °C to 145 °C
V in: 1.77 V r.m.s.; 250 Vp
Iin:44.2mAr.m.s. Enclosure: IP66, IP68
0518
SIRA 99ATEX5153X
II2GD
EExmIIT3
Siemens Milltronics Process Instruments, Peterborough
ATENÇÃO - RISCO POTENCIAL
DE CARGA ELETROSTÁTICA
- VEJA INSTRUÇÕES
KCC-REM-S49
Echomax
Static Hazard,
Do Not Rub With Dry Cloth.
WARNING:
Class I, Zone 1,
ExsIT4,Amb.Temp.:–40°C to 95°C
IC 3 145
DIPIP65/IP67
AEx X
Ex s I T , Amb. Temp.: –40°C to °C
NZ 08.3066 Class I, Div 2, Group A, B, C, D
Class II, Div 2, Group F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
Ex mb IIC T3 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
OCP 0017
Ex mb IIC T3 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
XCT-12 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40 °C to 145 °C
V in: 1.77 V r.m.s.; 250 Vp
I in : 44.2 mA r.m.s.
SIRA 99ATEX5153X
II2GD
EExmIIT3
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68
OCP 0017
Static Hazard,
Do Not Rub With Dry Cloth.
WARNING:
ClassI,Zone1
ExsIT4,Amb.Temp.: 9
,
DIP IP65 / 67
AEx X
–40°Cto 5°C
ExsIICT3 Amb.Temp.:–40°Cto145°C
IP
NZ 08.3066
Class I, Div 2, Group A, B, C, D
Class II, Div 2, Group F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
0518
ATENÇÃO - RISCO POTENCIAL DE CARGA
ELETROSTÁTICA - VEJA INSTRUÇÕES
KCC-REM-S49
Echomax

Page EN-6 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
XPS-10
XPS-15
Note:
• Product configuration number shown for example only.
• Serial number shown for example only.
XPS-10 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40 °C to 95 °C
V in: 1.77 V r.m.s.; 250 Vp
I in : 44.2 mA r.m.s.
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68 ClassI,Zone1, ExsI/IICT4
DIP IP65 / 67
ANZEx 08.3066X
0518
SIRA 99ATEX5153X
II 2 GD
EExmIIT4
KCC-REM-S49
Echomax
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
Ex mb IIC T4 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
Static Hazard,
Do Not Rub With Dry Cloth.
WARNING:
ATENÇÃO - RISCO POTENCIAL DE CARGA
ELETROSTÁTICA - VEJA INSTRUÇÕES
OCP 0017
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
Ex mb IIC T4 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS
ATENÇÃO - RISCO POTENCIAL DE CARGA ELETROSTÁTICA
- VEJA INSTRUÇÕES
OCP 0017
XPS-15 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40°C to 95°C
V in: 1.77 V r.m.s.; 250 Vp
I in : 44.2 mA r.m.s. Class I, Zone 1, Ex s I/IIC T4
DIP IP65 / 67
ANZEx 08.3066X
SIRA 99ATEX5153X
II2GD
EExmIIT4
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68
0518
KCC-REM-S49
Echomax

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-7
mmmmm
English
XPS-30
XPS-40
Note:
• Product configuration number shown for example only.
• Serial number shown for example only.
XPS-30 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40 °C to 95 °C
V in: 1.77 V r.m.s.; 250 Vp
Iin:44.2mAr.m.s. Class I, Zone 1, Ex s I/IIC T4
DIP IP65 / 67
ANZEx 08.3066X
SIRA 99ATEX5153X
II 2G 1D
EExmIIT4
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68
KCC-REM-S49
Echomax
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
Ex mb IIC T4 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS (20 N-m)
ATENÇÃO - RISCO POTENCIAL DE CARGA
ELETROSTÁTICA - VEJA INSTRUÇÕES
OCP 0017
XPS-40 ULTRASONIC TRANSDUCER
Serial No: GYZ / A1034567
Ambient Temp.: – 40 °C to 95 °C
V in: 1.77 V r.m.s.; 250 Vp
I in : 44.2 mA r.m.s. Class I, Zone 1, Ex s I/IIC T4
DIPIP65/67
ANZEx 08.3066X
SIRA 99ATEX5153X
II 2G 1D
EExmIIT4
Siemens Milltronics Process Instruments, Peterborough
Enclosure: IP66, IP68
KCC-REM-S49
Echomax
Static Hazard, Do Not Rub With Dry Cloth.WARNING:
Ex mb IIC T4 Gb
Ex tb IIIC T135 °C Db
DNV 12.0077 X
Class I, Div 2, Group A, B, C, D
Class II, Div 1, Group E, F, G
Per Dwg.: 0-9650017Z-DI-A
Max. Torque: 15 FT–LBS (20 N-m)
ATENÇÃO - RISCO POTENCIAL DE CARGA
ELETROSTÁTICA - VEJA INSTRUÇÕES
OCP 0017

Page EN-8 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
Specifications
* Universal flange fits ANSI, DIN, and JIS standards.
** Approximate shipping weight of transducer with standard cable length.
*** EMC performance available upon request.
XPS-10 XPS-15 XPS-30 XPS-40 XCT-8 XCT-12
Measurement
Range 0.3 - 10 m (1 - 33 ft) 0.3 - 15 m (1 - 50 ft) 0.6 - 30 m (2 - 100 ft) 0.9 - 40 m (3 -130 ft) 0.6 - 8 m (2 - 26 ft) 0.6 - 12 m (2 - 40 ft)
Frequency (kHz) 44 44 30 22 44 44
Beam Angle 12666126
Environmental
Location indoor/outdoor indoor/outdoor indoor/outdoor indoor/outdoor indoor/outdoor indoor/outdoor
Maximum
Altitude (m) 2000 2000 2000 2000 2000 2000
Ambient
Temperature -40 to 95 C
(-40 to 203 F) -40 to 95 C (-40 to 203 F) -40 to 95 C (-40 to 203 F) -40 to 95 C (-40 to 203 F) -40 to 145 C (-40 to 293 F) -40 to 145 C (-40 to 293 F)
Pressure 8 bar
(120 psi) 8 bar (120 psi) Europe: 0.5 bar N. America: 15 psi Europe: 0.5 bar N. America: 15 psi 8 bar (120 psi) 8 bar (120 psi)
Pollution Degree 44 4444
Construction
Housing
PVDF PVDF PVDF PVDF Standard: PVDF
Optional: Universal* sized
flange available with PTFE
facing
Mounting
1" NPT or
BSP conduit
connection
1" NPT or BSP
conduit
connection
1-1/2" NPT or BSP
conduit
connection
1-1/2" NPT or BSP
conduit
connection
1" NPT or BSP
conduit
connection
1" NPT or BSP
conduit
connection
Options
• factory bonded to suit ANSI, DIN, and JIS standards
• polyethylene foam facing for dusty or steamy environments
• submergence shield, where flooding can occur (available only for XPS-10,
XPS-15)
• split flange for field mounting to suit ANSI, DIN, and JIS standards (not
available for XPS-40)
Cable
2-wire twisted pair/braided and
foil shielded, 0.5mm² (20 AWG),
PVC jacket
• 2-wire twisted pair/
braided and foil shielded,
0.5mm² (20 AWG), PVC
jacket
Maximum separation: 100 m
(330 ft)
• RG-62 A/U coax
Maximum separation: 365 m
(1200 ft) Silicon Jacket
Weight** 0.8 kg
(1.7 lb) 1.3 kg (2.8 lb) 4.3 kg (9.5 lb) 8 kg (18 lb) 0.8 kg (1.7 lb) 1.3 kg (2.8 lb)
Maximum
Separation 365 m
(1200 ft) 365 m (1200 ft) 365 m (1200 ft) 365 m (1200 ft) 365 m (1200 ft) 365 m (1200 ft)
Supply Source Transducers shall only be supplied by Siemens Milltronics certified controllers
Approvals CE***, CSA, FM, CENELEC/ATEX, INMETRO: See nameplate or consult Siemens Milltronics for current approvals.

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-9
mmmmm
English

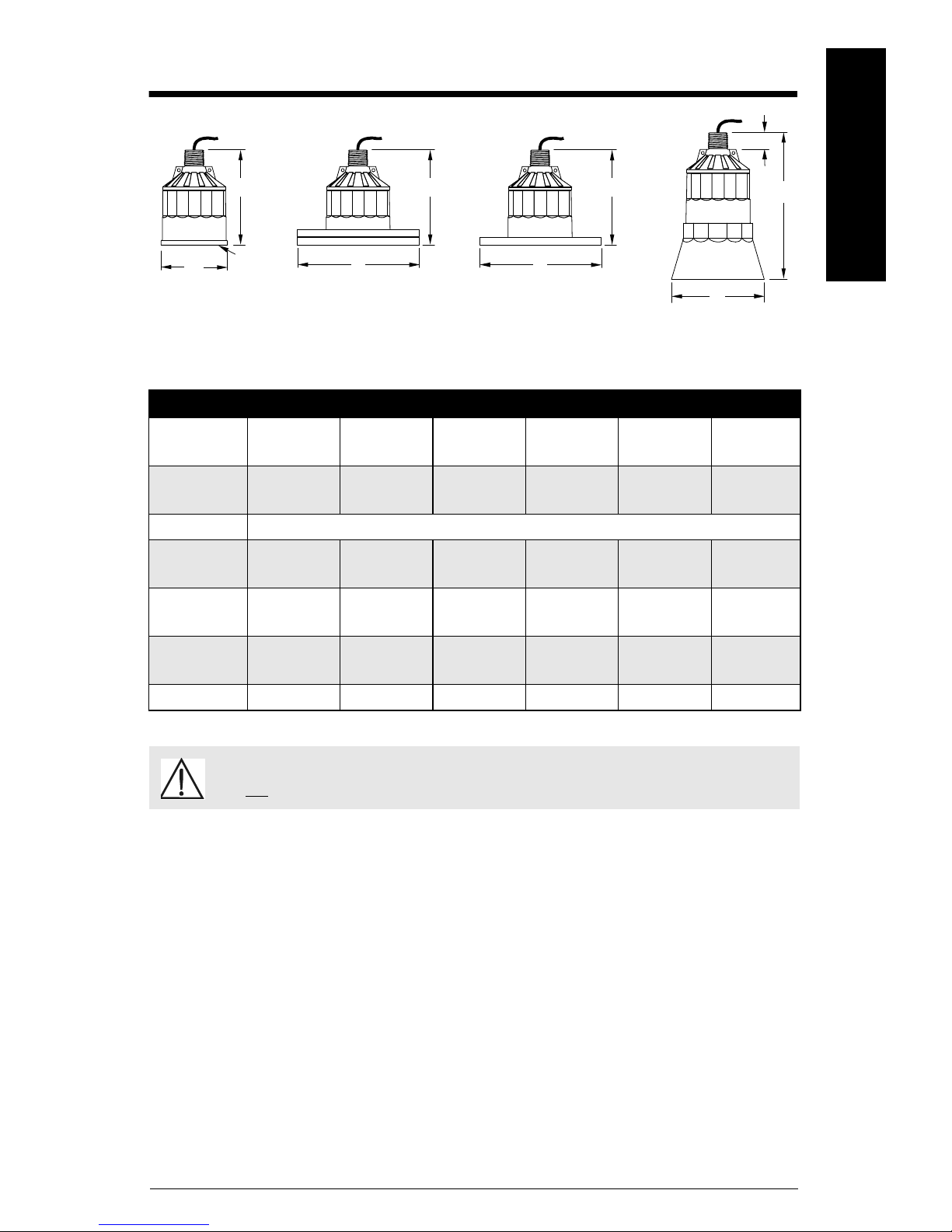

Outline and Dimensions
Dimension XPS-10 XPS-15 XPS-30 XPS-40 XCT-8 XCT-12
A 88 mm (3.4") 121 mm
(4.8")
175 mm
(6.9")
206 mm
(8.1")
88 mm (3.4") 121 mm
(4.8")
B122 mm
(4.8")
132 mm
(5.2")
198 mm
(7.8")
229 mm
(9.0")
122 mm
(4.8")
132 mm
(5.2")
C to suit ANSI, DIN and JIS standards
D* 128 mm
(5.0")
138 mm
(5.4")
204 mm
(8.0")
235 mm
(9.2")
128 mm
(5.0")
138 mm
(5.4")
E 124 mm
(4.9")
158 mm
(6.2")
n / a n / a n / a n / a
F 152 mm
(6.0")
198 mm
(7.8")
n / a n / a n / a n / a
G 28 mm (1.1") 28 mm (1.1") 28 mm (1.1") 28 mm (1.1") 28 mm (1.1") 28 mm (1.1")
* nominal
WARNING: Optional Split Flange, Bonded Flange, and Easy Aimer configurations
are not suitable for pressure applications.
B
A
C
B
F
E
C
D
G
standard
radiatin
g face
optional bonded flange
refer to associated instructions optional split flange refer to associated instructions optional
submergence
shield
refer to associated
instructions

Page EN-10 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
Mounting
• Mount the transducer so that it is above the maximum material level by at least the
blanking value. Refer to the associated controller manual.
• On liquid applications, mount the transducer face parallel to the liquid surface. On
solids applications, use a Siemens Milltronics Easy Aimer to help aim the
transducer.
• Do not overtighten. Most applications require only hand tightening of the mounting
hardware. Connect a safety chain from the transducer to a structural member to
secure installation. Consider using the optional temperature sensor when a flanged
transducer is used, when a fast temperature response is required, or in high
temperature vessels.
Mounting – Solids Applications
WARNING: Special handling precautions must be taken to protect the
face of the transducer from any damage.
Note: For pressure tight applications, install transducers hand tight plus ½ turn to 1½ turns.
PTFE tape or other appropriate sealant may be used to aid in sealing the threads for use in
pressure applications.
WARNING: Improper installation may result in loss of process pressure.
Easy Aimer (typical model)
transducer
safety chain

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-11
mmmmm
English

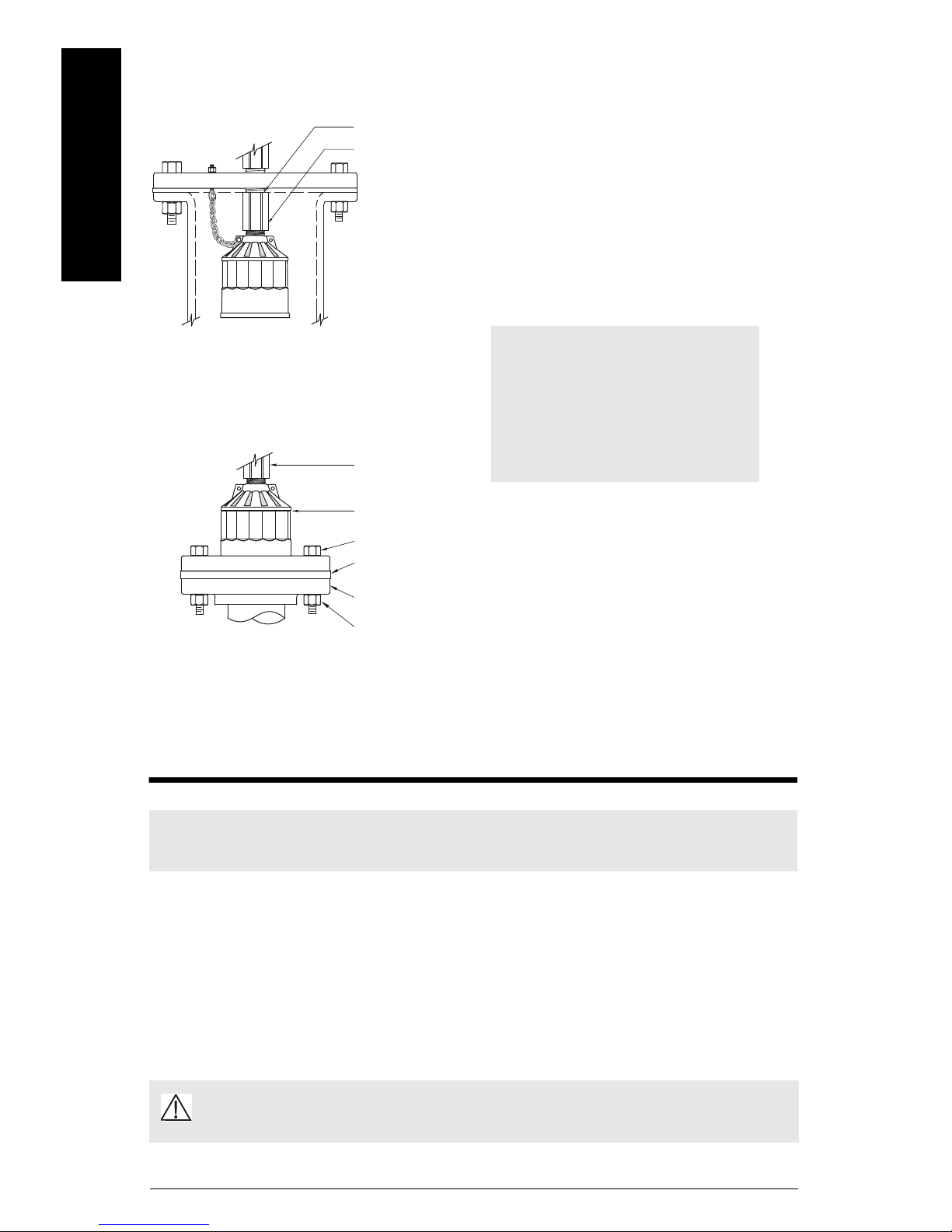

Mounting – Liquid Applications
flexible
conduit
steel channel
coupling
transducer
safety
chain
Flexible Conduit Bracket
Submersible Plywood
safety
chain
rigid metal conduit
coupling
submergence
shield
Transducer with submergence shield, used in
applications where flooding is possible.
Plywood mounting provides excellent
isolation, but must be rigid enough to
avoid flexing if subjected to loading.
Flexible conduit mounted
transducer should not be
subjected to wind, vibration,
or jarring.

Page EN-12 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English
Mounting – Liquid Applications (cont’d)
Installation
• Do not route cable openly. For optimum isolation against electrical noise, run cable
separately in a grounded metal conduit. Seal all thread connections to prevent
ingress of moisture.
• Do not run cable near high voltage or current runs, contactors, and SCR control
drives. For pressure tight applications, install transducers hand tight plus ½ to 1½
turns.
• PTFE tape or other appropriate sealant may be used to aid in sealing the threads for
use in pressure applications.
Note: Installation shall only be performed by qualified personnel and in accordance with
local governing regulations.
WARNING: Never attempt to loosen, remove, or disassemble process connection
while vessel contents are under pressure.
Flanged
coupling
bolt
gasket
customer flange, flat face only
Customer flanged standpipe. If a metal flange must be welded to pipe, refer
to Liquid Applications - Standpipes in the
Transducer Applications Manual .
factory flanged transducer
nut
Blind Flange nipple welded to blind flange
coupling
flange, gasket, and hardware
supplied by customer.
Note: Tighten the flange bolts
evenly in order to ensure a good
seal between the mating flanges.
Caution: Overtightening can
cause performance
degradation.

A5E32282889 XPS/XCT Series Transducers – OPERATION MANUAL Page EN-13
mmmmm
English
Interconnection
Direct Connection
Connect the transducer directly to the Siemens Milltronics transceiver via the two
conductor shielded cable.
Coaxial Connection
Connect the transducer to the Siemens Milltronics transceiver via a junction box and RG–
62 A/U coaxial cable. This setup is effective for combined runs up to 365 m (1200 ft).
2-Wire Extension
(for SITRANS LUT400, SITRANS LUC500, MultiRanger 100/200, and
HydroRanger 200 only)
Note: When connecting to a SITRANS LUT400, a SITRANS LUC500, a MultiRanger 100/
200, or a HydroRanger 200, the white, black, and shield wires are all connected separately.
DO NOT tie the white and shield wires together.
Note: When connecting to a SITRANS LUT400, a SITRANS LUC500, a MultiRanger 100/
200, or a HydroRanger 200, do NOT use coaxial cable; see diagram below for proper
procedure.
wht
blk
drain/shield
extend cable using RG-62 A/U coax
wht
drain/shield
wht blk
junction box
drain/shield
extend cable using 18 AWG
shielded/twisted pair

Page EN-14 XPS/XCT Series Transducers – OPERATION MANUAL A5E32282889
mmmmm
English

A5E32282889 XPS/XCT Serie Transducere – DRIFTSVEJLEDNING Side DA-1
Dansk
Echomax XPS/XCT Driftsvejledning
Denne manual opridser de væsentligste karakteristika og funktioner af transducerne i serien
Echomax XPS/XCT. Denne manual samt
Vejledning i anvendelse af transducere kan også findes på
vort website: www.siemens.com/processautomation. Trykte eksemplarer kan fås hos din lokale
Siemens Milltronics repræsentant.
MILLTRONICS er et registreret varemærke, der tilhører Siemens Milltronics Process Instruments
Sikkerhedsvejledning
De anførte advarsler skal overholdes for at sikre egen og andres sikkerhed samt for at
beskytte produktet og det tilhørende udstyr. Disse advarsler ledsages af en tydeliggørelse
af graden af forsigtighed, der bør overholdes.
Spørgsmål vedrørende indholdet af denne
manual kan rettes til:
Europæisk autoriseret repræsentant
Siemens Milltronics Process Instruments Siemens AG
1954 Technology Drive, P.O. Box 4225 Industry Sector
Peterborough, Ontario, Canada, K9J 7B1 76181 Karlsruhe
Email: [e-mail] Deutschland
Copyright Siemens Milltronics
Process Instruments 2013.
Alle rettigheder forbeholdes Ansvarsfragåelse
Vi opfordrer brugerne til at anskaffe de
autoriserede, indbundne manualer eller at
læse de elektroniske versioner, der er
udarbejdet og skrevet af Siemens
Milltronics Process Instruments. Siemens
Milltronics Process Instruments påtager
sig intet ansvar for indholdet af delvise
eller fuldstændige gengivelser af
indbundne eller elektroniske versioner.
Skønt vi har kontrolleret, at indholdet af denne
manual stemmer overens med de beskrevne
instrumenter, kan der stadig forekomme variationer.
Vi kan derfor ikke garantere en fuldstændig
overensstemmelse. Indholdet af denne manual
revideres jævnligt, og eventuelle rettelser inkluderes i
de efterfølgende udgaver. Vi modtager gerne forslag
til forbedringer.
Retten til ændringer af de tekniske data forbeholdes.
ADVARSEL: vedrører et advarselssymbol på produktet og betyder, at en
manglende overholdelse af de nødvendige forholdsregler kan føre til
død, alvorlig personskade og/eller omfattende materielle skader.
ADVARSEL: betyder, at en manglende overholdelse af de nødvendige
forholdsregler kan føre til død, alvorlig personskade og/eller omfattende
materielle skader.
PAS PÅ: betyder, at en manglende overholdelse af de nødvendige
forholdsregler kan føre til omfattende materielle skader.
Bemærk: betyder vigtige oplysninger om produktet eller denne del af brugsvejledningen.

Side DA-2 XPS/XCT Serie Transducere – DRIFTSVEJLEDNING A5E32282889
Dansk
Reparation af instrumentet og ansvarsbegrænsning
• Brugeren er ansvarlig for alle modifikationer og reparationer, der udføres på
apparatet af brugeren eller dennes repræsentant.
• Alle nye dele skal leveres af Siemens Milltronics Process Instruments Inc.
• Kun defekte dele bør repareres.
• Defekte dele må ikke genbruges.

A5E32282889 XPS/XCT Serie Transducere – DRIFTSVEJLEDNING Side DA-3
Dansk
Indledning
Transducerne i serien Echomax XPS/XCT fungerer med
Siemens Milltronics ultralydsniveauovervågningsprodukter.
Transduceren omdanner den elektriske sendeimpuls fra
transceiveren til akustisk energi. Derefter omdanner den
ekkoets akustiske energi tilbage til elektrisk energi til
kontrolenheden.
Transduceroverfladen udsender akustisk energi, der udbreder
sig med en amplitude, der falder omvendt proportionalt til
kvadraten af afstanden. Den udbredte effekt er maksimal
vinkelret på transduceroverfladen langs transmissionsaksen.
Lydstrålen, hvis diameter betegnes strålevinklen, defineres som
en kegle centreret omkring transmissionsaksen, med en
grænse svarende til en reduktion af effekten til
halvdelen (– 3 dB).
XPS/XCT transducerne har en indbygget temperaturføler, der angiver lufttemperaturen til
kontrolenheden.
Generel vejledning
XPS/XCT Serien – Certifikat SIRA 99ATEX5153X
Dette udstyr kan anvendes i eksplosionsfarlige områder i forbindelse med alle gasser med
temperaturklasserne T1, T2, T3 og T4 for XPS serien (XPS-10, XPS-15, XPS-30 og XPS-40) og
klasserne T1, T2 og T3 for XCT serien (XCT-8 og XCT-12). XPS serien er kun godkendt til brug
ved omgivende temperaturer i intervallet fra - 40 °C til 95 °C, og XCT serien er kun godkendt til
brug ved omgivende temperaturer i intervallet fra -40 °C til 145 °C. Disse apparater bør ikke
anvendes uden for deres respektive temperaturinterval.
Installationen af dette udstyr skal udføres af tilstrækkeligt uddannet personale i henhold til de
gældende normer.
Disse apparater bør kun strømforsynes fra et kredsløb, der omfatter en sikring af passende
intensitet, der har en brydeevne på 4.000A. Denne sikring er inkluderet i Siemens Milltronics’
kontrolenheder.
Reparation af dette udstyr skal udføres i henhold til de gældende normer.
Dette produkt er beregnet til anvendelse i industriområder. Brugen af dette
udstyr i et beboelsesområde kan forårsage interferens med forskellige
frekvensbaserede kommunikationer.
ADVARSEL: Konstruktionsmaterialerne er valgt på basis af deres kemiske
kompatibilitet (eller inerti) ved almindelig brug. Hvis de skal udsættes for særlige
omgivelser, bør foreneligheden kontrolleres i tabeller over kemiske kompatibiliteter
inden installationen.
transducer
transducer-
overflade
–3 db grænse
transmissionsakse,
vinkelret på
transducer-
overfladen

Side DA-4 XPS/XCT Serie Transducere – DRIFTSVEJLEDNING A5E32282889
Dansk
Dette udstyr er godkendt på baggrund af brugen af følgende materialer ved dets fremstilling:
For en manuel omgåelse bruges den afbryder, der indgår i installationen af den tilhørende
kontrolenhed i bygningen.
XPS 30/40 serien – Certifikat SIRA 01ATEX5153X
Dette udstyr kan anvendes i eksplosionsfarlige, støvende områder med alle typer ledende eller
ikke-ledende støv. Transducerne i serierne af typen XPS-30 og XPS-40 har en maksimal
overfladetemperatur på 135 °C (275 °F) (Temperaturklasse T4). Disse enheder er godkendt til
brug i et interval af omgivende temperaturer på fra -40 til 95 °C (-40 til 203 °F). Transducerne
bør ikke anvendes uden for dette temperaturinterval. Ultralydstransducerne XPS-30 og XPS-40
skal installeres, således at transduceroverfladen ikke udsættes for lys i væsentligt omfang.
Installationen skal udføres af tilstrækkeligt uddannet personale i henhold til de gældende
normer. Reparation af dette udstyr skal udføres i henhold til de gældende normer og
installationsvejledninger.
Disse apparater bør kun strømforsynes fra et kredsløb, der omfatter en sikring af passende
intensitet, der har en brydeevne på 4.000A. Denne sikring er inkluderet i Siemens Milltronics’
kontrolenheder.
Dette udstyr er godkendt på baggrund af brugen af følgende materialer ved dets fremstilling:
For en manuel omgåelse bruges den afbryder, der indgår i installationen af den tilhørende
kontrolenhed i bygningen.
Produktets mærkning
XPS serien XCT serien
Hus Kynar®1710
1. Kynar® er et registreret varemærke, der tilhører ELF Atochem.
Durapot® er et registreret varemærke, der tilhører Cotronics Corporation.
Kynar®710
Indkapsling Stycast LA-9823-76 Durapot® 861-F3 og 864
Hus: Kynar®710
Indkapsling: Stycast LA-9823-76
Bemærk: Kynar® polyvinylidenfluorid er modstandsdygtigt over for angreb fra de fleste
kemikalier ved de beskrevne driftsbetingelser. Hvis det skal udsættes for særlige
omgivelser, bør foreneligheden dog kontrolleres i tabeller over kemiske kompatibiliteter
inden installationen.
ADVARSEL: Dette produkt betegnes som trykbærende udstyr i henhold til
direktivet 97/23/ EF og er ikke beregnet til brug som sikkerhedsanordning.
