1
Operating Instructions
Transducer without auxiliary power
for alternating current
for alternating voltage
for alternating voltage with expanded end range
7KG6111 and 7KG6101
Compact device for DIN rail mounting
Operating Instructions
A5E38679986C / RS-AB
Operating
Instructions
SIMEAS-T
s

SIMEAS-T - Transducer without auxiliary power
2
Safety instructions
These operating instructions contain the information required for the proper usage of
the products described therein. They are addressed to technically qualified personnel,
who are specially trained or have otherwise obtained the relevant know-how in
instrumentation and control engineering (in the following referred to as automation
engineering). The knowledge and technically correct implementation of the safety
instructions and warnings contained in this manual are required for safe installation and
commissioning, as well as for safety during operation and maintenance of the described
product. Only qualified personnel as stipulated overleaf have the specialized knowledge
to interpret the general safety warnings and instructions of this documentation in every
specific case and to implement them in practice.
These operating instructions are an integral part of the scope of delivery. For reasons of
clarity, they do not include all details about all model of the product described, and also
cannot take into account every conceivable type of installation, operation and
maintenance. If you would like additional information, or if particular problems arise
which are not covered in sufficient detail in the documentation, please ask for the
necessary information from your local Siemens office, or contact the address on the back
page of the operating instructions directly.
Furthermore, it should be noted that this product documentation is neither part of a
previous or existing agreement, commitment, or legal relationship nor does it modify
such a relationship in any way. All Siemens obligations derive from the respective sales
contract, which also contains the complete and exclusive warranty agreement This
warranty agreement is neither extended nor restricted by any statements in this manual.
WARNING!
When electrical devices are operated, certain parts necessarily conduct dangerous
voltages. If the safety warnings are not heeded, severe injury or
damage can occur.
Only appropriately qualified persons are permitted to work on this equipment.
Appropriate transport, storage, mounting, and installation, as well as careful operation
and service, are essential for the error-free, safe and reliable opera
tion of this
equipment.
Modules and devices are tested with regard to their dielectric strength at 5.55kV/3.7 kV.
Devices with voltages up to a maximum of 500 V (to ground) in the measuring circuit
must demonstrate double isolation to the secondary circuit
s. Devices with voltages
higher than 500 V (to ground) in the measuring circuit must demonstrate basic isolation
against the secondary circuits. This must be observed during the installation
(section 10 Mounting and operation) and use of the devices.

SIMEAS-T - Transducer without auxiliary power
3
QUALIFIED PERSONNEL
Unqualified intervention in the device/system or failure to heed the safety warnings in
this manual can lead to serious injury or material damage. Therefore, only suitably
qualified personnel are permitted to service this device/system. Qualified personnel in
the sense of the safety-related notices in these operating instructions or on the product
itself are persons who
•are either familiar with the safety concepts of automation engineering as
configuration personnel
•or have been trained to handle automation engineering equipment as operating
personnel and are familiar with the content of these operating instructions
•or are trained to repair such automation equipment as commissioning and service
personnel
or are authorized to commission, ground and label electric circuits and
devices/systems according to the standards of safety engineering.
NOTICE!
Always use the correct version of the transducer for your application. Ensure that the
operating data of your system corresponds to the values on the rating plate.
WARNING!
If you do not use the device in the manner described herein, the device protection may
be impaired.

SIMEAS-T - Transducer without auxiliary power
4

SIMEAS-T - Transducer without auxiliary power
5
Safety instructions .............................................................................................................. 2
Operating Instructions.............................................................................................................. 7
1 Area of application ......................................................................................................... 7
2 Characteristic curves....................................................................................................... 7
3 Performance characteristics ............................................................................................ 8
4 Operating principle......................................................................................................... 9
5 Overview circuit diagram ................................................................................................ 9
6 Technical specifications ................................................................................................ 10
7 Rating plate symbols..................................................................................................... 12
8 Description................................................................................................................... 12
9 Ordering data............................................................................................................... 13
10 Mounting and operation.............................................................................................. 15
10.1 Installation ............................................................................................................ 15
10.2 Connection............................................................................................................ 15
10.3 Installation material ............................................................................................... 15
11 Commissioning ........................................................................................................... 16
12 Maintenance............................................................................................................... 16
13 Calibrating and testing ................................................................................................ 17
Siemens Aktiengesellschaft © SIEMENS AG 2006, 2011, 2014, 2015. 2016 All Rights Reserved
Subject to change without prior notice A5E38679986C / RS-AB

SIMEAS-T - Transducer without auxiliary power
6

SIMEAS-T - Transducer without auxiliary power
7
Operating Instructions
1 Area of application
Transducers are used to convert different measured signals from high-voltage and low-
voltage systems into proportional output variables. In the power supply and distribution
industry, they are, for example, in areas where measured signals have to be transmitted
over large distances.
The passive SIMEAS transducers convert the alternating input voltage or the alternating
input current from the high-current power network (45 to 65 Hz) into a load-
independent direct output current.
Up to the maximum permissible load, multiple devices – recorders, indicators, remote
control systems, computers and controllers – can be serially connected and operated
directly or via long-distance lines to the output. The inputs and outputs are electrically
isolated. Auxiliary power supply is not needed.
The SIMEAS transducers must be installed in a closed system, such as a control cabinet.

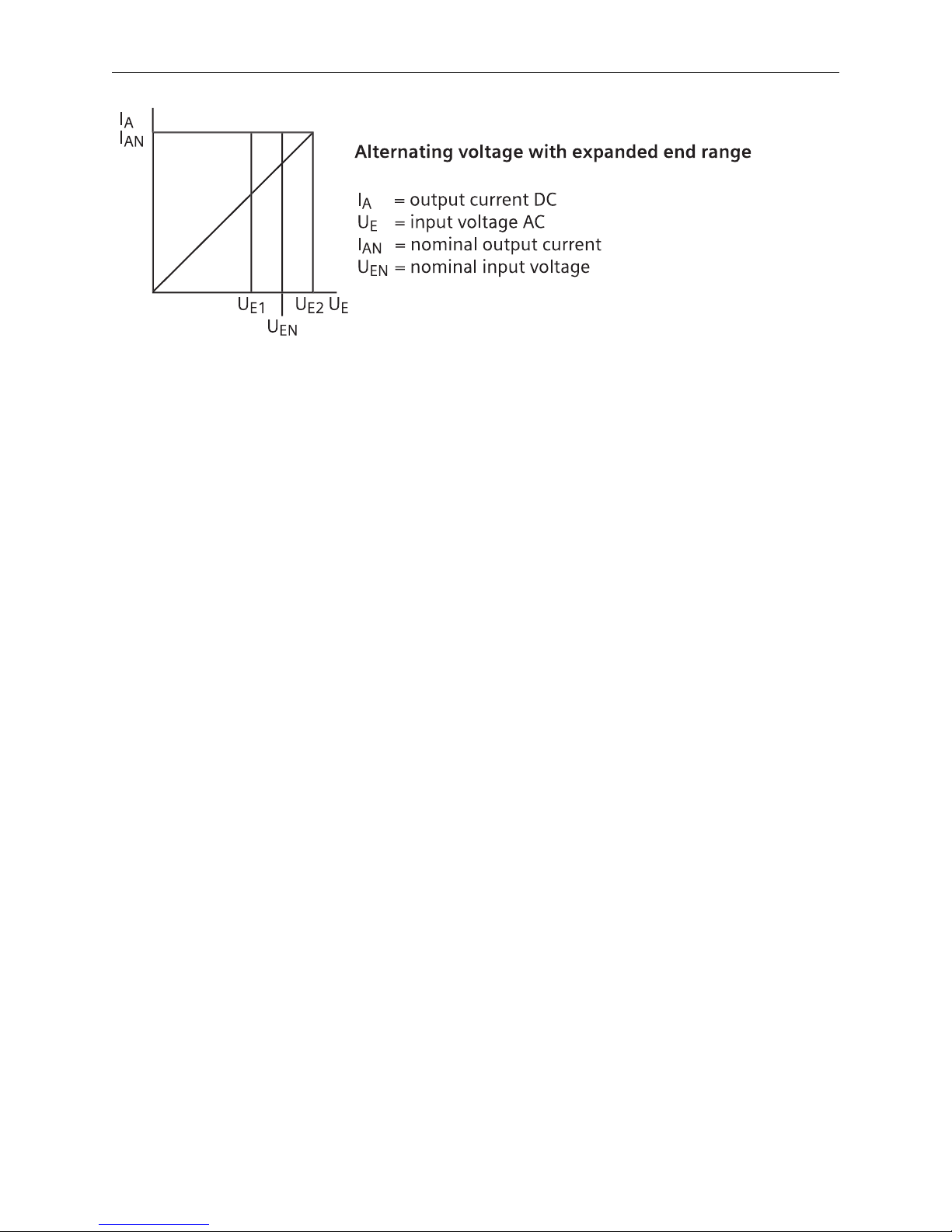

2 Characteristic curves

SIMEAS-T - Transducer without auxiliary power
8
3 Performance characteristics
• High measuring precision
• Powerful output signal circuits
• High system safety and reliability
• CE mark
• Extremely high immunity to EMC interference
• Compliance with relevant national and international standards
• Electrical isolation at a high test voltage
• High quality, long service life
• Low price
• Short delivery times, standard types from stock
• Extremely small dimensions

SIMEAS-T - Transducer without auxiliary power
9
4 Operating principle
The transformer (1) transfers the input signal IEor UEvia the rectification and filtering (2)
to the signal evaluation (3), which drives the output amplifier (4). Fed by smoothing, the
output amplifier provides a load-independent current IAproportional to the input value IE
or UE. The protective circuit (5) protects the output against no-load and transient
overvoltage.
With an alternating voltage transducer with expanded end range, the expansion circuit
(6) of the measuring range is adjusted
5 Overview circuit diagram
1
Transformer
2
Rectification, filtering
3
Signal evaluation
4
Output amplifier
5
Protective circuit
6
Expansion circuit

SIMEAS-T - Transducer without auxiliary power
10
6 Technical specifications
Input
Only for connecting to alternating voltage systems!
Maximum voltage to earth
500 V ~
Power consumption of the measuring circuit 0.3 VA with IAN = 2.5 mA
0.4 VA with IAN = 5 mA
0.6 VA with IAN = 10 mA
0.9 VA with IAN = 20 mA
Permissible modulation range
1.2 I
EN
or 1.2 U
EN
Rated frequency fEN
50 Hz, 60 Hz
Frequency range f
E
45 Hz to 65 Hz
Curve form
Sine
Input transducer
Alternating current
Standard rated currents IEN
See ordering table
Continuous overload capacity
for IEN = 1 A; 1.2 A
for IEN = 1.5 A
for IEN = 2 A; 2.4 A
for IEN = 2.5 A
for IEN = 5 A; 6 A
for IEN = 7.5 A
for I
EN
= 10 A
2 A
3 A
4 A
5 A
10 A
12 A
15 A
Surge overload capacity
for IEN = 1 A; 1.2 A; 1.5 A;
for IEN = 2 A; 2.4 A; 2.5 A
for IEN = 5 A; 6 A; 7.5 A; 10 A
50 A for 1 s
100 A for 1s
200 A for 1s
Input transducer
Alternating voltage
Standard voltage UEN
See ordering table
Special rated voltage U
EN
in the range from 40 to 500 V
Continuous overload capacity
1.5x UEN but max. 600 V
Surge overload capacity
≤ 2x U
EN
(5 surges 1s, in intervals of 5s)
Output
Output signal bipolar, short-circuit proof and resistant to no-load operation, optionally load-independent
direct current or load-independent direct voltage
Standard rated current I
AN
2.5 mA; 5 mA; 10 mA; 20 mA
Special rated current IAN
in the range from 1 to 20 mA
Rated modulation range
0 to IAN
Permissible modulation range
0 to 1.2 IAN
No-load voltage U
AL
≤ 30 V
Rated load RBIN
7.5 V/IAN
Operating load R
B
0 to 15 V/I
AN
Residual ripple ISS ≤0.5% SS of IAN
Setting time tgg
– Transducer alternating current
– Transducer alternating voltage
≤ 1 s
≤ 0.4 s

SIMEAS-T - Transducer without auxiliary power
11
Errors and influencing effects
The relative error information with signs "+" and "-"
Errors in reference conditions
0.5% relative to IAN
Reference conditions
– Input current IE
– Input voltage UE
– Frequency fE
– Curve form
– Load RB
– Ambient temperature TU
– Warm-up period
0.05 IEN to IEN
0.2 UEN to UEN
fEN ± 1%
Sine, THD ≤ 0.2%
RBIN ± 1%
23 °C ± 1 °C
max. 15 min at f
N
Influencing effects
– of the input voltage of UEN to 1.2 UEN
– of the input current of 0 to 0.05 IEN
– of the input current of > 0.05 IEN to 1.2 IEN
– of the ambient temperature
– of the frequency (45 to 65 Hz)
– of the harmonics (only 3rd harmonic)
– of load
– of self-heating
– Interfering fields
≤ 0.4%
≤ 0.5%
≤ 0.1%
≤ 0.3% / 10 K
≤ 0.03% / Hz
≤ 0.33% THD
≤ 0.2% at change of load from 0 Ω to 15 V/IAN
≤ 0.3%
None
Other technical specifications
Surge voltage UDE 0435, Part 303 with type test
– input relative to output
– on input and output as normal mode voltage.
T = 5 kV, 1.2/50 µsec, Ri = 500 Ω
T = 5 kV, 1.2/50 µsec, Ri = 500 Ω
In each case, 3 surges in both directions of polarity
Permissible ambient temperature according to
IEC 68-2 / 1-3
– operating temperature range
– functional temperature range
– storage temperature range
- 10°C to + 60 °C
- 15°C to + 70 °C
- 40°C to + 85 °C
Max. permissible humidity
90% rel. humidity, non-condensing
Mechanical strength in accordance with DIN EN 61010 Part 1
Interference immunity class IK06 (1 J)
Max. operating altitude
2000 m above sea level
Safety
in accordance with DIN EN 61010 Part 1
Overvoltage category
III
Degree of pollution
2
Fire resistance class
V-0
Electromagnetic compatibility
Emitted interference according to EN 50081-1
– Radio interference field strength according to EN
55022
Cl. B
Interference immunity according to EN 50082-2
– Immunity against electromagnetic fields
according to EN61000-4-3 (IEC 801-3)
– Discharge of static electricity ESD according to
EN61000-4-2 (IEC 801-2)
– Fast transients, asymmetric burst with capacitive
coupling line
in accordance with EN61000-4-4 (IEC 801-4)
10 V/m
8 kV
2 kV
4 kV

SIMEAS-T - Transducer without auxiliary power
12
7 Rating plate symbols
C
EU conformity marking
TR Customs Union Certification of EAC
Notice – Observe warning information
Input
Output
~
Alternating voltage or current

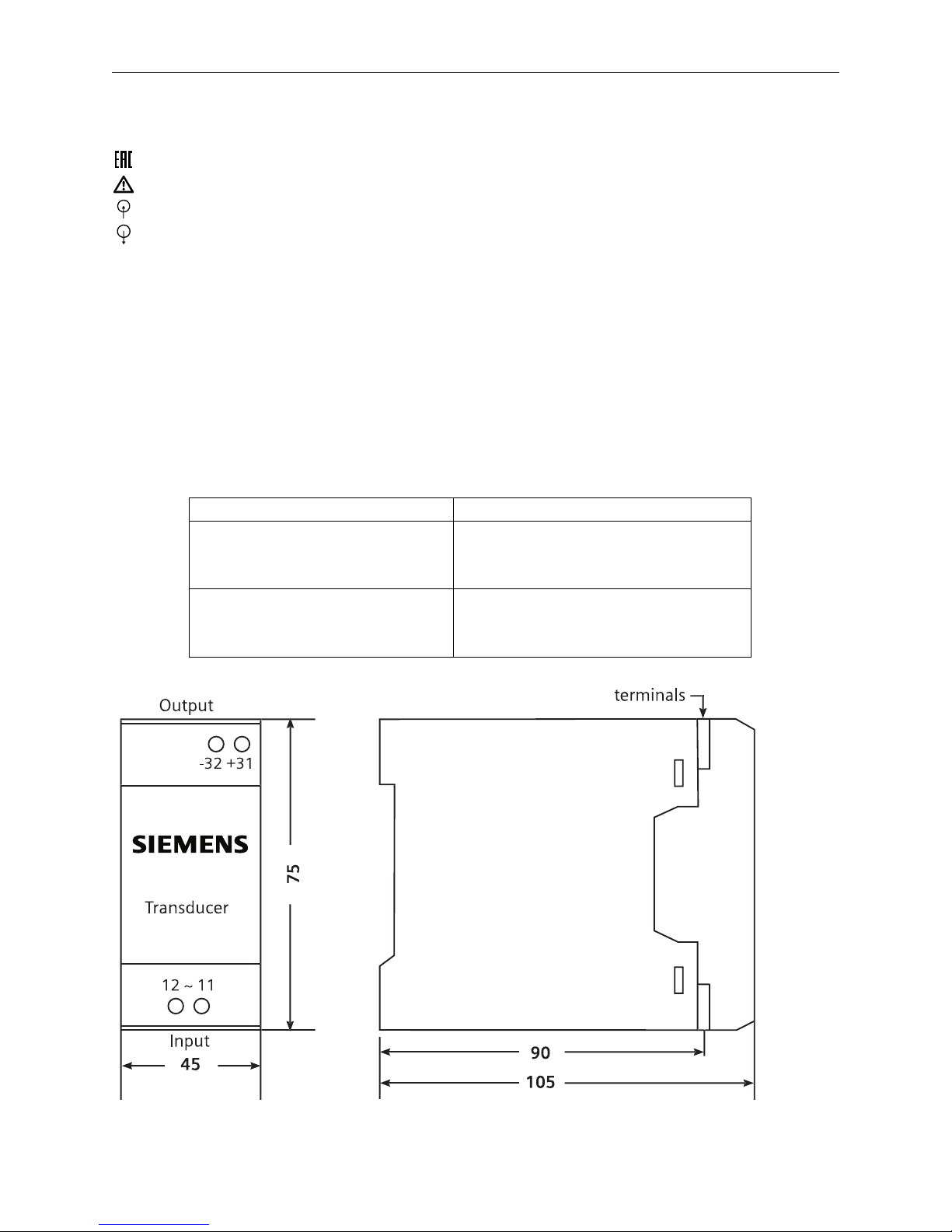

8 Description
The transducers in the enclosure are permanently wired and tested functional units.
They have a snap-on mounting for a 35 mm standard mounting rail according to DIN EN
50022. Inputs and outputs can be safely connected to the screw terminals. The devices
are silicone-free, halogen-free and flame-resistant. The balancing potentiometers can be
accessed after removing the enclosure cover.
Weight:
approx. 0.28 kg
Degree of protection:
Enclosure:
Terminals:
DIN VDE 0470 T.1 / EN 60529
IP40
IP20
Connection: Screw terminals
Input:
Output:
4 mm²
2.5 mm²

SIMEAS-T - Transducer without auxiliary power
13
9 Ordering data
Ordering data for alternating voltage (G) MUU
Name
Order no.
Code
Device 7KG
6
1
0
1
-
1
↑
↑
↑
↑
↑
Input signal EN
│
│
│
│
│
Rated frequency fEN
50 Hz
2
│
│
│
│
60 Hz 3
│
│
│
│
│
│
│
│
Rated input voltage
U
EN
│
│
│
│
40 V
K
│
│
│
100 / √3 V
A
│
│
│
60 V
L
│
│
│
110 / √3 V
B
│
│
│
120 / √3 V
C
│
│
│
132 / √3 V
D
│
│
│
100 V
E
│
│
│
110 V
F
│
│
│
120 V
J
│
│
│
132 V
N
│
│
│
150 V
P
│
│
│
220 V
G
│
│
│
230 V
W
│
│
│
240 V
V
│
│
│
250 V
Q
│
│
│
300 V
U
│
│
│
380 V
H
│
│
│
400 V
R
│
│
│
500 V S
│
│
│
│
│
│
Output signal range
IAN
│
│
│
0 to 2.5 mA DC
G
│
│
0 to 5 mA DC
H
│
│
0 to 10 mA DC
J
│
│
0 to 20 mA DC K
│
│
│
│
Number of channels
│
│
1-channel 1
│
│
Measuring range
│
0 to U
EN
0
0 to 0.9 to 1.1 U
EN
≙0 to 0 to I
AN
6
0 to 0.85 to 1.15 U
EN
≙0 to 0 to I
AN
7
0 to 0.8 to 1.2 U
EN
≙0 to 0 to I
AN
8
Notice
Not all possible combinations are available

SIMEAS-T - Transducer without auxiliary power
14
Ordering data for alternating current (G) MUI
Name
Order no.
Code
Device 7KG
6
1
1
1
-
1
0
↑
↑
↑
↑
Input signal EN
│
│
│
│
Rated frequency f
EN
50 Hz
2
│
│
│
60 Hz
3
│
│
│
│
│
│
Rated input current
I
EN
│
│
│
1.0 A
A
│
│
1.2 A
B
│
│
1.5 A
K
│
│
2.0 A
C
│
│
2.4 A
D
│
│
2.5 A
L
│
│
5.0 A
E
│
│
6.0 A
F
│
│
7.5 A
G
│
│
10 A
J
│
│
│
│
Output signal range
IAN
│
│
0 to 2.5 mA DC
G
│
0 to 5 mA DC
H
│
0 to 10 mA DC
J
│
0 to 20 mA DC
K
│
│
Number of channels
│
1-channel
1
Notice
Not all possible combinations are available

SIMEAS-T - Transducer without auxiliary power
15
10 Mounting and operation
WARNING!
When electrical devices are operated, certain parts necessarily conduct dangerous
voltages. Failure to heed the operating notices can therefore lead to serious injury or
property damage.
The device should only be mounted and electrically connected by appropriately
qualified personnel. In particular, all warning notices must be observed.
10.1 Installation
•The installation location must be as free of vibrations as possible. The permissible
ambient temperature (operating or functional temperature) must be observed
(see technical specifications).
•Operation outside the functional temperature range can lead to erroneous
measurements and failure of the transducer.
•Plastic enclosure, overvoltage category III in accordance with DIN EN 61010 Part 1.
•Screw terminals for maximum 2.5 mm2or 4 mm2.
•The transducer must be mounted on a 35 mm DIN rail (in accordance with
DIN EN 50022). The DIN rail must be mounted horizontally.
10.2 Connection
The regulations for the construction of high voltage installations must be observed when
carrying out the electrical installation.
•If multiple receivers are used, for example recorders, displays, remote terminal
units, computers or controllers, these devices must be connected in series with
the current output of the transducer (ensure correct polarity). For transducers
with voltage output, the receivers are connected in parallel to this.
•The total load, including the cables, must not exceed the value stated in the
technical specifications.
•The pin assignment is shown in section 8 Description.
•The performed installation must be tested according to EN 61439.
Notes for the fuses to be used:
Appropriate protection must be provided for the measuring circuits during the
installation:
•Current measuring circuits: the fuse must prevent the values presented in the
table 6Technical specifications from being exceeded.
•Voltage measuring circuits: the fuse must limit the current to 100 mA,
be suitably arranged and be easily accessible to the user.
10.3 Installation material
Measuring circuits: The connection of the measuring circuit must be made with cables
that have demonstrated double isolation for the highest voltage occurring in the
measuring circuit.

SIMEAS-T - Transducer without auxiliary power
16
Secondary circuits: For devices in which the highest voltage of the measuring circuit is
500 V, cables with basic isolation in relation to the maximum voltage in each secondary
circuit suffice.
For devices with voltages that exceed 500 V in the measuring circuit, the isolation of the
cable in the secondary circuits must correspond to a basic isolation for the highest
voltage occurring in the measuring circuit.
11 Commissioning
First ensure that the operating data matches the values on the rating plate. No changes
may be made on the transducer. After a warm-up time of 15 minutes, the transducer is
ready for operation and keeps within the error limits.
•Measurement option for the output current and load voltage. Before connecting
an ammeter to the output side of the transducer, the primary side should be
switched off because the voltage at terminals 31 and 32 rises to a maximum of
30 V DC during the interruption of the output current IA .
•Measurement of the output current (output signal IA): Disconnect the line from
terminal 31(+) or 32(-), and connect the ammeter in series there.
•Measurement of the load voltage (output signal IA): Connect voltmeter to
terminals 31(+) and 32(-).
12 Maintenance
The output signal can be tested in a laboratory six months after commissioning and
subsequently every two years (section "Calibrating and testing"). The device has to be
opened for this. Apart from that, the transducer requires no maintenance.

SIMEAS-T - Transducer without auxiliary power
17
13 Calibrating and testing
WARNING!
The work must be done in accordance with the specifications and performance
instructions of accident prevention regulation VBG 4.0. in particular 8. "Permissible
discrepancies while working on active parts". A suitable electrical tool must be used.
The transducer has to be opened for calibration.

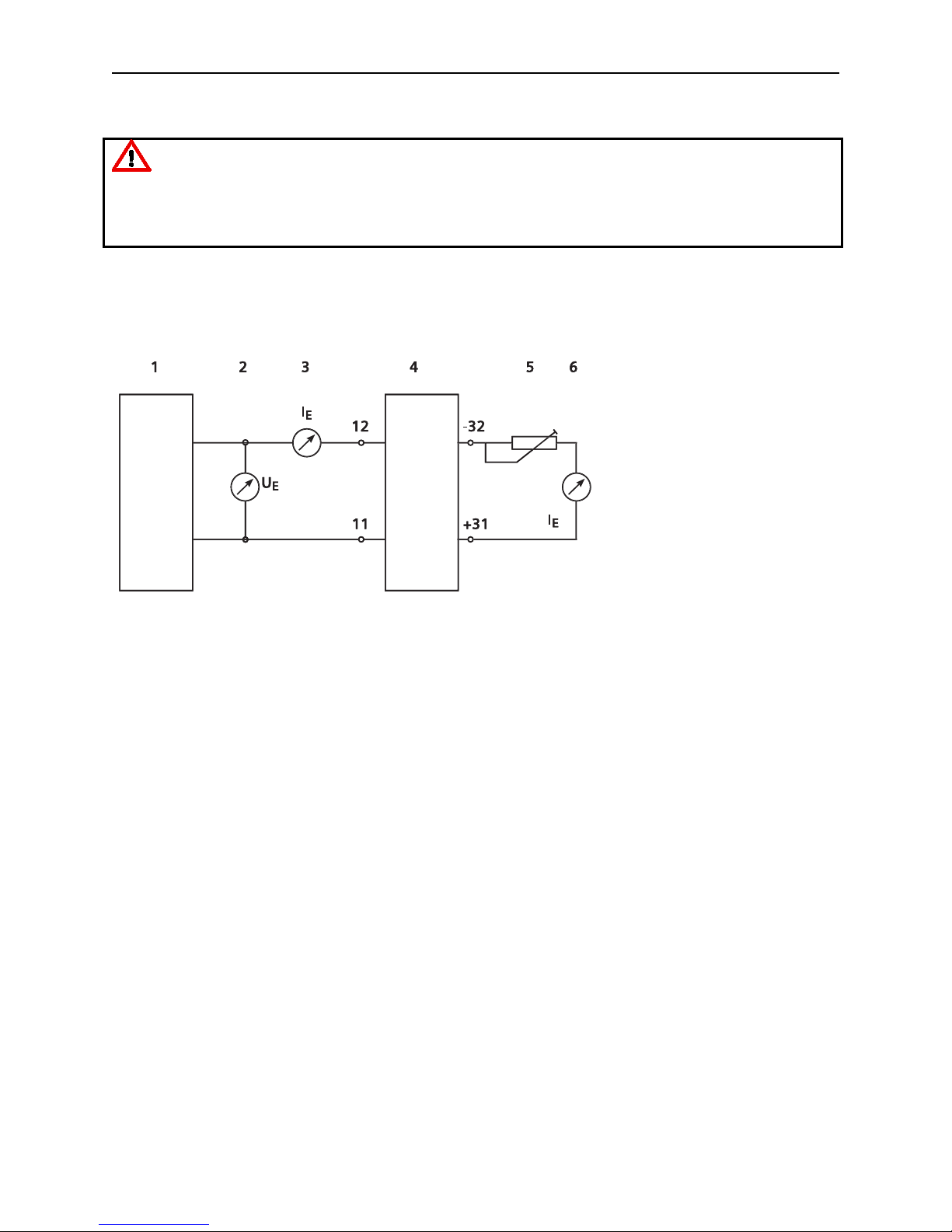

Test circuit for voltage and current transducers
(with terminal designations of the 1-channel compact device)
1
Alternating voltage encoder (THD ≤ 1%) 0 to 600 V or
Alternating current encoder (THD ≤ 1%) range 0 to 10 A
2
Voltmeter, class 0.01
3
Ammeter, class 0.01, Ri ≤ 0.1 Ω
4
Test specimen, voltage or current transducer
5
Decade resistor 0 to 20 kΩ
6
Ammeter, class 0.01, Ri ≤ 10 Ω

SIMEAS-T - Transducer without auxiliary power
18
Calibration of the voltage transducer
Start value
Feed UE= 0.2 UEN ± 0.05% UEN, with trim potentiometer "min" set the output value
IA= 0.2 IAN ± 0.2% IAN.
Full-scale value
Feed UE= UEN ± 0.05% UEN, set the output end value IA= IAN ± 0.2% IAN with trim
potentiometer "max".
Repeat start and full-scale value calibration until the specified tolerances are achieved.
Calibration of the voltage transducer with suppressed start range and expanded
end range
Example: Transducer with range
0 to 0.8 to 1.2 UEN = 0 to 0 to IAN
Start value
Feed UE= 0.8 UEN ± 0.05% UEN, set the output value IA= 0 + 0.1% IAN with trim
potentiometer "min".
Full-scale value
Feed UE= 1.2 UEN ± 0.05% UEN, set the output value IA= IAN ± 0.1% IAN with trim
potentiometer "max".
Check start and full-scale values, repeat calibration if necessary.
To set the potentiometer, refer to the previous schematic diagram.

SIMEAS-T - Transducer without auxiliary power
19
Calibration of the current transducer
Full-scale value
(this is the only calibration required)
Feed EI= IEN ± 0.1% EEN, set the output value
IA= IAN ± 0.2% EAN with trim potentiometer R4.

SIMEAS-T - Transducer without auxiliary power
20
Contact
Please talk to your Siemens contact (http://www.siemens.com/automation/partner) at one of our agencies
or local offices if you have any questions about the products described here and do not find the answers in
this manual.
Technical Support: Siemens Industry Online Support
You can contact Technical Support for about the products described as follows:
•Telefon: + 49 (0) 911 895 7222
•E-Mail (mailto:[e-mail])
•Homepage (http://support.automation.siemens.com)
sAG
Version: 07/2016
