Siemens SITRANS LR260 Instruction manual

SITRANS
Radar Transmitters
SITRANS L 260 (HART)R
Quick Start Manual 12/2013

IQ300IX.fm Page 5 Tuesday, October 2, 2001 1:43 PM

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-1
mmmmm
English
SITRANS LR260 (HART) Quick Start Manual
This manual outlines the essential features and functions of the SITRANS LR260 (HART). We
strongly advise you to acquire the detailed version of the manual so you can use your device to
its fullest potential. The complete manual can be downloaded from the SITRANS LR260
product page of our web site at: www.siemens.com/LR260. The printed manual is available
from your local Siemens Milltronics representative.
Questions about the contents of this manual can be directed to:
Siemens Milltronics Process Instruments
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario, Canada, K9J 7B1
Email: [email protected]om
MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments.
Technical Support
Support is available 24 hours a day.
To find your local Siemens Automation Office address, phone number, and fax number, go to:
www.siemens.com/automation/partner:
• Click on the tab Contacts by Product then find your product group (+Process Automation
> +Process Instrumentation > +Level Measuring Instruments).
• Select the team Technical Support. Click on Next.
• Click on a continent, then a country, followed by a city. Click on Next.
For on-line technical support go to: www.siemens.com/automation/support-request
• Enter the device name (SITRANS LR260) or order number, then click on Search, and
select the appropriate product type. Click on Next.
• Enter a keyword describing your issue. Then either browse the relevant documentation,
or click on Next to email a description of your issue to Siemens Technical Support staff.
Siemens A&D Technical Support Center: phone [phone]
fax [phone]
Copyright Siemens Milltronics
Process Instruments 2013.
All Rights Reserved
Disclaimer of Liability
We encourage users to purchase autho-
rized bound manuals, or to view elec-
tronic versions as designed and
authored by Siemens Milltronics Process
Instruments. Siemens Milltronics Pro-
cess Instruments will not be responsible
for the contents of partial or whole
reproductions of either bound or elec-
tronic versions.
While we have verified the contents of this manual
for agreement with the instrumentation described,
variations remain possible. Thus we cannot guar-
antee full agreement. The contents of this manual
are regularly reviewed and corrections are
included in subsequent editions. We welcome all
suggestions for improvement.
Technical data subject to change.

Page EN-2 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
Safety Guidelines
Warning notices must be observed to ensure personal safety as well as that of others, and to
protect the product and the connected equipment. These warning notices are accompanied by
a clarification of the level of caution to be observed.1
FCC Conformity
US Installations only: Federal Communications Commission (FCC) rules
SITRANS LR260
SITRANS LR260 is a 2-wire 25 GHz pulse radar level transmitter for continuous monitoring of
solids and liquids in storage vessels including extreme levels of dust and high temperatures, to
a range of 30 m (98.4 ft).
The instrument consists of an electronic component coupled to a horn antenna with an
integral Easy Aimer and flange for quick and easy positioning. A dust cover or air purging are
available as options.
SITRANS LR260 supports HART communication protocol, and SIMATIC PDM software. Signals
are processed using Process Intelligence which has been field-proven in over 1,000,000
applications worldwide (ultrasonic and radar).
WARNING: relates to a caution symbol on the product, and means that failure to
observe the necessary precautions can result in death, serious injury, and/or
considerable material damage.
WARNING1: means that failure to observe the necessary precautions can result
in death, serious injury, and/or considerable material damage.
Note: means important information about the product or that part of the operating manual.
1. This symbol is used when there is no corresponding caution symbol on the product.
WARNING: Changes or modifications not expressly approved by Siemens
Milltronics could void the user’s authority to operate the equipment.
Notes:
• This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
• This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the Operating Instructions may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference to radio communications, in which case the user will
be required to correct the interference at his own expense.
WARNING: SITRANS LR260 is to be used only in the manner outlined in this manual,
otherwise protection provided by the equipment may be impaired.

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-3
mmmmm
English
Specifications
For a complete listing, see the SITRANS LR260 (HART) Operating Instructions. For Approvals
information, please refer to the device nameplate and the process device tag.
Ambient/Operating Temperature
Power
• Maximum 30 V DC • 4 to 20 mA
Approvals
•General CSA
US/C, FM, CE, C-TICK
• Radio Europe (R&TTE), FCC, Industry Canada
• Hazardous ATEX II 1G, 1/2D, 2D Ex ia IIC T4 Ga, Ex ta IIIC T100 °C Da
ATEX II 3G Ex nA IIC T4 Gc
IECEx SIR 11.0153X Ex ia IIC T4 Ga, Ex ta IIIC T100 °C Da
FM/CSA Class I, Div. 1, Groups A, B, C, D Class II, Div. 1,
Groups E, F, G, Class III T4
FM/CSA Class I, Div. 2, Groups A, B, C, D T5
SABS ARP0108 Ex ia IIC T4 Ga
INMETRO:DNV 12.0081 X
Ex ia IIC T4 Ga
Ex ta IIIC T100 °C Da
-40 ºC Ta +80 ºC
IP67/IP68
DNV #OCP 0017
ABNT NBR IEC 60079-0:2008
ABNT NBR IEC 60079-11:2009
ABNT NBR IEC 60079-26:2008 e
ABNT NBR IEC 60079-31:2011
Notes:
• Process temperature and pressure capabilities are dependent upon information on the
process device tag. The reference drawing listed on the tag can be downloaded from the
Siemens website at: www.siemens.com/LR260.
• See
Loop power on page 19, for more details.
Nominal 24 V DC with max. 550 Ohm loop resistance. (Check the device
nameplate for the characteristics of the device, and confirm the loop load.)
Note: Use appropriate conduit seals to maintain IP or NEMA rating.
ambient temperature
–40 °C to +80 °C (–40 °F to +176 °F)
process temperature (with FKM O-ring)
non-pressure version: –40 to +200 °C (–40 to +392 °F)
pressure rated version: –40 to +80 °C (–40 to +176 °F)

Page EN-4 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
Pressure Application
1
Installation
WARNINGS:
• This product is designated as a Pressure Accessory per Directive 97 / 23 / EC, and
is not intended for use as a safety device.
• Do not attempt to loosen, remove, or disassemble process connection or
instrument housing while vessel contents are under pressure.
• Improper installation may result in loss of process pressure.
1. The process pressure boundary assembly comprises the components that act as a barrier against
pressure loss from the process vessel: that is, the combination of process connection body and
emitter, but normally excluding the electrical enclosure.
WARNINGS:
• Installation shall only be performed by qualified personnel and in
accordance with local governing regulations.
• Materials of construction are chosen based on their chemical compatibility (or
inertness) for general purposes. For exposure to specific environments, check
with chemical compatibility charts before installing.
Notes:
• For European Union and member countries, installation must be according to ETSI EN
302372.
• The Process Device Tag shall remain with the process pressure boundary assembly1. In
the event the device package is replaced, the Process Device Tag shall be transferred to
the replacement unit.
• SITRANS LR260 units are hydrostatically tested, meeting or exceeding the requirements
of the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment
Directive.

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-5
mmmmm
English
Installation guidelines
• Provide easy access for viewing the display and programming via the hand programmer.
• Provide an environment suitable to the housing rating and materials of construction.
• Provide a sunshield if the device will be mounted in direct sunlight.
Nozzle design
• The end of the horn must protrude a minimum of
10 mm (0.4”) to avoid false echoes being reflected
from the nozzle.
• Optional antenna extensions: 100 mm (3.93"),
200 mm (70.9"), 500 mm (19.69"), 1000 mm (39.4")1
Nozzle location
• Keep emission cone free of
interference from ladders, pipes,
I-beams or filling streams.
• Avoid central locations on tall,
narrow vessels.
• Align the antenna so that the
radar cone is perpendicular to the
surface of the monitored material,
if possible.
Mounting instructions
1. Extensions are not recommended for applications where there may be excessive visible vibration. Please consult
factory for more information.
Note: Beam angle depends on horn
size.
WARNING: The user is responsible for the selection of bolting and gasket materials
which will fall within the limits of the flange and its intended use, and which are
suitable for the service conditions.
min. clearance:
10 mm (0.4")
beam angle:
2" horn = 15°
3" horn = 10°
4" horn = 8°
emission
cone
min. 1 m (39")

Page EN-6 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English

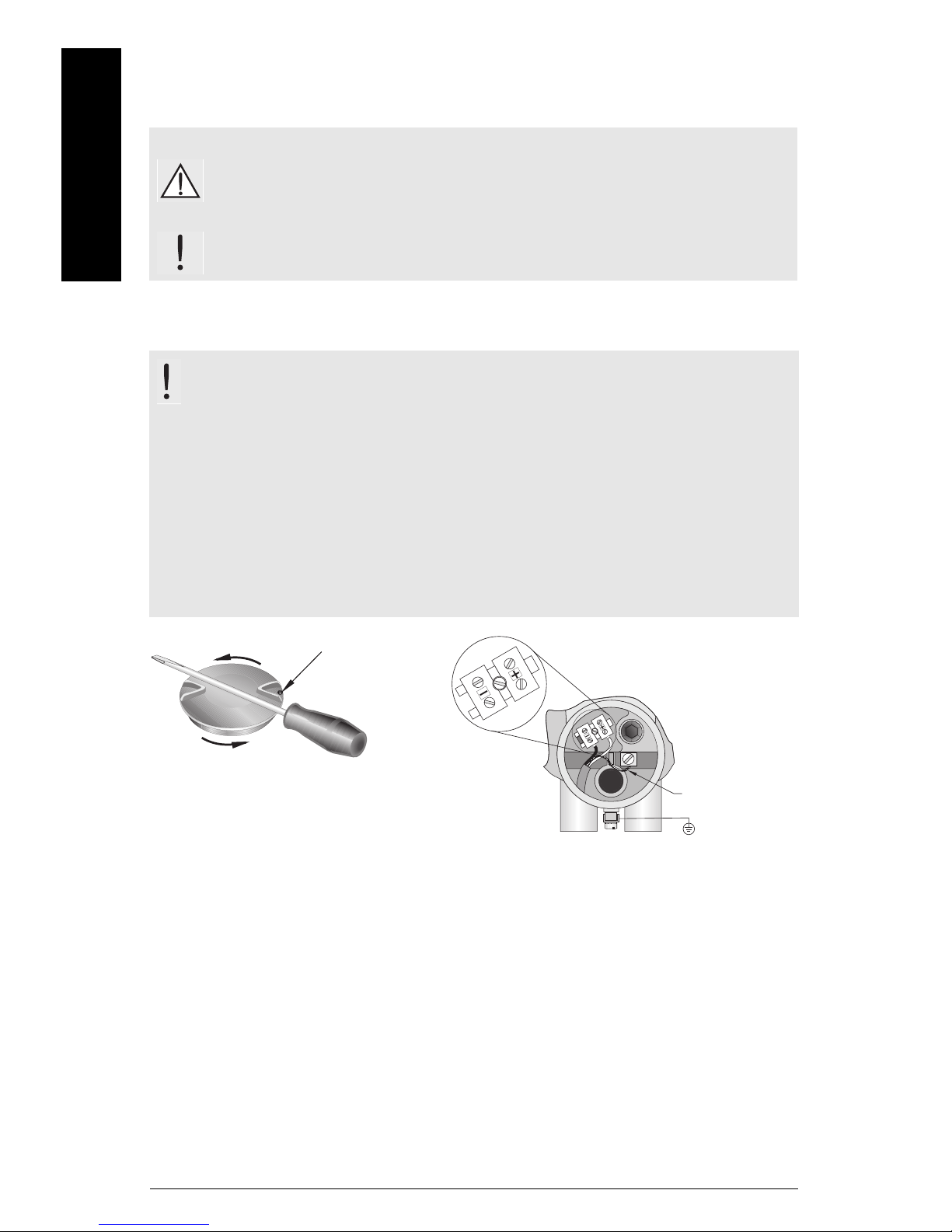

Wiring
Power
Connecting SITRANS LR260
1. Use a 2 mm Allen key to loosen the lid-lock set screw. Then using a screwdriver for
leverage if necessary, unscrew the cover.
2. Strip the cable jacket for approximately 70 mm (2.75") from the end of the cable, and
thread the wires through the gland.
3. Connect the wires to the terminals as shown: the polarity is identified on the terminal
block.
4. Ground the instrument according to local regulations.
5. Tighten the gland to form a good seal.
WARNINGS:
The DC input terminals shall be supplied from a source providing electrical
isolation between the input and output, meeting the applicable safety
requirements of IEC 61010-1.
All field wiring must have insulation suitable for rated voltages.
WARNINGS:
• Check the device nameplate and process device tag, to verify the approval rating.
• Use appropriate conduit seals to maintain IP or NEMA rating.
• Read
Instructions specific to hazardous area installations on page 9.
Notes:
• For detailed wiring instructions, please refer to the full Operating Instructions.
• Use twisted pair cable: AWG 22 to 14 (0.34 mm² to 2.5 mm²).
• Separate cables and conduits may be required to conform to standard instrumentation
wiring practices, or electrical codes.
2 mm lid-lock
set screw.
cable shield
(if used)

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-7
mmmmm
English
Connecting HART
Typical PLC/mA configuration with HART
Wiring setups for hazardous area installations
1. Intrinsically Safe wiring
• For power demands see Loop Voltage versus Loop Resistance on page 19.
• For wiring requirements: follow local regulations.
• Approved dust-tight and water-tight conduit seals are required for outdoor NEMA 4X /
type 4X / NEMA 6, IP67, IP68 locations.
• Refer to
Instructions specific to hazardous area installations on page 9.
active PLC
HART modem
SITRANS LR260
power
supply
Notes:
• Depending on the system
design, the power supply may
be separate from the PLC, or
integral to it.
• Loop resistance (total of cable
resistance plus 250 Ohm
[resistor]) must be less than
550 Ohm for the device to
function properly.
R= 250 
HART
communicator
SITRANS LR260
Siemens Milltronics Process Instruments, Peterborough
7MLxxxx-xxxxx-xxxx-
Encl.: NEMA / TYPE 4X, 6, IP67, IP68
Amb.Temp.: – 40°C to 80°C
Power Rating: 24 V Max.,4-20mA
Nom., 30 V
Serial No: GYZ / S1034567
HART
Ui=30V
Ii = 120 mA
Pi = 0.8 W
Ci=15nF
Li = 0.1 mH
0518
0891
BOX 1
Assembled in Canada with domestic and imported parts
KCC-REM-S49
SITRANSLR
1/2 DII1GD, ,2D
Ex ia IIC T4 Ga
Ex ta IIIC T100°C Da
SIRA 11ATEX2348X
IECEx SIR 11.0153x
ARP0108 Ex ia IIC T4 Ga
WARNING: Use Cable Rated >100°C
ATENÇÃO - RISCO POTENCIAL DE CARGA ELETROSTÁTICA – VEJA INSTRUÇÕES
- UTILIZAR CABOS ADEQUADOS PARA TEMPERATURAS >100 °C
Ex ia IIC T4 Ga
Ex ta IIIC T 100°C Da
DNV 12.0081 X
OCP 0017
The ATEX certificate listed on the nameplate
can be downloaded from the product page of our website at: www.siemens.com/LR260. Go
to Support > Approvals / Certificates.
The IECEx certificate listed on the nameplate can be viewed on the IECEx website. Go to:
http://iecex.iec.ch and click on Ex Equipment Certificates of Conformity then enter the
certificate number IECEx SIR 11.0153X.
Device nameplate (ATEX/IECEX/INMETRO/C-TICK)
FM/CSA Intrinsically Safe connection drawing number A5E03745229 can be downloaded
from the product page of our website at: www.siemens.com/LR260. Go to Support >
Installation Drawings > Level Measurement > Continuous - Radar.
Device nameplate (FM/CSA)

Page EN-8 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
2. Non-Sparking wiring
• For power demands see Loop Voltage versus Loop Resistance on page 19.
• For wiring requirements: follow local regulations.
• Refer to
Instructions specific to hazardous area installations on page 9.
3. Non-incendive wiring (US/Canada only)
• For power demands see Loop Voltage versus Loop Resistance on page 19.
Assembled in Canada with domestic and imported parts
Siemens Milltronics Process Instruments, Peterborough
HART
WARNING: Use Cable Rated > 100°C
3G
Ex nA IIC T4 Gc
SIRA 09ATEX4155X
II
0891
SITRANS LR260
7MLxxxx-xxxxx-xxxx
Serial No.: GYZ / B1034567
Encl.: NEMA / TYPE 4X, 6, IP67, IP68
Amb. Temp.: – 40°C to 80°C
Power Rating: 24 V Nom., 30 V Max.,
4–20mA
KCC-REM-S49
SITRANSLR
The ATEX certificate listed on the nameplate
can be downloaded from the product page of our website at: www.siemens.com/LR260. Go to
Support > Approvals / Certificates.
FM/CSA Class 1, Div 2 connection drawing number A5E03745541
can be downloaded from the product page of our website at: www.siemens.com/LR260. Go to
Support > Installation Drawings > Level Measurement > Continuous - Radar.

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-9
mmmmm
English
Instructions specific to hazardous area installations
(Reference European ATEX Directive 94/9/EC, Annex II, 1.0.6)
The following instructions apply to equipment covered by certificate number
SIRA 11ATEX2348X, and SIRA 09ATEX4155X.
1) For use and assembly, refer to the main instructions.
2) The equipment is certified for use as Category 1GD, 1/2D, 2D equipment per
SIRA 11ATEX2348X; and Category 3G equipment per SIRA 09ATEX4155X.
3) The equipment may be used with flammable gases and vapors with apparatus group
IIC, IIB and IIA and temperature classes T1, T2, T3 and T4.
4) The equipment has a degree of ingress protection of IP67 and a temperature class
of T100C and may be used with flammable dusts.
5) The equipment is certified for use in an ambient temperature range of –40 C to
80 C.
6) The equipment has not been assessed as a safety related device (as referred to by
Directive 94/9/EC Annex II, clause 1.5).
7) Installation and inspection of this equipment shall be carried out by suitably trained
personnel in accordance with the applicable code of practice (EN 60079-14 and
EN 60079-17 in Europe).
8) The equipment is non-repairable.
9) The certificate numbers have an ‘X’ suffix, which indicates that special conditions
for safe use apply. Those installing or inspecting this equipment must have access
to the certificates.
10) If the equipment is likely to come into contact with aggressive substances, then it is
the responsibility of the user to take suitable precautions that prevent it from being
adversely affected, thus ensuring that the type of protection is not compromised.
- Aggressive substances: for example, acidic liquids or gases that may attack
metals, or solvents that may affect polymeric materials.
- Suitable precautions: for example, establishing from the material’s data sheet
that it is resistant to specific chemicals.
SPECIAL CONDITIONS FOR SAFE USE
The 'X' suffix to the certificate number relates to the following special condition(s) for safe use:
• Unused cable entries shall be fitted with blanking elements that can only be removed
with the aid of a tool.
• Any glands, conduit entry devices or blanking elements fitted to the equipment shall be
suitable for use in the presence of combustible dusts and certified as such by a notified
body; the installation of these devices shall not compromise the IP6X rating of the
equipment enclosure.
• For applications that use the purge facility, the user shall provide a means to ensure that
combustible dust from the hazardous area cannot enter the purge supply in such a way
as to compromise the area classification.

Page EN-10 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
Programming SITRANS LR260
A Quick Start Wizard provides an easy step-by-step guide to help you configure the device for
a simple application.
•7-step
Quick Start Wizard via the handheld programmer on page 15.
•4-step
Quick Start Wizard via SIMATIC PDM on page 18.
Settings can be modified locally via the Local User Interface (see
Accessing parameters via
the handheld programmer
on page 13) or remotely via SIMATIC PDM. The Local User
Interface(LUI) consists of an LCD display and a handheld programmer.
Activating SITRANS LR260
Power up the device. SITRANS LR260 automatically starts up in Measurement mode. Press
Mode to toggle between Measurement and Program Mode.

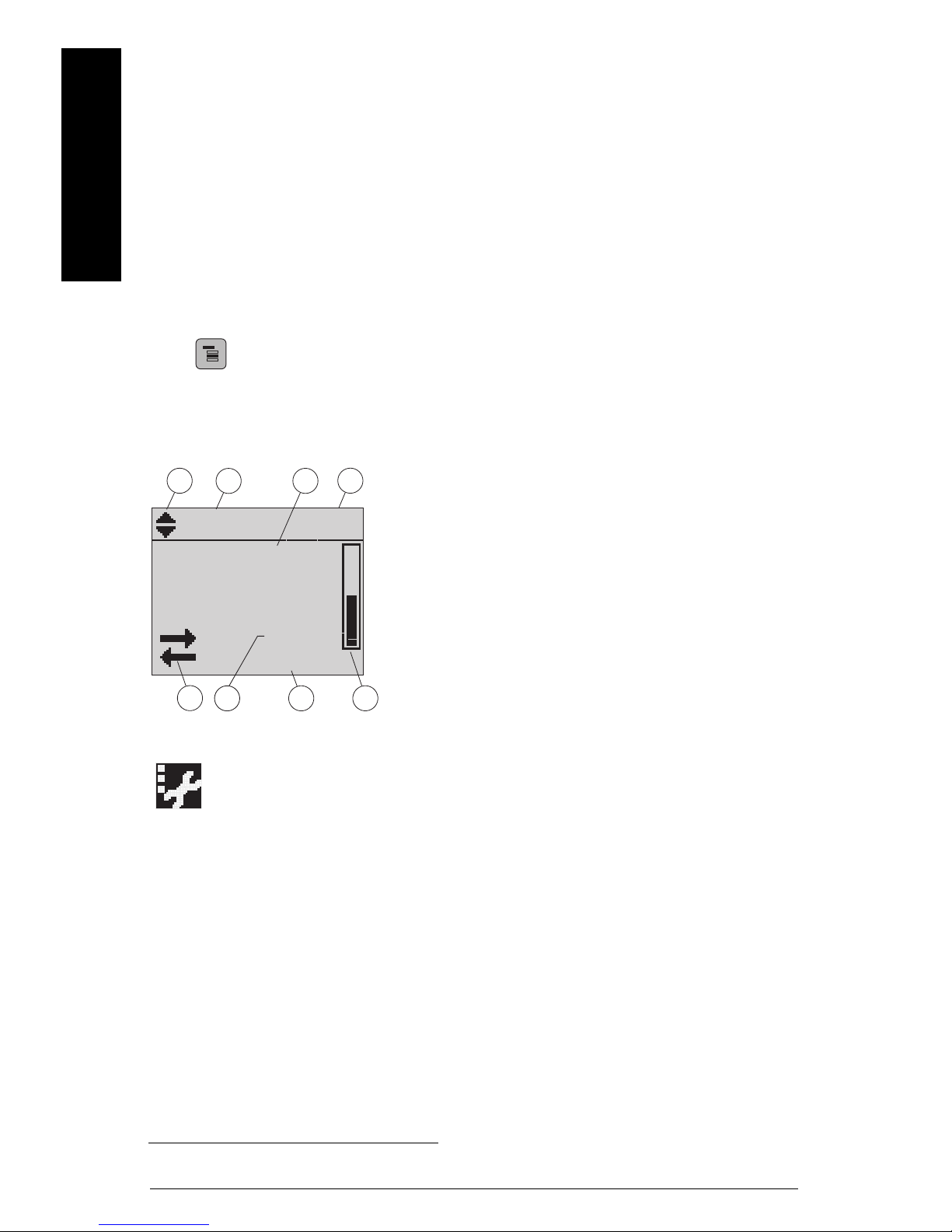

The LCD Display
Measurement mode1 ((((normal operation)
Fault present
1. In response to a key press request. For details, see
Key functions in Measurement mode on page 12.
M
[]
LEVEL
21.40 °C
DATA EXCH.
18.91
1 – toggle indicator for linear units or %
2 – selected operation: level, space, or distance
3 – measured value (level, space, or distance)
4 – units
5 – bar graph indicates level
6 – secondary region indicates on request1electronics
temperature, echo confidence, loop current, or distance
7 – text area displays status messages
8 – device status indicator
678
1342
5
S: 0 LOE 7 – text area displays a fault code and an error message
8 – service required icon appears

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-11
mmmmm
English
PROGRAM mode display
Navigation view
Parameter view
Edit view
current item
number
pointer
current item
current
menu
menu bar
• A visible menu bar
indicates the menu list is
too long to display all
items.
• A band halfway down the
menu bar indicates the
current item is halfway
down the list.
• The depth and relative
position of the item band
on the menu bar indicates
the length of the menu list,
and approximate position
of the current item in the
list.
• A deeper band indicates
fewer items.
parameter number
parameter value/
selection
parameter name

Page EN-12 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English

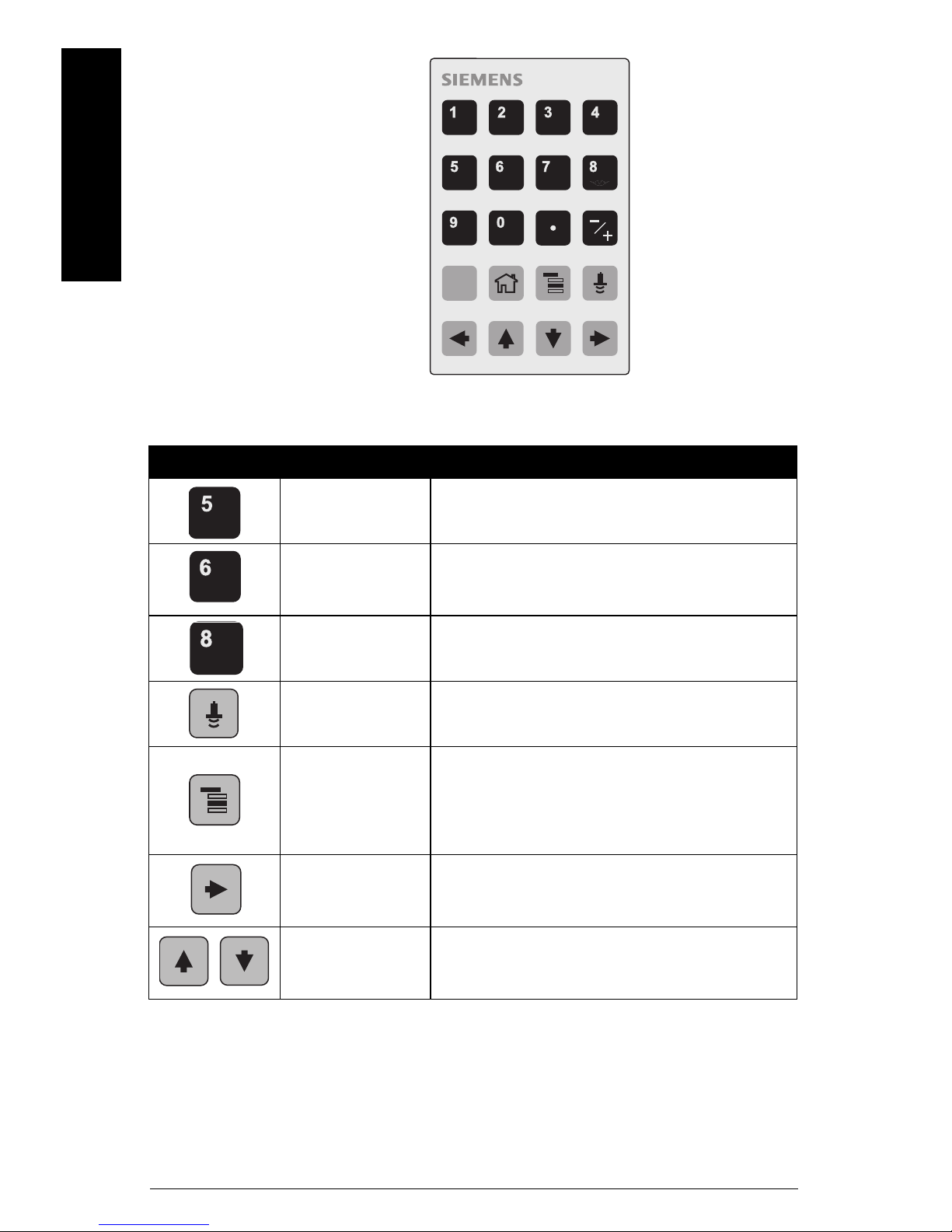

Handheld Programmer
(Part No. 7ML1930-2AJ)
The programmer is ordered
separately.
Key functions in Measurement mode
Key Function Result
Updates the loop
current. New value is displayed in LCD secondary region.
Updates internal
enclosure tempera-
ture reading.
New value is displayed in LCD secondary region.
Updates echo confi-
dence value. New value is displayed in LCD secondary region.
Updates distance
measurement. New value is displayed in LCD secondary region.
Mode opens
PROGRAM mode.
Opens the menu level last displayed in this power
cycle, unless power has been cycled since exiting
PROGRAM mode or more than 30 minutes have
elapsed since PROGRAM mode was used. Then top
level menu will be displayed.
RIGHT arrow
opens PROGRAM
mode.
Opens the top level menu.
UP or DOWN arrow
toggles between
linear units and %
LCD displays measured value in either linear units
or percent.
C

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-13
mmmmm
English
Accessing parameters via the handheld programmer
Parameter menus
Parameters are identified by name and organized into function groups, then arranged in a 5-
level menu structure. For the complete list of parameters with instructions, see the full Operating
Instructions..
1. Enter PROGRAM mode
• Point the programmer at the display (from a
maximum distance of 500 mm [1.6 ft.]).
•RIGHT arrow activates PROGRAM mode
and opens menu level 1.
•Mode opens the menu level last displayed
in PROGRAM mode within the last 30 minutes, or
menu level 1 if power has been cycled since then.
2. Navigating: key functions in Navigation
mode
Note: SITRANS LR260 automatically returns to Measurement mode after a period of
inactivity in PROGRAM mode (between 15 seconds and 30 minutes, depending on the menu
level).
Key Name Menu level Function
UP or DOWN
arrow menu or parameter Scroll to previous or next menu or parameter.
RIGHT arrow menu Go to first parameter in the
selected menu, or open next menu.
parameter Open Edit mode.
LEFT arrow menu or parameter Open parent menu.
Mode menu or parameter Change to MEASUREMENT mode.
Home menu or parameter Open top level menu: menu 1.
1. QUICK START
2. SETUP
2.1. DEVICE
2.2. INPUT
2.2.1. SENSOR CALIB.
2.2.4. ECHO PROC.
Note:
In Navigation mode
arrow keys move to the
next menu item in the
direction of the arrow.
display
handheld programmer
(ordered separately)
Max. 500 mm
(1.6 ft)

Page EN-14 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English

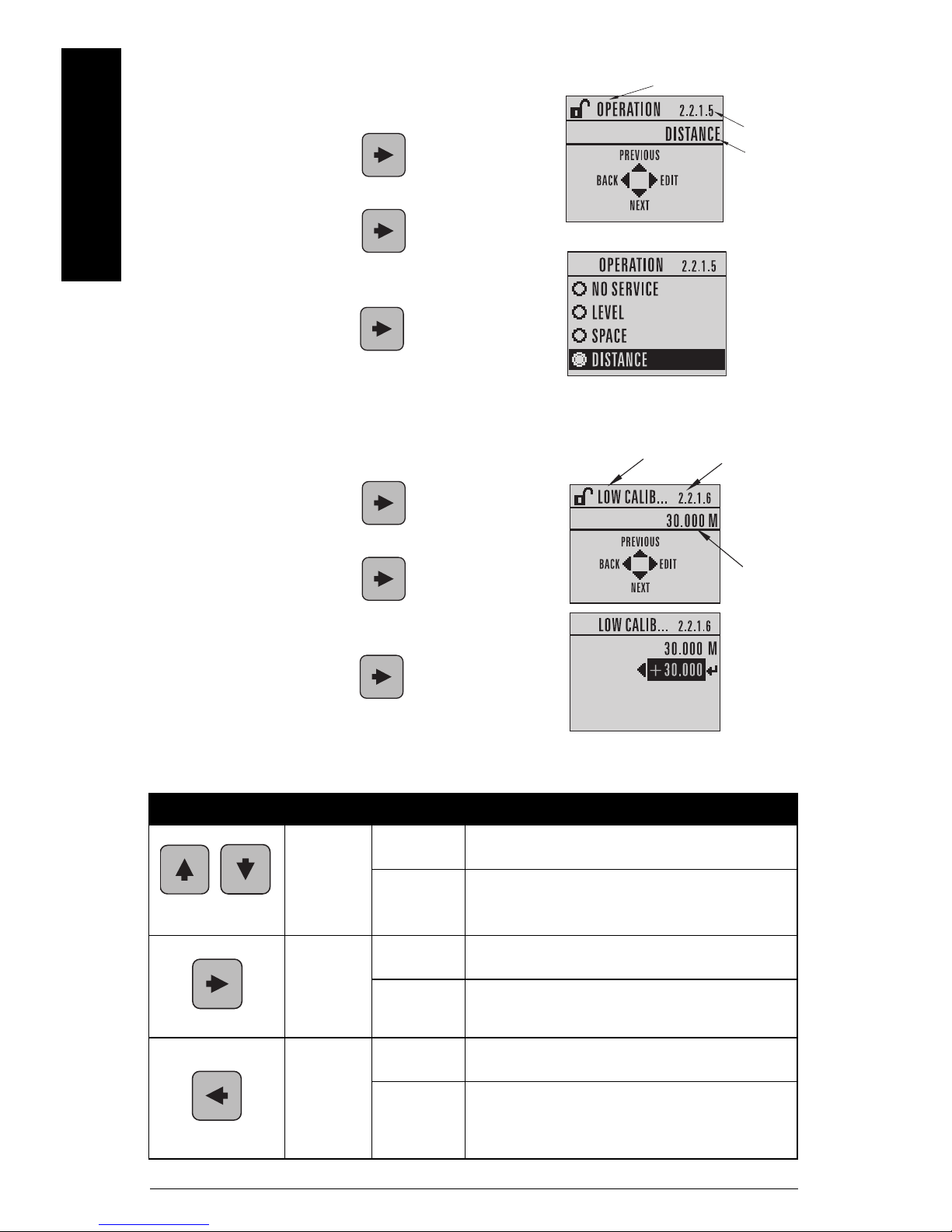

3. Editing in PROGRAM mode
Selecting a listed option
a) Navigate to the desired parameter.
b) Press RIGHT arrow to open parameter
view.
c) Press RIGHT arrow again to open Edit
mode. The current selection is highlighted.
d) Scroll to a new selection.
e) Press RIGHTarrow to accept it
f) The LCD returns to parameter view and displays
the new selection.
Changing a numeric value
a) Navigate to the desired parameter.
b) Press RIGHT arrow to open parameter
view. The current value is displayed.
c) Press RIGHT arrow again to open Edit
mode. The current value is highlighted.
d) Key in a new value.
e) Press RIGHT arrow to accept it. The LCD
returns to parameter view and displays the new
selection.

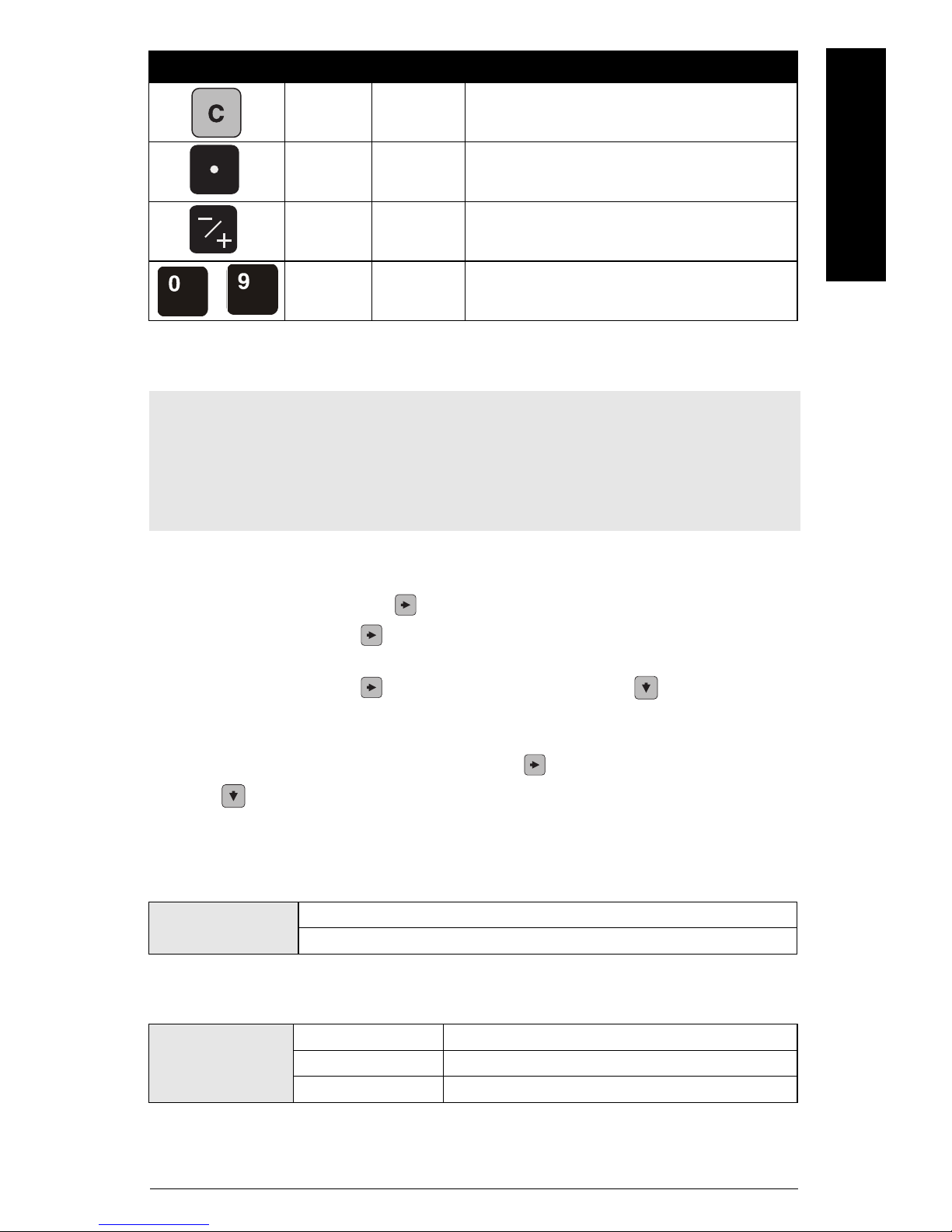

Key functions in Edit mode
Key Name Function
UP or
DOWN
arrow
Selecting
options • Scrolls to item.
Alpha-
numeric
editing
• Increments or decrements digits
• Toggles plus and minus sign
RIGHT
arrow
Selecting
options
• Accepts the data (writes the parameter)
• Changes from Edit to Navigation mode
Numeric
editing
• Moves cursor one space to the right
• or with cursor on Enter sign, accepts the data and
switches from Edit to Navigation mode
LEFT arrow
Selecting
options
• Cancels Edit mode without changing the parame-
ter
Numeric
editing
• Moves cursor to plus/minus sign if this is the first
key pressed
• or moves cursor one space to the left.
• or with cursor on Enter sign, cancels the entry
parameter name
current
value
parameter
number
parameter
number
parameter name
current
selection

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-15
mmmmm
English
Quick Start Wizard via the handheld programmer
1. Quick Start
a) Point the programmer at the display (from a maximum distance of 500 mm [1.6 ft.]),
then press RIGHT arrow to activate PROGRAM mode and open menu level 1.
b) Press RIGHT arrow twice to navigate to menu item 1.1 and open parameter
view.
c) Press RIGHT arrow to open Edit mode or DOWN arrow to accept default
values and move directly to the next item.
d) To change a setting, scroll to the desired item or key in a new value.
e) After modifying a value, press RIGHT arrow to accept it and press DOWN arrow
to move to the next item.
f) Quick Start settings take effect only after you click Yes in Apply? at the end of the
Quick Start steps.
1.1. Material
1.2. Response Rate
Sets the reaction speed of the device to measurement changes in the target range.
Use a setting just faster than the maximum filling or emptying rate (whichever is greater).
Clear Numeric
editing • Erases the display.
Decimal
point
Numeric
editing • Enters a decimal point.
Plus or
minus sign
Numeric
editing • Changes the sign of the entered value.
to Numeral Numeric
editing • Enters the corresponding character.
Notes:
• The Quick Start Wizard settings are inter-related and changes apply only after you click
on Yes in Apply?at the end of the Quick Start steps.
• Do not use the Quick Start wizard to modify individual parameters: see full parameter
listing in Operating Instructions (perform customization for your application only after the
Quick Start has been completed).
Options STEEL (Default)
CONCRETE
Options
SLOW 0.1 m/minute
MED 1.0 m/minute
FAST 10.0 m/minute (Default)
Key Name Function (continued)

Page EN-16 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
1.3. Sensor Units
Selects the units for the Quick Start variables (high and
low calibration point, and level, distance, or space).
1.4. Operation
1.5. Low Calibration Point
Distance from Sensor Reference to Low Calibration Point: usually process empty level. See
Operation (1.4.) for an illustration.
1.6. High Calibration Point
Distance from Sensor Reference to High Calibration Point: usually process full level. See
Operation (1.4.) for an illustration.
Operation
types
NO
SERVICE
The SITRANS LR260 stops updating measurements and associ-
ated loop current. Last valid measurement is displayed.
LEVEL Distance to material surface referenced from Low Calibration
Point (process empty level).
SPACE Distance to material surface referenced from High Calibration
Point (process full level).
DISTANCE Distance to material surface referenced from Sensor Reference
Point.
Default: Distance
Values Range: 0.0000 to 30.000 m
Values Range: 0.0000 to 30.000 m
Options M, CM, MM, FT, IN
Default: M
high cal.
point
low cal.point
level
space
distance
sensor reference point

A5E32106122 SITRANS LR260 (HART) – QUICK START MANUAL Page EN-17
mmmmm
English
1.7. Apply? (Apply changes)
In order to save the Quick Start settings it is necessary to select Yes to apply changes.
Press Mode to return to Measurement mode. SITRANS LR260 is now ready to operate.
SITRANS LR260 Communications: HART
• You will need the full Operating Instructions to acquire the list of applicable parameters.
• We recommend that you use SIMATIC Process Device Manager (PDM) to program your
device.
SIMATIC PDM
SIMATIC PDM is a software package used to commission and maintain SITRANS LR260 and
other process devices. Please consult the operating instructions or online help for details on
using SIMATIC PDM. (You can find more information at www.fielddevices.com: go to Products
and Solutions > Products and Systems > Communications and Software > Process Device
Manager.)
Device Description (EDD)
• You can locate the EDD in Device Catalog, under Sensors/Level/Echo/Siemens
Milltronics/SITRANS LR260.
• Check the product page of our website at: www.siemens.com/LR260, under Downloads,
to make sure you have the latest version of SIMATIC PDM, the most recent Service Pack
(SP) and the most recent hot fix (HF). If you need to install a new EDD see
Configuring a
new device
below.
Configuring a new device
1. Check that you have the most recent EDD, and if necessary download it from the product
page listed above. Save the files to your computer, and extract the zipped file to an easily
accessed location. Launch SIMATIC PDM – Manage Device Catalog, browse to the unzipped
EDD file and select it.
2. Launch SIMATIC Manager and create a new project for LR260. Application Guides for
setting up HART devices with SIMATIC PDM can be downloaded from the product page
of our website at: www.siemens.com/LR260.
3. Upload parameters to the PC/PG.
4. Configure the device via the Quick Start wizard (see page 18).
Options YES, NO, DONE (Display shows DONE when Quick Start is successfully
completed)
Note: For liquid applications, some parameters must be modified following the Quick Start
Wizard. See full Operating Instructions for details.
Note: SITRANS LR260 requires the EDD for SIMATIC PDM version 6.0 with SP3, or higher.
Note: Clicking on Cancel during an upload from device to SIMATIC PDM will result in some
parameters being updated.

Page EN-18 SITRANS LR260 (HART) – QUICK START MANUAL A5E32106122
mmmmm
English
Quick Start Wizard via SIMATIC PDM
Launch SIMATIC PDM, open the menu Device – Quick Start, and follow steps 1 to 4.
Maintenance
SITRANS LR260 requires no maintenance or cleaning under normal operating conditions. If
cleaning becomes necessary under severe operating conditions:
1. Note the antenna material and the process medium, and select a cleaning solution that
will not react adversely with either.
2. Remove the device from service and wipe the antenna clean using a cloth and suitable
cleaning solution.
Unit Repair and Excluded Liability
For detailed information, please see the inside back cover.
Notes:
• The Quick Start wizard settings are inter-related and changes apply only after you click
on Transfer at the end of step 4.
• Do not use the Quick Start Wizard to modify individual parameters. (Perform
customization only after the Quick Start has been completed.)
• Initial Quick Start parameter values are not default values and do not necessarily reflect
the current device configuration.
• Click on BACK to return and revise setting or Cancel to exit the Quick Start.
Note: For liquid applications, some parameters must be modified following the Quick Start
Wizard. See full Operating Instructions for details.
Quick Start
