Siemens SITRANS LR560 Instruction manual

Radar Transmitters
Quick Start Manual 09/2011
SITRANS LR560 (PROFI US PA)
SITRANS

IQ300IX.fm Page 5 Tuesday, October 2, 2001 1:43 PM

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-1
mmmmm
English
SITRANS LR560 (PROFIBUS PA) Quick Start
Manual
This manual outlines the essential features and functions of the SITRANS LR560 (PROFIBUS PA).
We strongly advise you to acquire the detailed version of the manual so you can use your device
to its fullest potential. The complete manual can be downloaded from the SITRANS LR560
product page of our web site at: www.siemens.com/LR560. The printed manual is available from
your local Siemens Milltronics representative.
Questions about the contents of this manual can be directed to:
Siemens AG
Siemens Milltronics Process Instruments
1954 Technology Drive, P.O. Box 4225
Peterborough, Ontario, Canada, K9J 7B1
Email: [email protected]om
MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments.
Technical Support
Support is available 24 hours a day.
To find your local Siemens Automation Office address, phone number, and fax number, go to:
www.siemens.com/automation/partner:
• Click on the tab Contact, select Service, then click Service again to find your
product group (+Automation Technology > +Sensor Systems >+Process
Instrumentation > +Level Measurement > +Continuous). Select Radar.
• Select the country followed by the City/Region.
• Select Technical Support under Service.
For on-line technical support go to: www.siemens.com/automation/support-request
• Enter the device name (SITRANS LR560) or order number, then click on Search, and
select the appropriate product type. Click on Next.
• Enter a keyword describing your issue. Then either browse the relevant documentation,
or click on Next to email a description of your issue to Siemens Technical Support staff.
Siemens IA/DT Technical Support Center: phone [phone]
Copyright Siemens AG 2011.
All Rights Reserved Disclaimer of Liability
We encourage users to purchase autho-
rized bound manuals, or to view elec-
tronic versions as designed and
authored by Siemens Milltronics Process
Instruments. Siemens Milltronics Pro-
cess Instruments will not be responsible
for the contents of partial or whole
reproductions of either bound or elec-
tronic versions.
While we have verified the contents of this manual
for agreement with the instrumentation described,
variations remain possible. Thus we cannot guar-
antee full agreement. The contents of this manual
are regularly reviewed and corrections are
included in subsequent editions. We welcome all
suggestions for improvement.
Technical data subject to change.

Page EN-2 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Safety Guidelines
Warning notices must be observed to ensure personal safety as well as that of others, and to
protect the product and the connected equipment. These warning notices are accompanied by
a clarification of the level of caution to be observed.
FCC Conformity
US Installations only: Federal Communications Commission (FCC) rules
Industry Canada
a) Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
b) This device shall be installed and operated in a completely enclosed container to prevent
RF emission which otherwise can interfere with aeronautical navigation. Installation shall
be done by trained installers, in strict compliance with the manufacturer’s instructions.
c) The use of this device is on a “no-interference, no-protection” basis. That is, the user
shall accept operations of high-powered radar in the same frequency band which may
interfere with or damage this device. On the other hand, level probing devices found to
interfere with primary licensing operations will be required to be removed at the user’s
expense.
WARNING symbol relates to a caution symbol on the product, and means that
failure to observe the necessary precautions can result in death, serious injury,
and/or considerable material damage.
WARNING symbol, used when there is no corresponding caution symbol on the
product, means that failure to observe the necessary precautions can result in
death, serious injury, and/or considerable material damage.
Note: means important information about the product or that part of the operating manual.
WARNING: Changes or modifications not expressly approved by Siemens
Milltronics could void the user’s authority to operate the equipment.
Notes:
• This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a com-
mercial environment.
• This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful inter-
ference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference to radio communications, in which case the user will
be required to correct the interference at his own expense.

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-3
mmmmm
English
d) This level probing device is only permitted for installation inside enclosed containers. The
installer/user of this device shall ensure that it is at least 10 km from the Penticton radio
astronomy station (British Columbia latitude: 49° 19' 12" N, longitude: 119° 37'12" W). For
devices not meeting this 10 km separation (e.g. the Okanagan Valley, British Columbia)
the installer/ user must coordinate with and obtain the written concurrence of the
Director of the Penticton radio astronomy station before the equipment can be installed
or operated. The Penticton contact is Tel: [phone]/ fax: [phone]. (In case of
difficulty, the Manager, Radio Equipment Standards, Industry Canada, may also be
contacted.)
R&TTE Compliance (Europe)
Hereby, Siemens Milltronics Process Instruments, declares that the SITRANS LR560
is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
The LR560 complies with EN 302 372 for use in closed storage vessels, when installed
according to the installation requirements of EN 302 372, and may be used in all EU countries.
The LR560 complies with Draft ETSI EN 302 729 for use outside of closed tanks in most EU
countries. (For a list of exceptions, see the LR560 Declaration to EN 302 729, which can be
accessed online at www.siemens.com/LR560.) For open air installations, the following
conditions must be observed:
Installation and maintenance is performed by suitably qualified and trained personnel.
The LR560 shall be installed only in a permanent fixed position pointing downwards. Its
location shall comply with the following two restrictions:
1) It shall be installed with a minimum separation distance of 4 km from Radio
Astronomy sites listed below unless special authorization has been provided by the
responsible national regulatory authority.
2) If it is installed at a location between 4 and 40 km from any Radio Astronomy site
listed below, the LR560 shall be installed at a height not exceeding 15m from the
ground.
The LR560 Declaration of Conformity may be accessed online at www.siemens.com/LR560.
Country Name of Station Geographic Latitude Geographic Longitude
France Plateau de Bure 44°38’01” N 05°54’26” E
Bordeaux 44°84’00” N 0°52’00” W
Germany Effelsberg 50°31’32” N 06°53’00” E
Italy Sardinia 39°29’50” N 09°14’40” E
Spain Yebes 40°31’27” N 03°05’22” W
Pico Veleta 37°03’58.3” N 03°23’33.7” W
Sweden Onsala 57°23’45” N 11°55’35” E

Page EN-4 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
SITRANS LR560
SITRANS LR560 is a 2-wire 78 GHz FMCW radar level transmitter for continuous monitoring of
solids in vessels to a range of 100 m (329 ft). The plug and play performance is ideal for all solids
applications, including those with extreme dust and high temperatures to +200 °C (+392 °F).
The device consists of an electronic circuit coupled to a lens antenna and flange for quick and
easy positioning.
SITRANS LR560 supports PROFIBUS PA communication protocol, and SIMATIC PDM software.
Signals are processed using Process Intelligence.
Specifications
For a complete listing, see the SITRANS LR560 (PROFIBUS PA) Instruction Manual. For
Approvals information see
Approvals on page 5.
Ambient/Operating Temperature
Power
• Bus powered 9 to 32 V DC, per IEC 61158-2 (PROFIBUS PA)
• Current consumed 13.5 mA
WARNING: SITRANS LR560 is to be used only in the manner outlined in this manual,
otherwise protection provided by the equipment may be impaired.
Note: This product is intended for use in industrial areas. Operation of this equipment in a
residential area may cause interference to several frequency based communications.
Notes:
• The reference drawing listed on the device label can be downloaded from the Siemens
website at: www.siemens.com/LR560 under Support.
• Maximum and minimum temperatures are dependent on the process connection, antenna
and O-ring materials. Use of the Easy Aimer limits maximum temperature.
•See
Temperature De-Rating Curve on page 15, for more details.
process temperature at process connection:
–40 oC to +100 oC (–40 oF to +212 oF) or
–40 oC to +200 oC (–40 oF to +392 oF) depending on the version
ambient temperature
(surrounding enclosure)
–40 °C to 80 °C (–40 °F to 176 °F) device label
pressure/
temperature
related
information

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-5
mmmmm
English
Approvals
•General CSA
US/C, FM, CE, C-TICK
• Radio R&TTE (Europe), FCC, Industry Canada
• Hazardous
Non-sparking/
Energy Limited 1) (Europe) ATEX II 3G Ex nA/nL IIC T4 Gc
Dust Ignition Proof 1) (Europe/International) ATEX II 1D, 1/2D, 2D
IECEx SIR 09.0149X
Ex ta IIIC T139 oC Da
Dust Ignition Proof 2) (US/Canada) FM/CSA
Class II, Div. 1, Groups E, F, G
Class III T4
Non-incendive2) (US/Canada) FM/CSA Class I, Div. 2,
Groups A, B, C, D, T4
Pressure Application
Pressure Equipment Directive, PED, 97/23/EC
SITRANS LR560 Radar Level Measurement instrument falls below the limits of Article 3,
sections 1&2 of the Pressure Equipment directive (PED, 97/23/EC), as a category I pressure
accessory. However, in accordance with PED, 97/23/EC, Article 3, section 3, this equipment has
been designated and manufactured in accordance with Sound Engineering Practice (SEP) (see
EU Commission Guideline 1/5).
Notes:
• The device label lists the approvals that apply to your device.
• Use appropriate conduit seals to maintain IP or NEMA rating.
1) See also
Non-Sparking/Energy Limited wiring (Europe) and Dust Ignition Proof wiring (Europe/Inter-
national) on page 16.
2) See also
Non-incendive and Dust Ignition Proof wiring (US/Canada) on page 17.
WARNINGS:
• Do not attempt to loosen, remove, or disassemble process connection or instru-
ment housing while vessel contents are under pressure.
• Improper installation may result in loss of process pressure.
Note: Pertains to pressure-rated version only.

Page EN-6 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Installation

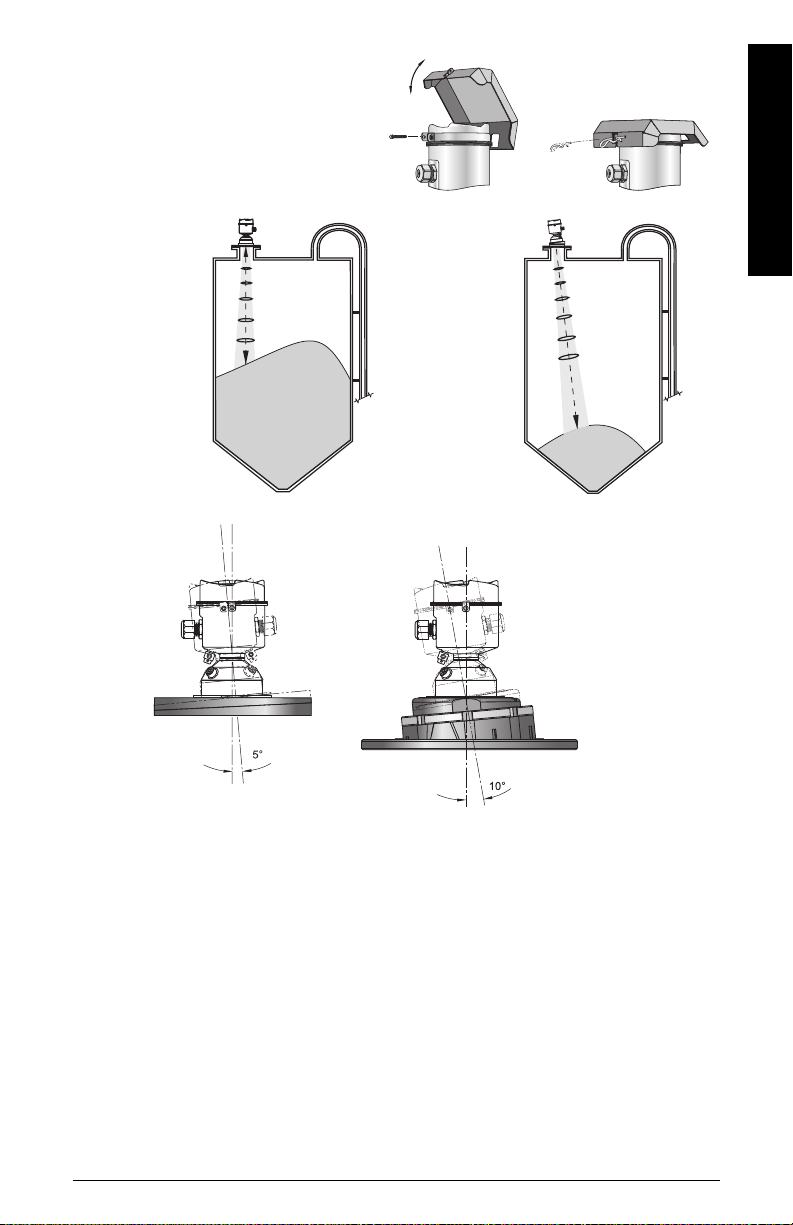

Nozzle location
Beam angle
• Beam angle is the width of the cone
where the energy density is half of the
peak energy density.
• The peak energy density is directly in front
of and in line with the antenna.
• There is a signal transmitted outside the
beam angle, therefore false targets may
be detected.
Emission cone
• Keep emission cone free of interference
from ladders, pipes, I-beams or filling
streams.
• Avoid central locations on tall, narrow ves-
sels.
Environment
• Provide easy access for viewing the dis-
play and programming via the hand pro-
grammer.
• Provide an environment suitable to the
housing rating and materials of construction.
WARNINGS:
• Installation shall be performed only by qualified personnel and in accor-
dance with local governing regulations.
• Never attempt to loosen, remove, or disassemble process connection or
instrument housing while vessel contents are under pressure.
• The user is responsible for the selection of bolting and gasket materials
which will fall within the limits of the flange and its intended use and which
are suitable for the service conditions.
• Improper installation may result in loss of process pressure.
Note: SITRANS LR560 units are pressure tested, meeting or exceeding the requirements of
the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment Directive.
emission
cone
min. 1 m (39")
4°

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-7
mmmmm
English
Sunshield
The LR560 display can be protected by an
optional sunshield if the instrument will be
mounted in direct sunlight
Aimer Adjustment
3" flange 4 and 6" flange
1) For 4" and 6" Aimer: loosen the set screws in the locking ring.
Holding the electronics enclosure firmly, loosen the Aimer locking ring using the supplied
C spanner, until the LR560 drops down slightly. The enclosure can then be turned freely.
2) Direct SITRANS LR560 so the antenna is pointed at an angle perpendicular to the
material surface, if possible.
3) When the desired position is reached, re-tighten the locking ring using the C spanner, and
tighten set screws.
4) For the 3" Aimer flange, tapered split washers with pressure rated versions are provided
to keep nuts and bolts perpendicular to the flange surface.
Aimer
Aiming is not
required for signal
optimization with
78 GHz frequency.
Aiming will assist
in measuring
material in the
cone.

Page EN-8 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Air Purge System
The purge airflow is designed to create a strong vortex of air that rapidly cleans the face of the
lens. See the full manual for details.
Wiring
Power
Connecting SITRANS LR560

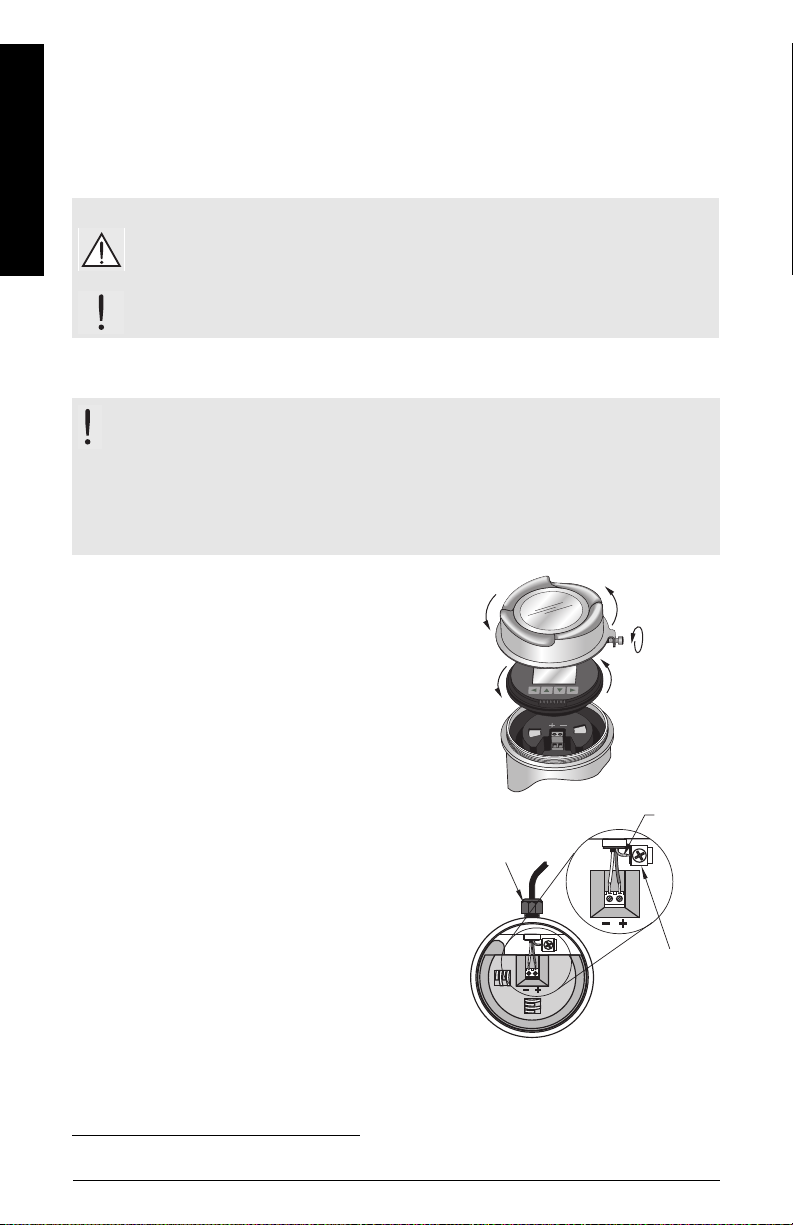

1) Loosen locking screw.
2) Remove LR560 lid.
3) Remove optional display by gently turning the
display a quarter turn counter-clockwise until it is
free.
4) Strip the cable jacket for approximately 70 mm
(2.75") from the end of the cable, and thread the
wires through the gland 1).
5) Connect the wires to the terminals as shown.
SITRANS LR560 (PROFIBUS PA) is not polarity
sensitive.
6) Ground the instrument according to local
regulations.
7) Tighten the gland to form a good seal.
8) Replace optional display.
9) After programming and device configuration,
replace device lid and secure locking screw.
WARNINGS:
The DC input terminals shall be supplied from a source providing electrical
isolation between the input and output, in order to meet the applicable safety
requirements of IEC 61010-1.
All field wiring must have insulation suitable for rated voltages.
WARNINGS:
• Check the device label to verify the approval rating.
• Use appropriate conduit seals to maintain IP or NEMA rating.
• Read
Instructions Specific to Hazardous Area Installations on page 17.
Note: For detailed wiring instructions refer to the full Instruction Manual.
1) If cable is routed through conduit, use only approved suitable-size hubs for waterproof applications.
1)
2)
3) ¼ turn
cable gland
(or NPT cable
entry)
cable
shield
instrument
shield
connection

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-9
mmmmm
English
Installing PROFIBUS PA Devices
• PROFIBUS PA must be terminated at both extreme ends of the cable for it to work properly.
• Please refer to the PROFIBUS PA User and Installation Guidelines (order number 2.092),
available from www.profibus.com, for information on installing PROFIBUS devices.
• If a Weidmüller or other current limiting junction box is connected to this device, please
ensure that the current limit is set to 40 mA or higher..

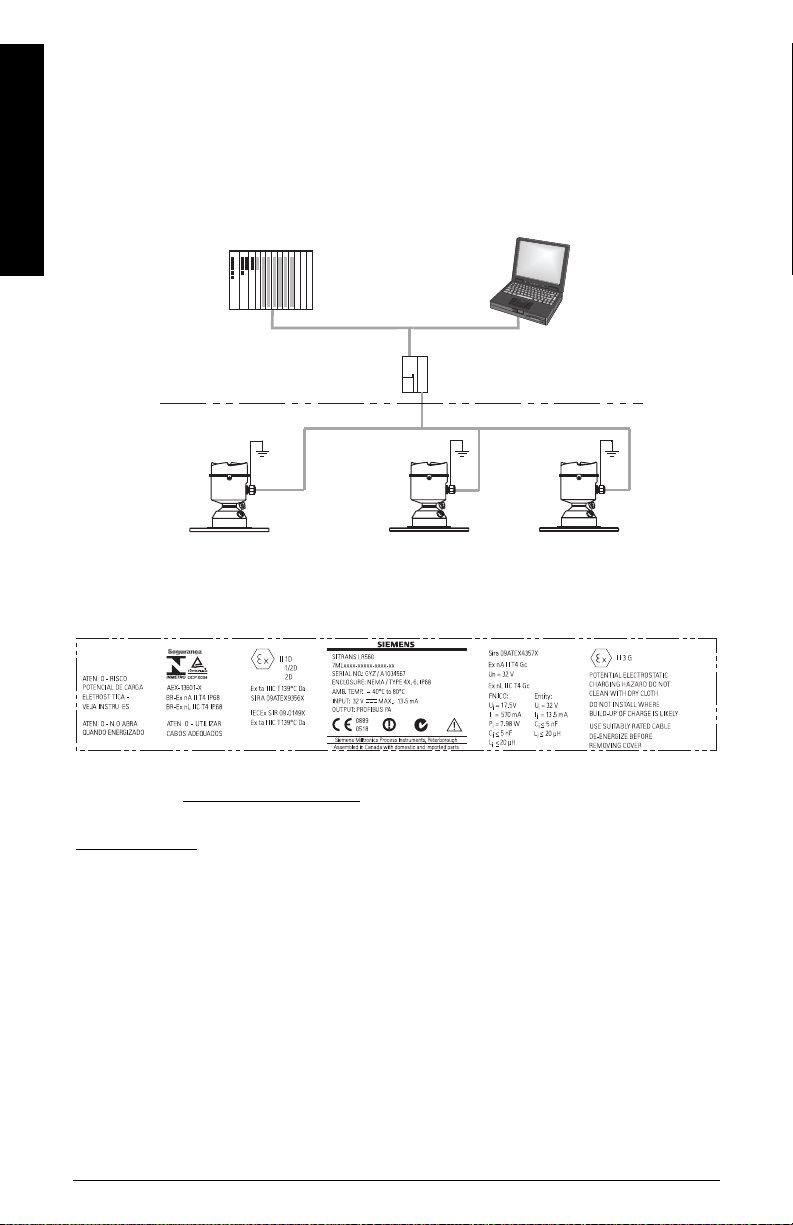

Basic PLC configuration with PROFIBUS PA
Wiring setups for hazardous area installations
See Wiring setups for hazardous area installations on page 16
Programming SITRANS LR560
•See Quick Start Wizard via the LDI push buttons on page 11.
•See
Quick Start Wizard via SIMATIC PDM on page 14.
Activating SITRANS LR560
Power up the device. A transition screen showing first the Siemens logo and then the current
firmware revision is displayed while the first measurement is being processed. SITRANS LR560
automatically starts up in Measurement mode.
The first time the device is configured, you will be prompted to select a language (English,
German, French, Spanish or Chinese).
Local Display Interface (LDI)
Modify parameters using the LDI push buttons.
(Siemens infrared handheld programmer can be ordered
separately: [Part No. 7ML1930-1BK]).
PROFIBUS PA
PROFIBUS DP
DP/PA
coupler
active PLC
PC/laptop
PDM
SITRANS
LR560 PA
SITRANS
LR560 PA
SITRANS
LR560 PA

Page EN-10 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English

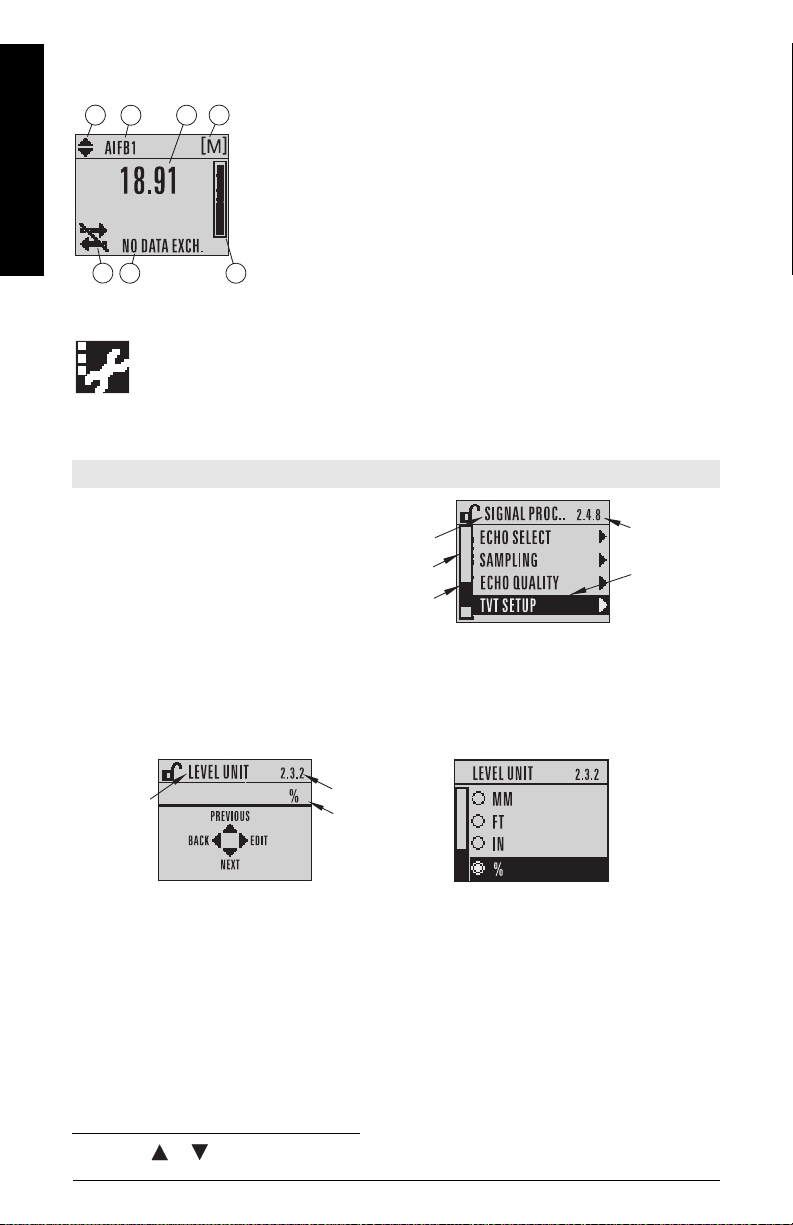

The LCD Display
Measurement mode display (normal operation)
1)
Fault present indicators
Program mode display
Navigation view
• A visible menu bar indicates the
menu list is too long to display all
items.
• The depth of the item band on the
menu bar indicates the length of the
menu list: a deeper band indicates fewer items.
• The position of the item band indicates the approximate position of the current item in the
list. A band halfway down the menu bar indicates the current item is halfway down the
list. A deeper band indicates fewer items.
1) Press or to switch.
Note: For a complete list of parameters, refer to the full manual.
1 – toggle indicator1) for AIFB 1 or AIFB 2
2 – identifies which AIFB is source of displayed value
3 – measured value (level, space, or distance)
4 – units
5 – bar graph indicates level
6 – text area displays status messages
7 – device status indicator
6
7
1342
5
S: 0 LOE When a fault is present the fault code and an error message are
displayed in the text area (7), and a service-required icon appears in the
device status location (8)
current
item
number
current
item
current
menu
item
band
menu
bar
parameter
value/
selection
parameter
number
parameter
name
Edit viewParameter view

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-11
mmmmm
English
PROGRAM mode
Using the LDI push buttons, press to enter Program Mode and open menu level 1. Scroll
through the menu using , , , .
To edit a number
1) Navigate to the desired parameter, for example, Low Calibration
point (2.3.1), and press twice to open and edit it. The value will
be highlighted.
2) Press or to delete the highlighted value.
3) With the Enter icon highlighted , press to add a digit.
4) Use or to modify the highlighted digit. Scroll past 9 to
reach the decimal point.
5) Press to select and highlight the plus or minus sign. Press or to change it.
6) Press until the Enter icon is highlighted , then press to add a digit on the right.
7) When the value is complete, press until the Enter icon is highlighted , then press
to accept the value.
To modify a text string:
1) Navigate to the parameter you wish to modify and press to edit it. The string will be
highlighted.
2) Follow the same steps as above, to add, delete, or modify characters.
Quick Start Wizard via the LDI push buttons
1. Quick Start
1.1. Quick Start Wizard
1) Press twice to navigate to Quick Start (1.) and open
Quick Start Wizard (1.1.)
2) At each step, press to accept default values and move
directly to the next item,
or to open Edit mode: the current selection is
highlighted.
3) Scroll to desired item and press to store the change, then press to continue.
4) At any time, you can press to go back, or to cancel and return to
Measurement mode.
Note: With the Enter icon highlighted, press to insert a digit on the right, to delete
the right-most digit, to accept the value, or to cancel.
Note: Default values are indicated by an asterisk (*) in the tables below, unless explicitly
described.

Page EN-12 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Vessel
Response Rate
Use a setting just faster than the maximum vessel filling or vessel emptying rate (whichever is
greater).
Units
Operation
Response Rate Vessel Fill Rate or Empty Rate per minute
SLOW 0.1 m/min (0.32 ft/min)
MED 1.0 m/min (3.28 ft/min)
FAST * 10.0 m/min (32.8 ft/min)
Operation Description
LEVEL (1) * Distance from Low Calibration Point to material surface
SPACE (2) Distance from High Calibration Point to material surface
DISTANCE(3) Distance from Sensor Reference Point to material surface
Parameter View Edit mode Select vessel construction material.
Options * STEEL
CONCRETE
Sets the reaction speed of the device to
measurement changes in the target range.
Sensor measurement units.
Values m, cm, mm, ft, in
Default: m
sensor reference point
(flange face)
High Cal.
Pt. DistanceSpace
Low Cal. Pt.
Level

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-13
mmmmm
English
Low Calibration Point
High Calibration Point
Wizard Complete
To transfer Quick Start values to the device and return to Program menu, press (Finish).
Then press to return to Measurement mode.
SITRANS LR560 Communications: PROFIBUS PA
Configuring the PROFIBUS PA master
To configure SITRANS LR560 on the network, you will need the GSD file SIEM816B.gsd. You
can download the file from the product page of our web site at: www.siemens.com/LR560. Go
to Support > Software Downloads.
SIMATIC PDM
We recommend that you use SIMATIC Process Device Manager (PDM) to program your
device. Please consult the operating instructions or online help for details on using
SIMATIC PDM. You can find more information at www.siemens.com/simatic-pdm.
Check the support page of our website to make sure you have the latest version of SIMATIC
PDM, the most recent Service Pack (SP) and the most recent hot fix (HF). Go to:
https://support.automation.siemens.com/WW/
llisapi.dll?func=cslib.csinfo&lang=en&siteid=csius&aktprim=0&extranet=standard&view
reg=WW&objid=10806857&treeLang=en
Options BACK, CANCEL, FINISH (Display returns to 1.1 Quick Start Wizard menu when Quick
Start is successfully completed.)
Notes:
• The following instructions assume that the user is familiar with PROFIBUS PA.
• You will need the full manual to acquire the list of applicable parameters.
• Application Guides for setting up PROFIBUS PA devices with SIMATIC PDM can be down-
loaded from the product page of our website at: www.siemens.com/LR560. Go to Support
>Software Downloads.
Distance from Sensor Reference Point to Low
Calibration Point: usually process empty level.
Values Range: 0.0000 to 100.000 m
Distance from Sensor Reference Point to High
Calibration Point: usually process full level.
Values Range: 0.0000 to 100.000 m

Page EN-14 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Electronic Device Description (EDD)

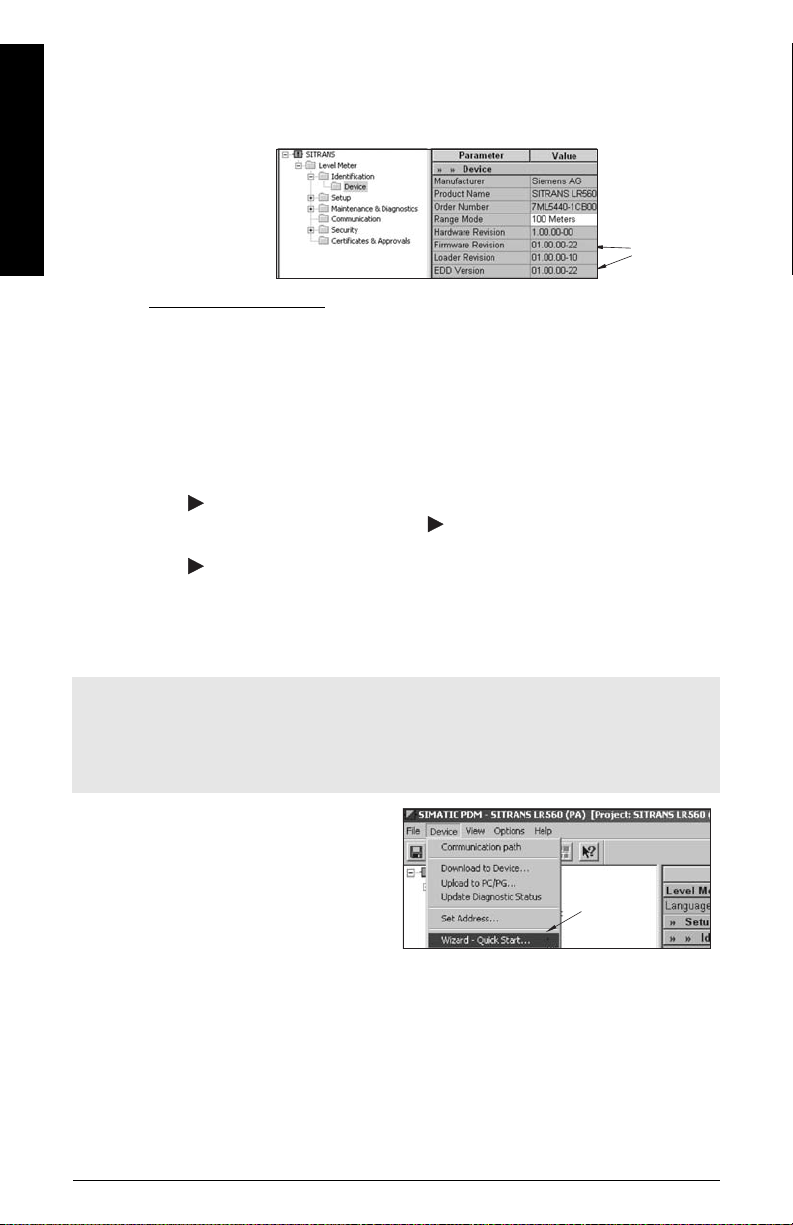

You can locate the EDD in Device Catalog, under Sensors/Level/Echo/Siemens AG/
SITRANS LR560.
To install a new EDD
• Go to www.siemens.com/LR560 > Support > Software Downloads to download the most
up-to-date EDD.
• Save the files to your computer and extract the zipped file to an easily accessed location.
• Launch SIMATIC PDM – Manage Device Catalog, browse to the unzipped EDD file and
select it.
Configuring a new device
1) Set Address via the device push buttons (default 126).
• In PROGRAM mode, navigate to: Level Meter > Communication (5)> Device Address
(5.1).
• Press twice to open parameter view and enable Edit mode.
• If required, key in a new value and press to accept it. The LCD displays the new
value.
• Press to return to Measurement mode.
2) Launch SIMATIC PDM and create a new project for LR560. Upload parameters to the PC/PG.
3) Configure the device via the Quick Start wizard.
Quick Start Wizard via SIMATIC PDM
Notes:
• The Quick Start wizard settings are inter-related and changes apply only after you click on
FINISH AND DOWNLOAD at the end of the last step, to save settings offline and transfer
them to the device.
• Click on BACK to return and revise a setting or Cancel to exit the Quick Start.
matching
Firmware
and EDD
revisions
The EDD revision must
match the Firmware
revision in the device.
To check it in PDM, go to
Level Meter > Identification
> Device.
Quick
Start
Launch SIMATIC PDM, open the menu
Device – Wizard - Quick Start, complete all
the steps, then press Finish and Download.

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-15
mmmmm
English
Operating via FDT (Field Device Tool)
FDT is a standard used in several software packages designed to commission and maintain
field devices. Two commercially available FDTs are PACTware and Fieldcare.
To configure a field device via FDT you need the DTM (Device Type Manager) for the device.
Siemens instruments use SITRANS DTM and an instrument EDD written for SITRANS DTM.
1) First install SITRANS DTM on your system. You can download it from:
http://support.automation.siemens.com. Click on Product Support, and navigate to Product
Information/Automation Technology/Sensor systems/Process Instrumentation/Software &
Communications.
2) Install the SITRANS LR560PROFIBUS PAEDD for SITRANS DTM. You can download it from
the product page of our website at: www.siemens.com/LR560. Go to Support > Software
Downloads.
Configuring a new device via FDT
An Application Guide can be downloaded from the product page of our website under Support.
Maintenance
SITRANS LR560 requires no maintenance or cleaning under normal operating conditions. If
cleaning becomes necessary:
1) Note the antenna material and the process medium, and select a cleaning solution that
will not react adversely with either.
2) Remove the device from service and wipe the antenna clean using a cloth and suitable
cleaning solution.
Unit Repair and Excluded Liability
For detailed information, please see the inside back cover.
Temperature De-Rating Curve
WARNING: Never attempt to loosen, remove or disassemble process
connection or instrument housing while vessel contents are under pressure.
Process Temperature (°C)
Ambient Temperature (°C)
high
temperature
version
standard
version

Page EN-16 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Wiring setups for hazardous area installations
The following wiring options are available for hazardous area installations:
•
Non-Sparking/Energy Limited wiring (Europe) and Dust Ignition Proof wiring (Europe/
International)
on page 16
• Non-incendive and Dust Ignition Proof wiring (US/Canada) on page 17
In all cases, check the device label on your instrument, and confirm the approval rating.
PLC configuration with PROFIBUS PA for hazardous areas
1) Non-Sparking/Energy Limited wiring (Europe) and Dust Ignition Proof wiring
(Europe/International)
• For power demands see Temperature De-Rating Curve on page 15.
• For wiring requirements follow local regulations.
•Seealso
Instructions Specific to Hazardous Area Installations on page 17 and the ATEX
certificate listed above.
Hazardous Area
Non-hazardous Area
PLC
(active)
DP/PA coupler
PDM
SITRANS
LR560 PA SITRANS LR560 PA SITRANS LR560 PA
The ATEX certificate listed on the device label can be downloaded from the product page of
our website at: www.siemens.com/LR560. Go to Support > Approvals/Certificates.
The IECEx certificate listed on the device label can be viewed on the IECEx website. Go to:
http://iecex.iec.ch and click on Ex Equipment Certificates of Conformity then enter the
certificate number IECEx SIR 09.0149X.
Device label (ATEX/IECEx/C-TICK)

7ML19985XQ81 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL Page EN-17
mmmmm
English
2) Non-incendive and Dust Ignition Proof wiring (US/Canada)
• For power demands see Temperature De-Rating Curve on page 15.
Instructions Specific to Hazardous Area Installations
(Reference European ATEX Directive 94/9/EC, Annex II, 1.0.6)
The following instructions apply to equipment covered by certificate numbers Sira
09ATEX9356X and Sira 09ATEX4357X:
1) For use and assembly and details of marking/coding, refer to the main instructions.
2) The equipment is certified for use as Category 1D, 1/2D and 2D equipment per certificate
Sira 09ATEX9356X and may be used in hazardous zones 20, 21 and 22. The equipment is
also certified for use as Category 3G equipment per certificate Sira 09ATEX4357X and
may be used in hazardous zone 2.
3) This equipment has a maximum surface temperature of 139 °C (in an 80°C ambient). Refer
to the applicable code of practice for selection of this equipment with respect to specific
dust ignition temperatures.
4) The equipment is certified for use in an ambient temperature range of –40 °C to 80 °C.
5) The equipment has not been assessed as a safety related device (as referred to by
Directive 94/9/EC Annex II, clause 1.5).
6) Installation and inspection of this equipment shall be carried out by suitably trained and
authorized personnel in accordance with the applicable code of practice.
7) The equipment shall be installed such that the supply cable is protected from mechanical
damage. The cable shall not be subjected to tension or torque. The equipment
manufacturer is not responsible for providing the supply cable.
8) Repair of this equipment shall be carried out by suitably trained and authorized personnel
in accordance with the applicable code of practice.
FM/CSA Class 1, Div 2 connection drawing number A5E02795836 can be downloaded from
the product page of our website at: www.siemens.com/LR560 under Support.
Device label (FM/CSA)

Page EN-18 SITRANS LR560 (PROFIBUS PA) – QUICK START MANUAL 7ML19985XQ81
mmmmm
English
Special Conditions for Safe Use
The ‘X’ suffix to the certificate number relates to the following special condition(s) for safe use:
• Parts of the enclosure may be non-conducting and may generate an ignition-capable
level of electrostatic charge under certain extreme conditions. The user should ensure
that the equipment is not installed in a location where it may be subjected to external
conditions (such as high-pressure steam), which might cause a build-up of electrostatic
charge on non-conducting surfaces.
• The end user must ensure that an ingress protection of at least IP65 is maintained at
each entry to the enclosure by use of a blanking element or cable entry device that meets
the requirements of the protection concepts type ‘n’ or increased safety ‘e’ or flameproof
‘d’.
• The supply to the equipment shall be rated for a prospective short-circuit current of not
more than 10 kA and shall protected by a suitably-rated fuse.
