Siku Infraplate pro Classic User manual

SIKU Infraplate pro Classic
INSTRUCTION MANUAL (EN)
ID 1000000000

2
Delivery scope ................................................ 3
Warning signs ................................................. 3
Models ........................................................ 4
Accessories ................................................... 5
Note .......................................................... 5
Warnings & precautions ........................................ 6
Product characteristics ....................................... 7
Technical data ................................................ 8
Equipment configuration........................................ 10
Installation .................................................. 11
Troubleshooting ...................::.......................... 12
Maintenance & repair .......................................... 12
Disposal ...................................................... 12
Manufacturer‘s warranty ....................................... 13
Warranty card ................................................. 14
CONTENT
Printing errors, mistakes and technical changes reserved.

3

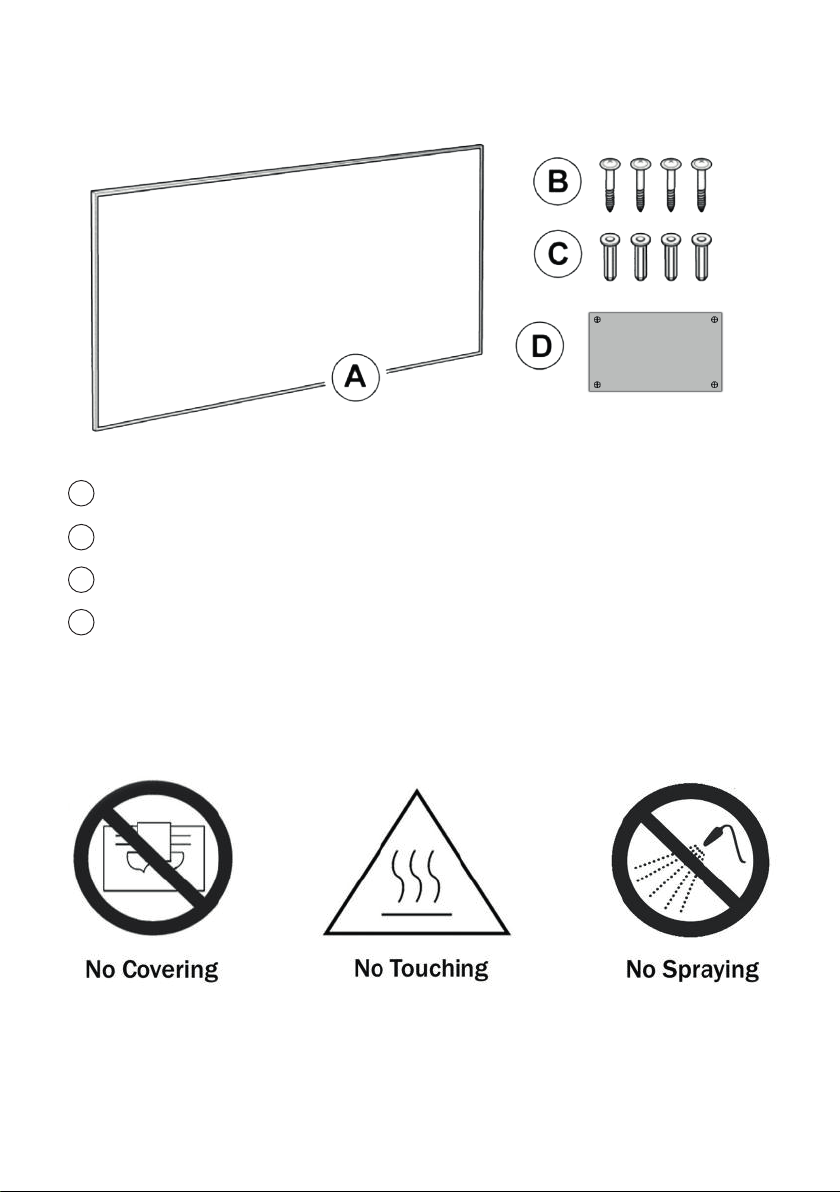

DELIVERY SCOPE
WARNING SIGNS
A infrared heating plate
B screws
C dowel
D drilling template

4
This instruction manual applies to the following models:
SIKU Infraplate pro IPP 160 WW (Item no. 50448)
SIKU Infraplate pro IPP 330 WW (Item no. 50477)
SIKU Infraplate pro IPP 350 WW (Item no. 50423)
SIKU Infraplate pro IPP 580 WW (Item no. 50427)
SIKU Infraplate pro IPP 700 WW (Item no. 50429)
SIKU Infraplate pro IPP 900 WW (Item no. 50425)
SIKU Infraplate pro IPP 280 DW (Item no. 50424)
SIKU Infraplate pro IPP 450 DW (Item no. 50428)
SIKU Infraplate pro IPP 550 DW (Item no. 50430)
SIKU Infraplate pro IPP 700 DW (Item no. 50426)
SIKU Infraplate pro IPP 450 Fireplace (Item no. 50497)
“DW“ refers to: Ceiling installation.
“WW“ refers to: Wall installation.
These products are only for well insulated rooms or suitable
for occasional use.
MODELS

5
ACCESSORIES
Required accessories for heating plates:
The BT710 and BT010 room thermostats require a receiver.
PT712 - digital thermostat with room sensor (Item no. 50446)
- Enables regulation based on the room temperature
- The required temperature can be changed quickly
- 2 weekly programmes with 6 temperature changes per day
- Power reserve for more than 100 hours in the event of a
power cut
BT710 - radio room thermostat (Item no. 50434)
- Used to switch electrical heating systems in houses,
apartments and offices on and off based on the temperature
- Can control up to 9 receivers
- Simple and flexible installation - without mains
connection and cables
BT010 - radio room thermostat (Item no. 50435)
- Can trigger one receiver
- The range within a building is at least 35 m depending on
the receiver
- Benefits: the set temperature can be changed quickly using the hand
wheel, quick selection switch for night moderation, frost protection
IPP-R01 - Empfänger für BT710 und BT010 - Unterputz
(Item no. 50648)
- Suitable for switching infrared heaters, electric radiators, etc.
on and off
- The BT001 switches the connected consumers off and on based on the
data transferred from the transmitter
BT003 - Empfänger für BT710 und BT010
- in einer Zwischensteckdose (Item no. 50437)
- Suitable for switching infrared heaters, electric radiators, etc.
on and off
- The BPT003 switches the connected consumers off and on based on the
data transferred from the transmitter
- Plugged directly into the socket
TS20 - Thermoschaltersteckdose (Item no. 50520)
- is a digital, temperature-dependent, switched socket for automatic
regulation of SIKU Infraplate pro series electrical heating systems
- up to six time intervals with three temperature levels can be set
for each day
NOTE
Info according to new ERP- Standard 1188:
As of 2018, Infraplate pro Infrared non-storage type heating appliance
must be operated only as a combination of a room thermostat with
integrated timer and room ventilation detection device.

6
Thank you for purchasing our product. Please read the User manual
carefully before using the product for the first time use and follow
all safety precautions to ensure safe use. If you pass the product on
to third parties, the operating instructions must also be handed over.
WARNING NOTICES & PRECAUTIONS
1. WARNING NOTICE: The hot plate must not be covered to prevent it from
overheating.
2. The hot plate must not be placed underneath a socket.
3. The hot plate must not be operated, when the heater elements are damaged.
4. WARNING NOTICE: The hot plate is not equipped with a temperature
measuring device. The hot plate should not be operated in rooms with
persons, who are unable of leaving a room on their own or need
assistance to do so. Unless the room is constantly supervised.
5. This plant may be used by children as of the age of 8 and persons with
restricted physical, sensory, or mental skills or inadequate experiences
or knowledge, provided that such persons have been instructed
accordingly. The hot plate is no toy and should therefore not be used
as such. The cleaning and maintenance must not be performed by children
unless they are supervised.
6. Children under 3 years must not operate the device unless they are
constantly supervised while they are doing so.
7. Children aged between 3 and 8 years must the device only switch on and
off, if the installation and setup of the device has been taken place in
accordance with the instructions and a constant supervision or
instruction regarding the use and dangers associated can be guaranteed.
Children aged between 3 and 8 years must neither connect the device with
a power circuit nor regulate, clean, maintain or repair it.
8. In order to avoid dangers associated with a damaged power cord, it must
be replaced by the manufacturer, its technicians, or equally qualified
persons.
9. CAUTION – Some components of the product may become very hot, which may
lead to burnings in case of skin contact. Special precautions should
be taken, if the hot plate is operated in the presence of children and
disabled persons.
10. WARNING NOTICE: The installation of the device close to curtains or
other inflammable materials and substances should be avoided.
11. The device must not be used by persons (including children) with
physical, mental, or sensory disabilities, or persons who have not been
instructed on the correct operation of the device, unless they are
attended by a person in charge of their safety resp. they have been
instructed on the use of the device. It must be seen to it that children
do not play with the device.
12. The power cord must not be damaged or destroyed. The power cord must not
be modified, bent, stretched, pressed or used otherwise against its
purpose, as this increases the risk of fire or electrical shock.
13. It must be made sure that the supply voltage is between 220-240 V, 50Hz,
and the electric supply has been grounded before the initial use.
14. The hot plate consumes more power than smaller devices, therefore it
must be provided for a separate 5A-socket.
15. The device must be kept away from inflammable objects, otherwise there
might be a risk of fire.

7
16. The hot plate must not be placed next to or onto inflammable or
meltable objects such as wood, straw, curtains, plastics, etc.
17. Safety distance: 30 cm to the front, each 10 cm to the right and left
side.
18. Persons must not jump or climb on the hot plate, high pressure or
impacts on the device must be avoided.
19. Single parts of the body must not be exposed to the heat of the hot
plate for a longer period, otherwise there might be a risk of slight
burnings.
20. The hot plate must never be covered with heat-insulating objects such
as towels, blankets, or carpets
21. In order to avoid electrical shocks, burnings, or similar accidents,
it must be made sure, that the hot plate is disconnected from the
power source and allowed to cool down completely before any cleaning
works are performed. A dry cloth should be used for the cleaning.
Benzine or acidic detergents must not be used for the cleaning.
PRODUCT CHARACTERISTICS
• The hot plate has been designed for the purpose of an efficient,
comfortable, and healthy heating system for domestic use.
• The hot plates provide for both a reduction of the air circulation
and the maintenance of a clean, silent, and dustfree indoor climate.
• The devices may be installed either to a wall or ceiling.
• The devices are available in various sizes and designs.
• Once the operating control lamp starts blinking blue (only with
devices for wall installation), the device is in service.

8
HEATING ELEMENT Carbon crystal
VOLTAGE 230 V / 50 Hz
SURFACE TEMPERATURE 75-95 °C
FRONTMATERIAL IR coating
FRONTMATERIAL IPP  FIREPLACE IR coating with picture
FRAME Aluminium white
BACKMATERIAL Aluminium
OVERHEATING PROTECTION Yes
ELECTRICAL CONVERSION EFFICIENCY 98%
LEDLIGHT Yes (only at the WW types)
CABLE LENGTH 1,9 m
PROTECTION IP54
WARRANTY 5 years
Model Dimension
(mm) Capacity Rated
current Weight Room sizes Certificates
IPP160WW 905x205x22 160 W 0,7 A 1,8 kg up to 2m² RoHS, CE, TÜV GS
IPP330WW 1205x305x22 350 W 1,5 A 2,65 kg up to 5m² RoHS, CE, TÜV GS
IPP350WW 605x605x22 350 W 1,5 A 2,6 kg up to 5m² RoHS, CE, TÜV GS
IPP580WW 1005x605x22 580 W 2,5 A 3,75 kg up to 7m² RoHS, CE, TÜV GS
IPP700WW 1205x605x22 700 W 3,0 A 4,8 kg up to 10m² RoHS, CE, TÜV GS
IPP900WW 1205x755x22 900 W 3,9 A 5,6 kg up to 16m² RoHS, CE, TÜV GS
IPP280DW 605x605x22 280 W 1,2 A 2,6 kg up to 5m² RoHS, CE
IPP450DW 1005x605x22 450 W 2,0 A 3,75 kg up to 7m² RoHS, CE
IPP550DW 1205x605x22 550 W 2,4 A 4,8 kg up to 10m² RoHS, CE
IPP700DW 1205x755x22 700 W 3,3 A 5,6 kg up to 16m² RoHS, CE
IPP 450
Fireplace 705x605x22 450 W 2,0 A 3,7 kg up to 8m² RoHS, CE, TÜV GS
„DW“ stands for ceiling mounting. (When purchasing a „DW“ heating plate,
the SIKU IPP-DAS ceiling or the IPP-chain suspension kit is also required
as an accessory).
„WW“ stands for wall mounting.
TECHNICAL DATA

9
Heat output
Models Expanse of
heat rays
Nominal heat
output
Maximum
continuous heat
output
Auxiliary power
consumption at
Nominal heat output
IPP160WW 0,6 m 0,2 kW 0,2 kW 0,166 kW
IPP330WW 0,8 m 0,4 kW 0,4 kW 0,35 kW
IPP350WW 1,3 m 0,4 kW 0,4 kW 0,365 kW
IPP580WW 1,5 m 0,6 kW 0,6 kW 0,608 kW
IPP700WW 1,8 m 0,7 kW 0,7 kW 0,732 kW
IPP900WW 2 m 0,9 kW 0,9 kW 0,942 kW
IPP280DW 0,8 m 0,4 kW 0,4 kW 0,365 kW
IPP450DW 1,2 m 0,6 kW 0,6 kW 0,608 kW
IPP550DW 1,3 m 0,7 kW 0,7 kW 0,732 kW
IPP700DW 1,5 m 0,9 kW 0,9 kW 0,942 kW
IPP 450
Fireplace 1,3 m 0,4 kW 0,4 kW 0,37 kW
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat N/A
manual heat charge control with room and/or outdoor
temperature feedback N/A
electronic heat charge control with room and/or outdoor
temperature feedback N/A
fan assisted heat output N/A
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control NO
Two or more manual stages, no room temperature control NO
with mechanic thermostat room temperature control NO
with electronic room temperature control NO
electronic room temperature control plus day timer NO
electronic room temperature control plus week timer YES
Other control options (multiple selections possible)
room temperature control, with presence detection NO

10
room temperature control, with open window detection NO
with distance control option NO
with adaptive start control YES
with working time limitation NO
with black bulb sensor NO

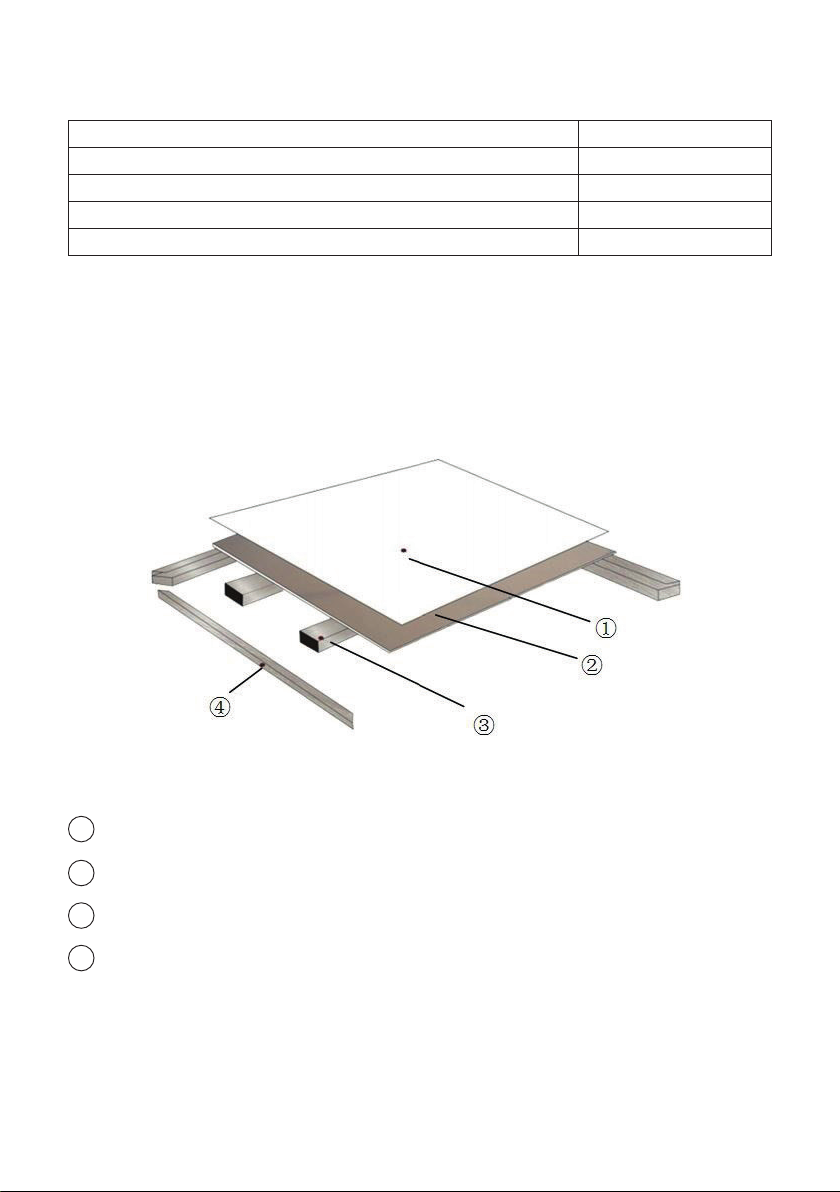

EQUIPMENT CONFIGURATION
1 Heating film
2 Insulating gaps
3 Hanger bars made of aluminum alloy
4 Frame made of aluminum alloy

11
INSTALLATION
Choose installation position,
observe required minimum
distances.
Fix drilling template (D) to
the wall, drill holes.
Insert dowels (C).
Position bolts (B) into the
bowels. Fasten bolts.
The bolts should extrude about
0.5 cm from the wall.
Suspend infra red hot plate
(A).
Connect plug with socket. Remove plug from socket, if
the device is not in service.

12
PROBLEM CAUSE TROUBLESHOOTING
High noise level after
normal connection and
initial use.
Built-up of tension in
the structure.
Occurs frequently,
no counter measures
required.
Surface of hot plate
bends slightly upwards.
Heat expansion of
surface material.
Occurs frequently,
no counter measures
required.
Surface of hot plate is
merely slightly heated.
Operation voltage too
low.
Install voltage
controller.
Low ambient temperature. Normal occurrence.
TROUBLESHOOTING
1. The device must always be disconnected from the power source before
the performance of cleaning works.
2. Wipe exterior of the hot plate with damp or dry cloth.
3. There must be no petroleum or other detergents resp. chemical
solvents used for the cleaning of the hot plate.
Environmental protection
Electrical products must not be disposed of in domestic
waste. Electronic waste must be disposed of at the
nearest recycling facility.Information regarding this
matter can be obtained from the competent local
government or the point of sale at which the device
was purchased.
MAINTENANCE AND REPAIR
DISPOSAL

13
Dear User,
Thank you very much for purchasing SIKU Infrared Panel Heaters.
Sincerely hope that our products can bring you warmth and comfort!
We warrant for a period of 5 years from the production date, which will
remedy any defects due to faulty material or workmanship for free through
maintenance or replacement.
When making a guarantee claim, please contact dealer or [email protected]
firstly.
This warranty card can be sent once we receive and confirm your request
as well as other relevant information.
Thanks very much!
Remark:
1. Five years warranty from date of production.
2. Warranty covers manufacturing technical defects excluding breakage.
3. Warranty is void if repairing without our consent or seal is broken.
4. The warranty does not cover faults resulting from operation careless
handing or not following instructions.
MANUFACTURER‘S WARRANTY

14
Product Name ____________________________________________________________
Series & Model Number ___________________________________________________
Fault Description
_________________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________
Dealer Info
Dealer Name _____________________________________________________________
Purchase Date ___________________________________________________________
Client Contact Info
Client Name _____________________________________________________________
Contact Number __________________________________________________________
Adress __________________________________________________________________
WARRANTY CARD

15

SIKU VertriebsgmbH | Bundesstraße 5 | 2102 Bisamberg | Austria
Tel.: [phone] | www.siku.at | [email protected]
