Rointe Giza PRO 400 User manual

Giza electric pro Electric towel rail with ON/OFF control
Models
PRO 400 | 500
INSTRUCTIONS &
INSTALLATION GUIDE
EN

2

3
GIZA ELECTRIC TOWEL RAIL · PRO EN
Introduction
Rointe electric towel rails are manufactured with quality components designed for you. They have
passed the most demanding quality controls to meet with the most rigorous safety requirements.
The electric towel rails are designed for xed installation only.
Please read this Instruction & Installation Guide carefully to ensure correct operation. It is important
that this guide is left with the product after installation.
Contents
1. Technical Specications..........................................................................................................................4
2. Installation & Safety precautions............................................................................................................6
2.1. Installation precautions...................................................................................................................6
2.2. Safety precautions..........................................................................................................................6
3. Product Installation.................................................................................................................................6
3.1. Mounting..........................................................................................................................................6
3.2. Connecting instructions.................................................................................................................7
3.3. Specic regulations for bathrooms...............................................................................................7
4. Switch on & off (stand-by).......................................................................................................................8
5. Maintenance & Cleaning................................................................................................................,........9
6. Guarantee.................................................................................................................................................9
7. How to register your guarantee..............................................................................................................11

4
1. Technical specifications (Models 400 & 500)
MODEL - Width 400 WHITE TGIOI40B080 TGIOI40B120 TGIOI40B160 TGIOI40B180
CHROME TGIOI40C080 TGIOI40C120 TGIOI40C160 TGIOI40C180
DIMENSIONS
Width (mm) 400 400 400 400
Height with control panel (mm) 893 1,293 1,693 1,893
Depth (mm) 30 30 30 30
Installed depth (mm) 100 100 100 100
MECHANICAL CHARACTERISTICS
Stainless steel heating element 
Thermal fluid 
On/Off control 
Finish
White RAL 9016
Chrome
ELECTRICAL CHARACTERISTICS
Nominal power (W)
White 300 500 700 1,000
Chrome 300 300 500 700
Voltage (V) 230 V ~ 230 V ~ 230 V ~ 230 V ~
Current (A)
White 1.3 2.2 3.3 4.4
Chrome 1.3 1.3 2.2 3.3
Class I 
SAFETY & INSTALLATION
Installation kit included 
Safety thermostat 
Protection grade IP 54 IP 54 IP 54 IP 54

5
GIZA ELECTRIC TOWEL RAIL · PRO EN
MODEL - Width 500 WHITE TGIOI50B080 TGIOI50B120 TGIOI50B160 TGIOI50B180
CHROME TGIOI50C080 TGIOI50C120 TGIOI50C160 TGIOI50C180
DIMENSIONS
Width (mm) 500 500 500 500
Height with control panel (mm) 893 1,293 1,693 1,893
Depth (mm) 30 30 30 30
Installed depth (mm) 100 100 100 100
MECHANICAL CHARACTERISTICS
Stainless steel heating element 
Thermal fluid 
On/Off control 
Finish
White RAL 9016
Chrome
ELECTRICAL CHARACTERISTICS
Nominal power (W)
White 300 500 700 1,000
Chrome 300 300 500 700
Voltage (V) 230 V ~ 230 V ~ 230 V ~ 230 V ~
Current (A)
White 1.3 2.2 3.3 4.4
Chrome 1.3 1.3 2.2 3.3
Class I 
SAFETY & INSTALLATION
Installation kit included 
Safety thermostat 
Protection grade IP 54 IP 54 IP 54 IP 54

6
2. Installation & Safety precautions (EN 60335 Standards)
Before switching on the product, please read the “Installation & Safety Precautions” in detail rst to
ensure the correct operation of the product.
2.1. Installation precautions
The product is designed for household or residential use. You are advised to have the product in-
stalled by an authorized professional installer. Make sure the product is properly connected to 230V
and is earthed.
2.2. Safety precautions
This appliance can be used by children aged from 8 years and above and
persons with reduced physical sensory or mental capabilities or lack of
experience and knowledge if they are supervised or have been given in-
struction concerning use of the appliance in a safe way and understand
the hazards involved. Children should not play with the appliance. Cleaning
and user maintenance should not be carried out by children without super-
vision. Children must be supervised at all times to ensure that they do not
interfere with the product.
This product is lled with a precise amount of special oil that does not
need any maintenance. Any repairs requiring the opening of the oil tank
must only be done by an ofcial Rointe installer or its after-sales service
personnel, who should also be notied should an oil leak be noticed. The
regulations on discarding oil when the heater is being disposed of must be
observed. If the power cable is damaged, it must be replaced by the man-
ufacturer, its after-sales service or authorized personnel in order to avoid
any damage.
3. Product installation
3.1. Mounting instructions
Inside the packaging you will nd a xing kit. Please nd the instructions below:
1. Choose the right part of the wall.
2. Place the mounting stencil on the wall, marking the places for the holes.
3. Remove the stencil and make the holes in the wall.
4. Insert the rawl plugs in the holes made.
5. Screw the plastic fastener to the wall with the 5.5 x 50 mm screw.
6. Screw the two brackets for supporting the product and the plastic fastener to the horizontal tube
of the product like in Figure 1 with the 8 x 26 mm screw.
7. Insert what you have assembled in Section 6 into the plastic piece and x well with the 5 x 12
mm screw.
8. Place the cover on the piece supporting the product.

7
GIZA ELECTRIC TOWEL RAIL · PRO EN
NO. ELEMENT
110 x 40 mm Rawl Plug
2Bracket
35.5 x 50 mm Screw
45 x 12 mm Screw
5Bracket Insert
6Bracket Head
78 x 26 mm Screw
8Cap
9Product
3.2. Connecting instructions
Connection to the mains must be made observing the voltage stated on the product technical data label.
This product is designed to be permanently installed connected to xed facilities. The product power
supply circuit must have an all-pole circuit breaker switch with a separation of at least 3 mm between
the contacts.
The product must be installed, if possible, away from any source of draughts (windows, doors) or any
other thing which may affect its functioning. In this way, the temperature will not be affected. Place any
object which might prevent the air ow (furniture, armchairs) 50 cm away from the front of the product.
The product must never be installed immediately below a power point.
The lower part of the control panel must be placed at least 15 cm from the oor.
For any product, if the power cable is damaged, it must be replaced by a specic cable. The replacement
of the cable must be done by the maker, its after-sales service or qualied personnel. The technical
specications of your product appear on the technical data label.
OK
IMPORTANT - This product must never be installed with its control
panel at the top. This product must not be installed horizontally. During
installation, use wedges so that the control panel will not be in contact
with the floor.
15

8
3.3. Specific Regulations for Bathrooms
This product can be installed in area 3 following these regulations:
• In bathrooms, the product must never be installed in such a way that the switches and other control
products may be touched by someone in the bathtub or having a shower.
• In a kitchen or bathroom, the body of the product shall be placed at least 25 cm from the oor.
• It must be earthed.
4. Switch on & off
To switch the product on, please press the green button once. To switch the product off, please
press it again.
ON/OFF button

9
GIZA ELECTRIC TOWEL RAIL · PRO EN
5. Maintenance & Cleaning
The product does not require any type of maintenance. We recommend that all parts of the product
are kept clean (behind, underneath, upper ns, etc.). Do not use any abrasive product on the steel
main body. Clean it with a damp cloth and a pH neutral soap, and the control panel with a dry cloth.
European Directive 2012/19/UE
Under the European Directive 2012/19/UE on waste electrical and electronic equipment (WEEE), the
product cannot be disposed in the usual council bins and containers. They must be separated to
optimize the recovery and recycling of all of the components and materials and reducing the impact
to human health and the environment. The symbol of the container crossed out over a horizontal line
is marked on all of Rointe products to remind the consumer of the obligation to separate them on
disposal.
The consumer should contact the local authority or original point of sale to learn more about the
correct disposal of this product.
6. Guarantee
In this section, we hereby describe the guarantee conditions which the buyer acquires on buying a
new Rointe product. These conditions comply with all the rights construed in the national legislation
in force, as well as any additional rights and guarantees which are offered by Rointe.
6.1. Any incident that you might detect in your Rointe product can be sorted by the product seller
or quickly by the manufacturer. Please contact Rointe by telephoning 0203 321 5929 for technical
support.

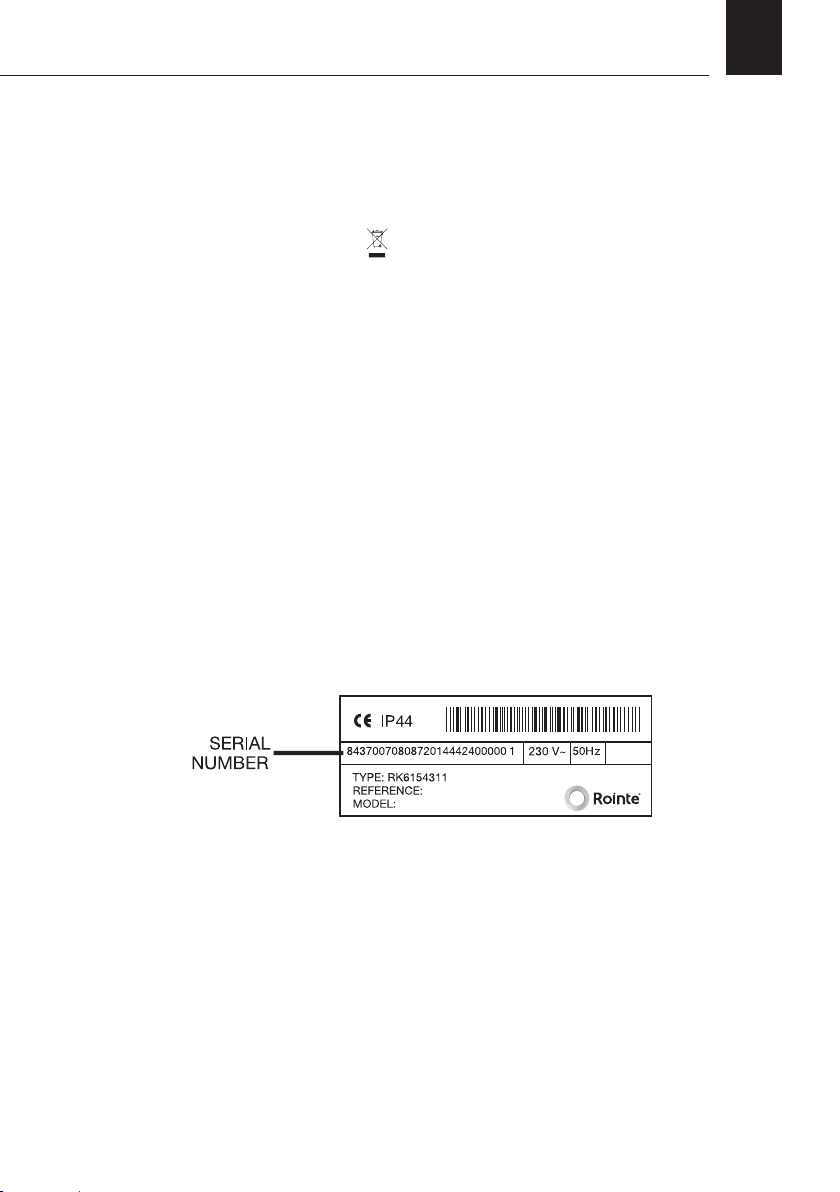

GIZA 500 300W
TELLN45B077
300 W
You will need to state the product reference (located on the label indicating product features), serial
number, proof of purchase and the type of incident at hand when contacting us so that we can check
the guarantee. In addition, please attach a copy of the product invoice.
6.2. Rointe guarantees that there are no material defects of design or manufacture at the time of
original acquisition and guarantees the steel main body for a period of 120 months and 24 months for
any electronic and electrical components.
6.3. If during the guarantee period, the product does not work correctly under normal use, and any
design, material or manufacturing defect is found, Rointe will repair or substitute the product as it
may see t, in accordance with the terms and conditions as follows:
6.3.1. The guarantee is only applicable if the original guarantee is issued by the seller and when
the said guarantee is lled in correctly including product reference, series number (marked on the

10
product’s label indicating technical features), purchase date and the seller’s stamp.
Rointe reserves the right to reject the guarantee service when this information has been removed or
modied after the original product purchase.
6.3.2. The guarantee only applies to those cases that concern material, design and manufacturing
defects, and under no circumstances covers damage to the product for the following reasons:
6.3.2.1 Incorrect use of the product, i.e. used for other purposes that are not construed as its
normal use or for not respecting the instructions of use and maintenance given by Rointe as well as
incorrect installation or use of the product that may not comply with the current technical standards
of safety.
Corrosion caused by direct exposure to salt water is excluded from the guarantee. When the product
is installed no more than 200m from the coast the guarantee for damages caused by corrosion the
period will be reduced by 50%.
6.3.2.2 Any unauthorized repairs carried out by unauthorized technicians or opening of the
product by unauthorized people.
6.3.2.3 Any accidents that are deemed outside the control of Rointe, such as lightning, res,
oods, public disorders, etc.
6.3.3. Any repairs or substitutions that are included in this guarantee do not allow any additions
or new periods of guarantee.
6.3.4. Any repairs or substitutions covered under this guarantee must be parts that are functional-
ly equivalent. The defective parts or parts removed or replaced shall become the property of Rointe.
6.4. The technical service of Rointe will advise you if you need to buy any parts not covered under
the guarantee or out of guarantee.
6.5. This guarantee does not affect the buyer’s legal rights stipulated in the current national legisla-
tion, nor affects those rights against the distributor or installer that could come forth in compliance
with the purchase contract.
6.6. In the absence of a national legal legislation applicable, this guarantee shall prevail and may be
construed as the buyer’s only protection. Rointe, its ofces, distributors and installers may not be
held responsible for any accidental damage that emerges due to infringement of any rules implicitly
related to this product.
