Silvercrest SLS 2200 A1 Instruction sheet

V 1.16
English.................................................................................2
Polski ................................................................................19
Magyar .............................................................................36
Slovenščina .......................................................................53
Čeština ..............................................................................69
Slovensky..........................................................................84
Deutsch............................................................................100

SilverCrest SLS 2200 A1
2 - English
Table of Contents
Trademarks.............................................................................. 3
Introduction.............................................................................. 3
Intended use............................................................................. 3
Package contents ..................................................................... 4
Technical specifications ............................................................. 5
Safety instructions .................................................................... 6
Maintenance / cleaning ............................................................ 8
Copyright ................................................................................. 9
Overview of controls and button functions ............................. 10
Before you start ..................................................................... 11
Fitting the suction pads .....................................................................................11
Charging using the solar panel .......................................................................12
Charging via the USB cable ............................................................................12
Getting started ....................................................................... 13
Using the ON/OFF pushbutton.......................................................................13
Viewing the battery level..................................................................................13
Compatible devices ..........................................................................................13
Charging devices..............................................................................................14
Troubleshooting ..................................................................... 15
Environmental regulations and disposal information ............. 16
Conformity notes.................................................................... 16
Warranty and Service Information......................................... 17

SilverCrest SLS 2200 A1
English- 3
Trademarks
Apple®, iPhone®, iPad®and iPod®are trademarks of Apple Inc., and are
registered in the USA and in other countries.
USB is a registered trademark.
Other names and products can be the trademarks or registered trademarks of
their respective owners.
Introduction
Thank you for choosing the SilverCrest SLS 2200 A1 Solar Battery Charger.
The Solar Battery Charger can convert sunlight into electrical energy and store
it. This allows you to charge a mobile phone, an MP3 player or a digital
camera when you are on the move without access to a wall socket.
Intended use
This is an information technology product and has been designed to charge the
batteries installed in mobile phones, MP3 players, digital cameras or other
battery-powered devices. The Solar Battery Charger converts sunlight into
electrical power and stores it into the built-in battery. The device may only be
used for private purposes, not for industrial or commercial ones. The device
may also not be used in tropical climates. The manufacturer is not liable for any
damage or problems caused by unauthorised modifications. Only use
accessories recommended by the manufacturer. Observe the regulations and
laws in the country of use.

SilverCrest SLS 2200 A1
4 - English
Package contents
A SilverCrest SLS 2200 A1 Solar Battery Charger
B USB cable
C Charger cable
D "USB socket" adapter [5V]
E Sony PSP* adapter [5V; compatible devices poss. 7.5V/9.5V]
F Nokia 6101* adapter [5V; compatible devices poss. 7.5V/9.5V]
G "Micro USB" adapter [5V]
H "Mini USB" adapter [5V]
I Samsung A288* adapter [5V]
J iPhone® / iPad®/ iPod®adapter (30‑pin)* [5V]
K Siemens S65* adapter [5V]
L Nokia 8210* adapter [5V; compatible devices poss. 7.5V/9.5V]
M LG K690 / Chocolate* adapter [5V]
N Sony Ericsson K750* adapter [5V]
O Suction pads (4 units)
P These operating instructions (line-art illustration)
* and compatible devices with up to 500mA charging current

SilverCrest SLS 2200 A1
English- 5
Technical specifications
Solar module
Power
Dimensions (W x H)
5.0V / 100mA
approx. 6 x 10.6 cm
Rechargeable Li-Ion battery 3.7V / 2200mAh
Input voltage/current (USB) 5.0V / 0.5A
Output voltage/current 5.0V +/–- 5%, 0.5A
7.5V +/– 5%, 0.5A
9.5V +/– 5%, 0.5A
Charging time for built-in Li-Ion
battery
Via solar panel
PC adapter
approx. 16-24 hours*
approx. 4-6 hours
Dimensions (W x H x D) approx. 70 x 129 x 20mm
Weight (without accessories) approx. 118g
Operating temperature 5C to 45C
Operating humidity max. 85% rel. humidity
(non-condensing)
Storage conditions -5C to +50C
max. 85% rel. humidity
(non-condensing)
* The charging time varies greatly depending on the sun's radiation (intensity).
This depends on the season, the cloud cover and the location. These factors
may also increase the charging time.
The technical specifications and design can be changed without prior notice.

SilverCrest SLS 2200 A1
6 - English
Safety instructions
Before you use this device for the first time, please read the following notes in
this manual and heed all warnings, even if you are familiar with handling
electronic devices. Keep this manual in a safe place for future reference. If you
sell the device or pass it on, it is essential that you also hand over this manual,
as it is part of the product.
WARNING! This symbol denotes important information for
the safe operation of the product and user safety. Ignoring it
can lead to material damage and/or personal injury or even
death.
This symbol denotes further information on the topic.
Operating environment
The device is not designed for use in environments with high humidity (e.g.
bathrooms) or excessive levels of dust. Operating temperature and operating
humidity: 5 ºC to 45 ºC, max. 85 % RH. Please note that when using the
product in a car, especially behind the windscreen, the temperature can reach
above 45C.
Always make sure that
the device is not exposed to direct heat sources (e.g. radiators)
the device is not exposed to strong artificial light

SilverCrest SLS 2200 A1
English- 7
contact with water spray and drops and aggressive fluids is avoided and the
device is never operated near water, the device is never submerged (do not
place any items containing liquids, such as drinks, vases, etc. on or near the
device).
the device is never placed near magnetic fields (e.g. speakers)
no naked flames (e.g. burning candles) are placed on or near the device
no foreign bodies can penetrate into the device
the device is not subjected to any major temperature fluctuations as this can
cause condensation and short-circuiting. If the device has been exposed to
strong temperature fluctuations, wait for it to reach the ambient temperature
before switching it on (about 2 hours).
the device should not be subject to excessive shocks and vibrations
the device or the optional USB power adapter is not used during
thunderstorms and unplug the optional USB power adapter from the mains
when using a USB power adapter the power socket used must be easily
accessible at all times and cables are laid so they do not present a trip
hazard
the device is not covered
Failure to heed the warnings above may result in damage to the device or
injury.
Caution –danger of explosion
Never throw the device onto a fire and do not invert the battery polarity or
short-circuit the battery, as this could cause it to explode.
Please note the usage restrictions and regulations relating to battery-powered
devices in dangerous places, such as petrol stations, aircraft, hospitals, etc.

SilverCrest SLS 2200 A1
8 - English
Children and persons with disabilities
Electrical devices are not suitable for children. Also persons with reduced
physical, sensory or mental capabilities should only use electrical devices in
appropriate circumstances. Do not allow children or persons with disabilities to
use electrical devices unsupervised, unless they are instructed accordingly and
supervised by a competent person responsible for their safety. Children should
always be supervised to ensure that they do not play with the product. Small
parts can represent choking hazards. Keep the packaging away from children
and persons with disabilities.
There is a risk of suffocation!
Cables
Unplug all cables by holding the plugs and never pull on the cables
themselves. Never place pieces of furniture or other heavy objects on the
cables and take care that they do not become damaged, especially at the
plugs and sockets. Never tie knots in a cable and do not tie them to other
cables. All cables must be laid so that nobody can trip over them or be
obstructed by them.
Maintenance / cleaning
Repairs are required if this device has been damaged in any way, for example
if the device housing is damaged, if liquids or objects have penetrated the

SilverCrest SLS 2200 A1
English- 9
device or if the product has been exposed to rain or moisture. Repairs are also
necessary if the product is not working properly or has been dropped. If you
notice any smoke, unusual noises or strange smells, unplug all cables
immediately and disconnect the optional USB power adapter from the power
supply. If this occurs, do not continue to use the device and have it checked out
by an expert. All repairs must be carried out by qualified service personnel.
Never open the housing of the device. Only use a clean, dry cloth for cleaning.
Never use aggressive liquids. Do not attempt to open the housing of the
device, this will void your warranty.
Copyright
All the contents of this user manual are protected by copyright and provided to
the reader for information only. Copying data and information without the prior
explicit written consent of the author is strictly forbidden. This also applies to
any commercial use of the contents and information. All texts and diagrams are
up-to-date as of the date of printing.

SilverCrest SLS 2200 A1
10 - English

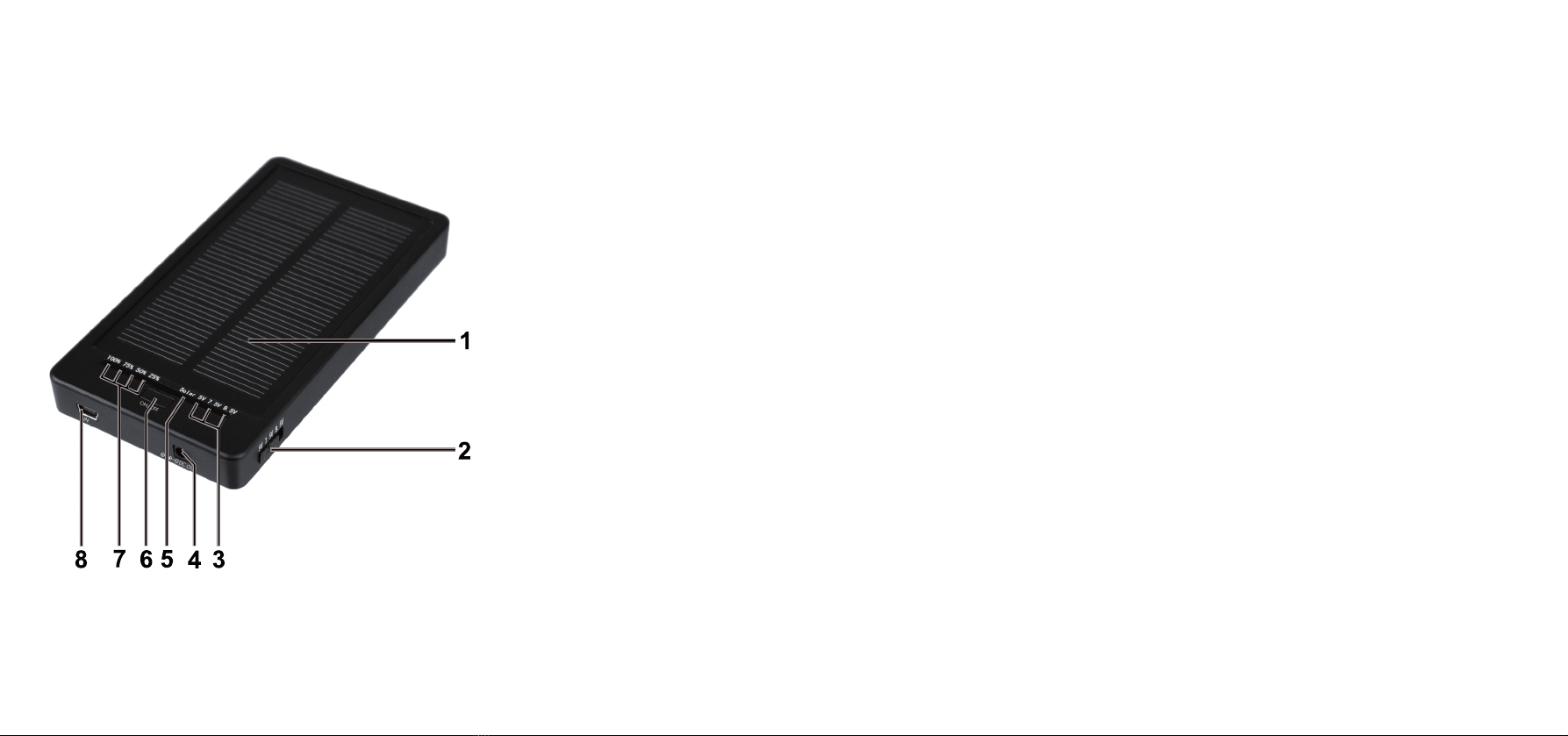

Overview of controls and button functions
An illustration of the items and controls and their corresponding numbers can
be found on the inside page of the fold-out cover of this user manual. You can
keep this page folded out whilst reading the different chapters of this user
manual. This allows you to refer to the relevant controls at any time.
1 Solar panel
2 Output voltage selector switch (5V, 7.5V or 9.5V)
3 Output voltage LEDs
4 DC-OUT socket (to connect the device to be charged)
5 Solar LED
6 ON/OFF pushbutton
7 Battery capacity LEDs
8 IN socket (to connect a PC or USB power adapter)

SilverCrest SLS 2200 A1
English- 11
Before you start
Remove the solar battery charger and the accessories from the packaging.
Fitting the suction pads
Fix the four suctions pads (O) to the bottom of the solar battery charger as
shown in the diagram below. Insert the suction pads (O) into the hole. Next, fix
the suction pads (O) by sliding them into the smaller hole.
You can now mount the solar battery charger to a flat, even surface using the
suction pads.
The surface should be free of dust, oil and grease for the
suction pads to stick well.

SilverCrest SLS 2200 A1
12 - English
Charging using the solar panel
Make sure that the maximum ambient temperature of +45C is
not exceeded. This is especially important if you are using the
product in a car.
You can charge the built-in battery of the solar charger using the solar panel
(1). Make sure that the solar panel (1) receives sufficient sunlight. As soon as
there is enough sunlight, the Solar LED (5) goes orange to indicate that the
battery is being charged. If the Solar LED (5) does not light up, there is not
enough sunlight. In this case, move the device to a different position or place it
in direct sunlight. When the Solar LED (5) goes green, the battery is fully
charged.
Charging via the USB cable
If there is no sunlight, you can also charge the built-in battery in your Solar
Battery Charger using the USB cable (B). Insert the smaller plug of the USB
cable (B) into the IN socket (8) of your Solar Battery Charger. Then insert the
USB plug of the USB cable (B) into a USB port on your computer. You can
monitor the charging process using the Battery capacity LEDs (7). One of the
Battery capacity LEDs (7) flashes during charging and indicates the status of
the battery charging process. When all four Battery capacity LEDs (7) are lit,
the battery is fully charged.
Some computers do not supply USB power while they are
turned off. If the battery of your Solar Battery Charger does not
charge, make sure your computer is powered on.
Alternatively, you can use an external USB power adapter (not
supplied) to charge the battery of your solar battery charger.
To do this, you will need the USB cable (B) supplied. You can

SilverCrest SLS 2200 A1
English- 13
purchase a suitable 5V USB power adapter with at least
500mA from any electronics retail outlet.
When using an external power adapter, it must be connected
to an easily accessible wall outlet so that it can be disconnected
quickly in case of an emergency.
Getting started
Using the ON/OFF pushbutton
Powering on
Briefly press the ON/OFF pushbutton (6) to switch the Solar Battery Charger
on. The output voltage LEDs (3) and the battery capacity LEDs (7) light. After
approx. 5 seconds the battery capacity LEDs (7) go off, and the output voltage
LEDs (3) light while a connected device is being charged.
Auto power off
If no device to be charged is connected within 20 seconds, the device will
power off to safe battery power.
Powering off
Keep the ON/OFF pushbutton (6) pressed for at least 3 seconds to switch the
Solar Battery Charger off and to cancel the current charging process.
Viewing the battery level
Press the ON/OFF pushbutton (6) briefly to display the battery level for a few
seconds. The Battery capacity LEDs (7) indicate the battery level as a
percentage (25%, 50%, 75% and 100%).
Compatible devices
The Solar Battery Charger can be used to charge external devices with a max.
charging current of 500mA.

SilverCrest SLS 2200 A1
14 - English
If the charging current of your connected device exceeds 500mA, the Solar
Battery Charger will automatically power off after you turn it on with the
ON/OFF pushbutton (6). In this case, double-check the external device
compatibility by reading its technical specifications (operating instructions).
Charging devices
First, select the correct output voltage. Slide the output voltage selector switch
(2) to the desired position. You can set the following voltages: 5V, 7.5V and
9.5V. If you are not sure what voltage the device requires, read the manual for
it.
Setting the wrong voltage could damage the device! Double-
check the output voltage set before connecting the device! To
do this, press the ON/OFF pushbutton (6) briefly. The voltage
set is displayed for a few seconds. You can check the voltage
set (5V, 7.5V or 9.5V) using the Output voltage LEDs (3). Wait
until the Output voltage LEDs (3) go out.
After you have set and checked the proper output voltage, you can connect the
external device using the charger cable (C) and the required adapter (D to N).
Plug the adapter required (D to N) onto the charger cable (C). The "Package
contents" chapter includes an overview of the adapters supplied. Next, connect
the charger cable (C) to the DC-OUT socket (4) of the Solar Battery Charger
and the adapter connected (D to N) to your external device.
Using the wrong voltage can damage your device!
Now press the ON/OFF pushbutton (6) briefly to start the charging process.
Then the output voltage LEDs (3) light while the connected device is being
charged. When your external device is fully charged, the Solar Battery
Charger switches off. To cancel the charging process at any time, simply
disconnect the external device. If your external device is not fully charged but
the Output voltage LEDs (3) go out during charging, the built-in battery of your

SilverCrest SLS 2200 A1
English- 15
Solar Battery Charger is empty. You will need to recharge your Solar Battery
Charger in order to charge external devices. You can recharge the built-in
battery of your solar charger and charge the external device at the same time.
Troubleshooting
A connected device is not charging.
Press the ON/OFF pushbutton (6) briefly to start the charging process.
The battery of your solar charger is empty, recharge it.
No connection to the external device, double-check the connection.
The “Micro USB” adapter (G) you are using is not compatible with the
device you want to charge. Use the original charging cable of your device
together with the “USB socket” adapter (D).
The Solar Battery Charger LEDs do not light up. Connect the Solar Battery
Charger to a computer or an external power supply for approx. 2
seconds to reset the built-in overload protection.
The Solar Battery Charger can be used to charge external devices with a
max. charging current of 500mA. If the charging current of your
connected device exceeds 500mA, the Solar Battery Charger will
automatically power off after you turn it on with the ON/OFF pushbutton
(6). In this case, double-check the external device compatibility by reading
its technical specifications (operating instructions).
Cannot charge the battery of the solar charger using the solar
panel.
Make sure that the solar panel (1) is receiving enough sunlight.
Cannot charge the battery of the solar charger via the USB
cable.
Faulty connection, double-check the connection.
Some computers do not supply USB power while they are turned off. If the
battery of your Solar Battery Charger does not charge, make sure your
computer is powered on.

SilverCrest SLS 2200 A1
16 - English
Environmental regulations and disposal
information
Devices marked with this symbol are subject to the European
Directive 2012/19/EU. All electrical and electronic devices
must be disposed of separately from household waste at
official disposal centres. Proper disposal of old devices
prevents damage to the environment or your health. For
further information about proper disposal, contact your local
council, recycling centre or the shop where you bought the
device.
The built-in rechargeable battery cannot be removed for
disposal.
Dispose of all packaging in an environmentally-friendly manner. Cardboard
packaging can be taken to paper recycling centres or public collection points
for recycling. Any film or plastic contained in the packaging should be taken to
your public collection points for disposal.
Conformity notes
This device complies with the basic and other relevant
requirements of EMC Directive 2004/108/EC and the
RoHs Directive 2011/65/EU. The Declaration of
Conformity can also be found at the end of this Manual.

SilverCrest SLS 2200 A1
English- 17
Warranty and Service Information
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please
keep the original receipt in a safe place as proof of purchase. Before using
your product for the first time, please read the enclosed documentation. Should
any problems arise which cannot be solved in this way, please call our hotline.
Please have the article number and, if available, the serial number to hand for
all enquiries. If it is not possible to solve the problem on the phone, our hotline
support staff will initiate further servicing procedures depending on the fault.
Within the warranty period the product will be repaired or replaced free of
charge as we deem appropriate. No new warranty period commences if the
product is repaired or replaced. Consumables such as batteries, rechargeable
batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this
warranty.

SilverCrest SLS 2200 A1
18 - English
Service
Phone: 0207 – 36 50 744
E-Mail: [email protected]
Phone: 01 – 242 15 83
E-Mail: [email protected]
Phone: 800 – 62 175
E-Mail: [email protected]
Phone: 800 – 92 496
E-Mail: [email protected]
IAN: 94118
Manufacturer
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
