Silvercrest SKWH 2000 A2 Use and care manual

IAN 365187_2101
WALL-MOUNTED CERAMIC FAN HEATER SKWH 2000 A2
KERAMIK-WANDHEIZLÜFTER SKWH 2000 A2
RADIATEUR SOUFFLANT MURAL EN CÉRAMIQUE SKWH 2000 A2
OS
WALL-MOUNTED CERAMIC
FAN HEATER
Operation and Safety Instructions
NÁSTĚNNÝ KERAMICKÝ
TEPLOVZDUŠNÝ VENTILÁTOR
Pokyny pro obsluhu a bezpecnostní pokyny
CZ
CERAMICZNY WENTYLATOR
ŚCIENNY
Wskazówki dotyczące obsługi i bezpieczeństwa
PL
KERAMISCHE VENTILATORKACHEL
VOOR AAN DE WAND
Bedienings- en veiligheidsinstructies
NL BE
NÁSTENNÝ, KERAMICKÝ OHRIEVAČ
Návod na obsluhu a bezpečnostné pokyny
SK
CALEFACTOR CERÁMICO DE PARED
Instrucciones de utilización y de seguridad
ES
KERAMIK-WANDHEIZLÜFTER
Bedienungs- und Sicherheitshinweise
DE AT CHNIGB IE CY MT
KERAMISK VÆGVARMEBLÆSER
Betjenings- og sikkerhedsinstruktioner
DK
CH
RADIATEUR SOUFFLANT
MURAL EN CÉRAMIQUE
Instructions d‘utilisation et consignes de sécurité
FR BE

GB IE NI CY MT
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions
of the device.
DE AT CH
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit
allen Funktionen des Gerätes vertraut.
FR BE CH
Avant de lire le mode d‘emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l‘appareil.
NL BE
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
CZ
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
PL
Przed rozpoczęciem czytania rozłóż stronę zawierającą rysunki, a następnie zapoznaj się ze wszystkimi
funkcjami urządzenia.
SK
Prv než začnete čítať tento návod, rozložte si stránku s obrázkami a oboznámte sa so všetkými funkciami
zariadenia.
ES
Antes de empezar a leer abra la página que contiene las imágenes y, en seguida, familiarícese con todas
las funciones del dispositivo.
DK
Før du læser, skal du folde siden ud med illustrationer og derefter gøre dig bekendt med alle enhedens
funktioner.
GB/IE/NI/CY/MT Operation and Safety Instructions Page 5
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 27
FR/BE/CH Instructions d‘utilisation et consignes de sécurité Page 49
NL/BE Bedienings- en veiligheidsinstructies Pagina 74
CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana 96
PL Wskazówki użytkowania i bezpieczeństwa Strona 117
SK Návod na obsluhu a bezpečnostné pokyny Strana 140
ES Instrucciones de utilización y de seguridad Página 161
DK Betjenings- og sikkerhedsinstruktioner Side 183

6
5
4
31 2
7
8
11
10
912 13
FB
A
C
E
D
G

Program
Monday -
Friday
Saturday-
Sunday
P1
8am -5pm 8am -5pm
P2
6pm -7am* 6pm -7am*
P3
8am -5pm OFF
P4
6pm -7am* OFF
P5
OFF OFF
P6
Free mode Free mode
Please note: The times marked with* end on the sub-
sequent day. Timing range 00-24 h, the start time
must be before the stop time.
Programm
Montag-
Freitag
Samstag-
Sonntag
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 Aus
P4
18:00-7:00* Aus
P5
Aus Aus
P6
freier Modus freier Modus
Hinweis: Die mit * gekennzeichneten Uhrzeiten
enden am darauf folgenden Tag. Zeiteinstellungs-
bereich 00-24 Uhr, die Startzeit muss vor der Stopp-
zeit liegen.
GB
NI
IE
CY
MT
H
I
J

Pro-
gramme
Lundi-
Vendredi
Samedi-
Dimanche
P1
8h00-17h00 8h00-17h00
P2
18h00-
7h00*
18h00-
7h00*
P3
8h00-17h00 Fermé
P4
18h00-
7h00* Fermé
P5
Fermé Fermé
P6
Mode au
choix
Mode au
choix
Program-
ma
Maandag-
vrijdag
Zaterdag-
zondag
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 Uit
P4
18:00-7:00* Uit
P5
Uit Uit
P6
vrije modus vrije modus
Remarque : Les heures marquées d’un * se ter-
minent le lendemain. Plage de réglage de l’heure
00-24heures, l’heure de début doit être antérieure
à l’heure de fin.
Opmerking: De met * gemarkeerde tijden eindigen
op de volgende dag. Tijdbereik 00-24 uur, de starttijd
moet voor de stoptijd liggen.
NL
BE
FR
BE
CH
Program
Pondělí-
-pátek
Sobota-
-neděle
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 Vyp
P4
18:00-7:00* Vyp
P5
Vyp Vyp
P6
volný režim volný režim
Pokyn: Doba označená * končí další následující
den. Oblast nastavení času 00-24 hodin, startovní
čas musí být před časem zastavení.
CZ
program
poniedzia-
łek-piątek
sobota-nie-
dziela
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 wyłączony
P4
18:00-7:00* wyłączony
P5
wyłączony wyłączony
P6
tryb dowolny tryb dowolny
Wskazówka: Godziny oznaczone * dotyczą kolej-
nego dnia. Zakres ustawiania czasu: 00-24; godzina
rozpoczęcia musi być wcześniejsza od godziny za-
kończenia.
PL
Program
pondelok-
piatok
sobota-
nedeľa
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 Vyp
P4
18:00-7:00* Vyp
P5
Vyp Vyp
P6
voľný režim voľný režim
Upozornenie: Časy označené * končia ďalší deň.
Rozsah nastavenia času 00-24 Uhr, doba štartu
musí byť pred dobou ukončenia.
SK

Programa
Lunes-
Viernes
Sábado-
Domingo
P1
8:00-17:00 8:00-17:00
P2
18:00-7:00* 18:00-7:00*
P3
8:00-17:00 De
P4
18:00-7:00* De
P5
De De
P6
modo libre modo libre
Aviso: Los tiempos marcados con * terminan al día
siguiente. Rango de ajuste de tiempo 00-24 horas, la
hora de inicio debe ser antes de la hora de parada.
ES
Program-
mer
Mandag-
Fredag
Lørdag-
Søndag
P1
8h00-17h00 8h00-17h00
P2
18h00-
7h00*
18h00-
7h00*
P3
8h00-17h00 Lukket
P4
18h00-
7h00* Lukket
P5
Lukket Lukket
P6
Valg af
tilstand
Valg af
tilstand
Bemærk: Timer markeret med * slutter næste dag.
Tidsindstillingsområde 00-24 timer, starttiden skal
være tidligere end sluttidspunktet.
DK

GB/IE/NI/CY/MT 5
1. Introduction ......................................................................................................................... Page 7
1.1 Intended Use ........................................................................................................................ Page 7
1.2 Scope of delivery ................................................................................................................. Page 7
1.3 Equipment ............................................................................................................................. Page 7
1.4 Technical data ...................................................................................................................... Page 8
2. Safety Instructions ........................................................................................................... Page 9
2.1 Safety instructions for devices intended for domestic purposes ....................................... Page 9
2.2 Specific safety instructions for heaters ................................................................................ Page 10
2.3 Additional safety instructions for heaters ......................................................................... Page 10
2.4 Additional safety instructions .............................................................................................. Page 11
2.5 Information about batteries ................................................................................................. Page 12
3. Before you start the device ....................................................................................... Page 14
3.1 Remote control: How to insert or change the battery ....................................................... Page 14
4. Installation ............................................................................................................................ Page 14
4.1 General installation instructions .......................................................................................... Page 14
4.2 Installation in the bathroom ................................................................................................. Page 15
5. Starting up ........................................................................................................................... Page 17
5.1 Fan Mode ............................................................................................................................ Page 17
5.2 Turning off ............................................................................................................................ Page 17
5.3 Thermal overload Protection / Safety Shut-Down ............................................................. Page 17
6. Control via the control panel ................................................................................... Page 18
6.1 Switch on device .................................................................................................................. Page 18
6.2 Setting of heating levels ...................................................................................................... Page 18
6.3 Timer-Setting ........................................................................................................................ Page 18

GB/IE/NI/CY/MT6
7. Control using the remote control ........................................................................... Page 18
7.1 Switch on device .................................................................................................................. Page 18
7.2 Heating step adjustment ...................................................................................................... Page 19
7.3 Temperature-Setting ............................................................................................................. Page 19
7.4 Oscillation Function .............................................................................................................. Page 19
7.5 Timer-Setting ......................................................................................................................... Page 19
7.6 System Time-Setting ............................................................................................................. Page 20
7.7 Week Timer ........................................................................................................................... Page 20
7.8 Setting the timer programs 1-5 (pre-set programs) ............................................................ Page 20
7.9 Adjustment of the manual timer Program (P6) ................................................................... Page 21
7.10 Deactivation of the Week Timer ........................................................................................ Page 22
7.11 Detection of open windows .............................................................................................. Page 22
7.12 Brief instruction for the remote control unit ....................................................................... Page 23
8. Maintenance, Cleaning and Storage .................................................................. Page 24
9. Disposal .................................................................................................................................. Page 24
10. ROWI Germany GmbH warranty ........................................................................ Page 24
11. Service..................................................................................................................................... Page 26

GB/IE/NI/CY/MT 7
1. Introduction
Congratulations on the purchase of your new fan
heater. You have opted for a high quality product.
The operating instructions are part of this product.
They contain important information on safety, usage
and disposal. Familiarise yourself with all operating
and safety instructions before you use the product.
Use the product only as described and only for
the specified areas of use. When passing on the
product, please do not forget to hand over all the
necessary documents to the new user.
1.1 Intended Use
This device is only intended for heating closed
rooms. The device is not intended for use in special
conditions, for example, in a corrosive or explosive
area (dust or gas). Do not use the device outdoors.
Any other use or modification of the device is
deemed to be an improper use and means a
considerable risk of accidents. For damage caused
by the improper use, no liability will be accepted by
us. This fan heater is only intended for private use as
a supplementary heater.
1.2 Scope of delivery
1 Wall-mounted ceramic fan heater SKWH 2000 A2
2 Fastening screws
2 Wall dowels
1 Remote control (incl. button cell)
1 Operating Instructions
WALL-MOUNTED CERAMIC FAN HEATER SKWH 2000 A2
1.3 Equipment
Items 1-13, as well as A-G are written on the front
fold-out side.
1 ON/OFF button
2 Oscillation button
3 Window button
4 Timer button
5 OK button
6 Cancel button
7 Minus button
8 Plus button
9 Week-Timer button
10 Temperature button
11 Heating level button
12 Tab
13 Batterycompartment
A Heating level display
B Week-Timer display
C Timer button
D Oscillation display
E ON/OFF button & Heating level button
F Temperature display
G Air slot/Air outlet
H-J are given on the rear fold-out side.
H ON/OFF button
I Fastening screws
J Wall dowels

GB/IE/NI/CY/MT8
1.4 Technical data
Input voltage: 220-240 V~
(alternating current)
Mains frequency: 50-60 Hz
Rated consumption: 2000 W
Heating level 1: 1000 W
Heating level 2: 2000 W
Protection class: II
Temperature range: 18ºC - 45ºC
Timer: max. 8 hours
Dimensions: 56.5 x 19 x 12 cm
(L x H x W)
Weight: 2.5 kg
Remote control
Battery supply : 3 V (direct current)
CR2025
Information requirements for electric local
space heaters
Model identifier(s): SKWH 2000 A2
Item Symbol Value Unit
Heat output
Nominal heat output Pnom 2.0 kW
Minimum heat output
(indicative) Pmin 1.0 kW
Maximum continuous
heat output Pmax,c 2.0 kW
Auxiliary electricity consumption
At nominal heat output elmax N/A kW
At minimum heat output elmin N/A kW
In standby mode elSB 0.00078 kW
Item Unit
Type of heat input, for electric storage local
space heaters only (select one)
manual heat charge control,
with integrated thermostat
[no]
manual heat charge control with room
and/or outdoor temperature feedback
[no]
electronic heat charge control with room
and/or outdoor temperature feedback
[no]
fan assisted heat output [no]
Type of heat output/room temperature
control (select one)
single stage heat output and no room
temperature control
[no]
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[no]
with electronic room temperature control [no]
electronic room temperature control plus
day timer
[no]
electronic room temperature control plus
week timer
[yes]
Other control options
(multiple selections possible)
room temperature control,
with presence detection
[no]
room temperature control,
with open window detection
[yes]
with distance control option [no]
with adaptive start control [no]
with working time limitation [yes]
with black bulb sensor [no]
ROWI Germany GmbH
Werner-von-Siemens-Str. 27
76694 Forst
GERMANY

GB/IE/NI/CY/MT 9
2. Safety Instructions
Please read all safety instructions and notes.
Failure to comply with the safety instructions and precautions
may result in serious injury and/or property damage.
For future reference, keep all safety instructions and pre-
cautions in a safe place!
Danger to life by electrical power!
Contacting the live cables or components is dangerous to your
life!
2.1 Safety instructions for devices intended for
domestic purposes
The device is only intended for indoor use.
This heater can be used by children aged from 8 years and above
and by physically, sensory or mentally restricted persons if they are
supervised or given instructions on safe use and understand the
hazards involved as it does not require any experience or know-
ledge. This device is not a toy for children to play with! Cleaning
and user maintenance shall not be carried out by children without
supervision.
If the power supply cable of this device is damaged it should
be replaced by the manufacturer or by its customer service, or a
similarly qualified person, to avoid danger.

GB/IE/NI/CY/MT10
2.2 Specific safety instructions for heaters
Warning!
To avoid overheating of the device, do not cover it.
Do not install the heater directly below a wall socket.
2.3 Additional safety instructions for heaters
Children under the age of 3 are to be kept away unless they are
continually supervised.
Children between the age of 3 and 8 are only allowed to turn the
device on or off if they are supervised or given instructions on safe
use and understand the hazards involved, provided that the heater
has been placed or installed in its intended normal operating
position. Children between the age of 3 and 8 shall not plug in,
regulate and clean the heater or perform user maintenance.
Caution! Some parts of the product can become very hot and
cause burns. Pay particular attention when children and vulnerable
people are present.

GB/IE/NI/CY/MT 11
2.4 Additional safety instructions
Danger of fire!
Never place the device near or under curtains or other
combustible materials.
Beware of hot surfaces!
Some parts of the product can become very hot and cause
burns. Pay particular attention when children and vulnerable
people are present.
If the mains cable or plug is damaged, do not use the device! Do
not re-start the device before having a new mains cable or plug
installed by an authorised specialist.
Never open the housing of the device. Touching the live cables
and connections and/or modifying the electrical and mechanical
installation means danger to your life by electric shock!
Before you connect the device to the mains, compare the electrical
connection parameters on the nameplate (voltage and frequency)
with the data of your electric network. Make sure that all the data
match so that no damage may occur to the device.
Do not use extension cables or power outlet strips.
Make sure that the power supply cable is not damaged and not laid
on hot surfaces and/or sharp edges.
Ensure the power cable does not kink or become trapped.
Repair of electrical equipment may only be carried out by experts
who are specially trained by the manufacturer. Improper repair can
cause considerable danger for the device users.
Avoid combustible materials contacting the device.
Before using the device, check it for visible damage. If the device fell
down or got damaged, do not start it.

GB/IE/NI/CY/MT12
Repair of the device shall only be done by authorised companies
qualified in this field or by the after-sales service. Improper repair can
cause considerable danger for the device users. Moreover, it will void
all warranty claims.
Defective components may only be replaced with original spare parts.
Only if original spare parts are used, it is ensured that the security
requirements are met.
Protect the device against humidity and penetration of liquids.
When disconnecting, pull the power cable from the wall socket by the
power plug only, do not jerk out the cable!
Do not use the device in the vicinity of open flames.
In the case of faults or during a thunderstorm, pull out the connector
plug from the wall socket.
Use the device only when the power cable is completely run out.
Never wind the power cable around the device. Make sure that the
power cable does not contact hot surfaces. Route the cable so that
nobody can stumble over it.
When using the device in the bathroom, please ensure that you air
the bathroom sufficiently whenever you finish using the shower and/
or bathtub.
2.5 Information about batteries
Keep out of reach of children.
Swollowing can lead to injury, perforation of soft tissue and to
death. Severe burns can occur within 2 hours of swallowing.
Seek medical advice immediately. Incorrect use of batteries
may result in fire, explosion, leakage of dangerous substan-
ces, or other hazard!
Do not throw batteries into the fire and do not expose them to high
temperatures.

GB/IE/NI/CY/MT 13
Do not open, deform or short-circuit the batteries. Otherwise, the
contained chemicals can leak out of them.
Do not try to recharge batteries. Recharging is only allowed for
batteries which are marked as “rechargeable”. There is a danger
of explosion!
Regularly check the batteries. Leaking chemicals can cause heavy
damage to the device. Dealing with damaged or leaking batteries,
exercise a particular caution. Risk of chemical burns! Wear protective
gloves.
Chemicals escaping from a battery can cause skin irritation.
In case of contact with skin, rinse with much water. In case of
contact with eyes, do not rub your eye, but rinse it with water and
immediately visit a doctor.
Never use different battery types together.
When inserting the battery, pay especial attention to the correct
polarity. Wrong polarity can cause risk of bursting.
If you do not use the device for a long time, remove the batteries
from the device unless it is for emergency purposes.
Do not allow children to replace batteries without supervision by
an adult.
Always choose the right size and the right battery type for the
intended use. The information sheet enclosed with the device which
is meant to assist you in choosing the right batteries should be kept
for reference.
Clean the battery contacts and also the contacts of the equipment
before installing the batteries.
Remove used up batteries immediately.
Do not dismantle the batteries.
If the battery compartment does not close securely, do not use the
remote control any more and keep it away from children.
Please avoid extreme conditions and temperatures which can
adversely affect the batteries/rechargeable batteries, e.g. placing
them on radiators/direct solar radiation.

GB/IE/NI/CY/MT14
3. Before you start the device
3.1 Remote control: How to insert or change
the battery
The remote control unit is delivered together
with a lithium button cell. To enable the remote
control, remove the plastic tape that protrudes
from the battery compartment 13 (see Figure 1).
1
If the remote control battery needs to be
replaced, insert a new 3-volt lithium button cell.
Pay attention to the type of lithium button cell
(CR2025).
2
Press the tab 12 on the battery compartment 13
of the remote control toward the centre. Now pull
out the battery compartment 13 (see Figure 2).
Remove the old battery.
Insert a new 3V-button-cell battery (type
CR2025). Pay attention to the correct polarity.
Push the battery compartment 13 back into the
remote control unit until the tab 12 snaps into
place.
4. Installation
4.1 General installation instructions
Hang the device onto the wall. The device’s air
outlet Gshould be at the bottom Use the dow-
els Jand screws Iincluded in the delivery.
Please note: Make sure that the wall can bear
weights of at least 4.1 kg.
Please note: If necessary, you will need a climbing
aid (e.g. a ladder) to carry out the installation.
The distance between the holes must be 31.5 cm
(see Figure 3).
3
The distance to the ceiling and walls must be at
least 30 cm.
The distance to the floor must be at least 2 m
(see Figure 4).
4

GB/IE/NI/CY/MT 15
If the specified distances can not be main-
tained, the device may not be mounted.
When drilling, make sure that you do not
damage concealed power lines!
Drill two holes with a 6 mm drill and insert the
supplied wall dowels Jinto them.
Screw the fastening screws Iinto the wall
dowels J . Each screw Ishall protrude to
about 10 mm.
Place the heater onto the fastening screws I
(see Figure 5).
5
Now move the heater to the right and then down.
4.2 Installation in the bathroom
The device should not be mounted directly
above the connection box/wall socket.
The power supply cable should not hang in
front of the air outlet G .
Please carry out all electrical connection and
installation works in accordance with the relevant
national and regional regulations.
Hang the device onto the wall. The device’s air
outlet Gshould be at the bottom. Use the do-
wels Jand screws I included in the delivery.
Please note: Make sure that the wall can bear
weights of at least 4.1 kg.
Please note: You may probably need a climbing
aid (e.g. a ladder) to be able to carry out the
installation.
The distance between the holes must be 31.5 cm
(see Figure 6).
6
The distance to the walls must be at least 30 cm.
The distance to the ceiling must be at least 45 cm.

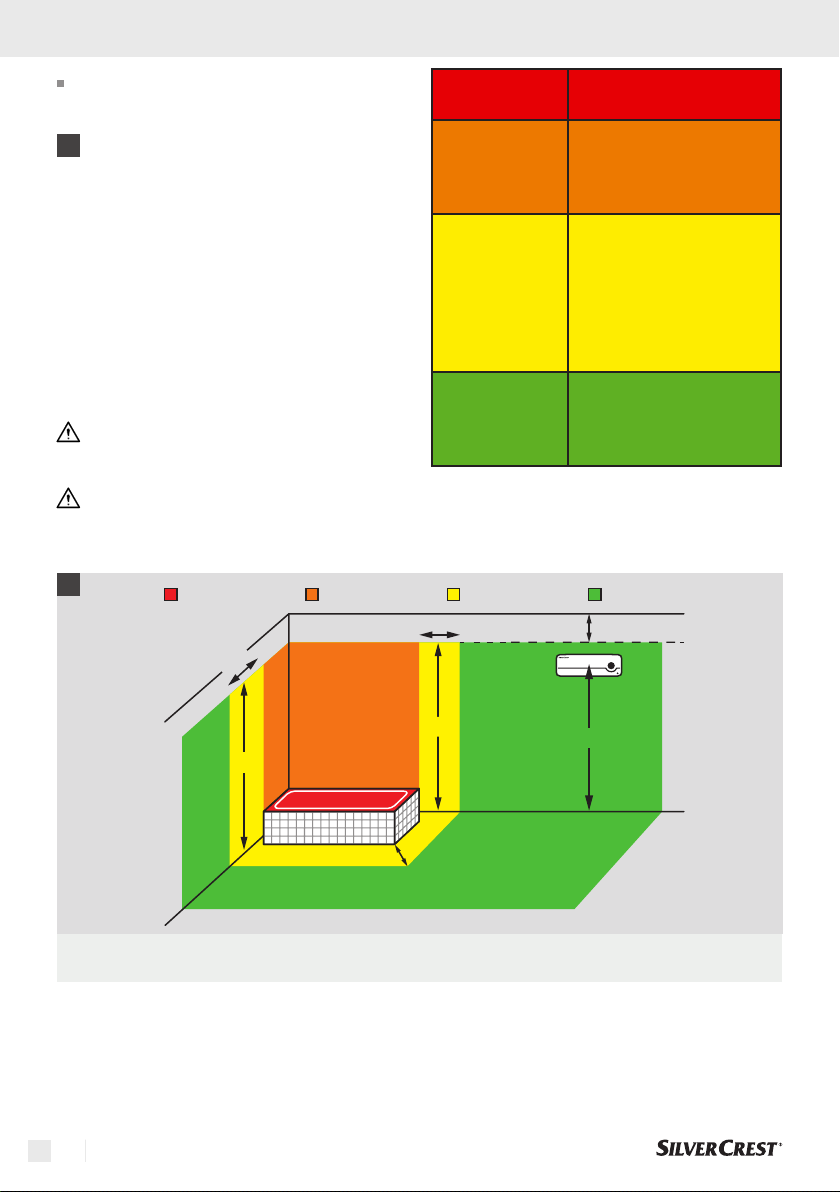

The distance to the bathtub / shower tray should
not be less than 60 cm (see figure 8).

GB/IE/NI/CY/MT16
The distance to the floor must be at least 2m
(see figure 7 and 8).
If the predefined distances cannot be com-
plied with, the device should not be mounted.
The ceramic wall fan heater should only
be used in the protection area 3 of a
bathroom (see figure 8)!
8
Protection zones
Protection area 0 Protection area 1 Protection area 2 Protection area 3
Protection area 1
Protection area 0
Protection area 2 **Protection area 3
60cm
225cm
45cm
200cm
60cm
225cm
Protection area 0 This is the area that is inside
the bathtub or shower tray.
Protection area 1 This area is limited in height
(225 cm) and extends to the
outer edges of the bathtub
or shower tray.
Protection area 2 This area is limited in height
(225 cm) and extends to the
vertical surfaces at the limit
of zone 1 and its parallel
vertical surfaces extending
60 cm beyond the edge of
zone 1.
Protection area 3 Protection area 3 applies
to areas outside the three
protection areas mentioned
above.
7

GB/IE/NI/CY/MT 17
5. Starting up
Connect the fan heater to a grounded and secured
socket. To supply the electric current to the device,
turn the ON/OFF switch
H
to the “I”-position.
The device is now at the standby mode. Its display
shows the ambient temperature.
Now you can turn the fan heater ON and OFF,
as follows:
5.1 Fan Mode
To use the ceramic wall heater as a fan only,
proceed as follows:
On the control panel: In Standby mode, press
the ON/OFF button Eonce. The unit is now in
fan mode.
With the remote control unit: In Standby
mode, press the ON/OFF button
1 once. The
unit is now in fan mode.
5.2 Turning off
To turn the device off, please press the
ON/OFF button 1on the remote control
unit. To disconnect the fan heater from the
power supply, set the ON/OFF switch H
to position ‘O‘.
Please note: If you turn the unit off, the fan will
still run 30 seconds. Then the unit will switch off.
A countdown is shown on the display (only after
heating function).
5.3 Thermal overload Protection / Safety
Shut-Down
If the measured room temperature is 51°C, the device
switches off automatically. The fan runs 30 seconds be-
fore it turns off. A countdown is shown on the display.
When drilling, make sure that you do not
damage concealed power lines!
Drill two holes with a 6 mm drill and insert the
supplied wall dowels Jinto them.
Screw the fastening screws Iinto the wall do-
wels J . Each screw I shall protrude to about
10 mm.
Place the heater onto the fastening screws I
(see Figure 9).
9
Now move the heater to the right and then
down.

GB/IE/NI/CY/MT18
6. Control via the control panel
Note: The device can be switched on and off via
the control panel. The heating level and timer set-
tings can also be changed.
6.1 Switch on device
Please note: If necessary, a climbing aid (e.g. a
ladder) is required to press the ON/OFF button H
or the start/stop button Eon the device.
Press the On/Off button
E
on the control panel.
The device will start. To switch off the device, press
the On/Off button
Eon the control panel five
times consecutively.
6.2 Setting of heating levels
Pressing the heating level button
E
serves
to switch the ceramic wall fan heater on/
off as well as to set the desired heating
level. By pressing the button
E
on the
control panel, the device will change to
the next heating level. Depending on the
choice of the heating level the respective
indicator will light up on the display panel.
Press 1x: Fan mode
Press 2x: 1. Heating level (1000 W)
Press 3x: 1. Heating level (1000 W)
with Oscillation
Press 4x: 2. Heating level (2000 W)
Press 5x: 2. Heating level (2000 W)
with Oscillation
Press 6x: Switching off
6.3 Timer-Setting
The purpose of the timer is to automatically
turn off the ceramic fan heater.
Please note: As long as a week timer is activated,
the turn-off timer cannot be used (see chapter
“Deactivation of the Week Timer“).
With the aid of the timer, you can select the turn-off
time in hour increments. Then the wall-mounted cera-
mic fan heater will switch off automatically.
Turn the device ON (see Starting Up). Press the
timer button
C
repeatedly until you reach the
desired number of hours.
By repeatedly pressing the timer button C , the timer
will be adjusted in 1-hour increments:
0H – 1H – 2H – 3H – 4H – 5H – 6H – 7H – 8H
Example: If the device should automatically switch
off after 4 hours, press the timer button C until you
see „4H“ on the display.
Wait about 5 seconds. The information is auto-
matically transferred. Then the device will be
automatically turned off in 4 hours.
If you want to make sure that the timer entry has
been transferred, press the timer button C once
more. Then „4H“ or your entry will appear in
the display.
7. Control using the remote control
7.1 Switch on device
Press the ON/OFF button
1
on the remote
control unit. The device starts. To turn the device
OFF, press the ON/OFF button
1
on the remote
control once more.
