Silvercrest KH 245 User manual

WIND-UP RADIO
WIND-UP RADIO
Operating Manual
DYNAMO-RADIO
Betjeningsvejledning
GB
C
KOMPERNASS GMBH
BURGSTRASSE 21 • D-44867 BOCHUM
www.kompernass.com
ID-NR.: KH245-12/08-V3
KH 245
1 3
254
1B: DE, NL, PT
3B: GB, GR
6: GB
1 B 3 B


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰
䍖彋䠠㈴㕟㍃彡畳獥
䵩瑴睯捨Ⱐㄷ⸠䑥穥浢敲′〰㠠ㄲ㨲㌺〴

KH 245
g
g
a
i
o
s
u
t
r
e
w
qy
h
d
f
j
l
k
13
254
1B: DE, NL, PT
3B: GB, GR
6: GB
1 B 3 B


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰


㈵
㜵
㤵
㄰
䍖彋䠠㈴㕟楮湥
䵩瑴睯捨Ⱐㄷ⸠䑥穥浢敲′〰㠠ㄲ㨲㈺㌵

- 1 -
Before using this device for the rst time, please read these operating in-
structions through carefully and preserve this booklet for future reference.
Pass this booklet on to whoever might acquire the device at a future date.
INDEX PAGE
Intended Use 2
Items supplied 2
Technical data 2
Please read the safety instructions 3
The operating elements 7
Taking the device into use 8
Switching between power supplies 9
Charging the batteries 9
Switching the device on and off 10
Receiving radio transmissions 10
Headphone operation 11
The illumination function 11
The siren function 11
Cleaning and care 12
Disposal 12
CE Conformity 13
Importer 13
Important warranty Notices 14

- 2 -
Intended Use
This portable radio device is intended exclusively for the recep-
tion of radio transmissions. The device is not intended for use in
commercial or industrial environments. No warranty claims will
be granted for damage resulting from improper use!
Items supplied
1 Portable radio device
1 Operating instruction booklet
Technical data
Operation with the built-in Ni-MH batteries
Charging with the AC Dynamo
Battery operation
3 x 1.5 V Batteries (Type AA/Mignon/LR06, not supplied)
Operation with power adapter
Power adapter with output of 4.5 V , min. 500 mA,
Barrel plug poling: , (not supplied).
Frequency ranges: VHF: 87.5 — 108 MHz
MW: 526.5 – 1606.5 kHz
Max. output voltage at
the headphone socket: 40-60mV
Dimensions (W x H x D): 18.3 x 9.6 x 6 cm
Weight : approx. 465 g
Operating temperature: + 5° ~ 35°C
Storage temperature : —20° ~ 60°C
Humidity: 5 ~ 90 %
Spray water protection: IPX4

- 3 -
Please read the safety instructions
Do not permit children to handle electrical devices without •
supervision, they cannot correctly assess the possible risks
of injury.
Check the device for visible damage. If the device is damaged,
•
immediately separate a connected power adapter from the
mains power supply. Arrange for the device to be checked
by Customer Services before continuing to use it.
Risk of electric shock
Connect the power adapter only to correctly installed and •
earthed mains sockets. Check that the electricity type and
mains voltage matches the information given on the power
adapter type plate.
Use only power adapters with an output rating of
• 4.5 V at
a minimum of 500mA.
When connecting a power adapter, ensure that the polarity
•
of the barrel plug concurs with the polarity details for socket
DC 4.5V (left side of the device ).
Do not operate the device if the mains adapter, the adapter's •
power cable or the device itself is damaged. Arrange for the
device to be checked and/or repaired by qualied techni-
cians.
NEVER open the device. There are no user-serviceable ele-
•
ments inside. Should you do so, device safety can no longer
be assured and the warranty will become void.
NEVER submerse the device in water. Wipe it only with a
•
slightly damp cloth.
This device is spray water protected. Nonetheless, do not
•
subject it to rain or snow.

- 4 -
If you operate the device with a power adapter without •
spray water protection, protect the power adapter from
moisture or humidity. Use it only in dry rooms, do not use
it outdoors or close to liquids.
Notice regarding power mains separation when using a
•
power adapter:
To completely separate the device from mains power, the
mains adapter must be unplugged from the wall socket. For
this reason, the device should be placed where unhindered
access to the power socket is always assured, so that in
an emergency you can immediately withdraw the plug. To
eliminate the risk of re, prevent unintended activation and
save energy costs, the mains adapter should be unplugged
from the wall socket when the device is not in use.
Always grip the power adapter directly when you wish to
•
unplug it. Do not pull on the cable and never touch the mains
adapter with wet hands, this could result in a short circuit or
you receiving an electric shock. Do not place furniture or
other objects on the cable of the mains adapter, and ensure
that it cannot become trapped. Never tie knots in the power
cable, and do not join it to other cables. Lay the power cable
so that no one can step on or stumble over it.
A damaged mains adapter can cause a re or electric
shock. When you use a power adapter check it from time to
time. Should it become damaged, acquire a new one from
a specialist shop.
When a storm and/or thunderstorm with the risk of lightening
•
threatens, please disconnect the mains adapter from the
mains power.

- 5 -
 Riskofre!
Do not use the device near hot surfaces.•
Do not operate or store the device in hot locations and do •
not subject the applianice to direct sunlight or strong articial
light sources. If you do, it may overheat and become irre-
parably damaged.
Do not place open re sources, such as candles, on the
•
device.
Do not leave the device unattended at any time when it is in
•
use.
To avoid overheating, do not use the device at insuciently
•
ventilated locations, e.g. under blankets.
 Riskofpersonalinjury!
Listening to music with head or earphones for long periods •
and at high volume levels can lead to hearing damage! For
your own protection, we recommend that you do not adjust
the sound level too high.
Keep batteries well away from children. Children can put
•
batteries into their mouths and swallow them. If a battery is
swallowed medical assistance must be sought IMMEDIATELY.
In the event of the batteries leaking acids, rst put on a pair
•
of protective gloves. Then clean the battery compartment
and the battery contacts with a dry cloth.
This device can also be operated with batteries. Take note
•
of the following section for the interaction with batteries.

- 6 -
 Riskofexplosion!
Do not throw batteries into a re and do not subject them •
to excessive heat, such as direct sunlight and similar.
Do not recharge the batteries.
•
Never open batteries, never solder or weld batteries. •
The risk of explosions and injuries exists!
 Accidenthazard!
Do not operate the device if it has sustained a fall or is da-•
maged in any way. Arrange for the device to be checked
and/or repaired by qualied technicians.
This device is not intended for use by individuals (including
•
children) with restricted physical, physiological or intellectual
abilities or deciencies in experience and/or knowledge
unless they are supervised by a person responsible for their
safety or receive from this person instruction in how the de-
vice is to be used. Children should be supervised to ensure
that they do not play with the device.
Riskofsuocation!
Do not leave packaging material lying unattended. Plastic •
foils and bags and pieces of styropor etc. are not toys, they
can be dangerous for small children.

- 7 -
Damage to the device
Do not place the device on sloping surfaces, it could fall •
down and be damaged.
Regularly check the condition of the batteries. Leaking
•
batteries can cause damage to the device.
If you do not intend to use the device for an extended
•
period, remove the batteries.
Always change all batteries at the same time and always
•
use batteries of the same type.

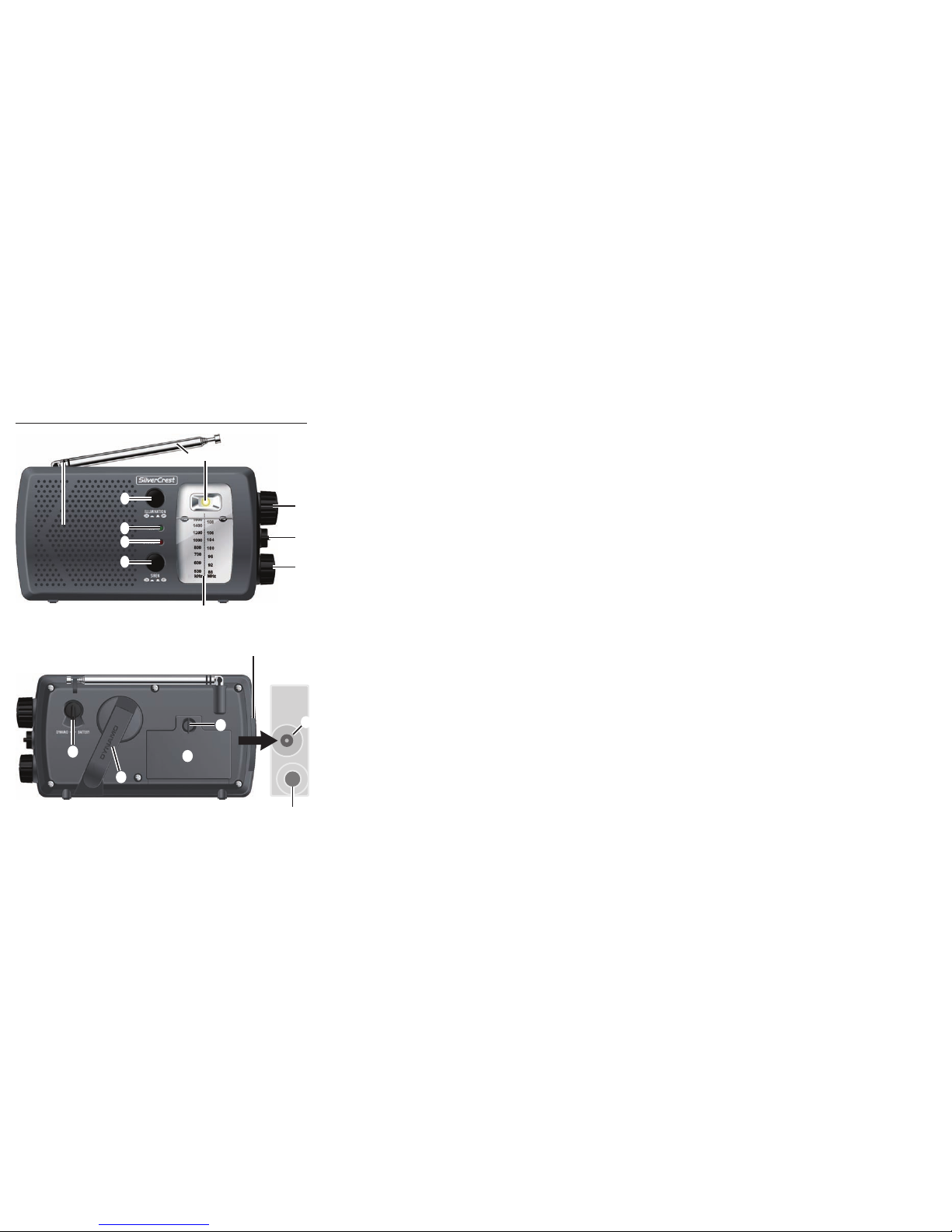

The operating elements
q Loudspeaker
w ILLUMINATION - switches the illumination on and o
e TUNE - indicator for reception strength
r CHARGE - lights up when charging the batteries
t SIREN - switches the siren on and o
y Telescope antenna
u LED bulb
i TUNING - tuning in of radio stations
o FM/AM - frequency range switch
aOFF/VOLUME: - On/O switch, volume regulator
s Sender scale
d DYNAMO/BATTERY - for switching between power
sources
f Dynamo lever - for manual electricity generation
gBattery compartment cover
h Lock-device for the battery compartment cover
j Rubber covers - for the protection of connection
sockets
k DC 4.5V - connection for a power adapter
l Headphone output 3.5mm jackplug

- 8 -
Taking the device into use
Take the device out of the carton and remove all packaging >
and adhesive foils.
Operation with the built-in Ni-MH batteries
First of all, charge up the built-in batteries. For this, fold out
>
the dynamo grip on the rear of the device and turn the
dynamo lever f for several minutes at approx. 120 revolu-
tions per minute in any direction.
Battery operation
The device can also be operated with batteries (not supplied).
Open the battery compartment on the rear of the device
>
by unscrewing and removing the lock-device on the battery
compartment cover h.
Now remove the battery compartment cover
>g and place it
to one side.
Insert 3 x 1.5V batteries of the type "AA/Mignon/LR6" as
>
per the insertion markings shown in the battery compartment.
Pay heed to the correct poling of the batteries, otherwise
>
the device will not function and could even be damaged.
Replace the battery compartment cover
>g and screw it
down rmly with the lock-device h.
Connecting the mains adapter
You can operate the device with a power adapter (not supplied)
that concurs with the specications given in the section "Technical
Data".
Using a ngernail, open the rubber cover
>j.
Insert the barrel plug of the power adapter into the socket
>
for the power supply (DC 4.5V) k on the device.

- 9 -
Then insert the plug of the power adapter into a mains >
power socket whose voltage matches the information given
on the power adapter type plate.
Switching between power supplies
The DYNAMO/BATTERY switch d, with which you can select
dierent power sources, is located on the rear of the device.
Place this switch in the position DYNAMO to power the
>
device from the built-in Ni-MH batteries.
Place this switch in the position BATTERY to power the
>
device from the batteries in the battery compartment.
Power provision from a mains power adapter functions in
>
both switch positions.
Charging the batteries
Should the device functions diminish whilst it is being powerered
from the built-in Ni-MH batteries, it means they are drained.
In this case, fold out the lever of the dynamo crank
>f and
then turn the dynamo any direction until the functions are
restored.
During the period that the batteries are being charged, the
>
CHARGE indicator r lights up.
When done, place the dynamo crank
>fback into its rest
position.

- 10 -
Notice:
Only the built-in batteries can be charged, not the batteries that
may have been placed in the battery compartment.
Switching the device on and o
To switch the device on, turn the >O/volume regulator a
clockwise over a small resistance.
To switch the radio o, turn the
>O/volume regulator a
anti-clockwise, and over the small resistance, until it comes
to a stop.
Receiving radio transmissions
Using the> frequency range switch FM/AM o, select the
required waveband:
FM = Very High Frequency (VHF),>
AM = Medium Wave (MW).>
For VHF reception, extend the telescope aerial
>y to its full
length and then determine its best positioning.
The device has a built-in aerial for the reception of MW
>
transmitters. To improve reception, if needed, turn the radio
until it is in the most favourable position.
Turn the transmitter calibration TUNING
>i, to receive the
desired radio station. Use the tuning scale s for orientation.
In the case of VHF transmitters, reception strength is shown
>
by the TUNE indicator e. The brighter it glows, the better
the reception.
Select the desired sound volume with the
>OFF/VOLUME
regulator a.

- 11 -
Headphone operation
Using a ngernail, open the rubber cover j. Headphones with
a 3.5 mm jackplug can be connected to the headphone socket (
, l). In this case, the built-in loudspeaker q is switched o.
Important! Listening to music with head or earphones
for long periods and at high volume levels can lead to
hearing damage!
The illumination function
Especially for nocturnal outdoor use, the device is tted with a
powerful LED lamp.
Press the ILLUMINATION
>w button to switch the illumination
function on and o.
The siren function
To draw attention to oneself in an emergency situation, the
device is tted with a siren function.
Press the SIREN
>t button to switch the siren on and o.
Instruction:
The siren is not subject to sound volume limitations.
•

- 12 -
Cleaning and care
NEVER submerse the device or its components in water
or other uids! Do not allow any liquids to penetrate
into the housing. This could damage the device or
cause a short circuit.
Cleaning the housing:
Clean the housing surface with a slightly damp cloth
Never use benzene, solvents or detergents that can
damage plastics!
Disposal
Do not dispose of the device in your normal
domestic waste. This product is subject to the
provisions of European Directive 2002/96/EC.
Radio device
Arrange for the product, or parts of it, to be disposed of by a
•
professional disposal company or by your communal waste
facility.
Observe the currently applicable regulations. In case of
•
doubt, please contact your waste disposal centre.
Batteries/rechargeable batteries
Used batteries/rechargeable batteries may not be disposed
•
of in household waste.
Batteries/rechargeable batteries can contain toxic substances,
•
which may damage the environment. Therefore, dispose of
the batteries/rechargeable batteries in accordance with statu-
tory regulations.

- 13 -
Every consumer is legally obliged to surrender batteries/•
rechargeable batteries to a community collection centre in
their district or to a dealer. The purpose of this obligation is
to ensure that batteries are disposed of in a non-polluting
manner.
Only dispose of batteries when they are fully discharged.
•
Dispose of packaging materials in an environmentally
responsible manner.
CE Conformity
This device has been both examined and approved in regard to
conformity with the fundamental requirements and other
relevant regulations of the EMC Directive 2004/108/EC
and the low voltage directive LVD 2006/95/EC.
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com

- 14 -
Important warranty Notices
The warranty for this device is for 3 years from the date of pur-
chase. Should you, in spite of our high quality standards, have
grounds for complaint please contact our Service Hotline.
In the event that processing of your complaint is not possible
by telephone you will receive
a processing number (RMA number) as well as •
an address to which you can send your device for repair •
under warranty.
In the case of a mail-in shipment please enclose a copy of
the purchase receipt (sales slip). The device must be securely
packed and the RMA number clearly visible. Goods sent in
without the RMA number cannot be processed.
Note: The warranty provisions cover only material or manu-
facturing defects.
The warranty is not valid;
for parts subject to wear
•
for damage to breakable parts such as switches or •
rechargeable batteries.
This product is for private use only and is not intended for commer-
cial use. The warranty is void in the case of abusive and improper
handling, use of force and internal tampering not carried out by
our authorized service branch. Your statutory warranty claims are
not restricted by this warranty.

- 15 -
WIND-UP RADIO
KH 245
Warranty
In order to guarantee a cost free
repair procedure please get in
touch with the service hotline.
Make sure you have your sales
slip handy.
Sender, please write clearly:
Last name:
First name:
Street:
Postcode/Place:
Country:
Telephone:
Date/Signature:
Description of fault:
Completely fill our this section and enclose with the appliance!
DES Ltd
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
Irish Connection
Tel: 00353 (0) 87 99 62 077
Fax: [phone]
e-mail: [e-mail]
www.mysilvercrest.de
GB

- 16 -

- 17 -
Læs betjeningsvejledningen omhyggeligt igennem, før du bruger
radioen første gang, og gem vejledningen til senere brug. Hvis du
giver radioen videre til andre, skal vejledningen følge med.
INDHOLDSFORTEGNELSE SIDE
Bestemmelsesmæssig anvendelse 18
Medfølger ved køb 18
Tekniske data 18
Læs sikkerhedsanvisningerne 19
Betjeningselementerne 23
Ibrugtagning af radioen 24
Omskiftning af strømforsyningen 25
Opladning af akkubatterierne 25
Tænd og sluk for radioen 26
Modtagelse af radiosender 26
Hovedtelefonfunktion 27
Belysningsfunktionen 27
Sirenefunktionen 27
Rengøring og vedligeholdelse 28
Bortskaffelse 28
CE-konformitet 29
Importør 29
Vigtige garantioplysninger 30

- 18 -
Bestemmelsesmæssig anvendelse
Dette bærbare radioapparat er udelukkende beregnet til modta-
gelse af radiotransmissioner. Radioen er ikke beregnet til erhvervs-
mæssigt eller industrielt brug. For skader, som resulterer af ikke be-
stemmelsesmæssig anvendelse af radioen, giver vi ingen garanti!
Medfølger ved køb
1 bærbart radioapparat
1 betjeningsvejledning
Tekniske data
Akkubatterifunktion med indbyggede Ni-MH-akku-
batterier
Opladning med AC-dynamo
Batterifunktion
3 x 1,5 V batterier (typen AA/Mignon/LR06, følger ikke med
ved køb)
Funktion med netadapter
Netadapter med udgang på 4,5 V , min. 500 mA,
hulstik-polaritet: , (følger ikke med ved køb).
Frekvensområder: FM: 87,5 – 108 MHz
AM: 526,5 – 1606,5 kHz
Maks. udgangsspænding ved hovedtelefonens udgang: 40-60mV
Mål (B x H x D): 18,3 x 9,6 x 6 cm
Vægt : ca. 465 g
Driftstemperatur: + 5° ~ 35°C
Opbevaringstemperatur : — 20° ~ 60°C
Fugt: 5 ~90 %
Stænkvandsbeskyttelse: IPX4
