Simplex SafeLINC 4100U User manual

Features
Multi-line expanded content display interface for
Simplex®4100U Series fire alarm control panels,
available with the following products:
• Fire alarm control panels (stand-alone or networked)
including Redundant CPU options (Software Revision
12 or higher is required)
• Network Display Units (NDU) (single language supports
up to 12,000 points, bilingual operation supports up to
9000 points)
• Remote Annunciator panels and models that mount in a
dedicated cabinet (4100U control panels support Remote
InfoAlarm Command Centers independent of host panel
display type)
• Upgrade kits are available for legacy 4100 (1000 pt,
4100+ systems) and 4100U control panels
• UL listed to Standard 864
InfoAlarm Command Centers provide customized
operating convenience:
• “Activity in System” primary display choices include:
First and Most Recent, First 5 and Most Recent, First 8,
Site Plan with activity status icons, General Alarm, or
Direct to List; selectable individually by event type
• System reports are easily viewed; logs can be read with
minimal scrolling required
• Up to six “softkeys” per screen provide functions that
vary with the particular screen information aiding
operators to determine how to proceed
• Up to two languages are available per system, easily
selected by programmable key press (systems with
IMS/GCC/NPU or 2 x 40 LCD panels or annunciators
require one language to be the default font)
• International models allow customized language legends
for operator keys and status LEDs
Display properties:
• 320 x 240 dot matrix (QVGA) display provides an active
area of 4.53” W x 3.4” H (115 mm x 86 mm) displaying
up to 854 characters using standard ASCII character font
• Bright white LED backlighting provides efficient and
long lasting illumination; operation is selectable as
continuous or off with power fail or with no key presses
Introduction
Displaying more information. 4100U Controls using the
InfoAlarm Command Center provide an expanded content,
multi-line LCD interface that requires minimal key presses to
access detailed information. Because it is system-powered, its
detailed information is provided without requiring separate
supplementary equipment.
InfoAlarm Command Center Control Panel. By using
a larger area format instead of an individual text line display,
the LCD provides text information for Alarm, Supervisory, or
Trouble. The format is flexible and able to be customized per
application allowing additional information to be presented to
suit the specific application.
Press ACK located under flashing indicat or.
Repeat operation until all events are acknowledged.
Local tone will silence.
Emergency Operating Instructions
Alarm or Warning ConditionHow to Ackno wledge / View Events
How to Sile nce Building Sign als
System indicator f lashing. Tone On.
Press Alarm Sil ence.
How to Reset System
Press System Reset.
Press Ack to silence tone d evice.
A B C D E F G HI
J K L M N O P Q R
'SP' ( ) , # :
S T U V W X Y Z /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
C/Exit
Menu Enter
Previous
Next
Page Dn
Page Up
AC
Power
ALARMS
Fire
Alarm Priority 2 Alarm
WARNINGS
System
Supervisory System Trouble Alarm Silenced
Fire Alarm
Ack Priority 2 Ack Supv Ack Trouble Ack Alarm Silence System Reset

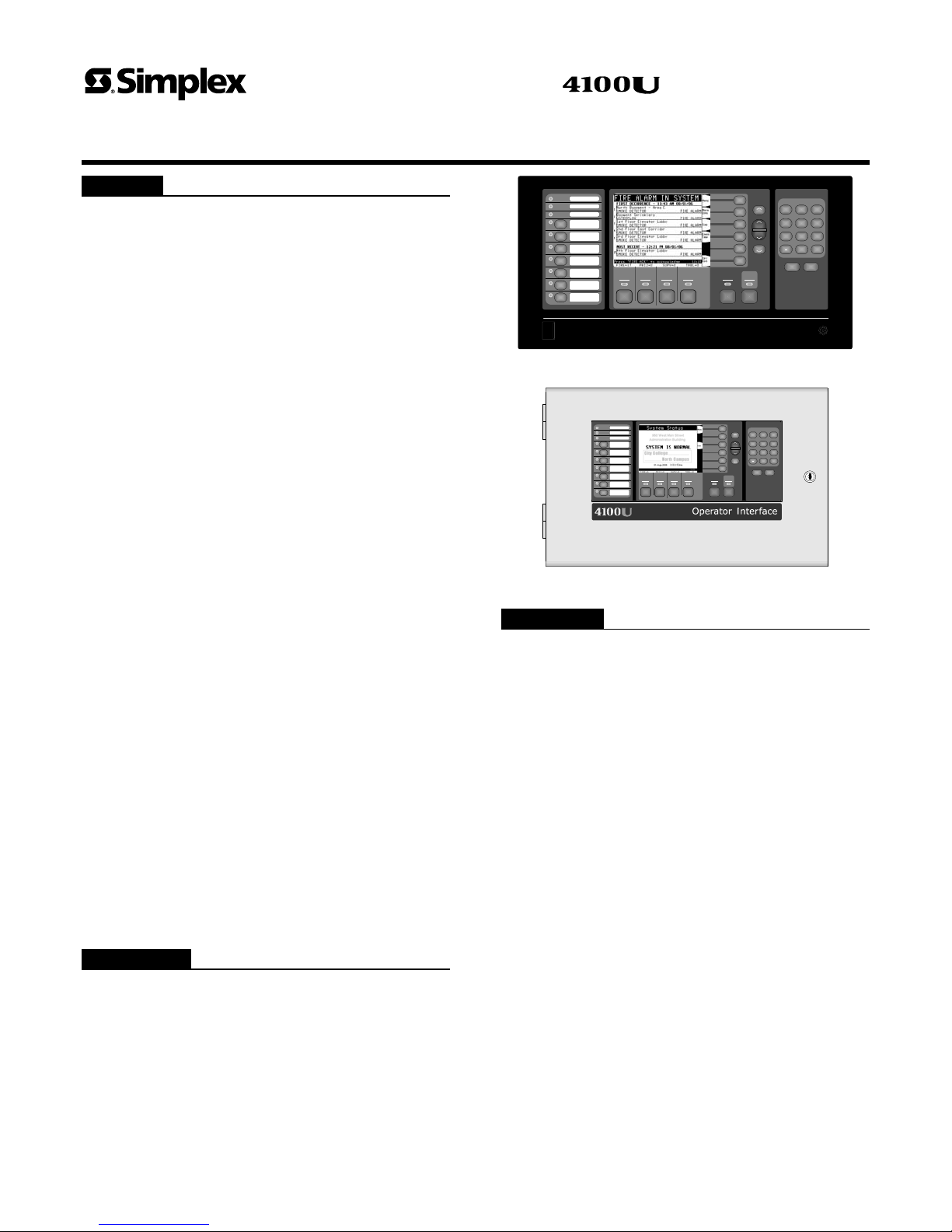

InfoAlarm Command Center for Control Panel Mounting
AB C DE F GH I
J K L M N O PQ R
'SP' ( ) ,# :
S T U VW X YZ /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
C/Exit
Menu Enter
Previous
Next
Page Dn
Page Up
AC
Power
ALARMS
Fire
Alarm Priority 2 Alarm
WARNINGS
System
Supervisory System Trouble Alarm Silenced
Fire Alarm
Ack Priority2 Ack Supv Ack Trouble Ack Alarm Silence System Reset
InfoAlarm Command Center in Remote Cabinet
Description
InfoAlarm Command Centers for 4100U fire alarm systems
provide a large display with extended information content,
dual language support including 2 byte character languages,
and an intuitive control key interface per the following:
• Up to 10 InfoAlarm Command Centers are supported per
4100U control panel; able to allow one InfoAlarm
Command Center to take-control and to designate access
levels for interfaces not in-control; LEDs can be
programmed for in-control status indications
• Menu-driven format conveniently prompts operators for
the next action required
• Key controls are provided to select the highlighted entry,
load next screen of information, or jump to top or
bottom of activity lists
• Direct point callup displays individual points
alphabetically and then homes in on the logical choice as
more point information is entered
• A Site Plan bitmap can be displayed for reference; icons
can be added to indicate system status
• Up to 50 custom point detail messages can be generated
• Date formats are either MM/DD/YY or DD/MM/YY
• Time formats are either 24 hour or 12 hour with AM/PM
• System Normal screen supports a gray scale bitmap
(watermark) for location name, company logo, or site plan
* This product has been approved by the California State Fire Marshal (CSFM) pursuant to
Section 13144.1 of the California Health and Safety Code. See CSFM Listing 7165-0026:251
(non-high rise) and 7170-0026:250 (high rise) for allowable values and/or conditions
concerning material presented in this document. It is subject to re-examination, revision, and
possible cancellation. Accepted for use – City of New York Department of Buildings –
MEA35-93E. Additional listings may be applicable; contact your local Simplex product
supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. are
the property of Tyco Safety Products Westminster.
Fire Control Panels
UL, ULC, CSFM Listed; FM Approved; InfoAlarm™ Command Center
MEA (NYC) Acceptance* for the 4100U Fire Alarm Control Panel
S4100-0045-4 11/2007

NOTE: Refer to page 7 for international control panel reference information. Detailed operator instructions are on
document 579-685.
A B C D E F G H I
J K L M N O P Q R
'SP' ( ) , # :
S T U V W X Y Z /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
C/Exit
Menu Enter
Previous
Next
Page Dn
Page Up
AC
Power
ALARMS
Fire
Alarm Priority 2 Alarm
WARNINGS
System
Supervisory System Trouble Alarm Silenced
Fire Alarm
Ack Priority 2 Ack Supv Ack Trouble Ack Alarm Silence System Reset
SEVEN PROGRAMMABLE
FUNCTION SWITCHES, each
equipped with dual color LED
indicators; the top six LEDs are
selectable as either red or
yellow, the bottom LED is
selectable as either red or
green; NOTE: Program the
bottom switch as "Lamp
Test" for UL listed systems
Ground Fault
Custom label insert (typical
choices shown for reference)
THREE PROGRAMMABLE
LEDs provide custom labeling,
the top two LEDs are selectable
as red or yellow, the third LED is
selectable as red or green
ULC SYSTEMS require
designating a Ground Fault
indicator
Waterflow-West
Waterflow-East
LCD NAVIGATION
CONTROL:
Menu, Enter; Previous
item select, Next item
select; Page Up and
Page Down
320 x 240 DOT MATRIX DISPLAY, White
LED backlighting provides easy viewing;
operation is programmable for key inactivity
timeout and/or AC power fail
PRIMARY "ACTIVITY IN SYSTEM"
DISPLAY OPTIONS: Choices include "First
8" (shown below for "Fire Alarm in System"),
"First and Most Recent," "First 5 and Most
Recent," "Site Plan," "General Alarm," or
"Direct to List." After the event is
acknowledged, screen reverts to the
sequential event list until Clr/Exit softkey is
selected or after timeout (~ 30 seconds);
applicable to Fire Alarm, Priority 2 Alarm,
System Supervisory, and System Trouble,
each category is independently selectable
for primary display mode
SIX SOFT KEYS are available when
required. This sample provides Menu
to call up the available operations;
More Info to call up specific point
details, Site to call up the Site Plan
Graphic Screen, Event Time (while
pressed) displays time and date for all
displayed events, and Clr/Exit; the
following are other typical soft keys:
Point Enable and Disable
Force On or Arm
Force Off or Disarm
Return On/Off or
Arm/Disarm to Auto Mode
Event Time Request
More Information Request
FIRE ALARM ACK acknowledges a Fire Alarm condition, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential alarm list
PRIORITY 2 ACK acknowledges a Priority 2 Alarm condition, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential Priority 2 alarm list
SUPV ACK acknowledges system supervisory conditions, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential supervisory condition list
TROUBLE ACK acknowledges system troubles, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential trouble list
ALARM SILENCE causes notification appliances to be deactivated,
typically after evacuation is complete and while alarm source is being
investigated. May be programmed to silence audible notification and
allow visible notification to continue (strobes still flashing).
SYSTEM RESET restores control panel to normal when all alarmed
inputs are returned to normal
City Disconnect
Manual Evac
Door Holder
Bypass
Drill
Language
Toggle
SmokeSensor
Almost DirtyCheck
Lamp Test
NUMERIC KEYPAD for
point category and point
selection (alphabet
characters are not used
at this time)
C/Exit Key duplicates
the Clr/Exit softkey
when present
SIX SYSTEM STATUS INDICATOR
LEDs provide system status indications
in addition to LCD information, LEDs flash
to indicate the condition and then when
acknowledged, remain on until reset :
Fire Alarm & Priority 2 Alarm, red LED
Supervisory & Trouble, yellow LED
Alarm Silenced, yellow LED
AC Power, green LED (on for normal)
2 S4100-0045-4 11/2007
Control Panel Operation Reference

SOFT KEYS in this
column correspond to
the panel pushbutton
switches; programming
allows the soft keys to
appear only when the
functions are enabled
FONT ATTRIBUTES include:
Normal, Bold, Underline, Double , Dim,
Reverse , Flash On/Off, Flash On/Dim, and
commands for Vertical and Horizontal Placement
COMMAND PROMPT advises the operator of the action required and displays local panel time
MOST RECENT advises of the time, date, device type, and custom label of
the most recent occurrence of the list shown, in this case, the Fire Alarm list
FIRST OCCURRENCES (UP TO 5) AND MOST RECENT OCCURRENCE,
ACTIVITY IN SYSTEM DISPLAY ("Fire Alarm in System" screen shown for reference,
see page 2 for a First 8 Events display)
FIRST OCCURRENCE advises of the time, date, device type, and custom label of the
first occurrence of the event type displayed; the numerical count identifies the
sequence of occurrence; when selected as the primary display screen, display of first
occurrence and most recent occurrence is maintained until events are acknowledged
which brings up the event list (similar to the First 8 display); the display reverts back to
"First and Most Recent" when the Clr/Exit softkey is selected or after a time delay
TALLY COUNTS list the number of activities per category of Fire Alarm
(FIRE), Primary 2 Alarm (PRI2), Supervisory (SUPV), and Trouble (TRBL)
DISPLAY SIZE:
4.53" W x 3.4" H
(115 mm x 86 mm)
3 S4100-0045-4 11/2007
Display Feature Reference (shown actual size)

Site Plan with Event Icons
Site Plan Bitmap. The InfoAlarm Command Center supports
a site plan monochrome bitmap image (size is 281 pixels wide
by 192 pixels high) that can also display icons indicating
activity and location. Shown to the right is a sample site plan
with icons shown in each building area. For this example, each
area is showing an “A” for an initiating device in alarm, a
“WF” for waterflow occurring, and an icon indicating
notification appliances in alarm. (Icons can be created for site
specific symbology, these are for example only.)
Site Plan Selection and Detail. If desired, the site plan can
be the primary display screen for system activity or can be for
reference, available by selecting the “Site” softkey. Depending
on the facility layout, the site plan can also be a convenient
location for common reference information such as primary
call phone numbers, street address, etc. to assist operators in
their assigned response.
System Normal Screen. The site plan (or another bitmap
image) can be displayed on the System Normal screen as a grey
image watermark behind the screen text. (Size and type are the
same as that for a site plan bitmap). This can be used to identify
the specific location of the 4100U or can display a site-specific
logo or other information. (A sample is shown on page 6.)
Information Review
The Trouble Log History screen shown to the right
identifies the ability to view multiple event entries with
minimal scrolling. For specific information access,
pressing “Next” or “Previous” on the keypad highlights
the selected next or previous item in the list as indicated
by the arrow and the bolded first line of Entry 6.
For access to the next or previous full screen of
information, use the Page Dn or Page Up keys located to
the right of the soft keys, each to the right of the display.
Customized Emphasis
The Main Menu screen illustration to the left
demonstrates how print/display statements appear for
status information or for prompting of user input. Other
examples of this format occur when setting time and date,
entering a password, or identification of a status change
such as point enabling or disabling. Use of this feature
allows the display to clearly focus the user on required
information or actions.
4 S4100-0045-4 11/2007

Additional Primary Display Screens
Below are samples of a First and Most Recent primary
display and of a General Alarm display.
First and Most Recent Primary Display Option
General Alarm Primary Display Option
CUSTOM LABEL INSERT for the
three programmable LEDs and for the
seven programmable switches
LOWER LABEL INSERT allows custom labeling of the
six ACK/Silence/Reset switches and labeling of their
associated LEDs
UPPER LABEL INSERT allows
custom labeling of the numeric keypad
and of the LCD navigation controls
Generic site plan shown for reference
NOTE: Two sets of slide-in labels are provided,
one blank, the other in English; areas shown with
+ + + + are blank for custom words/characters
SWITCH PROGRAMMING EXAMPLES; for UL listed systems,
designate the bottom switch for Lamp Test; for dual language
systems, you can program a second switch to change the language
display (text shown for reference only, slide-in labels are blank)
Lamp Test
Toggle
Language
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + + + + + + + + + +
+ + + + + + + +
+ + + + + + + +
+ + + + + + + +
+ + + + + + + + + + + + + + + +
+ + + + + + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + + + + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + +
+ + + + + + + +
+ + + +
5 S4100-0045-4 11/2007
Data Sheet Subject Data Sheet Subject Data Sheet Subject
S4100-0031 Standard Panel Reference S4100-0035 MINIPLEX®Transponders S4100-0034 Audio/Phone Modules
S4100-0036 Network Display Unit S4081-0002 Remote Battery Charger S4100-0032 LED/Switch Modules
S4100-0038 Remote Annunciators S4100-0046 IDNet+ Module w/Quad Isolator S4100-0037 Enclosure Options
Additional 4100U Data Sheet Reference
International Display Details

4100U Master Controller with InfoAlarm Command Center (see data sheet S4100-0031 for descriptions of the 4100U
Basic Control Panel details, standard product features, options, and reference for related fire alarm control panel products)
Model Model Type UL ULC Voltage InfoAlarm Command Center Type Master Controller Features
4100-9114 English —
4100-9115 English
4100-9116 French — 120 VAC, 60 Hz Master Controller Assembly; raised keys
with fixed labels
4100-9213 International — 120 VAC, 60 Hz
4100-9212 International — 220/240 VAC,
50/60 Hz
Master Controller Assembly; flat keys
with inserts for custom key labels
9 A system power
supply/battery charger (SPS),
250 point IDNet interface,
3 NACs, auxiliary relay, and
external RUI communications
interface
4100-9122 English — 120 VAC, 60 Hz Redundant CPU (Master Controller);
raised keys with fixed labels
4100-9222 International — 220/240 VAC,
50/60 Hz Redundant CPU (Master Controller); flat keys with inserts for custom key labels
One Command Center, two
CPU cards, and an SPS in a
two bay assembly; NOTE: For
external RUI, use 4100-1291
RUI Expansion module(s)
Upgrade Kits (see NOTE for NDU upgrades; Upgrade kit are UL and ULC listed)
Model Model Type Description NOTE*
4100-7153 English
Upgrade Kit for existing 4100U Series Fire Alarm Control Panels; includes complete
bay front assembly with InfoAlarm Command Center providing raised keys with fixed
labels; uses existing power supply and Master Controller Board (CPU card)
4100-7154 English
Upgrade Kit for existing 4100 (Legacy 1000 pt, 4100+ systems) Series Fire Alarm
Control Panels (non-4100U); includes complete bay front assembly with InfoAlarm
Command Center; raised keys with fixed labels, and replacement Master Controller
Board; uses existing power supply
4100-7155 International
Upgrade Kit for existing 4100U Series Fire Alarm Control Panels; includes complete
bay front assembly with InfoAlarm Command Center providing flat keys with inserts for
custom key labels; use for non-English language applications including French for
Canada; uses existing power supply and Master Controller Board (CPU card)
4100-7156 International
Upgrade Kit for existing 4100 (Legacy 1000 pt, 4100+ systems) Series Fire Alarm
Control Panels (non-4100U); includes complete bay front assembly with InfoAlarm
Command Center; flat keys with inserts for custom key labels, and replacement Master
Controller Board; use for Canadian French applications; uses existing power supply
NDU
upgrades
require:
4100-7157*
Extended
Memory CPU
and
4100-0640*
Display
Memory
Expansion
*4100-7157 Extended Memory CPU, required to upgrade NDU to InfoAlarm Command Center; included with InfoAlarm
Command Center NDU models below; (single language NDU supports 12,000 points, bilingual NDU supports 9000 pts)
Network Display Unit (NDU) Master Controller with InfoAlarm Command Center
(NOTE: See data sheet S4100-0036 for NDU feature details and for details on SPS NAC ratings for NDU with VCC)
Model Model Type UL ULC Voltage NDU Type Master Controller Features
4100-9151 English —
4100-9153 English
4100-9154 French — 120 VAC, 60 Hz NDU (Standard, Non-Voice);
raised keys with fixed labels
4100-9245 International — 120 VAC, 60 Hz
4100-9243 International — 220/240 VAC, 50/60 Hz
NDU (Standard, Non-Voice);
flat keys with inserts for
custom key labels
Includes: 4100-7157 Ext. Memory
CPU, 4100-0640 InfoAlarm Memory
Expansion, Network Interface Module
(select media cards separately), 9 A
SPS power supply/batt. charger, and
external RUI; (NOTE: SPS IDNet™
channel and NACs are disabled)
4100-9152 English —
4100-9155 English
4100-9156 French — 120 VAC, 60 Hz NDU with Voice Interface
and Control; raised keys
with fixed labels
4100-9246 International — 120 VAC, 60 Hz
4100-9244 International — 220/240 VAC, 50/60 Hz
NDU with Voice Interface
and Control; flat keys with
inserts for custom key labels
Includes above features and adds:
VCC Bay with Standard CPU Module,
Network Interface Module (select
media cards separately), 9 A SPS with
250 Point IDNet Interface, (3) 3 A
NACs, and ext. RUI comm. interface
Remote Annunciator with InfoAlarm Command Center (see data sheet S4100-0038 for Remote Annunciator features)
Model Model Type UL ULC InfoAlarm Command Center Type Master Controller Features
4100-9612 English
4100-9613 French — With raised keys and fixed labels
4100-9614 International — With flat keys & inserts for custom key labels
Basic
Remote
Annunciator
Includes Expansion Bay with
PDI, Remote TIC module;
power is supplied from host
control panel
4100-9607 English
4100-9608 French — With raised keys and fixed labels
4100-9609 International — With flat keys & inserts for custom key labels
Remote
Annunciator
Includes Expansion Bay with
PDI, Remote TIC module;
power supply is specified
separately when configured
InfoAlarm Command Center Memory Option (may be required to be ordered separately, see description details)
Model Description
*4100-0640 Display Memory Expansion Module; included with NDU systems; required for all InfoAlarm Command Centers
connected to a panel if any are using 2 byte character fonts; 6 Meg module mounts on rear of display board
(continued on next page)
6 S4100-0045-4 11/2007
Product Selection

7 S4100-0045-4 11/2007
Remote InfoAlarm Command Center Control Assembly with Cabinet for Surface Mounting
Model Number/Cabinet Color
Red Beige Application Type Listing Description
4100-9401 4100-9402 English UL & ULC
4100-9421 4100-9422 French/Canada ULC
4100-9441 4100-9442 International UL
Remote InfoAlarm Command Center with cabinet; for
surface mounting; includes mounting box and door
assembly with glass insert; uses RUI communications;
requires external 24 VDC system voltage; see illustrations
below and Installation Instructions 579-687 for details
A B C D E F G H I
J K L M N O P Q R
'SP' ( ) , # :
S T U V W X Y Z /
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0C/Exit
Menu Enter
Previous
Next
Page Dn
Page Up
AC
Power
ALARMS
Fire
Alarm Priority 2 Alarm
WARNINGS
System
Supervisory System Trouble Alarm Silenced
Fire Alarm
Ack Priority 2 Ack Supv Ack Trouble Ack Alarm Silence System Reset
Box and door width = 20-1/2" (521 mm)
2" (51 mm)
3/4" (19 mm)
13-1/16"
(332 mm)
Transponder
Interface Card
(TIC)
24 VDC power input
wiring terminals
RUI Communications
wiring terminals
16" (406 mm)
8"
(203 mm)
NOTE: Bring wiring through back of box; do not use cabinet bottom;
refer to Installation Instructions shipped with assembly
see
conduit
note
Depth 2-3/4"
(70 mm)
Remote InfoAlarm Command Center Front View
Product Selection (Continued)
Remote InfoAlarm Command Center Mounting Reference

Tyco is a registered trademark of Tyco International Services GMBH and is used under license. Simplex, IDNet, MINIPLEX, InfoAlarm, and the Simplex logo are trademarks of
Tyco International Ltd. and its affiliates and are used under license. National Electrical Code and NFPA are trademarks of the National Fire Protection Association.
Tyco Safety Products Westminster • Westminster, MA • 01441-0001 • USA S4100-0045-4 11/2007
www.tycosafetyproducts-usa-wm.com
© 2007 Tyco Safety Products Westminster. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
General Display Specifications Dot Matrix Size 320 x 240
Active Display
Area 4.53” W x 3.4” H (115 mm x 86 mm), includes header, footer, and softkey area; 5.66” diagonal measurement (144 mm)
Characters Up to 854 characters total using standard ASCII character font
Size Reference
Designation QVGA; one quarter of standard VGA (Video Graphics Array) display
Display Polarizer Type Transflective with rear backlight
Display Adjustment Contrast adjustment is located on the controller module
Backlight White LEDs with intensity adjustment and selectable AC power fail operation;
intensity adjustment is located on the controller module
Backlighting Operation Options On continuously; Off with AC power fail until a switch is pushed; selectable
timeout without switch activity
Control Panel Mounted InfoAlarm Command Center Current Requirements
Supervisory 447 mA @ 24 VDC
Master Controllers (4100-9114, -9115,
-9116, -9212, -9213, -9222) Alarm 542 mA @ 24 VDC; backlight and tone-alert on
Supervisory 782 mA @ 24 VDC
Redundant CPUs
(4100-9122, -9222) Alarm 964 mA @ 24 VDC; backlight and tone-alert on
Supervisory 492 mA @ 24 VDC
Network Display Units, Non-Voice
(4100-9151, -9153, -9154, -9243, -9245) Alarm 547 mA @ 24 VDC; backlight and tone-alert on
Supervisory 912 mA @ 24 VDC
Network Display Units, Voice
(4100-9152, -9155, -9156, -9244, -9246) Alarm 989 mA @ 24 VDC; backlight and tone-alert on
4100-7153 & -7155 for 4100U add 82 mA supervisory; add 127 mA for alarm
Upgrade Kits 4100-7154 & -7156 for Legacy 4100+ add 235 mA supervisory; add 280 mA for alarm
Panel currents only
are shown, add
external device
loading per system
requirements
Remote Annunciators with InfoAlarm Command Center, Powered from Control Panel
Voltage 19 to 33 VDC (24 VDC nominal), system supplied; requires separate wiring
Supervisory 186 mA @ 24 VDC
Current Alarm 214 mA @ 24 VDC; backlight and tone-alert on
Mounting Details; Stand-Alone Cabinet Models See page 6 for reference illustration
Type RUI (Remote Unit Interface) external annunciator communications line SLC
(signaling line circuit)
Capacity Up to 31 total remote RUI devices, including up to 10 InfoAlarm Command
Center devices
4100U Capacity,
RUI Output RUI Device
Reference List
4100U: InfoAlarm Command Center, Remote Annunciators, MINIPLEX
Transponders; 4603-9101 LCD Annunciator, 4602-9101 Status Command
Unit (SCU), and 4602-9102 Remote Command Unit (RCU); refer to data
sheet S4100-0031 for additional 4100U RUI information
Data Single twisted, shielded pair, 18 AWG (0.82 mm2)
Power 18 to 12 AWG (0.82 mm2to 3.31 mm2) wires for 24 VDC system power
Wiring Requirements Earth A dedicated earth ground connection to the electrical box is required for
proper ESD and EMI protection; wire in accordance with NFPA 70 (National
Electrical Code®) Article 250
Custom Point Detail Messages
Message Location Details Select “more info” softkey when investigating point detail and scroll to the
bottom of the information; typical messages might include contact details
(phone numbers, pager numbers, etc.) and other contact or reference
information
Number of Messages Up to 50
Character Details 120 characters; visible characters = 116; (lines 1 and 2 require one carriage
return character and one line feed character)
Message Size Line Details 3 lines total; 40 characters maximum per line; line 3 may be limited to 36
visible characters depending on characters in lines 1 and 2
Operating Temperature 32° to 120°F (0° to 49° C)
Environmental Operating Humidity Up to 93% RH, non-condensing @ 90° F (32° C) maximum
Specifications
