SimpliFire SF-ALL48-BK User manual

1
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Model(s):
WARNING: To reduce risk of re, electrical shock, or personal injury, read all instructions
before using appliance.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read, understand and follow
these instructions for safe
installation and operation.
SF-ALL48-BK
SF-ALL60-BK
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN
THIS PRODUCT.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
Please contact your SimpliFire dealer or customer/technical support
(877-320-0730) with any questions or concerns.
For the location of your nearest SimpliFire dealer,
please visit www.hearthnhome.com.
Congratulations!
Congratulations on selecting a SimpliFire Electric Fireplace, an elegant and clean alternative to wood & gas burning replaces.
The SimpliFire electric replace you have selected is designed to provide the utmost in safety, reliability, and efciency.
Printed in China - Copyright 2018
Allusion Series:

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
2
1IMPORTANT INSTRUCTIONS
WARNING! Risk of Fire! Risk of Burns!
Risk of Electrical Shock!
DO NOT:
• Install or operate damaged heater
• Modify heater
• Operate the heater without fully assembling all
components
Hearth & Home Technologies Inc. disclaims any
responsibility for, and the warranty and agency listing will
be voided by the above actions.
WARNING! DO NOT operate replace before reading
and understanding operating instructions. Failure to
operate appliance according to operating instructions
could cause re or injury.
WARNING! Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Failure to install appliance accord-
ing to Owner’s Manual could cause property damage or
injury.
NOTICE! This appliance is not intended for use as a pri-
mary heat source and should not be factored as such in
residential heating calculations.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electric shock,
and injury to persons, including the following:
• Read all instructions before installing this appliance.
• This appliance is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes, etc., and
curtains at least 3 ft. (0.9 m) from the front of the appliance
and keep them away from the sides and rear.
• Extreme caution is necessary when any appliance is used by
or near children or or other at risk individuals and whenever
the appliance is left operating and unattended.
• Do not operate any appliance if it malfunctions. Disconnect
power at service panel and have appliance inspected by a
reputable electrician before reusing.
• Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or
re, or damage the appliance.
• To prevent a possible re, do not block appliance connection
fan air intakes or exhaust in any manner.
• A heater has hot and sparking parts inside. Do not use it in
areas where gasoline, paint, or ammable vapors or liquids
are used or stored.
• Use this appliance only as described in this manual. Any
other use not recommended by the manufacturer may cause
re, electric shock, or injury to persons.
• Do not operate any appliance with a damaged cord or plug
or after the appliance malfunctions, has been dropped or
damaged in any manner. Return appliance to authorized
service facility for examination, electrical or mechanical
adjustment or repair.
• Do not use outdoors.
• The appliance is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate appliance
where it may fall into a bathtub or water container.
• Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or the like. Arrange cord away from
trafc areas and where it will not be tripped over. Do not
tightly coil cord.
• Always use properly grounded, fused and polarized outlets.
• Always use ground fault protection where required by
electrical code.
• To disconnect appliance, turn controls to “OFF” then remove
plug from outlet.
• Always disconnect power before performing any cleaning,
maintenance or relocation of the appliance.
• To prevent electrical shock or re, always use a certied
electrician should new circuits be required.
• When transporting or storing the appliance, keep in a dry
place free from excess vibration to avoid damage.
• Avoid use of an extension cord because an extension
cord may overheat and cause a fire. However if you
have to use an extension cord, the cord should be No.
14 AWG minimum size and rated to not less than 1875
watts.

3
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Safety Alert Key:
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Table of Contents
Congratulations! ...................................1
1 IMPORTANT INSTRUCTIONS
A. Warranty .......................................4
2 GENERAL INFORMATION
A. Appliance Certication ............................5
B. Unpacking and Inspecting Appliance ................ 5
C. Model and Serial Number Information . . . . . . . . . . . . . . . . 5
3 GETTING STARTED

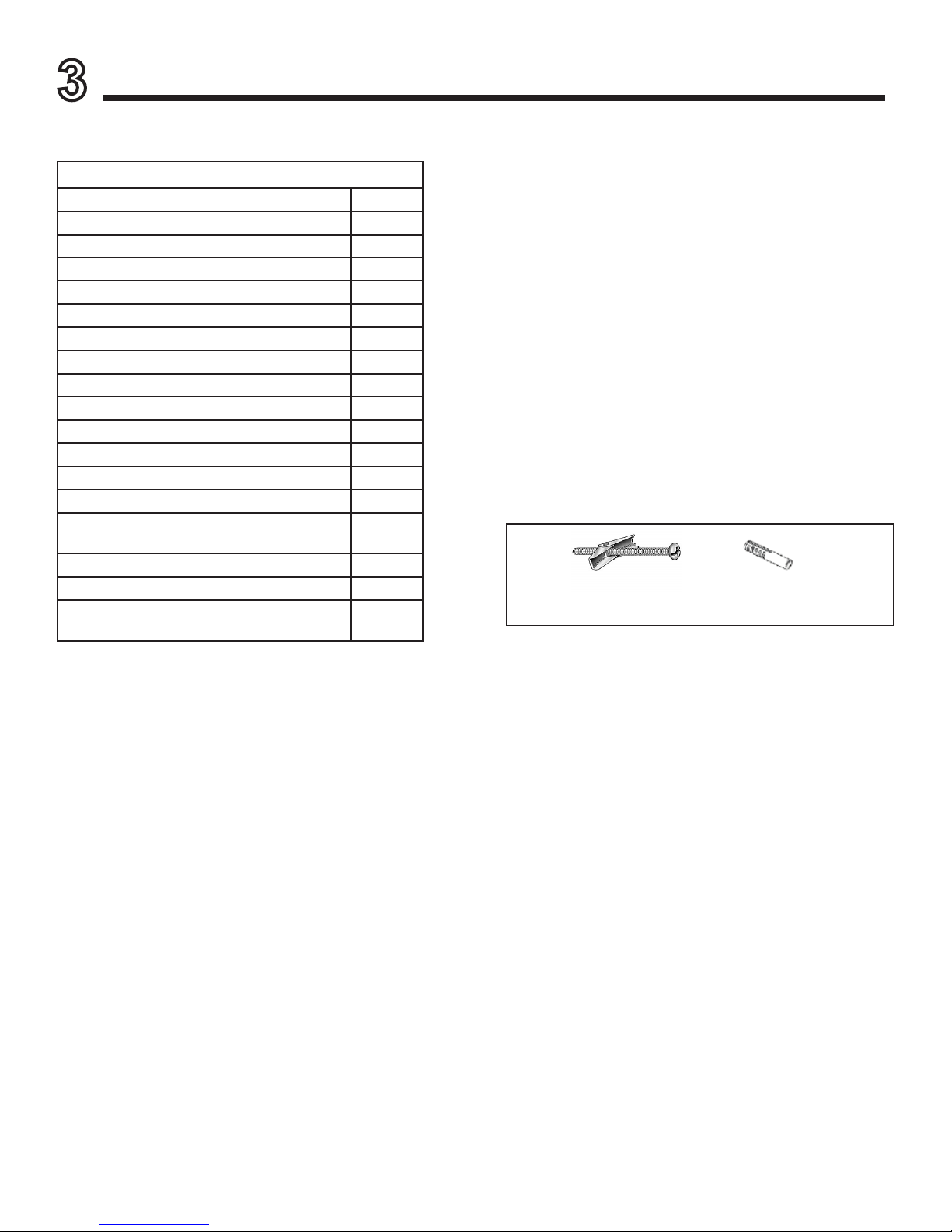

A. Parts and Hardware .............................6
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 6

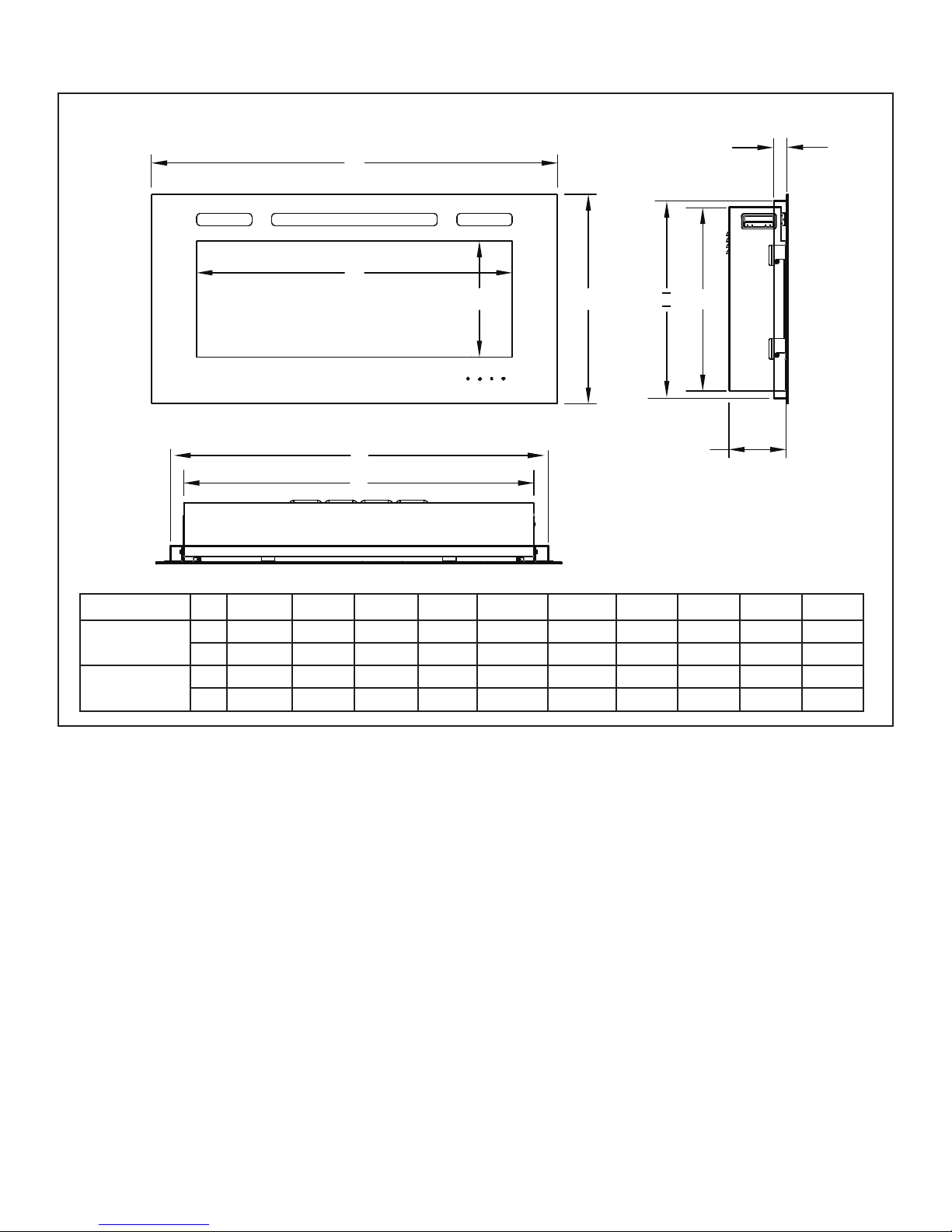

C. Appliance Dimensions ............................7

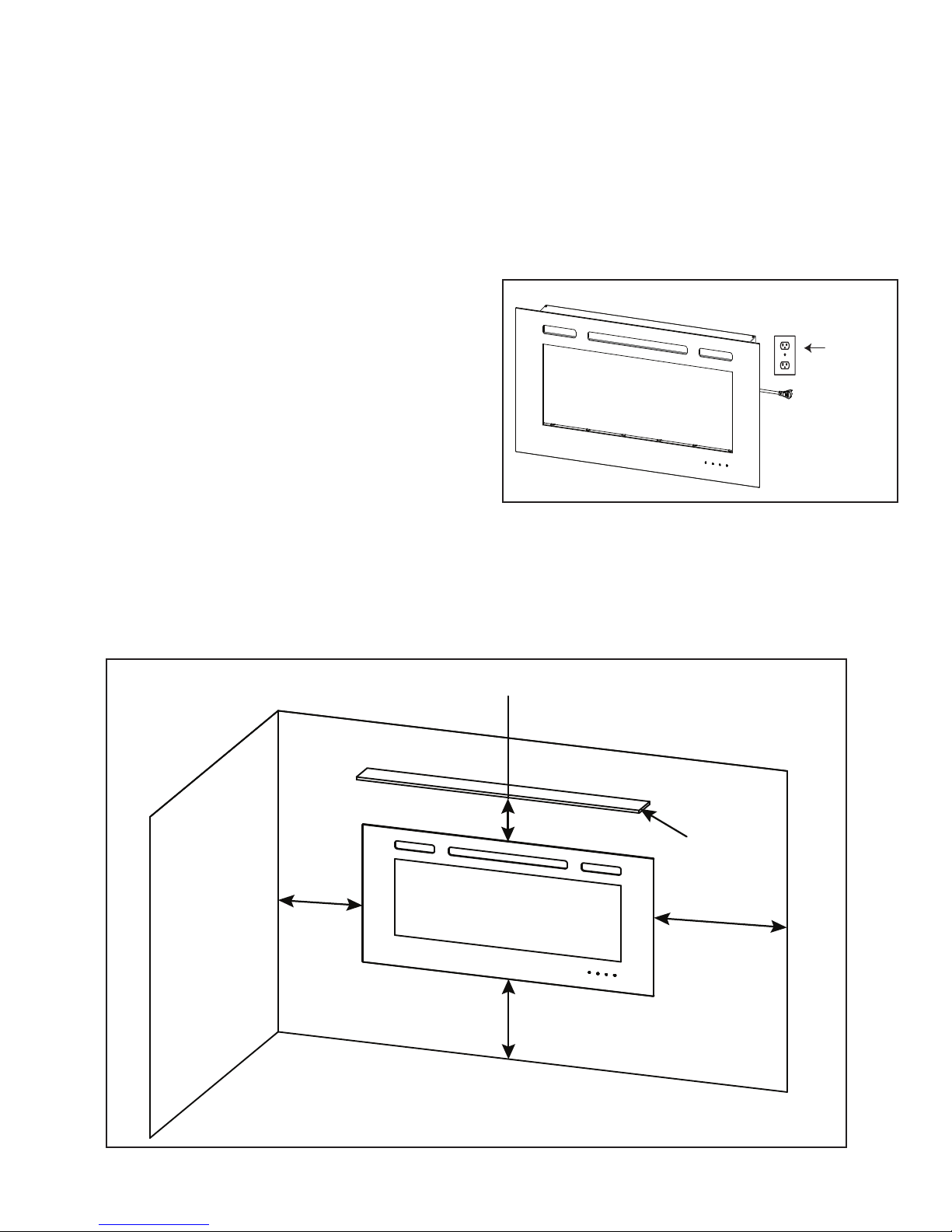

D. Location ....................................... 8
E. Clearance to Combustibles ........................8
F. Electrical Supply Circuit Requirements ...............8
4 INSTALLATION
A. Appliance Preparation ...........................10
B. Recessed in 2 x 6 Framed Wall ....................10
C. Recessed in 2 x 4 Framed Wall .................... 11
D. Direct Wall Mounting with Wall Mounting Bracket ......12
E. Electrical Connection / Installation ..................14
F. Appliance Final Setup ...........................15
5 OPERATING INSTRUCTIONS
A. Manual Switch Function ..........................16
B. Operating by Remote Control. . . . . . . . . . . . . . . . . . . . . . 17
C. Room Temperature and Thermostat Function .........18
D. Resetting Temperature Cutoff Switch................18
6 MAINTENANCE
A. Maintenance ..................................19
B. Cleaning ......................................19
C. Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
4
SimpliFire™ WARRANTY
Hearth & Home Technologies, on behalf of its brand SimpliFire (”SimpliFire”), extends the following warranty
for electric fireplaces that were purchased from a SimpliFire authorized dealer.
WARRANTY COVERAGE:
SimpliFire warrants to the original owner of the SimpliFire fireplace, and to any transferee taking ownership of the Simpli-
Fire fireplace within one year following the date of original purchase, that the SimpliFire fireplace will be free from defects
in materials and workmanship at the time of manufacture. If a SimpliFire fireplace is found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the SimpliFire fireplace.
SimpliFire, at its own discretion, may fully discharge all of its obligations under such warranties by replacing the product
itself or refunding the verified purchase price of the product itself. The maximum amount recoverable under this warranty
is limited to the purchase price of the product. This warranty is subject to conditions, exclusions and limitations as
described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized SimpliFire dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date.
WARRANTY CONDITIONS:
This warranty only covers SimpliFire fireplaces that are purchased through a SimpliFire authorized dealer or distributor. A
list of SimpliFire authorized dealers is available on the SimpliFire websites.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in color of interior and
exterior surface finishes may occur. This is not a flaw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse, scratches, melted items,
or other external sources and residues left on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period. These parts
include: paint, batteries and the discoloration of glass.
• Damages resulting from: (1) failure to install, operate, or maintain the appliance in accordance with the installation
instructions, operating instructions, and listing agent identification label furnished with the appliance; (2) shipping or
improper handling; (3) improper operation, abuse, misuse, continued operation with damaged, corroded or failed
components, accident, or improperly/ incorrectly performed repairs; (4) environmental conditions (5) installation or use
of components not supplied with the appliance or any other components not expressly authorized and approved by
HHT; (6) modification of the appliance not expressly authorized and approved by HHT in writing; and/or (7) interrup-
tions or fluctuations of electrical power supply to the appliance.
• Our obligation under this warranty does not extend to the SimpliFire fireplace’s capability to heat the desired space.
This warranty is void if:
• The fireplace is subject to or operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemi-
cals.
• The fireplace is subjected to or operated in places with prolonged periods of dampness or condensation or weather.
Examples include but are not limited to outdoors, porches, and laundry rooms.
• There is any damage to the fireplace or other components due to water or weather damage.
LIMITATIONS OF LIABILITY:
• The owner’s exclusive remedy and SimpliFire’s sole obligation under this warranty, under any other warranty, express
or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above. In no
event will SimpliFire be liable for any incidental or consequential damages caused by defects in the appliance. Some
states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply
to you. This warranty gives you specific rights; you may also have other rights, which vary from state to state.
EXCEPT TO THE EXTENT PROVIDED BY LAW, SIMPLIFIRE MAKES NO EXPRESS WARRANTIES OTHER THAN
THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION
OF THE EXPRESSED WARRANTY SPECIFIED ABOVE.
A. Warranty

5
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Note: The device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
MODELS: SF-ALL48-BK, SF-ALL60-BK
LABORATORY: CSA International
TYPE: Electric Air-Heaters Fixed and Location-Dedicated
Electric Room Heaters
STANDARD: UL 2021 (4nd Edition) CSA C22.2 No 46-2013
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
2 GENERAL INFORMATION
B. Unpacking and Inspecting Appliance
WARNING! DO NOT use this Electric Fireplace if any
part has been under water. Immediately call a qualied
service technician to inspect and to replace any part of the
electrical system if necessary. Keep plastic wrapping away
from children.
• Carefully remove the appliance and components from the
packaging. Discard packaging.
• Carefully inspect components for any damage.
• Reference parts list to verify all parts have been received.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the installation to
ensure maximum safety and benet.
This equipment uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
or television reception, which can be determined by turn-
ing the equipment off and on. The user is encouraged
to try to correct the interference by one or more of the
following measures:
• Increase the separation between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
C. Model and Serial Number Information
The model and serial number information is located on the
rating plate. The rating plate is located on the left side of
the top surface of the appliance.
Model Name: ___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on replace: _____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
We recommend that you record the following pertinent
information about your replace.
Homeowner Reference Information
ELECTRIC FIREPLACE
MODEL SF-ALL48-BK
VOLTAGE
FREQUENCY
AMPERAGE
WATTS
SERIAL No.:
MADE IN CHINA
249163
120V AC
60 Hz
12.5 A
1500 W
ELECTRIC FIREPLACE
MODEL SF-ALL60-BK
VOLTAGE
FREQUENCY
AMPERAGE
WATTS
SERIAL No.:
MADE IN CHINA
249163
120V AC
60 Hz
12.5 A
1500 W

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
6
3 GETTING STARTED
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure
Pliers
Hammer
Gloves
Level
Square
Magnetic Phillips screwdriver
Safety glasses
Drill
Type NM-B Wire Strain Relief
5/16 in. Drill Bit for 3/16 in. diameter toggle bolts
(applicable if installing on drywall-sheathed walls)
Masonry Drill Bit 5/16 in. (applicable if installing on
masonry walls)
B. Tools and Supplies Needed
Parts and Hardware List
Part Quantity
Appliance 1
Glass Panel 1
Instruction Manual 1
Remote Control 1
AAA Battery 2
Fixing Brackets 2
ST3X8 Metal Screws 2
ST4X10 Metal Screws 4
ST5X40 Metal Screws 6
ST4X25 Wood Screws 4
Washers 4
Small Crystal Stones 1
Large Crystal Stones 1
Wall Mounting Bracket with two (2) M5X10
screws - (Only for Direct Wall Mount) 1
Toggle bolt Anchor 6
Masonry Anchor 6
Power Cord Assembly
(Only for Direct Wall Mount) 1
A. Parts and Hardware
3/16 Toggle
Bolt Anchor
Masonry
Anchor

7
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Figure 3.1 Appliance Dimensions
Model A B C D E F G H I J
SF-ALL48-BK in. 48-7/16 20-1/4 39-3/8 11-1/4 42-13/16 17-13/16 5-15/16 47-1/2 19-3/8 2
mm 1230 515 1000 285 1088 453 151 1208 492 51
SF-ALL60-BK in. 60-1/4 20-1/4 51-3/16 11-1/4 54-5/8 17-13/16 5-15/16 59-3/8 19-3/8 2
mm 1530 515 1300 285 1388 453 151 1508 492 51
DF
G
E
B
A
C
H
J
I
C. Appliance Dimensions

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
8
D. Location
When choosing a location for your replace ensure that
the following general rules are followed:
• For best results, install out of direct sunlight.
• Power supply service must be installed within
proximity of electric replace prior to nishing to
avoid reconstruction.
• Appliance should be mounted so the front glass
panel is located outside the swing arc of adjacent
door.
• See Figure 3.2 and 3.3 to determine location of ap-
pliance installation.
E. Clearance to Combustibles
Minimum Clearance to Combustible Construction
Sides.......................0 in.
Floor......................18 in.
Top..........................0 in.
Back........................0 in.
Front..................... 36 in.
Mantel.....................8 in.
Mantel Depth..........8 in. max.
See Figure 3.2.
WARNING! Risk of Fire! Keep electrical cords, drapery,
furnishings or other combustibles at least 3 ft. (0.9 m)
from the front of the electric replace, and away from the
sides or rear.
F. Electrical Supply Circuit Requirements
Plan the location of the appliance so that it will have
adequate electric power. A 15 AMP, 120V/60Hz circuit
is required. Additional appliances on the same circuit as
this appliance may exceed the current rating of that cir-
cuit. A dedicated circuit is not required, but is preferred
to prevent circuit breaker trips or fuse failure.
min. 18 in.
min. 0 in.
min. 8 in.
Ceiling
Mantel
Floor
Wall
Mantel
Depth
max. 8 in.
Outside
swing arc
of adjacent
doors
Figure 3.2 Location and Clearances Requirements
ELECTRICAL
OUTLET
LOCATION
Figure 3.3 Electrical Outlet Location
Note: Choose a location near an outlet so an exten-
sion cord is not required. Do not position the unit directly
below a power outlet.

9
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
4 INSTALLATION
WARNING! Risk of Personal Injury or Property Dam-
age! Failure to install the appliance as instructed below
may result in damage to the equipment and or may ex-
pose the user to the risk of re, serious injury, illness or
death.
There are three options for the appliance installation:
• Recessed into a 2 x 6 in. wall - Section 4.B.
• Recessed into a 2 x 4 in. wall - Section 4.C.
• Mounted directly on the wall - Section 4.D.
The appliance can be recessed into the wall, but the
glass front must overlap the opening in the wall con-
struction. The glass front cannot be nished into the
wall, or overlapped with any nishing materials.
1-1/2 in .
3-7/8 to 6-1/8 in.
Wallboard sheathing
and/or Finishing Material
up to 5/8 in. thick
18 1/8 in.
A
Total width of framing 3 in. thick at the left and right side of opening.
max. 5/8 in
Figure 4.1 Framing and Wall Finishing for Recessed Installation
When installed in a recessed opening on an exterior
wall in cooler climates, a chase may be required by local
building codes to accommodate insulation. The chase
should be constructed in a manner of all outside walls
of the home to prevent cold air drafting problems. The
chase should not break the outside building envelop in
any manner. Walls, ceiling, baseplate, and cantilever
oor of the chase should be insulated. Vapor and air
inltration barriers should be installed in the chase as
per regional codes for the rest of the home. Additionally,
in regions where cold air inltration may be an issue,
the inside surfaces may be drywalled and taped (or
equivalent method may be used) to achieve maximum
air tightness.
NOTICE: Insulation and other loose materials must be
secured to maintain the air clearance between the appli-
ance and interior envelope of the wall opening. This will
ensure that the appliance can circulate air to its room
temperature sensor for maximum performance of the
Thermostat function.
Model A
SF-ALL48-BK in. 44-5/16
mm 1125
SF-ALL60-BK in 56-1/8
mm 1425
NOTICE: These instructions are not substitutes for the
requirements of local building codes.
Adjust framing dimensions for interior
sheathing (wallboard sheathing).
3-7/8 in.
min.
2 in. Skirt
Wall Sheathing
2 X 4 RECESSED
6-1/8 in.
max.
Wallboard Sheathing
2 X 6 RECESSED

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
10
A. Appliance Preparation
Figure 4.3 Fixing Brackets Attachment
After determining the location and framing dimensions,
the appliance must be prepared for installation.
The appliance is shipped with its wall mounting bracket
attached. Remove the bracket by removing the two
(2) M5X10 screws on the bottom of the appliance, then
disengage the bracket from the appliance. Set the wall
mounting bracket aside for future use, if appliance instal-
lation is directly to the face of the wall. See Section 4.D.
The appliance is shipped with a two (2) in. deep pe-
rimeter skirt that remains in place when appliance is
recessed into 2 X 4 in. framed wall construction. See
Figure 4.2. If this is the installation, no further prepara-
tion is necessary. Refer to Section 4.C for installation
instructions.
If the appliance recessed is into 2 X 6 in. framed wall
construction, the two (2) in. deep perimeter skirt must be
removed and discarded. See Figure 4.2. Refer to Sec-
tion 4.B for installation instructions.
If the installation is directly to the face of a wall, the fac-
tory-installed two (2) in. deep perimeter skirt should be
left on the appliance. The wall mounting bracket should
be installed on the lower back wall of the appliance. See
Section 4.D.
Figure 4.2 Perimeter Skirt
B. Recessed in 2 x 6 Framed Wall
1. Prepare wall opening:
SF-ALL48-BK:
• 44-5/16 in. x 18-1/8 in. opening in framing
SF-ALL60-BK:
• 56-1/8 in. x 18-1/8 in. opening in framing
• The width of the framing on each side of the opening
must be 3 in. with 1-1/2 in. framing on the left and
right sides of the opening exposed. This is needed
for the wallboard nishing and to secure the appli-
ance into the opening. See Figure 4.1.
• Allow 1-1/2 in. of wood exposed after nishing the
wallboard. See Figure 4.1 and Figure 4.6.
2. Remove and discard the skirt that was factory-
installed to the appliance. See Figure 4.2. and
Section 4.A.

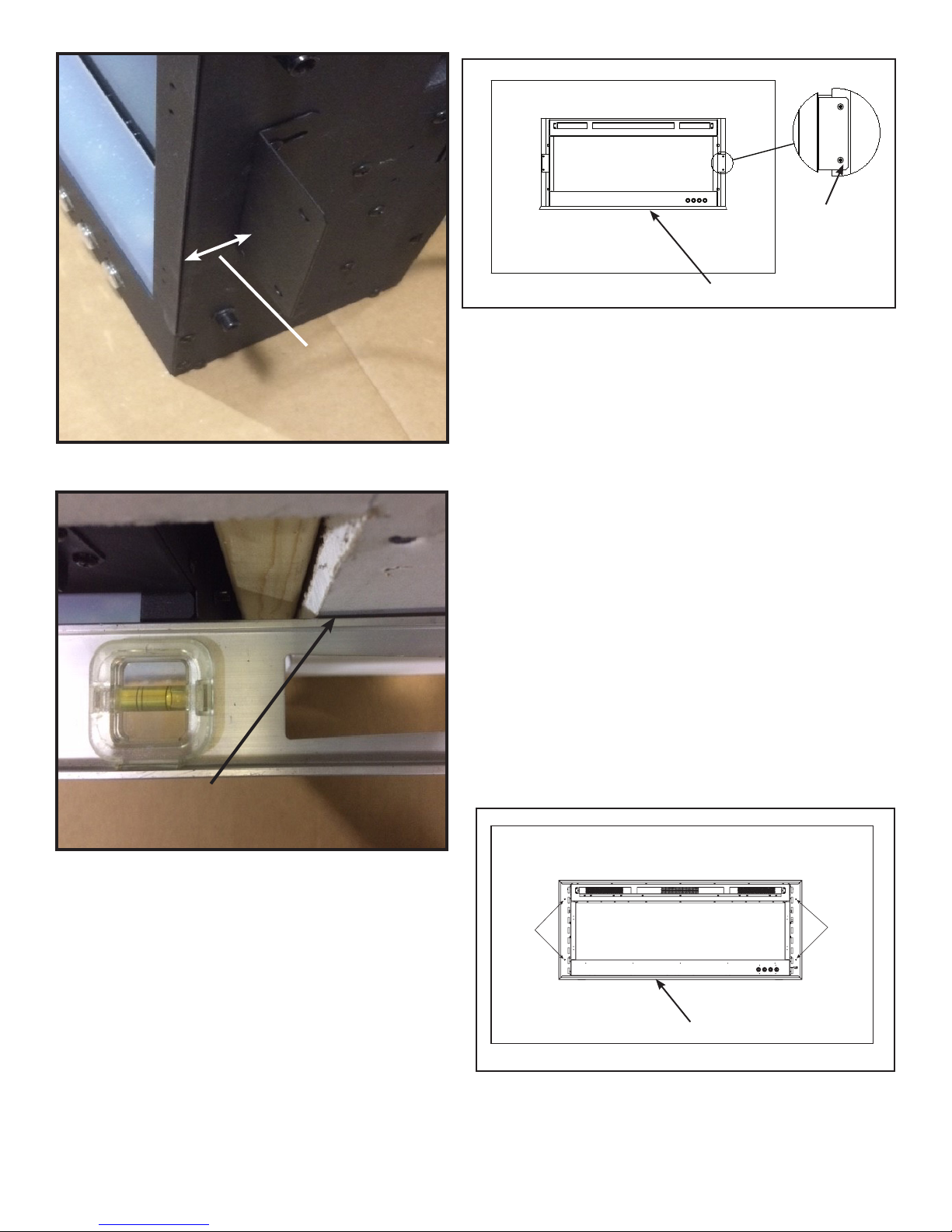

3. Install the Fixing Brackets to the right and left side
of the appliance with four (4) ST4X10 metal screws
(See Figure 4.3). The attachment holes for the
brackets into the appliance are slotted to allow
adjustment for the thickness of the wallboard and/or
any nishing materials up to a total 5/8 in. thick. It
may be necessary to test t the appliance and
adjust the location of the brackets on the appliance
so that the front face of the unit protudes 1/16 to 1/8
in. from the outside face of the nished wall. See
Figure 4.4 and 4.5.
4. Connect to electrical service. Reference Section
4.E.
5. Install the appliance into the opening (See Figure
4.6). Level with shims if necessary. Ensure that it is
centered left to right, then fasten it directly to the
framing with two (2) ST4X25 wood screws in both
the left and right brackets.
PERIMETER SKIRT
2 in. perimeter skirt
remains in place when
appliance is partially
recessed into a 2 X 4
in. wall and is removed
when fully recessed
into a 2 X 6 in. wall.

11
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Figure 4.4 Adjust Bracket Location
Figure 4.6 Securing the Appliance
C. Recessed in 2 x 4 Framed Wall
1. Prepare wall opening:
SF-ALL48-BK:
• 44-5/16 in. x 18-1/8 in. opening in framing
SF-ALL60-BK:
• 56-1/8 in. x 18-1/8 in. opening in framing
• The width of the framing on the left and right sides
of the opening must be 3 in.. This is needed for the
wallboard nishing and to secure the appliance into
the opening. See Figure 4.1.
• Allow 1-1/2 in. of wood exposed after nishing the
wallboard. See Figure 4.1.
2. Install the appliance into the opening (See Figure
4.7). Level the appliance. Ensure that it is centered
left to right, then fasten it directly to the framing with
two (2) ST4X25 wood screws in both the left and
right sides of the skirt. See Figure 4.7.
3. Connect to electrical service. Reference Section 4.E.
Locate and attach the Fixing
Brackets so that dimension
is 1/16 - 1/8 in. greater than
the thickness of the wall-
board.

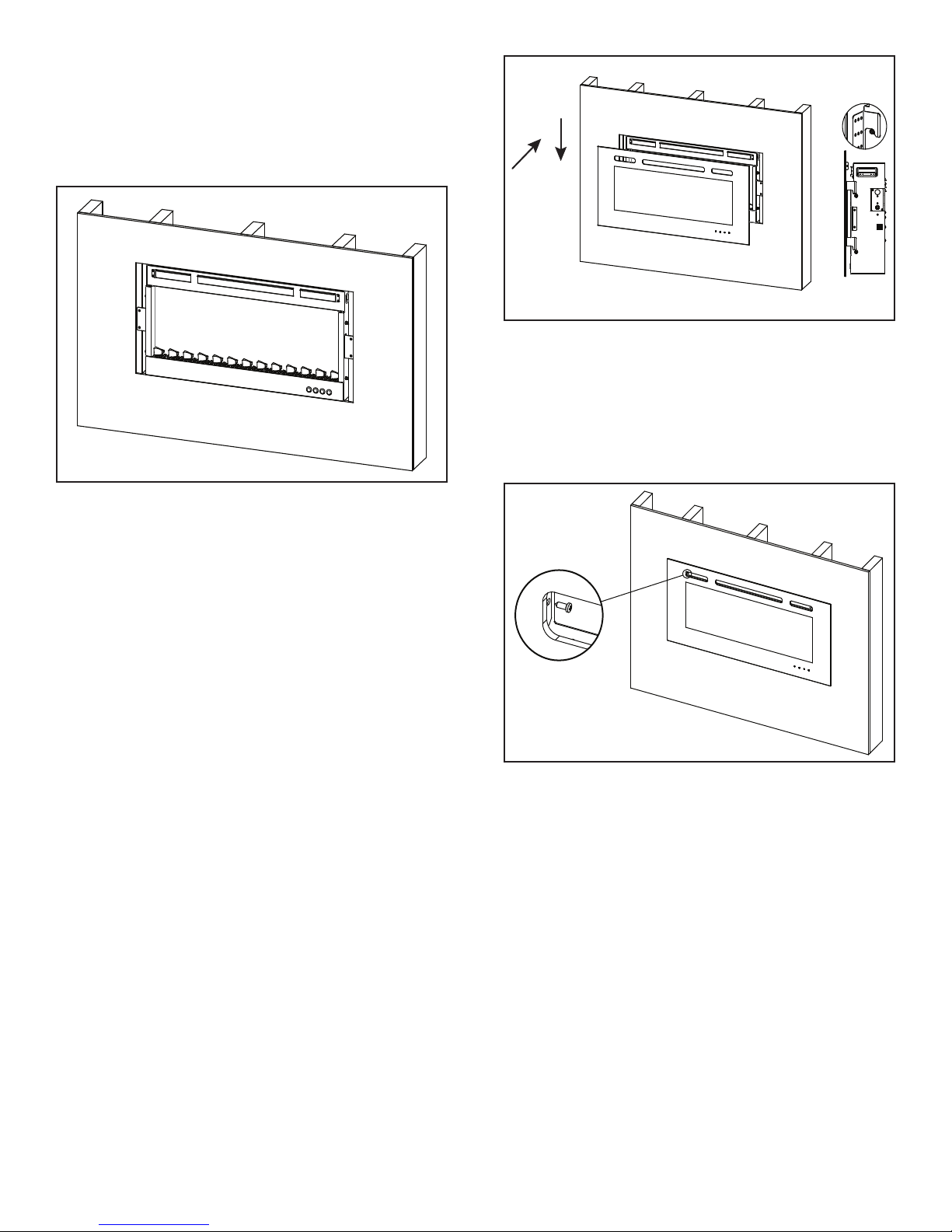

Figure 4.5 Adjust Bracket Location
Verify gap of 1/16 to 1/8 in. after
installing four(4) ST4X25 Wood
Screws.
Appliance should be supported by this framing.
WOOD
SCREWS
WOOD
SCREWS
WOOD
SCREWS
Figure 4.7 Securing the Appliance with Skirt
Appliance should be supported by this framing.

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
12
Figure 4.8 3/16 Toggle-Bolt Anchor
• The toggle-bolt anchors are provided to accommo-
date the required anchor points based on the ap-
pliance. Use of toggle bolt anchors requires drywall
thickness of minimum 1/2 in. and drilled holes size
of 5/16 in. diameter.
• Insert the bolt through the front side of the mounting
bracket and thread the toggle onto it from the rear of
the bracket. See Figure 4.9.
• Fold the toggle wings ush against the bolt and push
them through a drilled hole until the toggle wings
expand open on the other side. See Figure 4.10.
• Pull back on the bolt and tighten. See Figure 4.10.
Note: This product cannot be installed on a wall
sheathed with drywall less than 1/2 in. thick, unless
all six (6) anchor points in the mounting bracket
align with structural framing members.
WARNING! Risk of Damage or Personal Injury! Al-
lowable pull-out and shear strength are 25% of ultimate
values or less, as required by building authorities.
Framed Wall
• Locate the mounting bracket on the wall in the
desired location of the appliance. Level the bracket,
then mark its location on the wall, including a mark-
ing for each of the fastener holes in the bracket.
• For each of the marked mounting point locations,
determine which points align with a structural fram-
ing member.
• At the points where a wood or metal framing mem-
ber exists, the ST5X40 screw can be installed
directly into that structural member.
• For every mounting hole that does not align with a
structural framing member, a wall board toggle-bolt
anchor must be used. See Figure 4.8.
D. Direct Wall Mounting with Wall Mounting
Bracket
The wall mounting bracket can be installed on masonry
walls such as those constructed of brick or concrete,
or to framed walls constructed of wood or steel framing
sheathed with gypsum wallboard, drywall, wood, etc.
The method used to mount the mounting bracket is dif-
ferent between masonry walls and framed walls. Refer
to the following sections for more detail on the method
applicable to this installation.
Figure 4.10 Installing Anchors in Hollow Wall
Figure 4.9 Toggle Bolt Installation through Mounting Bracket

13
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
Masonry Wall
• Locate the mounting bracket on the wall in the
desired location of the appliance. Level the bracket,
then mark its location on the wall, including a mark-
ing for each of the fastener holes in the bracket.
• In the marked locations, drill 5/16 in. diameter x 2 in.
deep holes. See Figure 4.11.
• Insert the provided wall anchors into the holes.
• Gently tap the anchors with a hammer until they are
ush with the wall surface.
• With mounting hooks pointed up, attach the bracket
to the masonry anchors with ST5X40 screws. See
Figure 4.12.
Wall
Masonry Anchors

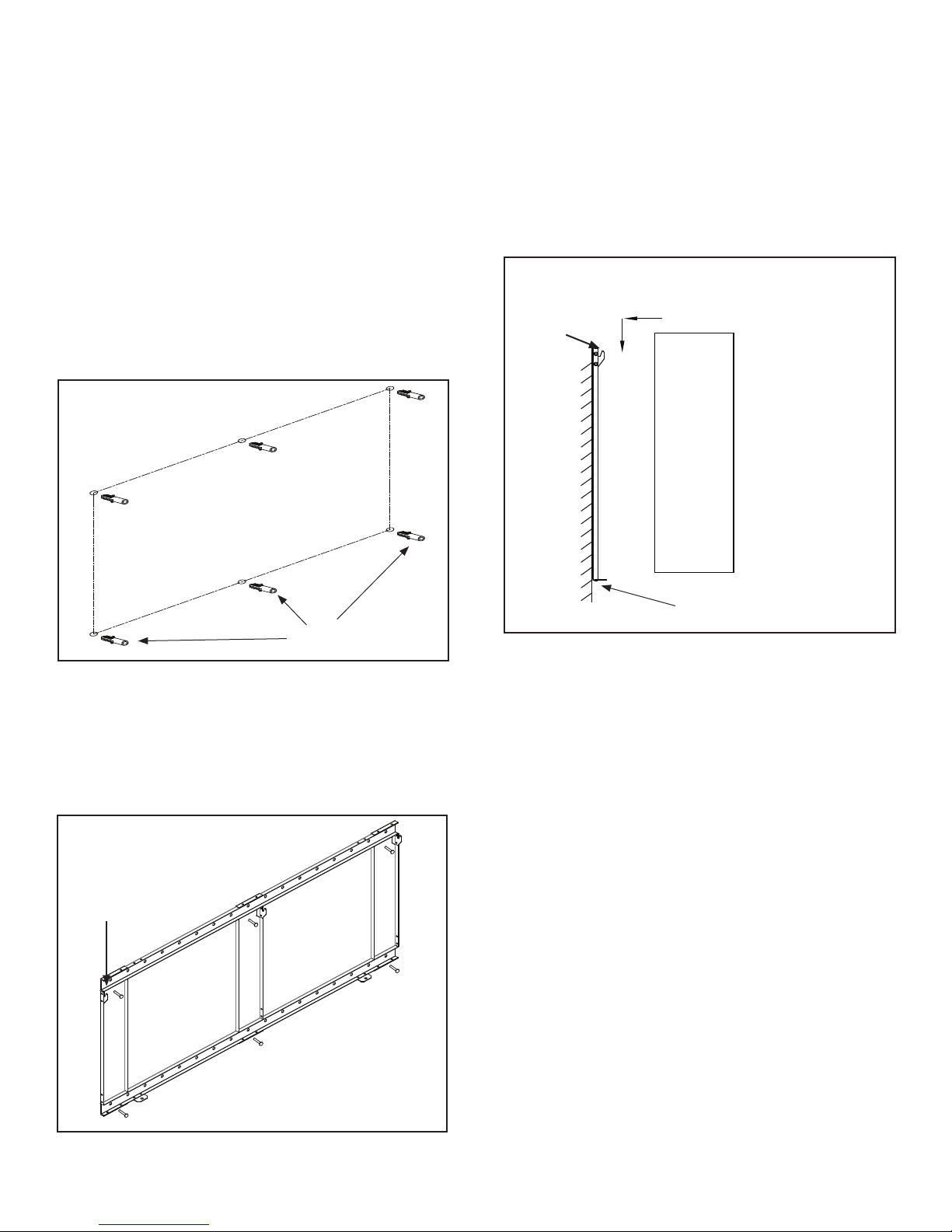

Figure 4.11 Masonry Anchor Placement
WARNING! Risk of Damage or Personal Injury! Do
not use supplied masonry anchors on hollow walls,
sheathed with wood, gypsum wallboard, drywall, or
other materials.
Figure 4.12 Bracket Attachment
Mounting Hooks
Point Up
Note: For non-masonry walls,
at least two mounting points
(screws ST5X40) must align
with structural framing member.
Appliance Installation
• Hang appliance on the mounting bracket.
• Align the slots on the back of the appliance with the
hooks on the top two corners of the bracket.
• Hang the appliance and pull down to ensure the hooks
are fully engaged. See Figure 4.13.
• Secure the appliance to the bracket with two M5X10
screws. See Figure 4.13.
1
2
Secure with screw on each
side of appliance.
Figure 4.13 Attaching Appliance to Bracket
Mounting Hooks
Point Up

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
14
Figure 4.14 Optional Power Cord Assembly (Only for Direct Wall Mount Installation)
E. Electrical Connection / Installation
Note: All wiring must be completed prior to nishing
the unit.
All electrical connections shall be performed by a
qualied electrician.
WARNING! Risk of Fire, Electrical Shock and Injury!
Electrical wiring must comply with local building codes
and other applicable regulations.
WARNING! Risk of Shock! Label all wires prior to dis-
connection when servicing the appliance. Wiring errors
can cause improper and dangerous operation. Verify
proper operation after servicing.
This appliance has been designed to be hard-wired for
120V. A supplied plug-in kit is also available for installa-
tions mounted directly on the face of the wall.
A 15 AMP, 120V/60Hz circuit is required. Additional ap-
pliances on the same circuit as this appliance may ex-
ceed the current rating of that circuit. A dedicated circuit
is not required, but is preferred to prevent circuit breaker
trips or fuse failure.
Hard-Wired Installation:
Note: The appliance must be electrically connected and
grounded in accordance with local codes.
1. Remove terminal block cover plate located on the
right end of the appliance.
2. Install a wire strain relief bushing into the cover
plate.
3. Terminate type NM-B wire to the terminal block,
ensure connections are secure, and tighten the
strain relief.
4. Replace terminal block cover plate and retaining
screws.
WARNING! Risk of Fire, Electrical Shock and Injury!
Ensure the power cord is not installed so that it is pinched
or against a sharp edge and ensure that the power cord is
stored or secure to avoid tripping and snagging.
Power Cord Installation
The appliance power cord has a three pin NEMA-5-15P
plug. The power cord should not be used unless a
grounded receptacle is available.
1. Remove the terminal block cover plate located on
the right end of the appliance.
2. Disconnect the terminal block from the three wires
inside the appliance. Discard the terminal block
cover plate.
3. Connect the three appliance wires to the terminal
block supplied with the power cord kit. See Figure
4.14.
4. Replace cord kit terminal block cover plate
and retaining screws. Plug cord into nearest outlet.
See Figure 3.3.
LN
RED
YELLOW / GREEN
BLUE
Wire Diagram

15
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
F. Appliance Final Setup
1. Carefully spread the small crystal stones across the
ember bed. Then evenly arrange the larger crystal
stones along the inset window ledge at the front of
the rebox.
Figure 4.15 Stone Installation
2. Install front panel. Locate the J-hooks on the back
side of the glass on the four shoulder bolts on the
appliance opening. Engage the shoulder bolts.
See Figure 4.16.
3. Press down on top edge of glass to fully engage J-
hooks on the shoulder bolts.
Note: Make sure the glass is fully attached to the re-
box so that the control panel can work properly.
Figure 4.16 Glass Front Installation
CAUTION! Two adults are recommended for the
installation of glass front. Use caution when handling
glass. Failure to do so could result in personal injury or
property damage.
4. Thread the two (2) ST3X8 screws into the threaded
holes on the glass panel. Check the alignment of
the glass panel and securely tighten the screws. See
Figure 4.17.
Figure 4.17 Secure Glass Front
Note: If optional logs are purchased, arrange the logs
on top of the crystal stones as desired.

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
16
CAUTION! The unit’s power cord must be connected to
a properly grounded and protected 120V outlet. Always
use ground fault protection where required by the electri-
cal code.
WARNING! Risk of Fire, Electrical Shock, and Injury!
Do not operate the unit if it is damaged or has malfunc-
tioned. If you suspect the unit is damaged, call a qualied
service technician to inspect and replace any part of the
electrical system if necessary.
A. Manual Switch Function
The appliance can be operated by both remote control
and manual buttons. Once the unit has been properly
connected to a grounded electrical outlet, turn on the
main power switch located on the lower right side of the
appliance. A beep should be heard when the power is
rst applied. See Figure 5.1.
Power Button
The Power button turns the power of the appliance on or
off.
Flame Button
By pressing the FLAME button, the unit will cycle
through four ame effects.
Heater Button
The HEATER button will cycle from low to high and to off
settings.
Ember bed LED Light Button
The Ember Bed LED light button will turn on the LED
lights and cycle through 14 color options.
Figure 5.1 Manual Operating Switches
5 OPERATING INSTRUCTIONS
Heater Vent
Red
Indication
Remote
Receiver
Control
Panel
Power Button
Flame Button
Heater Button
Ember Bed Button
Flame

17
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
B. Operating by Remote Control
• The appliance Main Power Switch must be in the “ON”
position for the remote control to function.
• Make sure batteries are properly installed in Remote
Control.
- Battery requirements 2 x AAA batteries
(included).
• The effective range of the remote is up to 16 ft.
• The remote control must be within the 16 ft. range and
also be pointed directly at the face of the appliance.
For best results, position the remote control within 45
degrees of the face of the appliance
ICON TITLE FUNCTION REMOTE
LCD DISPLAY
FIREPLACE RESPONSE
POWER
The POWER button will turn the
replace on. It will also put the
replace in a standby mode.
This will turn off all functions at
once but will hold the settings in
memory except Timer function.
The unit will turn on at the same
settings by pressing the power
button again.
LCD illuminates
and displays ame
status Icon and
temperature set
point.
Fireplace emits single audible beep
to conrm command to transition to
ON or STANDBY state.
FLAME
By pressing the FLAME button,
the unit will cycle through four
ame effects.
LCD illuminates
and displays ame
status icon.
Fireplace emits single audible beep
to conrm command to transition
between four FLAME states.
HEATER
Press Heater button once 750W
heater turns on.
Press Heater button twice 1500W
turns on.
Press Heater button three times,
turns off heater.
LCD illuminates
and displays
heater status icon.
Fireplace emits signal audible
beep to conrm command to
transition between HEATER states.
Fireplace displays one red LED for
8 seconds to conrm low heater
command. Fireplace displays two
red LED for eight (8) seconds to
conrm high heater command.
THERMOSTAT
Pressing the Temperature button
adjusts the heaters response
to the ambient temperature
conditions in the room.
Temperature adjusts from 16 °C
- 28 °C (61 °F - 84 °F). Power
button must be on to set °C to °F.
Hold for 3 seconds and the LCD
display from °C to °F.
Remote displays
the temperature.
If in Stand-by
mode, temperature
displays but
cannot be
adjusted.
Fireplace emits single audible beep
to conrm command to change
desired temperature set point.
TIMER
Pressing the Timer button sets
the time desired for the replace
to run. The Timer can be set from
.5 hour up to nine (9) hours in one
(1) hour increments.
Remote will
display the time
setting selected. If
in Stand-by mode
time will display
but cannot be
adjusted.
Fireplace emits single audible beep
to conrm command to transition
between four FLAME states.
LIGHT
Pressing the Light button changes
the ember bed colors (14 colors
available), and turns it on/off.
No indicator.

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
18
D. Resetting Temperature Cutoff Switch
The heater is protected with a safety device to prevent
overheating. Should the heater overheat, an automatic
cutoff will turn the heater OFF. It will not turn ON auto-
matically without being reset. If it overheats for any rea-
son, it can be reset by:
1. Turn appliance to OFF.
2. Unplug at wall or shut-off circuit breaker.
3. Plug in or turn on circuit breaker and turn ON the
appliance.
CAUTION: If appliance overheats repeatedly, discon-
tinue use and call customer / technical support.
CAUTION: If you need to continuously reset the heater,
unplug the appliance and contact customer / technical
support.
C. Room Temperature and Thermostat
Function
The temperature display on the remote control is a set
point for the desired temperature of the room in which
the appliance is installed. The Thermostat button on the
remote can be used to set the desired room temperature.
The heater will only operate if the remote control tem-
perature set point is higher than the actual room tempera-
ture. The heater will not operate if the actual temperature
is greater than the remote control temperature set point.
This function can also be used as a thermostat, under the
following conditions:
• When the remote control display set point is selected
to be a desired room temperature, if the room tem-
perature does reach the desired temperature on the
remote, the appliance heater will turn OFF automati-
cally.
• When the remote control display set point is selected
to be a desired room temperature, if the room tem-
perature decreases below the remote control set
point, then the heater will turn ON automatically.
Note: The actual room temperature is measured by a
hidden sensor located behind the glass front of the appli-
ance. During certain situations, this sensor temperature
can be slightly different than either the remote control lo-
cation, or the overall space being heated. For this rea-
son, the remote control set point temperature may need
to be set slightly higher or lower than expected room tem-
perature for the heater function to work as desired.

19
SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
A. Maintenance
WARNING! Risk of Shock! Always remove power before
moving or servicing. Do not immerse appliance in water.
• Before cleaning or servicing, always turn off appli-
ance and remove power, by either unplugging from
the wall outlet or shutting off circuit breaker.
• Light accumulated dust may be removed from the ap-
pliance exterior with a soft cloth or vacuum cleaner.
• Wipe the exterior surfaces of the appliance occasion-
ally with a slightly damp micro fiber cloth using a so-
lution of mild detergent and water. Dry thoroughly
before operating the appliance.
CAUTION! Do not allow water to run into the interior of
the appliance as this could create a re or electric shock.
Always remove power before moving or servicing.
• The fan motor is factory lubricated for life and will not
require further lubrication.
• Store appliance in a clean dry place when not in use.
WARNING! Risk of Fire! To reduce risk of re, do not
store or use gasoline or any other ammable vapors or
liquids in the vicinity of the appliance.
WARNING! Risk of Electrical Shock! Any other servic-
ing needed must be performed by an authorized service
representative. Do not attempt to service the unit your-
self.
B. Cleaning
Cleaning Glass
Dust particles can be removed by bufng lightly with a
clean dry cloth. Fingerprints and other marks can be
cleaned with a cloth dampened with a quality household
glass cleaner. The glass should be completely dried with
a lint free cloth or paper towel. Do not use abrasive clean-
ers on glass surface. Do not spray liquids directly onto
any surface.
Metal Surface
Dust particles can be removed by bufng lightly with a
clean dry cloth. A damp cloth can be used to clean paint-
ed surfaces. Do not use abrasive cleaners. Do not spray
liquids directly on to any surface.
6 MAINTENANCE
C. Servicing
Except for cleaning, an authorized service representative
should perform any other service.

SimpliFire • SF-ALL48-BK, SF-ALL60-BK • 2040-981 Rev. C • 3/18
20
Service Parts SF-ALL48-BK
Beginning Manufacturing Date: Feb 2018
Ending Manufacturing Date: Active
48” Allusion Electric Fireplace
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth
and Home Technologies does not sell directly to consumers. Provide model number and serial number
when requesting service parts from your dealer or distributor. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Crystal Media CRYSTAL-ALLUS
2 Rotisserie, 48” ROTISS-ALL48 Y
3 Remote Receiver RECEIV-ALLUS-E Y
4Allusion Motor MOTOR-ALLUS Y
5 Heater Assembly HEATER-ALLUS Y
6 Glass Front, 48” GLA-ALL48
7 Hanging Bracket BRACKET-WM58
8 Remote REMOT-ELECT-ALL Y
9 PCB Board Assembly PCB-ALLUS Y
10 Power Cord PLUGIN-ALLUS Y
11 LED Assembly, 48” LED-ALL48 Y
3/18
#1 Crystal Media #2 Rotisserie #3 Receiver #4 Motor
#5 Heater #6 Glass #7 Bracket #8 Remote
#10 Power Cord #11 LED#9 PCB Board
D. Service Parts List
