S-DD2-L FLUSH TOP
DOWNDRAFT INSTALLATION INSTRUCTIONS FOR
SEM 1, SEM 2, SEM 7, & SEM 8 motors
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SDD2 L EMTC 580 EAN #9351116001063
SDD2 L EMTC 880 EAN #9351116001094
SDD2 L EMTC 1180 EAN #9351116001193
SDD2 L EMTC 580 WH EAN #9351116001070
SDD2 L EMTC 880 WH EAN #9351116001278
SDD2 L EMTC 1180 WH EAN #9351116001285

2
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
TO THE ATTENTION OF THE USER
INSTALLATION GUIDELINES
APPLIANCE DIAGRAMS
PRE-INSTALLATION CHECKS
INSTALLING THE RANGEHOOD
INSTALLATION INSTRUCTIONS
FOR SEM 1 AND SEM 2
150MM SIDE OR BOTTOM VENTING
FOR SEM 7 AND SEM 8
200MM SIDE OR BOTTOM VENTING
FOR SEM 1, SEM 2, SEM 7, AND SEM 8
150MM / 200MM FRONT OR REAR VENTING
DUCTING FROM MOTOR TO VENT (SEM 1 & 8 ONLY)
ELECTRICAL CONNECTION
HOW THE RANGEHOOD WORKS
CLEANING THE RANGEHOOD
TROUBLESHOOTING
REPLACING THE LIGHT
PARTS LIST
WIRING DIAGRAM
3
3
4
5
6
8
9
10
12
12
14
15
15
16
17
20

3
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
TO THE ATTENTION OF THE USER
This rangehood is designed to work with ducted
outside evacuation.
Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.
SAFETY INSTRUCTIONS
These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.
• When the appliance is delivered, check the overall
appearance of the packaging.
Any remarks should be written on the delivery
coupon, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
• Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
WARNING
INSTALLATION GUIDELINES FOR
GAS COOKTOP APPLICATIONS

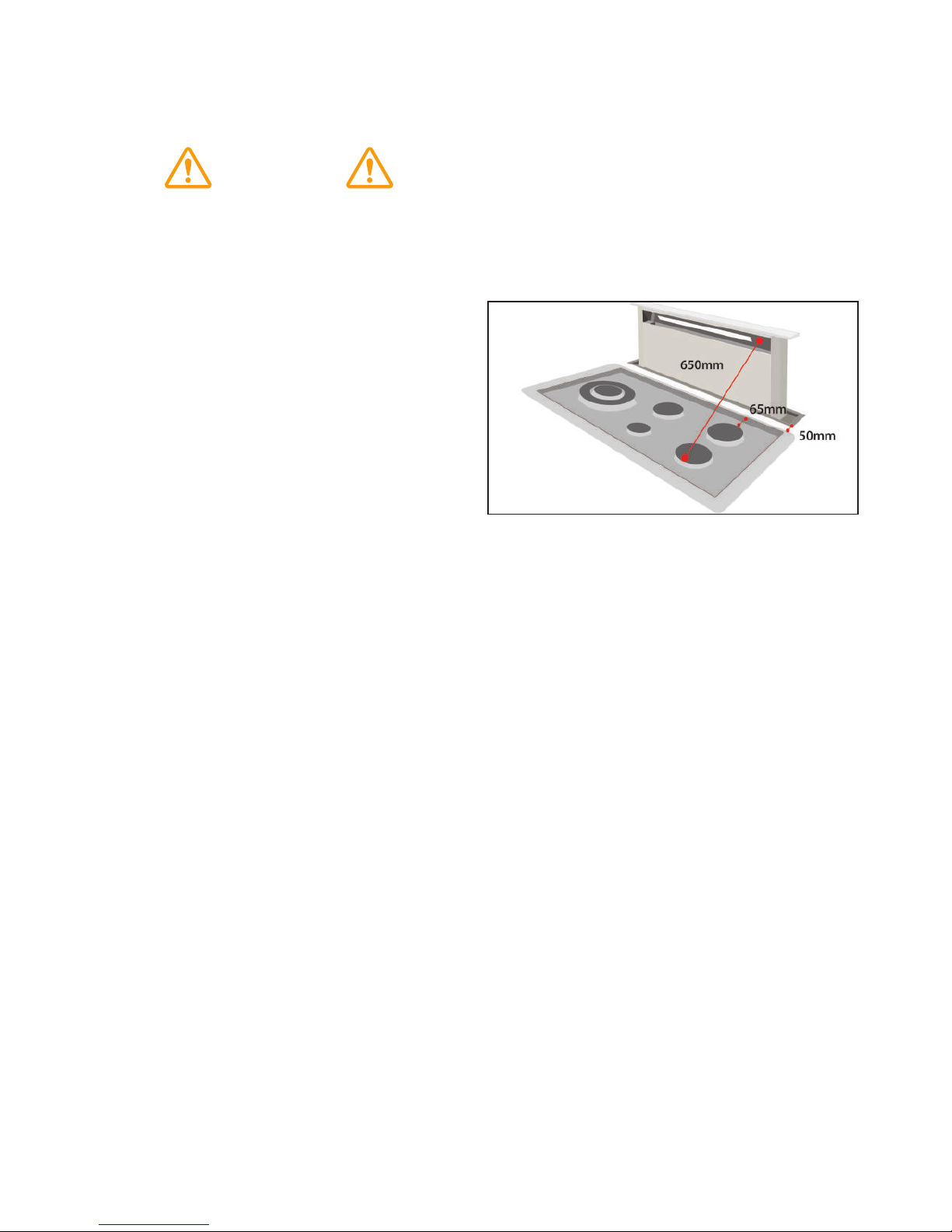

• A minimum 50mm gap must be left between the
stainless steel frame and the nearest edge of the
cooktop.
• The minimum distance between the border of the
gas cooktop and the nearest burner must not be
less than 65mm
• For the downdraft to operate at a premium, the
distance between the downdraft opening and the
furthest burner shall not exceed 650mm.
• This appliance must not be used over cook tops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
• The minimum distance between the Downdraft
(closed) and the surface above it must be at least
800 mm.
• When handling the downdraft, never put your
hands in the field of action of the extractable unit.
At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.
Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.
The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.

4
S-DD2-L FLUSH TOP
INSTALLATION GUIDE

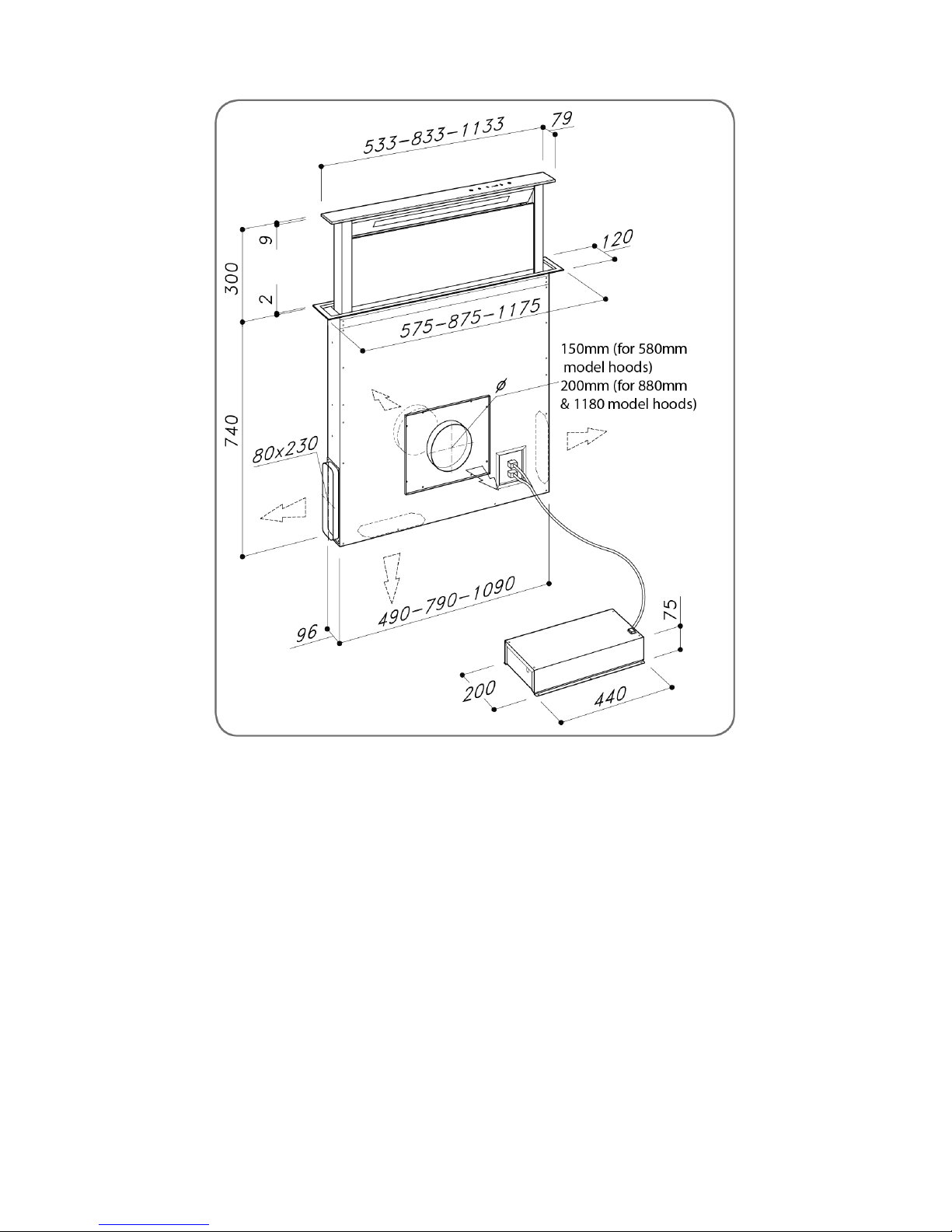

APPLIANCE DIAGRAMS
• Side / bottom venting - SEM 1, SEM 2 motor
• Side / bottom venting - SEM 7, SEM 8 motor
• Front / rear venting - SEM 1, SEM 2, SEM 7, SEM 8 motor
• Side / bottom venting - SEM 10 motor
DUCTING TYPES
pg.7
pg.8
pg.10
see separate
installation
guide

5
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
PRE-INSTALLATION CHECKS

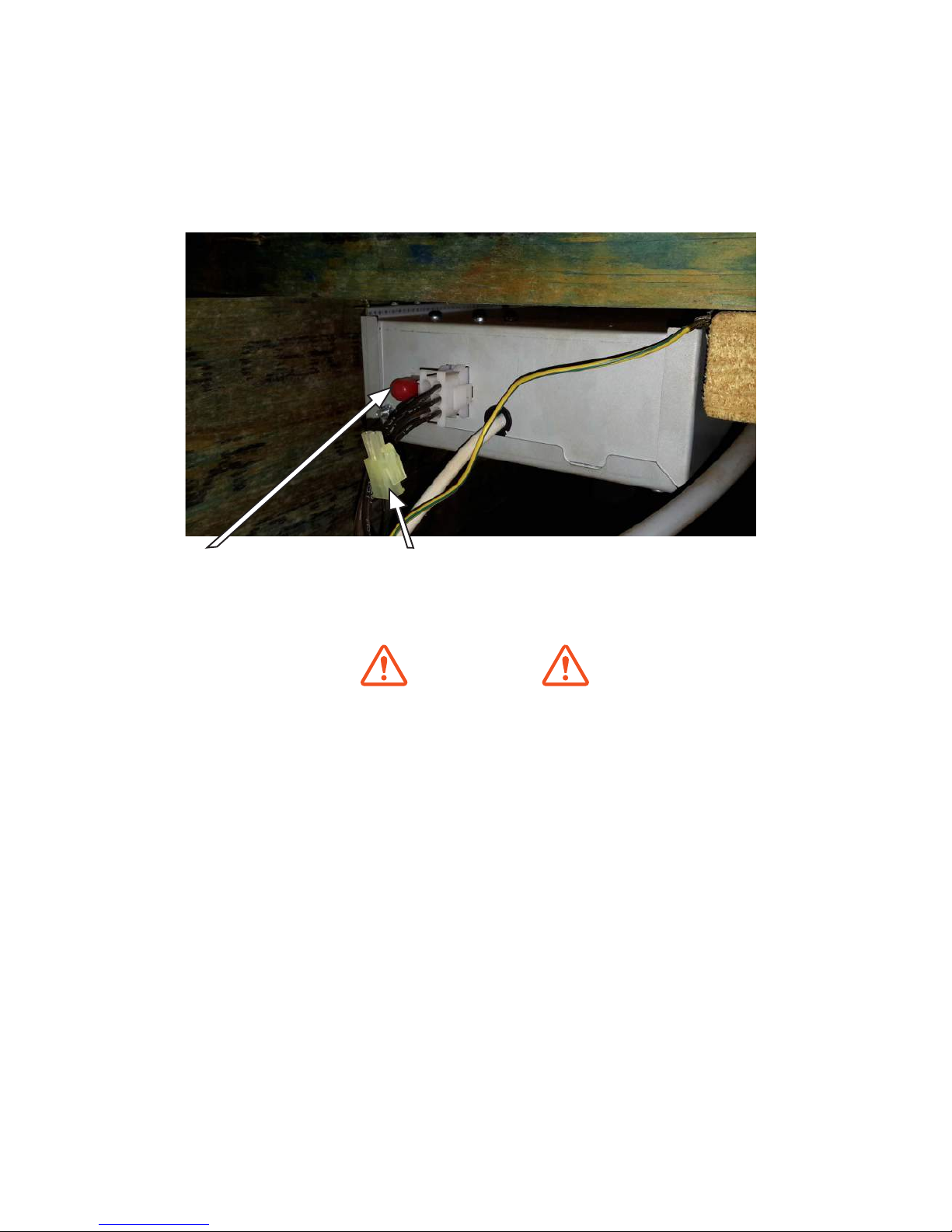

Connect all of the electrical components to the unit and motor to make sure both the unit and the motor are
functioning properly.
(NOTE: The motor plug is fitted with a dummy plug - with the exception of SEM1 motor - to protect
the connection from dust. Ensure the red dummy plug is removed and replaced with the two
pin motor plug from the power transformer box. Failure to do so will result in only two speeds
operating).
Remove all plugs and proceed with installation if both unit and motor are fully operational.
BEFORE YOU INSTALL
Red dummy plug Two pin motor plug
Installation must comply with the regulations in force regarding the ventilation of enclosed environments.
In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from
appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the cause of failure or
issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.
Available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to
installation.
CAUTION

6
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
Technical specifications and product sizes
can be varied by the manufacturer without
notice. Cut out dimensions are indicitive only
and physical measurement should be taken as
a precautionary measure to ensure no issues
arise with fitment.
STEP 1:
Refer to cutout dimensions required per unit as they
vary for each unit.
WARNING
INSTALLING THE RANGEHOOD
• Before carrying out the appliance installation,
please check that all components are not
damaged, in such a case contact your retailer
and do not carry out any installation operation.

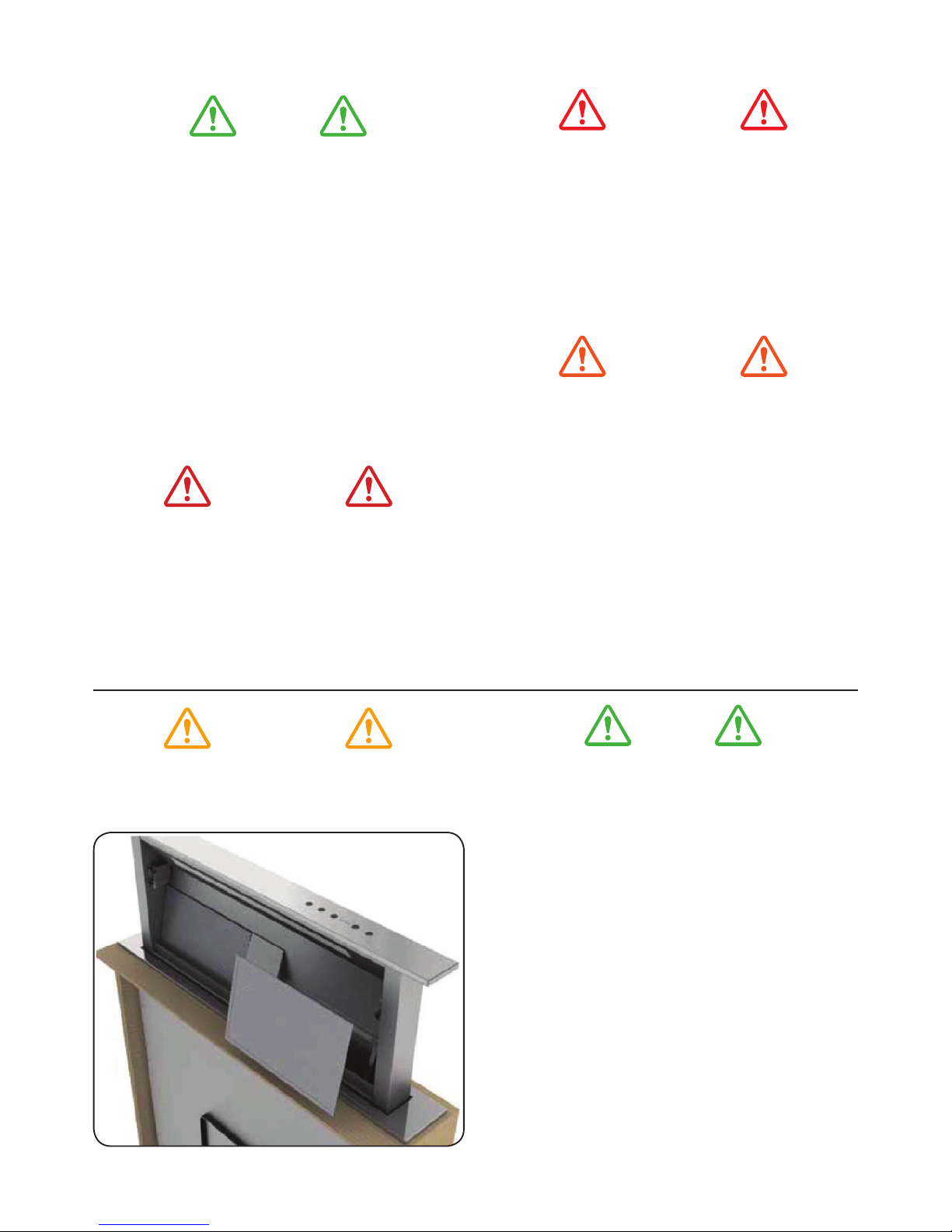

Before the installation of the downdraft, please
remove the safety piece you can see in the
picture (Fig. 1). Leave all other protective tape
in place at this point. Furthermore, please
read carefully all of the following installation
instructions.
• Use Sirius ducting with a maximum length of 7
metres to the motor.
• Limit the number of elbows in the ducting, since
each elbow reduces the air capacity of 1 linear
meter. (Ex: if you use no. 2 x 90° elbows, the
length of piping should not exceed 5 meters).
• Avoid abrupt direction changes. (Optimum angle
45°when required)
• Use a 150 mm for 580mm models, - 200mm
ducting for larger models - constant diameter
pipe for the whole length.
Use ducting approved by standards enforced - see
www.siriusbrand.com.au for approved ducting
The manufacturer shall not be deemed responsible
for air capacity or noise problems caused by failure to
comply with the above instructions and no warranty
on the product shall be provided.
1. Before making the cutout, check that there are no
structural or other parts inside the cabinet where
the appliance is to be placed which could hinder
a proper installation. Check that the dimensions
of the downdraft and the cooktop are compatible
with the cabinet so that the installation can be
carried out properly.
2. Make a rectangular cutout in the back of the
cooktop:
• 542mm x 100mm for the 580mm model
• 842mm x 100mm for the 880mm model
• 1142mm x 100mm for the 1180mm model.
3. Put the downdraft in the opening, inserting it from
above as shown in (Fig. 2)
(Fig. 1) (Fig. 2)
NB: Remove only red parts

7
S-DD2-L FLUSH TOP
INSTALLATION GUIDE

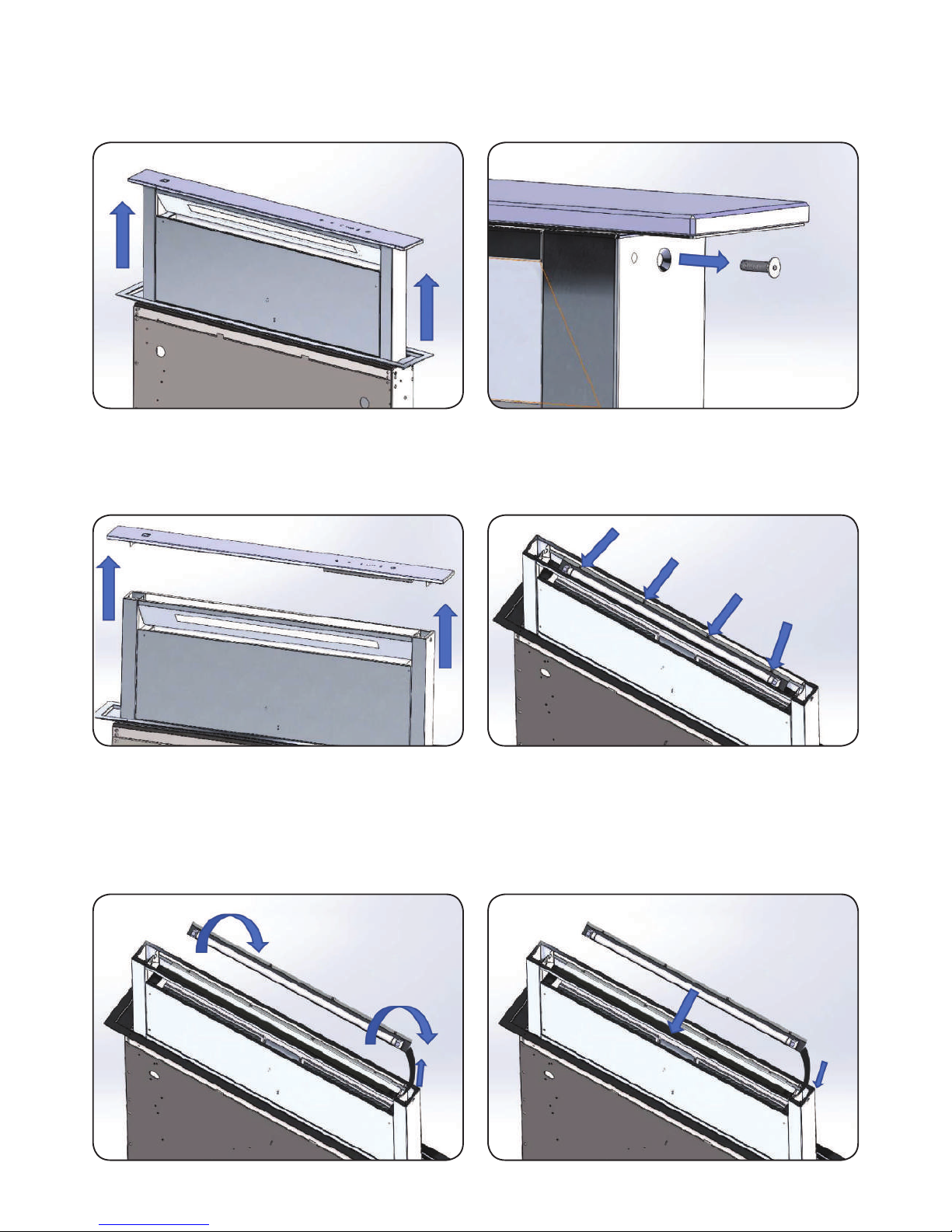

1. Remove front 150mm or 200mm adaptor plate
(Part ‘D’) (Fig. 3)
2. Replace Part ‘D’ with front cover plate (Part ‘E’)
STEP 2:
(For front or rear venting instructions, see pages 10-12)

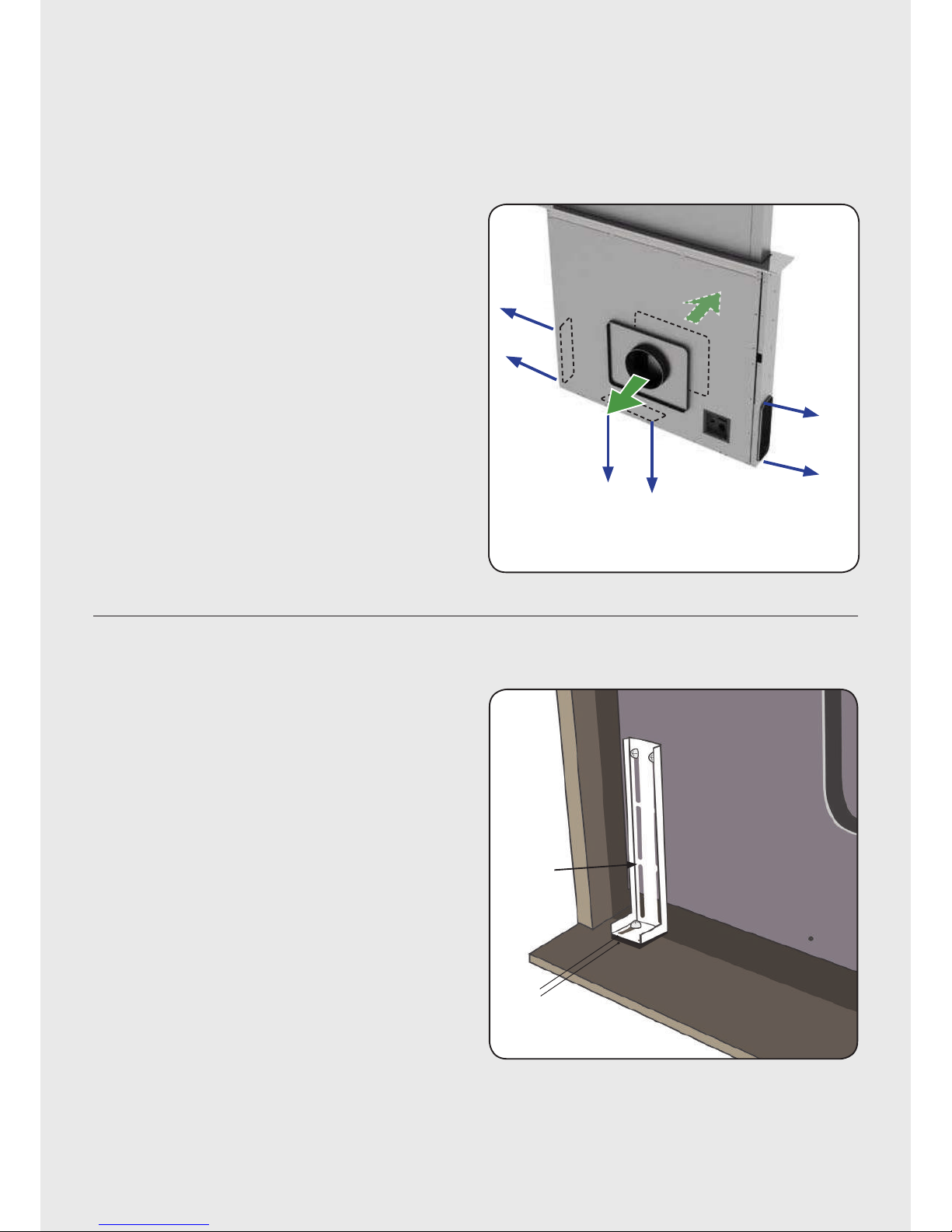

Remove & replace
with Part ‘E’
STEP 3:
STEP 4:
1. Remove side or bottom cover plate (Part C).
(Fig. 4)
2. Connect air outlet collar (Part ‘B’) to the same
fixing points as removed from side or bottom
cover plate (Part ‘C’) and tighten.
Remove & replace
with Part ‘B’
Remove & replace
with Part ‘B’
(Fig. 3) (Fig. 4)
(Fig. 5)
• Carefully lower downdraft into cutout cabinetry.
• Fix the downdraft inside the cabinet, using the
special fixing brackets (Part ‘ F’) supplied with the
product.
• Insert the brackets in the lower side of the
downdraft in such a way that there is a 2 mm
distance between the lower side of bracket and
the bottom of the cabinet.
• This distance will allow the traction to be
positioned downwards of the product, at the
moment of fixing, in order to have the stain-
less steel trim perfectly adhering with the work
surface.
• Before inserting the screws, please make sure
that the appliance is perfectly perpendicular with
the work surface, ensuring unit is square and
levelled with spirit level before turning on. (Fig. 5)
NB: If the unit is not levelled, the downdraft will
shudder when rising. This could cause damage
to your unit, which is not covered by warranty.
This is installation damage.
INSTALLATION INSTRUCTIONS
SIDE OR BOTTOM VENTING
2mm
Part ‘F’

8
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
• Connect rectangular to round adaptor (Part ‘A’) to
air outlet (Part ‘B’), (Fig. 6).
• Secure both ends with duct tape
1A: Connect the top of the 150mm connector piece (Part ‘I’) to the round outlet on adaptor (Part ‘A’), then
connect length of 150mm ducting (Part ‘K.1’) to the bottom of the 150mm connector piece (Part ‘I’).
2A. Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting from motor to vent (N/A for SEM 2 motors)
This step covers ducting for SDD2 L EMTC 580 models only. For 880mm & 1180mm models, see Step 6B.
STEP 5:
STEP 6A: Ducting to SEM 1 motor (150mm ducting)
STEP 6A: Ducting to SEM 2 motor (150mm ducting)

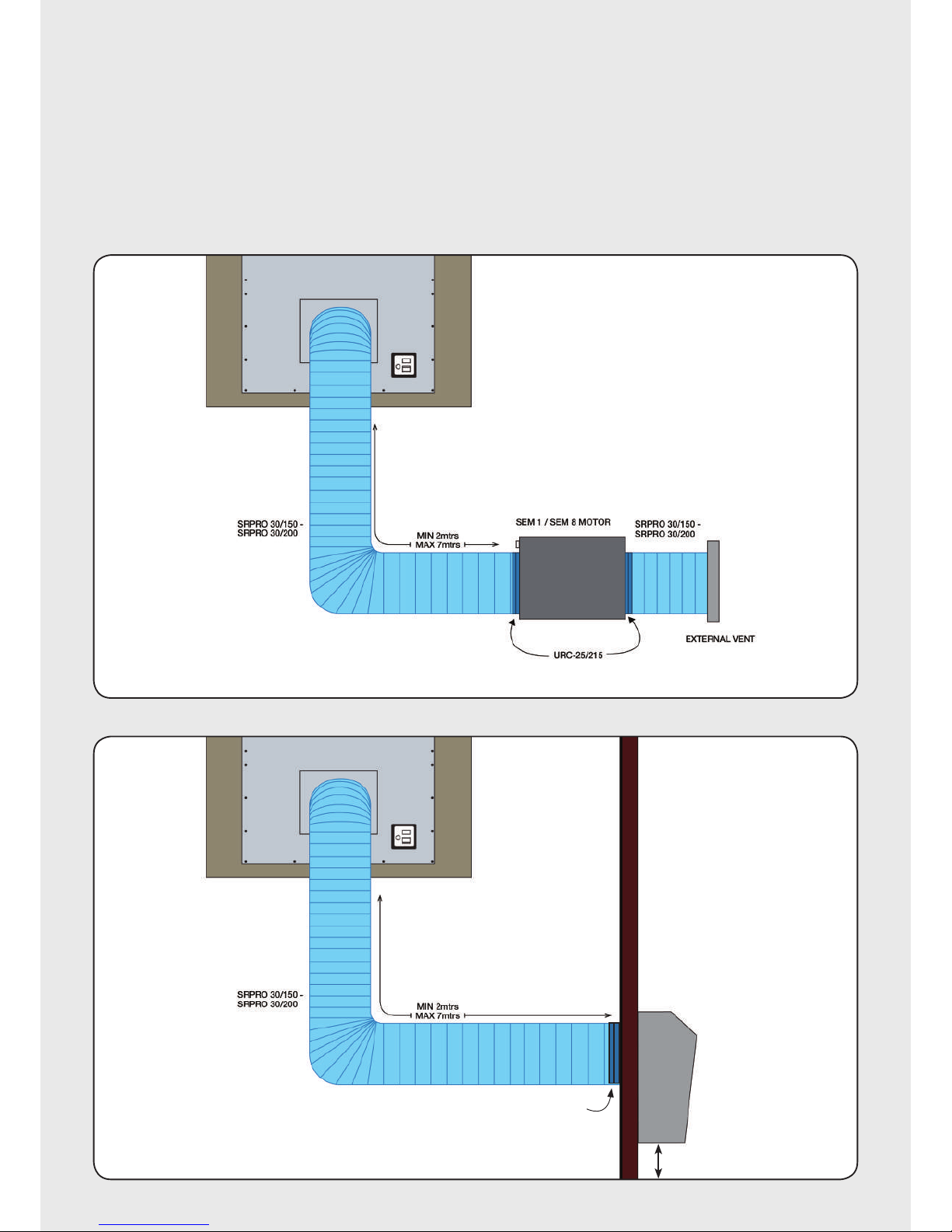

PART ‘B’
PART ‘B’
PART ‘A’
PART ‘A’
PART ‘I’
PART ‘I’
PART ‘K.1’
PART ‘K.1’
PART ‘K.1’
PART ‘G’
SEM 2 MOTORS
PART ‘G’
BOTTOM VENT
OPTION
OUTSIDEINSIDE
SIDE VENT
OPTION
(Fig. 6)
WALL
MIN HEIGHT FROM GROUND
500mm - 2mtrs

This step covers ducting for SDD2 L EMTC 880 and 1180mm models. For the 580mm model, see Step 6A.
9
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
For SEM 8 motor with SDD2 L EMTC 880/1180 - 200mm option only.

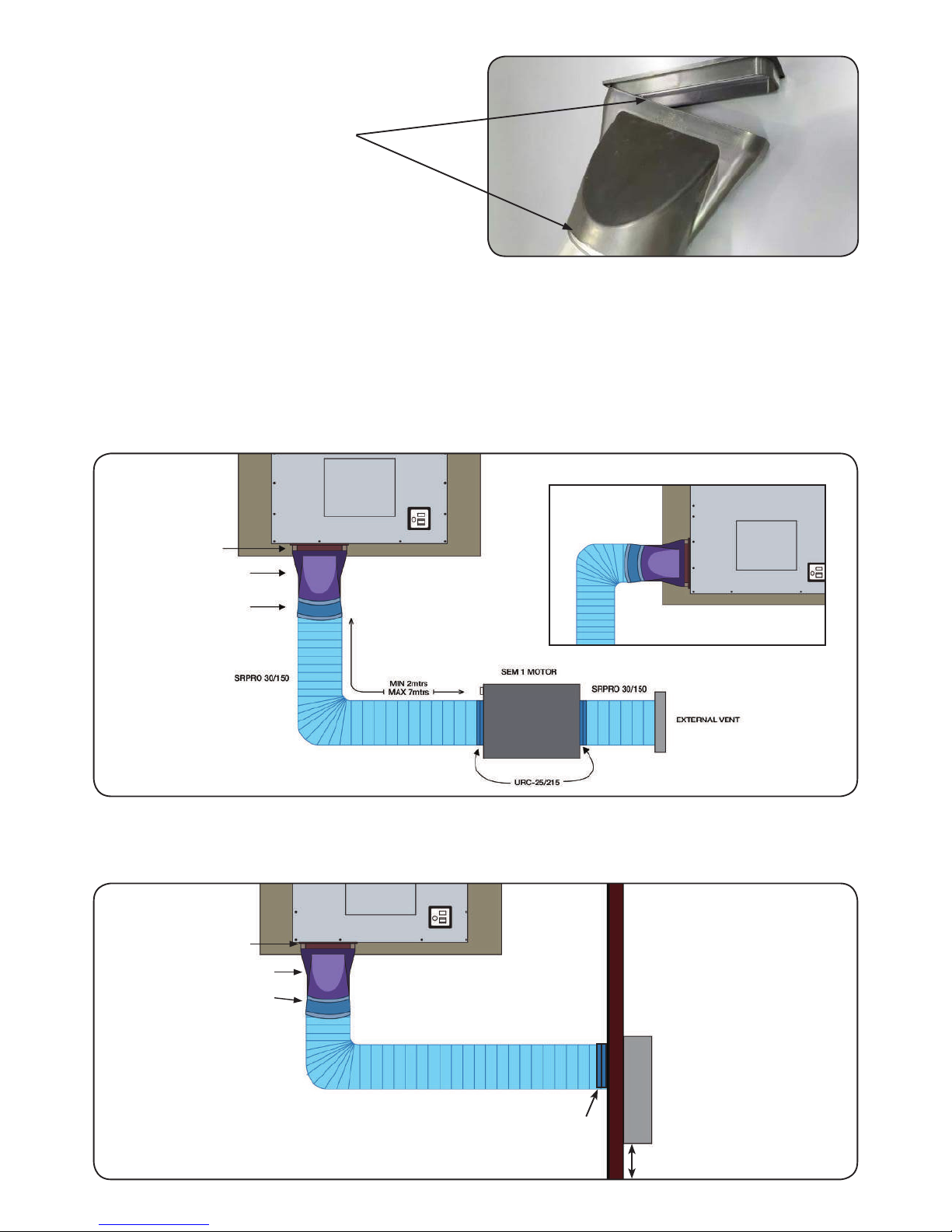

1B: Connect a duct expander (Part ‘H’) to rectangular to round adapter (Part ‘A’), then connect
length of ducting (Part ‘K.2’) to the 200mm outlet.
2B: Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting to vent (N/A for SEM 7 motor)
STEP 6B: Ducting to SEM 7 motor (200mm ducting)
STEP 6B: Ducting to SEM 8 motor (200mm ducting)
PART ‘B’
PART ‘B’
PART ‘A’
PART ‘A’
PART ‘H’
PART ‘H’
SIDE VENT
OPTION
PART ‘G ’
PART ‘K.2’
PART ‘K.2’
OUTSIDEINSIDE
BOTTOM VENT
OPTION
WALL
MIN HEIGHT FROM GROUND
500mm - 2mtrs

10
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
INSTALLATION INSTRUCTIONS
FOR SEM 1, SEM 2, SEM 7, SEM 8
FRONT OR REAR VENTING
• If venting from the rear, remove 150mm or
200mm adaptor plate (Part ‘D’) and replace with
front cover plate (Part ‘E’).
If venting from front, check to see if front adaptor
plate (Part ‘D’) is attached.
STEP 2:
Remove & replace with
cover plate (Part ‘C’)
Remove & replace with
cover plate (Part ‘C’)
(For side or bottom venting instructions, see pages 7 - 9)
Remove & replace with
cover plate (Part ‘C’)
STEP 3:
(Fig. 7)
(Fig. 5)
• Carefully lower downdraft into cutout cabinetry.
• Fix the downdraft inside the cabinet, using the
special fixing brackets (Part ‘F’) supplied with the
product.
• Insert the brackets in the lower side of the
downdraft in such a way that there is a 2 mm
distance between the lower side of bracket and
the bottom of the cabinet.
• This distance will allow the traction to be
positioned downwards of the product, at the
moment of fixing, in order to have the stain-
less steel trim perfectly adhering with the work
surface.
• Before inserting the screws, please make sure
that the appliance is perfectly perpendicular with
the work surface, ensuring unit is square and
levelled with spirit level before turning on. (Fig. 5)
NB: If the unit is not levelled, the downdraft will
shudder when rising. This could cause damage
to your unit, which is not covered by warranty.
This is installation damage.
2mm
Part ‘F’

11
STEP 4:
1. Use 150mm ducting (Part ‘K.1’) for S-DD2-L-EMTC 580 versions or 200mm ducting (Part ‘K.2’) for
S-DD2-L-EMTC 880 and 1180 versions.
2. The ducting fits directly onto the collar on the front adaptor plate (Part ‘D’).
3. Fix in place using a universal ring clamp (Part ‘G’).
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
PART ‘G’
PART ‘G’
PART ‘K.1’ / ‘K.2’
PART ‘K.1’ / ‘K.2’
PART ‘K.1’ / ‘K.2’
SEM 2 / SEM 7
OUTSIDEINSIDE
WALL
Ducting to SEM 1 / SEM 8 motor (internal motor)
Ducting to SEM 2 / SEM 7 motor (external motor)
URC-25/325
MIN HEIGHT FROM GROUND
500mm - 2mtrs

12
POWER TRANSFORMER
7 METRE POWER CORD
Power transformer can be located anywhere beneath
the bench. It must be accessible for servicing.
ELECTRICAL CONNECTION
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
DUCTING FROM MOTOR TO WALL VENT: (SEM 1 and SEM 8)
1. Run the length of ducting to the motor. (Additional lengths of ducting can be attached using an
additional internal connector pieces.)
NOTE: No connector required as it connects directly to the collar of the motor.
2. Secure with another universal ring clamp (Part ‘G’).
NOTE: The location of the motor is to be no less than 2 metres away from the downdraft. Failure to
do so may result in additional noise level of the downdraft. Maximum distance is 7 metres, however
3 - 5 metres is optimum to minimise noise and maximise performance.
3. Using another length of semi-rigid duct run from the exit collar on the SEM 1 / SEM 8 to a predetermined
exit point and connect to weatherproof vent with a clamp.
See www.siriusbrand.com for multiple vent options or see our nearest retail partner.
WARNING
Place the power transformer at a distance of no
less than 65 cm from gas cooktops.
NOTE
We recommend installing the power transformer
at least 10 cm above floor level and at a suitable
distance from all heat sources (e.g. oven sides or
cook top).

13
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
WARNING
After having replaced the filters, reinstall
the front stainless steel panel, otherwise
the Downdraft is not enabled to function.
Water splashing against the enclosure from any
direction shall have no harmful effect, utilizing either:
a) an oscillating fixture, or b) A spray nozzle with no
shield.
Test a) is conducted for 10 minutes. Test b) is
conducted (without shield) for 5 minutes minimum.
Oscillating tube: Test duration: 10 minutes, or spray
nozzle (same as IPX3 spray nozzle with shield
removed).
(Fig. 8)
ELECTRICAL CONNECTION
CAUTION
DANGER
NOTE
While installing the appliance and carrying
maintenance operation, make sure it is disconnected
from the electrical network or the fuses are cut out or
removed.
Check that:
• Power is connected.
• Feeder lines (mains) are in good conditions.
• The cables diameter complies with installation
regulations.
This appliance is fitted with an H05 VVF 3 conductor,
0.75 mm2 (neutral, phase, and ground) power cord.
This can be connected up to a 220 - 240 V
monophase electrical network through a CEI 60083
approved power socket (10AMP power socket),
which must remain accessible after installation, in
compliance with installation regulations. We decline
any responsibility in case of accidents caused by
a lack of ground connection or incorrect ground
connection. The appliance must be fed through a
differential protection device (RCD), with a nominal
residual current not exceeding 30mA. If the power
cord is damaged, call the after-sales service to avoid
any risk.
If the appliance has no plug or if the plug is not
easily accessible, then a device needs to be fitted to
disconnect off from the electric network; this device
must have an opening distance between contacts on
all poles of at least 3 mm.
This appliance complies with the European
Directives 2006/95/EC (Low Voltage
Directive) and 2004/108/EC (Electromagnetic
Compatibility).
If the rangehood presents any anomaly,
disconnect the appliance or remove the
fuse corresponding to the appliance
power disconnecting line.
WARNING
The downdraft connection to the electrical
network must be carried out only by
professional and qualified technicians.
The downdraft must be connected to a properly
installed and suitable electrical network.
The electrical system must comply with VDE0100
standard.
NOTE

HOW THE RANGEHOOD WORKS
A: Light ON/OFF key
The light switches on and off only when the carriage
is fully OPEN.
Pressing this button with the carriage closed will
cause the carriage to open and then the light will
switch on .
The button also serves to switch off the light if it is on.
B: ON/OFF key
This starts the extraction carriage upward movement
and when it is fully open, it sets the second extraction
speed.
With the carriage open: it switches off the motor and
if on, the light; then it retracts the extraction carriage.
Automatic turn off:
After 4 hours of continuous working from the
last setup, the appliance turns off and closes
automatically. This ensures the unit cannot
accidentally be left running whilst away.
Grease filters saturation:
After 30 hours of working, the speed indicators “D”
will all flash simultaneously, signaling the grease filters
saturation.
To reset this alarm, hold down the “TIMER” button
for at least 3 seconds, while the carriage is open.
Calibration:
The rangehood carries out its self-calibration every 3
complete cycles of its extractable unit.
By pushing the “TIMER” key 6 times consecutively
(MAX break between one push and the other is 3
sec.) all the LEDs will flash and the calibration will be
reset.
After the next 3 cycles the downdraft will carry out its
self-calibration.
Stand-by:
When the extractable unit is closed and the light
is switched off, the control panel, after 6 seconds,
activates the Stand-by function, reducing the
brightness of the leds.
This function can be stopped by pressing ON/OFF
or LIGHT key.
Safety close function:
If an obstacle is preventing the downdraft from
lowering completely, the downdraft will automatically
raise to prevent damage to the unit.
C: Decrease fan speed key
This reduces the speed of the extractor motor from
the 4th speed until the motor switches off, without
closing the pullout carriage.
D: Fan speed Indicators
• This signals the speed setting, by only the
relevant LED switching on.
• Lights flashing signals reminder to wash mesh
grease filters. (see grease filter saturation)
E: Increase fan speed key
This increases the speed of the extractor motor, from
1st to 4th speed, without moving the extractor panel.
F: 10 Minute shut-off timer
10 min after setting, it serves to stop the extractor
motor, close the carriage and switch the lights off,
if they are on. The set function is signalled by the
flashing LEDs “D” for the set speed. The timer can
be cancelled by pressing the key again.
WARNING
This operation has to be carried out by a
specialised technician.
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
14
Light On/Off Decrease fan
speed
Fan speed
indicators
Increase fan
speed
10 min shut-off
timer

S-DD2-L FLUSH TOP
INSTALLATION GUIDE
15
CLEANING THE RANGEHOOD
Careful maintenance ensures proper operation and
good performances over time.
CAUTION
The hood must be disconnected from the electrical network, both by unplugging
the appliance from the socket and activating the magnetic circuit breaker (safety
cut-out), before removing the metal grease filters. After cleaning operations,
replace the metal grease filters as outlined in the installation instructions.
MAINTENANCE HOW TO PROCEED? ACCESSORY PRODUCTS TO USE
External
surfaces and
accessories
Do not use metallic
scrubbers, abrasive products,
or hard brushes.
To clean the external surfaces of the rangehood
and the light housing screen use only commercially
available household detergents diluted in water. Then
rinse with clean water and dry with a soft cloth.
Filter cleaning After 30 hours of operation,
the downdraft will signal the
grease filter saturation.
The saturation is signaled by
the blinking of the 4 central
leds. To reset, hold down the
timer button for at least
3 seconds, while the carriage
is open.
The grease filters can be washed by hand or in the
dishwasher. These filters need to be cleaned on a
regular basis, otherwise they may represent a fire
risk. If frying or cooking with oil, the filers need to be
cleaned more regularly.
Refit the grease filters and front panel, making sure
that the panel is properly fitted at the sides so that it it
does not cause the downdraft to stop operating.
NB: Filters should be replaced approximately every 6 months, depending on style and frequency of
cooking. For high fat cooking it is recommended the clean the filters every 2 weeks.
PROBLEM SOLUTION
The rangehood
does not work.
Check that:
• There is not a power outage.
• A specific speed has actually been selected.
• The 6 pin connection is inserted properly.
• The red reset key, found over the electrical system box, is pushed.
• Make sure that the wires of the 9 pole connection are inserted properly in the
connector itself (during the connection phase, an excessive pressure could bend the
contacts).
The rangehood
has low
performance.
Check that:
• The motor speed selected is sufficient for the quantity of fumes and vapors present
in the room.
• The kitchen is ventilated well enough to allow air for intake.
• The non-return valves of the suctioning unit are free to rotate.
• The ducting is clear and not obstructed.
• Unit is only working on 2 speeds - refer to page 5.
• The correct minimum diameter ducting has been used
The rangehood
stops in the
middle of
operation.
Check that:
• There is not a power outage.
• The safety switch has not tripped (RCD or safety switch).
TROUBLESHOOTING

16
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
REPLACING THE LIGHT
1. Lift the unit, then press the red button on the
power transformer - cutting power to the unit.
3. Disconnect the flat cable and remove the top
panel.
5. Pull the panel out of the rangehood. Disconnect
the cable. Twist the light globe, and pull to remove.
2. Remove the two screw under the top panel, and
the three on the back (five screws in total).
4. Remove the screws holding the panel wth the light
globe.
6. Insert new light globe and twist into place.
Reconnect cable, panel and screws. When all parts
are in place, push red button on transformer box to
restart rangehood.

S-DD2-L FLUSH TOP
INSTALLATION GUIDE
17
ARECTANGULAR TO ROUND DUCTING ADAPTOR SPS-81020
BBOTTOM/SIDE COVER COLLAR In carton packaging
CBOTTOM/SIDE EXIT PLATE Attached to unit
DFRONT/REAR VENT ADAPTOR SPS-20059120071
EFRONT/REAR VENT COVER PLATE SPS-75059000082
FUPRIGHT FIXING BRACKETS In carton packaging
GUNIVERSAL RING CLAMP URC25-215
H150MM TO 200MM DUCT EXPANDER GDR 150/200
I150MM DIAMETER CONNECTOR PIECE GDC-150
J200MM DIAMETER CONNECTOR PIECE GDC-200
KK.1 - DUCTING 150MM
K.2 - DUCTING 200MM
SRPRO 30/150
SRPRO 30/200
LDUCTING CONNECTOR FOR SEM 10 INSTALLATIONS ONLY Part no. ‘FLANGE’
PARTS LIST
AFTER SALES SERVICE
Any maintenance operation on your appliance should
be carried out by:
• Either Arisit Pty Ltd;
• Or a qualified professional technician, authorized
for that brand if out of warranty.
Contact www.siriusbrand.com
1300 762 219
NOTE
When calling, please mention the appliance
details: Production date, (Fig. 9A), Type (Fig. 9B)
and equipment (Fig. 9C).
This information is mentioned on the rating
label and the production date one placed on the
lower side of the downdraft.
(Fig. 9)
(Fig. 9A)
(Fig. 9B) (Fig. 9C)

18

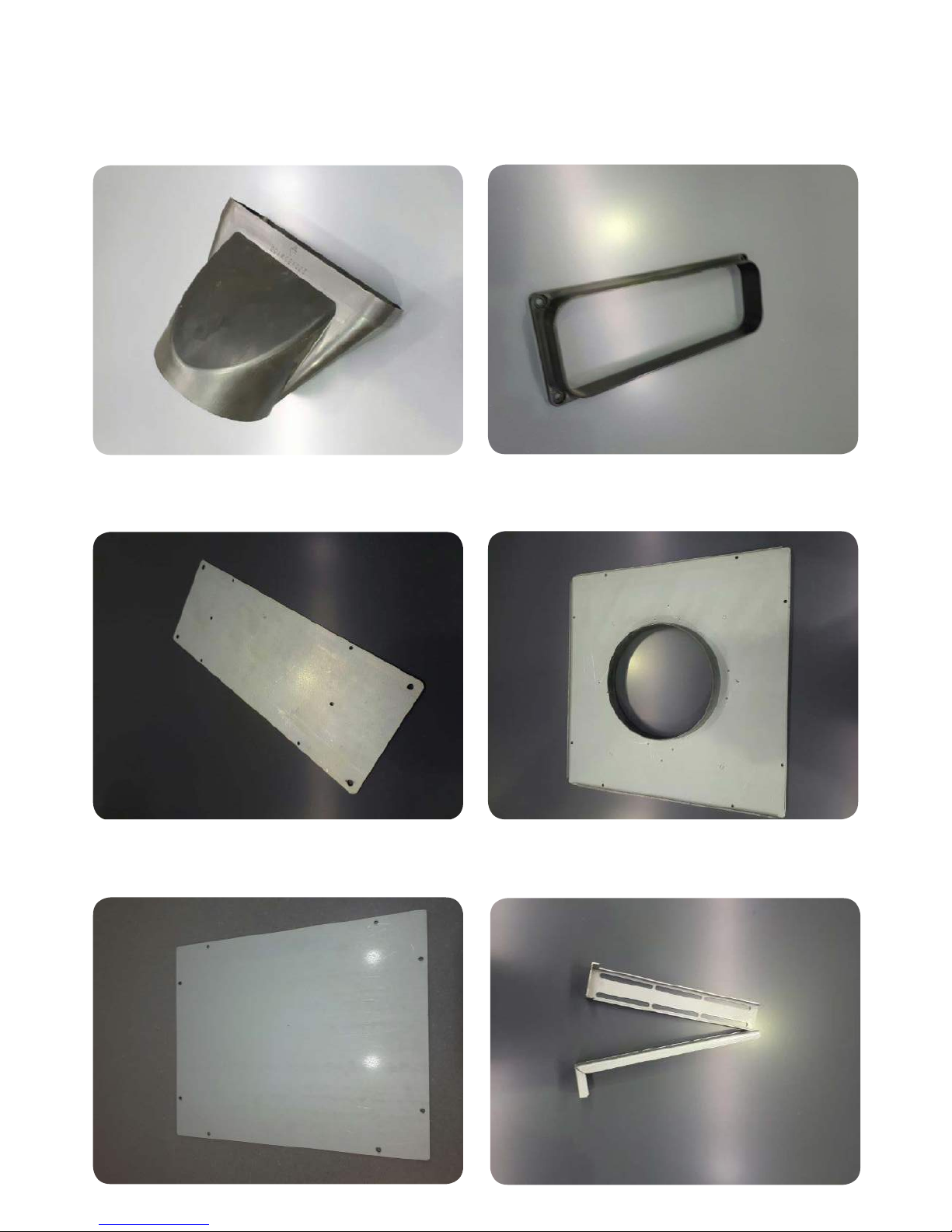

PARTS LIST - INCLUDED PIECES
PART A
Rectangular to round ducting adaptor
SPS-81020
PART B
Bottom/side cover collar
PART C
Bottom/side exit connector
PART D
Front/rear vent adaptor
SPS-20059120071
PART FPART E
Upright fixing bracketsFront/rear vent cover plate
SPS-75059000082
S-DD2-L FLUSH TOP
INSTALLATION GUIDE

S-DD2-L FLUSH TOP
INSTALLATION GUIDE
19
PART G
Universal ring clamp
URC25-215/325
PARTS LIST - OPTIONAL PIECES
To be purchased separately
PART H
150mm to 200mm Duct expander
GDR 150/200
PART I
150mm diameter connector piece
GDC-150
PART J
200mm diameter connector piece
GDC-200
PART L
Ducting connector for SEM 10 installations only
Part no. ‘FLANGE’
Part K.1 / K.2
Semi rigid aluminium ducting 150mm / 200mm
SRPRO 30/150 or SRPRO 30/200

20
S-DD2-L FLUSH TOP
INSTALLATION GUIDE
WIRING DIAGRAMS
YEAR WARRANTY
WHEN SIRIUS DUCTING IS USED
ARISIT PTY LIMITED (Australia)
ABN 23 091 515 294
40-44 Mark Anthony Drive
Dandenong South VIC 3175
P: Sales & Service: 1300 762 219
F: Sales & Service: [phone]
E: [email protected]
ARISIT PTY LIMITED (New Zealand)
1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145
P: [phone] - Fax: [phone]
E: [email protected]
Sirius Hoods and ducting products are only available
from our select group of Sirius Professional Stockists
nationwide. For the latest list of Sirius Stockists
near you, please refer to www.siriusbrand.com
All efforts have been made to ensure that the
information provided in this brochure is correct at
the time of printing. Due to continuous product
improvement and ongoing development, Sirius
reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may
be for illustrative purposes only. Diagrams are
indicative measures only. Prior to commencing
cabinetry cutouts the operating/installation
instructions accompanying the product must
be referred to at www.siriusbrand.com
www.arisit.com
www.arisitwarranties.com.au
www.siriusbrand.com
