INSTALLATION
INSTRUCTIONS
CARE AND USE MANUAL FOR:
BUILT-IN RANGE HOODS
Models covered by this instructions:
SU900 - SUT900 - SUE900 - SU901 - SU902 - SU903
SU908 - SU906 - SU913 - SU923 - SUE923
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAI-
NED DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of coo-
king vapors. DO NOT use to expel ammable substances or any other materials
or vapors.
The installation procedures in this manual are intended for qualied installers, ser-
vice technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned off at source before commencing installation.
All electrical wiring must be properly installed, insulated and grounded and conform
to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work should be
replaced, if necessary, to avoid the possibility of a grease re. Check all joints on
ductwork to ensure proper connection and all joints should be properly taped. Be
careful when cutting through ceilings or walls not to damage any hidden pipes or
electrical wiring. Ensure your kitchen has sufcient air return vents to replace the
exhausted air.
The minimum distance between en the cooker surface and the inferior part of the
cooker hood must be of 650 mm.
Fan ducts should always be vented to the outside of your home and never into
spaces within walls, ceilings, lofts or attics. Only use rigid, smooth steel for ducting.
The exhaust point of the blower requires a 6” or 8” round connection.
2

TABLE OF CONTENTS
3
BEFORE YOU BEGIN 4
DUCTING 4
External venting Requirements 4
Duct Run Calculation 5
ELECTRICAL 5
Electrical Supply 5
INSTALLATION 6
Applications 6
Connecting Electricity and Ducting 8
Re-Circulating Requirements 9
OPERATING PROCEDURES 10
General Advice 10
Functions 10
MAINTENANCE 12
Cleaning the Filter 12
Cleaning the Hood 12

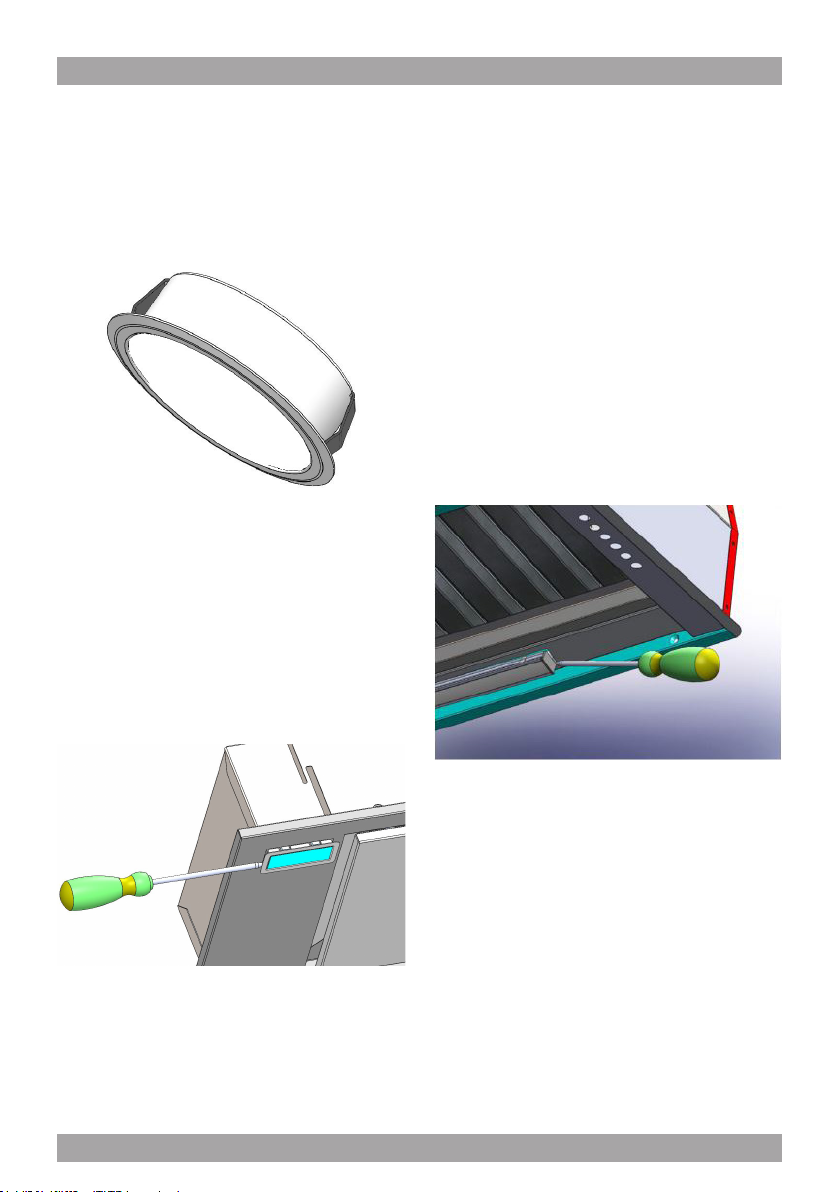

Replace led lamp 13
WARRANTY 16

BEFORE YOU BEGIN: It is advisable to
test run the range hood before installa-
tion.
BEFORE STARTING – please read this
entire document and ensure you are fully
conversant with the require-ments and li-
mitations. These units weigh approximately
125lbs and therefore require a minimum of
two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsibility
in the event of failure to observe the instruc-
tions given here for installation, maintenan-
ce and suitable operation of the product. The
manufacturer further declines all responsibi-
lity for injury due to negligence and the war-
ranty of the unit automatically expires due
to improper maintenance and/or installation.
Always fasten connections with sheet metal
screws and tape all joints with certied Sil-
ver Tape or Duct Tape. Do not use screws to
fasten ductwork to the hood, only use tape
as the screws will stop the dampers from
opening and your hood will not work. This
hood re-quires a 6” if it’s gas or gas cook top
8” is recommended round duct outlet. You
can increase the duct size of the duct run
but never decrease it. Use the shortest and
most direct route possible. Always, where-
ver possible, reduce the number of transi-
tions and turns with as few sharp angles as
possible. Two staggered 45 degree angles
are better than one 90 degree. Make these
turns as far away from the motor exhaust
as possible, with as much space between
each bend. Need 18” from the hood to the
rst elbow.
DUCTING
(Not applicable if the range hood is used in
re-circulating mode).
WARNING: Do not vent this appliance into
any other ductwork, spaces between walls,
ceilings, attics, garages or any other con-
ned space.
External Venting Requirements.
When planning new ductwork, always look
for the most direct route to the outside. Ven-
ting can be done through the roof or directly
through the back outside wall. (See Figure
1 and 2) Only use rigid type metal ducting
(plastic ducting is generally not permitted by
code). Flexible ducting could restrict airow
by up to 50%.
g. 1 g. 2
4

Duct Run Calculation.
The maximum duct run before effecting the
performance of the hood is 100’. Calculate
your duct run by measuring linear feet and
adding the elbows, transitions and caps ba-
sed on the table below.
Electrical Supply.
This appliance requires 120V/60Hz, 3amp
electrical supply-ensure an appropriately
qualied person completes the electrical ho-
ok-up. The connection point for the electrical
supply is at the top of the unit, therefore the
electrical supply must be run down from the
ceiling alongside the ductwork.
All electrical and venting hook-ups must be in
place before commencing installation of the
hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electrical
codes or prevailing local building codes and
ordinances are adhered to.
Ensure that the electricity supply is discon-
nected at source. Do not use an extension
cord or adapter plug with this appliance.
This appliance must be grounded. Connect
to a properly grounded branch circuit, protec-
ted by a 15 amp circuit breaker.
The ducting connection to the hood must
be in line with the central vertical axis of the
range hood 1” away from the back wall on
which the hood is to be mounted.
Range hoods may interrupt the proper ow
of combustion gases from replaces, gas
furnaces and gas water heaters.
To minimize the risk of drawing these lethal
gases back into the home, please follow the
heating equipment manufacturers safety
standards and guidelines carefully.
Refer to NFPA and ASHRAE for additional
information.
Maximum Run
6” or 3 1/4 x 10” duct * 100 FT
Deduct
Each 90 elbow used 15FT
Each 45 elbow used 9FT
Each 6” or 3 1/4 x 10” duct
Transition used 1FT
Each 3” 1/4 x 10” to 6”
Transition used 5FT
Side Wall with damper 30FT
Roof Cap 30FT
* Gas range or gas cook top shuld be 8”.
5

SU900, SUT900, SUE900 20” 10”3/8 X 19”19/32
SU900, SUT900, SUE900 27” 10”3/8 X 26”11/16
SU901 32”13/32 X 16”3/16
SU902 10” X 26”½
SU903 27” 9”15/16 X 25”9/16
SU903 36” 9”15/16 X 33”7/16
SU908 12”5/8 X 26”2/2
SU906 33”15/32 10”14/32 X 32”14/16
SU906 20”15/32 10”14/32 X 18”19/32
SU913 20”15/32 10”3/8 X 19”49/64
SU913 30”23/32 10”3/8 X 30”5/64
SU923-SUE923 20” 19”7/8 X 10”5/8
SU923-SUE923 27” 26”31/32 X 10”5/8
If Sch31A or a Pro Liner are being used,
they can be held up under the cabinet and
used as a template.
If Sch31A or a Pro Liner are to be used for
under cabinet application, they should be
installed now.
INSTALLATION
The minimum distance between suppor-
ting surface for the cooking vessels on
the hob, and the lowest part of the range
hood shall be at least 30”.
Applications
The SU900, SUT900, SUE900 can either be
installed inside a wall cabinet (provided the
inside depth is greater than 11”) or used in
a custom designed wooden hood. Where in-
stalled directly into a wall cabinet, there are
two options:
Directly into the cabinet without any form of
hood. Directly into the cabinet together with
Sch31A where the Sch31A acts as a liner
hood and is attached to either the underside
of the cabinet or into the sides of the cabi-
nets alongside.
The SU901 can either be installed inside a
wall cabinet or used in a custom designed
wooden hood. Where installed directly into
a wall cabinet, there are two options:
Directly into the cabinet or directly into the
cabinet together with the adjustable Pro li-
ners where the adjustable Pro liners act as
a cabinet protection against the heat. The
depth of the adjustable pro liners can vary
from 23.5” to 25.9”).
The SU902, SU903, SU906, SU913 can
either be installed inside a wall cabinet or
used in a custom designed wooden hood.
Depending on which model is used, prepa-
re a cut-out in the underside of the wooden
hood to allow the powerpack to t up into the
hood using the following dimensions:
6

Installing a SCH31A with SU900 - SUT900
- SUE900.
Hold the Sch31A under the cabinet and
Screw it to the 4 hole locations. Make sure
it lines up with the cut out in your cabinet.

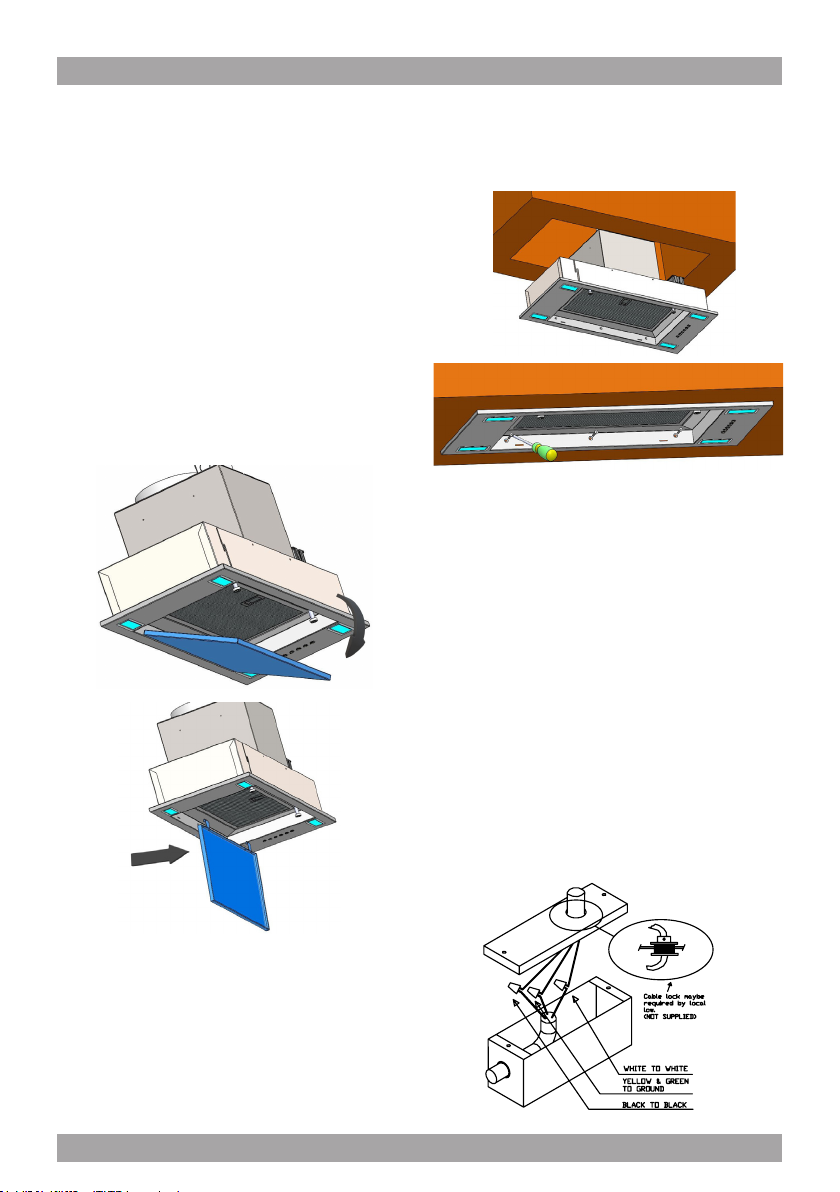

The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 3).
Installing SU900 - SUT900 – SUE900 wi-
thout a SCH31A.
The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 3).
g. 3
7

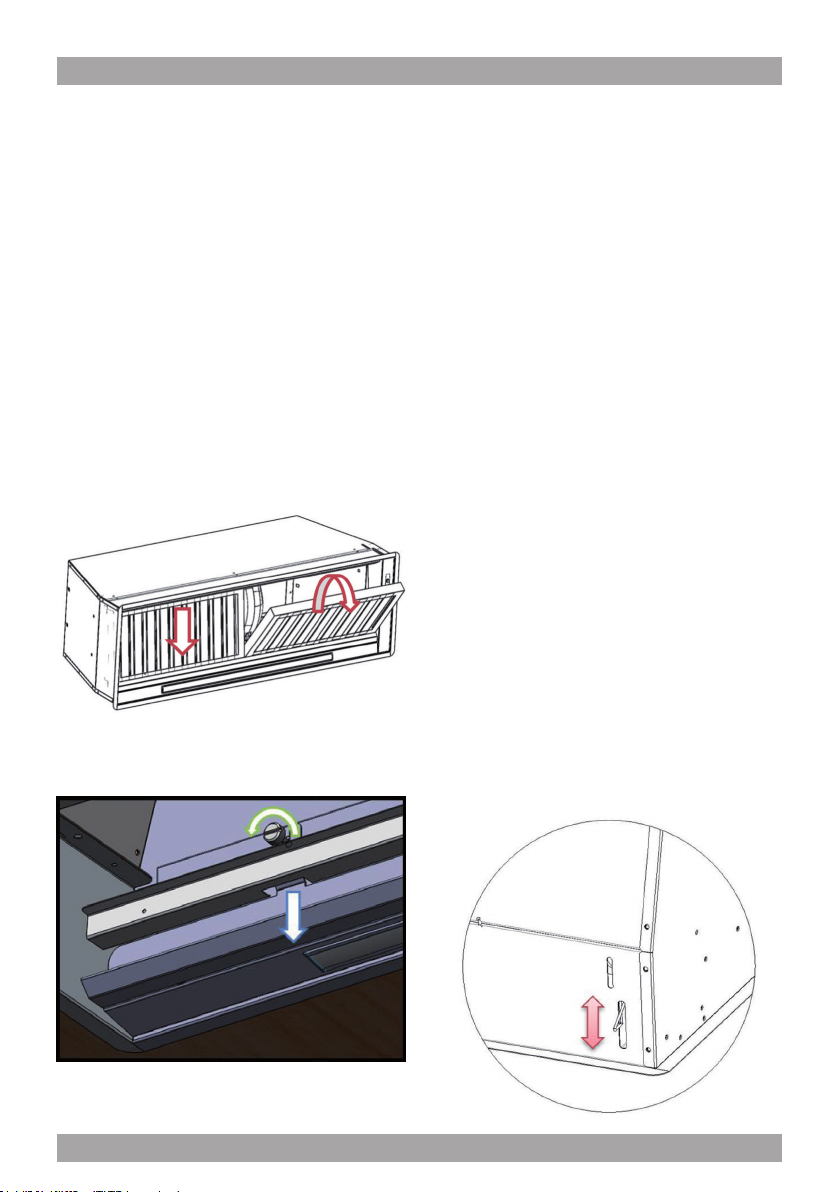

Installing SU923 - SUE923
Before installing the appliance, remuve the
me tal grase lte. It can be removed by pu-
shing its special handle toward the back-
side of the cooker hood and turning the lte
downwards so to unfasten it from its slot
(re-fer to gur).The power pack has pressu-
re springs (to be adjusted) on the front and
back that will “hook” onto the top surface of
the underside of the hood when it is pushed
up into the hole that has been cut out (refer
to gur 3).There are eight holes on the insi-
de of the SU923 - SUE923 to  the unit into
the edge of the base of the wooden cabinet
(refer to gure).
g. 4

Install the front part of the liner adjusting it to
the depth of the cabinet. (refer to gure 6).
Installing a Adjustable Pro Liner with
SU901. Once the cut out has been done in-
stall the Adjustable Pro Liner and make sure
it lines up with the cut out in your cabinet.
Screw it to the 4 hole locations (refer to -
gure 5).
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
Descrizione:
n° disegno:
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da: Data creazione:
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:
Screw it to the 3 hole locations.
Attention: be sure the cabinet has a mini-
mum thickness of 0.75” on the 4 sides.
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:
g. 5
8
g. 6

The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 3).
Installing SU902. The power pack has
pressure springs (to be adjusted) on the
front and back that will “hook” onto the top
surface of the underside of the hood when it
is pushed up into the hole that has been cut
out (refer to gure 3).
Installing SU903. Before installing the unit,
open the central panel (see gure 7) and re
move it (see gure 8).
g. 11
There are six holes on the inside of the
SU903 to x the unit into the edge of the
base of the wooden cabinet (refer to gure
10).
g. 9-10
INSTALLING SU908
There are four holes on the inside of the
SU908 to x the unit intothe edge of the
base of the wooden hood (refer to gure 4).
Connecting Electricity and Ducting.
Please refer to the Electrical Supply section
on page 2 for the required location of the
electrical supply.
CAUTION: Make sure the power is turned
off at source. Make electrical connections
(refer to Figure 11). Ensure that the plastic
aps at the exhaust outlet for the fan move
freely and have not become jammed or
stuck.
9
g. 7-8
The power pack has pressure springs (to
be adjusted) on the front and back that will
“hook” onto the top surface of the underside
of the hood when it is pushed up into the
hole that has been cut out (refer to gure 9).

INSTALLATION SU906
Before installing the appliance, make sure
that none of the parts is damaged in any
way. In case of damaged parts, contact your
retailer and do not proceed with installation.
Read all of the following instructions with
care before installing the appliance.
The LED bar of the range hood are supplied
in the packaging, and you need to assemble
them at the end of the installation.
- Before installing the appliance, remuve
the metal grase lter and the oil collector.
Thes lter could be removed by pushing the
handles towards the back side of the cooker
hood and turning it downwards to unfasten
it from its slot.).
To remuve the oil collector, loosen the two
screws as indicated.
To install the appliance please respect the
follow instructions.
The appliance must be install by competent
authorities. In order to do not damage the
electronic parts of the appliance please do
not use added screws.
Essential precautions to respect before in-
stalling the appliance are the following:
- Prepare the power supply.
- Prepare a hole for the exhaust of the air
both in the ltering and in the exhau sting
version.
- Do not use screws to x the outlet pipe to
the cooker hoods.
- Avoid abrupt direction changes.
To have made a cut-out on the bottom of the
cabinet which is suitable to hold the applian-
ce in position.
SU906 20”15/32 10”3/8 X 18”19/32
SU906 33”15/32 10”3/8 X 32”14/16
Right now, after drilling the kitchen cabinet
please follow carefully the instructions abo-
ve, calibrate the xing spring depending on
the depth of cabinet.
10

At this point, insert the range hood inside the
kitchen cabinet until the xed springs will be
hooked into.
Fix the range hood to the cabinet, in the
front and rear sides, using by the screws
equipped.
To x the hood on the rear side apply the
screws on the holes of oil container as on
pics indicated and fasten the screws.

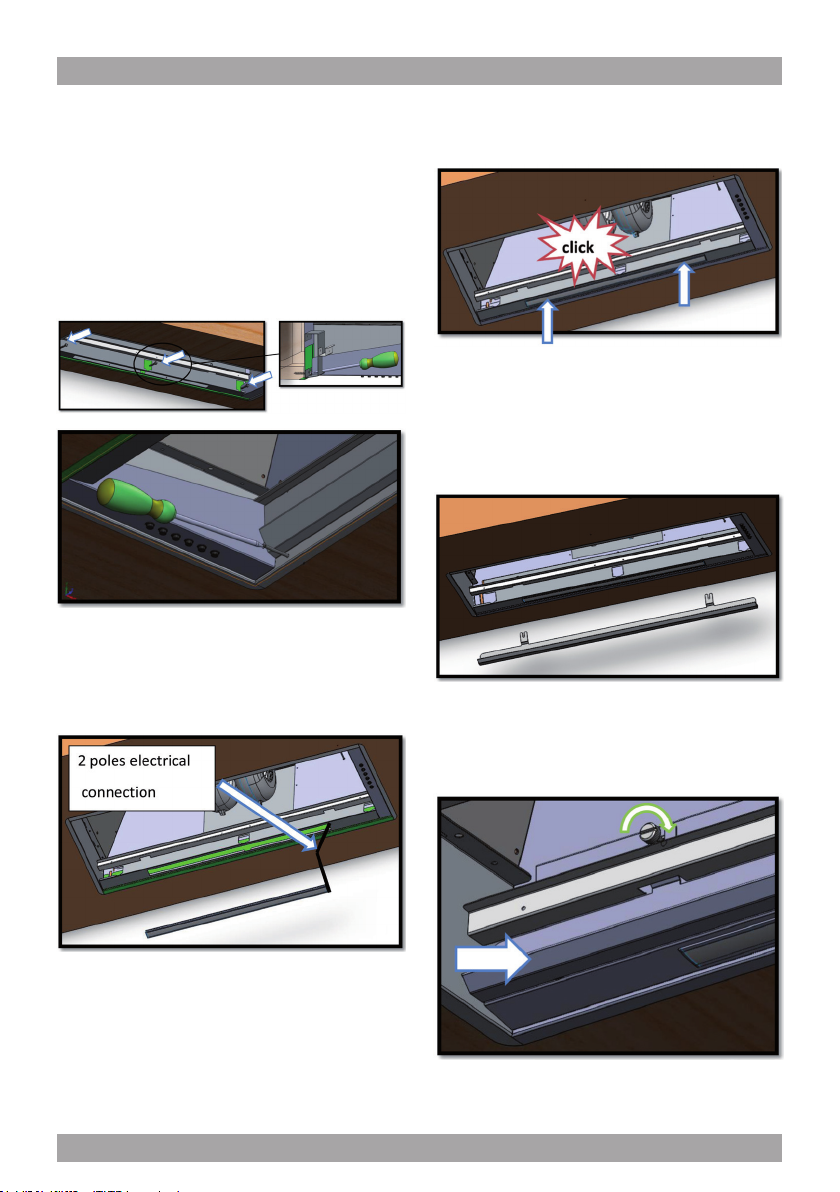

When the screws have been fastened, take
the LED bar and connect the two pin con-
nector.
Insert the LED bar on the appropriate hole
until it will be hooked into.
At this point take the oil container and hook
it on the appropriate hole of the hood. Ple-
ase be careful not to scratch and damage
the product.
Fix the oil container xing the pommels of
range hood.
11

At the end, place the grease lters that were
removed before.

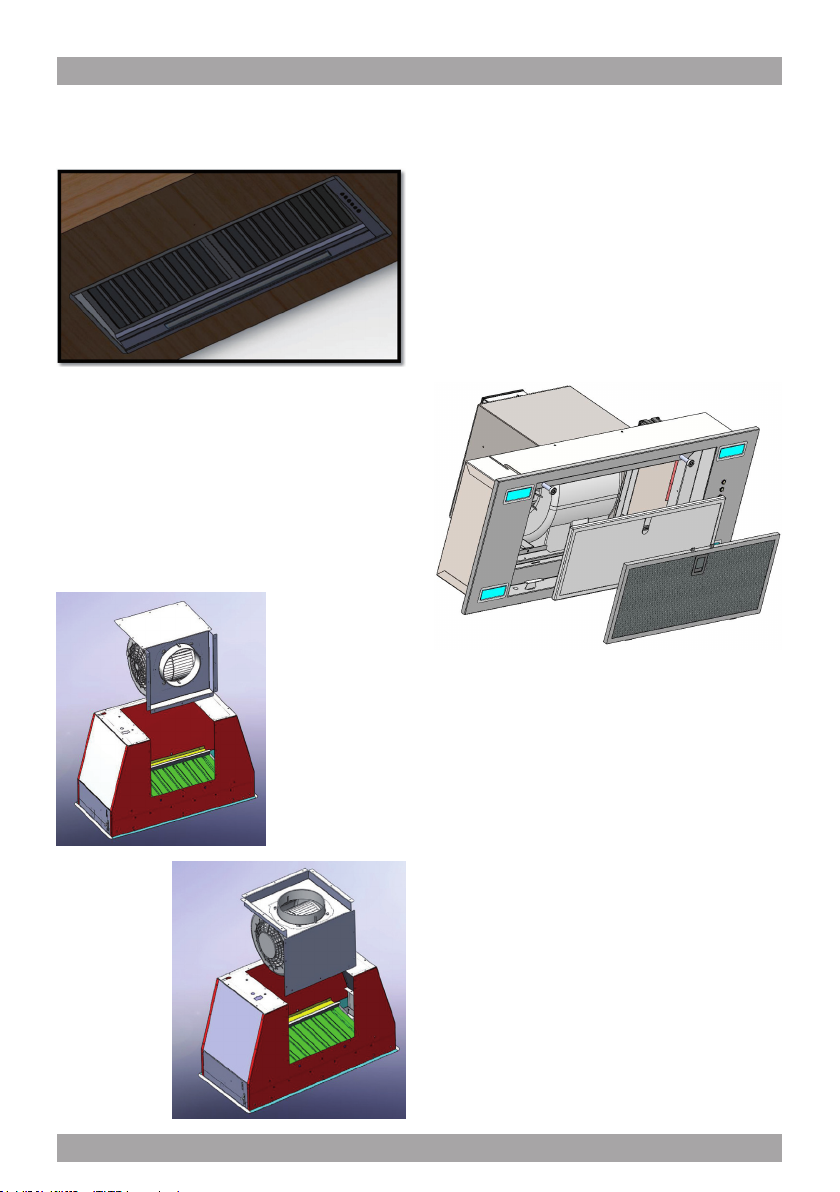

Rear vented version
All the models with one motor can be rear
vented; if the customer wants to use this op-
tion, it is necessary to remove the 18 screws
from the motor group support. Then take the
metal support with motor included out. Turn
the motor to have the air outlet on the rear
side and x the scews previously removed.
Connect the appropriate length of ducting to
the fan exhaust point and join up with the
ducting to the exterior.
Do not x the ducting to the range hood
exhaust outlet with screws-use duct
tape. Use duct tape on all joints.
Re-Circulating Requirements.
If the unit is to be used in the recirculating
mode, t the carbon lters after the installa-
tion is complete (refer to Figure 12).
The carbon lter ts in behind the aluminium
grease lter. Ensure that the plastic tabs on
the carbon lter are facing outwards other-
wise it will be difcult to remove it later for
replacement.
A short length of ductwork must be con-
nected from the exhaust outlet on the fan
to wherever the air is to be exhausted.
Allow sufcient space to connect the duct-
work to the top of the exhaust outlet on the
fan housing. Do not x the ducting to the
range hood exhaust outlet with screws, use
duct tape. Duct tape should be used on all
joints.
12
g. 12

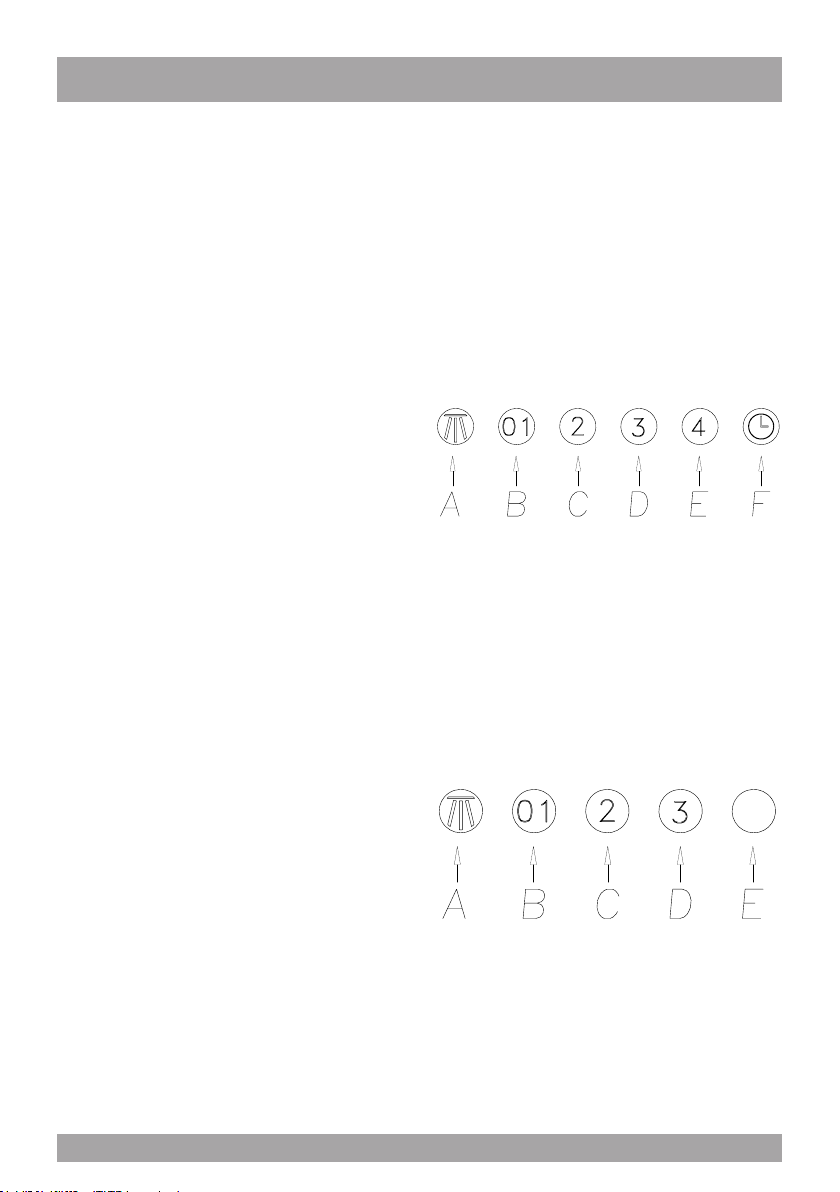

FUNCTION
SU900–SU901–SU902–SU903-SU908-
SU906-SU913-SU923
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
OPERATING PROCEDURES
Read all the instructions before operating
the appliance. Save these instructions for
future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating blo-
wers could catch on to hair, ngers and lo-
ose clothing. Keep fan, lters and surfaces
clean of grease and fat. Always turn hood
fan ON when cooking. NEVER leave coo-
king unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into blo-
wers.
Cooking that generates ame is not recom-
mended as this hood is equipped with a
thermal overload that will shut down the mo-
tor if it senses excessive heat. When frying,
oil in the pan can easily overheat and igni-
te. Heat oil slowly in an appropriately sized
pot (covering the entire burner) to reduce
the risk of boiling over and burning.
In the event of a range top grease re, ob-
serve the following:
Switch OFF the range hood. Turn off the
cook top then smother ames with a close
tting lid, cookie sheet or other metal tray. If
the ames do not go out immediately.
EVACUATE AND CALL THE FIRE DE-
PARTMENT.
Never pick up a aming pan – you may be
burned. DO NOT USE WATER including
wet dishcloths or towels, as a violent steam
explosion may occur.
SUE900-SUE923
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Hood in operation light
13

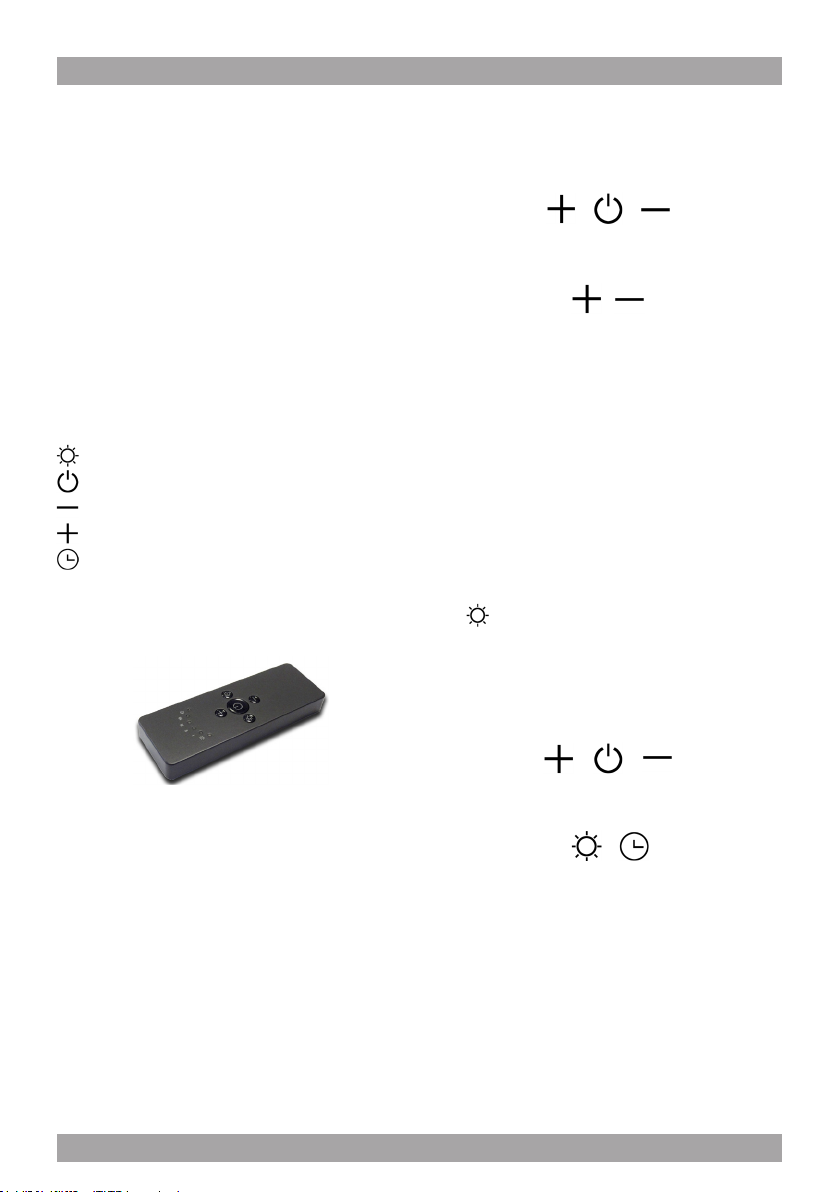

RC001
RADIO CONTROL
Radio control used for the remote operation of
ducted cooker hoods.
TECHNICAL DATA
- Alkaline battery powered: 12 V mod. 23 A
- Operating frequency: 433.92 Mhz
- Combinations: 32.768
- Max. consumption: 25 mA
- Operating temperature: -20 ÷ + 55 °C
- Dimensions: 120 x 45 x 15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for coo-
ker hood management, as specied below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control unit
ready to be used with codes preset in the Factory
OPERATION MODE
Standard conguration:
Standard conguration requires all “cooker hoods
– radio control - system” to be provided with the
same transmission code. In the event two cooker
hoods – radio control system are installed in the
same room or nearby, each system may affect the
operation of the another. Therefore, the code of
one radio control system must be changed.
Generating a new transmission code:
The radio control system is provided with preset
codes. Should new codes be required, proceed
as follows: Press simultaneously buttons:
for two seconds. When Leds light on, press but-
tons:
(within 5 seconds). Leds ashing 3 times indicate
the procedure is completed.
WARNING! This operation deletes permanen-
tly the preset codes.
Learning the new transmission code:
Once the transmission code is changed in the ra-
dio control unit, the electronic central unit of the
cooker hood must be made to set the new code in
the fol- lowing way:
Press the main power-off button of the hood and
then restore power to the electronic control unit.
Within the next 15 seconds, press the Liight But-
ton to synchronise the central unit with the
code.
Reset of the Factory conguration:
To restore the Factory conguration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When Leds light on, press buttons:
(within 5 seconds). Leds ashing 6 times indicate
the procedure is completed.
WARNING! This operation deletes permanen-
tly the preset codes.
Emergency button:
In the event that the radio control does not work,
use the emergency button to switch the appliance
off. After any necessary repairs have been perfor-
med, reset the emergency button.
14

WARNING
The battery should be replaced every year to
guarantee the optimal range of the transmitter.
To replace the exhausted battery, take the pla-
stic lid off, remove the battery and replace it
with a new one, observing the correct battery
polarities.
Used batteries should be discarded in special
collection bins.
The below product:
RC001 Radio Controll
complies with the specications set out in the
Directive RED 2014/53/EU.
WARNING
Any adjustments or modications which have
not been expressly approved by the holder of
the legal conformity certicate may invalidate
the user’s rights relating to the operation of
the device.
Rev. 0 26/08/14
The products are endowed with an electronic de-
vice which allows the automatic switching off after
4 hours working from the last operation.
15

Warning The battery should be replaced
every year to guarantee the optimal range
of the transmitter. To replace the exhau-
sted battery, take the plastic lid off, remo-
ve the battery and replace it with a new
one, observing the correct battery polari-
ties. Used batteries should be discarded
in special collection bins.
Cleaning the Hood.
Cleaning of the internal parts should be done
with a clean damp (not excessively wet) cloth
together with regular household detergent.
The external stainless steel elements should
be cleaned with a good quality foaming stain-
less steel cleaner. Read the manufacturers
directions. Generally they recommend that
the foam be sprayed onto a clean dry cloth
and then applied to the stainless steel. Allow
the foam to react on the surface for a few mi-
nutes and then wipe with a clean dry cloth.
On the surfaces that are exposed directly
to heat from the cook-top, it is advisable to
clean these on a regular basis to avoid the
marks from becoming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch and
damage the stainless steel nish. Glass com-
ponents should be cleaned with a product
such as Windex.
MAINTENANCE
The hood-fan should provide many years of
trouble free service provided it is maintained
properly.
Cleaning the Filter.
Clean the grease lter either by carefully
hand washing, (so as not to damage the
lter design) or, preferably in a dishwasher.
Depending on use, the lters should be cle-
aned at least every two weeks in a dishwa-
sher.
If a carbon lter has been tted this must be
replaced at least every 6 months as a mini-
mum. Depending on cooking style and na-
ture of cooking (greasy foods, fry’s, curries
etc) would probably require more frequent
replacement - if odors start to manifest
themselves when cooking it is time to repla-
ce the carbon lter . We suggest you retain
a spare set. These can be ordered from the
supplier of your range hood.
Filter requires washing indicator: after 30
hours of use, all the buttons will light up to
remind you that the grease lter should be
cleaned. Follow the instructions for cleaning
lters in this booklet. Once the grease lters
have been cleaned and replaced, reset by
pressing the timer button (F). Do not rely so-
lely on this indicator. Generally, the grease
lter should be washed on a regular basis to
avoid grease lter res.
The blower should be turned on for appro-
ximately 5 minutes before cooking in order
to establish air currents upward through the
hood. Use the low speeds for normal use
and the higher speeds for strong odors and
fumes.
16

Replace led lamp SU900–SUT900-
SUE900-SU901–SU902-SU908
To replace the led lamp, remove the lamp
(Fig. 15) inserting a screwdriver or another
sharp tool between the lamp and its chro
me support and replace it with a lamp of the
same kind.
g. 16
Take out the led lamp from its connector and
replace it with an another one with similar
characteristics.
To nd the correct led lamp please check on
the replacement part list.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualied person in order
to avoid a hazard.
Substitution of the LED bar
for SU906 - SU913:
Using an appropriate tool, remove the LED
bar from its seat, (Fig. 17) disconnect it elec-
tronically using the appropriate connector
then substitute it with a LED bar with same
characteristics.
17
Replace the led lamp SU903-SU923-
SUE923
Before replacing the led lamp switch off the
appliance using appropriate tools and then
remove the led lamp from its slot (Fig. 16).
g. 15
g. 17

18

19

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT
www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm
90009100150 - MM 03/20
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email address
stated below or call toll free USA 1-877-474-8770 and provide the model number, description
of the fault or defect and original date of purchase. Sirius reserves the right to request proof
of original purchase. Sirius will at its sole option and discretion replace products that arrive
damaged through shipping, provided shipping damage is reported as stated above WITHIN 5
BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable replacement
parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be free from
defects in materials and workmanship for a period of three years from the original date of purchase.
There are no other warranties, express or implied, including, but not limited to, implied warranties of
merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This war-
ranty does not cover normal maintenance and service or products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair, faulty installation or installation contrary
to recommended installation instructions. The warranty on glass screens is limited to manufacturing
defects only and expressly excludes cracks and breakages as a result of faulty installation. Labor and
associated costs associated directly with removal and re-installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the express
warranty. Some states and provinces do not allow limitation on how long an implied warranty lasts, so
the above limitation may not apply to you.
