Sirius Satellite Radio SILT-21 B User manual

1
SILT-21
PENDANT RANGEHOOD INSTALLATION INSTRUCTIONS
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SILT-21 B EAN #9351116000974
SILT-21 W EAN #9351116000981
www.siriusbrand.com

2 3

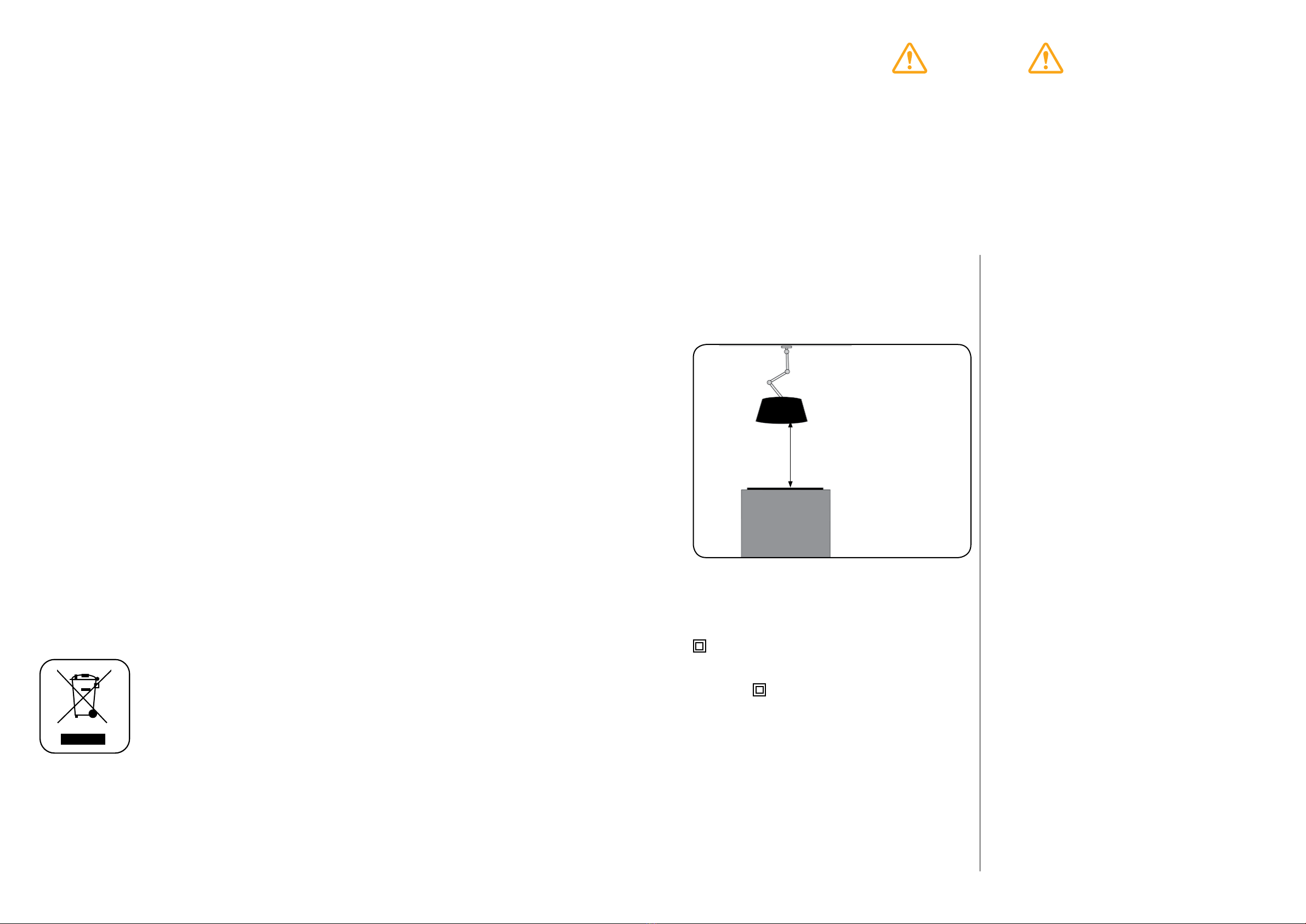

If the rangehood is positioned above the max height
recommended, warranty may be compromised
as performance of the rangehood will be affected.
Measurement is taken from the top of the trivets to
the underside of the hood. (Fig.1)
• Attention: remove any possible PVC film from the
stainless steel, including the filters.
If the rating label in the rangehood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.
If the rating label in the rangehood does not show
the symbol , the appliance is built in class I° and it
needs the earth connection.
When performing the electrical connections on the
appliance, please make sure that the current-tap
is provided with earth connection and that voltage
values correspond to those indicated on the label
placed inside the appliance itself.
Before carrying out any cleaning or maintaining
operations, the rangehood needs to be switched off.
If the rangehood is not provided with a non-separable
flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid,
WARNING
600 - 700mm (electric)
650 - 750mm (gas)
(Fig. 1)
The appliance must be installed and
connected to the power supply only by a
qualified technician.
DEAR CUSTOMER
The rangehood is intended for household use only. Materials used for packaging are nature friendly and may
be recycled, deposited or destroyed without any threat to the environment.
In order to recognize these features, all packing materials are marked with relevant symbols.
When you plan to replace your rangehood, deposit your old appliance with the authorized depot dealing with
used household appliances.
INSTALLATION
Instructions for use have been prepared for the user, and describe the particulars and handling of the
appliance. These instructions apply to different models from the same family of appliances, therefore you may
find information and descriptions that may not apply to your particular appliance.
INSTALLATION INSTRUCTIONS
He appliance should be connected to the power supply in accordance with the instructions from the chapter
“Electrical connections” and in line with the standing regulations and standards. The connections should be
carried out by a qualified personnel only.
FIRE HAZARD PROTECTION
Appliances are allowed to be mounted on one side next to a high kitchen cabinet, the height of which may
exceed that of the appliance. On the opposite side however, only a kitchen cabinet of equal height as the
appliance is allowed.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
with an opening distance between the contacts of at
least 3mm, then such disconnecting devices must be
supplied within the fixed installation.
If the fixed appliance is fitted with a supply cord and
a plug, the appliance has to be put in a place where
the plug can be reached easily.
The use of flammable materials should be avoided in
close proximity of the appliance. When frying, please
pay particular attention to fire risk due to oil and
grease. Being highly flammable, fried oil is especially
dangerous. Do not use uncovered electric grills.
In order to avoid possible fire risk, all instructions
for grease-filter cleaning and for removing eventual
grease deposits should be strictly followed.
• There shall be adequate ventilation of the room when the range hood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
WARNING: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.

4 5
plate by using the two 10mm screws supplied with
the appliance, as shown in Fig. 5. (Power cord shown
as red line)
Connect cord to power.
Lift the fixing plate cover and secure it with the
screws supplied with the appliance, as shown in
Fig.6.
The appliance can only be used in the filtering
version, so it is equipped with metal grease filters and
carbon filters.
FILTERS
Power cord (Fig. 5)
(Fig. 6)
Remote control
6 channel control for rangehood remote.
• When the rangehood is first turned on, hold the
lighting button for 5 seconds.
RC001 - RADIO CONTROL
Radio control used for the remote operation of
rangehoods.
TECHNICAL DATA
• Alkaline battery powered: 12 V mod. 23 A
• Operating frequency: 433.92 Mhz
• Combinations: 32.768
• Max. consumption: 25 mA
• Operating temperature: -20 ÷ + 55 °C
• Dimensions: 120 x 45 x 15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for cooker
hood management, as specified below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control unit
ready to be used with codes preset in the factory.
WORKING OPERATION MODE
Standard configuration:
Standard configuration requires all rangehood radio
control systems to be provided with the same
transmission code. In the event two rangehoods are
installed in the same room or nearby, each system
may affect the operation of the another. Therefore,
the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset
codes. Should new codes be required, proceed as
follows: Press simultaneously buttons:
for two seconds. When LEDs are on, press buttons:
(within 5 seconds). The LEDs flashing 3 times
indicate the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Learning the new transmission code.
Once the transmission code is changed in the radio
control unit, the electronic central unit of the cooker
hood must be made to set the new code in the
following way:
Press the main power-off button of the hood and
then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button to
synchronise the central unit with the code.
Reset of the Factory configuration:
To restore the Factory configuration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When LEDs light on, press buttons:
(within 5 seconds). LEDs flashing 6 times in-dicate
the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Emergency button:
In the event that the radio control does not work, use
the emergency button to switch the appliance off.
After any necessary repairs have been performed,
reset the emergency button.
Place the fixing plate (Fig.2) into the ceiling, in a
position which coincides with the centre of your
cooktop, then drill the holes and fix the plate by using
the screws and screw anchors supplied with the
appliance. The power cord needs to pass through
the plate hole, which is shown by the arrow in Fig. 2.
Remove the appliance from its packaging and
place it in a suitable area, where it is not likely to be
damaged.
Fix the articulated rod to the product by inserting and
tightening the fixing screw, as shown in Fig. 3.
Adjust the height of the appliance, making sure
height is set as per Fig. 1 requirements; height
adjustment can be done by loosening the rod fixing
screws, adjusting the appliance height and then by
fastening them again.
Insert the ceiling bracket cover from the rod upper
part, as per Fig. 4.
Hang the appliance to the fixing plate, and secure the
INSTALLATION
(Fig. 2)
Ceiling bracket
Hole for
cable
Power
cord
(Fig. 3)
(Fig. 4)
Ceiling bracket
cover

6
Any adjustments or modifications which
have not been expressly approved by the
holder of the legal conformity certificate
may invalidate the user’s rights relating to
the operation of the device.
Rev. 0 26/08/14
The products are endowed with an electronic device
which allows the automatic switching off after 4 hours
working from the last operation.
The battery should be replaced every year
to guarantee the optimal range of the
transmitter.
To replace the exhausted battery, take
the plastic lid off, remove the battery and
replace it with a new one, observing the
correct battery polarities.
Used batteries should be discarded in
special collection bins.
The below product: RC001 Radio Control complies
with the specifications set out in the R&TTE Directive
99/5/EC.
WARNING
WARNING
