Siruba F007D User manual

J •
15f!ffl IDt~ i!i &~ftf~
INSTRUCTION & PARTS BOOK
~ ® ~ ** ] ~ 151 ~ ~N ~ PJ
~ KAULIN MFG. CO., L TO .
® '
From the library of: Superior Sewing Machine & Supply LLC

{!Jij~IJJ
. :t(.
.. ~ • • Jt m
.II tl
~I
.Rti~2J!tl
· ·~11 2 J!tl
.at.&t2~1J-IItl
.at2J! tl
.!J ji 1Jl!
· ~···
. at~ • · tt 2 ••
.J:J( ~-t!Jiilt
.jq~Az il~t
.!1~-flJl;ZJilt
·~ · ~ ·
.ji¥A RI 1J~ Jl 2 rlll
fi-~IJJ
.. at •• Jlil.
.at-~at;Z~ift·~
.~at~••z••
.ill JJ{ at J=l • ll
. fi JJ{ at J=l • •
.~f5JAiflJliilt
. ~ f5J AM j!f illt
.J:Jt .fiiiiW 2 illl
.J:J( fjflJill
.jq~Af17t2illl
.at -~atillfifJIJ~ruJ
it.2iill
.~ at ft1J • • JJJ
.~at-W fi2iilt
-~·
•m~
•~t•

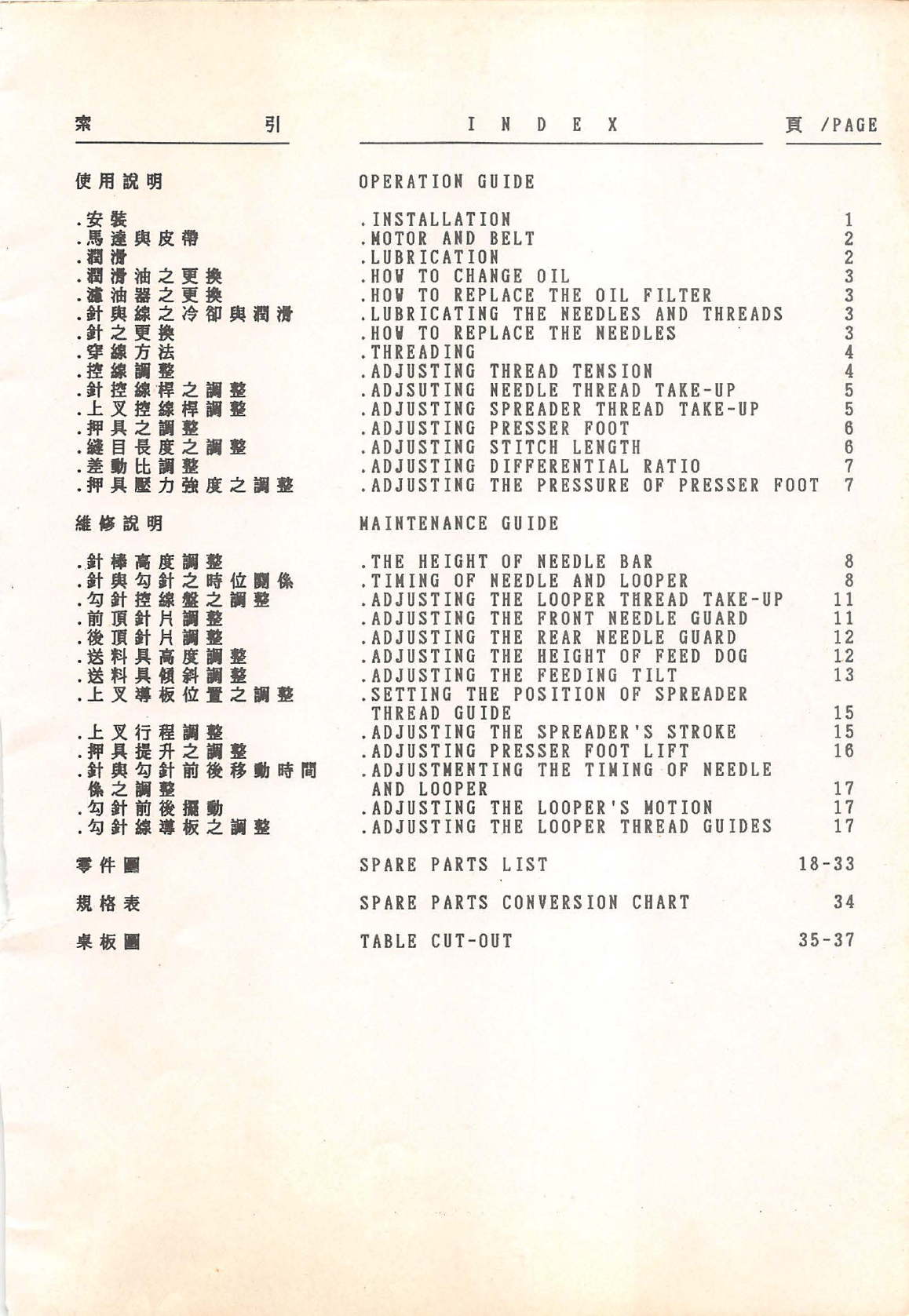

I N D E X
OPERATION GUIDE
.INSTALLATION
.MOTOR AND BELT
.LUBRICATION
.HOW TO CHANGE OIL
.HOW TO REPLACE THE OIL FILTER
.LUBRICATING THE NEEDLES AND THREADS
.HOW TO REPLACE THE NEEDLES
THREAD TENSION
NEEDLE THREAD TAKE-UP
SPREADER THREAD TAKE-UP
PRESSER FOOT
STITCH LENGTH
DIFFERENTIAL RATIO
J!{ /PAGE
1
2
2
3
3
3
3
4
4
5
5
6
6
7
.THREADING
.ADJUSTING
.ADJSUTING
.ADJUSTING
.ADJUSTING
. ADJUSTING
.ADJUSTING
.ADJUSTING THE PRESSURE OF PRESSER
FOOT 7
MAINTENANCE GUIDE
.THE HEIGHT OF NEEDLE BAR 8
.TIMING OF NEEDLE AND LOOPER 8
.ADJUSTING THE LOOPER THREAD TAKE-UP 11
.ADJUSTING THE FRONT NEEDLE GUARD 11
.ADJUSTING THE REAR NEEDLE GUARD 12
. ADJUSTING THE HEIGHT OF FEED DOG 12

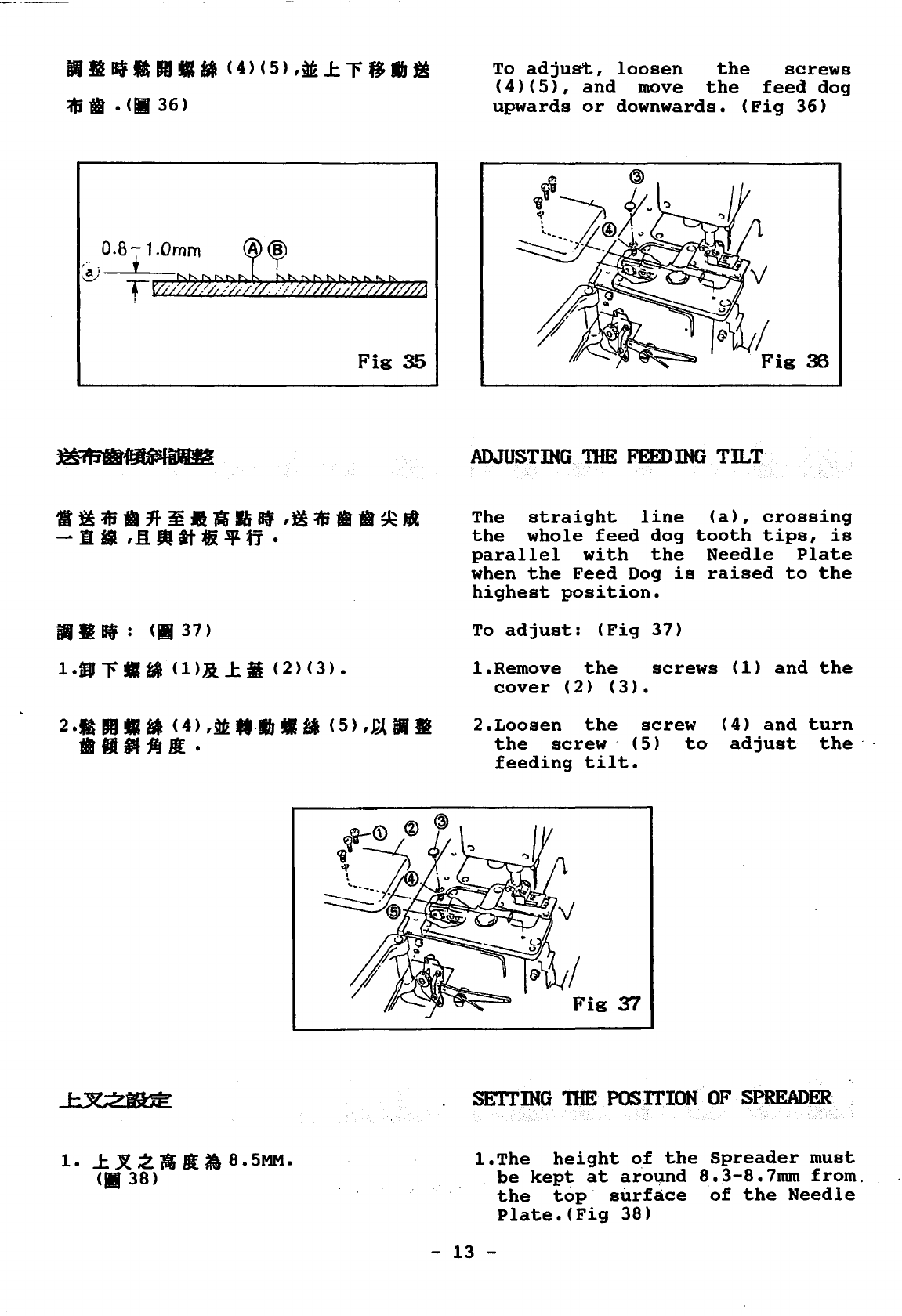

.ADJUSTING THE FEEDING TILT 13

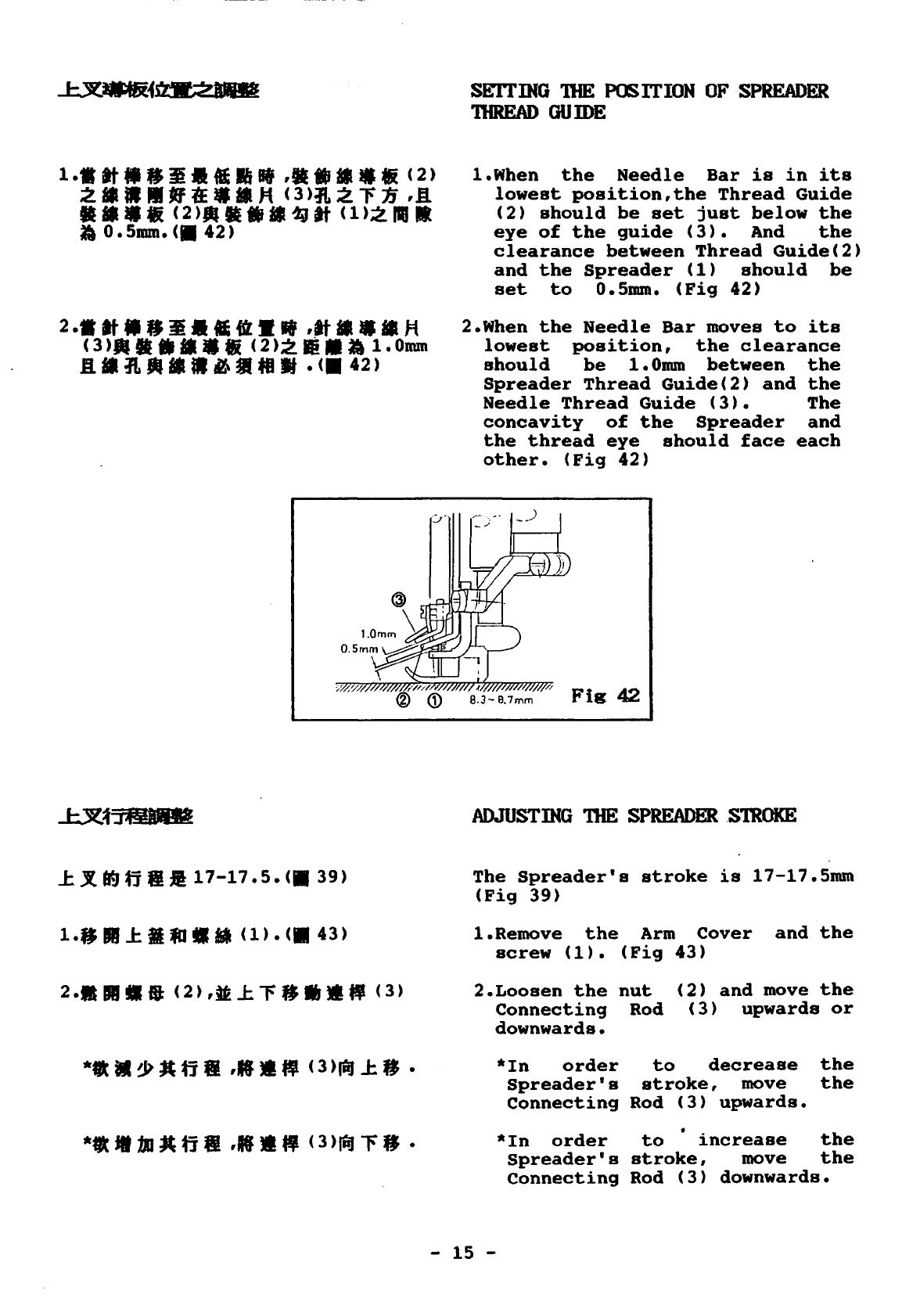

.SETTING THE POSITION OF SPREADER
THREAD GUIDE 15
. ADJUSTING THE SPREADER'S STROKE 15
.ADJUSTING PRESSER FOOT LIFT 16
.ADJUSTMENTING THE TIMING OF NEEDLE
AND LOOPER 17

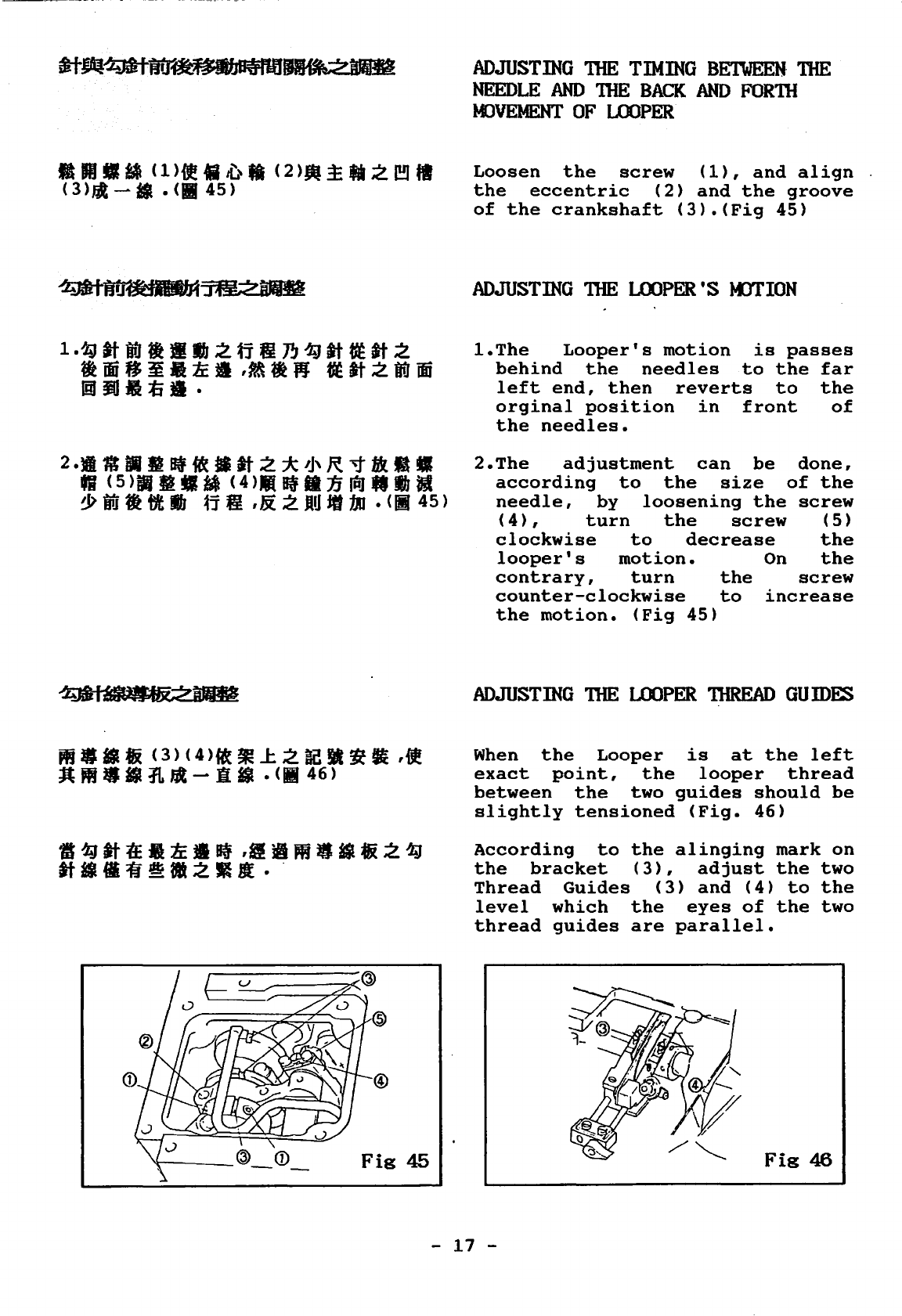

.ADJUSTING THE LOOPER'S MOTION 17
.ADJUSTING THE LOOPER THREAD GUIDES 17
SPARE PARTS LIST 18-33
SPARE PARTS CONVERSION CHART 34
TABLE CUT-OUT 35-37
From the library of: Superior Sewing Machine & Supply LLC

Machine~
~~
6,000
5,500
5,000
4,500
4,000
2 ·* li /!1./Jf r3 50mm.
Fig 1

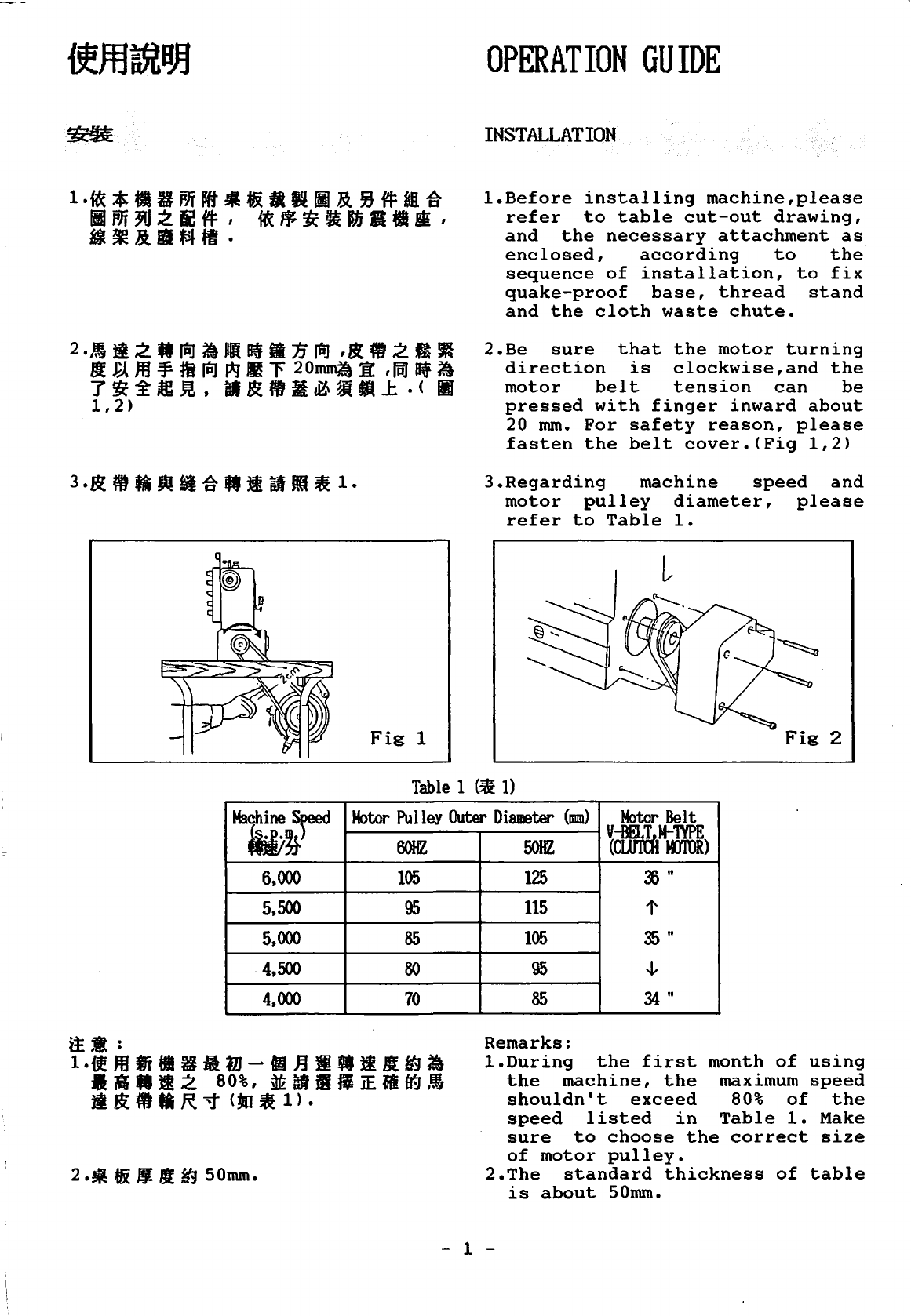

OPERATION GUIDE
INSTALLATION
!.Before installing machine,please
refer to table cut-out drawing,
and the necessary attachment as
enclosed, according to the
sequence of installation, to fix
quake-proof base, thread stand
and the cloth waste chute.
2.Be sure that the motor turning
direction is clockwise,and the
motor belt tension can be
pressed with finger inward about
20 mm. For safety reason, please
fasten the belt cover.(Fig 1,2)
3.Regarding machine speed and
motor pulley diameter, please
refer to Table 1.
Fig 2
Table 1 (~ 1)
Motor Pulley Outer Diameter (mm)
Motor Belt
~~N-,tg)
60HZ
105
95
85
80
70
50HZ
125
l)"
115
t
105
35"
95
~
85
34"
Remarks:
!.During the first month of using
the machine, the maximum speed
shouldn't exceed 80% of the
speed listed in Table 1. Make
sure to choose the correct size
of motor pulley.
2.The standard thickness of table
is about 50mm.
- 1 -
From the library of: Superior Sewing Machine & Supply LLC

1 •• ~. '". 1/2,'1 jJ (gl 400£ ) ,
3*6 2fi M. VI!Blfl•
2.,15 i1 i2. 2. tc &It:' il II. II Bl M ft Ill
,\lti&:MtateJt:roaa.z·•-•• ..
l.ftl. JU MOBIL#lO !'2 ESS0#32!1fiU ifl 2.
iltlbll·
2.Eif ~ ii 8 U 1£ It II ftiJ B If Nl •• ,mJ
tt li • • 1£ fJ! m tf1 ~ it it .A f1i ~ '"
ll.t.l "A"Ifbllit.AfiiiJt:l ~-~··
~t~~~llttti.J\J:raaznaepiiJ.
(. 3, 4)
Fig 3

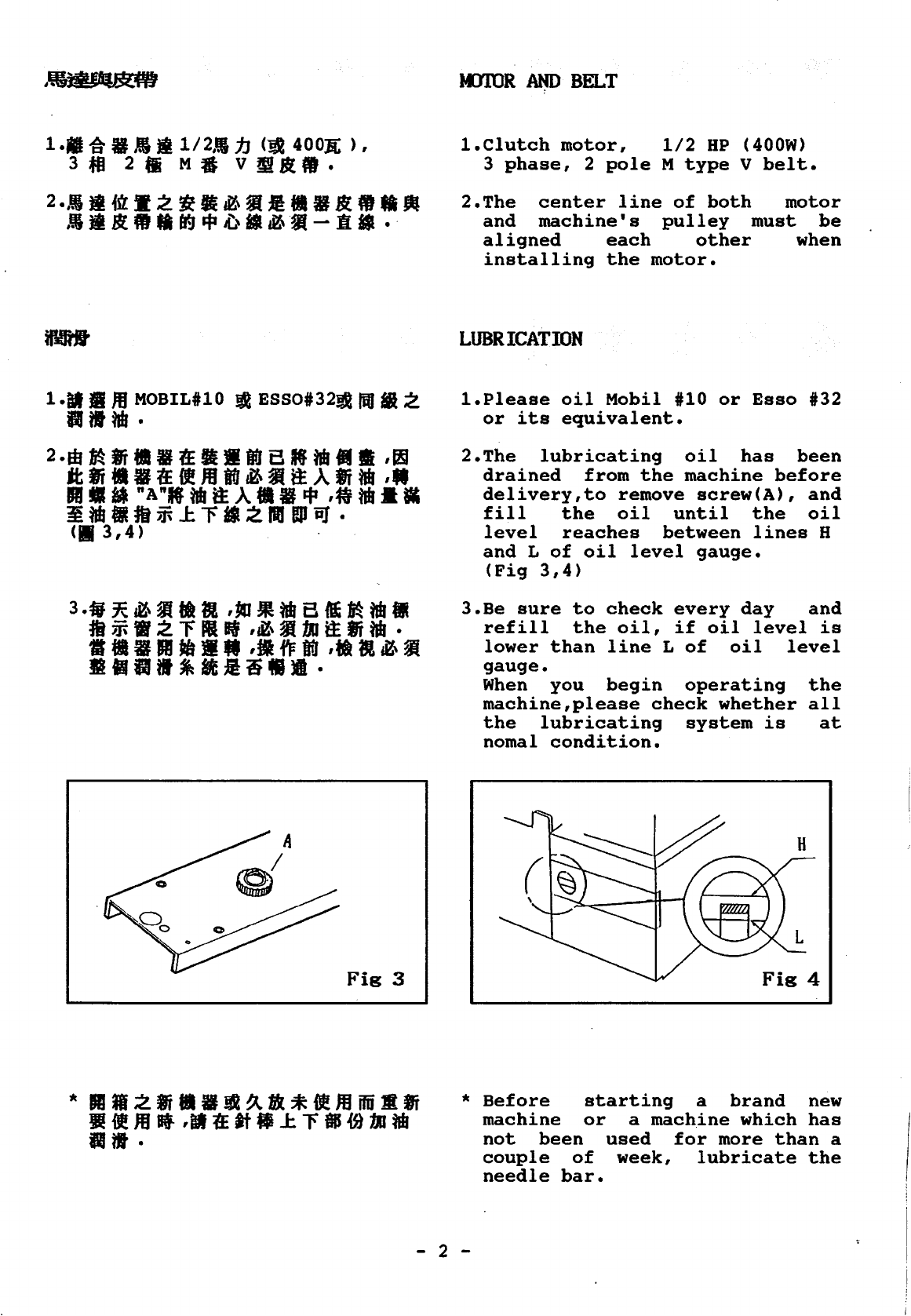

tcroR ~BELT
!.Clutch motor, 1/2 HP (400W)
3 phase, 2 pole M type V belt.
2.The center line of both motor
and machine's pulley must be
aligned each other when
installing the motor.
LUBRICATION
!.Please oil Mobil #10 or Esso #32
or its equivalent.
2.The lubricating oil has been
drained from the machine before
delivery,to remove screw(A), and
fill the oil until the oil
level reaches between lines H
and L of oil level gauge.
(Fig 3,4)
3.Be sure to check every day and
refill the oil, if oil level is
lower than line L of oil level
gauge.
When you begin operating the
machine,please check whether all
the lubricating system is at
noma! condition.
Fig 4
* Before starting a brand new
machine or a machine which has
not been used for more than a
couple of week, lubricate the
needle bar.
- 2 -
From the library of: Superior Sewing Machine & Supply LLC

1.31. M <1 )Jill ,~ ~ M 2. ti :ffi ~ j~
ltillliJitll .(llf5)
2 .a g-ut* a• ailt ,ftl ~ Bn ~ ~ mw
II M ti J! • li tdl I Jll It &'3 • (lg ill _ij J!
--~.
D

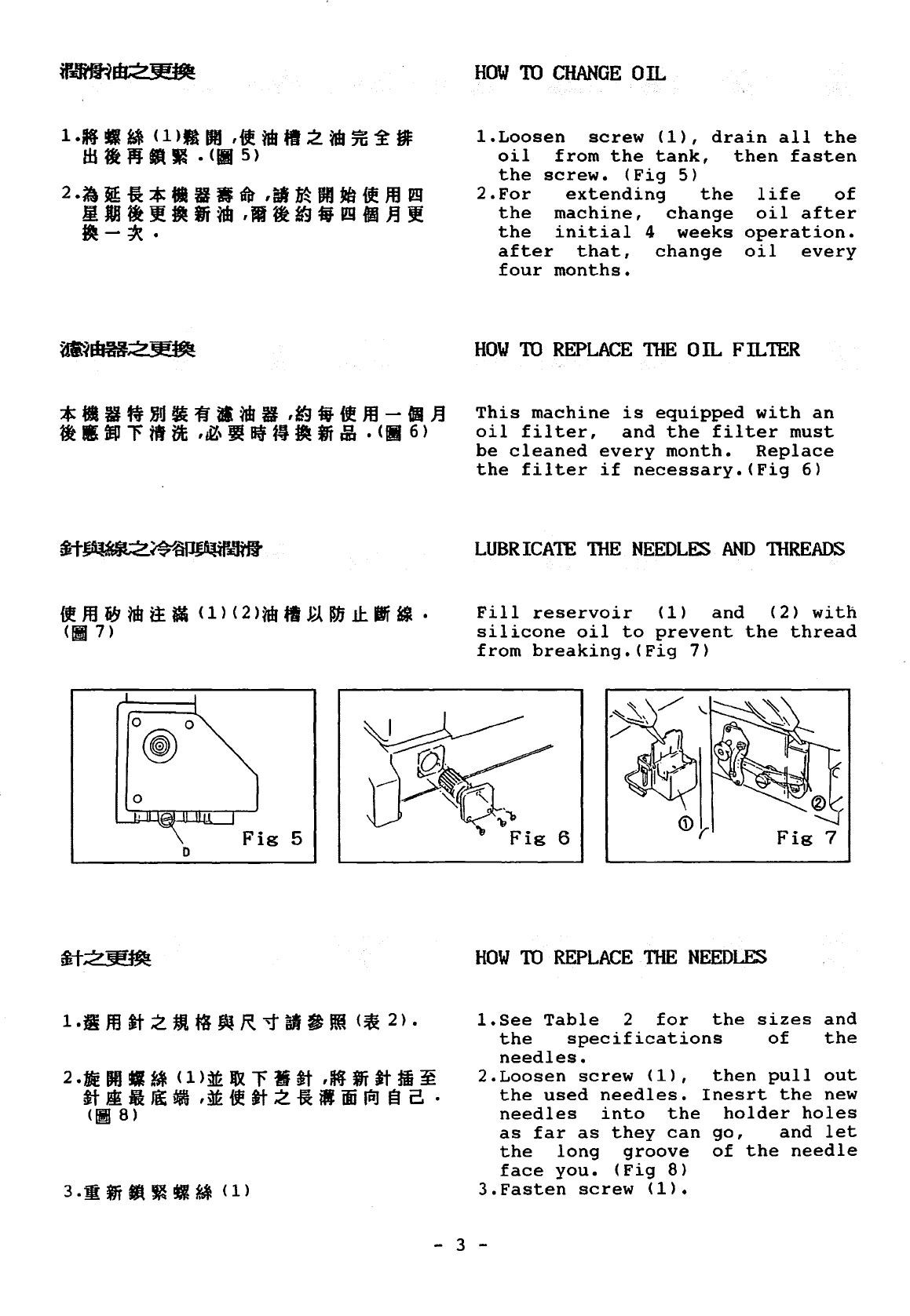

HOW 1U CHANGE OIL
!.Loosen screw (1), drain all the
oil from the tank, then fasten
the screw. (Fig 5)
2.For extending the
the machine, change
the initial 4 weeks
after that, change
four months.
life of
oil after
operation.
oil every
HOW TO REPLACE TilE 0 IL FILTER
This machine is equipped with an
oil filter, and the filter must
be cleaned every month. Replace
the filter if necessary.(Fig 6)
LUBRICATE 'mE NEEDL~ AND 111READS
Fill reservoir (1) and <2> with
silicone oil to prevent the thread
from breaking.(Fig 7)
Fig 7
HOW 1U REPLACE niE NEEDLES
!.See Table 2 for the sizes and
the specifications of the
needles.
2.Loosen screw (1), then pull out
the used needles. Inesrt the new
needles into the holder holes
as far as they can go, and let
the long groove of the needle
face you. (Fig 8)
3.Fasten screw <1>.
- 3 -
From the library of: Superior Sewing Machine & Supply LLC

Table 2 (~ 2)
NEEDLE SYSTEM NEEDLE SIZE/at R. '1'
at{t!J! 2
NEEDLES 3 NEEDLES
SCHNETZ UY128GAS
I 70
# 75
ORGAN 128GAS I 10
# 11
-
niREADING
Follow the
( Fig 9 )
threading
breaking,
puckering
Fig 8
procedures shown in
for threading. Wrong
may cause thread
skipping stitch ,
or unexpected sewing.
Fig 9
ADJUSTING TIIREAD 1ENS ION
The tensions of the threads
should be adjusted according to:
1.The types and the thicknesses
of the fabrics being sewed;
2.The threads;
3.The needle gauge.
If you turn the thread tension
knob (1) clockwise, thread will
be tighter. (Fig 10)
If you turn it counter-
clockwise, will be looser.
- 4 -
From the library of: Superior Sewing Machine & Supply LLC

Fig 10
ADJUSTING. NEEDLE ~- TAKE-UP
1.When the needle bar is in the
lowest position, the top edge of
the Needle Thread Take-Up (1)
should remain horizontal. To
adjust the position of the
Take-Up, loosen the screw (4)
first.(Fig 11)
2.Loosen screws (2) and adjust the
length between point A and B to
about 75mm, then fasten screws
(2) tightly.
Note:
To tighten the needle thread,
turn the Needle Thread Take
Up (3) toward the left. To
loosen turn it toward the
right.
3.Do not move the Spreader Thread
Take-Up (5) when .making above
adjustments.
ADJUSTING SPREADER niREAD TAKE-UP
1.When the Spreader Thread Take-Up
(1) is adjusted to the top, the
small hole of the other Spreader
Thread· Take-Up(A) must be at the
same level with the long groove
of the Spreader Thread Take-Up
(1). (Fig 12)
2.To adjust, loosen screw (3) and
(4), and move the Spreader
Thread Take-Up (2) up or down ,
And
then, tighten screw again.
Fig 11
- 5 -
From the library of: Superior Sewing Machine & Supply LLC

B ~ -Jt dJ 1 • 2£ 4• OIDinfll IV II i'! • !I ll -
~at 6-18ft •
3 .a• -a tt m Bf ,JI *••• If tt 1i lfiJ
• • ;li. z ld ,.~ •
It
NEEDLE)
J Fig 13
ADJUSTING PRESSER FOOT
Loosen screw(!) and adjust Presser
Foot(2) left and right to a proper
position to let the needle may get
into the center of Presser Foot's
eyelet.
After adjusting, tighten screw (1)
(Fig 13)
ADJUSTING STITCH LENGnl
Stitch length can be adjusted
variably in range from 1.2mm-4.0mm,
or 6-18 stitches per inch.
!.Keep pressing the push botton(A)
with your left hand, then turn
the handwheel with you right hand
until your left hand finger feels
the push botton lock in.(Fig 14)
2.Keep turning handwheel for a
inquired stitch length, whose
scale indicated on the handwheel
must be aligned with, then stop
pressing the botton. (Fig 15)
3.Turn the handwheel clockwise to
increase the stitch length, and
counter-clockwise to decrease.
4.After adjusting stitch length
the differential ratio will
usually be changed too. So
adjustment of differential ratio
is required.
Fig 14
- 6 -
From the library of: Superior Sewing Machine & Supply LLC

*••zmiJtbiiJfl 1:0.3 ••~
1:2.9 •••• <1>,J:rt¥1JJIMt¥
*••i11J tb • ((1116)
*J! fi1Jii :$ ft lll iii Sf ,JlU If B1 M '-it <2 >tt
J:f¥.
*II m Jllllll Sf ,JlU K Jl II t¥ <2 >tt r fJ •
Fig 16

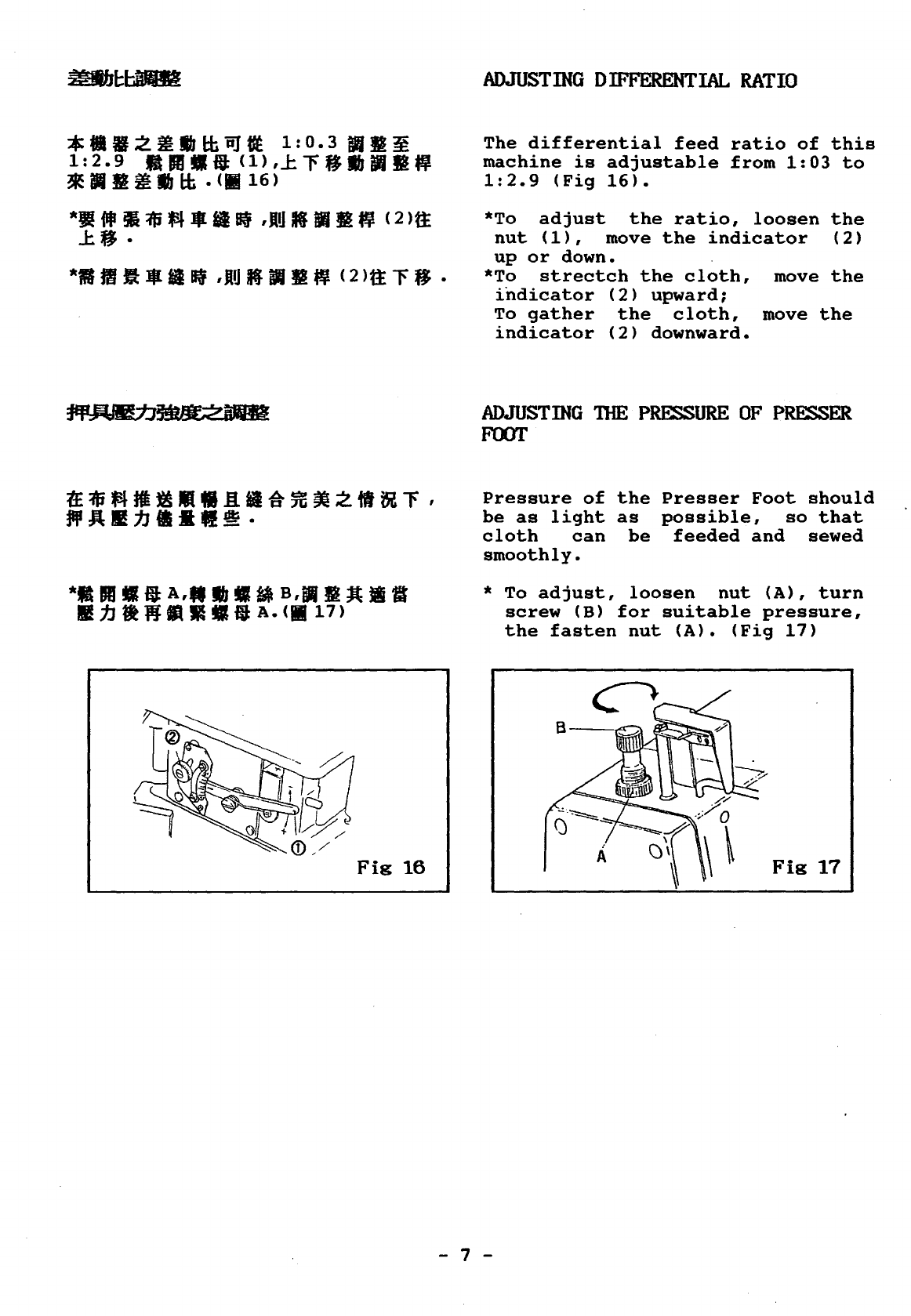

ADJUSTING DIFFERENTIAL RATIO
The differential feed ratio of this
machine is adjustable from 1:03 to
1:2.9 (Fig 16).
*To adjust the ratio, loosen the
nut (1), move the indicator (2)
up or down.
*To strectch the cloth, move the
indicator (2) upward;
To gather the cloth, move the
indicator (2) downward.
ADJUSTING Tim P~URE OF P~ER
FOOT
Pressure of the Presser Foot should
be as light as possible, so that
cloth can be feeded and sewed
smoothly.
*To adjust, loosen nut (A), turn
screw (B) for suitable pressure,
the fasten nut (A). (Fig 17)
Fig 17
- 7 -
From the library of: Superior Sewing Machine & Supply LLC

(a)
J,////ff@'///M////$///////4
NEEDLE
GAUGE
atm
4.0 mm
Fig 18
MAINTENANCE GUIDE
niE HEIGHT OF NEEDLE BAR
1.When the Needle Bar is lifted to
the highest postion, the
standard settings between the
left needle point and the Needle
Plate are listed in Table 3.
(Fig 18)
2.Remove the cap screw (1), loosen
the screw (2), adjust the Needle
Bar up or down to required
height then fix it.(Fig 19)
Remark:
(1)Insert the needles into the
holder holes as far as they
can go.
(2)After the adjustments, make
sure that every needle
passes through the center of
the needle hole in the
needle plate, and the gap is
even. (Fig 20)
TABLE 3 (¥i 3)
2- NEEDLE
ftrT.
9.3 BBI
3 -NEEDLE
NEEDLE
ftr1::
GAUGE
atm
5.6 mm 8.5 mm
6.4 IDIIl 8.1 mm
Fig 20
TIMING. OF NEEDLE AND LOOPER
1. When the Needle Bar is in the
lowest position,the Looper should
be at the extreme right point.
Therefore, when the Needle Bar
starts to move up meanwhile the
Looper starts to move to the
left. And its route is passing
behind the needles,then reverting
- 8 -
From the library of: Superior Sewing Machine & Supply LLC

•• Elf : <• 22)
(1)1J···J:.·;
<2> ltiiJ•ta <1>,tt.IJI1l.M <2>A
J:lll•••z..r. ... (3)ftll.
Fig 21
1.0 -I.Z mm
Fig 23

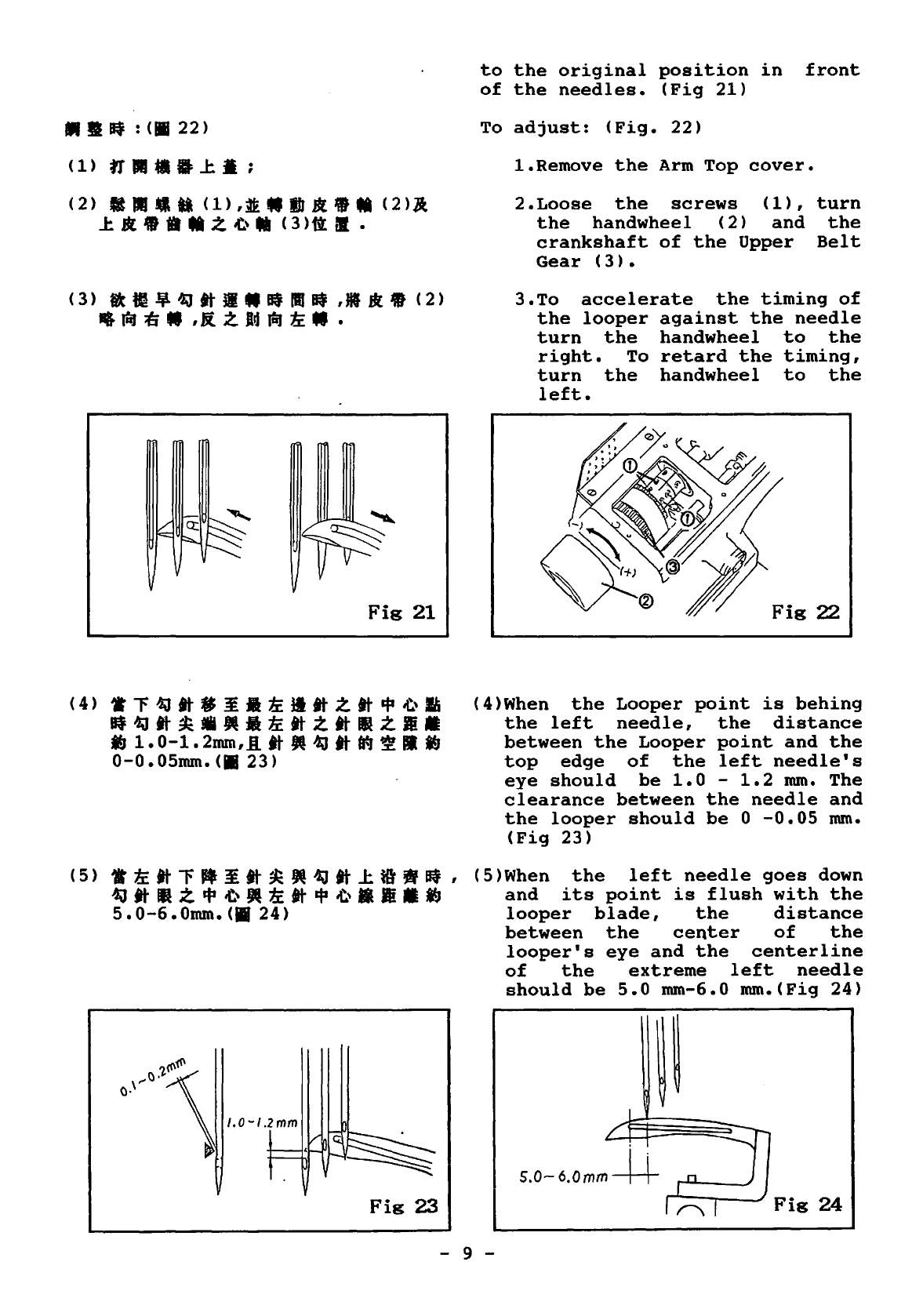

to the original position in front
of the needles. (Fig 21)
To adjust: (Fig. 22)
1.Remove the Arm Top cover.
2.Loose the screws (1), turn
the handwheel (2) and the
crankshaft of the Upper Belt
Gear (3).
3.To accelerate the timing of
the looper against the needle
turn the handwheel to the
right. To retard the timing,
turn the handwheel to the
left.
Fig 22
(4)When the Looper point is behing
the left needle, the distance
between the Looper point and the
top edge of the left needle's
eye should be 1.0 - 1.2 mm. The
clearance between the needle and
the looper should be 0 -0.05 mm.
(Fig 23)
(5)When the left needle goes down
and its point is flush with the
looper blade, the distance
between the center of the
looper's eye and the centerline
of the extreme left needle
should be 5.0 mm-6.0 mm.(Fig 24)
S.0-6.0mm~
Fig 24
- 9 -
From the library of: Superior Sewing Machine & Supply LLC

TABLE 4
2 -NEEDLE
NEEDLE
DIST~
GAUGE
Be(a 8
ltfti
4.0mm
4.0 - 4.3mm
rA) Fig 25
The standard settings of the
Looper is when the looper moves to
extreme right, The distance
between the centerline of the
right needle and the looper point
are listed in Table 4.
To adjust, move the looper to its
right exact point, then follow the
procedures below:
1.To adjust the distance of (A),
loose the screw (1) and move the
Looper Holder to right or left,
for the distance as listed in·
Table 4.(Fig 25, 26)
2.To set clearance between the
needle and the Looper:
*When the Looper point is behing
the left needle, the distance
between the Looper point and the
top edge of the left needle's
eye should be 1.0 - 1.2 mm. The
clearance between the needle and
the looper should be 0 -0.05 mm.
(Fig 23)
*For three needle machines, when
the looper point is behind the
centerline of the middle needle,
the clearance between the needle
and the Looper should be 0-0.5mm.
(Fig 27)
(¥& 4)
3- NEEDLE
NEEDLE
~~~
ifUGjg
5.6mm
3.2 - 3.5mm
6.4mm
2.8 - 3.1mm
Fig 27
O:I-0.2mm
- 10 -
From the library of: Superior Sewing Machine & Supply LLC

-~--------- ----------
2/3
Fig 28
ADJUSTING LOOPER niREAD TAKE-UP
The Looper Thread Cam should
release the thread of the Looper
when the point of the left needle
is in the following position:
!.For the 2-needle machine, while
the end of the left needle is in
2/3 position of the Looper.
(Fig 28)
2.For the 3-needle machine,the end
of the left needle is vertical
to the lower edge of the Looper.
(Fig. 29)
To adjust: loosen the screw (1),
then turn the Looper
Thread Cam (2).(Fig 30)
Fig 29
30
ADJUSTING THE FRONT NEEDLE GUARD
!.When the Looper goes from the
right .. exact_ _point to the left
.· . exact :point·,. it: .. passes behind
the needles and the Front
Needle Guard (1) is in front
of the needles.(Fig 31)
2.The clearance between the
needles and the Front Needle
Guard should rema~n so close
that only the needle threads can
pass through.
3.To adjust, loosen the screw(2),
and move the Front Needle Guard
(1) back or forth.
- 11-
From the library of: Superior Sewing Machine & Supply LLC

1.8 1 «f iJ ~II 0-0.5MM,If fJIJit.l M
(1),~JifJf.ltllblltt.f*Ji (2).
(. 33)
••. If 8 II tJ M <1 > ,~ nt tt » <2 >iaJ .1:
rt~IJJ.
·+·¥'~
r·--" r
r
'J.'rlo .... O.os
,, "''~~
A
·.,
0.1-0.2mm
Fig 32
1.3: i5 :tfi a J: 11- I M i8i ft II It 0.8-1.2
MM. <II 35) .
ADJUSTING.! THE REAR NEEDLE GUARD
When the looper point is behind
the right needle, the centerline
of the needle guard should have a
clearance of about 0-0.5mm between
the looper point and the right
needle. And it is also the same
clearance of 0 - 0.5mm between the
middle needle and the looper
point when the looper point is
in the rear of the centerline of
the middle needle.(Fig 32)
1.In order to gain a clearance
about 0 0.05mm, loosen the
screw (1), then move the needle
guard (2) back or forth.(Fig33)
2.When the needle is in below the
top of its lowest position, the
line (A) of the needle guard is
located 1/3 be low the top of
the right needle eye.(Fig. 34)
*To adjust, loosen the screw (1)
then move the Rear Needle Guard
upwards or downwards.
Fig 34
ADJUSTING THE HEIGHT OF FEED DOG
1.The height of Main Feed dog
is 0.8 - 1.2mm when it is in the
highest position. (Fig 35)
2.Adjust the Differential Feed Dog
so that the point B is at the
same level height as the point A
of the Main Feed Dog.
- 12 -
From the library of: Superior Sewing Machine & Supply LLC

ill Mlf Mil. tat <4 > <5 > ,~ J: r fJ 1J ~
~ t1 • <II 36 >
Fig 35
•• Iff: <II 37>
l.IIJ-r•• (l)&_J:ii (2)(3).
To adjust, loosen the screws
(4)(5), and move the feed dog
upwards or downwards. (Fig 36)
ADJUSTING niE FEEDING TR.T
The straight line (a), crossing
the whole feed dog tooth tips, is
parallel with the Needle Plate
when the Feed Dog is raised to the
highest position.
To adjust: (Fig 37)
!.Remove the screws (1) and the
cover ( 2) ( 3) •
2.Loosen the screw (4) and turn
the screw· (5) to adjust the··
feeding tilt.
Fig :g
SE1TING 11IE POSITION OF SPREADER
l.The height of the Spreader must
be kept at ar.ound 8 •. 3-8. 7mm from.
the top· surface of the Needle
Plate.(Fig 38)
- 13 -
From the library of: Superior Sewing Machine & Supply LLC

Blfillf:
Cl>.f&lltl~ C4>,MIJJ:Jl.filt¥ <5>,&
UfJ It tJ IJ ( 1) ,~fill~~. , ••
!tl t; C 4) • Cfl • 41)
(2 ) •1: ;tj tJ JJJ 1: J( (1 ) I I! ~ ,. at fi ;2 ~
~8.5MM,~filtll!tiM C3>.
I\
I
r- .\.
~ ~6.1mrn A
W~/M Fig38
8.3-B.7mm
Fig 40
2.There is a clearance about 0.5mm
between the Spareader's hooking
point and the left needle when
the Spreader passes the left
needle. And there is a
clearance about 4.5-5.mm between
the hooking point (B) and the
left needle when the Spreader is
in its extreme left point.
(Fig 39,40)
To adjust:
!.Loosen the screws (4) , and
move the Spreader (1) back or
forth, while turning the
Spreader Lever (5), after
finishing the setting, tighten
the screw (4). (Fig.41)
2.Move the spreader (1) upwards or
downwards to set its height from
the needle plate to 8.5mm , then
fasten the screw (3).
Fig 39
Fig 41
- 14 -
From the library of: Superior Sewing Machine & Supply LLC

SE'ITING 11IE f(EITION OF SPREADER
'DIREAD GUIDE
l.When the Needle Bar is in its
lowest position,the Thread Guide
(2) should be set just below the
eye of the guide (3). And the
clearance between Thread Guide(2)
and the Spreader (1) should be
set to O.Smm. (Fig 42)
2.When the Needle Bar moves to its
lowest position, the clearance
should be l.Omm between the
Spreader Thread Guide(2) and the
Needle Thread Guide (3). The
concavity of the Spreader and
the thread eye should face each
other. (Fig 42)
,--· •• .#" __ )
_ __,
.(.
8.3- B.7mm
~/ Fis 42
ADJUSTING niE SPREADER .STROKE
The Spreader's stroke is 17-17.5mm
(Fig 39)
!.Remove the Arm Cover and the
screw (1). (Fig 43)
2.Loosen the nut (2) and move the
Connecting Rod (3) upwards or
downwards.
- 15 -
*In order to decrease the
Spreader's stroke, move the
Connecting Rod (3) upwards.
*In order to increase the
Spreader's stroke, move the
Connecting Rod (3) downwards.
From the library of: Superior Sewing Machine & Supply LLC

3 •••• ,JIJ:ll ......
2.•••• <l>,~•••aa <2>rtrt.
4.tW.fli!PJ:fl-tJM <2>ffllflJift <3>,
~112i1M <1>.
3.After adjustments, remember to
fasten the above said screws.
Fig 43
ADJUSTING P~ER FOOT LIFi'
Presser Foot Lift means the
distance between the Presser Foot
and the Needle Plate when the
Presser Foot is at its highest
position. (Fig 44)
!.Rotate the handwheel to lower
the Feed Dogs to the lowest
position;
2.Loose the nut (1) and lower the
screw (.2);
3.Lower the lever(3) and raise the
Presser Foot to the proper
height
4.After adjustments, raise the
screw (2) up to touch the lever
(3) and tighten the nut (1) to
lock the position.
Fig 44
- 16 -
From the library of: Superior Sewing Machine & Supply LLC

Fig 45
ADJUSTING niE TIMING BETWEEN· 11m
NEEDLE AND niE BACK AND FORni
MOVEMENT OF LOOPER
Loosen the screw (1), and align
the eccentric (2) and the groove
of the crankshaft (3).(Fig 45)
ADJUSTING 11m LOOPER 'S t«JTION
1.The Looper's motion is passes
behind the needles to the far
left end, then reverts to the
orginal position in front of
the needles.
2.The adjustment can be done,
according to the size of the
needle, by loosening the screw
(4), turn the screw (5)
clockwise to decrease the
looper's motion. On the
contrary, turn the screw
counter-clockwise to increase
the motion. (Fig 45)
ADJUSTING 11m LOOPER 1liREAD GUID~
When the Looper is at the left
exact point, the looper thread
between the two guides should be
slightly tensioned (Fig. 46)
According to the alinging mark on
the bracket (3), adjust the two
Thread Guides (3) and (4) to the
level which the eyes of the two
thread guides are parallel.
Fig 46
- 17 -
From the library of: Superior Sewing Machine & Supply LLC

PARTS LIST FOR MA GROUP
K 7
MA02D
_...........SM132
MA04D
MAOl
MAll
'
SM 432
~
MA1:.:3 SM461
MAll-2
MAll-1
- 18 -
From the library of: Superior Sewing Machine & Supply LLC
