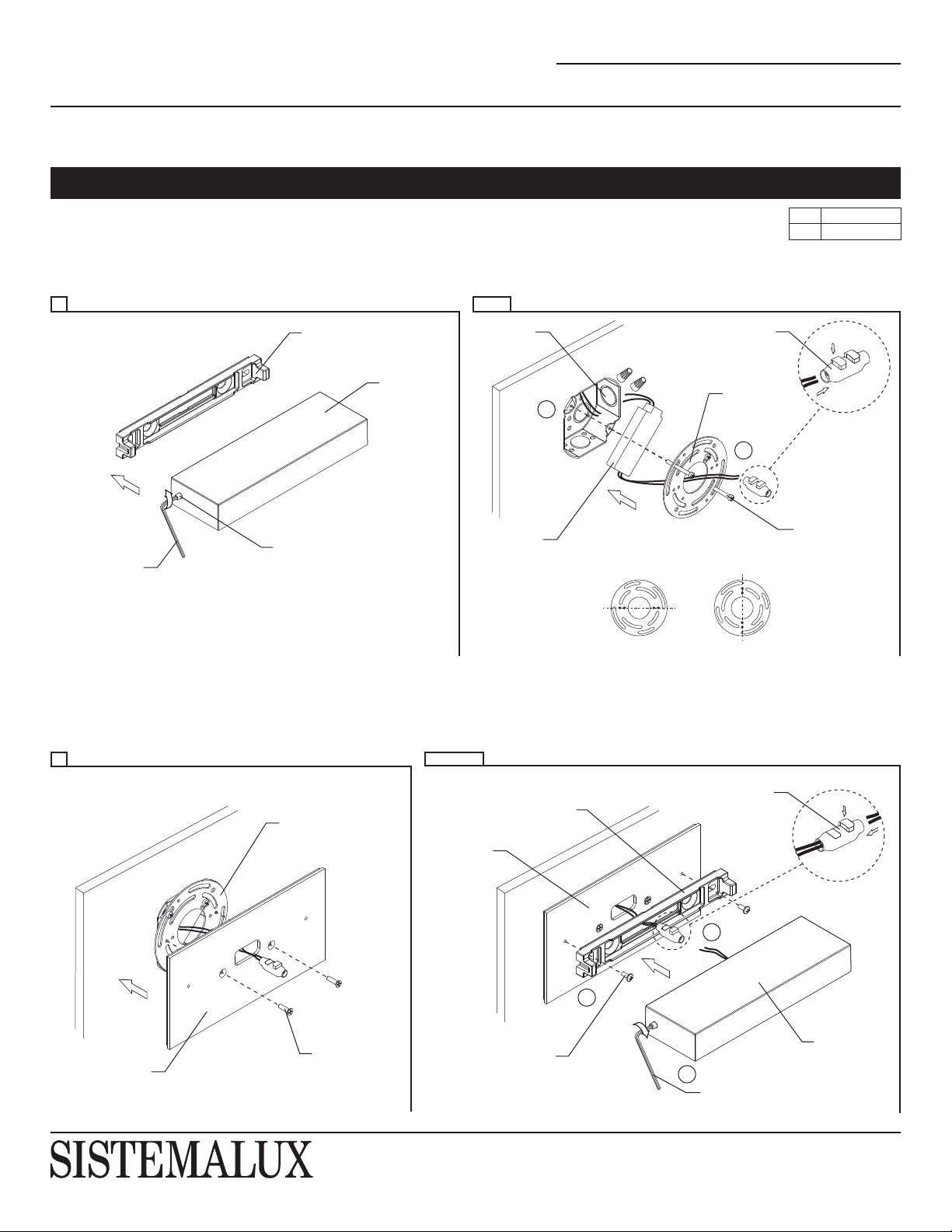

Sistemalux MINI LOOK Assembly instructions

A
A- UNSCREW THE (2) SET SCREWS WITH THE ALLEN KEY (INCLUDED) TO REMOVE THE BASE FROM THE FIXTURE.
DO NOT COMPLETELY REMOVE SCREWS.
B- MAKE WIRE CONNECTIONS (FOLLOWING POLARITY MARKING) AND INSERT THE DRIVER IN THE JUNCTION BOX
C- FIX THE UNIVERSAL CROSSBAR TO THE JUNCTION BOX USING SCREWS (INCLUDED) AND MAKE WIRE
CONNECTION WITH THE CONNECTOR (INCLUDED). FOLLOW ALIGNMENT DETAIL BELOW TO GET THE PROPER ORIENTATION.
INSTALLATION ON 4" JUNCTION BOX WITH INTEGRAL DRIVER (120-277V)
E + F + G
D- INSTALL THE MOUNTING PLATE ON THE UNIVERSAL CROSSBAR USING THE (2) FLAT HEAD SCREWS (INCLUDED).
E- FASTEN THE FIXTURE BASE ON MOUNTING PLATE USING THE (2) PAN HEAD SCREWS (INCLUDED).
F- CONNECT THE FIXTURE WIRES TO THE CONNECTOR. BE SURE TO CORRECTLY PRESS BUTTON TO CONNECT.
G- FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS USING THE ALLEN KEY (INCLUDED).
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.
B + C
D
MINI LOOK / MINI COOL WALL
MODEL: S7201, S7202, S7231, SL9201, SL9202, SL9231
INS-325
INSTALLATION SHEET PAGE: 1 OF 5
MD - R4
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LAST UPDATE: FEBRUARY 23 2018
FIXTURE
BASE
FIXTURE
UNIVERSAL
CROSSBAR
DRIVER
UNIVERSAL
CROSSBAR
SCREWS
(INCLUDED)
MOUNTING
PLATE
FLAT HEAD
SCREWS
(INCLUDED)
ALLEN KEY
(INCLUDED)
FIXTURE
MOUNTING
PLATE
CONNECTOR
PAN HEAD
SCREWS
(INCLUDED)
ALLEN KEY
(INCLUDED)
FIXTURE
BASE
SET SCREW
JUNCTION
BOX
OR
CROSSBAR ALIGNMENT
HORIZONTAL VERTICAL
B
E
G
F
C
CONNECTOR
(INCLUDED)
- BLACK
WHITE or RED
+

E + F + G
D- INSTALL THE MOUNTING PLATE ON THE UNIVERSAL CROSSBAR USING THE (2) FLAT HEAD SCREWS (INCLUDED).
E- FASTEN THE FIXTURE BASE ON MOUNTING PLATE USING THE (2) PAN HEAD SCREWS (INCLUDED).
F- CONNECT THE FIXTURE WIRES TO THE CONNECTOR. BE SURE TO CORRECTLY PRESS BUTTON TO CONNECT.
G- FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS USING THE ALLEN KEY (INCLUDED).
D
UNIVERSAL
CROSSBAR
MOUNTING
PLATE
FLAT HEAD
SCREWS
(INCLUDED)
FIXTURE
MOUNTING
PLATE
CONNECTOR
PAN HEAD
SCREWS
(INCLUDED)
ALLEN KEY
(INCLUDED)
FIXTURE
BASE
E
F
G
MINI LOOK / MINI COOL WALL
MODEL: S7201, S7202, S7231, SL9201, SL9202, SL9231
INS-325
INSTALLATION SHEET PAGE: 2 OF 5
MD - R4
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LAST UPDATE: FEBRUARY 23 2018
A
A- UNSCREW THE (2) SET SCREWS WITH THE ALLEN KEY (INCLUDED) TO REMOVE THE BASE FROM THE FIXTURE.
DO NOT COMPLETELY REMOVE SCREWS.
B- MAKE WIRE CONNECTION WITH THE CONNECTOR (INCLUDED).
C- FIX THE UNIVERSAL CROSSBAR TO THE JUNCTION BOX USING SCREWS (INCLUDED). FOLLOW ALIGNMENT
DETAIL BELOW TO GET THE PROPER ORIENTATION.
B + C
FIXTURE
BASE
FIXTURE
UNIVERSAL
CROSSBAR
JUNCTION
BOX
SCREWS
(INCLUDED)
ALLEN KEY
(INCLUDED)
SET SCREW
OR
CROSSBAR ALIGNMENT
HORIZONTAL VERTICAL
- BLACK
RED+
INSTALLATION ON 4" JUNCTION BOX TO REMOTE DRIVER (24V)
B
C
CONNECTOR
(INCLUDED)

CONNECTOR
SET SCREW
ALLEN KEY
(INCLUDED)
MOUNTING
PLATE
CONNECTOR
(INCLUDED)
FIXTURE
BASE
PAN HEAD
SCREWS
(INCLUDED)
MINI LOOK / MINI COOL WALL
MODEL: S7201, S7202, S7231, SL9201, SL9202, SL9231
INS-325
INSTALLATION SHEET PAGE: 3 OF 5
MD - R4
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LAST UPDATE: FEBRUARY 23 2018
A
A- UNSCREW THE (2) SET SCREWS WITH THE ALLEN KEY (INCLUDED) TO REMOVE THE BASE FROM THE FIXTURE.
DO NOT COMPLETELY REMOVE SCREWS.
B- MAKE WIRE CONNECTIONS (FOLLOWING POLARITY MARKING) AND INSERT THE DRIVER IN THE JUNCTION BOX.
C- INSTALL THE MOUNTING PLATE ON THE JUNCTION BOX USING FLAT HEAD SCREW (INCLUDED) AND MAKE WIRE
CONNECTIONS USING CONNECTOR (INCLUDED). FOLLOW ALIGNMENT DETAIL BELOW TO GET THE PROPER ORIENTATION.
INSTALLATION ON 2" JUNCTION BOX WITH INTEGRAL DRIVER (120-277V)
E + F
D- FASTEN THE FIXTURE BASE ON MOUNTING PLATE USING THE (2) PAN HEAD SCREWS (INCLUDED).
E- CONNECT THE FIXTURE WIRES TO THE CONNECTOR. BE SURE TO CORRECTLY PRESS BUTTON TO CONNECT.
F- AND FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS USING THE ALLEN KEY (INCLUDED).
B + C
D
FIXTURE
BASE
FIXTURE
ALLEN KEY
(INCLUDED)
SET SCREW
- BLACK
WHITE or RED
+
MOUNTING
PLATE FLAT HEAD
SCREWS
(INCLUDED)
OR
JUNCTION BOX ALIGNMENT
HORIZONTAL VERTICAL
CONNECTOR
(INCLUDED)
B
C
E
F

A
A- UNSCREW THE (2) SET SCREWS WITH THE ALLEN KEY (INCLUDED) TO REMOVE THE BASE FROM THE FIXTURE.
DO NOT COMPLETELY REMOVE SCREWS.
B- INSTALL THE MOUNTING PLATE ON THE JUNCTION BOX USING FLAT HEAD SCREW (INCLUDED) AND MAKE WIRE
CONNECTIONS USING CONNECTOR (INCLUDED). FOLLOW ALIGNMENT DETAIL BELOW TO GET THE PROPER ORIENTATION.
D + E
C- FASTEN THE FIXTURE BASE ON MOUNTING PLATE USING THE (2) PAN HEAD SCREWS (INCLUDED).
D- CONNECT THE FIXTURE WIRES TO THE CONNECTOR. BE SURE TO CORRECTLY PRESS BUTTON TO CONNECT.
E- FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS USING THE ALLEN KEY (INCLUDED).
B
C
CONNECTOR
FIXTURE
BASE
FIXTURE
ALLEN KEY
(INCLUDED)
SET SCREW
MOUNTING
PLATE FLAT HEAD
SCREWS
(INCLUDED)
- BLACK
RED+
OR
JUNCTION BOX ALIGNMENT
HORIZONTAL VERTICAL
MOUNTING
PLATE
CONNECTOR
(INCLUDED)
FIXTURE
BASE
PAN HEAD
SCREWS
(INCLUDED) SET SCREW
ALLEN KEY
(INCLUDED)
MINI LOOK / MINI COOL WALL
MODEL: S7201, S7202, S7231, SL9201, SL9202, SL9231
INS-325
INSTALLATION SHEET PAGE: 4 OF 5
MD - R4
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LAST UPDATE: FEBRUARY 23 2018
INSTALLATION ON 2" JUNCTION BOX TO REMOTE DRIVER (24V)
CONNECTOR
(INCLUDED)
D
E

C- CONNECT THE FIXTURE WIRES TO THE CONNECTOR. BE SURE TO CORRECTLY PRESS BUTTON TO CONNECT.
D- FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS USING THE ALLEN KEY (INCLUDED).
C + D
CONNECTOR
AB
FIXTURE
BASE
FIXTURE
SCREWS
(NOT INCLUDED)
ALLEN KEY
(INCLUDED) SET SCREW
A- UNSCREW THE (2) SET SCREWS WITH THE ALLEN KEY (INCLUDED) TO REMOVE THE BASE FROM THE FIXTURE.
DO NOT COMPLETELY REMOVE SCREWS.
B- MAKE WIRE CONNECTIONS USING CONNECTOR (INCLUDED) AND INSTALL THE FIXTURE BASE TO THE WALL
USING APPROPRIATE SCREWS (NOT INCLUDED).
- BLACK
RED+
FIXTURE
ALLEN KEY
(INCLUDED)
MINI LOOK / MINI COOL WALL
MODEL: S7201, S7202, S7231, SL9201, SL9202, SL9231
INS-325
INSTALLATION SHEET PAGE: 5 OF 5
MD - R4
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LAST UPDATE: FEBRUARY 23 2018
INSTALLATION WITH DIRECT FEED TO REMOTE DRIVER (24V INPUT)
CONNECTOR
(INCLUDED)
C
D
