Skil 9225 User manual

IMPORTANT:
Read Before Using
Operating/Safety Instructions
9225

-2-
Work area safety
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust
or fumes.
Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
Do not use AC only rated tools with a DC
power supply. While the tool may appear to
work, the electrical components of the AC
rated tool are likely to fail and create a
hazard to the operator.
If operating the power tool in damp
locations is unavoidable a Ground Fault
Circuit Interrupter (GFCI) must be used to
supply the power to your tool. GFCI and
personal protection devices like electrician’s
rubber gloves and footwear will further
enhance your personal safety.
Personal safety
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. Amoment of
inattention while operating power tools may
result in serious personal injury.
Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate
conditions will reduce personal injuries.
Avoid accidental starting. Ensure the
switch is in the off-position before
plugging in. Carrying power tools with your
finger on the switch or plugging in power
tools that have the switch on invites
accidents.
Remove any adjusting key or wrench
before turning the power tool on. Awrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can
be caught in moving parts.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust-
related hazards.
Read all instructions. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury. The term “power tool” in
all of the warnings listed below refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
!
WARNING
General Safety Rules

-3-
Safety Rules for Reciprocating Saws
Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or
its own cord. Contact with a "live" wire will
make exposed metal parts of the tool "live"
and shock the operator.
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Do not drill, fasten or break into existing
walls or other blind areas where electrical
wiring may exist. If this situation is
unavoidable, disconnect all fuses or circuit
breakers feeding this worksite.
Never leave the trigger locked "ON".
Before plugging the tool in, check that the
trigger lock is "OFF". Accidental start-ups
could cause injury.
Keep hands away from cutting area. Do
not reach under the material being cut.
Keep handles dry, clean and free from oil
and grease. Slippery hands cannot safely
control the power tool.
Power tool use and care
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was
designed.
Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
Use the power tool, accessories and tool
bits etc., in accordance with these
instructions and in the manner intended
for the particular type of power tool,
taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different
from those intended could result in a
hazardous situation.
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control.
Service
Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
Develop a periodic maintenance schedule
for your tool. When cleaning a tool be
careful not to disassemble any portion of
the tool since internal wires may be
misplaced or pinched or safety guard
return springs may be improperly
mounted. Certain cleaning agents such as
gasoline, carbon tetrachloride, ammonia, etc.
may damage plastic parts.
SAVE THESE INSTRUCTIONS

-4-
The proximity of the blade to your hand is
hidden from your sight.
Keep hands from between the gear
housing and saw blade holder. The
reciprocating blade holder can pinch your
fingers.
Do not use dull or damaged blades. Bent
blade can break easily or cause kickback.
Before starting to cut, turn tool "ON" and
allow the blade to come to full speed.
Tool can chatter or vibrate if blade speed is
too slow at beginning of cut and possibly
kickback.
Always wear safety goggles or eye
protection when using this tool. Use a
dust mask or respirator for applications
which generate dust.
Secure material before cutting. Never
hold it in your hand or across legs. Small
or thin material may flex or vibrate with the
blade, causing loss of control.
Make certain all adjusting screws and the
blade holder are tight before making a
cut. Loose adjusting screws and holders can
cause the tool or blade to slip and loss of
control may result.
When removing the blade from the tool
avoid contact with skin and use proper
protective gloves when grasping the
blade or accessory. Accessories may be
hot after prolonged use.
Some dust created by
power sanding, sawing,
grinding, drilling, and other construction
activities contains chemicals known to
cause cancer, birth defects or other
reproductive harm. Some examples of
these chemicals are:
•Lead from lead-based paints,
•Crystalline silica from bricks and cement
and other masonry products, and
•Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area, and
work with approved safety equipment, such
as those dust masks that are specially
designed to filter out microscopic particles.
!
WARNING

-5-

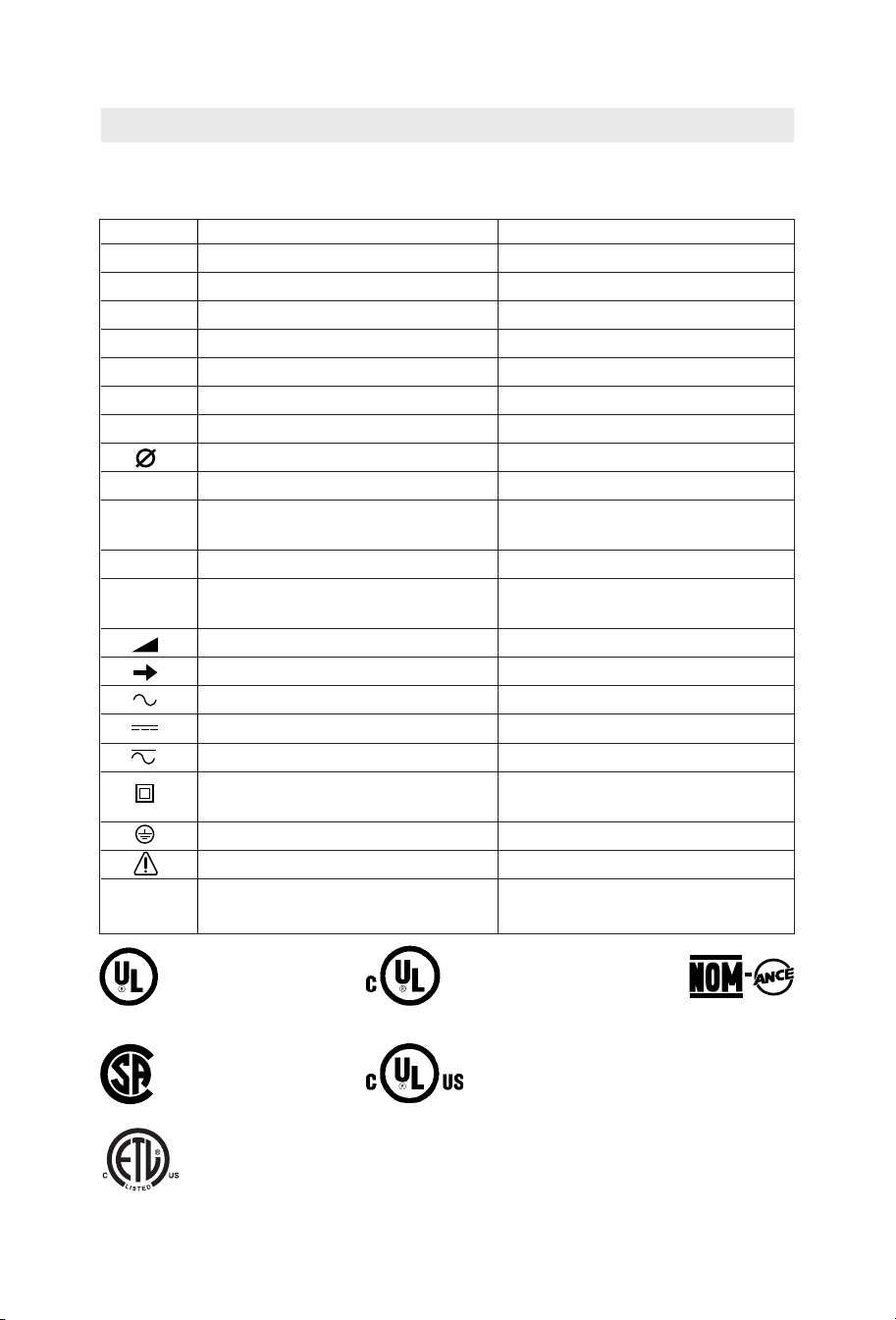

IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits etc. per minute
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
Symbols
0
This symbol designates
that this tool is listed by
Underwriters Laboratories.
This symbol designates
that this tool is listed by
the Canadian Standards
Association.
This symbol designates
that this tool is listed to
Canadian Standards by
Underwriters Laboratories. This symbol
designates
that
this tool
complies
to NOM
Mexican
Standards.
This symbol designates that
this tool is listed by
Underwriters Laboratories,
and listed to Canadian
Standards by Underwriters
Laboratories.
This symbol designates that this tool is listed by
Intertek Testing Services.

-6-

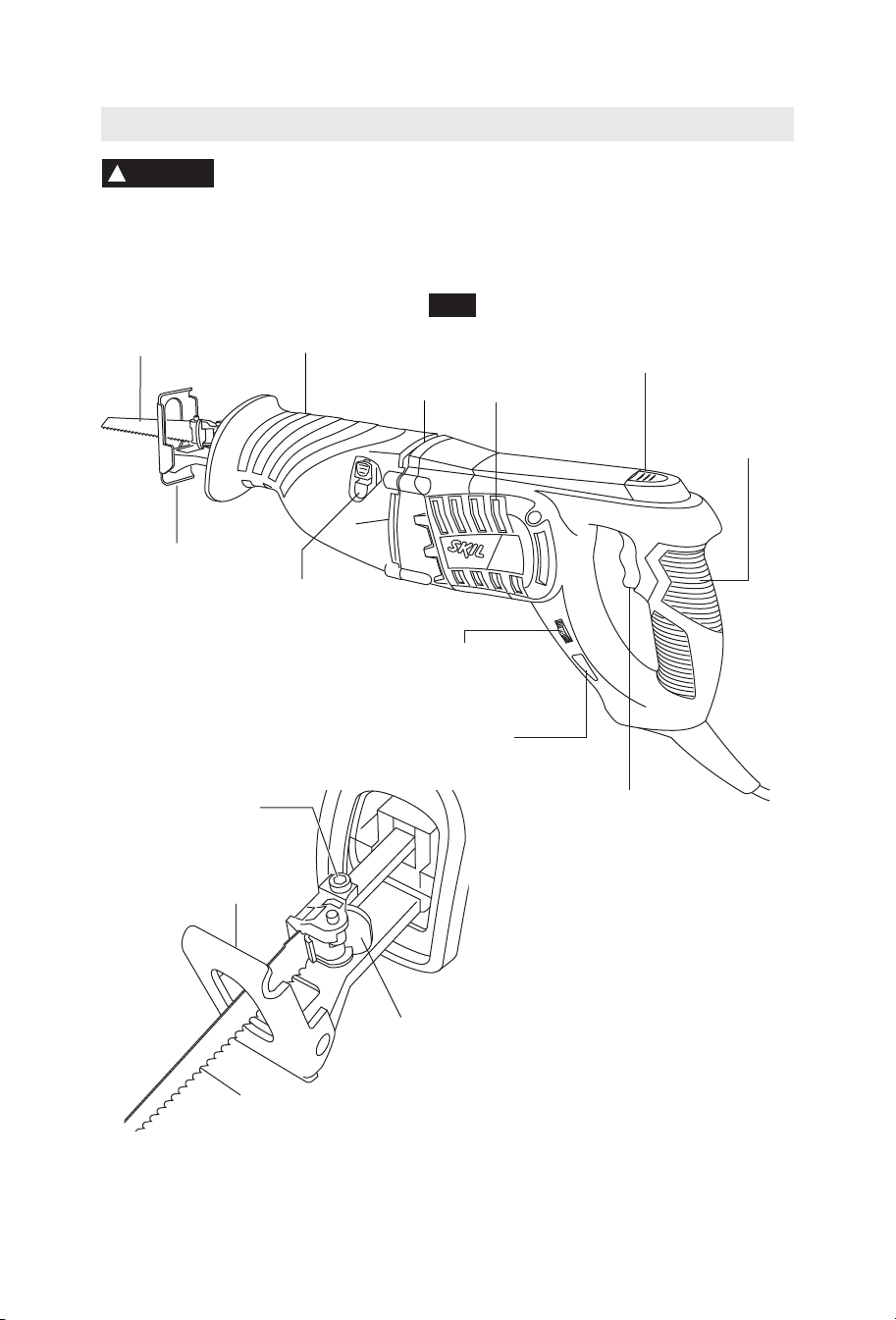

Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories.Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Reciprocating Saw
NOTE: For tool specifications refer to the nameplate on your tool.
ADJUSTABLE
FOOTPLATE
RUBBER BOOT
TRIGGER "ON-OFF"
SWITCH
VARIABLE
SPEED DIAL
SAWBLADE
AIR
VENT
BLADE STORAGE
COMPARTMENT
AIR
VENT
BLADE CLAMP
RELEASE
LEVER
ADJUSTABLE
FOOTPLATE
SAW
BLADE
BLADE
CLAMP SET
SCREW
FIG. 1
RUBBERIZED
GRIP
POWER
INDICATOR
LIGHT
BLADE
ORBIT
SELECTOR

-7-
Assembly
Preparing the Saw
BLADE SELECTION
No one blade can be efficient on all cutting
jobs. Different materials require specially
designed blades. Since your reciprocating saw
can cut so many materials, many types of SKIL
blades are available. Be sure to use the proper
blade to insure proper cutting performance.
INSTALLING A BLADE
Unplug tool from power
source before changing blade
or making any adjustments.
INSTALLING A BLADE
Simply press the release lever forward to
open the tool-less clamp; insert the blade until
it stops and release the lever (Fig. 2). The
spring-loaded mechanism will lock the clamp
against the blade (Fig. 3). Push in and pull out
on the blade to be sure the pin in the clamp
housing goes through the hole in the blade to
hold the blade securely. The blade may be
inserted with the teeth facing down or up.
Make sure that the front end
of the blade extends through
the footplate for the entire stroke length. Do
not use specialty blades that are very short or
those with a significant cant. Blade must not
contact footplate. A blade which is too short or
canted could jam inside the foot and snap.
!
WARNING
FIG. 2
!
WARNING
FIG. 3
POWER INDICATOR LIGHT
When you plug your tool into the power
source, the power indicator light will go “ON”
indicating the tool is receiving power (Fig. 1).
TRIGGER "ON-OFF" SWITCH
TO TURN THE TOOL "ON" squeeze the
trigger switch. TO TURN THE TOOL "OFF",
release the trigger switch, which is spring
loaded and will return to the "OFF" position
automatically (Fig. 1).
VARIABLE SPEED DIAL
Your tool is equipped with a variable speed
dial. The blade stroke rate may be adjusted
during cutting operation by presetting the dial
on or between any one of the six numbers
(Fig. 1).
Setting SPM rating (strokes per minute)
1-2 Low stroke
3-4 Medium stroke
5-6 High stroke
Higher speed settings are generally used for
fast cutting or when softer cutting materials
such as wood, composite materials, and
plastics. Slower speed settings are generally
used when precision is required or when
cutting harder materials. Materials typically cut
using slower speeds include sheet metal,
conduit, and pipe.
Operating Instructions

ORBIT SELECTOR
To obtain the best cutting advance in various
types of materials, your saw has a blade orbit
selector to adjust the swing of the saw blade.
When cutting into wood and plastic, as well as
other soft materials, a larger swing of the blade
is desired.
There are two orbit selector positions. The
non-orbit position (metal), move the orbit
selector lever toward the “0” and for a full orbit
(wood), move the selector lever toward the “ll”
(Fig. 4).
The non-orbit gives the best cutting advance
and extends blade life when cutting steel and
similar hard materials which have more
resistance to cut. For materials that have less
resistance to cut, the orbit position can be
selected for the best cutting advance. The orbit
selector can be adjusted with the motor
switched on or at a standstill.
BLADE STORAGE COMPARTMENT
Your tool is equipped with a blade storage
compartment (Fig. 7) on the backside of your
saw. To remove, push down on tab and slide
in direction of arrow. Be sure storage
compartment is closed to prevent blades from
falling out.
FOOTPLATE ADJUSTMENT
The footplate tilts in order to keep as much of
its surface in contact with the work surface
Fig. 5 . To adjust, hold saw firmly and pivot
footplate to desired position.
The footplate can also be locked at desired
depths to optimize blade life and/or to limit
blade protrusion beyond the end of the
footplate when cutting into large diameter pipe
or into walls.
To adjust the footplate position depth, simply
loosen the two screws in insulated rubber boot
with wrench provided, slide and move the
footplate to the desired position and securely
tighten the screw with the wrench provided
(Fig. 6).
FIG. 7
BLADE
STORAGE TAB
BLADE STORAGE
COMPARTMENT
FOOTPLATE
FIG. 5 FIG. 6
-8-
FIG. 4

1. Securely clamp the work.
2. Mark the line of cut and grasp the tool with
one hand on the handle and the other
placed on the insulated rubber boot over
the front housing.
Always hold the saw by the
insulated boot on the front
housing. If you saw into a blind area where
live wiring exists, you may be shocked or
electrocuted.
3. Keep the saw footplate firmly against the
work to minimize counter-force (jumping)
and vibration.
4. Squeeze the trigger to start the tool. Let the
saw reach full speed before starting the cut.
Guide the saw so that the blade will move
along the marked line.
SAWING TIPS
Following a few simple tips will reduce the
wear on the workpiece, the tool and the
operator.
1. Blades cut on the draw or back stroke. On
fine work, such as paneling, fiberglass, etc.,
place the good side of workpiece facing
down.
2. Use the correct saw blade for the material
being cut and keep extra blades on hand to
use when others become dull. Replace
cracked or bent blades immediately.
3. Select the footplate projection settings, as
well as the appropriate cutting speed.
4. To reduce the risk of injury, be sure the
blade always extends beyond the footplate
and work throughout the stroke. Blades
may shatter if the front on the blade hits the
work and/or the footplate.
5. When cutting metal:
- Apply a lubricant for easier, smoother,
faster cutting and longer blade life.
-For non-ferrous metals, aluminum,
bronze or brass, use a stick wax on the
blade.
-For ferrous metals, iron and steel, use
machine or cutting oil along the surface
to be cut.
6.When cutting thin metal, "sandwich" the
material between two pieces of scrap wood.
Clamp or put in a bench vise. One piece of
lumber on top of the metal can be used with
adequate clamping. Place your cut lines or
design on the wood.
7.Don’t force the cutting. Let the saw and
blade do the work.
Using the Saw
!
WARNING
-9-
WRONG RIGHT
POCKET/PLUNGE CUTS
The reciprocating saw can be used to make
plunge cuts into softer material, (for example,
wood or light building materials for walls),
without a starting hole (Fig. 8).
1. Mark the line to be cut clearly on the work.
2. Set the tool with one edge of the footplate
firmly against the material.
3. Place the tip of the blade (not running) on the
line to be cut.
4. Tilt the saw so that the blade clears the work.
5. Squeeze the trigger switch and carefully
engage the moving saw blade into the material.
6. After the blade penetrates through the work,
continue sawing along the marked outline.
FIG. 8

Service
Preventive maintenance
performed by unauthorized
personnel may result in misplacing of
internal wires and components which
could cause serious hazard. We
recommend that all tool service be
performed by a Skil Factory Service Center
or Authorized Skil Service Station.
TOOL LUBRICATION
Your Skil tool has been properly lubricated
and is ready to use. It is recommended that
tools with gears be regreased with a special
gear lubricant at every brush change.
CARBON BRUSHES
The brushes and commutator in your tool
have been engineered for many hours of
dependable service. To maintain peak
efficiency of the motor, we recommend every
two to six months the brushes be examined.
Only genuine Skil replacement brushes
specially designed for your tool should be
used.
Cleaning
To avoid accidents always
disconnect the tool from
the power supply before cleaning or
performing any maintenance. The tool may
be cleaned most effectively with compressed
dry air. Always wear safety goggles when
cleaning tools with compressed air.
Ventilation openings and switch levers must
be kept clean and free of foreign matter. Do
not attempt to clean by inserting pointed
objects through openings.
Certain cleaning agents
and solvents damage
plastic parts. Some of these are: gasoline,
carbon tetrachloride, chlorinated cleaning
solvents, ammonia and household
detergents that contain ammonia.
!
WARNING
!
WARNING
Maintenance
!
CAUTION
-10-
NOTES:
To make plunge cutting easier, use a heavy
gauge blade, install the blade with the teeth
facing upward, and hold the saw upside down
as shown (Fig. 9).
Do not plunge cut in metal surfaces.
In thick materials and in harder materials,
such as metal, plunge cutting should not be
attempted. Such materials can be cut with the
recip saw only by starting the cut from the
edge of the material or from a hole drilled all
the way through the material that is large
enough to fit the saw blade.
The use of any accessories
not specified in this manual
may create a hazard.
!
WARNING
FIG. 9

-11-
Accessories
If an extension cord is
necessary, a cord with
adequate size conductors that is capable
of carrying the current necessary for your
tool must be used. This will prevent
excessive voltage drop, loss of power or
overheating. Grounded tools must use 3-
wire extension cords that have 3-prong plugs
and receptacles.
NOTE: The smaller the gauge number, the
heavier the cord.
RECOMMENDED SIZES OF EXTENSION CORDS
120 VOLT ALTERNATING CURRENT TOOLS
!
WARNING
* Carrying case
* Blades (*= standard equipment)
(**= optional accessories)
Tool’s
Ampere
Rating
Cord Size in A.W.G. Wire Sizes in mm2
3-6
6-8
8-10
10-12
12-16
18 16 16 14 0.75 0.75 1.5 2.5
18 16 14 12 0.75 1.0 2.5 4.0
18 16 14 12 0.75 1.0 2.5 4.0
16 16 14 12 1.0 2.5 4.0 —
14 12 — — — — — —
25 50 100 150 15 30 60 120
Cord Length in Feet Cord Length in Meters
