Sky Angel G202-3D User instructions

Assembly and Operating Manual
G202-3D
Specification:
*Length: 36-1/5"(920 mm)
*Wing span: 39-2/5"(1000 mm)
*Flying weight: 35-3/10 oz (1000g)

Assembly and Operating Manual G202-3D
2
Dear customer,
Congratulations on your choice of a
factory-assembled model aircraft from the
SKYANGEL 3D AEROBATIC range and thank
you for placing your trust in us.
The model can very quickly be completed ready to
fly. Please read right through these instructions
and the separate information sheets before
attempting to assemble and fly the model, as this
will make it much easier to complete the tasks
required.
All directions, such as “right-hand”, are as seen
from the tail of the model, looking forward.
Notes on the power system
Abrushless outrunner motor, propeller and spinner
are factory-installed.
The motor is connected to the speed controller,
ready to use, and the controller is correctly set up
at the factory.
To complete the power system all you have to do
is connect the LiPo flight battery.
The radio control system
For this model you require a radio control system
with at least four channels. We particularly
recommend 2.4 GHz systems.
The receiving system is powered by the speed
controller’s integral BEC system.
Before you check the model’s working systems,
set the control surfaces to neutral from the
transmitter (transmitter sticks and trims central).
Before operating the model always move the
throttle stick to the “motor stopped” position before
switching the transmitter on. Only then connect the
flight battery.
To switch off, first disconnect the flight pack from
the speed controller, and only then switch the
transmitter off.
Glued joints, suitable adhesives
Foam safe epoxy is recommended and available
from most reputable model retail shops.
Trial-fit all parts “dry” before applying glue.
Follow the recommended curing time suggested
by the glue manufacturer. Allow the glue to fully
cure (harden) to the point where the joint can be
placed under stress.
Kit contents
Fuselage, complete with motor, speed controller
and servo.
Integral wing panels with L.H / R.H. ailerons and
servos
Tailplane and elevator
Fin
Factory-fitted propeller and spinner
2 X Aileron pushrod, Two Z-bend
1 X Elevator pushrod, one Z-bend.
1 X Rudder pushrod Two Z-bend
1 X Y-lead
4 X Control surface horn
1 X 3S1P LiPo battery，2200 mAh, 20C

Assembly and Operating Manual G202-3D
3
Figs. 1
-Connect the control rod to horizontal tail, tighten it
with the screws.
Figs. 2
-Photo shows the finished view.
Fig. 3
-Connect the control rod to vertical tail, tighten it with
the screws.
Fig. 4
-Photo shows the finished view.
1
3
2
4

Assembly and Operating Manual G202-3D
4

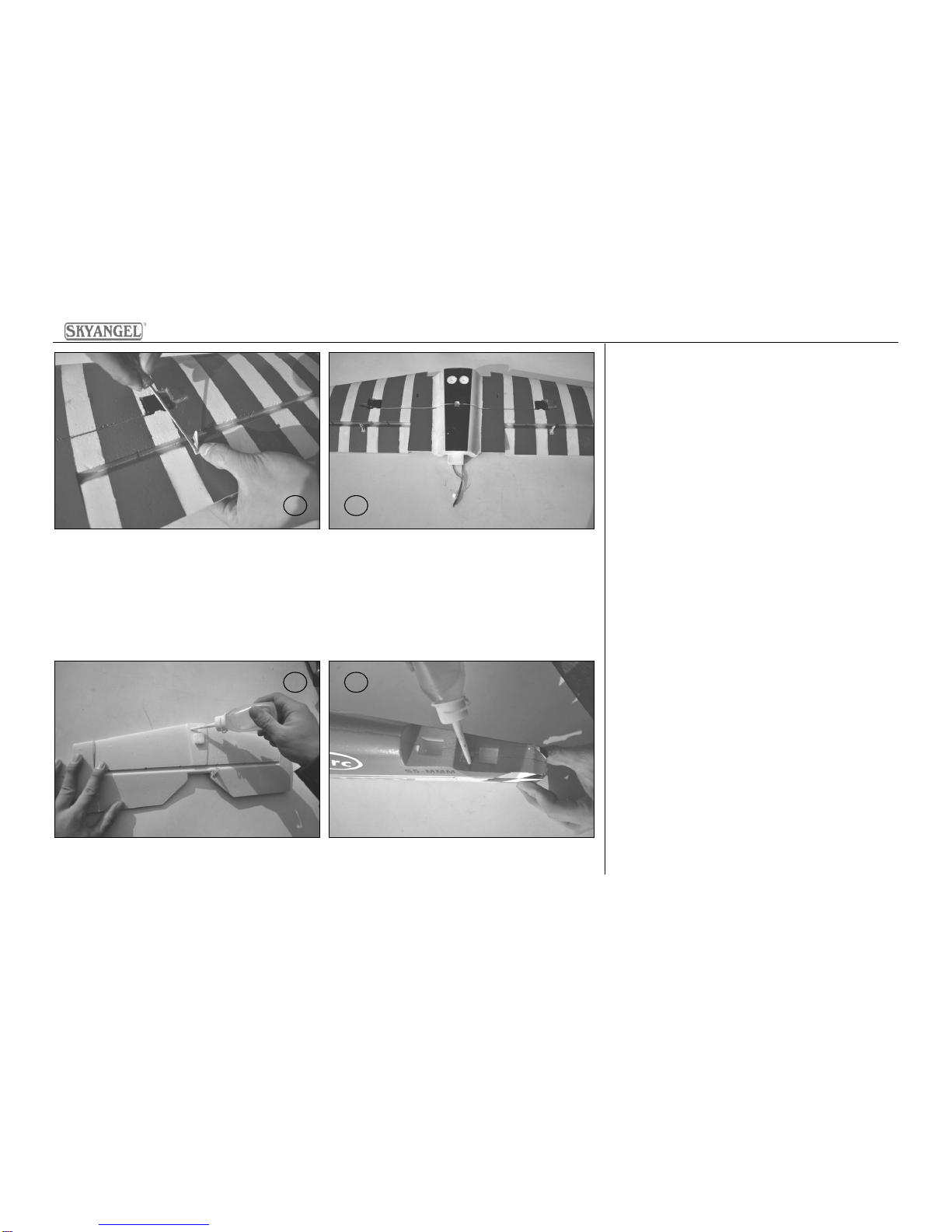

Fig. 5
-Connect the control rod to aileron, tighten it with the
screws.
Fig. 6
- Photo shows the control rods have locked on the
aileron.
Fig. 7
- Apply glue on the horizontal tail.
Fig. 8
-Apply glue on the fuselage.
6
7 8
5

Assembly and Operating Manual G202-3D
5

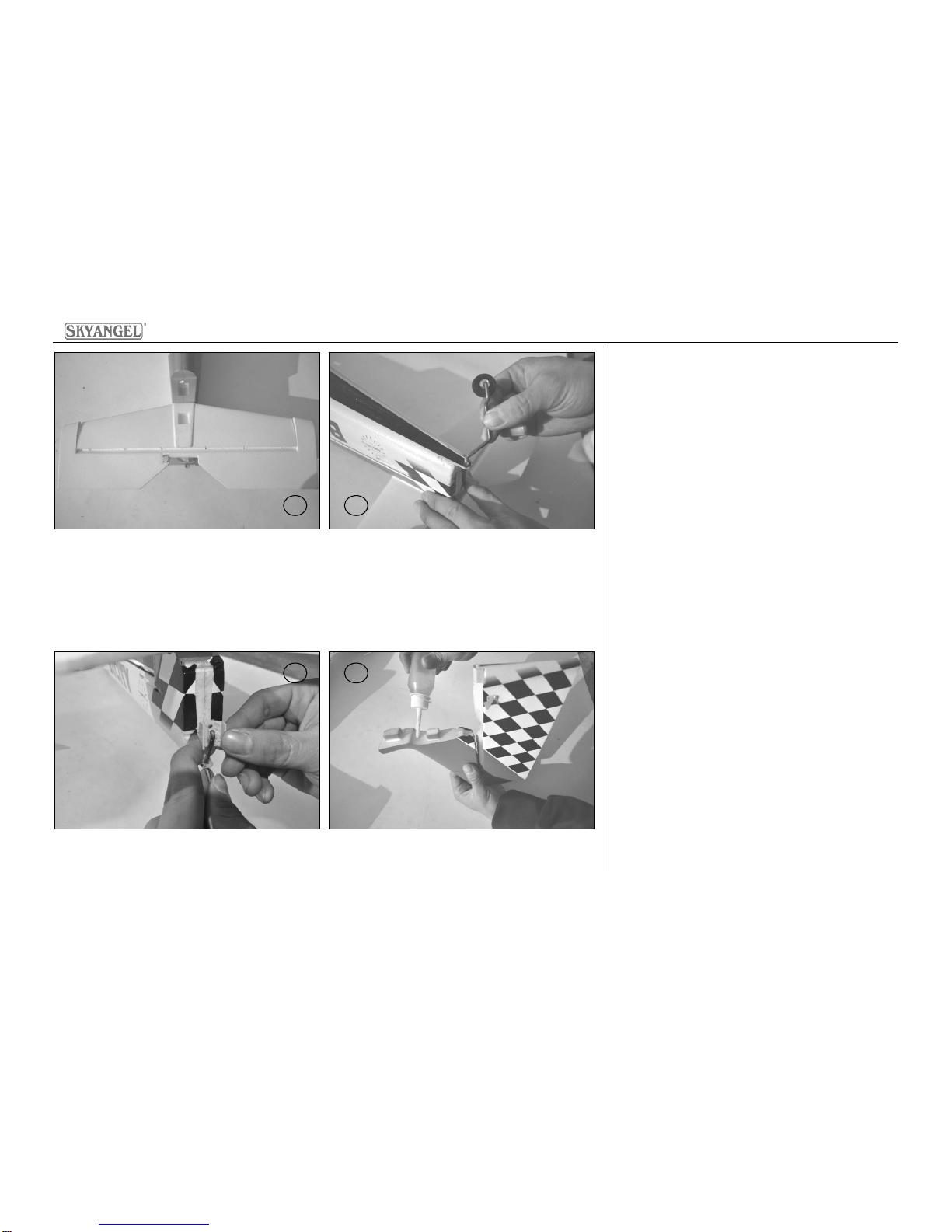

Fig. 9
- Photo shows the horizon tail have assembled on
the fuselage.
Fig. 10
- Put the backward landing gear in the hole which
on the fuselage.
Figs. 11
-Put the backward landing gear in the steering hole.
Figs. 12
-Apply glue to the vertical tail.
11
10
12
9

Assembly and Operating Manual G202-3D
6

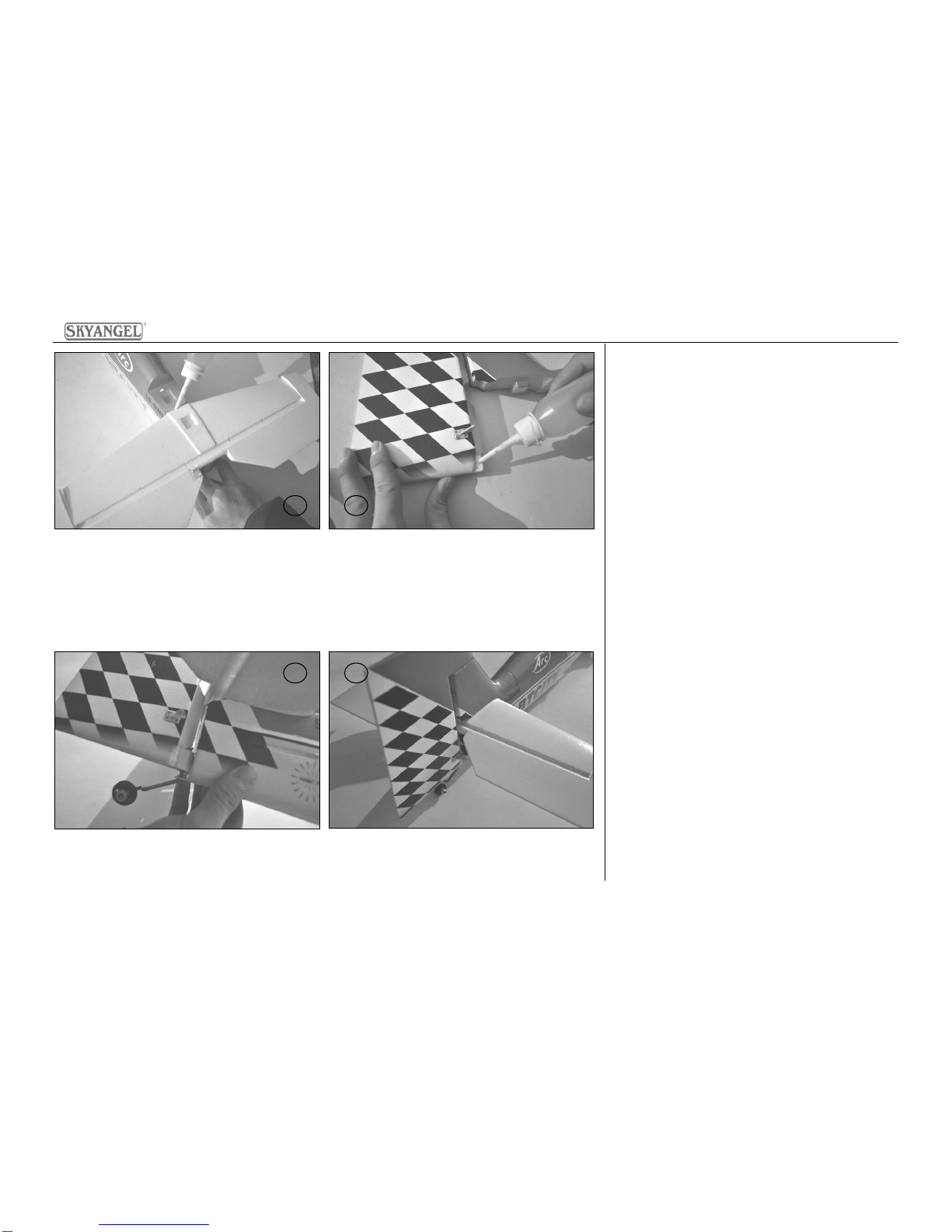

Figs. 13
-Apply glue to the fuselage.
Figs. 14
-Apply glue to the steering place.
Figs. 15
-Assemble the vertical cal tail on the fuselage.
Figs. 16
-Photo shows the finished view.
1413
15 16

Assembly and Operating Manual G202-3D
7
Figs. 17
-Connect the vertical push rod to control rods .
Figs. 18
-Photo shows the vertical linkage has connect with
the control rods.
Figs. 19
-Connect the horizon tail push rod to control rods.
Figs. 20
-Photo shows the horizon tail linkage has connect
with the control rods.
1817
2019

Assembly and Operating Manual G202-3D
8
Figs. 21
- Connect the aileron push rod to the servo arm at
the second hole.
Figs. 22
-Connect the aileron push rod to control rod arm.
Figs. 23
-Photo shows the aileron linkage has connect with
the control rods.
Figs. 24
-Assemble the wing set on the fuselage.
21 22
2423

Assembly and Operating Manual G202-3D
9
Figs. 25
-Lock the fixup presser with screw.
Figs. 26
-Photo shows the main wing have assembly to the
fuselage.
Figs. 27
-Assemble the main landing gear on the wing set.
Figs. 28
-Assemble the propeller on the motor.
26
27
28
25

Assembly and Operating Manual G202-3D
10

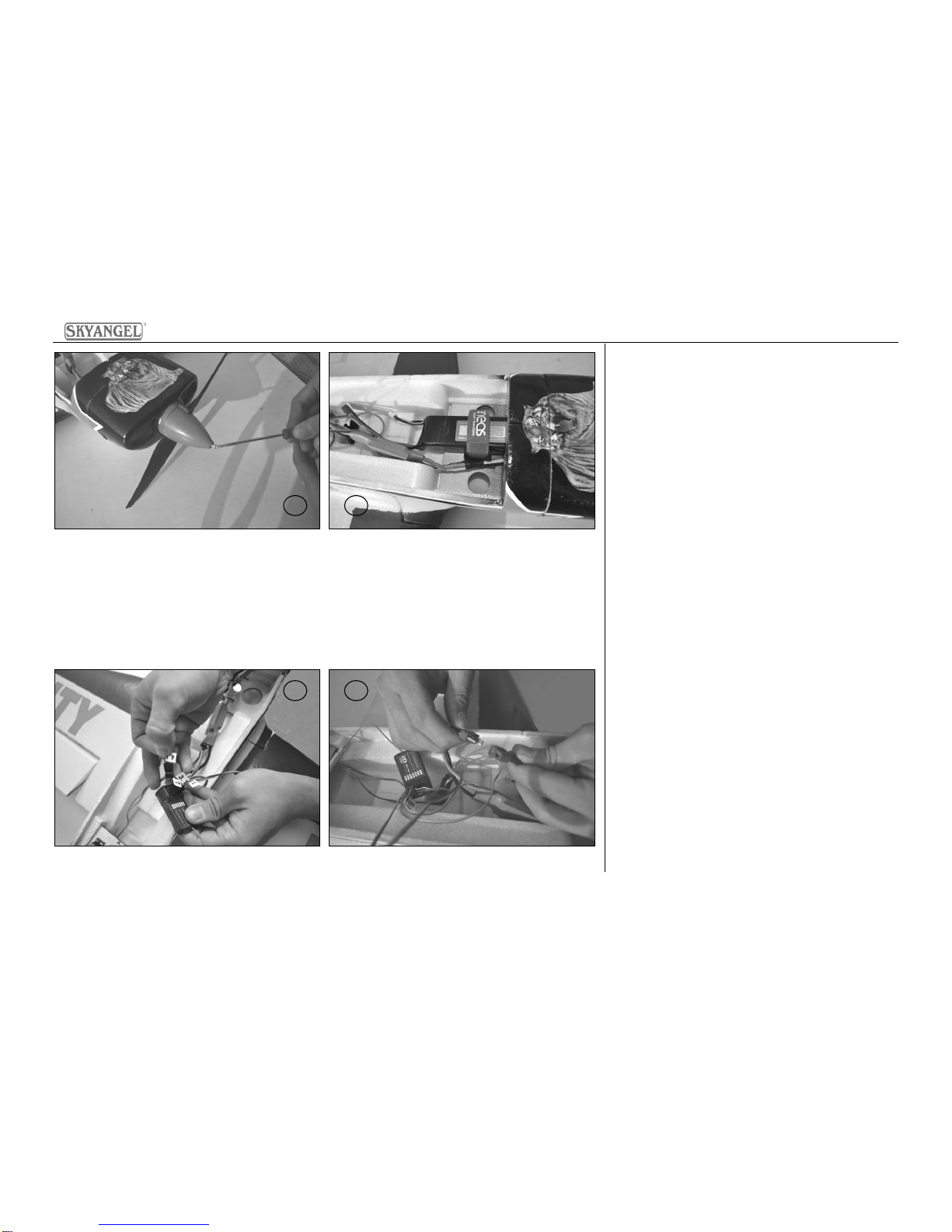

Figs. 29
-Lock the plastic spinner with screws.
Figs. 30
- Place the flight battery in the fuselage.
Figs. 31
-Connect the channels to the receiver.
Figs. 32
- Photo shows battery leads connected to the speed
controller.
29
31
30
32

Assembly and Operating Manual G202-3D
11
Figs. 33
- Opening and closing the canopy:
The canopy is retained by the cowl at the front,
and by a tongue at the rear
- To open the canopy, slide it forward, raise it at
the rear and lift it off
- Reverse the procedure to replace the canopy.
- Figs. 34
- Place the canopy on the fuselage.
- Place the battery in the model of balancing; do not
connect it.
- Make the Centre of Gravity on both sides.
- Support the model at the marked C.G. and allow it
to hang freely. The model is correctly balanced
when it hangs level, ideally with the nose inclined
slightly down.
- Adjust the position of the flight battery if necessary.
- Mark the battery location in the fuselage, so that
you can be confident of replacing it in the same
position after removing it.
33
34

Assembly and Operating Manual G202-3D
12
Figs. 35
-Charge the flight battery; connect the Equalizer lead
using and adapter lead matching your charger
(adapter lead not included).
Figs. 36
-Switch the transmitter on, and move the throttle
stick to the “Motor OFF” position. (Diagram MODE 1
right throttle control stick)
35
36

Assembly and Operating Manual G202-3D
13
Figs. 37 -39 Function test
Check the channel assignment at the receiver, and if
necessary swap the plugs as necessary.
- Set the transmitter sticks and trims to centre.
- The control surfaces should now also be at centre (neutral).
Adjust the clevis where necessary.
- Check the direction of rotation of the servos.
- Stand behind the model. - When you move the rudder stick
to the right, the rudder should also deflect to the right.
- Pull the elevator stick back towards you, and the rear edge
of the elevator should rise.
- Moving the aileron stick to the right, you MUST check that
the trailing edge of the right aileron rises, the left aileron
should go down.
- If any function works the wrong way round, correct it using
the servo reverse facility on your transmitter.
- Set the control throw using the transmitter servo end point
adjustment function.
- The travels are measured at the inboard end of the control
surfaces.
- The stated control throws are just a guide for the first few
flights. You will probably need to adjust the actual settings
to suit your individual flying style.
- The Expo settings should also be adjusted to suit the pilot's
preference.
38
37 39

Assembly and Operating Manual G202-3D
14
Fig. 40 checking the electric power system
- Caution: position the throttle stick in such a way
that the motor cannot possibly start running.
40

Assembly and Operating Manual G202-3D
15
- Switch the transmitter on, and connect the
flight pack
- Check the direction of rotation of the motor:
when viewed from the front, the output shaft
must rotate anti-clockwise. If this is not the case,
perhaps because you are using components
other than those recommended, swap over any
two motor wires to reverse the direction of
rotation.
Note: whenever you are installing, adjusting
or servicing the power system,
keep well clear of the rotational
plane of the propeller –injury
hazard. Ensure also that
nobody stands in front of the
model when the motor is running.
- First disconnect the battery from the speed
controller, and then switch the transmitter
off.
- The model is ready for flying once you have
recharged the battery.
Test-flying, flying notes
Read the sections in the Safety
Notes entitled “Routine pre-flight
checks”and “Flying the model”
before attempting to fly the model
for the first time.
- Advice on control surface travels
- The stated control surface travels are just a
guide for the first few flights. Every pilot will need
to adjust the settings slightly to suit his or her
individual flying style. Exponential settings
should also be set to suit your personal
preference.
- For your first few flights please wait for a day
with no more than a gentle breeze.
- A good flying site consists of a large, flat, open
grassy field, devoid of trees, fences,
high-tension overhead cables etc.
- Repeat the check of all the working systems.
- Ask an experienced modeling friend to
hand-launch the aircraft for you. He should be
capable of giving the model a reasonably strong,
flat launch.
- The model must be launched directly into any
wind.
- With the motor running at full-throttle, give the
aeroplane a firm launch directly into any breeze,
with the fuselage and wings level.
- Allow the G202 to fly straight ahead initially;
don’t initiate turns close to the ground.
- Adjust the control surface trims if necessary, so
that the model flies straight with a reasonable
rate of climb “hands off”.
- Check the model’s reaction to control inputs. If
necessary, you may need to increase or reduce
the control surface travels after the first landing.
- Check the aeroplane’s stalling speed at a safe
height.
- Keep the model’s speed well above the stall for
the landing approach.
- If you needed to adjust the trims during the
test-flight, correct the length of the appropriate
pushrod once the model is back on the ground,
then return the transmitter trims to centre so that
full trim travel is available to both sides of neutral
for subsequent flights.
- We reserve the right to introduce technical
modifications and suggest that you check our
website for updates.

Jiangyin Skyangel Electronic Technology Co., Limited.
5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road,
Guangming Town, Bao'an, Shenzhen City, 518107 China
Phone: [phone]
Fax: [phone]
www.skyangelrc.com
