Sky Angel Nano F15 User instructions

35MM Series 2011
Assembly and Operating Manual
Nano F15
SPECIFICATION:
zLength: 21-3/5"(550mm)
zWing Span: 15-3/5"(395mm)
zFlying Weight: 5-4/5oz。(165g.)

Assembly and Operating Manual
2
Dear customer,
Congratulations on your choice of a
factory-assembled model aircraft from the
SKYANGEL Nano range and thank you for
placing your trust in us.
Very little preparation work is required to get this
model ready to fly. To operate your new model
safely it is important that you read through all of
the instructions and safety information included
with your model, before you fly it for the first time.
The illustrations in this manual show the Silver
version of the model with factory applied decals.
The power system
The model is powered by a brushless outrunner
motor and ducted fan, both of which are
factory-installed on the Ready-To-Fly version.
The motor is connected to the electronic speed
controller which is factory calibrated on the
Ready-To-Fly version. All that is required is to
charge the Li-Po battery, following the safety
instructions, and connect the battery to the
electronic speed controller.
The radio control system
To fly the Nano F15 you will need a radio control
system with at least four channels. 2.4GHz radios
systems are recommended, similar to the unit
included with our deluxe version.
The power for the receiver is drawn from the
electronic speed controller’s integral BEC system.
The electronic speed controller is located inside of
the fuselage, in front of the ducted fan.
When you wish to fly the model, always make sure
the transmitter is in the “OFF” position. Move the
throttle stick to the “OFF” position as well. Then
connect the flight battery to the electronic speed
controller.
Switch off in the reverse order: disconnect the
battery from the electronic speed controller first,
and then switch off the transmitter.
Glued joints, suitable adhesives
Foam safe epoxy is recommended and available
from most reputable model retail shops.
Trial-fit all parts “dry” before applying glue.
Follow the recommended curing time suggested
by the glue manufacturer. Allow the glue to fully
cure (harden) to the point where the joint can be
placed under stress.
Kit contents
Fuselage, with motor, electronic speed controller
and servo
Clear canopy and cockpit
Left / right wing panels with ailerons
Left / right horizontal stabilizer with elevators
Vertical fin
Accessories
1 x Li-Po battery, 7.4V 600 mAh 20C
2 x 6A Brushless ESC (Electronic Speed Controller)
Y-lead

Assembly and Operating Manual
3
Fig. 1 Open the box and check all the parts.
Parts Illustration
Parts List
NO. Description
1 Fuselage
2 Nose
3 Wing Set – One Left (and one Right) Wing Panel
4 Tail Set - One Left (and one Right) Horizontal Stabilizer with
Elevators
5 Tail Set - Two Vertical Fin
6 Cockpit Canopy
7 Fuel tank
8 Missiles
9 600mAh 7.4V 20C Li-Po Battery
10-11 Balance Charger
12 Radio Control Transmitter (we highly recommend 2.4 GHz system)
13 Push rods Set
14 Control rods Set
15 Landing Gear set and Landing Gear Fixed Plate set

Assembly and Operating Manual
4

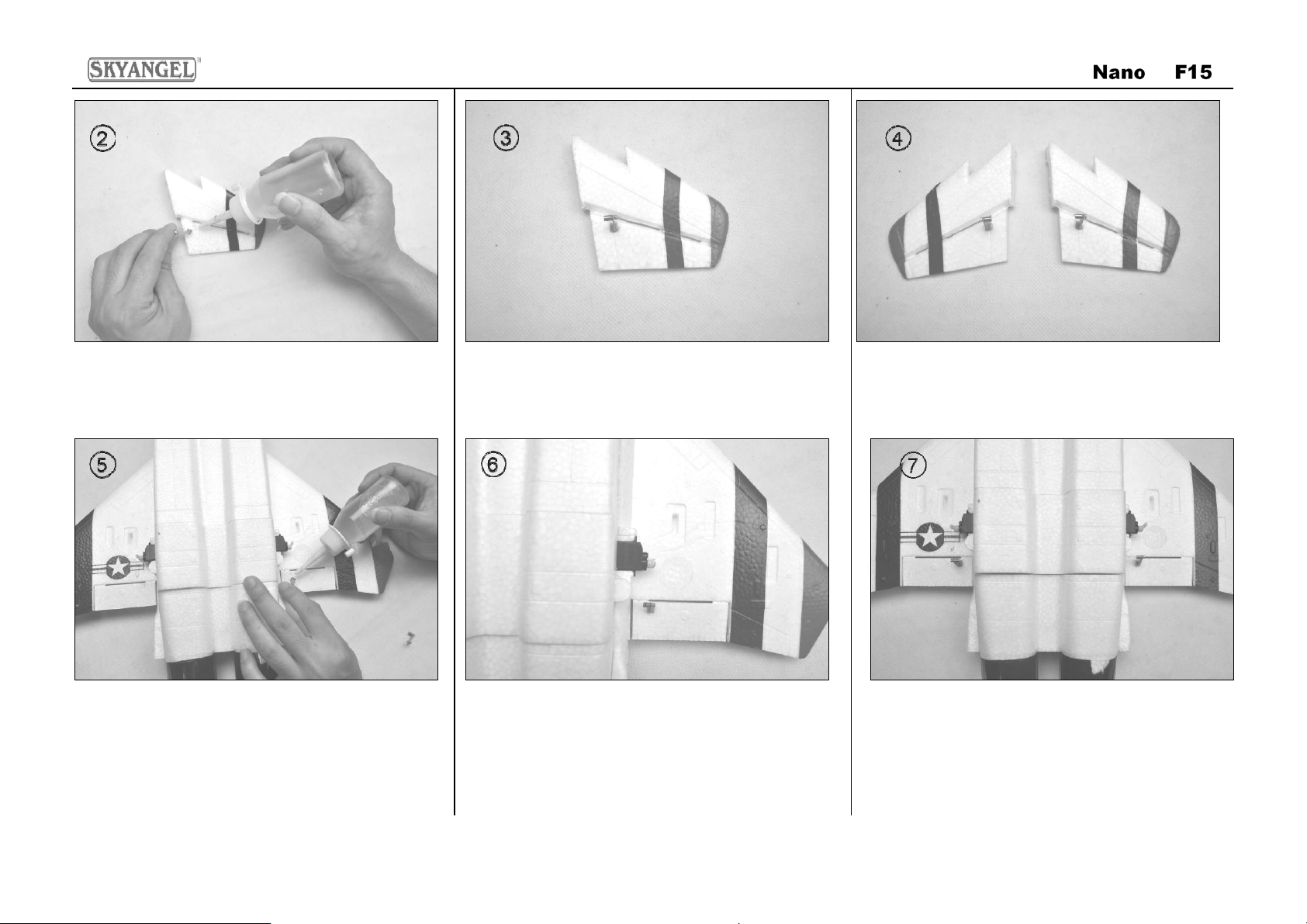

Fig. 2 - Glue the control rod to Horizontal tail. (glue
not included)
Fig. 5 -Glue the control rod to main wing panel.
(glue not included)
Fig. 3 -Remove any excess glue and hold in
position until glue sets. The photo shows the
finished view.
Fig. 6 -Remove any excess glue and hold in
position until glue sets. The photo shows the
finished view.
Fig. 4 -Reverse the procedure to the left side. The
photo shows the finished view.
Fig. 7 -Reverse the procedure to the left side. The
photo shows the finished view.

Assembly and Operating Manual
5

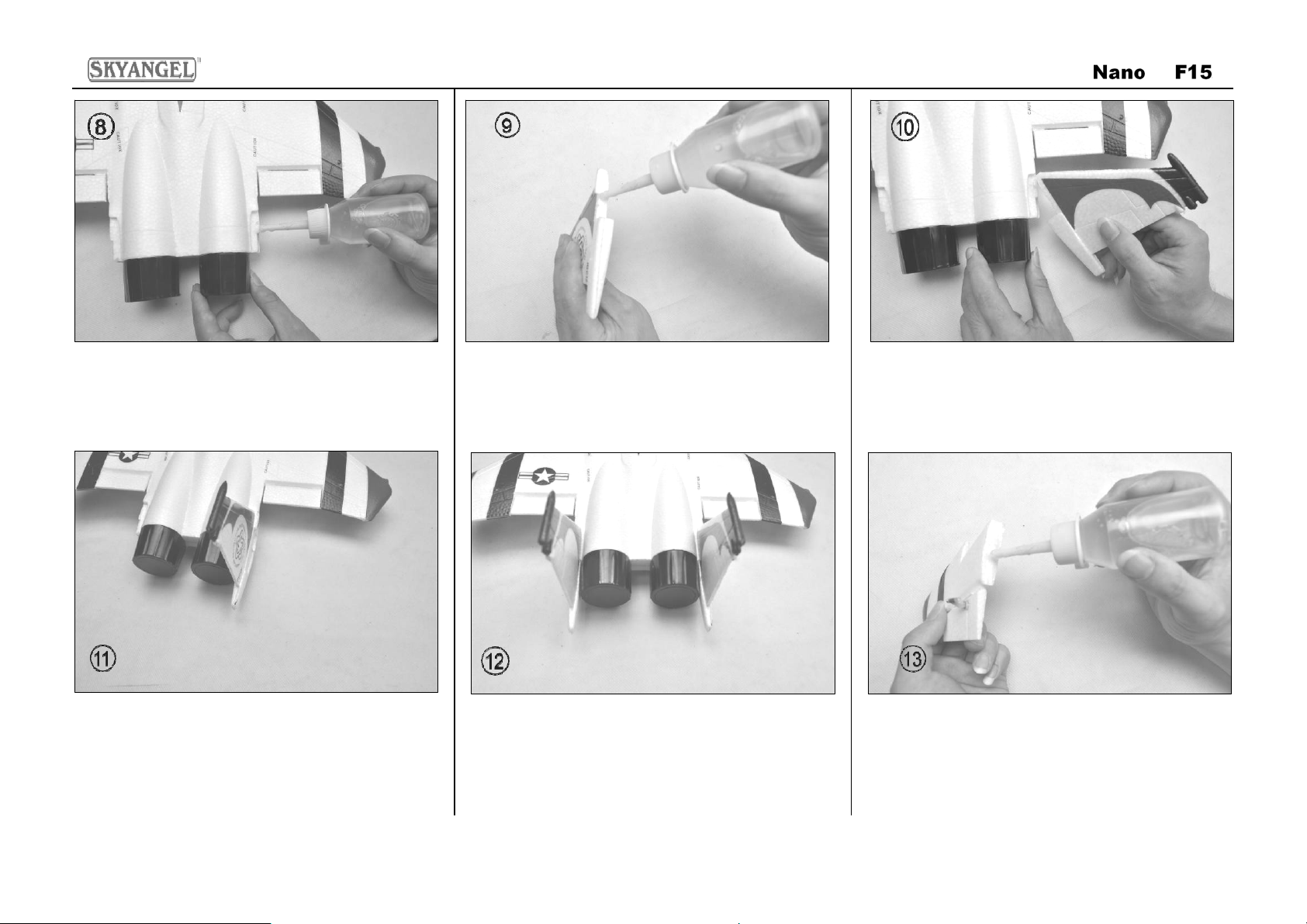

Fig. 8 - Apply glue to the fuselage.
Fig. 11 -The photo shows the finished view.
Fig. 9 -Apply glue to the Vertical tail.
Fig. 12 - Reverse the procedure to the left side.
The photo shows the finished view.
Fig. 10 - Remove any excess glue and hold in
position until glue sets.
Fig. 13 - Apply glue to the horizontal tail.

Assembly and Operating Manual
6

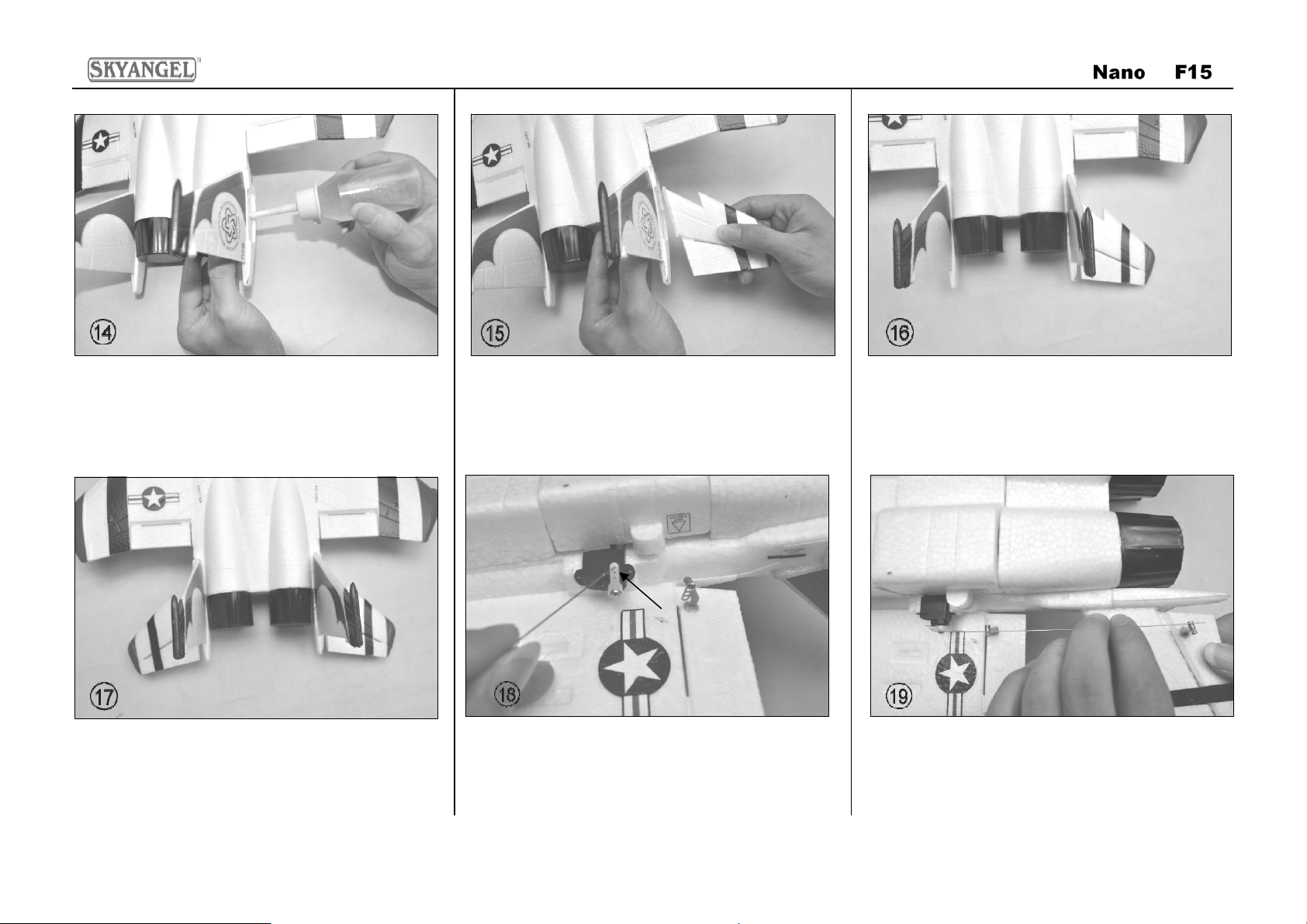

Fig. 14 -Apply glue to the fuselage
.
Fig. 17 -Reverse the procedure to the left
horizontal stabilizer. The photo shows the finished
view.
Fig. 15 - Remove any excess glue and hold in
position until glue sets.
Fig. 18 -Connect the elevator push rod to the
servo arm at second hole.
Fig. 16 - The photo shows the finished view.
Fig. 19 - Assemble the push rod to the horizontal
tail control rod.

Assembly and Operating Manual
7

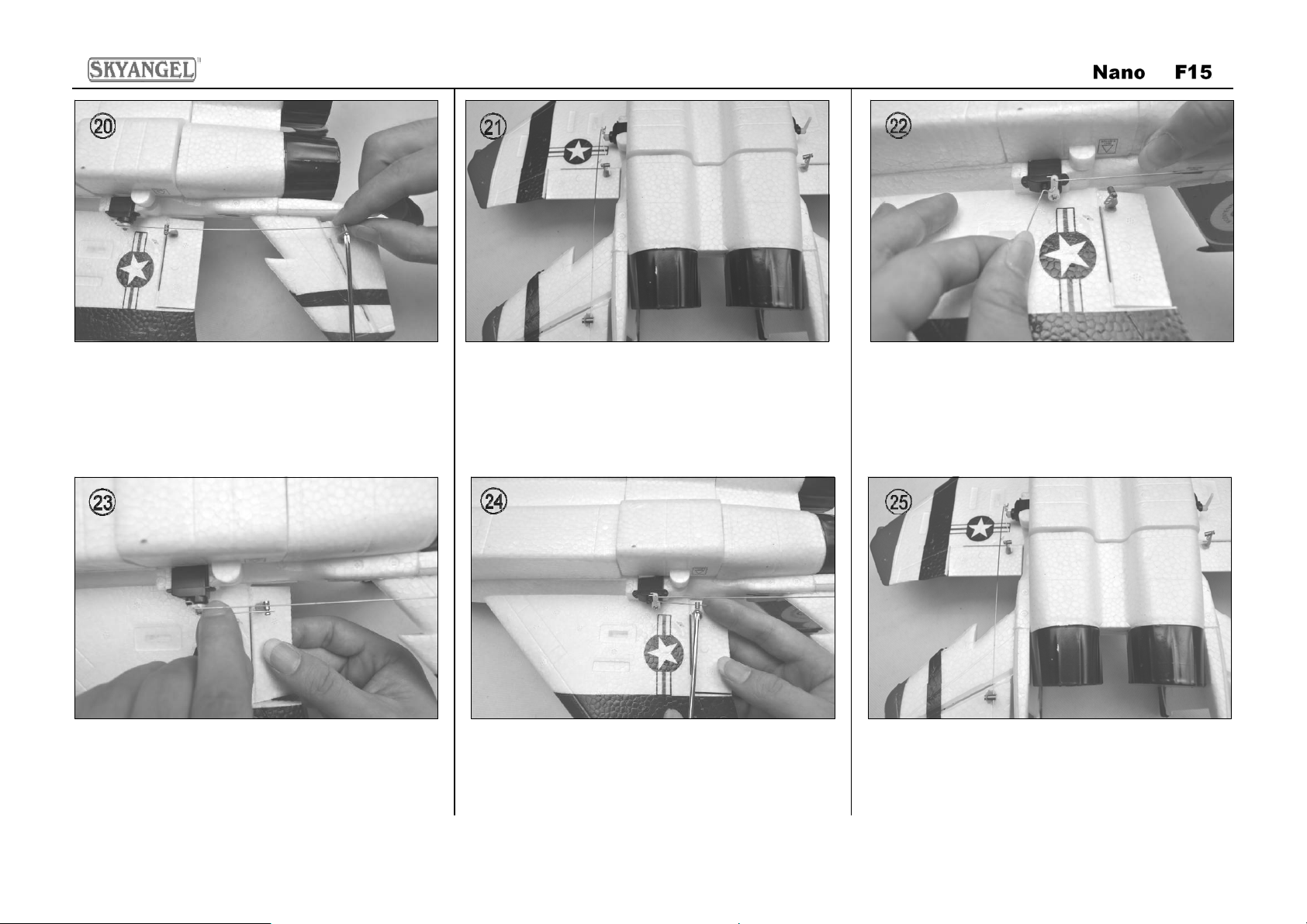

Fig. 20 -Tighten the control rod with screw.
Fig. 23 - Assemble the push rod to the wing panel
control rod.
Fig. 21 - The photo shows the finished view.
Fig. 24 - Tighten the control rod with screw
Fig. 22 -Connect the wing panel push rod to the
servo arm at third hole.
Fig. 25 -Photo shows the finished view

Assembly and Operating Manual
8

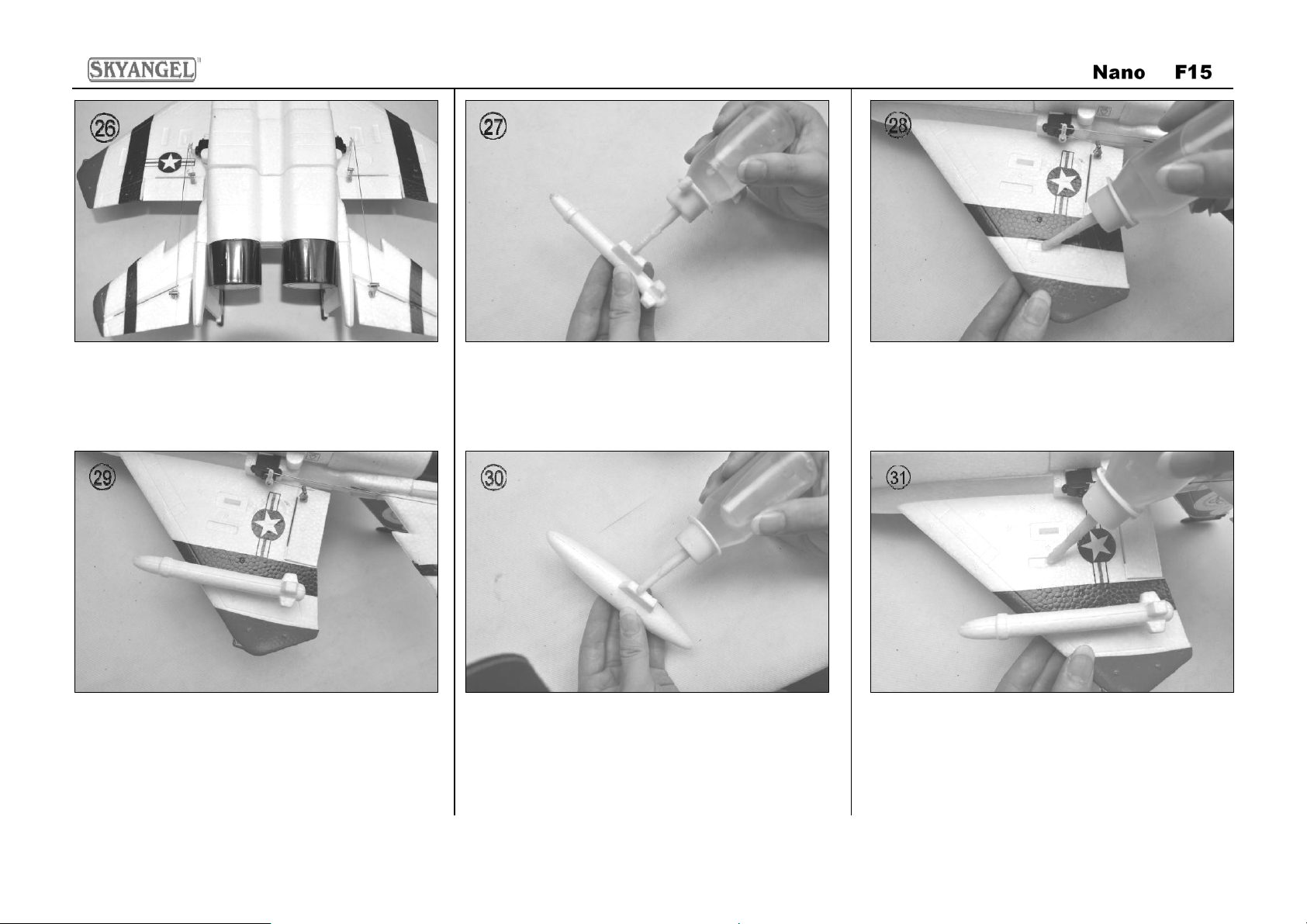

Fig. 26 -Reverse the procedure to the right
elevator push rod. The photo shows the finished
view.
Fig. 29 - Hold in position until the glue sets , photo
shows the finished view.
Fig. 27 – Apply glue to the missile.
Fig. 30 – Apply glue to the fuel tank.
Fig. 28 – Apply glue to the wing panel.
©
Fig. 31 – Apply glue to the wing panel.

Assembly and Operating Manual
9

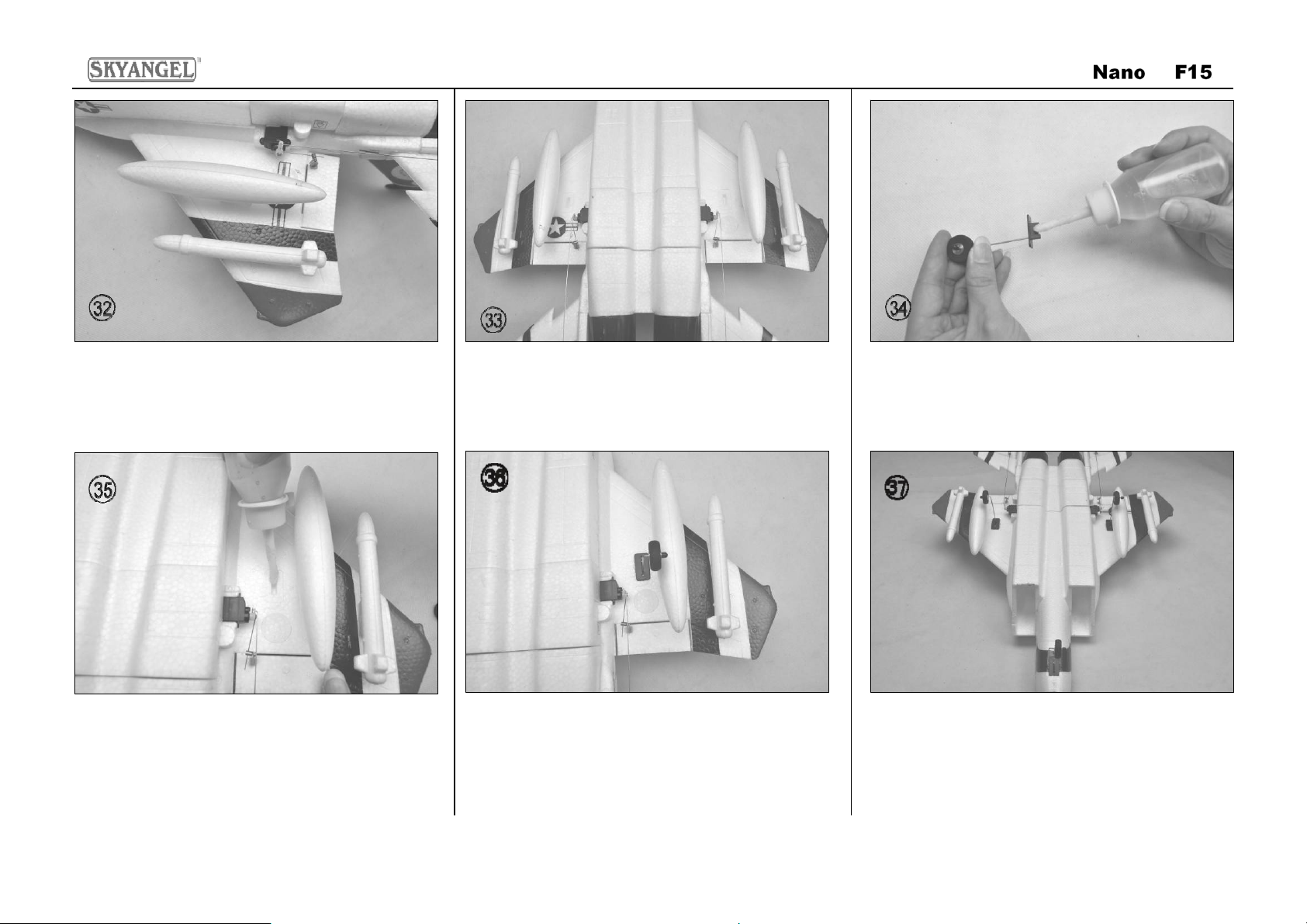

Fig. 32 - Hold in position until the glue sets , photo
shows the finished view.
Fig. 35 -Apply glue to the wing panel.
Fig. 33 - Reverse the procedure to the right
elevator push rod. The photo shows the finished
view.
Fig. 36 - Hold in position until the glue sets , photo
shows the finished view.
Fig. 34 – Apply glue to the landing gear.
.
Fig. 37 -Reverse the procedure to the left
elevator push rod. The photo shows the finished
view.

Assembly and Operating Manual
10
Fig. 38: Apply glue to the nose cone (glue not
included).
Fig. 41: Connect channel wire to the receiver..
Fig. 39: Apply glue to the fuselage (glue not
included).
Fig. 42: Locate the battery in front of the fuselage.
Fig. 40: Assemble the nose cone to the fuselage,
The photo shows the finished view.
Fig. 43: Photo shows battery leads connected to
the speed controller.
38 39 40
41 42 43

Assembly and Operating Manual
11
Fig. 44: canopy is held in place by magnets and
can be lifted off.
Fig. 45: The photo shows the finished view.
Fig.46: Congratulations, you have completed the
assembly process. We hope you enjoy flying your
new model!
44 45 46

Assembly and Operating Manual
12
Fig. 47 -Charge the flight battery; connect the Equalizer lead
using and adapter lead matching your charger (adapter lead not
included)
Fig. 48-Switch the transmitter on, and move the throttle stick to
the “Motor OFF” position. (Diagram MODE 1 right throttle control
stick)
47
48

Assembly and Operating Manual
13

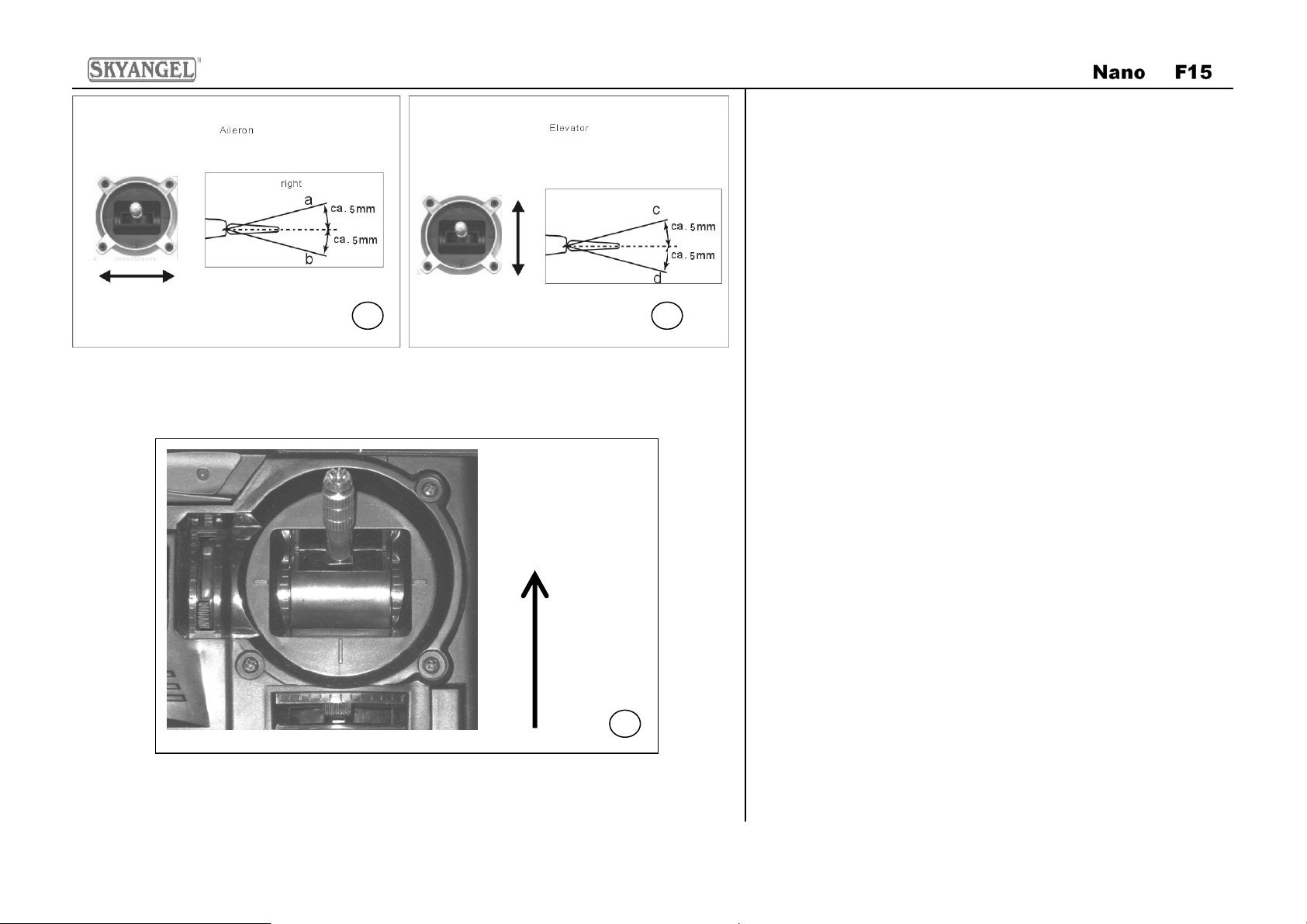

Fig. 49 and 50- Checking Ailerons and Elevators
- Check that the control surfaces respond to the appropriate
movements of the transmitter sticks. If not, swap over the
connectors at the receiver.
- Make sure do not apply glue to control rods fastener
before check the neutral position of the control surfaces
- Stand behind the model.
- Check the direction of rotation of the servos:
- Move the aileron stick to the right (a), and the right aileron (a)
must rise up, the left aileron (b) fall down.
- Pull the elevator stick back towards you (c), and the trailing
edge of both elevators should rise (c).
- If either function works in the wrong way, correct it using your
transmitter’s servo reverse facility for that channel.
Fig. 51 - Checking the power system
- Hold the model securely.
- Remove any loose objects such as cloths, tools, etc from the
area in front of the model, as they could easily be sucked into
the ducted fan.
- Open the throttle (stick forward): the motor should now run,
and you should feel a strong air flow rushing out from the tail
end of the model.
- Move the throttle stick back to the “Motor OFF” position.
- Disconnect the battery from the electronic speed controller
and then switch the transmitter off.
5049
51

Assembly and Operating Manual
14

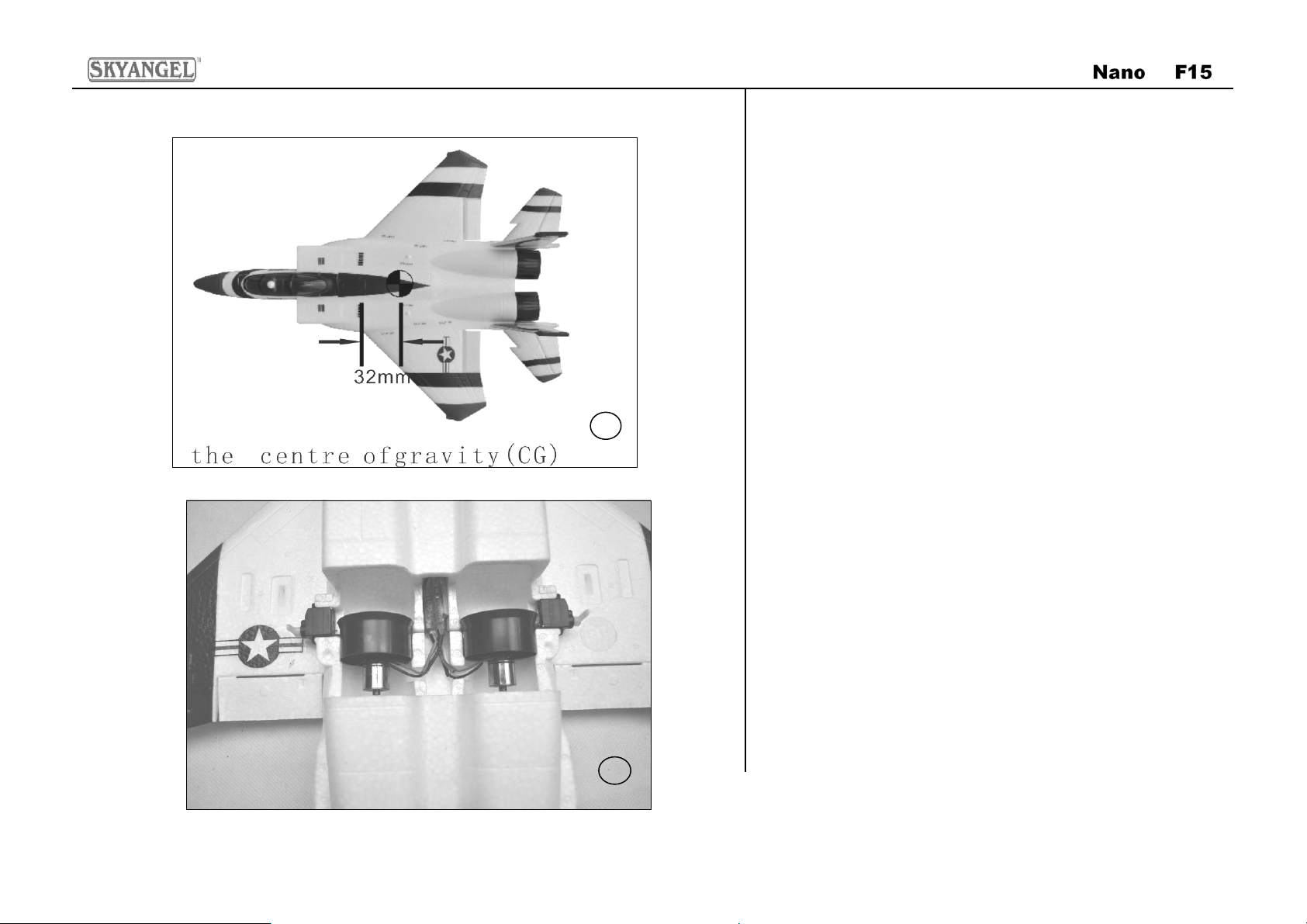

Fig. 52- Checking the model’s balance
- Place the flight battery in its compartment, without
connecting.
- Mark the Centre of Gravity (CG) on both sides of the
fuselage; the position is shown in the photo.
- Support the model at the marked points and allow it to hang
freely. When correctly balanced the airplane will remain
horizontal, with the nose slightly down.
- If necessary, adjust the position of the flight battery to
achieve the correct CG.
- Mark the battery location in the fuselage, so that you can be
sure of positioning it correctly after recharging.
- Pack scrap pieces of foam around the battery in its final
position, otherwise there is a danger of it shifting in flight
and altering the model’s balance.
- Charge the flight battery and the model is ready for flight.
Fig. 53 -Access to the ducted fan unit and electronic speed
controller
- The ducted fan unit is accessible from underneath, if you
need to carry out maintenance work or repairs.
- Ensure that the wire colors match correctly.
52
53

15
Test Flying - Notes on flying the airplane
Please read the sections entitled “Routine pre-flight checks” and “Flying
the model” in the Safety Notes before attempting to fly the Nano F15 Jet
for the first time.
- For the first flight you should wait for a relatively calm day with no more
than a gentle breeze.
- A good flying site is a large, flat, open field; well away from trees, fences,
high-tension overhead cables and other potentially dangerous obstacles.
- Carry out a complete check of the working systems.
- We recommend that you ask an experienced modeler to help you initially;
to give the model a fairly powerful hand-launch.
- The model must be launched directly into any existing wind.
- Switch the motor on, and launch the airplane strongly into the wind, with the
fuselage and wings level.
- Allow the Nano F15 Jet to fly straight and level initially, do not try to turn it
when it is close to the ground.
- Adjust the trims if necessary so that the model settles into a steady climb.
- Check the model’s response to control commands from the transmitter. You
may need to increase or reduce the control surface travels once the model
is back on the ground.
- Take the airplane up to a safe height and check its stalling speed.
- Keep the speed well up on the landing approach to avoid stalling.
- If you had to move the trims during the flight, correct the mechanical
linkages before flying again. This allows you to re-centre the trims, so that
full trim travel is available for subsequent flights.
- We reserve the right to introduce technical modifications and suggest that
you check our website for updates.
