Foreword
Thank you for purchasing this wireless keypad. It is recommended
to install outside the entry door and users can achieve operations
such as arm, disarm, stay mode after inputting passcode. Moreover,
the keypad can connect with an electric door lock to work as
an access control system for homes and offices. When users are
leaving house, just close the door, the electric lock will be locked
automatically. Before entering house, just input the passcode and
then press [Disarm ] key or put RFID tag close to the RFID reader
to disarm the system. By this way, the door will be opened easily,
which is very convenient.
Package List

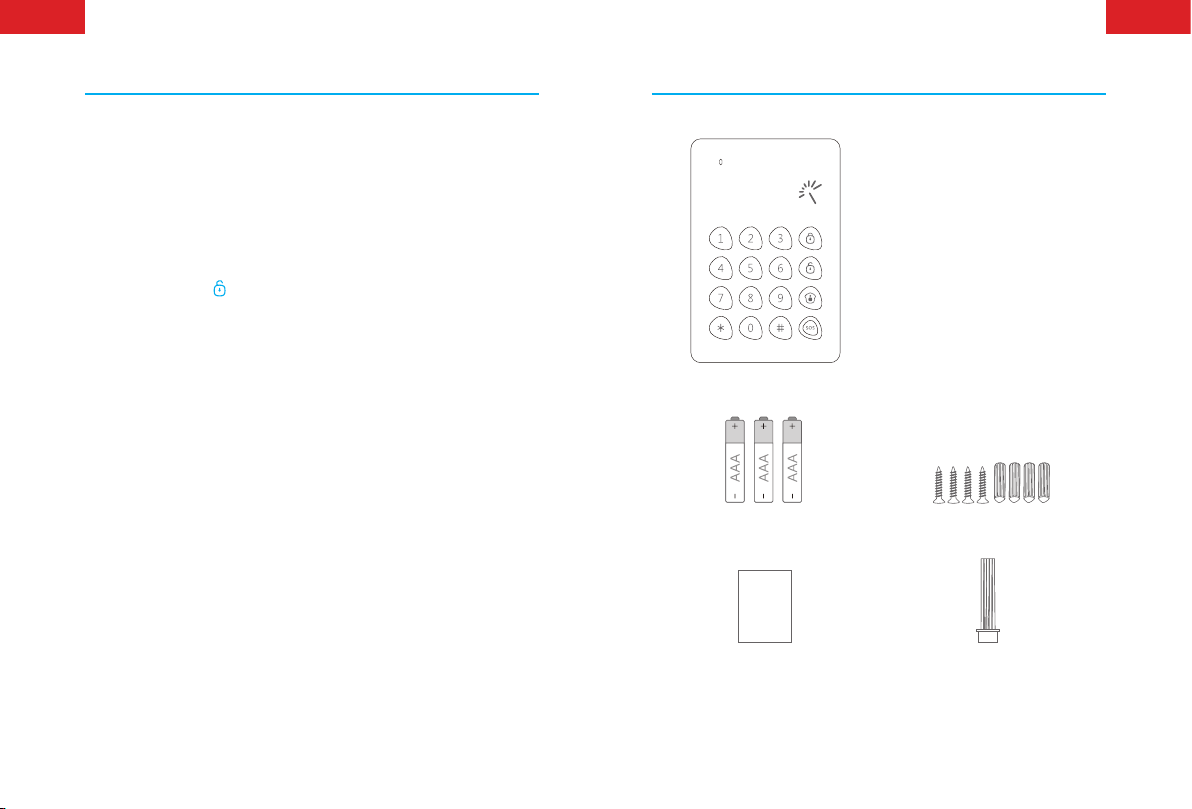

Keypad x 1
AAA 1.5V battery x 3 Screw x 4
Manual x 1 Wired Cable x 1

EN EN
3 4
Product Overview
LED indicator
Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
① RFID tag / card (125KHz) can be purchased separately. Max. 50
pcs are supported.
LED indicator Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
LED indicator
Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
① The keypad beeps twice every two seconds and the LED indicator
ashes once in case of low battery.
Preparation before Use
Power on
Remove the insulating strip for first time.
1. Keypad uses 3pcs of AAA batteries.
① Loose the screw, open the case.
② Put the batteries in according to the positive and negative signs
③ Close the rear cover and screw on.

EN EN
5 6
Note: Open the rear cover of keypad will trigger tamper switch, please dismiss
the alarm by following the disarm instruction on page 21-22.
2. When connected with electric door lock as an access control,
keypad is suggested to use the specic power supply for access
control.
To know connection steps, please refer to the instruction manual of
electric door lock. The electric door lock and specic power supply
for access control should be purchased respectively.
Connect Keypad to Control Panel
Make sure the control panel is in connecting state (please refer to
the user manual of control panel), input user code or admin code
on keypad, and then press any key of. [Arm] [Disarm] [Stay Mode].
The connection succeeds after one beep.
User can remotely control the panel via the keypad after connection.
Note: If the control panel beeps twice when connecting, it means the keypad
has been already connected with the panel.
①The default user code is 1234.
②The default admin code is 123456.
Connect Keypad with RFID Tag
1. Input [admin code] +[#] to wake up keypad.
Three beeps mean wrong input.
Wrong input for 6 times continuously, the keypad will be locked for
20 seconds.

EN EN
7 8

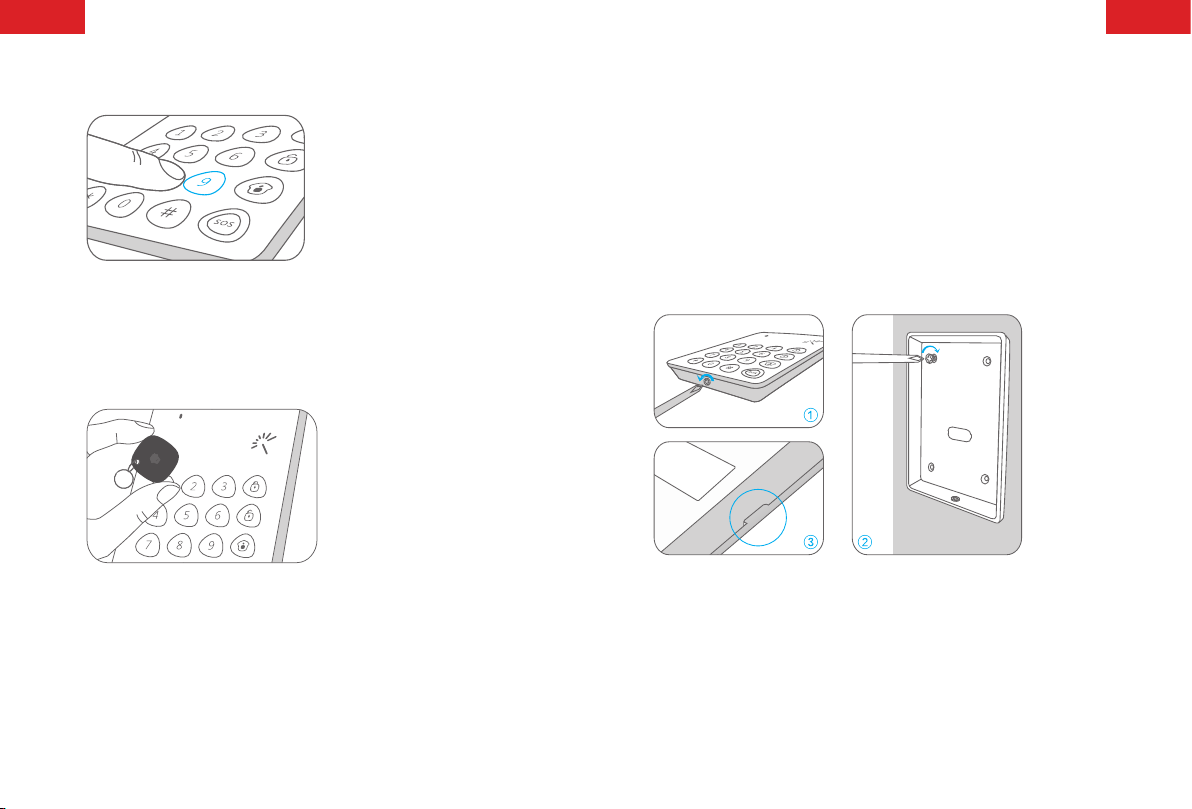

2. Press, one beep is heard a [9] nd the LED indicator is on. Keypad
enters learning state.
3. Put RFID tag close to the RFID reader, the connection succeeds after
one beep and the LED indicator goes out.
If two beeps are heard, it indicates the RFID tag has been connected
before.
To clear the connection of RFID tags, input [admin code] + [#] to
wake up the keypad and then press down [9] for six seconds. RFID
tags are all cleared after one beep..
Connect Electric Door Lock
To know connection steps, please refer to the instruction manual of
electric door lock.
Installation
Fix the keypad on the wall before use.
① Loose the screw, open the case
② Fix the rear cover on the wall by screws
③ Fasten the front cover of keypad on the rear cover. Secure two
covers into place and then screw on
Note: Opening the rear cover of keypad will trigger tamper switch, please
disarm the alarm by following the disarm instruction in page 21-22.

EN EN
9 10
Settings
The keypad should enter setup state before all settings.
Enter Setup State

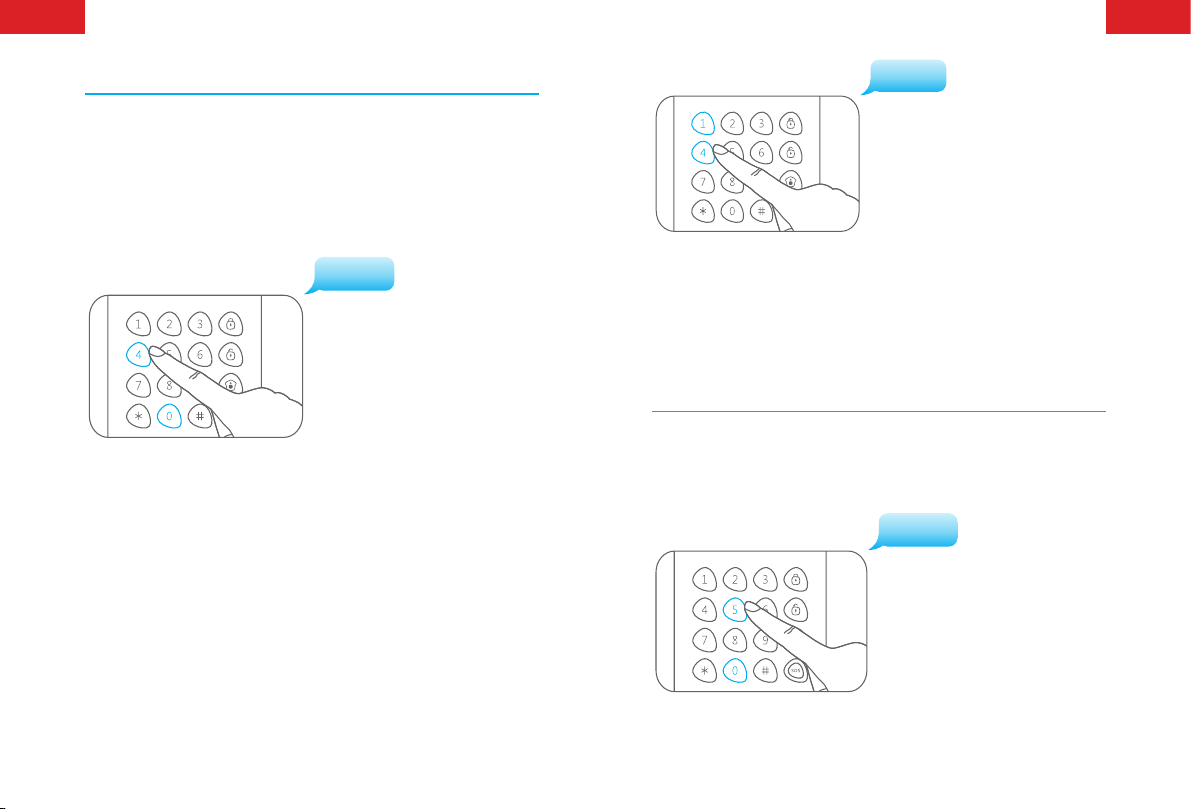

① Input [admin code] + [#] to wake up keypad.
② Press [3] to enter setup state, the LED indicator is on.
Under setup state, if there is no operation within 10 seconds, the
keypad will exit setup state automatically. You can also press [#] to
exit.
Exit Delay
The Exit Delay allows time to leave after arming the system. After
the delay time, if you are still at home, you may trigger an alarm.
This setting does not apply to Stay Mode.
If the delay time of both control panel and keypad are set
respectively, the actual delay time is the total of both.
Exit Delay
Enter setup state, input:
*2* delay time *
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Once the delay time is set, when you arm the keypad, it will beep
once every two seconds to remind you to leave. The reminding
rhythm will speed up in the last 15 seconds. After the delay time,
the control panel enters arm state.
Note: User can input digital 0-250 which refers to 0-250 seconds. Default
setting: 0, no delay.

EN EN
11 12
Setting for SOS Key
You can choose to input code before pressing [SOS] key or not. This
function is to prevent false operation or trick.
Not Input Code for SOS
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0*
*4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
After setup, you can press and hold the [SOS] key for 3 seconds,
the control panel will alarm immediately.
Input Code for SOS
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0* *4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
After setup, you need to input user code or admin code and [#]
key, and then press and hold the [SOS] key for 3 seconds to send
an emergency call.
Note: Default setting: 0. No need to input code for SOS

EN EN
13 14
Keyboard Tone
Keyboard tone can be turned on or off. If it is off, the setup
confirmation tone will be turned off too.
Turn off Keyboard Tone
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0*
*4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Turn on Keyboard Tone
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0* *4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 1, turn on the keyboard tone.
RFID Reader Setting
Disable RFID Reader
Enter setup state, input:
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.

EN EN
15 16
Enable RFID Reader
Enter setup state, input:
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Press [*] on the keypad and then disarm the system by RFID tag
after this function was enabled.
Disarming Silently by RFID Tag
The control panel and siren will hoot twice when disarming by RFID
tag. If set disarming silently by RFID tag, the control panel and siren
will keep silent to finish disarming without disturbing neighborhood.
Enter setup state, input::
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 1, turn on disarm by RFID tag and the siren will hoot
when disarming.
Direct Disarm by RFID Tag
When direct disarm by RFID tag is enabled, you can directly present
RFID tags to disarm the system and unlock the electric door locks.
However, the function consumes power greatly. It is recommended
to enable this function only when the keypad is powered by DC
12V. If this function is disabled, you should press [*] key before
approaching RFID tag so as to save power.

EN EN
17 18
Disable Direct Disarm by RFID Tag
Enter setup state, input:
*7 * 0*
*8*neuer Benutzer-Code*
*0 * *
*9*neuer Admin-Code*
*7 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Enable Direct Disarm by RFID Tag
Enter setup state, input:
*7 * 0*
*8*neuer Benutzer-Code*
*0 * *
*9*neuer Admin-Code*
*7 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 0, disable the function of direct disarm by RFID tag.
Change User Code
Using user code can wake up keypad, open electronic door lock, or
send Arm, Disarm, Stay Mode commands to the control panel.
To avoid passcode reveal, please change user code when first time
use.
Change User Code
Enter setup state, input:
*8*new admin code*
*9*new admin code*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: User code is 4 digits; default code is “1234”.
