Foreword
Thank you for purchasing this wireless keypad. It is recommended
to install outside the entry door and users can achieve operations
such as arm, disarm, stay mode after inputting passcode. Moreover,
the keypad can connect with an electric door lock to work as
an access control system for homes and offices. When users are
leaving house, just close the door, the electric lock will be locked
automatically. Before entering house, just input the passcode and
then press [Disarm ] key or put RFID tag close to the RFID reader
to disarm the system. By this way, the door will be opened easily,
which is very convenient.

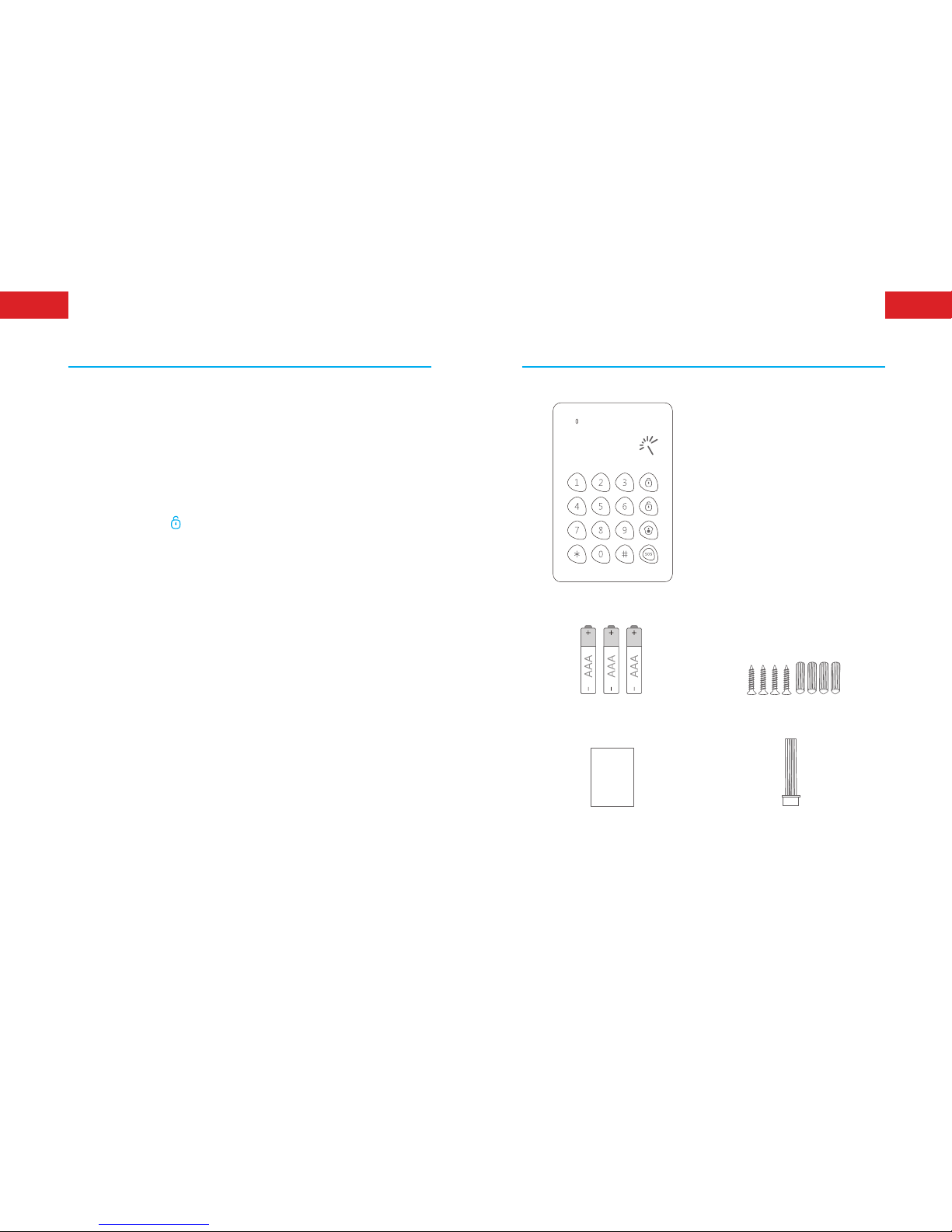

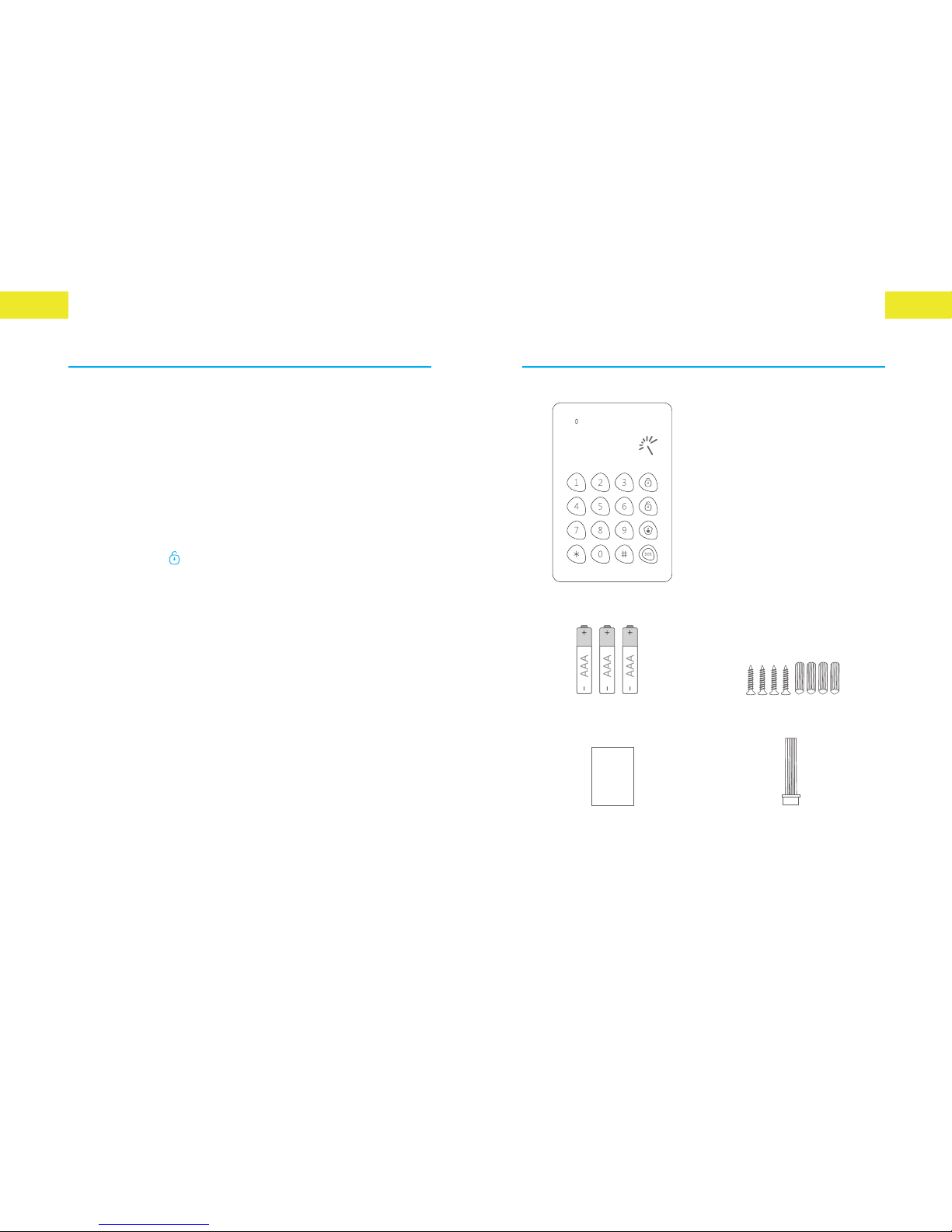

Package List
Keypad x 1
AAA 1.5V battery x 3 Screw x 4
Manual x 1 Wired Cable x 1

EN EN
3 4
Product Overview
LED indicator
Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
① RFID tag / card (125KHz) can be purchased separately. Max. 50
pcs are supported.
LED indicator Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
LED indicator
Positive and negative
terminals for battery①
Battery compartment
Tamper switch
Wired cable interface
RFID①reader
Arm
Disarm
Stay mode
SOS key
RFID wake-up key
PR2600
① The keypad beeps twice every two seconds and the LED indicator
ashes once in case of low battery.
Preparation before Use
Power on
Remove the insulating strip for first time.
1. Keypad uses 3pcs of AAA batteries.
① Loose the screw, open the case.
② Put the batteries in according to the positive and negative signs
③ Close the rear cover and screw on.

EN EN
5 6
Note: Open the rear cover of keypad will trigger tamper switch, please dismiss
the alarm by following the disarm instruction on page 21-22.
2. When connected with electric door lock as an access control,
keypad is suggested to use the specic power supply for access
control.
To know connection steps, please refer to the instruction manual of
electric door lock. The electric door lock and specic power supply
for access control should be purchased respectively.
Connect Keypad to Control Panel
Make sure the control panel is in connecting state (please refer to
the user manual of control panel), input user code or admin code
on keypad, and then press any key of. [Arm] [Disarm] [Stay Mode].
The connection succeeds after one beep.
User can remotely control the panel via the keypad after connection.
Note: If the control panel beeps twice when connecting, it means the keypad
has been already connected with the panel.
①The default user code is 1234.
②The default admin code is 123456.
Connect Keypad with RFID Tag

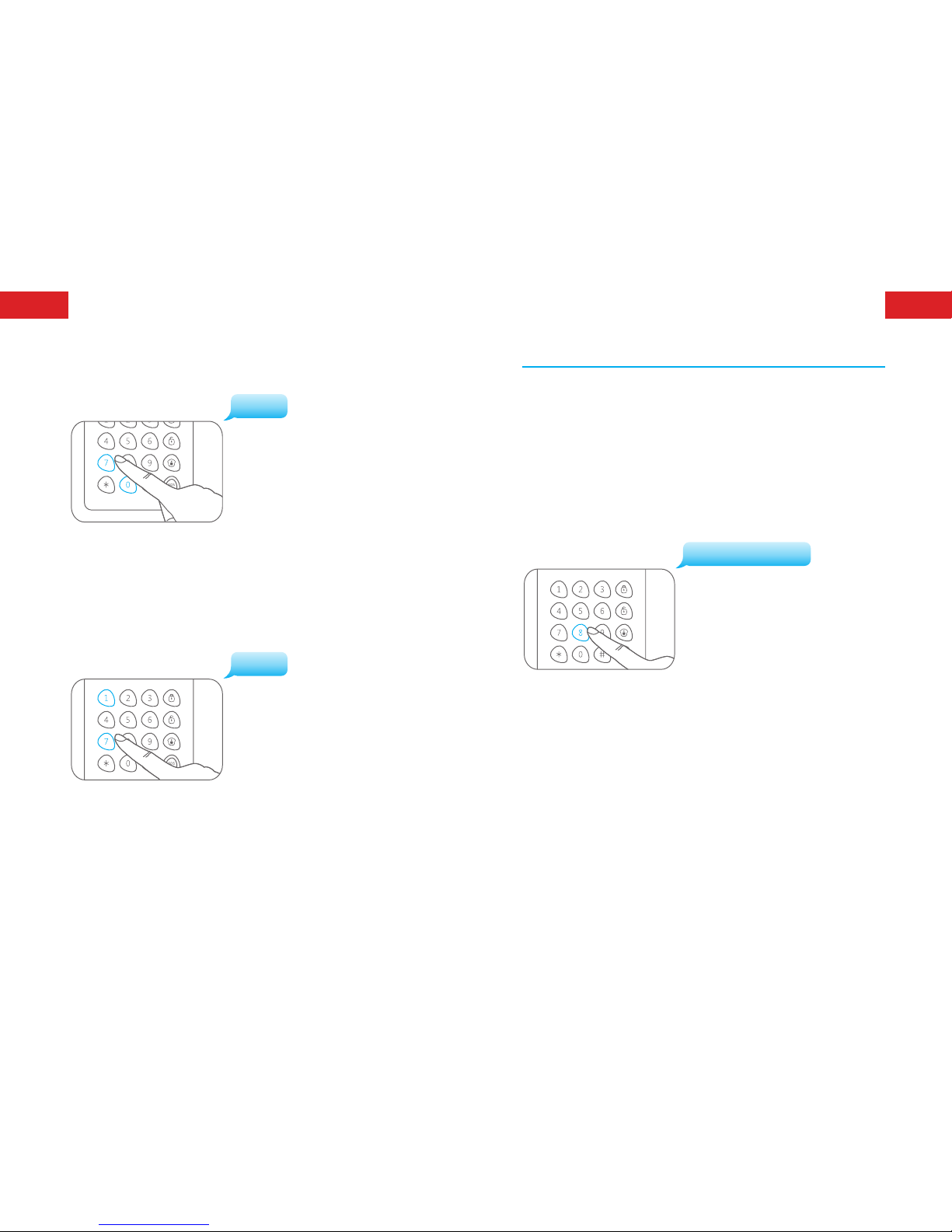

1. Input [admin code] +[#] to wake up keypad.
Three beeps mean wrong input.
Wrong input for 6 times continuously, the keypad will be locked for
20 seconds.

EN EN
7 8

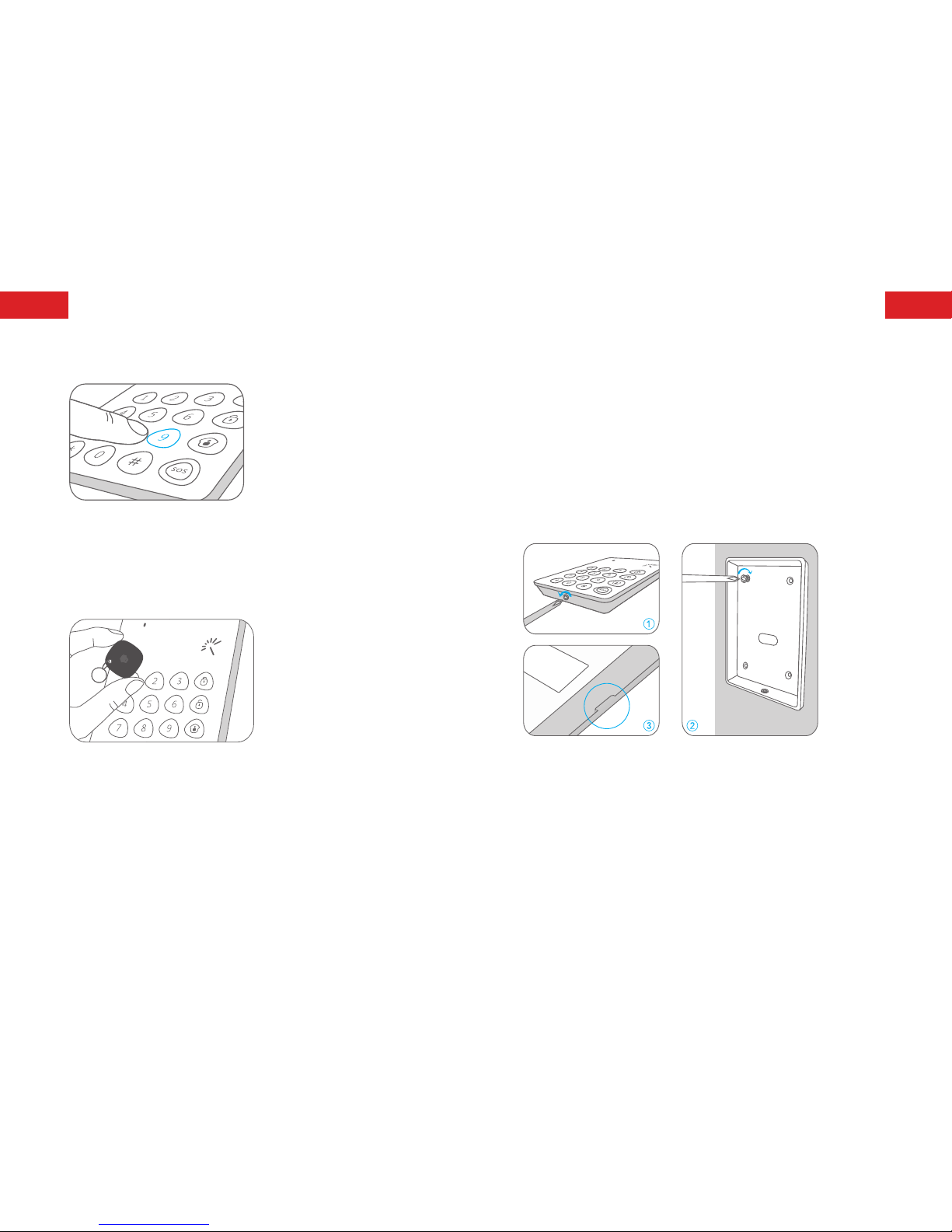

2. Press, one beep is heard a [9] nd the LED indicator is on. Keypad
enters learning state.
3. Put RFID tag close to the RFID reader, the connection succeeds after
one beep and the LED indicator goes out.
If two beeps are heard, it indicates the RFID tag has been connected
before.
To clear the connection of RFID tags, input [admin code] + [#] to
wake up the keypad and then press down [9] for six seconds. RFID
tags are all cleared after one beep..
Connect Electric Door Lock
To know connection steps, please refer to the instruction manual of
electric door lock.
Installation
Fix the keypad on the wall before use.
① Loose the screw, open the case
② Fix the rear cover on the wall by screws
③ Fasten the front cover of keypad on the rear cover. Secure two
covers into place and then screw on
Note: Opening the rear cover of keypad will trigger tamper switch, please
disarm the alarm by following the disarm instruction in page 21-22.

EN EN
9 10
Settings
The keypad should enter setup state before all settings.
Enter Setup State
① Input [admin code] + [#] to wake up keypad.
② Press [3] to enter setup state, the LED indicator is on.
Under setup state, if there is no operation within 10 seconds, the
keypad will exit setup state automatically. You can also press [#] to
exit.
Exit Delay
The Exit Delay allows time to leave after arming the system. After
the delay time, if you are still at home, you may trigger an alarm.
This setting does not apply to Stay Mode.
If the delay time of both control panel and keypad are set
respectively, the actual delay time is the total of both.
Exit Delay
Enter setup state, input:
*2* delay time *
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Once the delay time is set, when you arm the keypad, it will beep
once every two seconds to remind you to leave. The reminding
rhythm will speed up in the last 15 seconds. After the delay time,
the control panel enters arm state.
Note: User can input digital 0-250 which refers to 0-250 seconds. Default
setting: 0, no delay.

EN EN
11 12
Setting for SOS Key
You can choose to input code before pressing [SOS] key or not. This
function is to prevent false operation or trick.
Not Input Code for SOS
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0*
*4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
After setup, you can press and hold the [SOS] key for 3 seconds,
the control panel will alarm immediately.
Input Code for SOS
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0* *4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
After setup, you need to input user code or admin code and [#]
key, and then press and hold the [SOS] key for 3 seconds to send
an emergency call.
Note: Default setting: 0. No need to input code for SOS

EN EN
13 14
Keyboard Tone
Keyboard tone can be turned on or off. If it is off, the setup
confirmation tone will be turned off too.
Turn off Keyboard Tone
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0*
*4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Turn on Keyboard Tone
Enter setup state, input:
*2* Verzögerungszeit *
*3 * 1*
*3 * 0* *4 * 0*
*4 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 1, turn on the keyboard tone.
RFID Reader Setting
Disable RFID Reader
Enter setup state, input:
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.

EN EN
15 16
Enable RFID Reader
Enter setup state, input:
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Press [*] on the keypad and then disarm the system by RFID tag
after this function was enabled.
Disarming Silently by RFID Tag
The control panel and siren will hoot twice when disarming by RFID
tag. If set disarming silently by RFID tag, the control panel and siren
will keep silent to finish disarming without disturbing neighborhood.
Enter setup state, input::
*5 * 1*
*5 * 2*
*5 * 0*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 1, turn on disarm by RFID tag and the siren will hoot
when disarming.
Direct Disarm by RFID Tag
When direct disarm by RFID tag is enabled, you can directly present
RFID tags to disarm the system and unlock the electric door locks.
However, the function consumes power greatly. It is recommended
to enable this function only when the keypad is powered by DC
12V. If this function is disabled, you should press [*] key before
approaching RFID tag so as to save power.

EN EN
17 18
Disable Direct Disarm by RFID Tag
Enter setup state, input:
*7 * 0*
*8*neuer Benutzer-Code*
*0 * *
*9*neuer Admin-Code*
*7 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Enable Direct Disarm by RFID Tag
Enter setup state, input:
*7 * 0*
*8*neuer Benutzer-Code*
*0 * *
*9*neuer Admin-Code*
*7 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Default setting: 0, disable the function of direct disarm by RFID tag.
Change User Code
Using user code can wake up keypad, open electronic door lock, or
send Arm, Disarm, Stay Mode commands to the control panel.
To avoid passcode reveal, please change user code when first time
use.
Change User Code

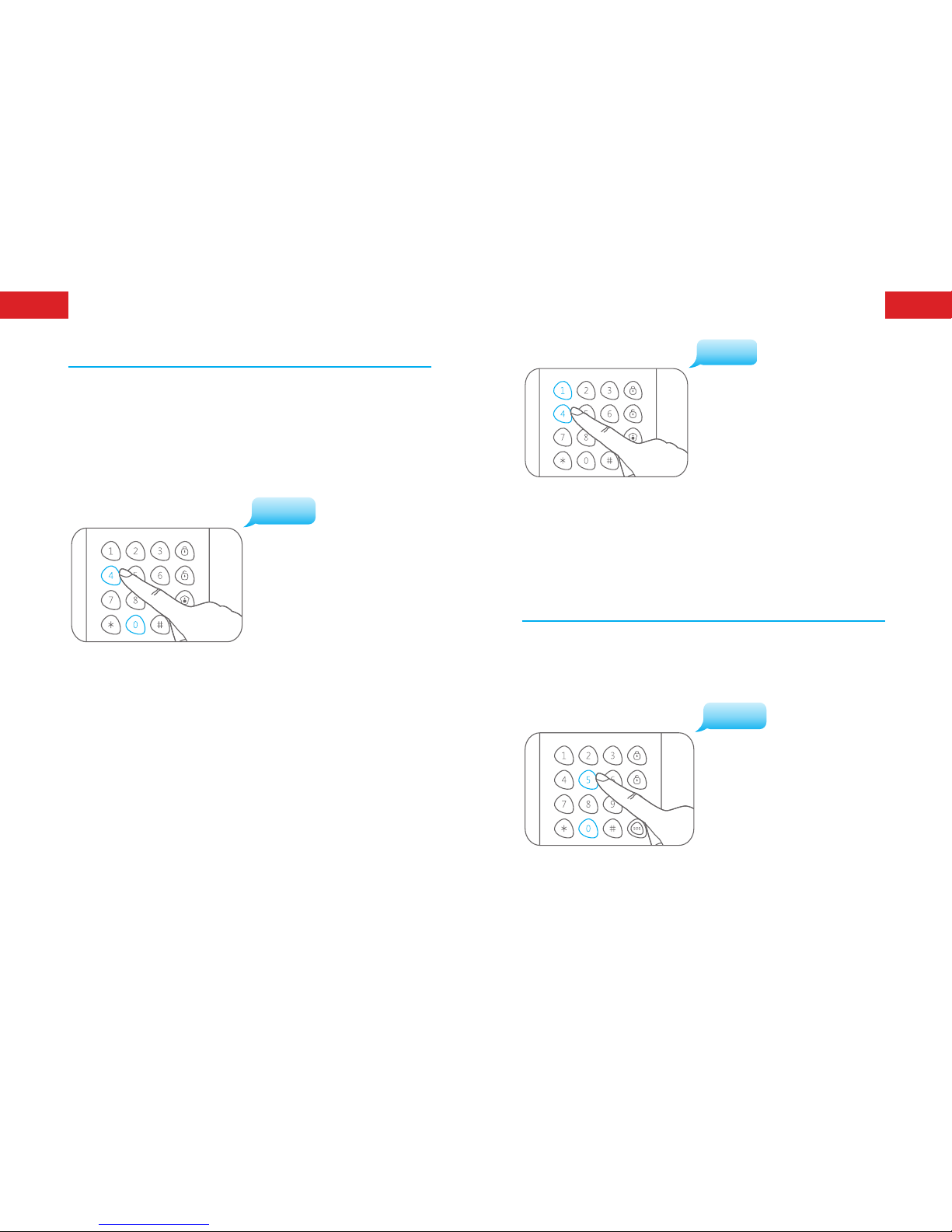

Enter setup state, input:
*8*new admin code*
*9*new admin code*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: User code is 4 digits; default code is “1234”.

EN EN
19 20
Change Admin Code
Using admin code can wake up keypad, send Arm, Disarm, Stay
Mode commands to the control panel, and also change any settings
of the keypad.
To avoid passcode reveal, please change admin code for first time.
Change Admin Code
Enter setup state, input:
*8*new admin code*
*9*new admin code*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Note: Admin code is 6 digits; default code is “123456”.
Reset
After reset, the user code, admin code, and other settings will
restore to default except that the connected RFID tags can still
disarm and open electronic door lock.
Enter setup state, input:
*7 * 0*
*8*neuer Benutzer-Code*
*0 * *
*9*neuer Admin-Code*
*7 * 1*
When one beep is heard and the LED indicator keeps on for 10
seconds, the setup is successful.
Usage
Working with an alarm control panel, the keypad is more secure
than remote control, because user code or admin code should be
input before the operation of Arm, Disarm, Stay Mode, and Mute
Mode.

EN EN
21 22
Arm
Input user code or admin code, and press [Arm] key, the LED
indicator flashes once and the keypad beeps once and sends [Arm]
command to the control panel.
When the alarm panel receives the signal, the siren will beep once
and the [Arm] indicator will light on. The alarm system enters armed
state.
If there is an intrusion, the alarm system will be triggered, the
siren will hoot and the control panel will send SMS and auto dial
to pre-stored phone numbers to notify users. (SMS notification is
applicable only for GSM alarm systems.)
Disarm
Users can disarm alarm system by using keypad or by using RFID
tags.
Using Keypad to Disarm
Input user code or admin code, and press [Disarm] key, the LED
indicator flashes once and the keypad beeps once and sends
[Disarm] command to the control panel.
When the alarm panel receives the signal, the siren will beep twice
and the Disarm indicator will light on, the alarm system enters
disarmed state. In this state, the sensors being triggered will not
cause an alarm.
Using RFID Tag to Disarm
If direct disarm by RFID tag is disabled, user needs to press [*] to
wake up the keypad and then put RFID tag close to the reader to
disarm and unlock the door.
If direct disarm by RFID tag is enable, user can put RFID tag close to
the reader to disarm and unlock the door directly.

EN EN
23 24
Stay Mode
Input user code or admin code, and press [Stay Mode] key, the LED
indicator flashes once and the keypad beeps once and sends [Stay
Mode] command to the control panel.
When the alarm panel receives the signal, the siren will beep once
and the [Stay Mode] indicator will light on, the alarm system enters
stay mode state.
All the sensors in other zones are armed to prevent the intruder
except that the motion detector in Home Mode Zone is disarmed,
so that people can move freely at home.
Emergency Call
If not inputting code for SOS is set, user just holds the [SOS] key for
3 seconds, the LED indicator flashes once, the keypad beeps once,
and the control panel alarms immediately.
If inputting code for SOS is set, user needs input user code or
admin code before holding the [SOS] key for 3 seconds to send an
alarm.
Mute Mode
Mute mode means that the LED indicators of control panel flash,
but the siren does not beep, to avoid disturbing the neighborhood.
Input user code or admin code, and hold any key of [Arm] [Disarm]
[Stay Mode] for 2 seconds, the LED indicator flashes once, the
keypad beeps once and sends corresponding command to the
control panel.
When the alarm panel receives the signal, the LED indicator lights
on or off, but the siren does not beep.

EN EN
25 26
Notices and Maintenance
In order to avoid any harm to the users or others during usage and
prolong the usage life, please abide by the following notices.
Usage Notices
General instruction
The keypad should be connected to control panel before use.
The power supply of keypad will probably impact on the
transmitting distance of wireless signal.
The keypad can be powered by 3 pcs of AAA batteries, or wired
by DC 12V.
The keypad is compatible for any our alarm system.
Please remove the battery insulating strip before use.
Do not press SOS key if there's no emergency to avoid disturbing
the neighborhood..
Check the keypad regularly to ensure the system works properly
in case of emergency.
The keypad is neither waterproof nor moisture-proof, please install
it in a shady, cool and dry place.
The case of keypad is made of ABS. Please keep it away from
strong light to ensure the lifetime..
Forbiddance
The keypad is non explosion-proof. Please keep it away from fire,
flame sources.
Install the keypad away from objects such as heater, air
conditioner, microwave oven etc. that produces heat or
electric-magnetic.
Forbiddance of decomposition
Take the keypad for disposal of recycling according to the local
regulation.
Do not take apart the product if you are not a professional
technician.
Maintenance
You can get most dust or fingerprint off with a dry, soft cloth or
tissue. If there is dirt on the keypad, please wipe the surface by a
soft cloth with a little dilute alkaline detergent and then wipe again
with a dry cloth.

EN EN
27 28
FAQ
Problem Cause Solution
No response
from keypad
Low battery Please change the battery
The positive and
negative terminals
are reversed
Follow the right terminal
direction and insert the battery
again
Keypad is locked by
inputting wrong
passcode continually
more than 6 times
Keypad will be unlocked after
non-operation for 20 seconds
Keypad
cannot
connect to
control panel
No response from
alarm panel
Make sure the alarm panel is
powered on
Make sure the alarm panel
enters learning state
Alarm panel beeps
twice Keypad has been learned
No response
from the
control panel
by operating
on keypad
Keypad is not
learned to control
panel
Please connect the keypad to
the control panel by following
the manual instruction
Distance between
keypad and control
panel is too far
Please move the keypad in a
proper distance where control
panel can receive the signal of
keypad
It’s recommended to buy signal
repeater to extend the distance
Cannot
disarm by
RFID Tags
The RFID tags are
not learned to
keypad
Please connect the RFID tag to
control panel by following the
manual instruction
Disarm by RFID tag
function is
deactivated
Enter setup state and activate
the function of disarm by RFID
tag
Direct disarm by
RFID tag is disabled Disarm after pressing [*] key
Keypad
cannot be
programmed
Keypad is not waked
up
Please input [admin code] + [#]
to wake up the keypad
Keypad doesn’t enter
setup state
Please input [admin code] +
[#], and press [3] to enter setup
state
Keypad
cannot be
armed,
disarmed and
in stay mode
Haven't input user
code or admin code
before operation
Please input the user code or
admin code before operation

EN EN
29
Instructions of Wired Cables
+12V (RED WIRE)
GND (BLACK WIRE)
PUSH (YELLOW WIRE)
GND (WHITE WIRE)
OPEN (GREEN WIRE)
Positive of power
Negative of power
Signal output for electronic lock
Negative of power
Signal input for exit switch
Specifications
Product Name
Model No.
Power Supply
Static Current
Transmitting Current
RFID Tags Supported
Transmitting Distance
Radio Frequency
Housing Material
Operating Condition
Dimensions
Net Weight
Keypad
WK7000
3 pcs of AAA batteries or DC 12V
< 3 uA (powered by batteries)
< 10 mA
50 Pcs
<80 m ( in open area)
868MHz or 915MHz
ABS plastic
Temperature: -10 C~+55 C
Relative Humidity: < 80% (non-
condensing)
135 x 90 x 15 mm
90 g

DE DE
WK7000
Drahtlose Tastatur
MULTILINGUAL
USER MANUAL
EN DE FR NL

DE DE
Bedienungsanleitung
Bitte lesen Sie diese Anleitung vor Gebrauch sorgfältig durch.
Bitte bewahren Sie sie gut auf.
Inhaltsverzeichnis
Einleitung ...........................................................................................................................1
Vorwort ..............................................................................................................................1
Packliste..............................................................................................................................2
Produktübersicht............................................................................................................. 3
Vorbereitung vor der Verwendung .........................................................................4-8
Einschalten.........................................................................................................................4
Anschließen der Tastatur an das Bedienfeld .............................................................5
Anschließen des RFID-Tag an die Tastatur.................................................................6
Anschließen des elektronischen Türschlosses...........................................................8
Installation..........................................................................................................................8
Einstellungen.............................................................................................................. 9-21
Setupstatus eingeben.....................................................................................................9
Ausgangsverzögerung.................................................................................................10
Einstellung für SOS-Taste.............................................................................................11
Tastaturton.......................................................................................................................13
Einstellung für RFID-Lesegerät ...................................................................................14
Direktes Unscharfschalten mit RFID-Tag ..................................................................17
Benutzer-Code ändern.................................................................................................18
Admin-Code ändern.....................................................................................................19
Zurücksetzen...................................................................................................................21
Verwendung ........................................................................................................... 21-25
Scharfschalten.................................................................................................................22
Unscharfschalten............................................................................................................22
Anwesend-Modus .........................................................................................................24
Notruf ...............................................................................................................................25
Stumm-Modus ...............................................................................................................25
Hinweise und Wartung.......................................................................................... 26-27
Bedienungshinweise......................................................................................................26
Wartung ...........................................................................................................................27
FAQ............................................................................................................................. 28-29
Anweisungen für Kabelschnittstelle...........................................................................30
Technische Daten...........................................................................................................30

DE DE
01 02
Vorwort
Vielen Dank für den Kauf dieser drahtlosen Tastatur. Die Installation
wird vor der Haustür empfohlen, wo Benutzer damit nach Eingabe
des Zugangscodes Funktionen wie Scharfschalten, Unscharfschalten
und Anwesend-Modus ausführen können. Darüber hinaus kann
die Tastatur mit einem elektrischen Türschloss verbunden werden
und als Zutrittskontrollsystem für Wohnungen und Büros fungieren.
Wenn Benutzer das Haus verlassen und die Türe schließen, wird das
elektrische Schloss automatisch gesperrt. Vor Betreten des Hauses
geben Sie den Zugangscode ein und drücken Sie dann die Taste
[ Unscharfschalten ] oder halten Sie zum Unscharfschalten den
RFID-Tag in die Nähe des RFID-Lesegeräts. So wird die Tür einfach
und bequem geöffnet.
Packliste
Tastatur x1
AAA 1,5 V Batterie x3 Schraube x4
Bedienungsanleitung x1 Kabel x1
