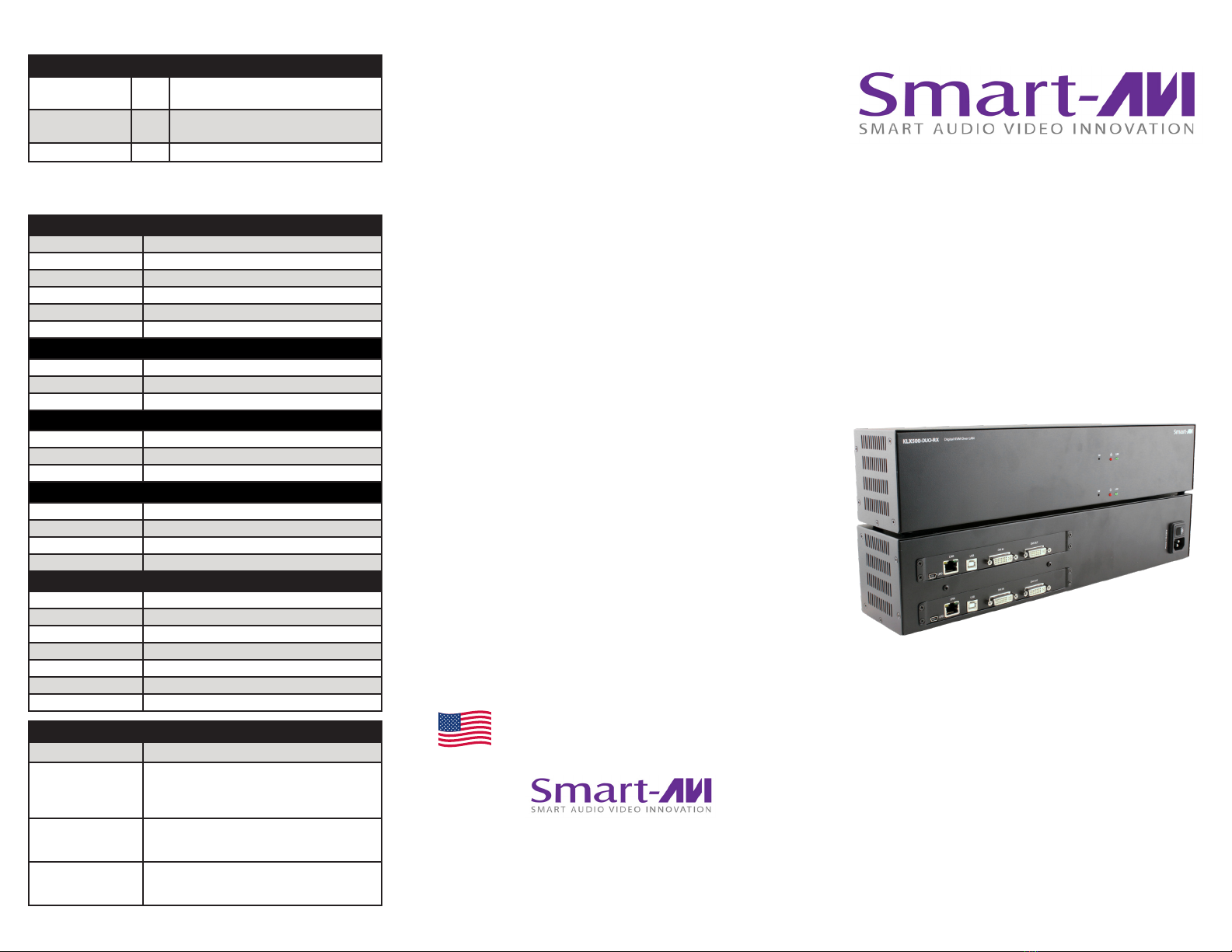

SMART-AVI KLX-500-DUO User manual

KLX-500-DUO
1080p DVI-D Video and
Keyboard, Mouse Extender for
2 Computers
Quick Start Guide
PART NO. QTY DESCRIPTION
KLX-500-DUO-TX 1 Dual DVI-I KVM with Audio
Point-to-Point Extender Transmitter
KLX-500-DUO-RX 1 Dual DVI-I KVM with Audio
Point-to-Point Extender Receiver
Power Cord 2 CCPWR06
© Copyright 2017 SmartAVI, All Rights Reserved
NOTICE
The information contained in this document
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: @smartavi
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
http://www.SmartAVI.com
Extends HD Video & Keyboard,
Mouse signals from 2 Computers
up to 500 ft using CAT5/5e/6 cables
VIDEO
Format DVI-D
Resolution Up to 1080p (1920 x 1080 @ 60Hz)
Input Interface (TX) DVI-I (2)
Output Interface (TX) DVI-D (2)
Output Interface (RX) DVI-D (2)
Cable Length Up to 40 ft
USB
Input Interface (TX) USB Type B Female (2)
Output Interface (TX) USB Type A (4) Keyboard/Mouse
Output Interface (RX) USB Type A (4) Keyboard/Mouse
AUDIO / MICROPHONE
Audio Format Stereo
Input Interface (TX) Audio 3.5 mm (2), Microphone 3.5 mm (2)
Output Interface (RX) Audio 3.5 mm (2), Microphone 3.5 mm (2)
NETWORK
Output Interface (TX) RJ45 LAN (2)
Input Interface (RX) RJ45 LAN (2)
Cable Requirements CAT 5/5e/6
Max. Length 500 ft
OTHER
Power External 100-240 VAC
Weight TX & RX 2.5 lbs each
Dimensions TX & RX 17.125” W X 3.75” D X 4” H each
Operating Temp. 41 to 122°F (5 to 50 °C )
Operating Humidity Up to 85% RH (no condensation)
Storage Temp. 32 to 149°F (0 to 65 °C )
Storage Humidity Up to 90% RH (no condensation)
ORDER INFO
Part No. Description
KLX-500-DUO-S Dual DVI-I KVM with Audio Point-to-Point
Extender over LAN or CAT5e/6.
Includes: [KLX-500-DUO-TX, KLX-500-DUO-RX,
and 2 x CCPWR06]
KLX-500-DUO-TX Dual DVI-I KVM with Audio Point-to-Point
Extender Transmitter over LAN or CAT5e/6.
Includes: [KLX-500-DUO-TX and CCPWR06]
KLX-500-DUO-RX Dual DVI-I KVM with Audio Point-to-Point Ex-
tender Receiver over LAN or CAT5e/6. Includes:
[KLX-500-DUO-RX and CCPWR06]
What’s in the Box?
Technical Specications*
Designed and Manufactured in the USA

Introduction
The KLX-500-DUO extender provides 500 feet of
connectivity using CAT 5/5e/6 cables used in LAN
infrastructure to extend KVM (Keyboard, Video and
Mouse) operation of 2 computers DVI input. Chain
additional extenders to extend signals even further
and transmit crystal clear audio-video signals in
realtime. The KLX-500-DUO is an ideal t in pre-existing
LAN infrastructures, like corporate oce environments
and data centers. The KLX- 500-DUO supports
full USB emulation and 1080p HD video up to
1920x1080 resolution at 60Hz. The KLX-500-DUO
features dual control operation for local and remote
KVM support, so managing workow is never more
than a mouse-click away. Built with plug-and- play
functionality, setting up and running KLX-500-DUO is
simple and seamless. No drivers or software installations
required. The KLX-500-DUO compresses data to
utilize CAT 5/5e/6 cables at no loss to performance
or picture quality. For the best visual and control results
when going the distance, KLX-500-DUO has your
KVM and HD video needs covered.
Product - Installation Diagram
Connecting the KLX-500-DUO
1. Power o all devices prior to connecting them.
2. Connect the KLX-500-DUO-TX transmitter to the computers with 2 USB Type A to Type B cables.
3. Connect the computers DVI outputs to the KLX-500-DUO-TX DVI inputs. See Note below if VGA output is required.
4. Optionally connect the computers audio and microphone jacks to the KLX-500-DUO-TX.
5. If you want local access you may optionally connect DVI monitors to the DVI outputs on the KLX-500-DUO-TX and
USB keyboards and mice to the KLX-500-DUO-TX USB ports marked for keyboard and mouse
6. Connect a CAT 5/5e/6 cable to the KLX-500-DUO-TX.
7. Connect a CAT 5/5e/6 cable to the KLX-500-DUO-RX.
8. Connect DVI monitors to the DVI outputs on the KLX-500-DUO-RX.
9. Connect USB keyboards and mice to the KLX-500-DUO-RX USB ports marked for keyboard and mouse.
10. Optionally connect speakers and microphones to the KLX-500-DUO-RX
11. Power on all devices.
12. Press and release the SW buttons on the KLX500-DUO-RX to learn EDIDs from the connected monitors. The Link LEDs will go
out and come back on ashing once the EDIDs are learned.
NOTE: You can connect a computers VGA output port using a VGA to DVI-I Adapter on the TX DVI input port. The RX DVI
output port is compatible with VGA. The TX DVI output port is not compatible with VGA.
KLX-500-DUO-TX Back KLX-500-DUO-TX Front
Features
• Extends KVM operation of 2 Computers
up to 500 feet via CAT 5/5e/6 cables
• Chainable for thousands of feet of extension
• Supports full USB emulation for keyboard-mouse
operation
• Audio input and output
• Supports 1080p up to 1920x1080 resolution
at 60 Hz
• Plug-and-Play ready
• No software or driver required
Application
• Digital Signage
• Public Presentations
• Security and Surveillance
• Healthcare Supervision
• Educational Spaces
• Hotel Displays
• Convention Centers
• Point of Sale and Retail
• Military and Government Systems
