SMARTBoard® 600i5
Interactive whiteboard system
Configuration and user’s guide
Read this guide on your smart phone or other mobile device.

FCC warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Trademark notice
SMARTBoard, SMARTNotebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMARTTechnologiesULC in the U.S.
and/or other countries. TexasInstruments, BrilliantColor, DLP and DLPLink are trademarks of TexasInstruments. Microsoft, Windows and InternetExplorer are either
registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Blu-ray is a trademark of the Blu-ray Disc Association. All other third-party
product and company names may be trademarks of their respective owners.
Copyright notice
© 2012 SMARTTechnologiesULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated
into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change without notice
and does not represent a commitment on the part of SMART.
One or more of the following patents: US6320597; US6326954; US6540366; US6741267; US7151533; US7687736; US7757001; USD612396; USD616462; USD617332; and
USD636784. Other patents pending.
01/2012

Important information
Before you install and use your SMARTBoard®600i5 interactive whiteboard system, read and
understand the safety warnings and precautions in this user’s guide and the included warnings
document. These safety warnings and precautions describe the safe and correct operation of your
interactive whiteboard system and its accessories, helping you to prevent injuries and equipment
damage. Ensure that your interactive whiteboard system is always being used correctly.
In this document, “interactive whiteboard system” refers to the following:
lSMARTBoard 600 series interactive whiteboard
lSMARTUF75 or SMARTUF75w projector
lAccessories and optional equipment
The projector included with your system is designed to work only with certain SMARTBoard
interactive whiteboard models. Contact your authorized SMART reseller (smarttech.com/where) for
more information.
Safety warnings, cautions and important
information
Installation
W W A R N I N G
lFailure to follow the installation instructions shipped with your SMART product could result in
personal injury and damage to the product.
lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or
moisture.
i

lTwo people are required to mount your SMART product because it may be too heavy for one
person to safely maneuver.
When you lift your interactive whiteboard, you and your assistant should stand on either side
of the screen, supporting its weight at the bottom while balancing the top with your other
hands.
lWhen mounting the projector boom on a framed or hollow wall, attach both the mounting
bracket and the safety tether to a stud to safely support the projector’s weight. If you use only
drywall anchors, the drywall can fail, resulting in possible personal injury, and damage to the
product which may not be covered by your warranty.
lDo not leave cables on the floor where they can be a tripping hazard. If you must run a cable
over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable
management strip of a contrasting color. Handle cables carefully and avoid excessive
bending.
C C A U T I ON
lDo not operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture can condense on the
lens and crucial internal parts. Allow the system to stabilize to room temperature before
operation to prevent possible damage to the unit.
lDo not place the unit in hot locations, such as near heating equipment. Doing so could cause
a malfunction and shorten the life of the projector.
lAvoid setting up and using the SMART product in an area with excessive levels of dust,
humidity and smoke.
lDo not place your SMART product in direct sunlight or near any appliance that generates a
strong magnetic field.

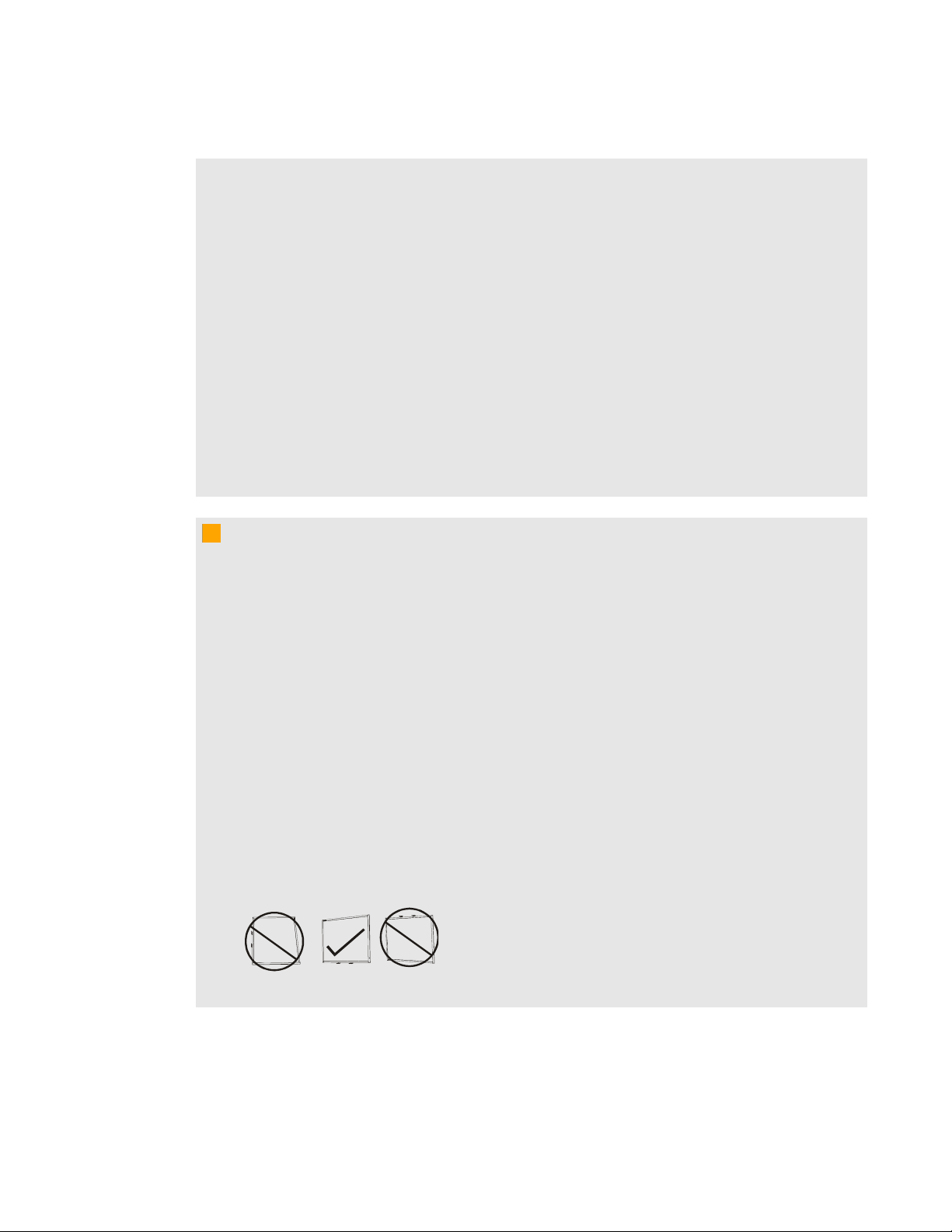

lIf you need to lean the interactive whiteboard against a wall before you mount it, make sure it
remains in an upright position, resting on the pen tray brackets, which can sustain the weight
of the interactive whiteboard.
Do not rest the interactive whiteboard on its side or on the top of the frame.
I M P O R T A N T I N F O R M A T I O N
ii

lYou must connect the USB cable that came with your SMARTBoard interactive whiteboard
to a computer that has a USB compliant interface and that bears the USB logo. In addition,
the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark
and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid
damage to the SMARTBoard interactive whiteboard.
I I M P O R T A N T
lUse the SMARTBoard 660i5,680i5, 685i5 and 690i5 interactive whiteboard system
installation guide (smarttech.com/kb/154547) to install your interactive whiteboard, projector
and ECP.
lMake sure an electrical socket is near your SMART product and remains easily accessible
during use.
lUsing your SMART product near a TV or radio could cause interference to the images or
sound. If this happens, move the TV or radio away from the projector.
Operation
W W A R N I N G
lIf you are using an audio system, use only the power supply included with that product.
Using the wrong power supply might create a safety hazard or damage the equipment. If in
doubt, refer to the specification sheet for your product to verify the power supply type.
lDo not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard
interactive whiteboard.
Do not climb on, hang from or suspend objects from the projector boom.
Climbing on the interactive whiteboard or projector boom could result in personal
injury or product damage.
lViewing 3D content from a projector may cause epileptic seizures or strokes. If you or any
member of your family has a history of light-sensitive seizures, consult a doctor before
viewing 3D content.
lViewing 3D content while you are consuming alcohol, experiencing sleep deprivation or in
poor physical condition may be unsafe.
lPregnant women and elderly individuals should avoid viewing 3D content.
I M P O R T A N T I N F O R M A T I O N
iii

lViewing 3D content may cause sickness, including nausea, dizziness, headache, eyestrain,
blurred vision or numbness. If you experience any of these symptoms, stop viewing 3D
content immediately. If these symptoms persist, consult a doctor.
lParents and teachers should monitor children and students for adverse effects resulting from
viewing 3D content since children and teenagers may be more susceptible than adults to
related health risks.
lTo avoid adverse effects resulting from viewing 3D content with your interactive whiteboard
system, observe the following precautions:
oDo not use 3D glasses for viewing any material other than 3D content.
oMaintain a minimum distance of 7' (2 m) from your interactive whiteboard system’s
screen. Viewing 3D content from too close a distance may result in eyestrain.
oAvoid viewing 3D content for a prolonged period of time. Take a break of 15 minutes or
longer after every hour of viewing.
oFace the screen squarely when viewing 3D content. Viewing 3D content from an angle
may cause fatigue or eyestrain.
C C A U T I ON
lDo not block the projector’s ventilation slots and openings.
lAvoid putting the projector into Standby mode during the lamp ignition phase because this
can lead to premature lamp failure. Keep the projector lamp on for a minimum of 45 minutes
before putting it into Standby mode to preserve the lamp life.
lIn a high altitude location over 6000' (1800 m), where the air is thin and cooling efficiency is
reduced, use the projector with the fan mode set to High.
lCycling power to the projector repeatedly can lock or damage your SMART product. After
you put the product into Standby mode, wait at least 45 minutes for cooling before starting
the product again.
lIf dust or small items prevent pen tray buttons from being pressed or cause constant button
contact, remove the obstructions carefully.
I I M P O R T A N T
lIf you have peripheral devices that do not use a 4-pin mini-DIN S-video connector, an RCA
Composite video jack or an HDMI video connector, or if your device has an audio connection
that does not use RCA jacks, you may need to purchase third-party adapters.
I M P O R T A N T I N F O R M A T I O N
iv

lThere are no projector menu options on the ECP. Keep your remote control in a safe place
because the ECP is not a substitute for the remote control.
lDo not disconnect cables from the ECP to connect peripheral devices because you could
disconnect controls for your interactive whiteboard.
lDisconnect the product from its power source when it’s not used for a long period.
Cleaning
C C A U T I ON
lBefore you clean the projector, press the Power button twice on the ECP or remote
control to put the system in Standby mode, and then allow the lamp to cool for at least 30
minutes.
lDo not spray cleaners, solvents or compressed air near any part of the projector because
they can damage or stain the unit. Spraying the system could spread a chemical mist on
some of the projector’s components and lamp, resulting in damage and poor image quality.
lDo not allow liquids or commercial solvents of any kind to flow into the projector.
I I M P O R T A N T
lPut your SMART product into Standby mode before cleaning it.
lFollow these guidelines to clean the projector:
oWipe the exterior of the projector with a lint-free cloth.
oIf necessary, use a soft cloth moistened with a mild detergent to clean the projector
housing.
oDo not use abrasive cleaners, waxes or solvents.
oAvoid touching the lens. If it is necessary to clean the lens:
oUse liquids or commercial solvents (such as glass cleaners) to clean the lens,
but do not spray them directly on the system.
oUse protective gloves and dip a lint-free cloth (such as Purestat PW2004) in an
anti-static solvent (such as Hyperclean EE-6310).
oGently wipe the lens from the center to the edge. Do not apply any pressure to
the lens.
I M P O R T A N T I N F O R M A T I O N
v

Service
W W A R N I N G
lThere are no user-serviceable parts inside the pen tray. Only qualified personnel should
disassemble the pen tray’s printed circuit boards, and this procedure must be done with
proper electrostatic discharge (ESD) protection.
C C A U T I ON
lDo not adjust any settings in the service menu other than those listed in the following
procedures. Changing other settings might damage or affect the operation of your projector
and may invalidate your warranty.
lWhen transporting your SMART product, repack it with as much of the original packaging as
possible. This packaging was designed with optimal shock and vibration protection.
lIf your SMART product requires replacement parts, make sure the service technician uses
replacement parts specified by SMARTTechnologies or parts with the same characteristics
as the original.
I M P O R T A N T I N F O R M A T I O N
vi

Environmental requirements
Before you install your SMARTBoard600 interactive whiteboard system, review the following
environmental requirements.
Environmental
requirement
Parameter
Operating temperature l41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)
l41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1800 m to 3000 m)
Storage temperature l-40°F to 122°F (-40°C to 50°C)
Humidity l30% to 80% relative humidity, non-condensing
lHumidity above 80% could cause slight wrinkling in the screen
surface sheet. The wrinkles disappear when the humidity lowers.
Water and fluid
resistance
lIntended for indoor use only. Doesn’t meet any salt-spray or water
ingress requirements.
lDon’t pour or spray liquids directly onto your interactive whiteboard,
the projector or any of its sub-components.
Dust lIntended for use in office and classroom environments. Not for
industrial use where heavy dust and pollutants can cause
malfunctions or impaired operation. Periodic cleaning is required in
areas with heavier dust. See Cleaning the projector on page 35 for
information on cleaning the projector.
lDesigned for pollution degree 1 (P1) as per EN61558-1, which is
defined as “No pollution or only dry non-conductive pollution”.
Electrostatic discharge
(ESD)
lEN61000-4-2 severity level 4 for direct and indirect ESD
lNo malfunction or damage up to 8kV (both polarities) with a 330
ohm, 150 pF probe (air discharge)
lUnmated connectors meet no malfunction or damage up to 4kV
(both polarities) for direct (contact) discharge
Cables lAll SMARTBoard600i5 interactive whiteboard system cables
should be shielded to prevent potential accidents and degraded
video and audio quality.
Conducted and radiated
emissions
lEN55022/CISPR 22, Class A
I M P O R T A N T I N F O R M A T I O N
vii
