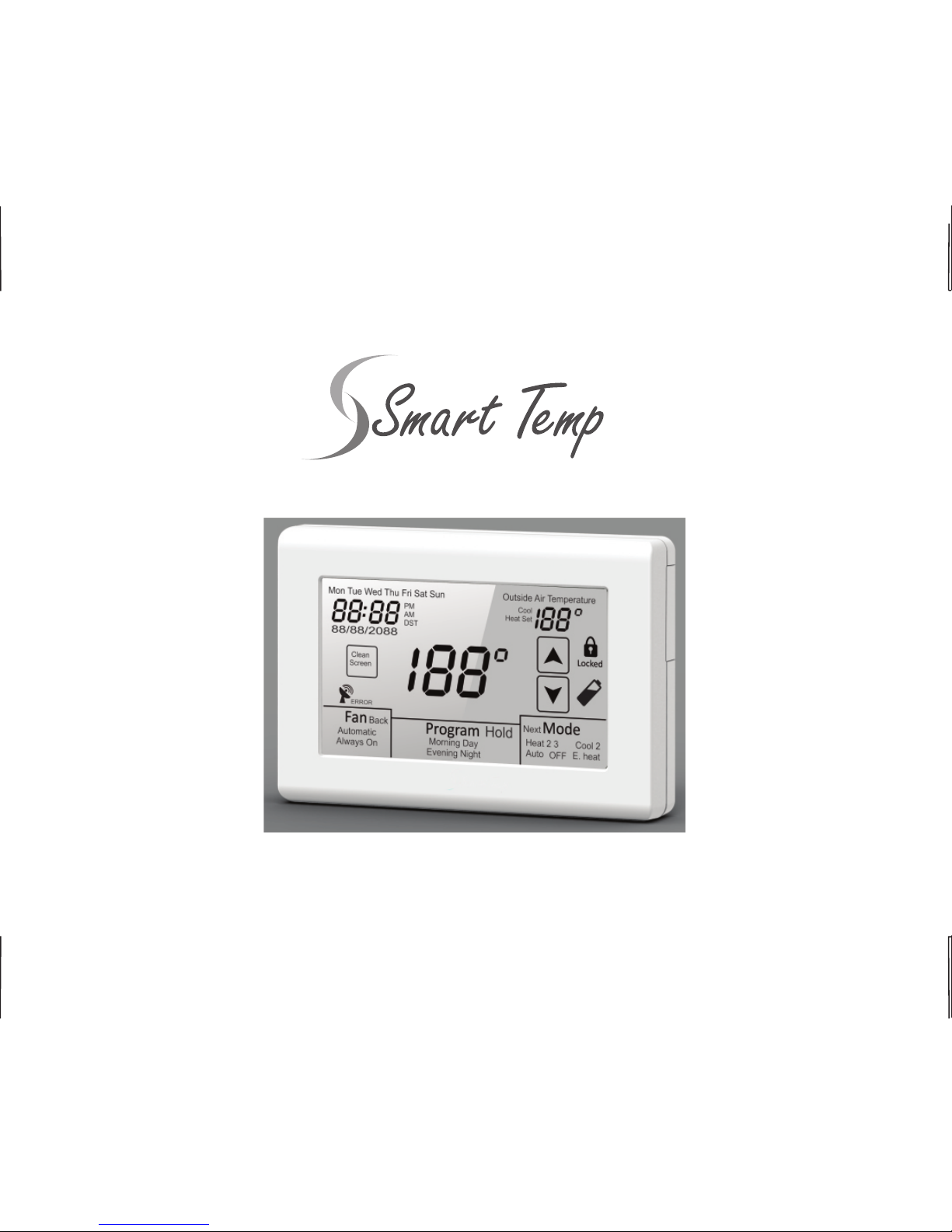

Smart temp 44-850 Apollo User manual

User Manual
44-850 Apollo
Touchscreen Thermostat

TABLE OF CONTENTS
Introduction ........................................................................................................................................... 3
.
Using the Touchscreen Display .............................................................................................................. 4
Typical Display ...................................................................................................................................... 5
Setting the Day, Time and Calendar .................................................................................................... 6
Basic Functions ...............................................................................................................................7, 11
Mode Configurations ............................................................................................................ 7
Conventional Heating and Cooling Equipment (Gas/Electric) ............................................. 7
Heat Pump and Fossil Fuel Equipment ............................................................................... 7
Mode Selection .................................................................................................................... 8
Fan Selection ....................................................................................................................... 9
Programmable Fan (Option) ................................................................................................ 9
Changing the Heating or Cooling Temperature Setting (Manual Heat/Cool Mode) ........... 10
Changing the Heating or Cooling Temperature Setting (Auto Mode) ................................. 11
Programming .................................................................................................................................12, 18
7-Day Schedule (4 or 2 Daily Events) ............................................................................. 12, 13
4 Daily Events ................................................................................................................ 13, 17
2 Daily Events .................................................................................................................... 17
Programmable Fan ............................................................................................................ 18
1

TABLE OF CONTENTS
Overrides ...................................................................................................................................... 19, 20
Temporary Temperature Override ................................................................................ 19, 20
Permanent Hold ................................................................................................................. 20
Other Options and Features ......................................................................................................... 21, 22
Adaptive Recovery Option ................................................................................................. 21
Clean Screen ..................................................................................................................... 21
Low Battery Indication ........................................................................................................ 22
Changing the Batteries ....................................................................................................................... 23
2

INTRODUCTION
Your new 44-850 is a feature-rich touchscreen thermostat has been manufactured using the highest
quality components and design currently available. When properly installed and configured by a
professional heating and air conditioning contractor, the 44-850 will provide years of dependable
operation.
The 44-850 has been designed to be an attractive, highly reliable and easy-to-use thermostat. By
taking time to read and understand this User Manual, you can take advantage of the many features
offered in this premium product.
Although great care has been taken in the preparation of this manual, Smart Temp takes no
responsibility for errors or omissions contained herein. It is the responsibility of the installer
to ensure that this thermostat and the equipment connected to it operate in a safe and efficient
manner.
Due to ongoing product improvements, Smart Temp reserves the right to change the
specifications of the 44-850 thermostat or its components without notice.
All rights reserved.
© Smart Temp 2015.
Intellectual rights apply.
3

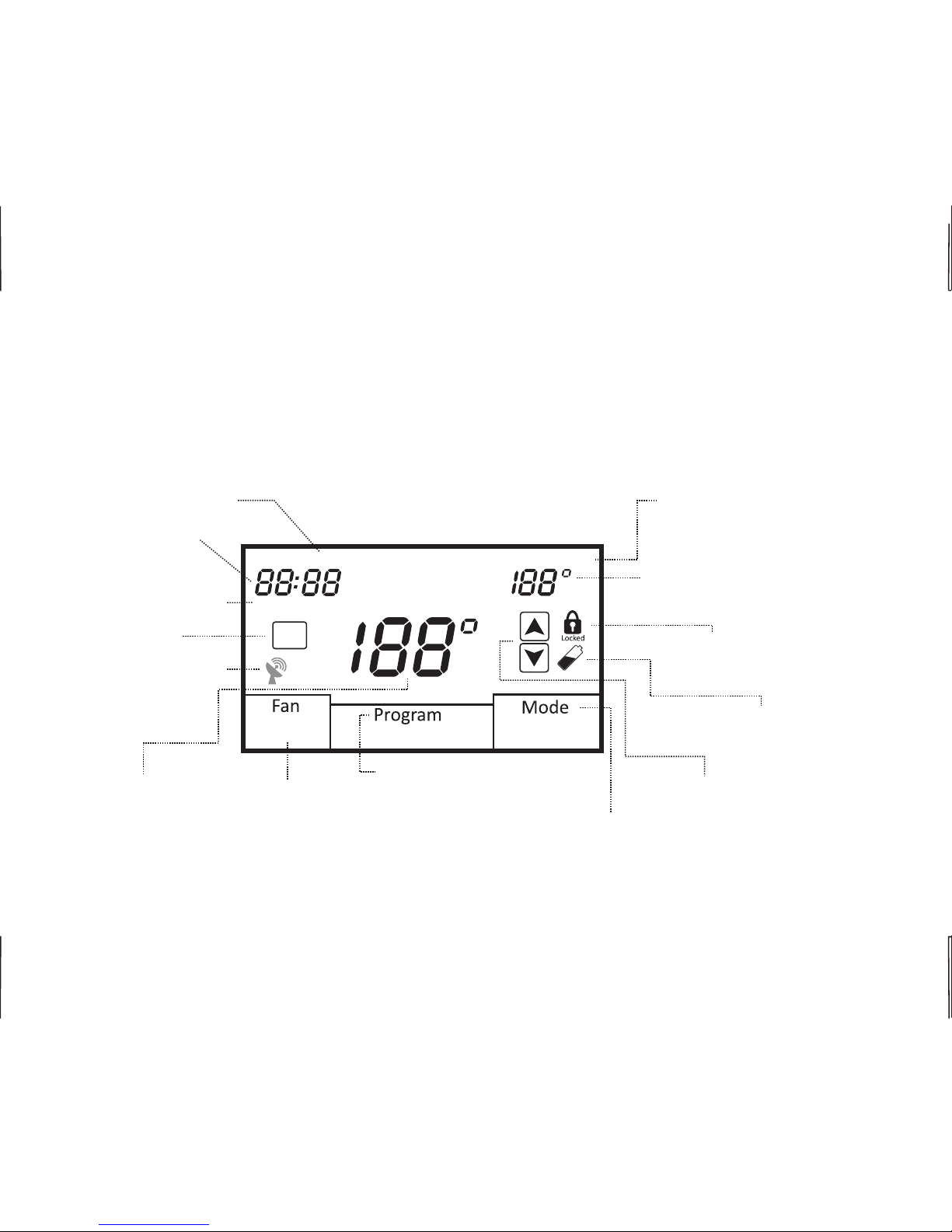

USING THE TOUCHSCREEN DISPLAY
PM
AM
Heat 2 3 Cool 2
Auto E. heat
Mon Tue Wed Thu Fri Sat Sun Outside Air Temperature
Automatic
Always On OFF
Morning Day
Evening Night
Clean
Screen
88/88/2088
Cool
Heat Set
Back Next
Hold
DAYS OF THE WEEK
TIME OF DAY
12 HOUR ONLY
WITH AM/PM
INDICATION
DAY, MONTH, YEAR (Deg C)
MONTH, DAY, YEAR (Deg F)
DISPLAYED WITH OUTSIDE
AIR TEMPERATURE
(OPTIONAL OUTDOOR SENSOR REQUIRED)
SET TEMPERATURE
OR OUTDOOR TEMPERATURE
DISPLAY
CLEAN SCREEN
WHEN TOUCHED, ALLOWS
30 SECONDS TO
CLEAN SCREEN
WHILE THERMOSTAT
FUNCTIONS ARE
LOCKED
LOCK ICON
DISPLAYED WHEN A
FUNCTION CAN NOT
BE ACCESSED OR
EXCEEDING A SET LIMIT
FLASHING LOW BATTERY
INDICATOR WITH
AUDIBLE BEEP EVERY MINUTE
UP AND DOWN ARROWS
USED TO SET TEMPERATURE,
TIME, DAY, MONTH, YEAR
AND OTHER VALUES
SPACE TEMPERATURE
MODE
USED TO SELECT
HEAT, COOL, AUTO,
OFF OR E. HEAT
ALSO DISPLAYS
HEATING AND COOLING STAGES
FLASHES DURING TIME DELAY
FAN
USED TO SELECT
AUTOMATIC OR
ALWAYS ON
OPERATION
PROGRAM
USED TO PROGRAM EVENTS
IN PROGRAMMABLE
MODE
ERROR
NO
FUNCTION
To simplify use, the 44-850 only displays information relevant to the current mode of operation. When
adjustments are required, the thermostat will display additional information or functional icons. Based
on the thermostat configuration, some information and icons may not be displayed. The illustration
below shows all the LCD segments and icons along with abbreviated definitions.
4

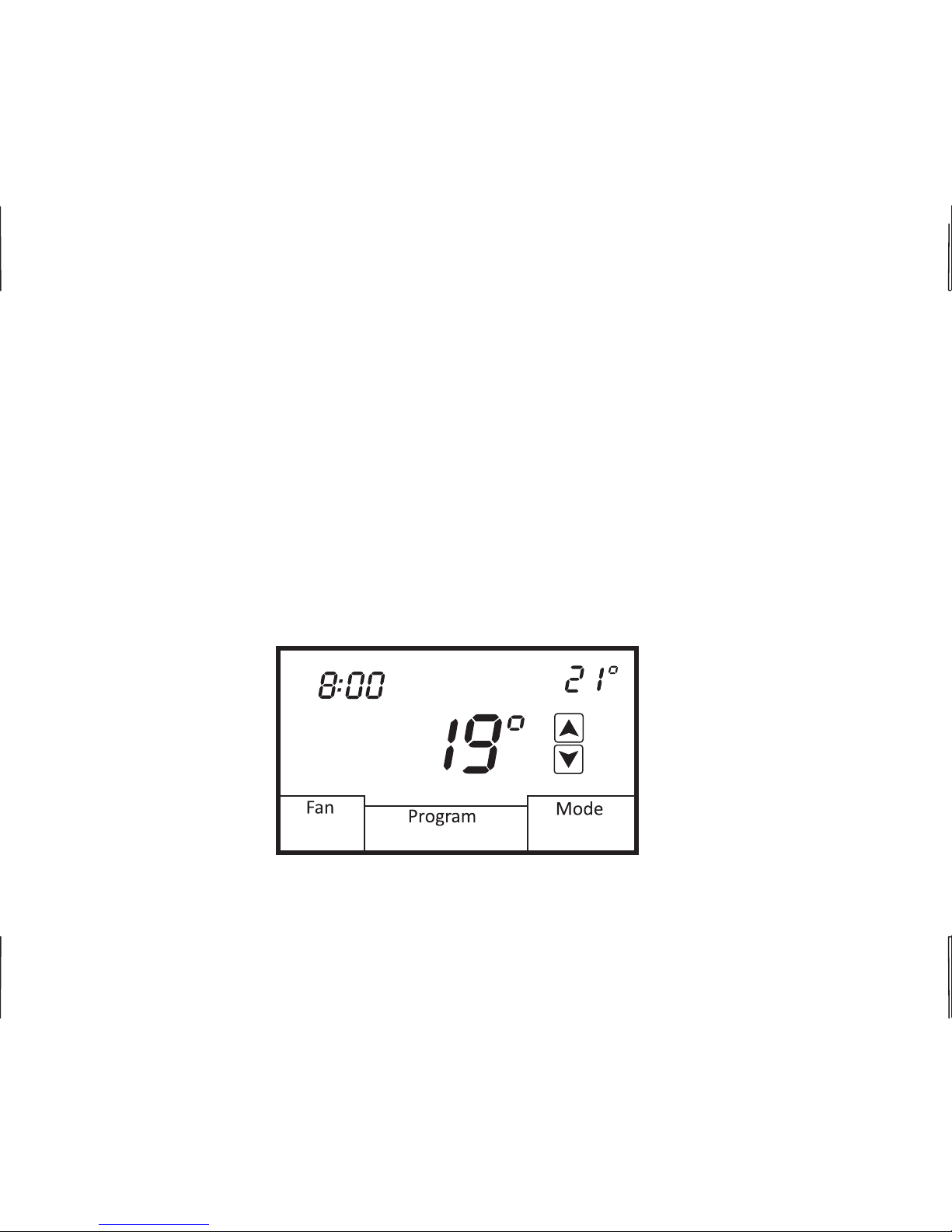

TYPICAL DISPLAY
AM
Heat
Wed
Automatic Morning
01/01/2014
Heat Set
During normal operation, the 44-850 typically displays the following:
1. Day of the week 5. Fan selection
2. Time of day 6. Program period (programmable mode only)
3. Calendar 7. Mode of operation
4. Space temperature 8. Set temperature
1
2
3
4
5 6 7
8
5

SETTING THE DAY, TIME AND CALENDAR
AM
Mon
01/01/2014
Touch the display to bring on the back light then touch and hold the clock with your finger. The
thermostat will beep. The hour will flash. Touch the UP or DOWN arrow to change the hour making
sure that AM or PM are correct. Touch the clock again and the minutes will flash. Touch the UP or
DOWN arrow and change the minutes and then touch the clock. The calendar day will flash. Touch
the UP or DOWN arrow to change the day then touch the clock. The day of the month will flash.
Touch the UP or DOWN arrow to change the day of the month and then touch the clock. The year will
flash. Touch the UP or DOWN arrow to change the year and then touch the clock. After a few
moments, the thermostat will return to its operating mode.
E
E
6
1
2

BASIC FUNCTIONS
MODE CONFIGURATIONS
Your contractor can configure the thermostat with different mode selections based on user preference
and/or equipment type. Mode configurations can be as follows:
CONVENTIONAL HEATING AND COOLING EQUIPMENT (GAS/ELECTRIC)
Manual Changeover (Heat/Cool/Off)
Auto Changeover (Heat/Cool/Auto/Off)
Heat Only (Heat/Off)
Cool Only (Cool/Off)
HEAT PUMP AND FOSSIL FUEL EQUIPMENT
Manual Changeover (Heat/Cool/*E.Heat/Off)
Auto Changeover (Heat/Cool/Auto/*E.Heat/Off)
Heat Only (Heat/*E.Heat/Off)
Cool Only (Cool/Off)
* When the thermostat is placed in the E.Heat (Emergency Heat) mode, only the auxiliary
heat source is used and the heat pump is locked out.
7

Heat Set
BASIC FUNCTIONS
MODE SELECTION
To select a mode of operation, simply touch the Mode box on the screen. Based on the equipment
and thermostat configuration, mode selection can be as follows:
Off - Thermostat will not call for heating or cooling.
Heat - Thermostat will only call for heating.
Cool - Thermostat will only call for cooling.
Auto - Thermostat will call for both heating and cooling.
E.Heat - Thermostat only controls emergency heat when configured for heat pump or
` fossil fuel equipment.
AM
Heat
Mon
Automatic Morning
01/01/2014
E
8

BASIC FUNCTIONS
FAN SELECTION
Touch the Fan box on the screen to select Automatic or Always On fan mode. In Automatic mode,
the fan operates with a heating or cooling call. If set to Always On, the fan will run continuously. If the
thermostat is turned Off while the fan is set to Always On, the fan will continue to run until it is placed
in the Automatic mode.
PROGRAMMABLE FAN (OPTION)
If your thermostat has been configured for Programmable Fan, you can change the fan mode for
each scheduled program event. For example, you might wish to have Always On for the morning
schedule and Automatic for the Day schedule. Each time the thermostat changes schedules, the
selected fan mode will automatically be implemented. (See Page 18 for further details)
AM
Heat
Mon
Automatic Morning
01/01/2014
E
9
Heat Set

BASIC FUNCTIONS
CHANGING THE HEATING OR COOLING TEMPERATURE SETTING
Manual Heat/Cool Mode
In manual changeover mode, only the heating or cooling temperature setting will be displayed. To
change the setting, simply touch the temperature displayed on the screen. Depending on the mode,
either Heat Set or Cool Set will flash.
Touch the UP or DOWN arrow to change the setting. Touch the temperature display again or wait 10
seconds and the thermostat will return to its operating mode. The new set temperature will be
displayed.
Heat Set
E
E
10
1
2

BASIC FUNCTIONS
CHANGING THE HEATING OR COOLING TEMPERATURE SETTING
Auto Mode
In auto changeover mode, the heating and cooling temperature setting alternate on the screen. To
change the settings, simply touch the temperature displayed on the screen. Cool Set will flash three
times and then Heat Set will flash three times.
To change the cooling setting, touch the UP or DOWN arrow to change the setting when Cool Set is
flashing. To change the heating setting, touch the UP or DOWN arrow to change the setting when
Heat Set is flashing. Touch the temperature display and the thermostat will return to its operating
mode, or simply wait for 10 seconds to auto exit set point adjustment. The new heating and cooling
temperatures will alternately be displayed.
Heat Set
E
E
11
1
2

PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
Your installer can configure the 44-850 with two programming options for 7-day scheduling. You can
elect to have 4 daily events (Morning, Day, Evening, Night) or 2 daily event (Day, Night) for each
day of the week.
You can program both heating and cooling temperatures for each scheduled event when the
thermostat is in the Auto (auto changeover) or manual changeover (Heat, Cool) mode. The
thermostat can not be programmed in the Off mode. If the thermostat is configured for heat only or
cool only, then only that mode can be programmed. Simply touch Mode to select Auto, Heat or Cool.
At any time you wish to exit programming mode touch and hold the lower right of the display
(where the mode would normally be shown).
Auto
Automatic
E
12
Heat Set
AM
Mon
01/01/2014

PROGRAMMING
7-DAY SCHEDULE (4 OR 2 DAILY EVENTS)
Your installer can configure the 44-850 with two programming options for 7-day scheduling. You can
elect to have 4 daily events (Morning, Day, Evening, Night) or 2 daily event (Day, Night) for each
day of the week.
4 DAILY EVENTS
Press and hold Program. Mon (Monday) along with the UP and DOWN arrows will appear on the
screen.
Mon
E
13

PROGRAMMING

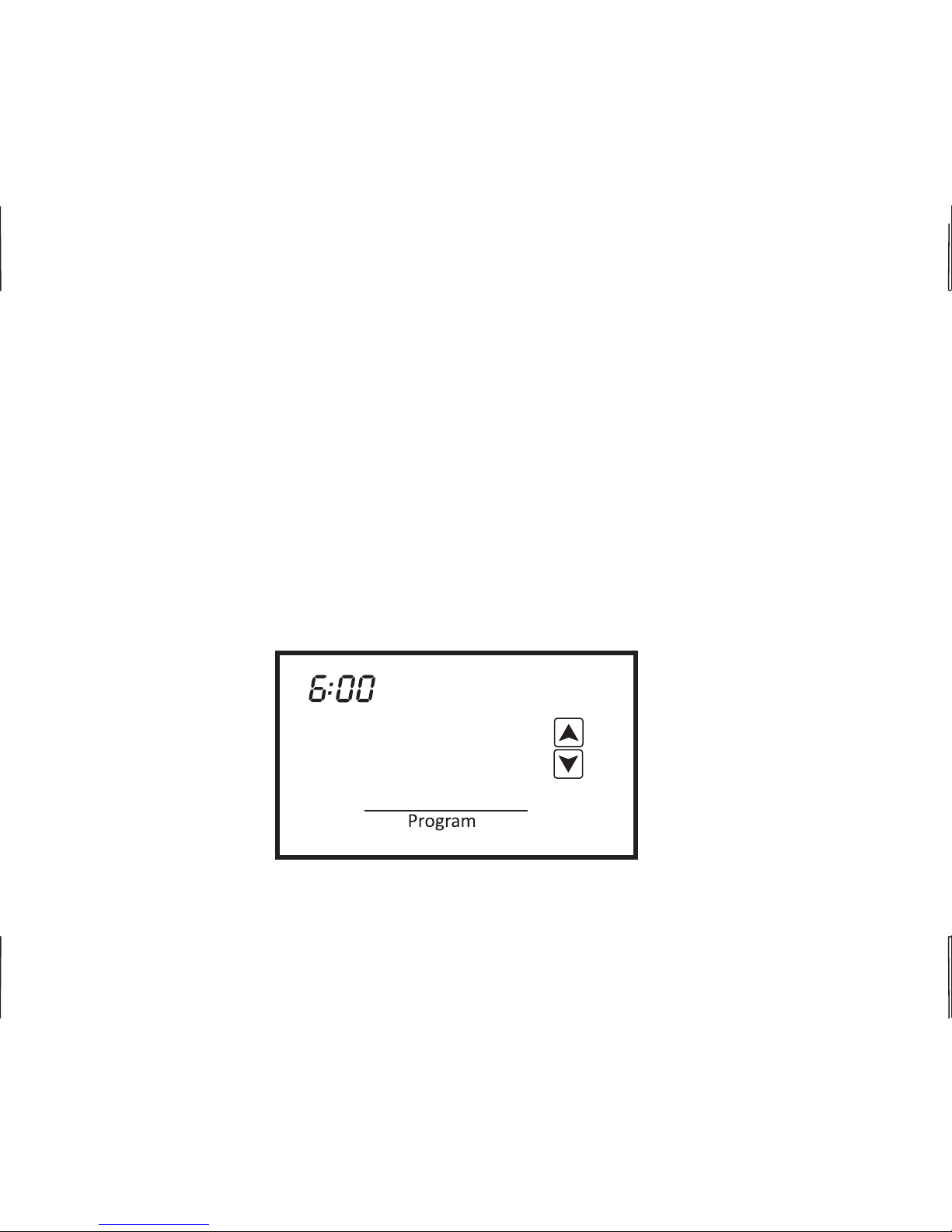

Touch Program again and the Morning start time will appear. The hour and AM or PM will flash.
Touch the UP or DOWN arrow to change the Morning start time hour. The factory default is 6:00 AM.
Touch Program again and the minutes will flash. Touch the UP or DOWN arrow to change the
minutes which can be adjusted in 10 minute increments.
AM
Mon
Morning
E
14

PROGRAMMING

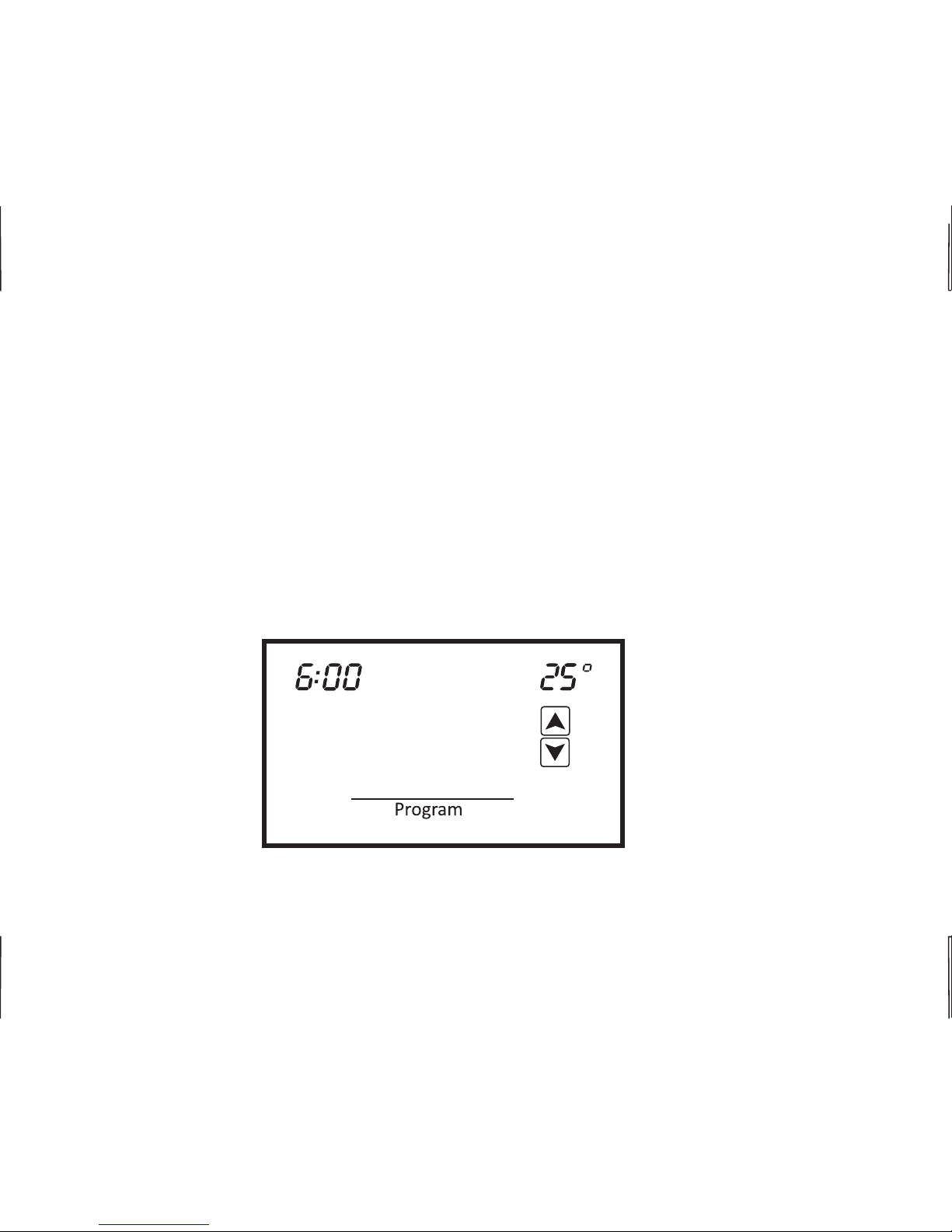

Touch Program again and the Morning Cool Set temperature will be displayed and flash. Touch the
UP or DOWN arrow to change the cooling temperature. The factory default if 25° for the morning
schedule.
Touch Program again and the Morning Heat Set temperature will be displayed and flash. Touch the
UP or DOWN arrow to change the heating temperature. The factory default is 16°.
AM
Mon
Morning
Cool
Set
E
15

PROGRAMMING
Touch Program again and the Day start time will appear. The hour will flash along with AM or PM.
Follow the same steps as in the Morning sequence. The factory defaults for the Day event are
8:00 AM, Cool Set 25°, Heat Set 16° C.
After setting the Day Heat Set temperature, touch Program again and the Evening start time will
appear. Follow the same steps. The factory defaults for the Evening event are
6:00 PM, Cool Set 24°, Heat Set 21° C.
After setting the Evening Heat Set temperature, touch Program again and the Night start time will
appear. Follow the same steps. The factory defaults for the Night event are
10:00 PM, Cool Set 28°, Heat Set 10° C.

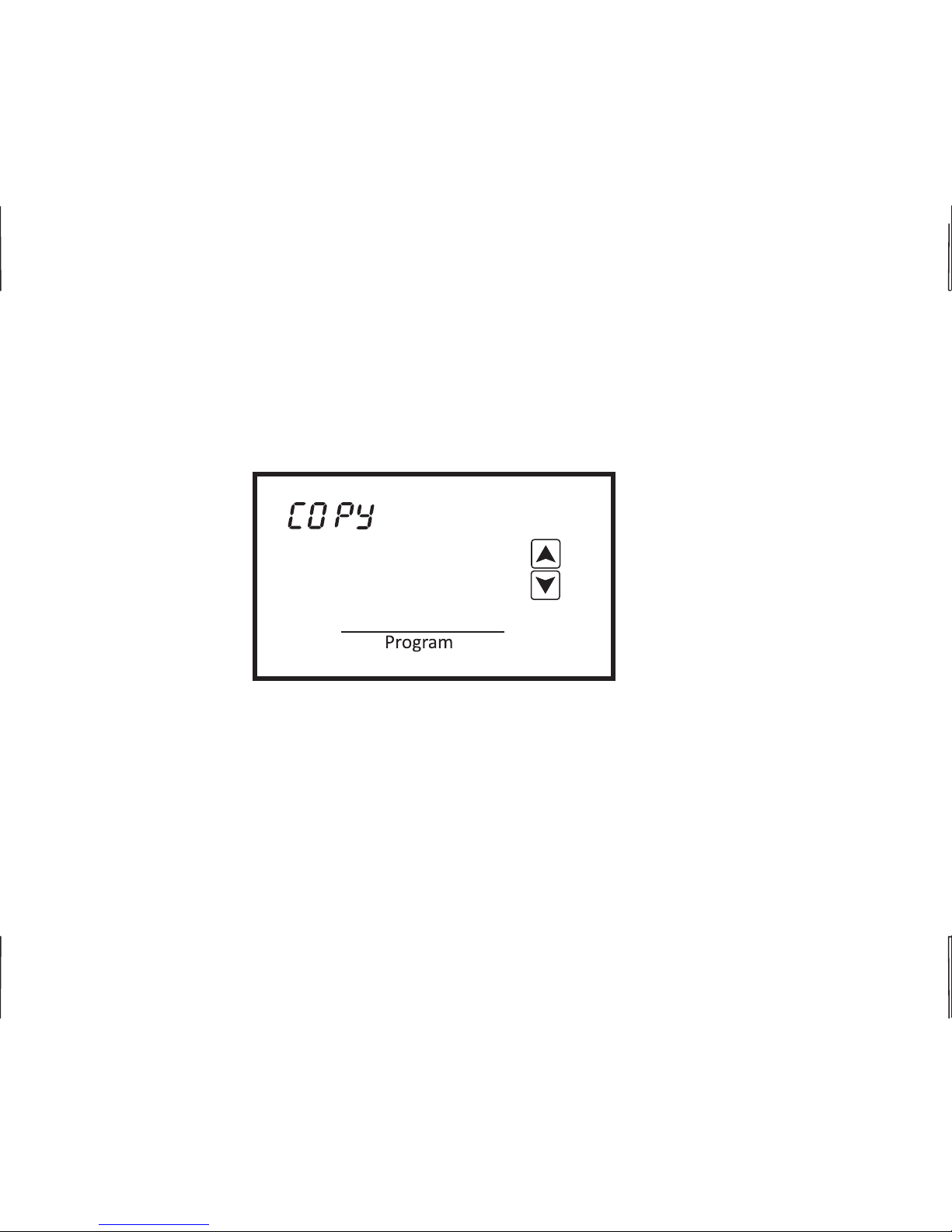

Touch Program again and the word cpy (copy) will appear. If you want to copy the Monday schedule
to consecutive days of the week, touch the UP arrow to add additional days. Each day that you select
will flash. For example, you might want to copy the Monday schedule to Tuesday and Wednesday.
Once Tue and Wed are flashing, touch Program and cpy will flash confirming that the Monday
schedule is being copied to Tuesday and Wednesday. The thermostat will then advance to Thu
(Thursday).
If you elect to have a different schedule for each day of the week, simply touch Program when cpy
appears. The thermostat will automatically advance to the next day.
16

PROGRAMMING
If you elect to have a different schedule for each day of the week, simply touch Program when COPy
appears. The thermostat will automatically advance to the next day.
2 DAILY EVENTS
Seven day scheduling for 2 daily events uses the same programming steps as 4 daily events other
than you only have to program Day and Night. Once programming is completed, the thermostat will
resume normal operation in 10 seconds.
Mon
Night
E
17

PROGRAMMING
PROGRAMMABLE FAN
If your installer has configured the 44-850 with the Programmable Fan Option, you will be able to
select Automatic or Always On fan with each programmed event. When programming the
thermostat, the Programmable Fan Option will appear at the end of each programming event. When

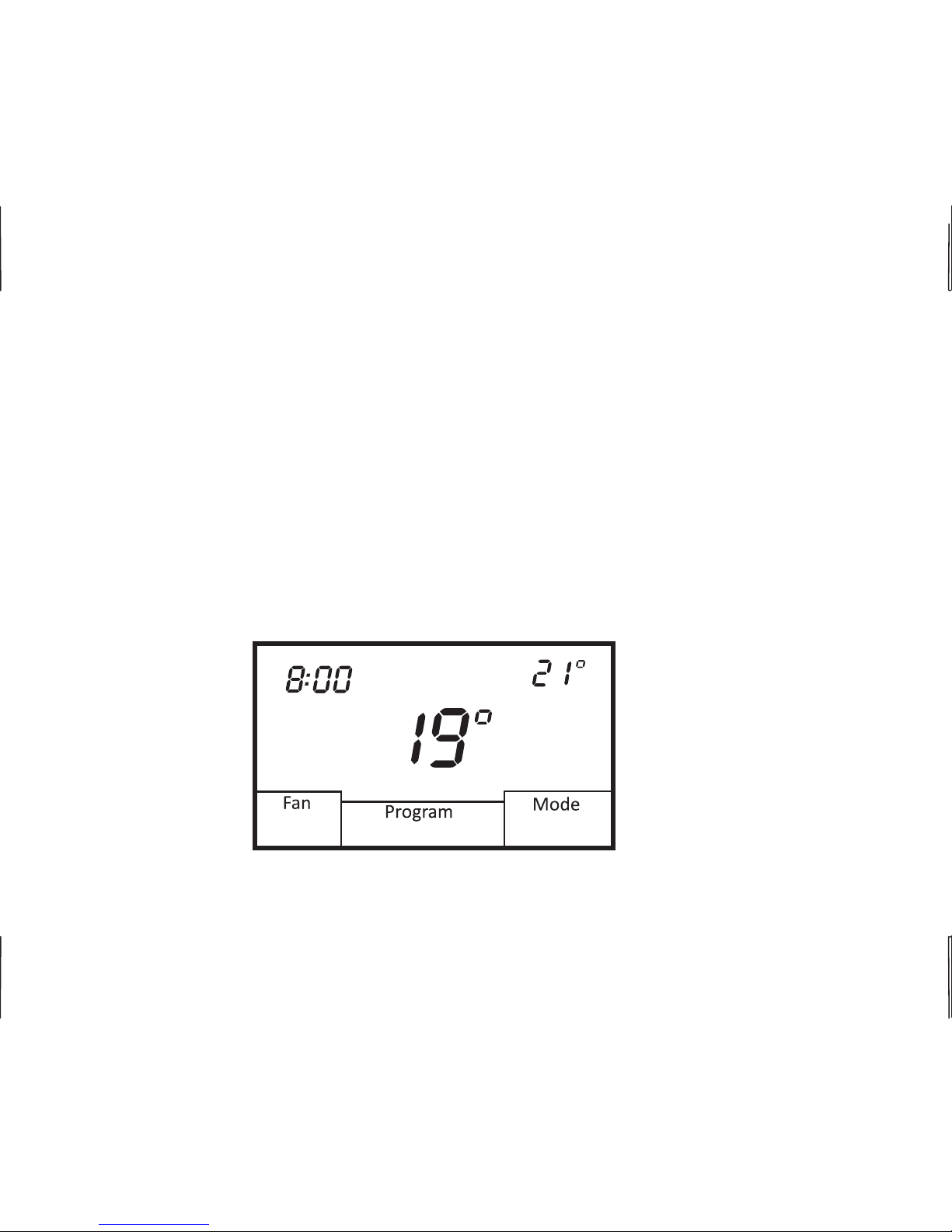

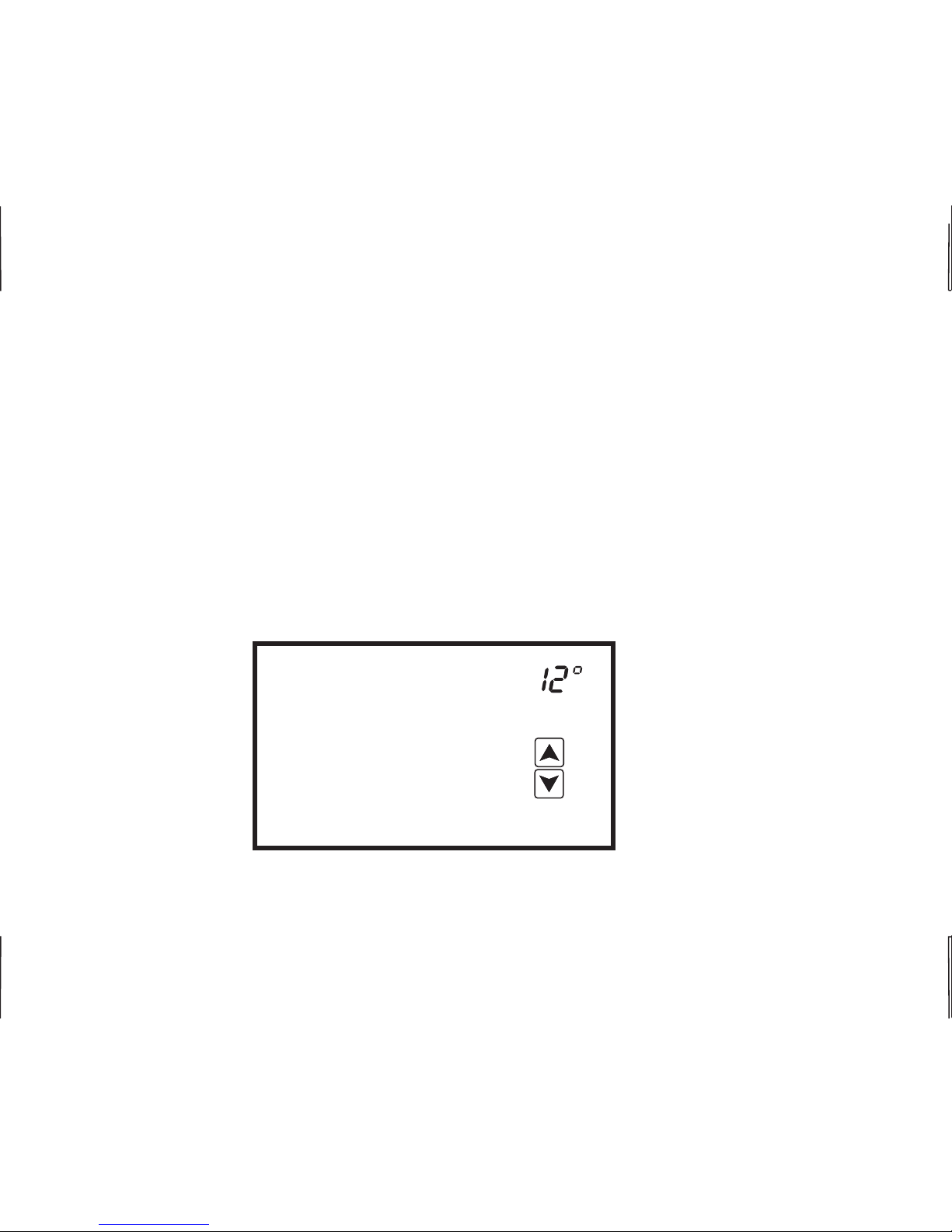

the word Automatic begins to flash, touch the UP arrow to change to Always On or simply touch
Program to maintain Automatic fan operation for the program period. Just like Temporary
Temperature Override, the fan mode can be changed simply by touching Fan. The program event will
flash confirming the Programmable Fan mode is in override. To resume normal operation, touch
Program. Hold will appear. Touch Hold and the thermostat will resume programmed operation.
Automatic fan mode allows the equipment fan to run whenever there is a call for heating or cooling.
Always On fan mode allows the fan to run continuously with or without a call for heating or cooling.
18
