SmartCell SC-33-0120-0001-99 User manual

Sounder and Ceiling Beacon
Installation Guide
Part number Product description
SC-33-0120-0001-99
SC-33-0220-0001-99
SmartCell RED Sounder and Ceiling Beacon
(VAD White Flash)
SmartCell WHITE Sounder and Ceiling
Beacon (VAD White Flash)
1Pre installation
Sounder and ceiling beacon
2 Components
Mounting plate2
1
!Installation must conform to applicable local installation codes and
should only be installed by a fully trained competent person.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device is suitable for ceiling mounting only. Wall mounted
variants are also available.
*When batteries are not supplied, only fit specified batteries.
Batteries (not included in some regions*)
3
5 Fit batteries
When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
6 Configuration
ER14500AA
ER14500AA
+
-
+
-
ER14500AA+
-
Refer to the programming manual (TSD155) for full programming
details.
The device must now be added (programmed) to the control panel.
Device powering
Method 1
Magnet application
Method 2
Via computer
Method 3
4 Fix mounting plate
When fixing to the ceiling, all four fixing positions should be used to
ensure a firm fixing.
Use suitable fasteners and
fixings. 60 mm
60 mm
Where existing electrical
mounting boxes are present,
two fixing positions may be
used.
3 Remove mounting plate
Remove the mounting plate by turning the device ANTICLOCKWISE, to
release it from the mounting plate.
OBSERVE BATTERY
POLARITY!
!
3x ER14505M
LITHIUM 3.6V
©2019 EMS Ltd. All rights reserved. Page 1 of 2 TSD108-0001-99 (Issue 1) 26/09/2019 AJM
2
13
To ensure correct operation, products must be used within the
specified environmental operating conditions.
www.acornfiresecurity.com
www.acornfiresecurity.com

0017A3
(B)
(A)
Operating temperature -10 to +55 °C
Storage temperature
With batteries -10 to +30 °C
Without batteries -10 to +55 °C
Humidity 0 to 95% noncondensing
Location Type A: for indoor use
IP rating IP21C
Supply 3 x ER14505M 3.6 V lithium thionyl chloride
batteries (Fanso or Titus)
CAUTION!
Operating voltage 2.7 to 3.65 VDC
Current consumption 0.32 A max.
Power consumption 0.8 W max.
Operating frequency 868 MHz
Output transmitter power 14 dBm / 25 mW
Signalling protocol X5
Flash Rate 0.5 Hz (1 flash, every 2 seconds)
Beacon coverage C-3-12
Sounder output 92 dB(A) at 1 m max.
For full sounder output information, refer to the Sounder Data doc (MK103).
Dimensions (Ø x D) 110 x 79 mm
Approved to EN54-3:2001. Incorporating amendments nos. 1 and 2.
Fire detection and fire alarm systems.
Part 3: fire alarm devices - sounders.
EN54-13:2005. Fire detection and fire alarm systems.
Part 13: compatibility assessment of system
components.
EN54-23:2010. Fire detection and fire alarm systems.
Part 23: fire alarm devices. Visual alarm devices.
EN54-25:2008. Incorporating corrigenda september
2010 and march 2012. Fire detection and fire alarm
systems.
Part 25: components using radio links.
European Union
EMS declares that the radio equipment type
directives SmartCell Sounder & Ceiling Beacon is in compliance
with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following
internet address: www.mysmartcell.co.uk
2012/19/EC (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see www.recyclethis.info
Dispose of your batteries in an environmentally
friendly manner according to your local regulations.
Manufacturer EMS Ltd. Technology House, Herne Bay, Kent, CT6 8JZ.
United Kingdom
Year of manufacture See devices serial number label
Certification
Certification body
CPR certificate DoP 0359-CPR-00428
19
0359
Specification

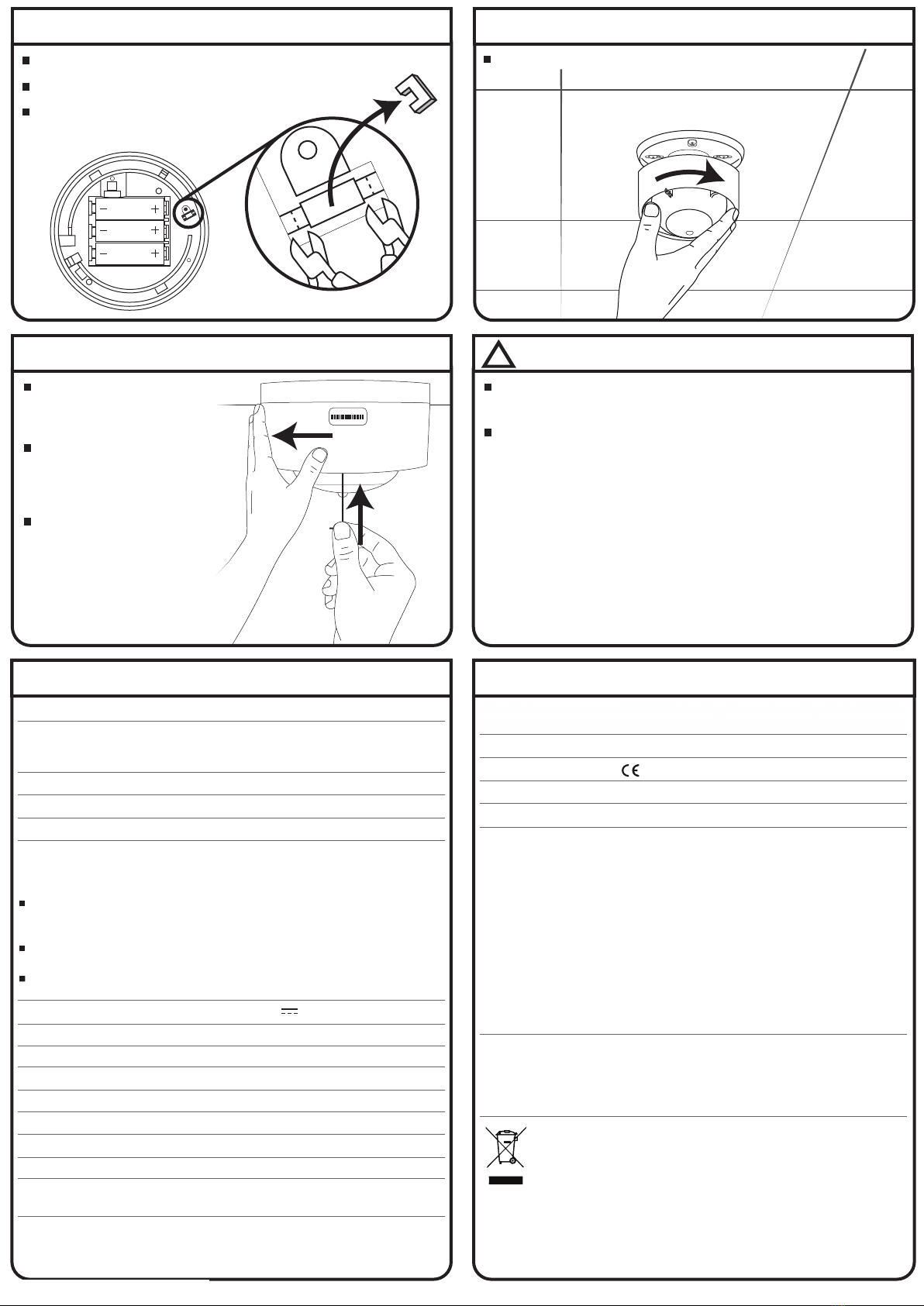

Reassemble the device as shown below.
8 Completing the installation
Device unlocking
If the device has been locked, an
Allen key will be required for
unlocking.
Depress the locking mechanism,
by inserting the Allen key, or
similar, into the device’s cavity
and pushing (A).
Simultaneously twist the device
anti-clockwise to release (B).
IMPORTANT
!
The device should be tested upon installation, in accordance with local
requirements.
Testing should only be carried out by a fully trained competent person.
Regulatory information
7 Optional device locking
The device includes an optional locking mechanism.
Remove the thin section of plastic shown below.
Once locked, the Allen key will be required
to unlock the device.
©2019 EMS Ltd. All rights reserved. Page 2 of 2 TSD108-0001-99 (Issue 1) 26/09/2019 AJM
This is a life safety product. Only use manufacturer approved battery types.
Failure to do so may result in damage to the product.
DO NOT mix batteries of different type or age.
When replacing batteries; remove all old batteries before fitting replacements.
