socomec SUNSYS B15 User manual

Installations- und bedienungsanleitung DE
Manuel d’installation et d’utilisation FR
Installation and operating manual GB
Manuale di installazione e uso IT
SUNSYS B15-B20

2SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 2
Warranty on products in the SUNSYS B series
Sicon S.r.l., which is part of the SOCOMEC group with registered headquarters at Via Sila 1/3 – Z. I. Scovizze, 36033 Isola Vicentina
(Vicenza), guarantees that itsSUNSYS B series products are compliant with technical specifications and applicable quality standards.
1) Conditions of Warranty
Sicon S.r.l. guaranteesSUNSYS B series products for a period of 5 years following purchase for manufacturing or material defects only.
The warranty commences on the date the new product was purchased by the end user at the showroom of an official dealer
(date as shown on the receipt).
This warranty applies only to products installed in Italy.
The warranty covers:
a) the repair or replacement of the defective product or component free of charge, whereas the cost of installing the replacement
product or component is the responsibility of the customer or end user;
b) the shipment of the defective product to Sicon S.r.l. (or to an authorised centre), with the cost of dismantling and transport
and related expenses borne by the customer or end user.
The decision to repair or replace the defective product or component will be taken at the complete discretion of Sicon S.r.l.
Replacement or repair of parts and any modifications to the product or components during the warranty period shall not extend
the duration of the warranty.
This standard warranty supplements, but does not replace, all other rights of the consumer or purchaser of the product and, in
particular, does not affect statutory consumer rights under Italian Legislative Decree no. 206 of 06/09/2005 (Consumer Code).
Sicon S.r.l. reserves the right to extend this warranty, which must be agreed in writing
2) Procedure
I. Defects must be reported to Sicon S.r.l., SOCOMEC after sales service (via Sila 1/3 – Zona Industriale Scovizze – 36033 Isola
Vicentina - VI), in writing by registered post or electronic mail ([email protected]), or fax [phone]).
In all cases the report submitted to the above Department must be accompanied by a brief description indicating the type
of fault, product serial number, and all details on the ID plate.
A copy of the proof-of-purchase document must be attached to the written report (delivery note, invoice, till receipt, stating
the purchase date and product ID information — model, serial number etc.). If it is not possible to provide proof of purchase,
the serial number and date of manufacture will be used to calculate the probable warranty expiry date.
The defective product can only be returned to Sicon S.r.l. after the acceptance number has been received; this will be issued
by the service centre on receipt of the written report.
II.
The defective product must be returned to Sicon S.r.l. in the original packaging, or equivalent, attaching the return acceptance number.
III. If the goods are acknowledged as being defective and under warranty, Sicon S.r.l. will send the new or repaired product
and/or component to the end user at the address provided in the fault report or, if no address was provided, to the location
where the goods were delivered originally when new, as specified in the sales contract.
IV. Sicon S.r.l will cover the cost of shipping the replacement product and/or component.
V. Installation of the replacement product and/or component must be carried out by a skilled person or authorised service
centre and the relative cost borne by the customer or end user.
VI. Sicon S.r.l. shall be reimbursed for all activities carried out on products and/or components not covered by the warranty, in
accordance with standard company rates and conditions.
VII. Sicon S.r.l. reserves the right to supply a different product and/or component model provided it offers equivalent performance,
if the original defective model under warranty is out of production.
VIII. If on-site assistance from qualified Sicon S.r.l. personnel is requested, labour costs and travel expenses will be borne by the
customer/end user, applying current Sicon S.r.l. rates.
MANUFACTURER'S WARRANTY

3
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
3) Warranty Exclusions
a) The warranty does not cover product and/or component defects consisting of and/or resulting from:
I. accidental damage.
II. negligent, improper or inadequate use of the product or component (for example, use outside tolerance limits: temperature,
humidity, poor ventilation).
III. failure to comply with instructions for installation, use and maintenance described in the Installation and Operating Manuals.
IV. modifications or repairs attempted by persons not authorised by the Sicon S.r.l. After Sales Service.
V. damage due to atmospheric discharges, floods, fires, earthquakes, uprisings, wars or other instances of force majeure or
resulting from any circumstances other than normal inverter operating conditions and beyond the control of Sicon S.r.l..
VI. damage caused by overvoltages.
VII. damage due to corrosion.
VIII. inadequate transport.
IX. failure of the user to comply with current regulations and standards.
b) Similarly, the warranty will be invalidated:
I. if the defective product and/or component is not returned to Sicon S.r.l. in its original packaging or equivalent.
II.
if the serial number identifying the products has been tampered with or is not clearly identifiable.
III. if the defect concerns aesthetic or construction aspects that do not affect normal product operation.
c) The warranty does not cover claims not included under warranty conditions, and in particular, claims for the refund of damages
due to loss of production, loss of earnings, or attributable to product defects or installation/dismantling costs.
SOCOMEC retains full and exclusive ownership rights over this document. Only a personal right to use the document for the appli-
cation indicated by SOCOMEC is granted to the recipient of the document. The reproduction, modification or disclosure of this
document, either entirely or partially and by whatever means, is expressly prohibited except with the prior written consent of Socomec.
This document is not a contract. SOCOMEC reserves the right to make any changes to this information without prior notice.
MANUFACTURER'S WARRANTY

5
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
INDEX
1. GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1. SAFETY SYMBOLS AND INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1. REMOVAL OF PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2. CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3. IDENTIFICATION DATA PLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1. DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2. GENERAL DESCRIPTION OF COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . 10
4. INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1. WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2. CONDITIONS FOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3. WALL FIXING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5. CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2. AC CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3. DC CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4. COMMUNICATION MODULE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . 16
6. COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.1. PHOTOVOLTAIC MODULE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2. AC GRID VOLTAGE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.3. FIRST START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8. MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.2. SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9. MEASUREMENTS AND MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.1. MEASUREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.2. ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3. WARNING MESSAGES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.4. FAULT MESSAGES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.1. REMOVAL OF FAN MOUNTING PLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.2. FAN REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
10.3. REMOVAL OF AIR OUTLET VENT GRILLES . . . . . . . . . . . . . . . . . . . . . . . . . . 35
11. REMOVAL OF INVERTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
12. TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 6
This user manual specifies installation and maintenance procedures, technical data and safety instructions for SOCOMEC solar
inverters. For further information visit the Socomec website: www.socomec.com.
Any work carried out on the equipment must be performed by skilled, qualified technicians.
1.1. SAFETY SYMBOLS AND INSTRUCTIONS
WARNING!
Failure to observe safety standards could result in fatal accidents or serious injury, and damage equipment or the
environment.
WARNING! RISK OF ELECTRIC SHOCK!
The equipment includes capacitors that store energy. After disconnecting all power sources wait for the capacitors
to discharge.
WARNING! RISK OF BURNS!
During operation the temperature of the casing may exceed 70 °C. Do not touch the surfaces!
Keep this manual safe for future reference.
Before carrying out any operations on the inverter read the Installation and Operating Manual carefully.
The following precautions must be taken in order to avoid risks of overheating, fire. electric shock, mechanical shock, and collateral
damage (persons and/or property):
• Do not cover or obstruct the air outlet vents.
• Do not install the inverter inside a cabinet in an enclosed, non-ventilated area.
• When installing the inverter comply the recommended clearances (see chapter 4.2).
• Only use accessories recommended or sold by the manufacturer.
• Ensure the wiring is in good condition and not undersized.
• Do not operate the inverter with damaged or substandard wiring.
• Do not operate the inverter if it has suffered a violent mechanical shock of any kind (fall, impact, etc.)
• Before cleaning or performing maintenance work on the inverter or connected appliances, disconnect the power sources. After
disconnecting wait for the internal capacitors to discharge completely (15 minutes approx).
• Inverter earth connection. See Chapter 5.
1. GENERAL INFORMATION

7
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
2.1-1
2.2-1
2. UNPACKING
2.1. REMOVAL OF PACKAGING
Materials can be disturbed during transport. Check the packaging is not damaged.
After removing the packaging ensure that:
• the data plate details on the left hand side of the inverter correspond to those of the model purchased;
• all accessories are included in the package.
WARNING!
If the inverter is found to be damaged externally or internally, or any of the accessories are damaged or missing,
contact SOCOMEC.
67,2 kg
1 2 3
INSTALLATION AND
OPERATING MANUAL
2.2. CONTENTS
WARNING!
The inverter must be lifted
by two persons.

8SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 8

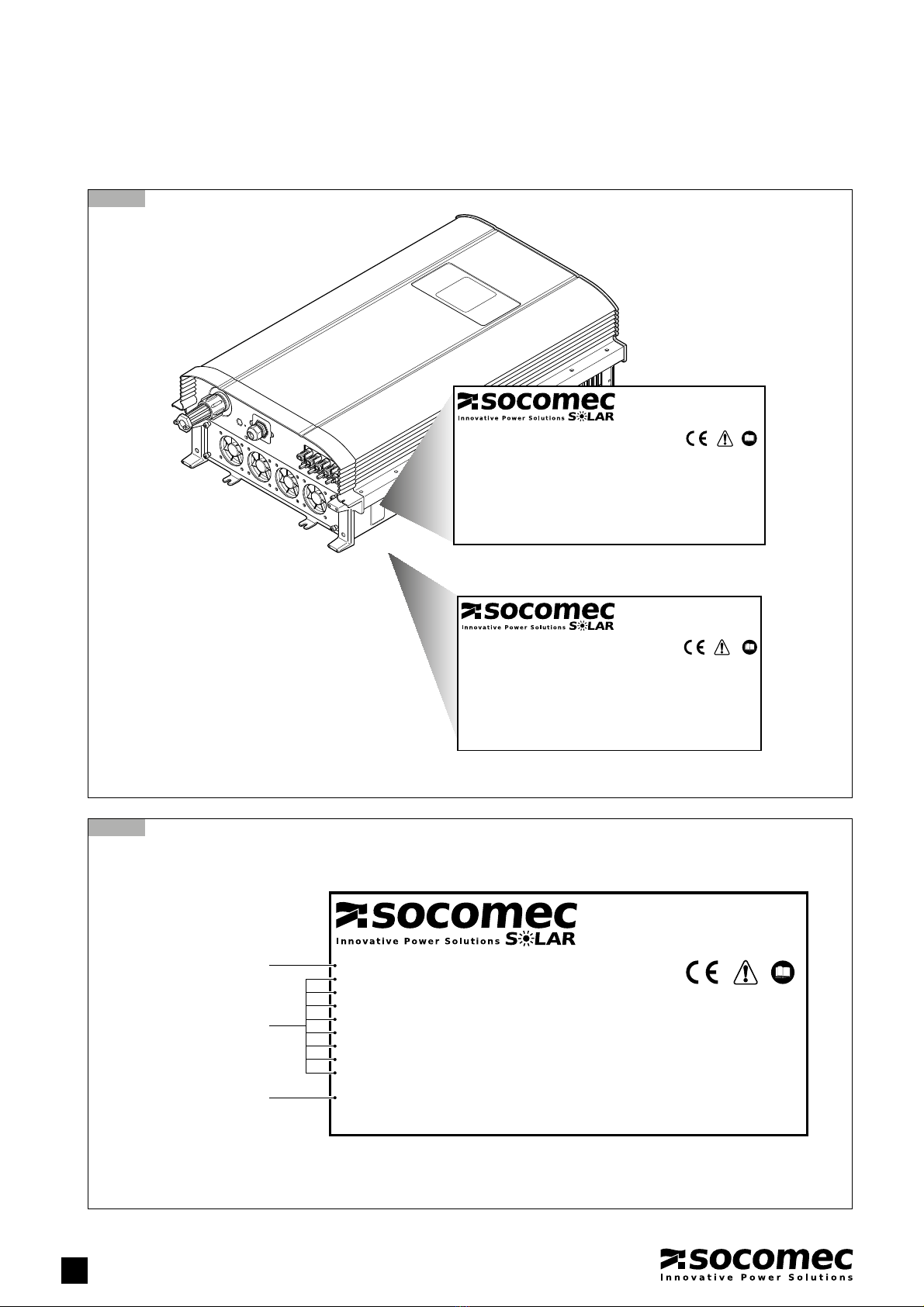

2.3. IDENTIFICATION DATA PLATE
2.3-1
2.3-2
2 GENERAL INFORMATION
Model
DC Input Voltage
Current
AC Output Voltage
Current
Power
)0CLASSIlCATION
Over voltage category
Safety class
: SUN-PR24KTL65RP
: 200-1000Vdc, Max. power: 350-800 Vdc
: max. 30A X 2
: 400 Vac 3PH, 50 Hz
: max. 32 A
: 20 kVA, max. 21 kVA, cosM0.8 ind - 0.8 cap
: IP 65
: 3
: 1 Assembled in China
S/N: WD12230012
WE12230012
Model
DC Input Voltage
Current
AC Output Voltage
Current
Power
)0CLASSIlCATION
Over voltage category
Safety class
: SUN-PR18KTL65RP
: 200-1000Vdc, Max. power: 350-800 Vdc
: max. 23A X 2
: 400 Vac 3PH, 50 Hz
: max. 25 A
: 15 kVA, max. 15.75 kVA, cosM0.8 ind - 0.8 cap
: IP 65
: 3
: 1 Assembled in China
S/N: WD12230012
WD12230012
Model
DC Input Voltage
Current
AC Output Voltage
Current
Power
)0CLASSIlCATION
Over voltage category
Safety class
: SUN-PR24KTL65RP
: 200-1000Vdc, Max. power: 350-800 Vdc
: max. 30A X 2
: 400 Vac 3PH, 50 Hz
: max. 32 A
: 20 kVA, max. 21 kVA, cosM0.8 ind - 0.8 cap
: IP 65
: 3
: 1 Assembled in China
S/N: WD12230012
WE12230012
15 kW model
20 kW model
Model
Technical data
Serial number

9
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
3.1-1
3. DESCRIPTION

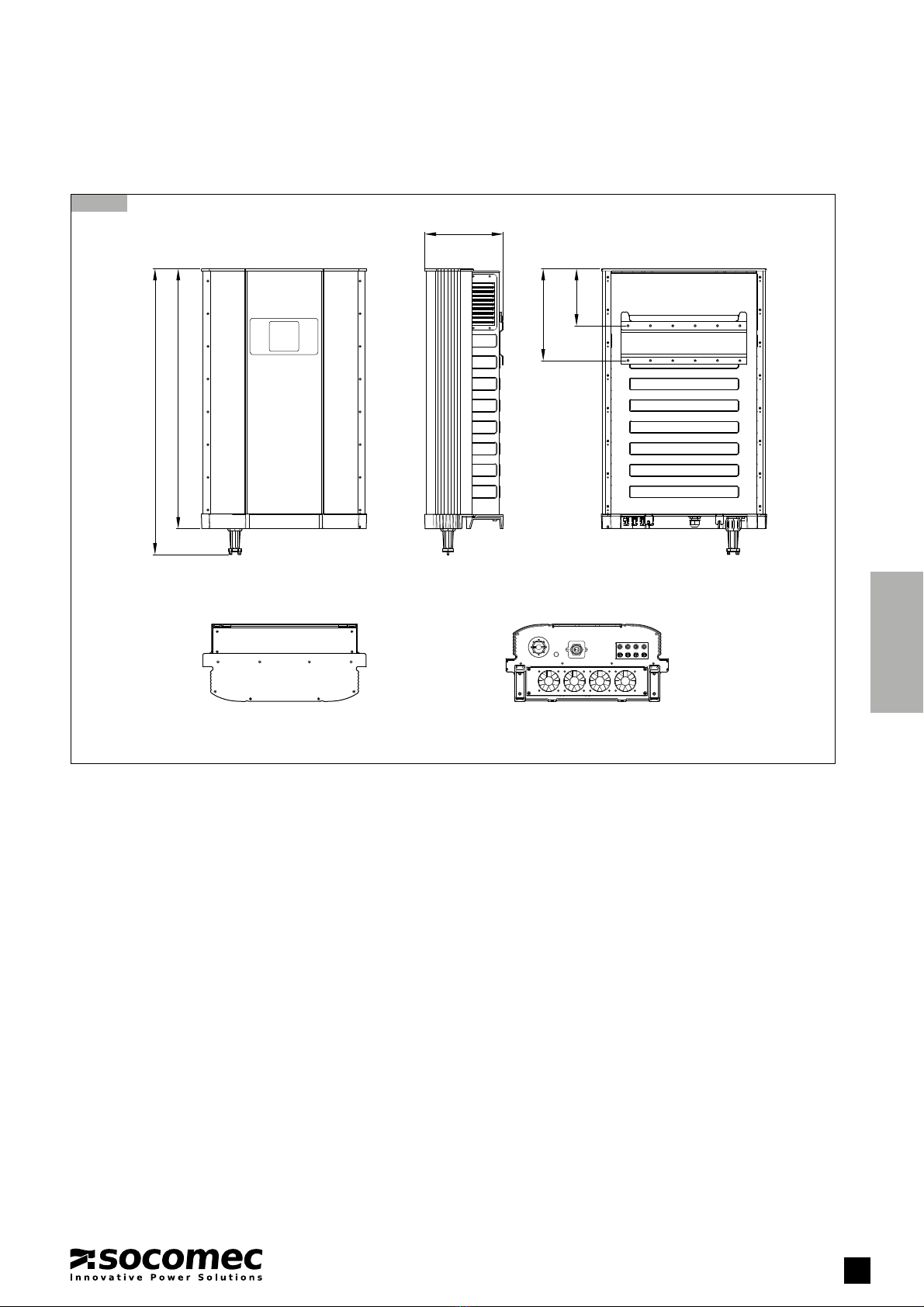

3.1. DIMENSIONS
336,2
208,5
288,1
952
1047,5
Front view Side view Rear view
View from above View from below

10 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 10
3.2-1
3. DESCRIPTION
3.2. GENERAL DESCRIPTION OF COMPONENTS
Air outlet ventLabel showing
data and standards
LCD display and
control panel
Input
connection
Communication
port
Output
connection
FansEarth
connection

11
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
4. INSTALLATION
4.1. WARNINGS

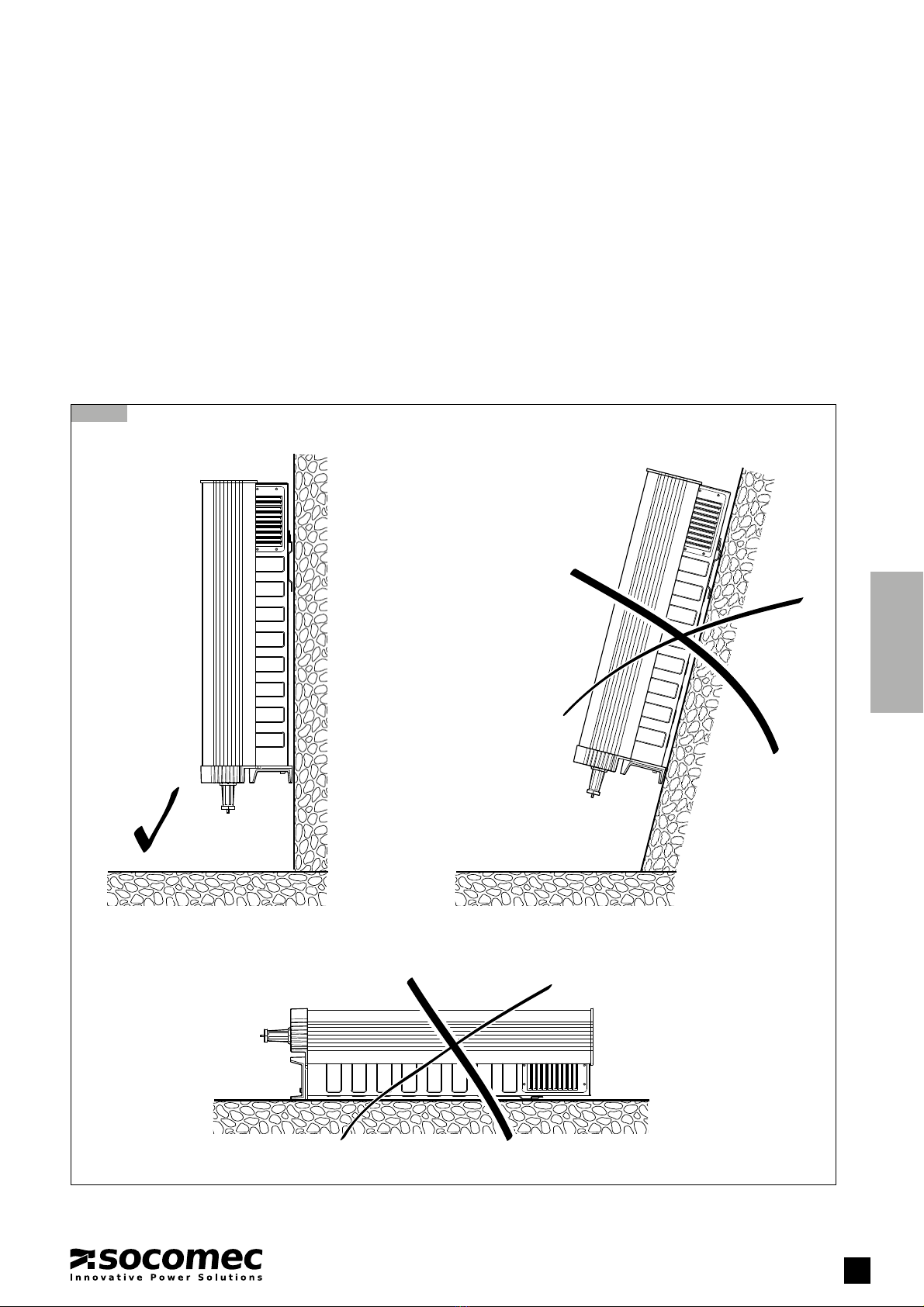

The inverter is designed for wall-mounting. The wall must be sound and completely smooth.
Install the inverter in an equipment room where only skilled technicians have access. The room must be:
• of a suitable size;
• clean;
• free from inflammable items;
• not exposed directly to sunlight;
• maintained at a temperature between -18 °C and 40 °C.
4.2. CONDITIONS FOR INSTALLATION
4.2-1

12 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 12
4. INSTALLATION

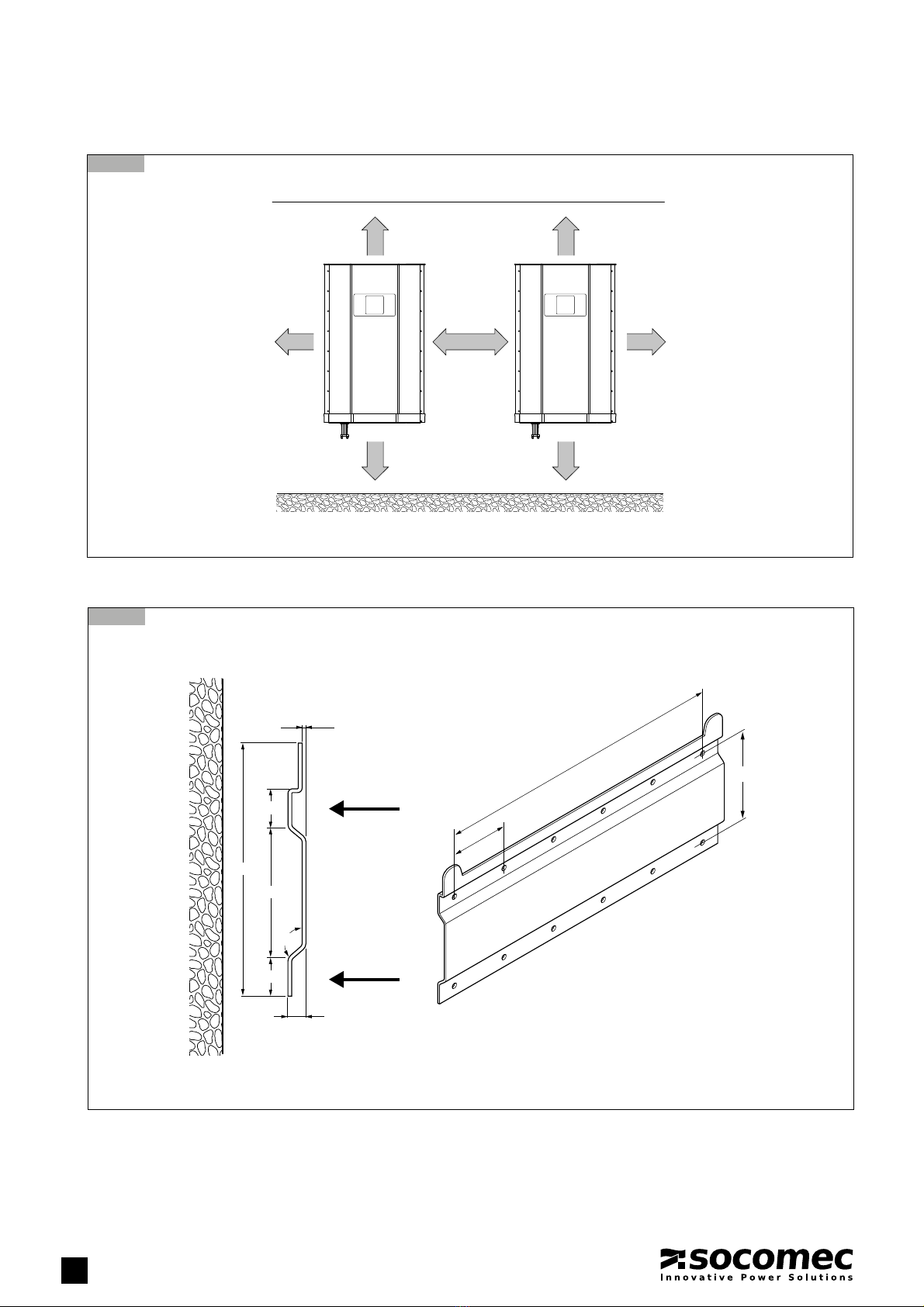

4.3. WALL FIXING
4.2-2 Suitable installation clearances
60 cm
60 cm
60 cm 60 cm
60 cm
60 cm
60 cm
4.3-1
14
3
82 x 6 = 492
82
30
Unità di misura: mm
6 viti M6
Parete
30
97,8
129°
192,8
6 viti M6
127,7

13
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
5.1-1
5. CONNECTIONS
5.1. DESCRIPTION
WARNING!
Before connecting the power supply connect the earth cable (PE).
Before connecting any cables to the inverter, check that the polarity, voltage and sequence of the phases are correct.
Check that the input and output cables of the photovoltaic system are clearly identified.
PV module inputs 1~4
DC1 = 2 strings in parallel
DC2 = 2 strings in parallel
Inverter cooling
fans
External earth
connection (PE)
Three-phase AC output,
with connections L1,
L2, L3, and PE
External
communication
interface

14 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 14

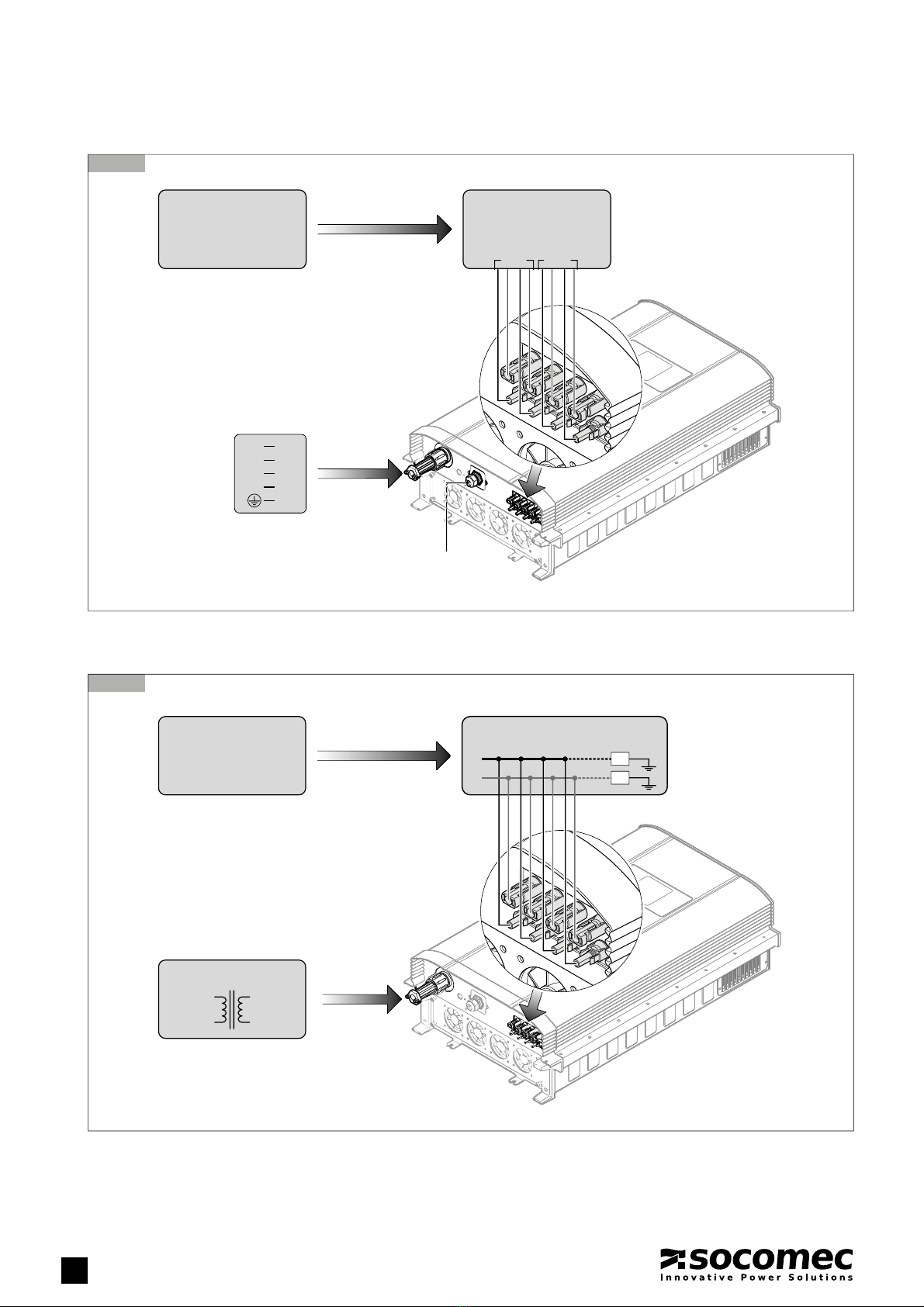

5.1-3 Connecting the system to positive or negative earth
5.1-2 Connection of the system without earth terminal
5. CONNECTIONS
Note: with a floating DC input (no earth connection) no isolating transformer is required.
The inverter can be configured either with parallel inputs (1 MPPT) or with two separate inputs (2 MPPT).
DC1 DC2
1L1
2L2
3L3
4N
PE
o
z
z
Photovoltaic panels
Photovoltaic panels
Must be
connected in parallel
A transformer must be
installed
Isolating transformer
Load
3 Ph +N
400 Vac
Inverter
3 Ph +N
400 Vac
AC connections
Parallel or Separate
DC connections
External
communication interface
DC distribution panel
DC distribution panel
(GND+ or GND-)
Note: with a floating DC input (no earth connection) no isolating transformer is required.
All strings of the photovoltaic field must be connected in parallel (1 MPPT).

15
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
5. CONNECTIONS
5.2. AC CONNECTION
• Before wiring the AC side ensure the three-phase AC mains supply is disconnected.
• Check that the connection cable used matches the specifications in the table.
Sizing of AC cables
Model Rated current Cross-section Fastening Circuit breaker Residual current protection
SUNSYS-B15 22 A 6 mm2≥0.9 Nm MCCB rated 32 A 3P+N curve C 0.3 A type A or AC
SUNSYS-B20 29 A 6 mm2≥0.9 Nm MCCB rated 40 A 3P+N curve C 0.3 A type A or AC
The AC connection is made with a three-phase plug (L1, L2, L3, N, PE - see drawing).
5.2-1
1 : L1
2 : L2
3 : L3
4 : N
: PE
PE
L2L1
L3N
2
1
4
3
36
12
35
L1
L2
L3
N
1 2
4 5
3

16 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 16
5. CONNECTIONS
5.3-1

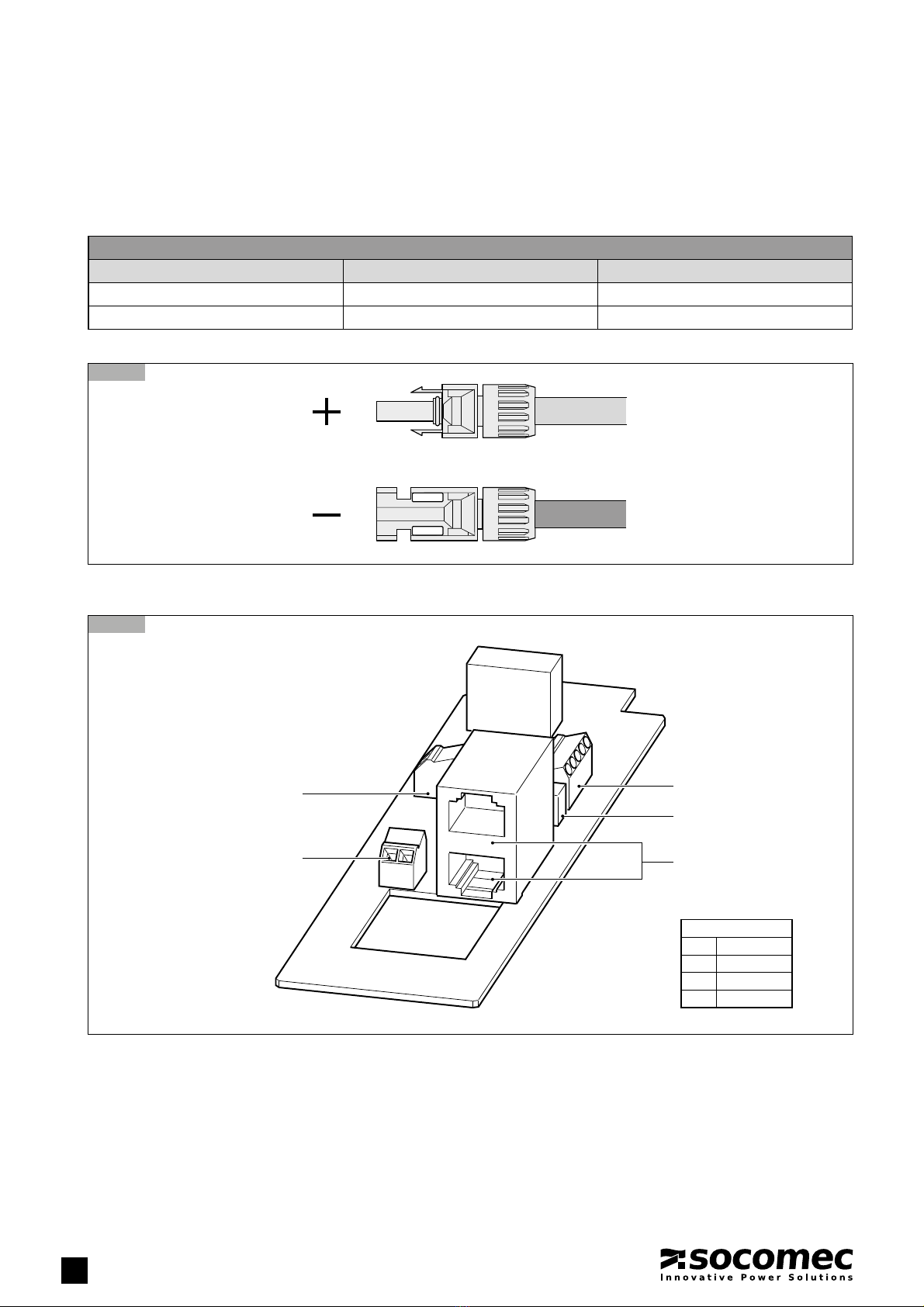

5.3. DC CONNECTION
• Before wiring the DC side ensure the three-phase AC power supply is disconnected.
• Check that the connection cable used matches the specifications in the table.
Sizing of DC cables
Model Rated current Cross-section
SUNSYS-B15 2 x 23 ADC 6 mm2
SUNSYS-B20 2 x 30 ADC 6 mm2
DC connections are divided into positive and negative poles.
5.4. COMMUNICATION MODULE CONNECTIONS
5.4-1 Communication module
red
black
Dry contact (10 A/250 V)
EPO - Emergency Power Off
RS485
RS485
Terminal resistor
PIN Layout
PIN FUNCTION
4 DATA -
5 DATE +
7 GND
5.4.1. EPO
Connector CNS3 performs an emergency power-off function (EPO).
When the external breaker is short-circuited the inverter shuts down immediately.
5.4.2. Dry contact
The voltage-free contact is available on connector CNS2 (Dry Contact) With the inverter connected to the grid, the contact is closed.

17
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
5. CONNECTIONS
5.4.3-1
5.4.3-2 Connection
NO
12
120 Ω(1/2 W)
DATA + to DATA –
Terminal
Resistor
Terminal
Resistor
RS485/USB
or
RS485/RS232
PIN Layout
PIN FUNCTION
4 DATA -
5 DATA +
7 GND
Data Format
Baud Rate: 9600
Data bits: 8
Stop bit: 1
Parity: N/A
RS485
Pin 1 2 3 4 5
Function DATA - DATA + GND
Terminal resistor
Resistor Pin
12
ON ON OFF
OFF OFF OFF

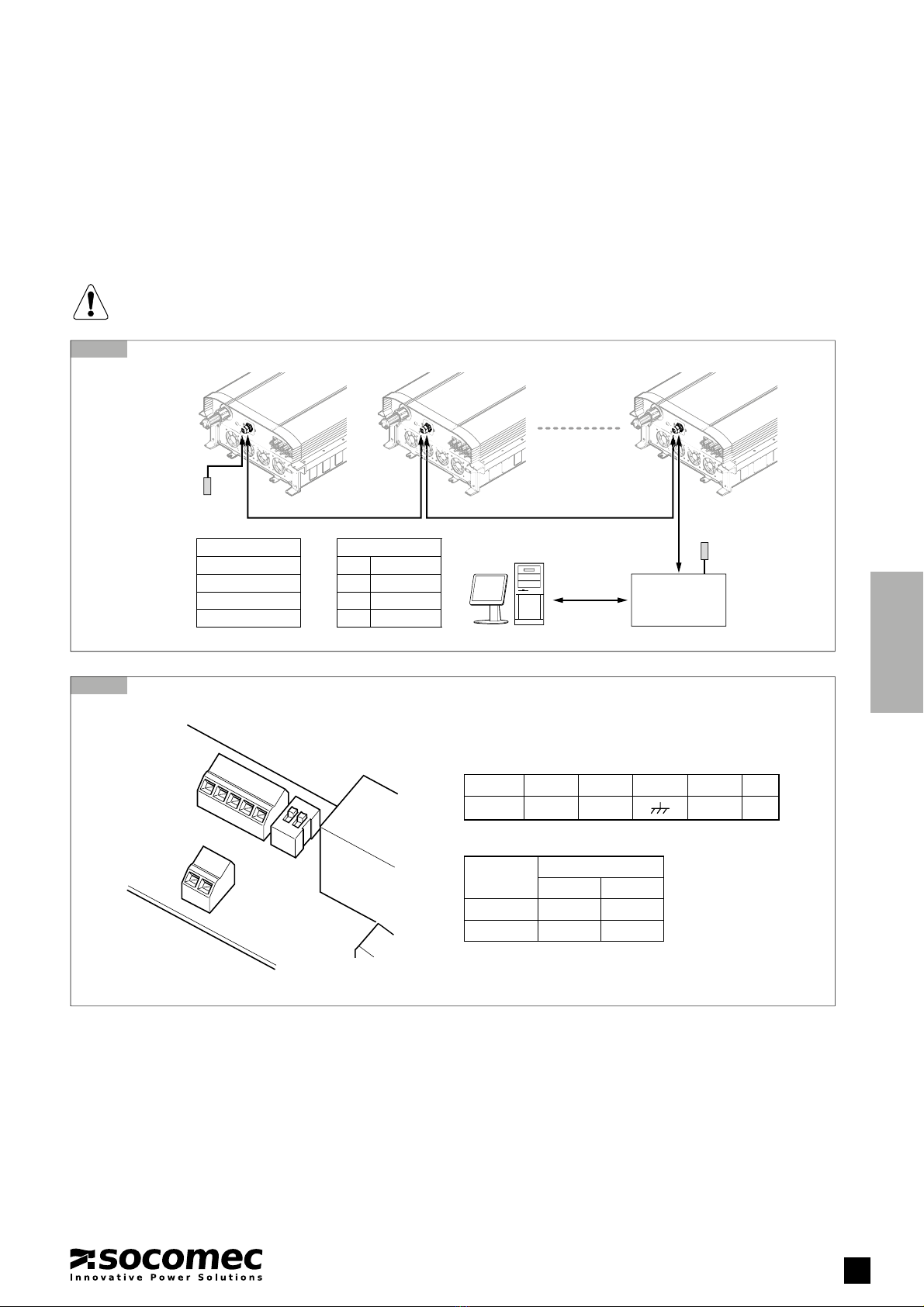

5.4.3. RS-485
The RS-485 function enables connection of the inverter in parallel.
Installation:
• set the dip-switch SWS1 of the first and last machine in the series to the ON position;
• this same dip switch must be set to the OFF position on all other machines.
WARNING!
If the terminal resistor is installed in the converter do not set the inverter.

18 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 18
6. COMMISSIONING
6.1. PHOTOVOLTAIC MODULE SETUP
• The maximum no-load DC voltage of the photovoltaic field must be no higher than 1000 V.
• The maximum connection power going to the inverter must be no greater than 24 kW (SUNSYS B20) or 18 kW (SUNSYS B15).
• The breaker device must have a maximum rated voltage of > 1000 Vdc and maximum short-circuit current > 32A (SUNSYS-B20)
or > 24 A (SUNSYS-B15).
• The voltage range of the MPPTs must be between 350 V and 800 V.
6.2. AC GRID VOLTAGE REQUIREMENTS
Nominal voltage and current. See Chapter 5.
• An AC
1
automatic circuit breaker must be installed and allocated to each of the solar inverters, independently of the system (see heading 5.2).
Grid voltage values
L1-L2 400 Vac L1-N 230 Vac
L1-L3 400 Vac L2-N 230 Vac
L2-L3 400 Vac L3-N 230 Vac
• Type B output residual current device integrated into inverter.
1. or similar protection on the basis of current regulations

19
SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00
ENGLISH
WARNING!
If the country setting is wrong SOCOMEC must be contacted for assistance.
If the level of sunlight is sufficient the inverter will come into operation.
After the first kWh produced the installation date is updated automatically.
During subsequent start-ups the device will show the main page of the menu.
6.3-2 Language selection menu
6.3-3 Main menu
6.3-1 Country selection menu
Select Country 12. Lug 2012 14:37
Bèlgium
France
Netherlands
Spain
Italy LV
Italy MV
&RQðUP&RXQWU\ 12. Lug 2012 14:37
Are you sure xxxxxx Country?
No Yes
SET SET
EXIT
Select Language 12. Lug 2012 14:37
Deutsch
Français
English
Italiano
Español
Nederlands
SET
Machine settings
Menu 12. July 2012 14:37
Power Meter
Energy Log
E-Today
Event Log
Operation Data
Inverter Information
Settings
Daily energy produced
Electrical measurements
Energy data log
Event log
Operating data
About the inverter
6.3. FIRST START-UP
Check that the AC, DC and communication connections are made and secured correctly.
1. Power up the inverter
2. Set the country (confirm twice).
Note: low voltage (LV) and medium voltage (MV) systems are mutually distinct.
3. Set the language (confirm once)
6. COMMISSIONING
Description of menus and settings. See Chapter 8.

20 SUNSYS B15-B20 - Ref.: IOMSUNPRXX03-GB 00 20
7.1-1
7. CONTROL PANEL
WARNING! RISK OF ACCIDENT OR SERIOUS INJURY!
Do not touch the terminal of the photovoltaic module when exposed to sunlight
LED indicator
Condition Green LED Red LED
Countdown FLASHING OFF
On grid LIT OFF
Error or fault OFF LIT
Standby or night-time (no DC supply) OFF OFF
One DC input only (during countdown)1OFF FLASHING
One DC input only (inverter delivering) LIT FLASHING
Fan fault2LIT FLASHING
FW update FLASHING FLASHING
1. Solar Low alert (inverter not connected to grid)
2. HW Fan alert
Back to previous page
LCD display
Scroll down Scroll up
LED
green/red
Confirm
