socomec SUNSYS H50 User manual

Installations- und bedienungsanleitung DE
Manual de instalación y uso ES
Manuel d’installation et d’utilisation FR
Installation and operating manual GB
Manuale di installazione e uso IT
SUNSYS H50

2SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 2
Warranty on products in the SUNSYS H series
Sicon S.r.l., which is part of the SOCOMEC group with registered headquarters at Via Sila 1/3 – Z. I. Scovizze, 36033 Isola Vicentina
(Vicenza), guarantees that its SUNSYS H series products are compliant with technical specifications and applicable quality standards.
1) Conditions of Warranty
Sicon S.r.l. guarantees SUNSYS H series products for a period of 5 years following purchase for manufacturing or material defects only.
The warranty commences on the date the new product was purchased by the end user at the showroom of an official dealer
(date as shown on the receipt).
This warranty applies only to products installed in Italy.
The warranty covers:
a) the repair or replacement of the defective product or component free of charge, whereas the cost of installing the replacement
product or component is the responsibility of the customer or end user;
b) the shipment of the defective product to Sicon S.r.l. (or to an authorised centre), with the cost of dismantling and transport
and related expenses borne by the customer or end user.
The decision to repair or replace the defective product or component will be taken at the complete discretion of Sicon S.r.l.
Replacement or repair of parts and any modifications to the product or components during the warranty period shall not extend
the duration of the warranty.
This standard warranty supplements, but does not replace, all other rights of the consumer or purchaser of the product and, in
particular, does not affect statutory consumer rights under Italian Legislative Decree no. 206 of 06/09/2005 (Consumer Code).
Sicon S.r.l. reserves the right to extend this warranty, which must be agreed in writing
2) Procedure
I. Defects must be reported to Sicon S.r.l., SOCOMEC after sales service (via Sila 1/3 – Zona Industriale Scovizze – 36033 Isola
Vicentina - VI), in writing by registered post or electronic mail ([email protected]), or fax [phone]).
In all cases the report submitted to the above Department must be accompanied by a brief description indicating the type
of fault, product serial number, and all details on the ID plate.
A copy of the proof-of-purchase document must be attached to the written report (delivery note, invoice, till receipt, stating
the purchase date and product ID information — model, serial number etc.). If it is not possible to provide proof of purchase,
the serial number and date of manufacture will be used to calculate the probable warranty expiry date.
The defective product can only be returned to Sicon S.r.l. after the acceptance number has been received; this will be issued
by the service centre on receipt of the written report.
II.
The defective product must be returned to Sicon S.r.l. in the original packaging, or equivalent, attaching the return acceptance number.
III. If the goods are acknowledged as being defective and under warranty, Sicon S.r.l. will send the new or repaired product
and/or component to the end user at the address provided in the fault report or, if no address was provided, to the location
where the goods were delivered originally when new, as specified in the sales contract.
IV. Sicon S.r.l will cover the cost of shipping the replacement product and/or component.
V. Installation of the replacement product and/or component must be carried out by a skilled person or authorised service
centre and the relative cost borne by the customer or end user.
VI. Sicon S.r.l. shall be reimbursed for all activities carried out on products and/or components not covered by the warranty, in
accordance with standard company rates and conditions.
VII. Sicon S.r.l. reserves the right to supply a different product and/or component model provided it offers equivalent performance,
if the original defective model under warranty is out of production.
VIII. If on-site assistance from qualified Sicon S.r.l. personnel is requested, labour costs and travel expenses will be borne by the
customer/end user, applying current Sicon S.r.l. rates.
MANUFACTURER'S WARRANTY

3
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
3) Warranty Exclusions
a) The warranty does not cover product and/or component defects consisting of and/or resulting from:
I. accidental damage.
II. negligent, improper or inadequate use of the product or component (for example, use outside tolerance limits: temperature,
humidity, poor ventilation).
III. failure to comply with instructions for installation, use and maintenance described in the Installation and Operating Manuals.
IV. modifications or repairs attempted by persons not authorised by the Sicon S.r.l. After Sales Service.
V. damage due to atmospheric discharges, floods, fires, earthquakes, uprisings, wars or other instances of force majeure or
resulting from any circumstances other than normal inverter operating conditions and beyond the control of Sicon S.r.l..
VI. damage caused by overvoltages.
VII. damage due to corrosion.
VIII. inadequate transport.
IX. failure of the user to comply with current regulations and standards.
b) Similarly, the warranty will be invalidated:
I. if the defective product and/or component is not returned to Sicon S.r.l. in its original packaging or equivalent.
II.
if the serial number identifying the products has been tampered with or is not clearly identifiable.
III. if the defect concerns aesthetic or construction aspects that do not affect normal product operation.
c) The warranty does not cover claims not included under warranty conditions, and in particular, claims for the refund of damages
due to loss of production, loss of earnings, or attributable to product defects or installation/dismantling costs.
SOCOMEC retains full and exclusive ownership rights over this document. Only a personal right to use the document for the appli-
cation indicated by SOCOMEC is granted to the recipient of the document. The reproduction, modification or disclosure of this
document, either entirely or partially and by whatever means, is expressly prohibited except with the prior written consent of Socomec.
This document is not a contract. SOCOMEC reserves the right to make any changes to this information without prior notice.
MANUFACTURER'S WARRANTY

5
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
INDEX
1. GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1. SAFETY SYMBOLS AND INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1. REMOVAL OF PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2. CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3. IDENTIFICATION DATA PLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1. GENERAL DESCRIPTION OF COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . 9
4. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1. WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2. CONDITIONS FOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.3. WALL FIXING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5. CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2. AC CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3. DC CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.4. COMMUNICATION MODULE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . 15
6. COMMISSIONING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1. PHOTOVOLTAIC MODULE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2. AC GRID VOLTAGE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.3. FIRST START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7. CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8. MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.1. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.2. SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.3. SELF-TEST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9. MESSAGES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.1. ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
9.2. FAULT MESSAGES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10. REMOVAL OF INVERTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11. TECHNICAL SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 6
This user manual specifies installation and maintenance procedures, technical data and safety instructions for SOCOMEC solar
inverters. For further information visit the Socomec website: www.socomec.com.
Any work carried out on the equipment must be performed by skilled, qualified technicians.
1.1. SAFETY SYMBOLS AND INSTRUCTIONS
WARNING!
Failure to observe safety standards could result in fatal accidents or serious injury, and damage equipment or the
environment.
WARNING! RISK OF ELECTRIC SHOCK!
The equipment includes capacitors that store energy. After disconnecting all power sources wait for the capacitors
to discharge.
WARNING! RISK OF BURNS!
During operation the temperature of the casing may exceed 70 °C. Do not touch the surfaces!
Keep this manual safe for future reference.
Before carrying out any operations on the inverter read the Installation and Operating Manual carefully.
The following precautions must be taken in order to avoid risks of overheating, fire. electric shock, mechanical shock, and collateral
damage (persons and/or property):
• Do not cover or obstruct the inverter.
• Do not install the inverter inside a cabinet in an enclosed, non-ventilated area.
• When installing the inverter comply with the recommended clearances (see chapter 4.2).
• Only use accessories recommended or sold by the manufacturer.
• Ensure the wiring is in good condition and not undersized.
• Do not operate the inverter with damaged or substandard wiring.
• Do not operate the inverter if it has suffered a violent mechanical shock of any kind (fall, impact, etc.)
• Before cleaning or performing maintenance work on the inverter or connected appliances, disconnect the power sources. After
disconnecting wait for the internal capacitors to discharge completely (15 minutes approx).
• Inverter earth connection. See Chapter 5.
1. GENERAL INFORMATION

7
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
2.1-1
2.2-1
2. UNPACKING

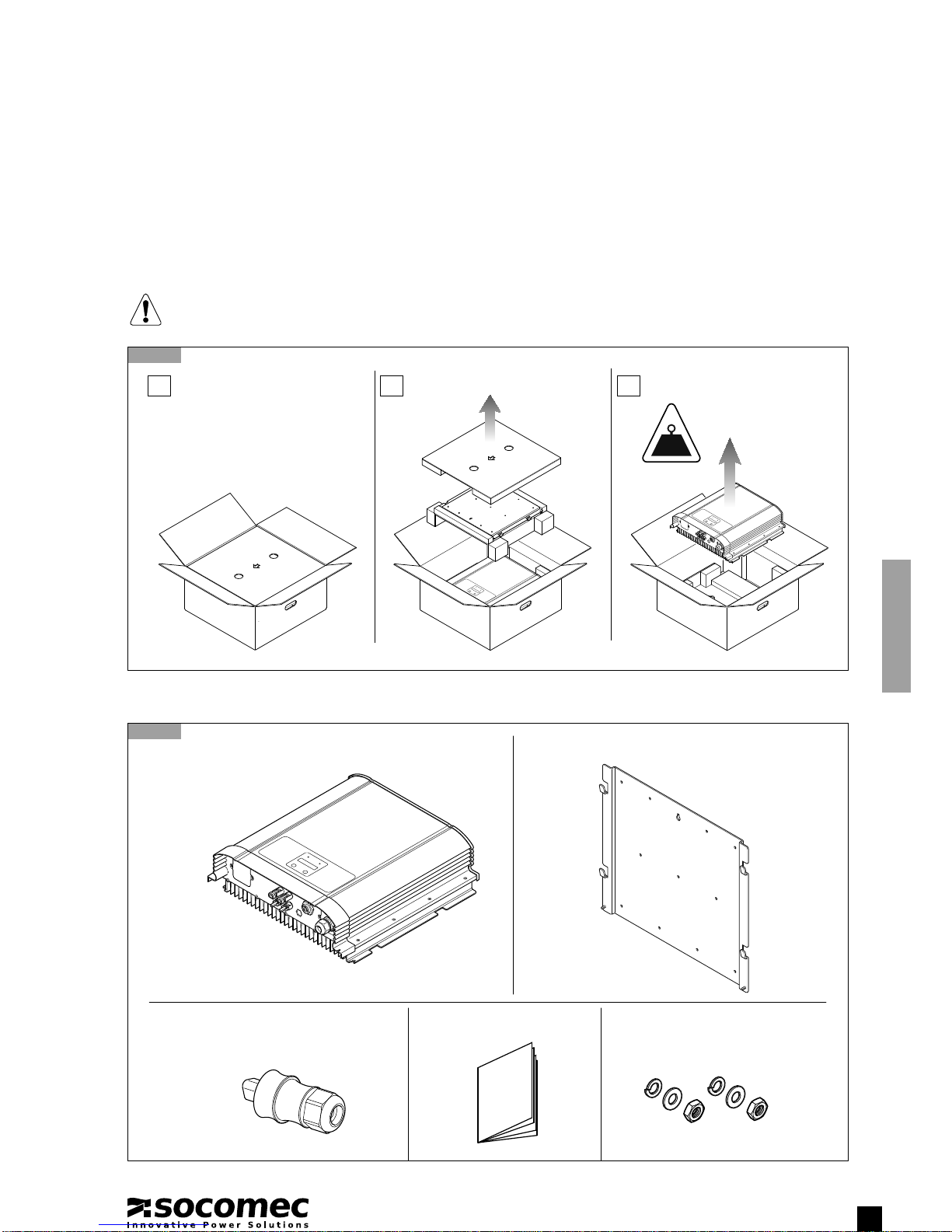

2.1. REMOVAL OF PACKAGING
Materials can be disturbed during transport. Check the packaging is not damaged.
After removing the packaging ensure that:
• the data plate details on the left hand side of the inverter correspond to those of the model purchased;
• all accessories are included in the package.
WARNING!
If the inverter is found to be damaged externally or internally, or any of the accessories are damaged or missing,
contact SOCOMEC.
00,0 kg
1 2 3
INSTALLATION AND
OPERATING MANUAL
2.2. CONTENTS
Photovoltaic inverter
AC connector Documentation Nut and washer for inverter mounting
Bracket

8SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 8

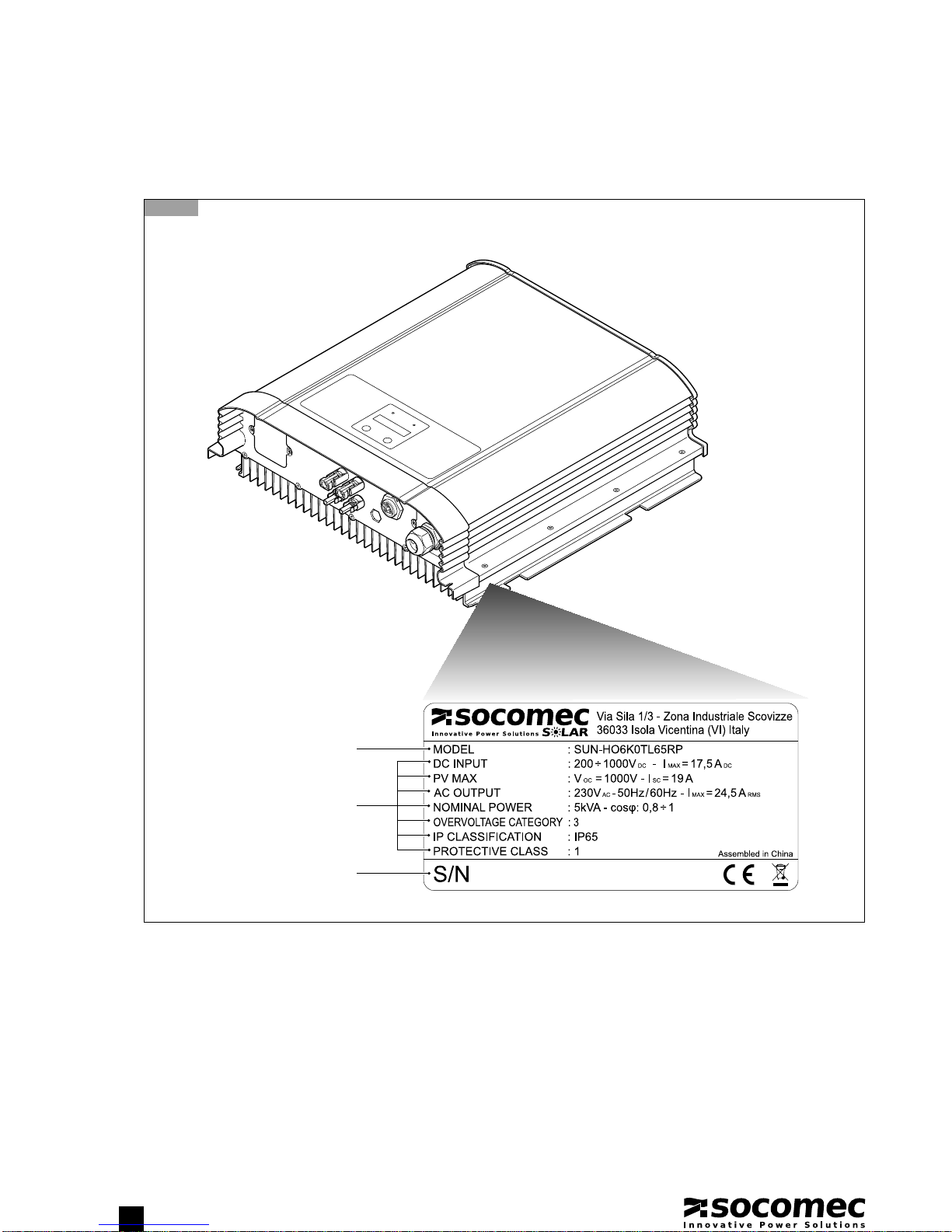

2.3. IDENTIFICATION DATA PLATE
2.3-1
2 GENERAL INFORMATION
Model
Technical data
Serial number

9
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
3.1-1
3. DESCRIPTION
3.1. GENERAL DESCRIPTION OF COMPONENTS
LCD display and
control panel
Communication port
Output connection
Input connection

10 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
4. INSTALLATION
4.1. WARNINGS

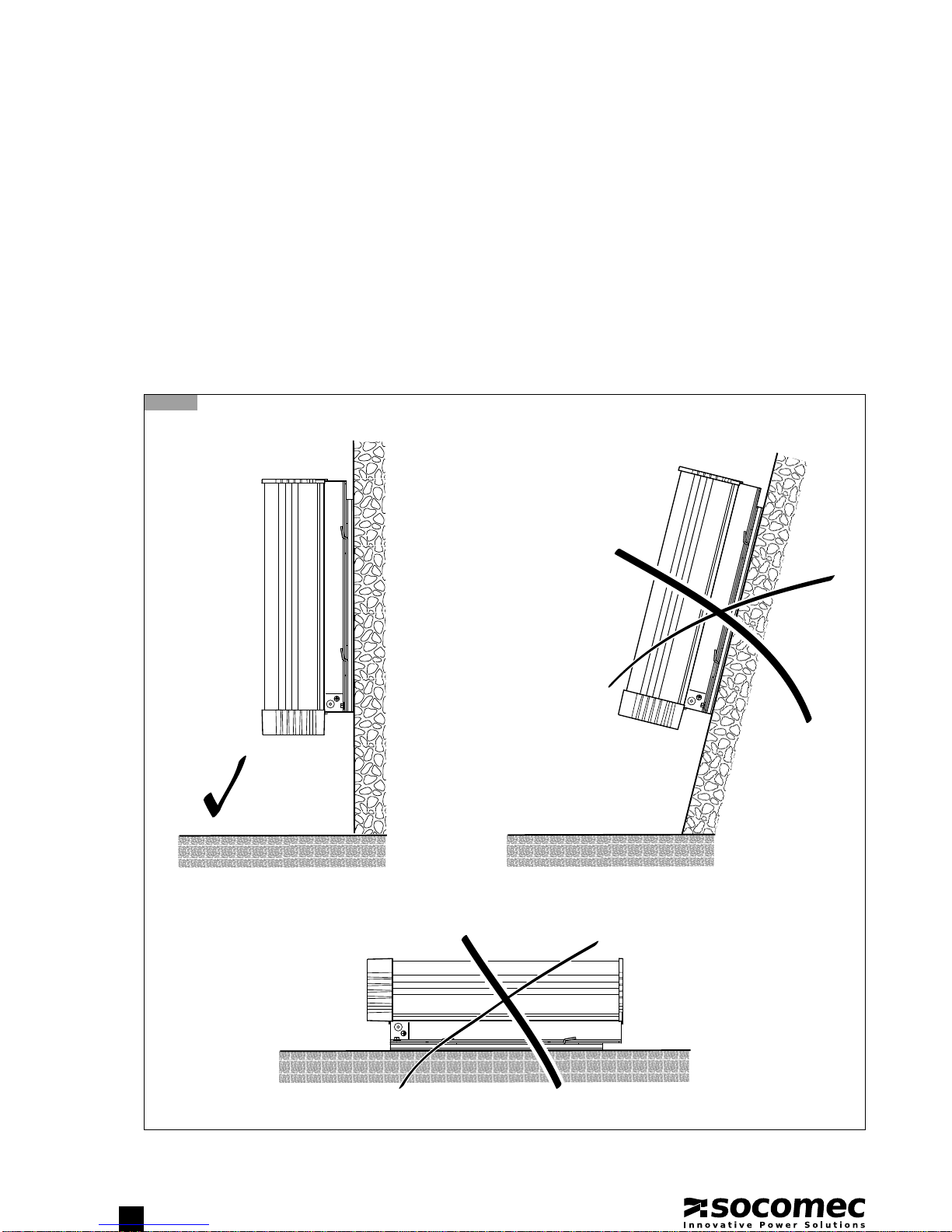

The inverter is designed for wall-mounting. The wall must be sound and completely smooth.
Install the inverter in an equipment room where only skilled technicians have access. The room must be:
• of a suitable size;
• clean;
• free from inflammable items;
• not exposed directly to sunlight;
• maintained at a temperature between -18 °C and 40 °C.
4.2. CONDITIONS FOR INSTALLATION
4.2-1

11
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
INSTALLATION
4.3. WALL FIXING
4.2-2 Suitable installation clearances
50 cm
50 cm
50 cm
50 cm
30 cm 30 cm 30 cm
4.3-1
90
120
170
170
120
120 120 120
90 90 90
5 viti M6
3 viti M6
4 viti M6

12 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
DC
DC
AC
AC COM
COM
5. CONNECTIONS
5.1-1
5.1. DESCRIPTION
WARNING!
Before connecting the power supply connect the earth cable (PE).
Before connecting any cables to the inverter, check that the polarity, voltage and sequence of the phases are correct.
Check that the input and output cables of the photovoltaic system are clearly identified.
PV module inputs
DC = 2 strings in parallel AC output, with connections
L1, N, and PE
External
communication
interface
PE Ground
connection

13
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
5.1-3 Connecting the PV system to positive or negative earth
5.1-2 Connection of the PV system without earth connection
Note: with a floating DC input (no earth connection) no isolating transformer is required.
DC1
1L
2N
PE
or z
z
A transformer must be
installed
Isolating transformer
Load
1 Ph +N
230 Vac
Inverter
1 Ph +N
230 Vac
Photovoltaic panels DC distribution
panel
AC connections
Photovoltaic panels
DC distribution panel
(GND+ or GND-)

14 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 14
5. CONNECTIONS
5.2. AC CONNECTION
• Before wiring the AC side ensure the AC mains supply is disconnected.
• Check that the connection cable used matches the specifications in the table.
Sizing of AC cables
Model Max current Cross-section Fastening Circuit breaker Residual current protection
SUNSYS-H50 25 A 4 mm2≥0.8 Nm MCCB rated 32 A 1P+N curve C 0.3 A type A or AC
The AC connection is made with a single pole plug (L1, N, PE - see diagram).
5.2-1
N
L
PE
00
00
N
LPE
Inverter
N
L
PE
3
12
4
5.3-1
5.3. DC CONNECTION
• Before wiring the DC side ensure the AC power supply is disconnected.
• Check that the connection cable used matches the specifications in the table.
Sizing of DC cables
Model Max current Cross-section
SUNSYS-H50 17.5 ADC 4 mm2
DC connections are divided into positive and negative poles.
RED
BLACK

15
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
5. CONNECTIONS

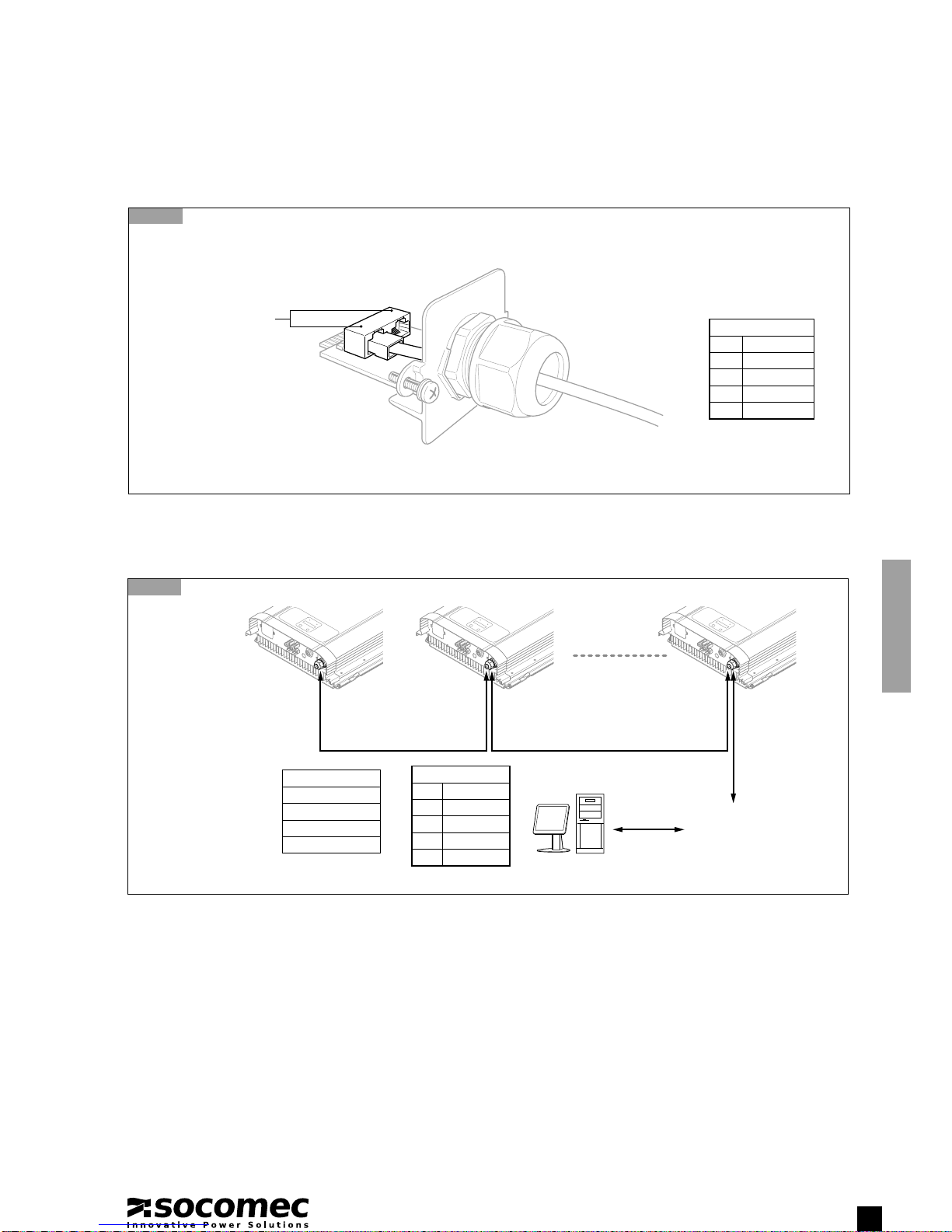

5.4-1 Communication module
RS485 PIN Layout
PIN FUNCTION
4 DATA -
5 DATA +
7 GND
8 12 Vdc
5.4.3-1
RS485/USB
or
RS485/RS232
PIN Layout
PIN FUNCTION
4 DATA -
5 DATA +
7 GND
8 12 Vdc
Data Format
Baud Rate: 9600
Data bits: 8
Stop bit: 1
Parity: N/A
5.3.1. RS-485
The RS-485 function enables connection of the inverter in parallel.
5.4. COMMUNICATION MODULE CONNECTIONS

16 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 16
6. COMMISSIONING
6.1. PHOTOVOLTAIC MODULE SETUP
• The maximum no-load DC voltage of the photovoltaic field must be no higher than 1000 V.
• The maximum connection power going to the inverter must be no greater than 5600 W.
• The breaker device must have a maximum rated voltage of > 1000 Vdc and maximum short-circuit current > 17.5A.
• The voltage range of the MPPTs must be between 310 V and 850 V.
6.2. AC GRID VOLTAGE REQUIREMENTS
Nominal voltage and current. See Chapter 5.
• An AC1automatic circuit breaker must be installed and allocated to each of the solar inverters, independently of the system (see heading 5.2).
Grid voltage values
L1-N 230 Vac
• Type B output residual current device is integrated into inverter.
6.3. FIRST START-UP
Check that the AC, DC and communication connections are made and secured correctly.
WARNING!
If the country setting is wrong SOCOMEC must be contacted for assistance.
1. Power up the inverter (AC or DC)
2. Set the country.
• use ent button to enter the country selection menu
• use sel button to find your country
• use ent button to select the country
• use ent button to set the chosen country
• use sel button for next menu.
3. Set insulation mode.
• use ent button to enter the insulation mode selection menu
• use sel button to find the plant insulation mode
• use ent button to select this insulation mode
• use ent button to set the chosen insulation mode
• use sel button for next menu.
4. Set the language.
• use ent button to enter the laguage selection menu
• use sel button to find your language
• use ent button to select this language
• use ent button to set the chosen language
• use ent button to confirm and start the inverter.
If the level of sunlight is sufficient the inverter will come into operation.
During subsequent start-ups the device will show the main page of the menu.

17
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH
SEL ENT
SEL ENT SEL ENT SEL ENT
SEL ENT
SEL ENT

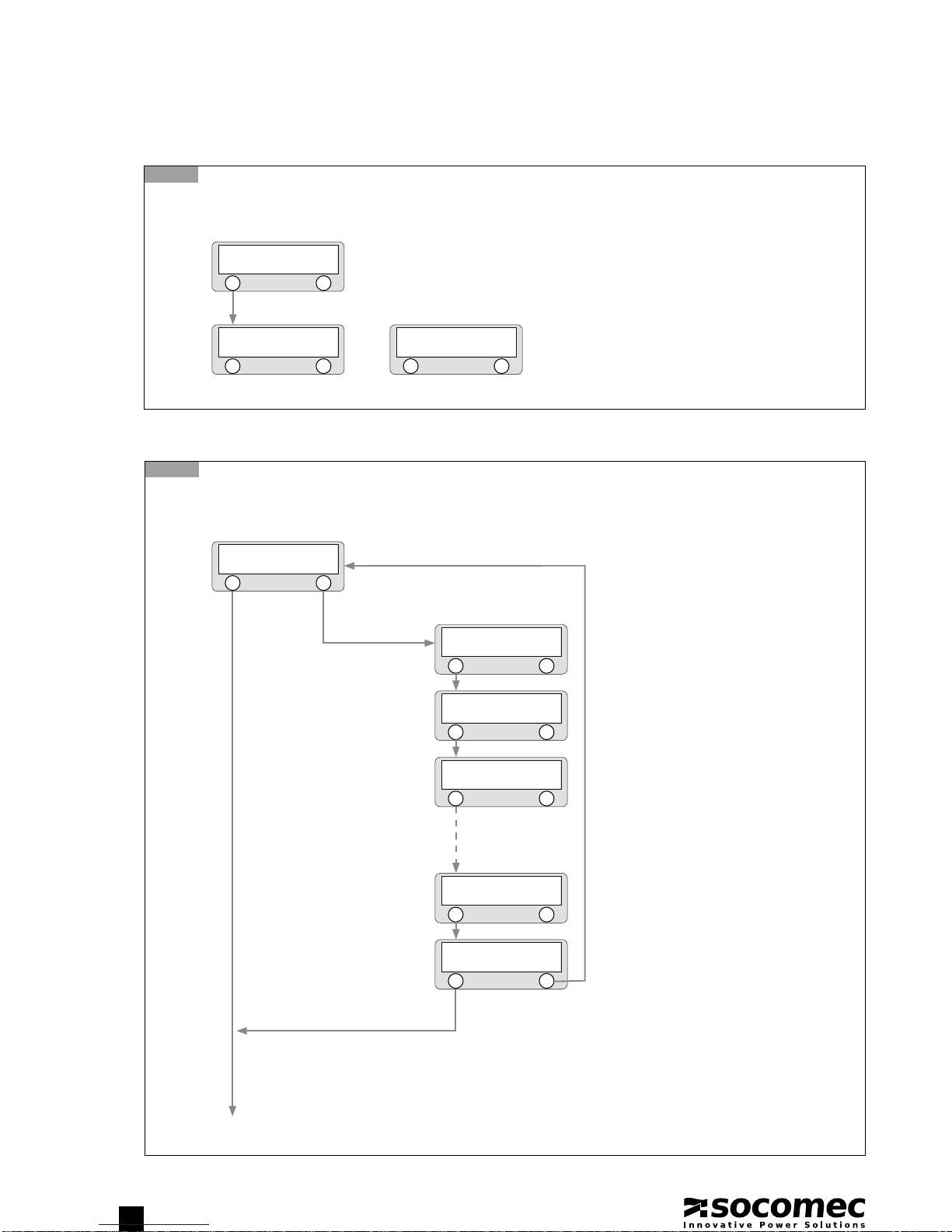

6.3-1 Country and language selection menu
6. COMMISSIONING
Country
xxx
Italy
Next Enter
France
Next Enter
Exit
N Y
Italy
N Y Country Italy
SEL ENT
SEL ENT SEL ENT SEL ENT
SEL ENT
SEL ENT
SEL ENT
Insulation mode
xxx
Normal
Next Enter
Negative
Next Enter
Normal
N Y Ground option Normal
Disable
Next Enter
Positive
Next Enter
SEL ENT
SEL ENT
SEL ENT SEL ENTSEL ENT
SEL ENT
Language
xxx
English
Next Enter
Italian
Next Enter
Exit
N Y
Italian
N Y Language Italian
SEL and ENT are pressed
simultaneously > 35 sec.
SEL ENT
Exit
N Y Inverter
On

18 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 18
7.1-1
7. CONTROL PANEL
WARNING! RISK OF ACCIDENT OR SERIOUS INJURY!
Do not touch the terminal of the photovoltaic module when exposed to sunlight
SELECT ENTER
ALARMON
LED indicator
Condition Green LED Red LED
Countdown FLASHING OFF
On grid ON OFF
Error or Fault OFF ON
Standby or night-time (no DC supply) OFF OFF
FW update FLASHING FLASHING
Move to next menu
LCD display
LED red
Confirm
LED green

19
SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00
ENGLISH

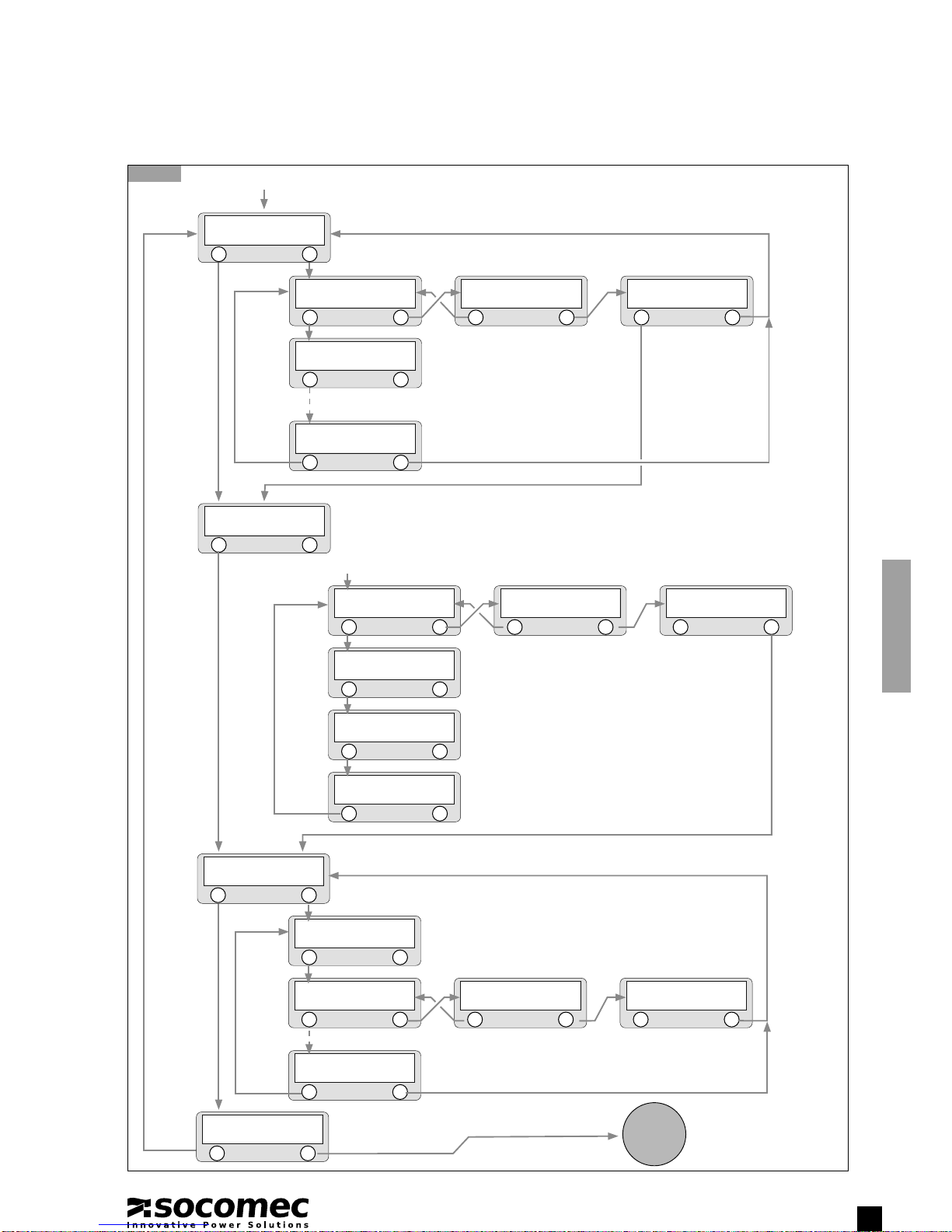

8.1-2 Measurements
8.1-1 Daily energy (main menu)
Actual power generated
Total energy generated during the day
Mains voltage and frequency
Inverter output current
PV array voltage, current and power
Today input energy
Output AC energy production from installation
PV array DC energy production from installation
8. MENU
WARNING!
The menus and settings described are visible only after the appliance has been started up for the first time. See
Chapter 6.
8.1. DESCRIPTION
SEL ENT
Output 3600W
Today 7200Wh Actual output power
Daily output energy
SEL ENT
SEL ENT
SEL ENT
SEL ENT
SEL ENT
SEL ENT
SEL ENT
Output 3600W
Today 7200Wh
Utility
225V 50.00Hz
Output current
16.0A
DC: 320V
5.9A 1894W
Today DC
7500Wh
AC life energy
1450kWh
DC life energy
1540kWh
Use sel button to move through the menu available

20 SUNSYS H50 - Ref.: IOMSUNHMXX05-GB 00 20
8.1-4 Event log
8.1-3 Inverter information
8. MENU
This page displays the last sixteen events (error or fault) recorded by the system. The first event displayed is the most recent.
Inverter rating
Inverter firmware version
SEL ENT
SEL ENT
Inverter
5.0kW
DSP comm red.
0000 0000 0000
Push ENT button to cancel
the event log
SEL ENT
SEL ENT
SEL ENT
SEL ENT
SEL ENT
SEL ENT
Event List
Enter
01 : Grid freq
under rating
02 : Grid volt
under rating
03 : empty
16 : empty
Clear Event Logs
Exit Yes
SEL ENT
Page Wifi
0000 0000
