socomec SUNSYS pro Series User manual

SUNSYS pro
SUNSYS station
PV inverters
Installations- und bedienungsanleitung DE
Manuel d’installation et d’utilisation FR
Installation and operating manual GB
Manuale di installazione e uso IT

2SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
CONDITIONS OF WARRANTY
MANUFACTURER'S WARRANTY - WARRANTY FOR PRODUCTS IN THE SUNSYS
PRO SERIES, MODELS R01 AND R02, AND IN THE SUNSYS STATION SERIES
Sicon S.r.l., a member of the Socomec group which deals with the supply, control and safety of low voltage electrical networks, with
registered head office in via Sila 1/3 – Z. I. Scovizze, 36033 Isola Vicentina (VI), guarantees that its products in the Sunsys Pro series,
models R01 and R02, and the Sunsys Station series are new and adhere to applicable technical specifications and quality standards.
1) Conditions of Warranty
Sicon S.r.l. guarantees its products in the Sunsys Pro series, models R01 and R02, and the Sunsys Station series for a period
of 2 years from purchase, for manufacturing or material defects only.
The warranty period runs from the date on which the new product was purchased by the end user at the showroom of an official
dealer (date on receipt).
This warranty applies only to products installed in Italy.
The warranty covers:
a) the free repair or replacement of the product or faulty component, however the customer or end user will be responsible for
installation of the product or replacement component;
b) sending the faulty product to Sicon S.r.l. (or to authorised centres) with dismantling, transport and related costs borne by the
customer or end user;
c) any dispatching of Sicon S.r.l. technicians to the site free of charge to repair or replace the faulty product or component when
the technician firmly believes this is necessary.
The decision to send a technician to the site or have the allegedly faulty product or component sent back, and the decision
to repair or replace the faulty product or component will be made exclusively by Sicon S.r.l.
Replacement or repair of parts and any modifications to the product or components during the warranty period shall not extend
the duration of the warranty.
Sicon S.r.l. reserves the right to offer extensions to this warranty which must be agreed in writing.
2) Procedure
I. The faults must be reported to the After Sales Service of the Photovoltaic department at Sicon S.r.l. (via Sila 1/3 – Zona
Industriale Scovizze – 36033 Isola Vicentina - Vi -) on the freephone number , or in writing by registered mail, or by
email ([email protected]) or fax [phone]).
In all cases a brief written report must be sent immediately to the aforesaid Department indicating the type of fault, the serial
number of the product and all the data on its identification plate.
A copy of the product proof of purchase must be attached to the written report (delivery note, invoice, tax receipt, stating
date of purchase and containing the data necessary for machine identification - model, serial number). If it is not possible to
provide proof of purchase the serial number and date of manufacture will be used to calculate the probable expiry date of
the warranty.
The faulty product may only be returned to Sicon S.r.l. after the return authorisation number has been received, which will
be issued by the service centres on receipt of the fault report.
II. If Sicon S.r.l. decides to have the allegedly faulty product sent back, it should be returned to Sicon S.r.l. in its original packag-
ing (or equivalent), quoting the return authorisation number.
III. If the returned goods are recognised as faulty and under warranty, Sicon S.r.l. shall send the product and/or the repaired or
replacement component to the end user at the address provided along with a fault report, or to the place where the goods
were delivered as outlined in the sales agreement.
IV. Sicon S.r.l shall cover the costs for shipment of the replacement product and/or component.
V. The product and/or component must be installed by qualified personnel or by an authorised service centre.
VI. Sicon S.r.l. shall be reimbursed for all activities carried out on products and/or components not recognised under warranty,
in compliance with the rates and conditions normally applied by the company.
VII. Sicon S.r.l. reserves the right to supply a different model of product and/or component as long as it offers equivalent perfor-
mance, in cases where the original model - faulty and under warranty - is out of production.
3) Exclusions from the Warranty
a) The warranty is not valid if product and/or components faults consist of and/or originate from:
I. accidental damage.
II. negligent, improper or inadequate use of the product or of the component (for example, use outside tolerance: tempera-
ture, humidity, poor ventilation).

SOCOMEC retains full and exclusive ownership rights over this document. Only a personal right to use the document for the appli-
cation indicated by SOCOMEC is granted to the recipient of the document. Any reproduction, modification or dissemination of this
document, either partially or completely and by any means, is expressly prohibited except upon Socomec's express prior written
consent.
This document is not contractual. SOCOMEC reserves the right to make any changes to this information without prior notice.
3
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
CONVENTIONS USED
The following safety warnings and symbols can be found in these operating instructions:
DANGER!
Risk of death if not observed.
DANGER!
Risk of death due to electrical voltage.
WARNING!
Risk of damage to the system if not observed.
ADVICE
Useful information.
ADVICE
Refer to the operating manual or other documents
- Instructions on actions to be carried out: The terms written in italics refer to definitions on the display.
WARNING!
Risk of electric shock!
Wait for the stored energy to discharge (the time is indicated underneath the symbol).
X min
III. failure to observe the instructions for installation, use and maintenance described in the Installation and User Manuals.
IV. modifications or repairs attempted by personnel not authorised by the Sicon S.r.l. After Sales Service.
V. damage due to atmospheric discharges, floods, fires, earthquakes, uprisings, wars or other causes of force majeure or
deriving from any other reason different from normal operating conditions of the inverters and beyond the control of Sicon
S.r.l..
VI. damage caused by voltage overloads.
VII. damage due to corrosion.
VIII. inadequate transport.
IX. failure of the user to comply with standards in force.
b) The warranty is also invalid if:
I. if the faulty product and/or component is not returned to Sicon S.r.l. in its original packaging or equivalent.
II. if the serial number identifying the products has been tampered with or is not clearly identifiable.
III. if the fault concerns aspects pertaining to appearance or construction which do not affect normal product operation.
c) Requests not relating to rights established by warranty conditions are not covered by the warranty and in particular, requests
for the refund of damages for loss of production, loss of earnings, or due to product defects or installation/dismantling costs.

5
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
INDEX
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1. PERSONAL SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2. COMPLIANT USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.3. STANDARDS AND GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2. DESCRIPTION OF THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1. OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2. DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. PREREQUISITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.1. INSTALLATION SITE CONDITIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4. TRANSPORT AND UNWRAPPING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1. ELECTRICAL INSTALLATION REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.
CONNECTING THE PHOTOVOLTAIC GENERATOR AND MAIN AC NETWORK
TO THE POWER TERMINALS OF THE SUNSYS PRO R01 INVERTER . . . . . . 21
5.3. CONNECTING THE PHOTOVOLTAIC GENERATOR AND MAIN AC NETWORK TO THE
POWER TERMINALS OF THE SUNSYS PRO R02 INVERTER . . . . . . . . . . . . . . . . . . 22
5.4. CONNECTING THE PHOTOVOLTAIC GENERATOR AND MAIN AC NETWORK
TO THE POWER TERMINALS OF THE SUNSYS STATION P03 INVERTER . . 24
5.5. AUXILIARY POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.6. OPTIONAL INPUT FOR EXTERNAL INTERFACE PROTECTION . . . . . . . . . . . 26
6. OPERATING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1. ACTIVATING THE INVERTER FOR THE FIRST TIME. . . . . . . . . . . . . . . . . . . . 27
6.2. SWITCHING ON THE INVERTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.3. SWITCHING OFF THE INVERTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7. MIMIC PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.1. MEANING OF THE LUMINOUS STATUS BAR . . . . . . . . . . . . . . . . . . . . . . . . 32
7.2. DISPLAY MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3. KEYPAD LOCK PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8. COMMUNICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9. PREVENTIVE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.1. REGULAR INSPECTION OF THE INVERTER . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.2. PREVENTIVE INVERTER MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.1. SYSTEM WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.2. INVERTER WARNINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.3. SYSTEM ALERTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.4. INVERTER ALERTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
1.1. PERSONAL SAFETY PRECAUTIONS
To prevent personal injury and damage to property please read the following warnings before activating the device for the first time:
Read the operating instructions beforehand!
- Observe the safety warnings!
- Observe the user information!
Risk of electric shocks from live device parts!
In the event of system maintenance, carry out the following steps beforehand:
• Disconnect the photovoltaic system and the AC power supplies.
• Make sure the system cannot be restarted.
• Make sure the electricity supply has been disconnected.
• Earth the equipment sub-assemblies and short-circuit them.
• Cover or separate nearby live device units.
• Before working on circuits upstream make sure the inverter is disconnected by opening the DC disconnection switches.
• If there are field panels upstream of the inverter attach label to them displaying the following information:
WARNING!
DEVICE WITH SEVERAL HAZARDOUS VOLTAGE POWER SUPPLY SOURCES INSIDE EVEN AFTER DISCONNECTION DEVICES
HAVE BEEN OPENED.
ADOPT ALL SAFETY MEASURES REQUIRED FOR PROCEDURES ON LIVE PARTS.
The following measures are required:
- To prevent personal injury and damage to property, the device should only be used by qualified personnel with electrical and
technical training.
- The qualified technician must have read the operating instructions.
- National accident prevention standards must be observed.
- Maintenance and repair procedures must only be carried out by trained personnel authorised by Socomec. The user is strictly
prohibited from carrying out procedures which could involve compromise the integrity of the inverter (for example, removing inverter
modules).
During installation, observe the following:
- Observe the connection conditions and technical data.
- Observe standards regarding electrical installation, e.g. cable cross-section, contactor connection and earthing.
- Do not touch any components and electronic contacts (electrostatic charge could destroy the components).
DANGER!
Risk of electric shock from live device parts!
SUNSYS pro and SUNSYS station inverters can be connected to a maximum of three separately protected power supplies:
1 DC cable - Photovoltaic generator power supply (separate for the three modules or shared)
2 AC cable - Power from the mains network, supplied by the electricity company
3 AC cable - Auxiliary power supply
• Before carrying out any work make sure the electricity supply has been disconnected.
• All DC power supplies should be considered as part of the same circuit, even in the configuration with centralised multi-
string inverter. Before carrying out any work make sure all electricity supplies have been disconnected.
DANGER!
Risk of electric shock from live device parts!
The intermediate inverter circuit may be live even after it has been deactivated.
• Wait 5 minutes for the power to disperse and make sure that there is none remaining.
1. SAFETY INSTRUCTIONS
5 min

7
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
1. SAFETY INSTRUCTIONS
DANGER!
Risk of electric shock from live device parts!
The photovoltaic modules are live as soon as they are exposed to sunlight.
• Take suitable measures and make sure there is no power remaining.
1.2. COMPLIANT USE
SUNSYS pro and SUNSYS station are photovoltaic inverters for the conversion of direct current into alternating current in compliance
with the mains network.
Any use other than the specified purpose will therefore be considered as improper. The manufacturer/supplier shall not be held
responsible for damage resulting from this. The risk and responsibility lies with the system manager.
SUNSYS pro and SUNSYS station are constructed in accordance with current technical regulations and official safety standards.
Before shipment all devices undergo technical safety testing. Nevertheless, incorrect or improper use may endanger the life or health
of the operator and third parties, or damage equipment or other materials.
Compliant use also includes observing operating instructions. SUNSYS pro and SUNSYS station must be installed by specialist
personnel deemed responsible for complying with existing standards. Repair work may only be carried out by authorised centres.
Arbitrary and unauthorised work may have fatal consequences, cause injury or damage property. In the event of damage, SOCOMEC
shall assume no responsibility and the warranty shall be void.
1.3. STANDARDS AND GUIDELINES
When carrying out electrical installation, all standards specified by the IEC and the electricity supplier must be observed.
Certificate of compliance
SUNSYS pro and SUNSYS station comply with all technical and construction-related requirements from a safety perspective, with
the electromagnetic compatibility directive (2004/108/EC) and the low voltage directive (2006/95/EC).
The SUNSYS station series also complies with the following standards and directives:
- EN 50178: 1997-03 Electronic equipment for use in power installations
- IEC 62109-1: 2010-04 Safety of power converters for use in photovoltaic power systems - Part 1: General requirements
- EN 61000-3-11: 2000-08 Electromagnetic compatibility (EMC) - Part 3-11: Limits - Limitation of voltage changes, voltage fluctua-
tions and flicker in public low-voltage supply systems - Equipment with rated current ≤75 A and subject to conditional connection
- EN 61000-6-2; 2006-03 Electromagnetic Compatibility (EMC) - Part 6-2: Generic standards - Immunity for Industrial Environments
- EN 61000-6-4: 2007-09 Electromagnetic Compatibility (EMC) - Part 6-4: Generic standards – Generic Standard Interference
Emission for Industrial Environments
- EN 61000-3-12: 2005-09 Electromagnetic Compatibility (EMC) - Part 3-12: Limits - Limits for harmonic currents produced by
equipment connected to public low-voltage systems with input current >16 A and inferior or equal 75 A per phase.
The following documents or national standards apply to photovoltaic systems:
- DIN V VDE V 0126-1-1: 2006-02 Automatic disconnection device between a generator and the public low voltage grid (Germany)
- CEI 0-16: 2009-04 Reference technical rules for the connection of active and passive consumers to the HV and MV electrical
networks of distribution Company (Italy)
- Guide to connection to the Enel Distribuzione mains electricity network Ed. 1.1 (Italy)
- CEI 11-20: 2000-08 Electrical energy production system and uninterruptible power systems connected to class I and class II
network (Italy)
- CEI Guide 82-25: Guide to the production of photovoltaic generation systems connected to medium and low voltage electricity
networks
- RD 1663/2000 + RD 661/2007: Conexión de instalaciones fotovoltaicas a la red de baja tensión (Spain)

8SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
2. DESCRIPTION OF THE SYSTEM
2.1. OVERVIEW

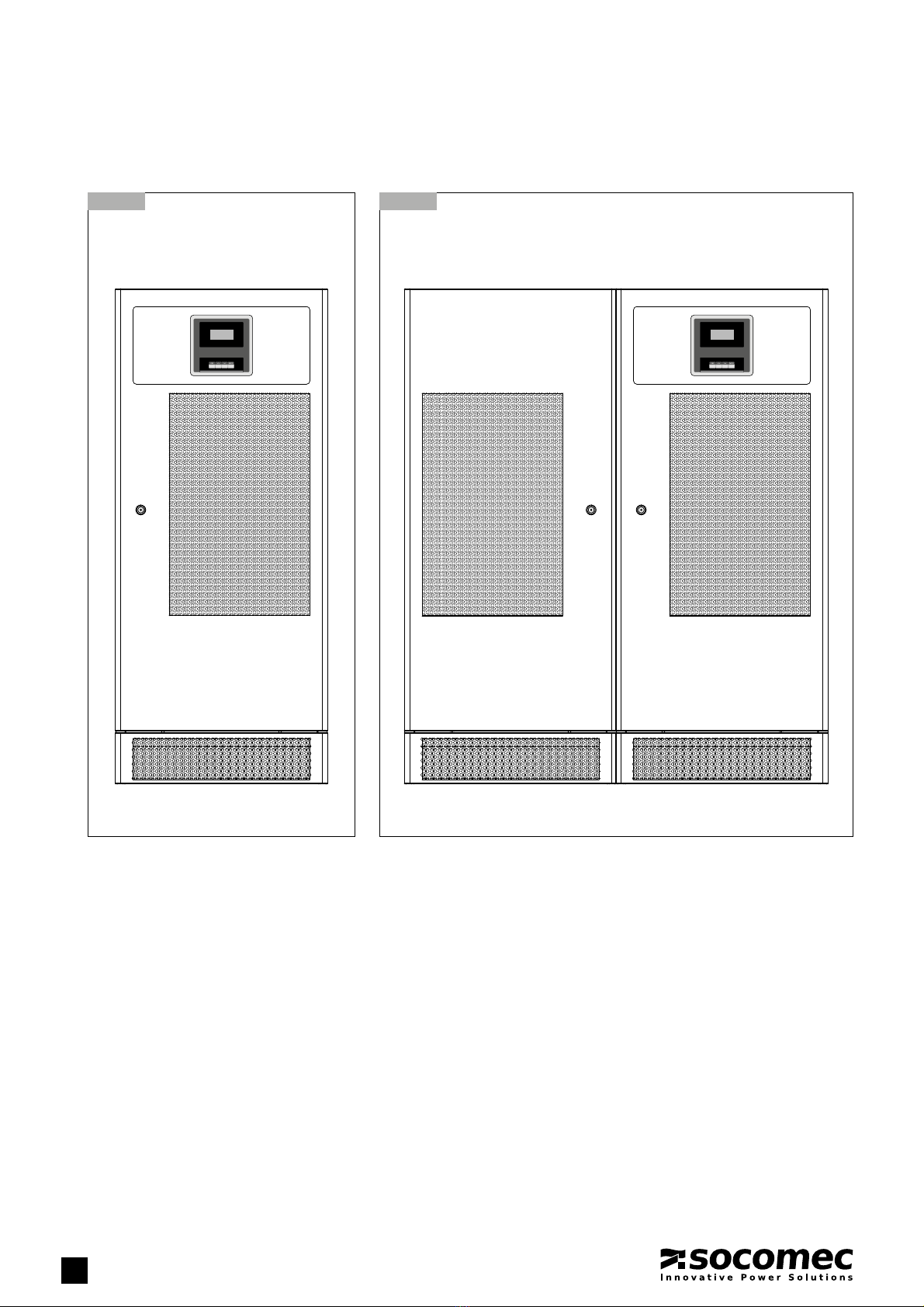

2.1-1 SUNSYS pro R01
SUNSYS pro R02
2.1-2 SUNSYS station
Transformer
SUNSYS station T03
Inverter
SUNSYS station P03

9
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
2. DESCRIPTION OF THE SYSTEM
2.2. DESCRIPTION
12345

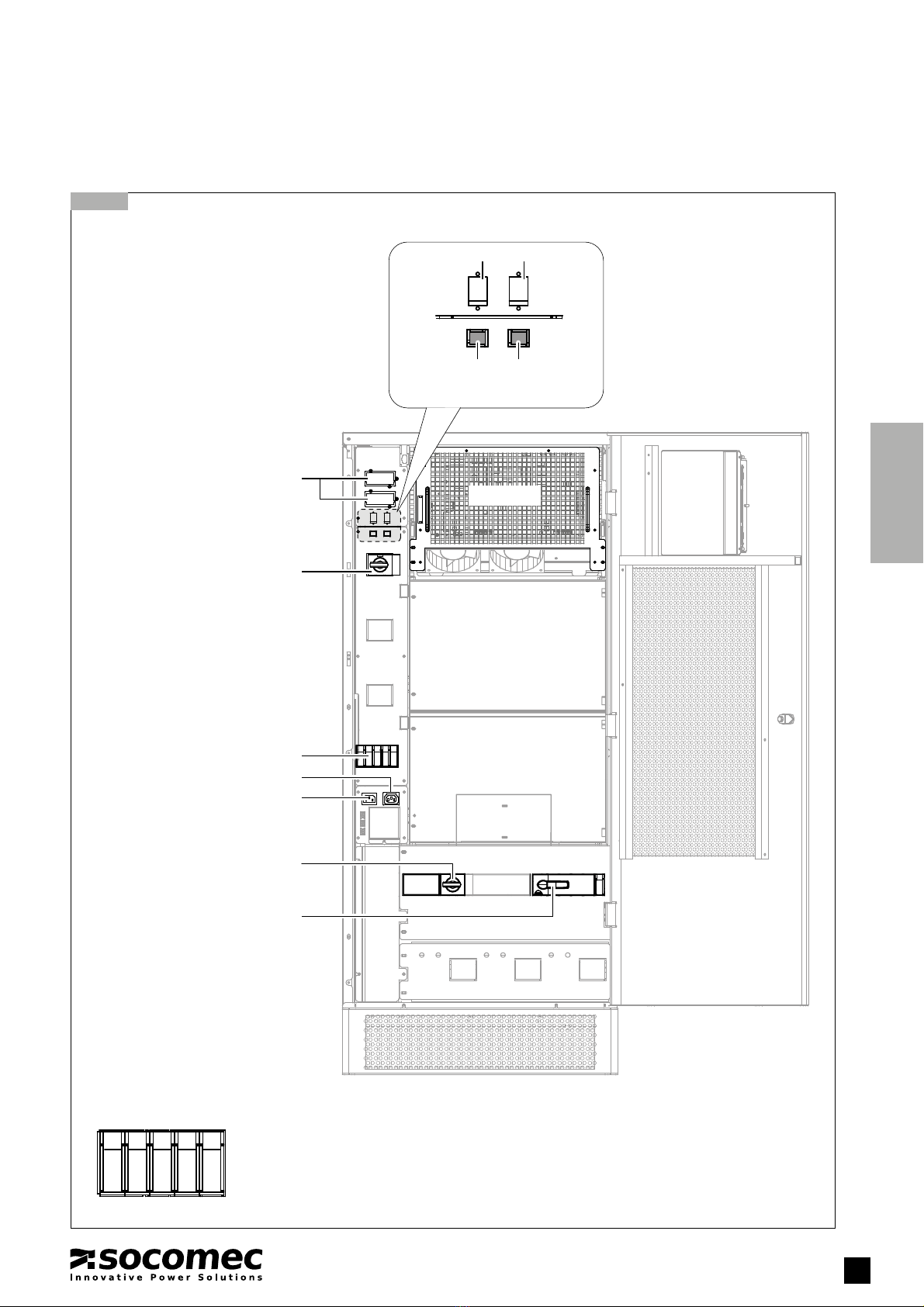

2.2-1 SUNSYS pro R01 with the door open and the 33 kW power module
Communication slots
Module A
Module A output
disconnection switch
Button
TEST
(option)
RS232RS232
Button
RESET
(option)
IEC320 AUX output for assistance
IEC320 AUX power input
Detail
Disconnection
switches with fuse
Inverter output disconnection switch
Module A input disconnection switch
1 Disconnection switch for isolation controller (option)
2 Disconnection switch for isolation controller (option)
3 Disconnection switch for IEC320 connector AUX power supply
4 Disconnection switch for IEC320 connector for assistance
5 Fan fuse
Disconnection switches with fuse
(see detail below)

10 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00 10 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
2.DESCRIPTION OF THE SYSTEM
12345

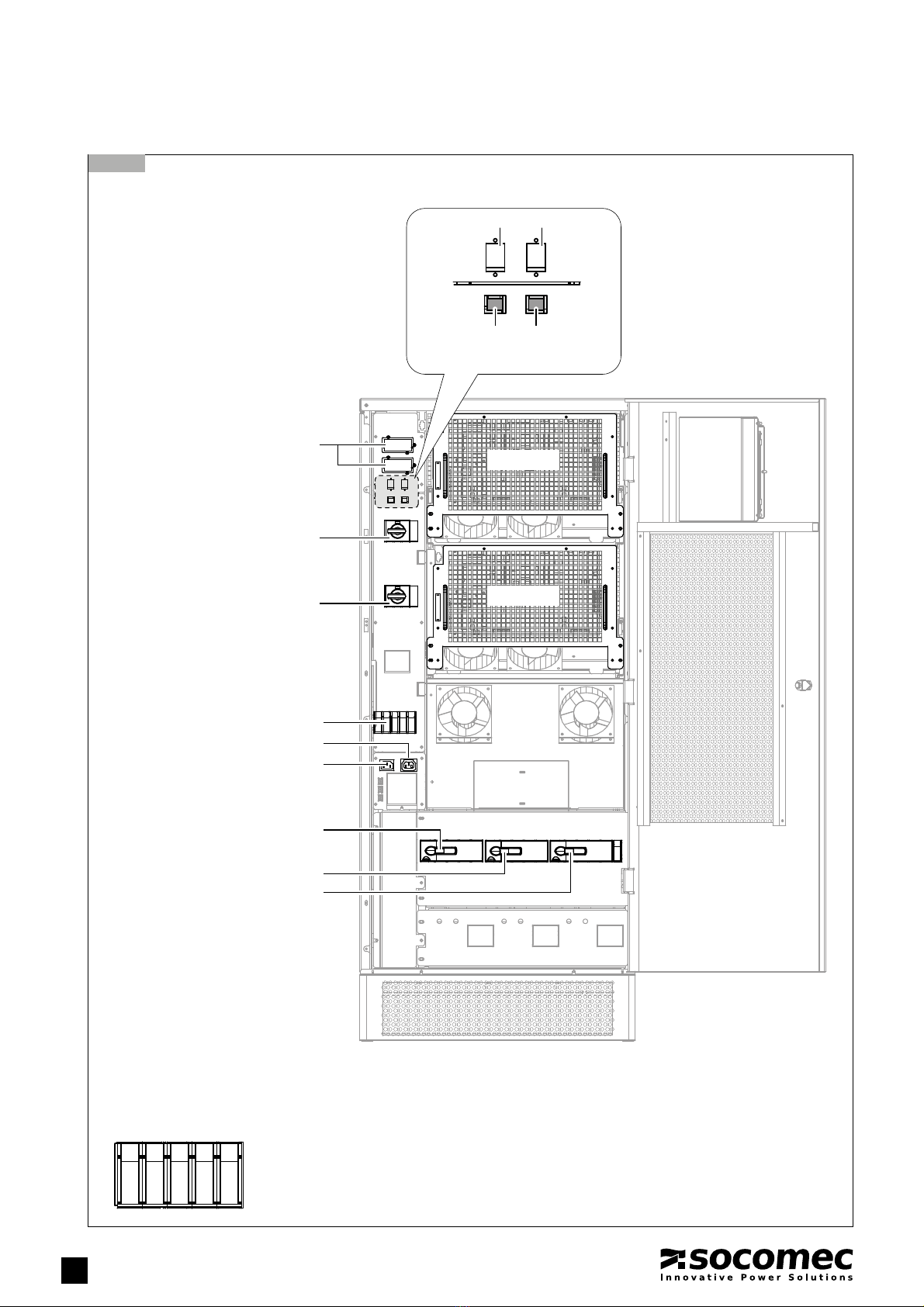

2.2-2 SUNSYS pro R02 with the door open and the two 33 kW power modules
Communication slots
Module A
Module B
Module A output
disconnection switch
RS232RS232
Module B output
disconnection switch
IEC320 AUX output for assistance
IEC320 AUX power input
Detail
Disconnection
switches with fuse
Inverter output disconnection switch
Module B input disconnection switch
Module A input disconnection switch
1 Disconnection switch for isolation controller (option)
2 Disconnection switch for isolation controller (option)
3 Disconnection switch for IEC320 connector AUX power supply
4 Disconnection switch for IEC320 connector for assistance
5 Fan fuses
Disconnection switches with fuse
(see detail below)
Button
TEST
(option)
Button
RESET
(option)

11
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
2. DESCRIPTION OF THE SYSTEM
12345
2.2-3 SUNSYS station P03 with the door open and the three 33 kW power modules
Communication slots
Module A output disconnection switch
Module B output disconnection switch
Module A input disconnection switch
Module B input disconnection switch
Module C input disconnection switch
Module C output disconnection switch
Inverter output disconnection switch
Module A
Module B
Module C
RS232RS232
IEC320 AUX output for assistance
IEC320 AUX power input
Detail
Disconnection
switches
with fuse
1 Disconnection switch for isolation controller (option)
2 Disconnection switch for isolation controller (option)
3 Disconnection switch for IEC320 connector AUX power supply
4 Disconnection switch for IEC320 connector for assistance
5 Fan fuse
Disconnection switches with fuse (see detail below)
Button
TEST
(option)
Button
RESET
(option)

12 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00 12 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
The SUNSYS series covers a range of power from 33.3 to 100 kW and consists of 1, 2 or 3 modules of 33.3 kW each.
Each module converts the energy provided by the solar panels, using a Maximum Power Point Tracking (MPPT) algorithm to fully
exploit the features of the photovoltaic cells.
The DC terminals of all modules can be connected to the same photovoltaic field (centralised modular inverter with single MPPT),
or can have different photovoltaic fields (centralised multi-string inverter with separate MPPTs).
IMD
3Ph+PE
DC +/–
GND
IMD
Q1A
Q3A
T1
K1
Q70
X90
X10A
X10A
X90
DC +/–DC +/–
X10A
X90 X10B X10A
X10B
Q1B
Q3B
X90
Q70
Q3A
T1
K1
Q1A
IMD
3Ph+PE
GND
IMD

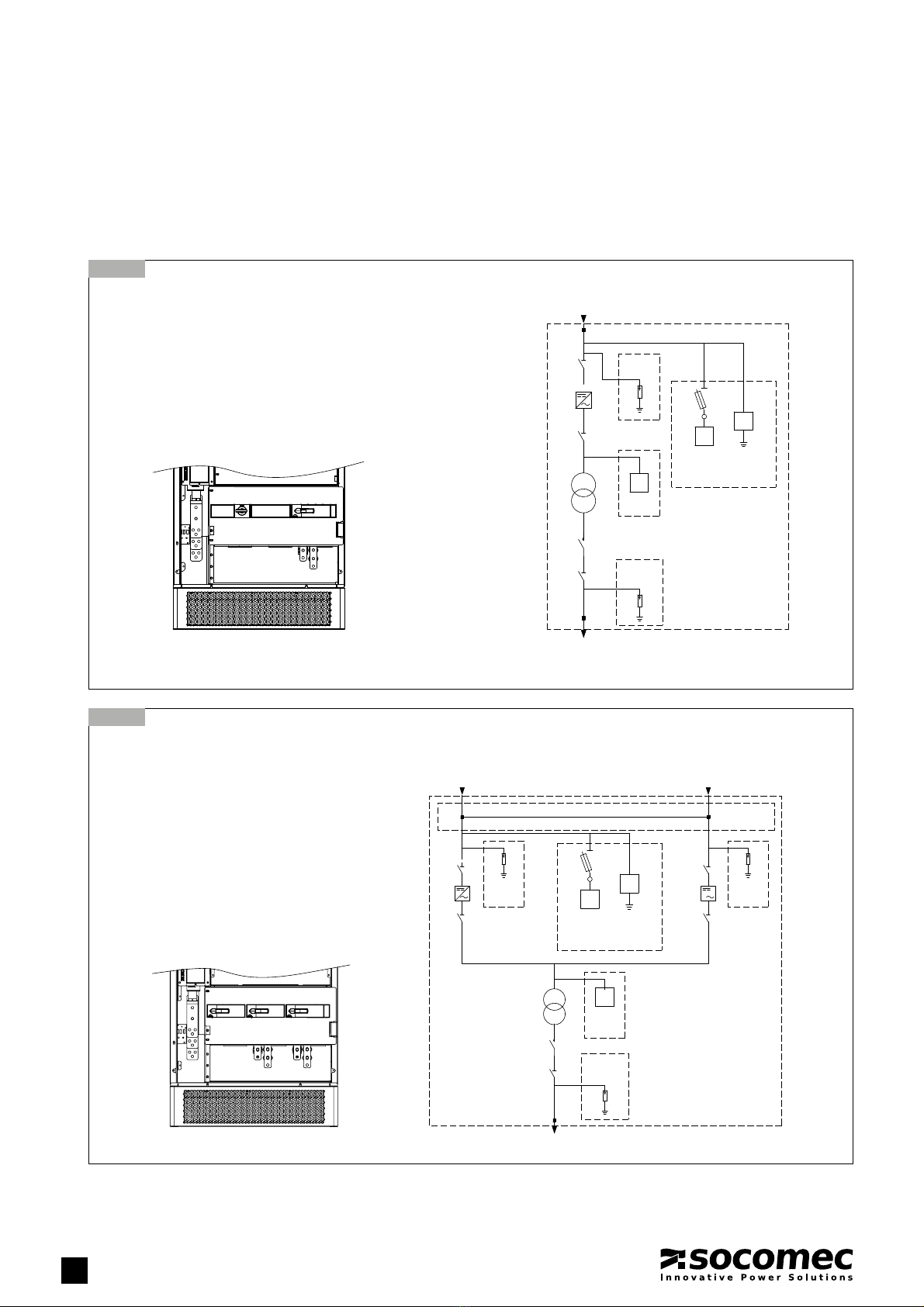

2.2-4 Simplified wiring diagram of the SUNSYS pro R01 system
2.2-5 Simplified wiring diagram of the SUNSYS pro R02 system
Photovoltaic field
Photovoltaic field Photovoltaic field
AC main network
Option
SPD-IN
Option
SPD-IN
Option
SPD-IN
Option
IMD
Option
IMD
Option
SPD-OUT
Option
SPD-OUT
Option
earthing kit + IMD
Option
earthing kit + IMD
Option
Common DC
AC main network
2.DESCRIPTION OF THE SYSTEM

13
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
IMD
3Ph+PE
3Ph
X10
T1
Q70
X90
3Ph+PE
K1
X90
Q3A Q3B
DC +/– DC +/– DC +/–
Q1B Q1CQ1A
X10B X10C
X10A
X10AX10BX10C
X90
Q3C
X90 X10
GND
IMD
Inverter
SUNSYS station P03
Transformer
SUNSYS station T03
Field
photovoltaic
Field
photovoltaic
Field
photovoltaic
AC main network
AC main network
Power supply network
Option
SPD-IN
Option
SPD-IN
Option
SPD-IN
Option
SPD-OUT
Option
Common DC
Option
IMD
2.2-6 Simplified wiring diagram of the SUNSYS station P03 system (with SUNSYS station T03 transformer)
Option
earthing kit + IMD
2. DESCRIPTION OF THE SYSTEM

14 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00 14 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00

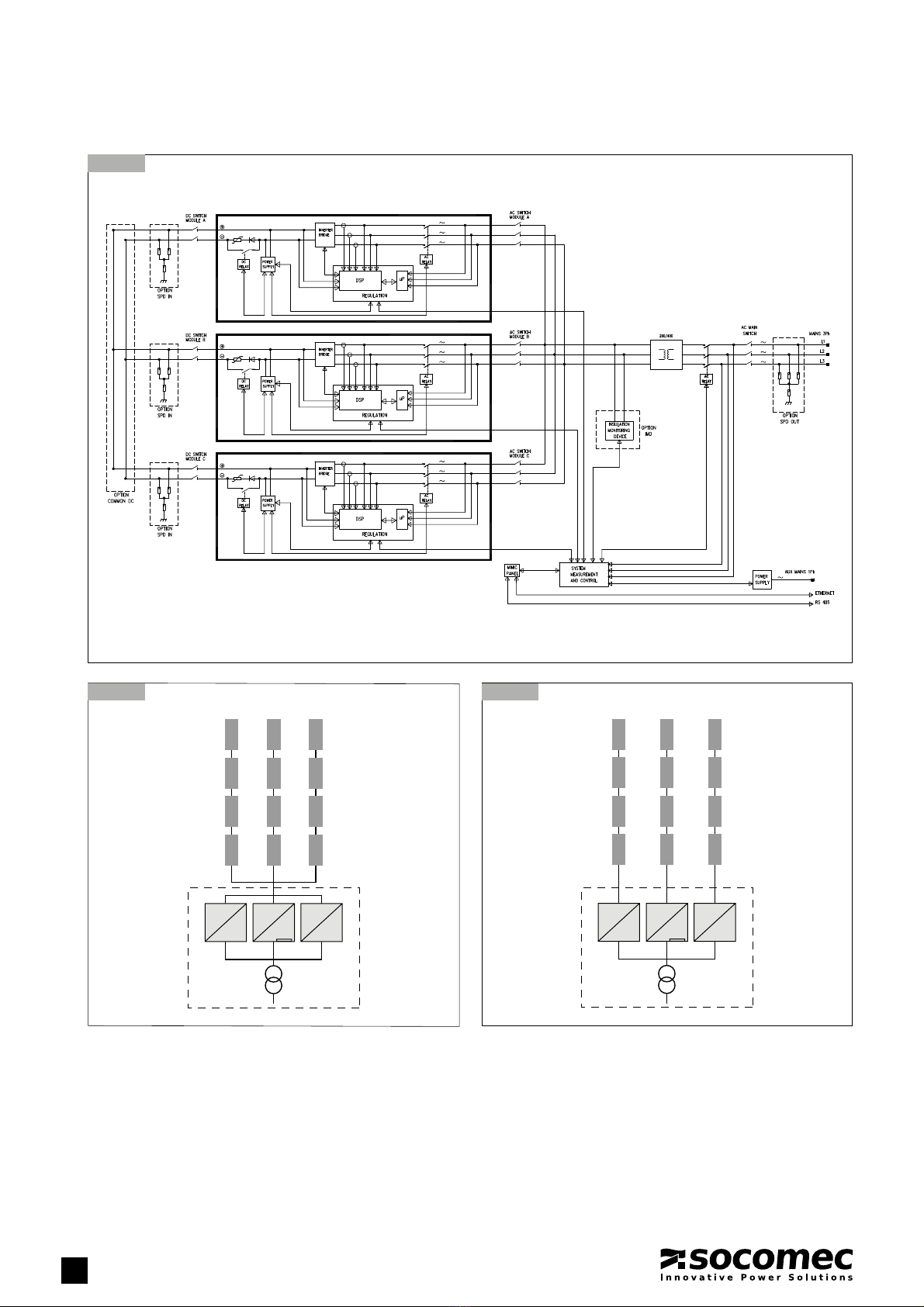

2.2-7 System principle diagram
The SUNSYS series covers a range of power from 33.3 to 100 kW and consists of 1, 2 or 3 modules of 33.3 kW each.
Each module converts the energy provided by the solar panels, using a Maximum Power Point Tracking (MPPT) algorithm to fully
exploit the features of the photovoltaic cells.
The DC terminals of all modules can be connected to the same photovoltaic field (centralised modular inverter with single MPPT),
or can have different photovoltaic fields (centralised multi-string inverter with separate MPPTs).
DC
AC
DC
AC
DC
AC
DC
AC
DC
AC
DC
AC
2.2-8 Centralised modular inverter 2.2-9 Centralised multi-string inverter
2.DESCRIPTION OF THE SYSTEM

15
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
B
A
C
B
A
C
2.2-7 Load sharing 2.2-8 Load sharing + Energy saver
In the case of the centralised modular inverter, the 33.3 kW modules run on Energy Saver mode.
This type of operation has two advantages:
• Longer equipment lifetime, as the individual modules are switched on and off at random and run for less time on average, instead
of all being switched on and off at the same time.
• Increased efficiency, as only the equipment actually required is activated and operates under optimal efficiency conditions (30-60%
of rated power).
In the case of centralised multi-string inverters, the MPPT algorithm of each module runs independently to maximise the power
supplied by the photovoltaic panels.
The inverter is equipped with an isolation transformer as standard, and can therefore be used with all photovoltaic panel technology
(crystalline, thin film, back contact etc.). For technology which requires one of the photovoltaic generator poles to be earthed, the
special optional kit (GND) must be used.
2.2.1. Options
SUNSYS pro and SUNSYS station can be ordered together with the following options:
• Earthing: PV generator + or – pole earthed (GND)
• Permanent isolation controller (IMD)
• AC over-voltage dischargers (SPDO)
• DC over-voltage dischargers (SPDI)
• Cable fastening brackets
For detailed information regarding the options refer to the relevant documentation.
Efficiency
Load rate
% load
% load
% load
% load
% load
% load
Load rate
Efficiency
2. DESCRIPTION OF THE SYSTEM

16 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00 16 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
SUNSYS pro R01 SUNSYS pro R02 SUNSYS station P03 with
SUNSYS station T03 SUNSYS station P03
DC input
DC rated current 80 A 160 A 240 A
Max. DC voltage 900 V
Stop voltage 350 V
MPP field 450 to 850 V
MPPT no. 1 1-2 1-3
AC output
Rated power 33.3 kW 66.7 kW 100 kW
Maximum power (30 min.) 36.6 kW 73.4 kW 110 kW
AC voltage
Output voltage 400 V 3ph
280 V 3ph
Protection 63 A curve D 125 A curve D 200 A curve D
Power factor ≥0.99
Distortion factor <3%
Efficiency
η
(rat.) 96.1 96.3 96.4 97.6
η
(euro) 95.2 95.6 95.8 97.3
Auxiliary power supp.
In operation <30 W
On Standby <10 W
Environmental conditions
Cooling air requirements 480 m3/h 1280 m3/h 1760 m3/h 1440 m3/h
Dissipated power 1750 W 3500 W 5250 W 3650 W
Dissipated power 5980 BTU/h 11950 BTU/h 17900 BTU/h 12450 BTU/h
Temperature range
During operation -5°C to 40°C (from 40°C to 55°C with downgrading)
During transportation -5°C to 55°C
Relative humidity 5% to 95 % without condensation
Environmental category in accordance
with
EN 62109-1
Non-air-conditioned indoor space
Altitude ≤1000 m without derating
Protection class in accordance with EN
60529 IP20
Pollution class
in accordance with EN60664-1 3
Pulse resistance voltage
in accordance with EN 60060-1 AC
terminals
2.5 kV
Pulse resistance voltage
in accordance with EN 60060-1 DC
terminals
4 kV
Mechanical characteristics
Dimensions (LxHxD) 600x1400x795 mm 600x1400x795 mm 1200x1400x795 mm 600x1400x795 mm
Weight 330 kg 525 kg 190 kg + 580 kg 190 kg
Noise (front, 1 m) 60 dB 64 dB
Communication ports
Serial RS232/485 JBUS
2.3. TECHNICAL DATA
2.DESCRIPTION OF THE SYSTEM

17
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
3. PREREQUISITES
3.1. INSTALLATION SITE CONDITIONS
The installation site must meet the following requirements:
- The inverter is designed for use within non-air-conditioned rooms in accordance with standard IEC 62109-1. Th inverter is not
designed for outdoor use.
- The foundations must be able to withstand the relevant weight (inverter, transportation device) and suited to the base. Stability
must also be guaranteed.
- The ambient temperatures, relative humidity and altitude of the installation site are indicated in the technical data table.
- Avoid environments which are dusty or which contain dust from conductive or corrosive materials (e.g. dust from metal or chemical
solutions).
- The inverter has front access for handling devices; nevertheless, a space of at least 1.5 metres should be left free at the front of
the inverter for any maintenance work required.
- The rear of the inverter must be at least 40 cm away from the wall or other obstacles to guarantee sufficient ventilation (see figure).
3.1-1
free area
SUNSYS SUNSYS SUNSYS
40 cm1.5 m

18 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
WARNING!
After completing all the procedures, fit the protective skirting
4. TRANSPORT AND UNWRAPPING
40 cm
4.1-1 4.1-2
4.1-4
Position the inverter in the installation zone. The SUNSYS station P03 inverter must be fixed to the floor
4.1-3 Remove the wooden
protection
SUNSYS station P03 inverter
SUNSYS station T03
transformer cabinet
Rear side

19
SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
ENGLISH
5. INSTALLATION
DANGER!
Risk of electric shock from live device parts!
In the event of system maintenance, carry out the following steps beforehand:
• Disconnect the photovoltaic system.
• Make sure the photovoltaic system cannot be restarted.
• Make sure the mains electricity supply has been disconnected.
• Earth the device units and short-circuit them.
• Cover or separate the nearby live device units.
•
Before working on the circuits upstream make sure the inverter is disconnected by opening the DC disconnection switches .
DANGER!
Risk of electric shock from live device parts!
SUNSYS pro and SUNSYS station can be connected to a maximum of three power supplies:
1 DC cable - Photovoltaic generator power supply (separated for the three modules or shared)
2 AC cable - Power from the mains network, supplied by the electricity company
3 AC cable - Auxiliary power supply
• Before carrying out any work, make sure the electricity supply has been disconnected.
• All DC power supplies should be considered as part of the same circuit, even in the configuration with centralised multi-
string inverter. Before carrying out any work, make sure all electricity supplies have been disconnected.
DANGER!
Risk of electric shock from live device parts!
The intermediate inverter circuit may be live even after it has been deactivated.
• Wait 5 minutes for the power to disperse and make sure that there is none remaining.
DANGER!
Risk of electric shock from live device parts!
The photovoltaic modules are live as soon as they are exposed to sunlight.
• Take suitable measures and make sure there is no power remaining.
SUNSYS pro and SUNSYS station are designed for instant application. Only the AC and DC cables coming from outside
must be installed and the inverter configured.
5.1. ELECTRICAL INSTALLATION REQUIREMENTS
The installation and system must comply with existing national legislation.
The fixed power distribution unit must include protection and disconnection for the main AC network for the auxiliary network.
The following table indicates the sizing of AC protection devices that will ensure correct installation.
Inverter size Network cable cross-section
Main AC (mm2) (1)
Magneto-thermal switch
protecting the main AC
network (2)
Differential AC protection
(optional)
33 kW min. 16 / max. 120 63 A type D 0.3 A type AC or A
66 kW min. 35 / max. 120 125 A type D 0.3 A type AC or A
100 kW min. 70 / max. 120 200 A type D 0.3 A type AC or A
(1) Determined by the size of the terminals
(2) Recommended magneto-thermal switch: three poles with intervention threshold ≥10 In
5 min

20 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00 20 SUNSYS pro - SUNSYS station - Ref.: IOMSUNMOXX00-GB 00
5. INSTALLATION
The auxiliary power supply socket must be protected with a 16 A magneto-thermal switch, curve C, and from category 2 over-
voltages or greater.
The following table indicates the sizing of the wires originating from the photovoltaic generator for correct installation.
Inverter size PV generator cable cross-section in case of
shared DC inputs (mm2) (1)
PV generator cable cross-section in case of
separate DC inputs (mm2) (2)
33 kW min. 25 / max. 120 (M8) N.A.
66 kW min. 50 / max. 120 (M8) min. 25 / max. 120 (M8)
100 kW min. 95 / max. 120 (M8) min. 25 / max. 120 (M8)
(1) Determined by the size of the terminals
(2) Up to 2 cables can also be connected at the same point, max. 2x50 mm2
WARNING!
The inverter is designed for transient over-voltages in category II installations for AC terminals. If the inverter may be
subjected to transient over-voltages in category III installations, protective SPDs must be provided for the AC power supply
network. The SPDO option, designed to protect against category III over-voltages, can be fitted directly to the inverter. If it
is used, the distance between the inverter and type I centralised SPD protection must be ≥15 m.
WARNING!
The inverter is designed for transient over-voltages in category II installations for DC terminals. If the inverter may be subject
to transient over-voltages in category III installations, or if the distance from the SPDs in the photovoltaic field is excessive,
protective SPDs must be fitted near the inverter. The SPDI option, designed to protect against over-voltages in photovoltaic
applications, can be fitted directly to the inverter.
NOTE
DC inputs do not require protection against over-voltages, if fewer than three inverter modules are connected to the same
photovoltaic generator.
NOTE
Functional panel earthing (optional): for correct operation, some types of photovoltaic panel require one of the two poles to
be earthed. The special optional kit (GND) can be used to earth the positive or negative pole of the photovoltaic generator.
For further details and instructions, please refer to the kit (GND) installation and operating manual.
IT SYSTEM:
With the photovoltaic panels isolated from earth, the circuit consisting of the panels and the inverter is configured like an IT
system. We therefore recommend a permanent isolation controller is used in the system or built into the inverter (IMD option).
