SolarEdge StorEdge SE7600A-USS User manual


SolarEdge

StorEdge
Installation Guide
For North America
Version 1.2

Disclaimers
Important Notice
Copyright©SolarEdgeInc.Allrightsreserved.
Nopartofthisdocumentmaybereproduced,storedinaretrievalsystemortransmitted,inanyformor
byanymeans,electronic,mechanical,photographic,magneticorotherwise,withoutthepriorwritten
permissionofSolarEdgeInc.
Thematerialfurnishedinthisdocumentisbelievedtobeaccurateandreliable.However,SolarEdge
assumesnoresponsibilityfortheuseofthismaterial.SolarEdgereservestherighttomakechangestothe
materialatanytimeandwithoutnotice.YoumayrefertotheSolarEdgewebsite
(http://www.solaredge.us)forthemostupdatedversion.
Allcompanyandbrandproductsandservicenamesaretrademarksorregisteredtrademarksoftheir
respectiveholders.
Patentmarkingnotice:seehttp://www.solaredge.us/patent
ThegeneraltermsandconditionsofdeliveryofSolarEdgeshallapply.
Thecontentofthesedocumentsiscontinuallyreviewedandamended,wherenecessary.However,
discrepanciescannotbeexcluded.Noguaranteeismadeforthecompletenessofthesedocuments.
Theimagescontainedinthisdocumentareforillustrativepurposesonlyandmayvarydependingon
productmodels.
FCC Compliance
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant
topart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency
energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterference
toradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan
bedeterminedbyturningtheequipmentoffandon,youareencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
lReorientorrelocatethereceivingantenna.
lIncreasetheseparationbetweentheequipmentandthereceiver.
lConnecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
lConsultthedealeroranexperiencedradio/TVtechnicianforhelp.
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancemayvoidthe
user’sauthoritytooperatetheequipment.
Disclaimers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
1

Contents
Disclaimers 1
ImportantNotice 1
FCCCompliance 1
Contents 2
HANDLING AND SAFETY INSTRUCTIONS 5
SafetyInformation 5
IMPORTANT INVERTER SAFETY INSTRUCTIONS 6
Chapter 1: Overview 9

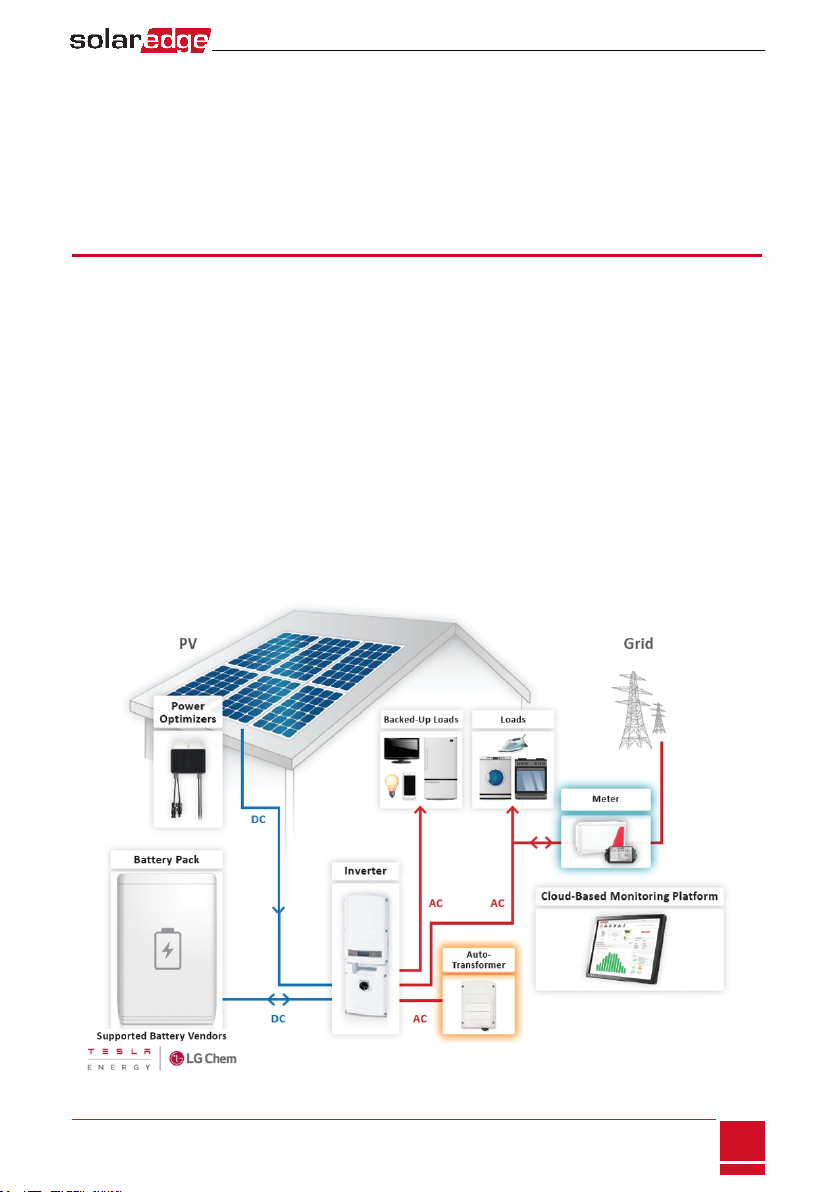

TheStorEdgeSolutionComponents 9
AboutthisGuide 10
InstallationWorkflow 11
InstallationEquipmentList 12
InverterTransportandStorage 12
Chapter 2: Installing the Power Optimizers 13
Safety 13
PackageContents 14
InstallationGuidelines 15
Step1:MountingandGroundingthePowerOptimizers 16
Step2:ConnectingaPVModuletoaPowerOptimizer 18
Step3:ConnectingPowerOptimizersinStrings 18
Step4:VerifyingProperPowerOptimizerConnection 20
Chapter 3: Installing the Inverter 21
InverterPackageContents 21
IdentifyingtheInverter 21
InverterInterfaces 22
StorEdgeConnectionUnit 23
InternalACBreakerandBypassSwitch 24
MountingtheInverter 25
Chapter 4: Auto-transformer and Backed-up Loads Panel Installation (for Backup) 28
MountingtheAuto-transformer 29
InstallingtheBacked-upLoadsPanel 29
Chapter 4: Meter Installation 30
Chapter 5: StorEdge Inverter Connections 31
Installingthe9VBatteryandFuses 32
ConnectingtheStringstotheInverter 33
ConnectingtotheBattery 34
DIPSwitchSetup 38
DIPSwitchSetupinMeterandInverter 38
DIPSwitchSetupintheStorEdgeConnectionUnit 39
ConnectingCommunicationtotheMeter 40
ConnectingtoAC 41
ConnectingtotheAuto-transformer 41
ConnectingtotheGridandtoBacked-upLoads 43
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
2
Contents

Chapter 6: Commissioning the Installation 44
RemovingtheInverterCover 44
Step1:ActivatingtheSystem 45
Step2:PairingPowerOptimizerstotheInverter 47
Step3:VerifyingProperActivation 49
Step4:ReportingandMonitoringInstallationData 49
TheSolarEdgeMonitoringSystem 49
ProvidingInstallationInformation 51
SiteMapperApplication 51
CreatingaSiteintheSolarEdgeMonitoringPlatform 51
PaperTemplate 51
Chapter 7: User Interface 52
LCDUserButtons 52
InverterConfiguration–SetupMode 53
ConfiguringtheInverterUsingtheLCDUserButtons 53
ConfiguringtheInverterUsingtheLCDLightButton 55
ConfigurationMenuOptions 58
CountryandGrid 58
Language 58
Communication 58
PowerControl 60
Display 60
Maintenance 60
Information 61
StatusScreens-OperationalMode 62
InitialStatus 62
MainInverterStatus 62
EnergyMeterStatus 63
TelemetryStatus 63
IDStatus 64
ServerCommunicationStatus 64
IPStatus 64
ZigBeeStatus 65
CellularStatus 65
GSMStatus 65
CommunicationPortsStatus 66
SmartEnergyManagementStatus 66
PowerControlStatus 67
BatteryStatus 67
Charge/DischargeProfileProgrammingStatus 68
Chapter 8: Setting Up Communication to the Monitoring Platform 69
CommunicationOptions 70
Ethernet 70
RS485 70
ZigBee 70
Contents
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
3

GSM 70
CDMA/Cellular 70
CommunicationConnectors 71
CreatinganEthernet(LAN)Connection 72
CreatinganRS485BusConnection 74
VerifyingtheConnection 77
Chapter 9: System Configuration 78
ConfiguringtheRS485BusforBatteryandMeterConnection 78
ConfiguringStorEdgeApplication 81
BackupPowerApplications 81
SystemBasicConfiguration 81
SettingBackup-Only 82
SettingMSC+BackupPower 83
SettingCharge/DischargeProfile+BackupPower 84
VerifyingStorEdgeComponentsFunctionality 85
Appendix A: Troubleshooting 87
CommunicationTroubleshooting 87
Devicetype,numberandprotocolaredisplayedincorrectly 87
TroubleshootingEthernetCommunication 87
MeterTroubleshooting 88
<OK>isnotdisplayed 88
Anerrormessageisdisplayed 88
Power[Wh]Importvalueisnotadvancing 88
BatteryTroubleshooting 89
PowerOptimizerTroubleshooting 90
StorEdgeConnectionUnitLEDs 91
AdditionalStorEdgeTroubleshooting 92
StorEdge-relatedErrorsCodes 94
SystemWarnings 95
Appendix B: Opening Conduit Knockouts 96
Appendix C: Replacing and Adding System Components 98
ReplacinganInverter 98
9VBatteryReplacement 99
FuseReplacement 100
StorEdgeConnectionUnitReplacement 100
RemovingtheExistingStorEdgeConnectionUnit 100
InstallingaNewStorEdgeConnectionUnit 101
Appendix D: Inverter Arc Detection and Interruption 102
Appendix E: Additional Battery Connections 104
ConnectionwithOneBattery 104
LGChemRESU10H(StorEdgeConnectionUnitwith2DIPSwitches) 104
TeslaPowerwall1 105
ConnectionswithTwoBatteries 107
TwoTeslaPowerwall1Batteries 107
DIP-SwitchSetup-TwoPowerwall1Batteries 111
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
4
Contents
Single Phase Inverter with Connection Unit for High Power Specifications 114
Auto-Transformer Technical Specification 117

HANDLING AND SAFETY INSTRUCTIONS
Duringinstallation,testingandinspection,adherencetoallthehandlingandsafetyinstructionsis
mandatory.Failure to do so may result in injury or loss of life and damage to the equipment.
Safety Information
Thefollowingsafetysymbolsareusedinthisdocument.Familiarizeyourselfwiththesymbolsandtheir
meaningbeforeinstallingoroperatingthesystem.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly performed or adhered to, could
result in injury or loss of life. Do not proceed beyond a warning note until the indicated conditions
are fully understood and met.
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite ou suivi correctement,
pourrait causer des blessures ou un danger de mort. Ne pas dépasser une telle note avant que les
conditions requises soient totallement comprises et accomplies.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly performed or adhered to, could
result in damage or destruction of the product. Do not proceed beyond a caution sign until the
indicated conditions are fully understood and met.
Dénote un risque: il attire l'attention sur une opération qui, si elle n'est pas faite ou suivi correctement,
pourrait causer un dommage ou destruction de l'équipement. Ne pas dépasser une telle note avant que
les conditions requises soient totallement comprises et accomplies.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotesinformationaboutsafetyissues.

HANDLING AND SAFETY INSTRUCTIONS
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
5

IMPORTANTINVERTER SAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
WARNING
RISK OF ELECTRIC SHOCK AND FIRE. Use this inverter only with PV modules with a maximum
system voltage rating of 600V or higher.
RISQUE DE CHOC ELECTRIQUE ET D’INCENDIE. Utilisez cet onduleur seulement avec des
modules PV spécifiés pour une tension de système maximum de 600V ou plus.
WARNING!
The inverter cover must be opened only after shutting off the inverter ON/OFF switch located at the
bottom of the inverter. This disables the DC voltage inside the inverter. Wait five minutes before
opening the cover. Otherwise, there is a risk of electric shock from energy stored in the capacitors.

Ne pas ouvrir le couvercle de l'onduleur avant d'avoir coupé l'interrupteur situé en dessous de l'onduleur.
Cela supprime les tensions CC et CA de l'onduleur. Attendre que le LCD affiche une tension sécurisée
(50V). Si l’affichage LCD n’est pas visible, attendre cinq minutes avant d’ouvrir le couvercle. Sinon, il y a
un risque de choc électrique provenant de l'énergie stockée dans le condensateur.

WARNING
Before operating the inverter, ensure that the inverter is grounded properly.
Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est correctement mis à la terre.
WARNING
Opening the inverter and repairing or testing under power must be performed only by qualified service
personnel familiar with this inverter.
L’unité ne doit être ouverte que par un technicien qualifié dans le cadre de l'installation et de la
maintenance.
WARNING!
The StorEdge Connection Unit meets all requirements for a code-compliant installation of this
ungrounded system. The DC section disconnects both the positive and negative conductors.
Le sectionneur externe (inclus) repond aux exigences de conformité pour l’installation de ce système
non-relié à la terre. Le coupeur CC ouvre les conducteurs positifs et négatifs.
WARNING!
The inverter input and output circuits are isolated from the enclosure. This system does not include an
isolation transformer and should be installed with an ungrounded PV array in accordance with the
requirements of NEC Articles 690.35 and 690.43 National Electric Code, ANSI/NFPA 70, 2011 (and
Canadian Electrical Code, Part I, for installations in Canada).
Equipment grounding is the responsibility of the installer and must be performed in accordance with all
applicable Local and National Codes.

Les circuits d’entrée et de sortie de l’onduleur sont isolés de l’enveloppe. Ce système n’inclut pas
d’isolation galvanique (transformateur) et devra être installé sans mise à la terre du champ PV et en
accord avec les articles 690.35 et 690.43 du National Electric Code (NEC), ANSI/NFPA 70, 2011 (et du
Code Electrique Canadien, Partie 1, pour les installations faites au Canada).
La mise à la terre des équipements est la responsabilité de l’installateur et doit être faite en accord avec
les toutes les règles locales et nationales applicables.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
6
IMPORTANTINVERTER SAFETYINSTRUCTIONS

WARNING!
The inverter must be connected to a dedicated AC branch circuit with a maximum Overcurrent
Protection Device (OCPD) of 40 A.
Les onduleurs doivent être connectés à un branchement AC dédié avec un disjoncteur de 40A.
CAUTION!
This unit must be operated under the specified operating specifications, as described in the latest
technical specification datasheet provided with the unit .

Cette unité doit être utilisée selon les spécifications de fonctionnement, comme décrit dans la dernière
fiche technique des spécifications, disponible sur le site web de SolarEdge,
http://www.solaredge.us/groups/us/products/overview.
NOTE
The StorEdge Connection Unit is NEMA type 3R rated . Unused conduit openings and glands should be
sealed with appropriate seals.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting techniques, and if required - a
lifting aid when removing or replacing.
Objet lourd. Pour éviter la fatigue musculaire ou des blessures au dos, utilisez des techniques de levage
appropriées et, si nécessaire - un auxiliaire de levage lors du retrait ou du remplacement.
NOTE
Use only copper conductors rated for a minimum of 75°C/167°F.
NOTE
This inverter is provided with an IMI (Isolation Monitor Interrupter) for ground fault protection.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This symbol is also used in
this manual.

NOTE!
lBuilding or structures with both utility service and a PV system, complying with NEC 690.12, shall
have a permanent plaque or directory including the following wording: PHOTOVOLTAIC SYSTEM
EQUIPPED WITH RAPID SHUTDOWN. The term “PHOTOVOLTAIC” may be replaced with
“PV.” The plaque or directory shall be reflective, with all letters capitalized and having a minimum
height of 9.5mm (3/8 in.) in white on red background.
lAttention -The system status indicator shall be installed in a location in close proximity to the
system actuator, where the indication of safe shutdown can be clearly seen.
lThis rapid shutdown system is required to be provided with an actuating device or a status
indicator which shall be installed in a location accessible to first responders, or be connected to an
automatic system which initiates rapid shutdown upon the activation of a system disconnect or
activation of another type of emergency system.
lAdditionally, in a prominent location near the actuator device the end use installation shall be
provided with a permanent marking including the following wording: PHOTOVOLTAIC SYSTEM
EQUIPPED WITH RAPID SHUTDOWN . The term “PHOTOVOLTAIC” may be replaced with
“PV”. The plaque or directory shall be reflective, with all letters capitalized and having a minimum
height of 9.5mm (3/8 in.) in white on red background.
IMPORTANTINVERTER SAFETYINSTRUCTIONS
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
7

WARNING!
Shutting off the AC breaker does not disable the DC voltage inside the inverter. To obtain safe DC
voltage, turn off the inverter ON/OFF switch and the StorEdge Connection Unit ON/OFF switch.

En mode autonome, la fermeture du coupeur CA n’élimine pas la tension CC à l’intérieur de l’onduleur.
Afin d’obtenir une tension CC sécurisée, mettez l’interrupteur du coupeur CC de l’onduleur et celui du
coupeur CC de l’unité StorEdge en position OFF.
WARNING!
Before operating the system, ensure that the inverter has been grounded properly.
Avant d'utiliser l'onduleur monophasé, assurez-vous que l'onduleur est correctement mis à la terre.
WARNING!
When handling the battery, adhere to all manufacturer safety instructions.
Durant la manipulation de la batterie, adhérez à toutes les instructions de sécurité du fabricant.
WARNING!
ThebatteryshouldbepoweredOFFbeforeandduringwiring.TurnOFF:
lThe auxiliary power supply switch
lThe circuit breaker switch

Labatteriedoitêtreétteinteavantetpendantlecâblage.Fermer:
lLecommutateurd'alimentationauxiliaire
lLecommutateurducoupeur
CAUTION!
This unit must be operated under the specified operating conditions as described in the technical
specifications supplied with the unit.
Cette unité doit être opérée suivant les instructions trouvées dans le manuel fourni avec le produit.
NOTE
The battery used must be NRTL certified.
NOTE
For battery decommissioning and disposal, follow the manufacturer requirements and instructions.
NOTE
The StorEdge Connection Unit is NEMA type 3R rated . Unused conduit openings and glands should be
sealed with appropriate seals.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
8
IMPORTANTINVERTER SAFETYINSTRUCTIONS

Chapter 1: Overview
StorEdge™isSolarEdge'sall-in-onesolutionthatusesasinglephaseDCoptimizedinvertertomanageand
monitorbothsolarpowergenerationandenergystorage.Homeownersareautomaticallyprovidedwith
backuppowerintheeventofgridinterruptiontopowerpre-selectedloads.Solarenergycanbestoredin
abatteryforSmartEnergyManagementapplicationssuchasexportcontrol,offeringdemandresponse
andpeakshaving,andperformingtimeofuseshiftingforreducedelectricbills.
The StorEdge Solution Components
lThe StorEdge Inverter -Theinvertermanagesbatteryandsystemenergy,inadditiontoitstraditional
functionalityasaDC-optimizedPVinverter.
SolarEdgeoffersaStorEdgethefollowinginvertertypes:
oStorEdgeinverterforSingleBatteryorHighCapacity
oStorEdgeinverterforHighPower.
TheStorEdge Connection Unit,locatedatthebottomoftheinverter,allowssimpleinstallationand
connectivitytoothersystemcomponentsandincludesaDCSafetySwitch.
lThe SolarEdge Electricity Meter-Themeterisusedbytheinverterforexport/consumption
readings,andforSmartEnergyManagementapplications,suchas:exportlimitation,time-of-use
profileprogrammingandmaximizingself-consumption.
ThemeterisrequiredonlyinsystemsusingSmartEnergyManagementapplications(itisnotrequired
forStorEdgesystemsusedonlyforbackuppower).
lThe Auto-transformer-Theauto-transformerhandlesthephaseloadbalancing.Itisrequiredonlyin
systemsprovidingbackuppower.
lOne or two batteries-DCcoupledbatteriesdesignedtoworkwiththeSolarEdgesystem.
Figure 1: StorEdge system components
Chapter 1: Overview
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
9

ThefollowingtablesummarizestheSolarEdgeproductsrequiredfortheStorEdgeapplications:
Product Applications
Grid-tied Solar
Backup Power
Smart Energy Management
Grid-tied Solar
Backup Power
Grid-tied Solar
Smart Energy Management
Single Phase StorEdge
inverter ü ü ü
Auto-transformer ü ü X
SolarEdge Electricity Meter üOptional ü
Battery ü ü ü
NOTE
lAdditional SolarEdge inverters (without batteries) can be connected with RS485. The inverters will
participate in export limitation and Smart Energy Management.
Connecting multiple inverters with RS485 master-slave connection may require an RS485
Expansion Kit (available from SolarEdge).
lPV modules connected to power optimizers are not mandatory for charge/discharge profile
programming and for backup power.
About this Guide
Thisdocumentdescribesbasicsystemconnectionandconfiguration-PVsystem(power
optimizerstrings),oneinverter,onebattery,backed-uploadspanelandonemeter.
ForadditionalconfigurationoptionsrefertotheStorEdgeSolutionApplications-
ConnectionandConfigurationGuide,availableat
http://www.solaredge.com/sites/default/files/storedge_backup_applications_
connection_and_configuration_guide.pdf.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
10
About this Guide

Installation Workflow
WheninstallingtheStorEdgesystem,followthisworkflowtoensureallthecomponentsareconnected
andfunctioningcorrectly.
Step 1-PV system installation-modules,poweroptimizersandinverter:
lPoweroptimizers-asdescribedinInstallingthePowerOptimizersonpage13.
lInverter-asdescribedinInstallingtheInverteronpage21.
Step 2-SolarEdge Auto-transformer and AC load panel installation (required for Backup Power only):
RefertoAuto-transformerandBacked-upLoadsPanelInstallation(forBackup)onpage28.
Step 3- Electricity Meter installation (required for Smart Energy Management only).RefertoMeter
Installationonpage30.
Step 4 - Connecting PV strings (DC) to the inverter - RefertoConnectingtheStringstotheInverteron
page33.
Step 5-Connecting the battery to the inverter and mounting the battery.Refertotheinstallation
informationinthemanufacturerdocumentation,andtoStorEdgeInverterConnectionsonpage31.
Step 6 - Connecting all components to the inverter-connecttheautotransformerandloads(AC),PV
strings(DC),andmeter.RefertoStorEdgeInverterConnectionsonpage31.
Step 7 - Commissioning the inverter-Activatethesystemandpairthepoweroptimizers.Referto
CommissioningtheInstallationonpage44.
Step 8-Connecting to the monitoring platform.RefertoSettingUpCommunicationtotheMonitoring
Platformonpage69.
Step 9-System Configuration-ConfiguringtheRS485busandStorEdgeapplications.RefertoSystem
Configurationonpage78.
ThefollowingflowchartappearsthroughoutthisInstallationGuidetoassistwiththeinstallationsteps:
Chapter 1: Overview
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
11

Installation Equipment List
StandardtoolscanbeusedduringtheinstallationoftheSolarEdgesystem.Thefollowingisa
recommendationoftheequipmentneededforinstallation:
lAllenscrewdriverfor5mmscrewtypefortheinvertercover,StorEdgeConnectionUnitcover,and
invertersidescrews
lStandardflat-headscrewdriversset
lNon-contactvoltagedetector
lCordlessdrillorscrewdriverandbitssuitableforthesurfaceonwhichtheinverterwillbeinstalledand
foropeningtheStorEdgeConnectionUnitknockouts
lSuitablehardwareforattachingtheinvertermountingbrackettothesurfacetowhichitwillbe
connected
l1/4"or5/16”stainlessbolts,nuts,andwashersforattachingthepoweroptimizertotheracking(not
requiredforsmartmodules)
lWirecutters
lWirestrippers
lVoltmeter
Forinstallingthecommunicationoptions,youmayalsoneedthefollowing:
lForEthernet:
oCAT5/6twistedpairEthernetcablewithRJ45connector.
oIfusingaCAT5/6cablespool:RJ45plugandRJ45crimper
lForRS485:
oFour-orsix-wireshieldedtwistedpaircable.
oWatchmakerprecisionscrewdriverset
Inverter Transport and Storage
Transporttheinverterinitsoriginalpackaging,facingupandwithoutexposingittounnecessaryshocks.
Iftheoriginalpackageisnolongeravailable,useasimilarboxthatcanwithstandtheweightofthe
inverter(refertotheinverterweightinthespecificationdatasheetprovidedwiththeunit),hasahandle
systemandcanbeclosedfully.
Storetheinverterinadryplacewhereambienttemperaturesare-13°F-140°F/-25°C-+60°C.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
12
Installation Equipment List

Chapter 2: Installing the Power Optimizers
Safety
ThefollowingnotesandwarningsapplywheninstallingtheSolarEdgepoweroptimizers.Someofthe
followingmaynotbeapplicabletosmartmodules:
WARNING!
The metallic enclosure of the power optimizer must be grounded in accordance with the requirements of
the local and national codes.
L'enceinte métallique de l’optimiseur de puissance doit être mise à la terre en accord avec les
régulations locales et nationales.
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF switch, the StorEdge
Connection Unit and the AC circuit breaker on the main AC distribution panel.
Avant de faire ces étapes, éteignez l'onduleur monophasé en mettant sur OFF l'interrupteur ON/OFF
situé au bas de l'onduleur.
WARNING!
Input and output connectors are not watertight until mated. Open connectors should be mated to each
other or plugged with appropriate watertight caps.
Les connecteurs d’entrée et sortie ne sont pas étanches jusqu'à ce qu’ils soient accouplés. Les
connecteurs doivent être accouplés ou fermés avec des terminaux étanches.
Chapter 2: Installing the Power Optimizers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
13

CAUTION!
Power optimizers are IP65/NEMA4 rated. Choose a mounting location where optimizers will not be
submerged in water.
Les optimiseurs de puissances sont compatibles à la norme IP65/NEMA4. Choisissez le lieu de
montage tel que l’optimiseur ne puisse pas être submergé par l’eau.
CAUTION!
This unit must be operated according to the operating specifications provided with the unit.
Cette unité doit être opérée suivant les instructions trouvées dans le manuel fourni avec le produit.
CAUTION!
Cutting the power optimizer input or output cable connector is prohibited and will void the warranty.
Sectionner les cables d’entrées ou de sortie de l’optimiseur est interdit et annule sa garantie.
CAUTION!
All PV modules must be connected to a power optimizer.
Tous les modules doivent être connectés à un optimiseur de puissance.
CAUTION!
If you intend to mount the optimizers directly to the module or module frame, first consult the module
manufacturer for guidance regarding the mounting location and the impact, if any, on module warranty.
Drilling holes in the module frame should be done according to the module manufacturer instructions.

Pour installation à même le module ou la monture du module, consultez d'abord le fabricant du module
sur la position et son impact sur la garantie du module. Le perçage de trous dans le cadre du module
devra se faire suivant les instructions du fabricant.
CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module connectors with the
optimizer connectors may be unsafe and could cause functionality problems such as ground faults,
resulting in inverter shut down. In order to ensure mechanical compatibility of the SolarEdge optimizers
and the modules to which they are connected, use identical connectors from the same manufacturer
and of the same type on both the power optimizers and on the modules.

Les connecteurs du module doivent être mécaniquement compatibles avec les optimiseurs de
puissance. Sinon, le système SolarEdge installé peut être dangereux ou causer des problèmes
fonctionnels, tels que les défauts de terre, qui peuvent provoquer un arrêt de l’onduleur. Afin d'assurer la
compatibilité mécanique entre les optimiseurs de puissance SolarEdge et les modules auxquels ils sont
connectés, il faut Utiliser des connecteurs identiques du même fabricant et du même type aussi bien
pour les optimiseurs de puissance que pour les modules.

IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimizers are safe. They carry only a low safety voltage before the
inverter is turned ON. As long as the power optimizers are not connected to the inverter or the inverter is
turned OFF, each power optimizer will output a safe voltage of 1V.
Package Contents
lPoweroptimizers
lStainlesssteelgroundinglockwashers
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
14
Package Contents

Installation Guidelines
lFrame-mountedpoweroptimizersaremounteddirectlyonthemoduleframein
rail-lessrackingsystems.Mountingthepoweroptimizersinadvancesavesinstallation
time.Forinstallationofframe-mountedpoweroptimizers,referto
http://www.solaredge.com/sites/default/files/installing_frame_mounted_power_
optimizers.pdf.
lThestepsinthischapterrefertomoduleadd-onpoweroptimizers.Forsmartmodules,startfrom
Step3:ConnectingPowerOptimizersinStringsonpage18.Alsorefertothedocumentationsupplied
withthesmartmodules.
lThepoweroptimizercanbeplacedinanyorientation.
lToallowforheatdissipation,maintaina24.5mm/1"clearancedistancebetweenthepower
optimizerandothersurfaces.
lIfconnectingmoremodulesthanoptimizerinputsinparallel,useabranchcable(availablefrom
SolarEdge).
lPositionthepoweroptimizercloseenoughtoitsmodulesothattheircablescanbeconnected.
lMakesuretouseoptimizersthathavetherequiredoutputcablelength.Youcannotuseextension
cablesbetweeneverytwooptimizersinastring;Theymaybeusedonlytoconnectbetweenrows/
arraysorbetweenthestringandtheinverter.
lTheminimumandmaximumstringlengthguidelinesarestatedinthepoweroptimizerdatasheets.
RefertotheSolarEdgeSiteDesignerforstringlengthverification.TheSolarEdgeSiteDesigneris
availableontheSolarEdgewebsiteathttp://www.solaredge.us/products/installer-tools/site-
designer#/.
lCompletelyshadedmodulesmaycausetheirpoweroptimizerstotemporarilyshutdown.Thiswill
notaffecttheperformanceoftheotherpoweroptimizersinthestring,aslongastheminimum
numberofunshadedpoweroptimizersconnectedinastringofmodulesismet.Ifundertypical
conditionsfewerthantheminimumoptimizersareconnectedtounshadedmodules,addmore
optimizerstothestring.
lEquipmentgroundingtighteningtorques:4-6AWG:45lb-in,8AWG:40lb-in,10-14AWG:35lb-in.
NOTE
The images contained in the following sections are for illustrative purposes only and may vary
depending on product models.
Chapter 2: Installing the Power Optimizers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
15

Step 1: Mounting and Grounding the Power
Optimizers
Foreachofthepoweroptimizers1:
1. Determinethepoweroptimizermountinglocationandusethepoweroptimizermountingbrackets
toattachthepoweroptimizertothesupportstructure(SeeFigure2).Forframe-mountedpower
optimizersfollowtheinstructionssuppliedwiththeoptimizers.
2. Ifrequired,markthemountingholelocationsanddrillthehole.
CAUTION!
Do not drill through the power optimizer or through the mounting holes. The drilling vibrations can
damage the power optimizer and will void the warranty.
Ne pas percer à travers la optimiseur de puissance ou ses trous de fixation. Les vibrations qui en
résulteraient peuvent endommager la optimiseur de puissance.
3. AttacheachpoweroptimizertotherackusingtheM6(1/4'')stainlesssteelbolts,nutsandwashers.
Applytorqueof9.5N*m/7lb*ft.
For3NAseriespoweroptimizes,SolarEdgerecommendsmountingthepoweroptimizeronarailwith
thesmoothsidefacingout,sothatthepoweroptimizerbodywillpreventitsrotation.
4. Usethefollowingmethods2togroundthepoweroptimizer3:
WARNING!
The metallic enclosure of the power optimizer must be grounded in accordance with the
requirements of the local and national codes.
L'enceinte métallique de l’optimiseur de puissance doit être mise à la terre en accord avec les
régulations locales et nationales.
lFor mounting on a grounded metal rail:Usetheprovided5/16''stainlesssteelgroundingstar
washerbetweentherailingandtheflatsideofthemountingbracket.Thegroundingwasher
shouldbreakthroughtheanodizecoatingoftherailingtoensurelowresistiveconnection.Apply
torqueof9.5N*m/7lb*ft.
Figure 2: Power optimizer installation and grounding using a star washer
1Not applicable to smart modules.
2These methods have been evaluated by a nationally recognized testing laboratory as part of the optimizer evaluation.
The SolarEdge-supplied grounding lug kit has been evaluated only for use with SolarEdge power optimizers. It is not
intended or listed to be used as a general purpose grounding lug with other electrical equipment.
3For a list of racking models and their appropriate grounding method, refer to
http://www.solaredge.us/files/pdfs/grounding_se_power_optimizers.pdf.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
16
Step 1: Mounting and Grounding the Power Optimizers

lFor mounting on rails with sliding nut fasteners:Ifthestarwashercannotbeused,usethe
SolarEdgegroundingplate(purchasedseparately)betweentherailingandtheflatsideofthe
mountingbracket.Applytorqueof9.5N*m/7lb*ft.
Figure 3: Power optimizer installation and grounding using a grounding plate
lFor mounting on un-grounded structures(suchasawoodenstructure):Ifthestarwasheror
theplatecannotbeused,usetheSolarEdgegroundinglug(purchasedseparately)withan
equipment-groundingconductoraccordingtothesuppliedinstructions.Thegroundingterminal
acceptsawiresizeof6-14AWG,andmustbesizedforequipmentgroundingperNEC250.122
requirements.Tightenthescrewsconnectingthepoweroptimizertotheframeandthe
groundingterminalscrew.Applytorqueof9.5N*m/7lb*ft.
Figure 4: Power optimizer grounding terminal
5. Verifythateachpoweroptimizerissecurelyattachedtothesupportingstructureorthemodule.
NOTE
Record power optimizer serial numbers and locations, as described in Providing Installation
Information on page 51.
Chapter 2: Installing the Power Optimizers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
17

Step 2: Connecting a PV Module to a Power
Optimizer
NOTE
Images are for illustration purposes only. Refer to the label on the product to identify the plus and
minus input and output connectors.
Foreachofthepoweroptimizers1:
lConnectthePlus(+)outputconnectorofthemoduletothePlus(+)inputconnectorofthepower
optimizer.
lConnecttheMinus(-)outputconnectorofthemoduletotheMinus(-)inputconnectorofthe
poweroptimizer.
Figure 5: Power optimizer connectors
Step 3: Connecting Power Optimizers in Strings
Youcanconstructparallelstringsofunequallength,thatis,thenumberofpoweroptimizersineach
stringdoesnothavetobethesame.Theminimumandmaximumstringlengthsarespecifiedinthe
poweroptimizerdatasheets.RefertotheSolarEdgeSiteDesignerforstringlengthverification.
IMPORTANTSAFETYFEATURE
Rapid shutdown is applicable and functions only when there are 30 optimizers or less per string.
1. ConnecttheMinus(-)outputconnectorofthestring’sfirstpoweroptimizertothePlus(+)output
connectorofthestring’ssecondpoweroptimizer.
SolarEdge StorEdge Installation Guide MAN-01-000262-1.2
18
Step 2: Connecting a PV Module to a Power Optimizer

2. Connecttherestofthepoweroptimizersinthestringinthesamemanner.
Figure 6: Power optimizers connected in series
3. Ifyouintendtomonitortheinstallation,usingtheSolarEdgemonitoringplatform,recordthe
physicallocationofeachpoweroptimizer,asdescribedinProvidingInstallationInformationonpage51.
WARNING!
Input and output connectors are not watertight until mated. Open connectors should be mated to
each other or plugged with appropriate watertight caps.
Les connecteurs d’entrée et sortie ne sont pas étanches jusqu'à ce qu’ils soient accouplés. Les
connecteurs doivent être accouplés ou fermés avec des terminaux étanches.
Chapter 2: Installing the Power Optimizers
SolarEdge-StorEdge Installation Guide MAN-01-00262-1.2
19
