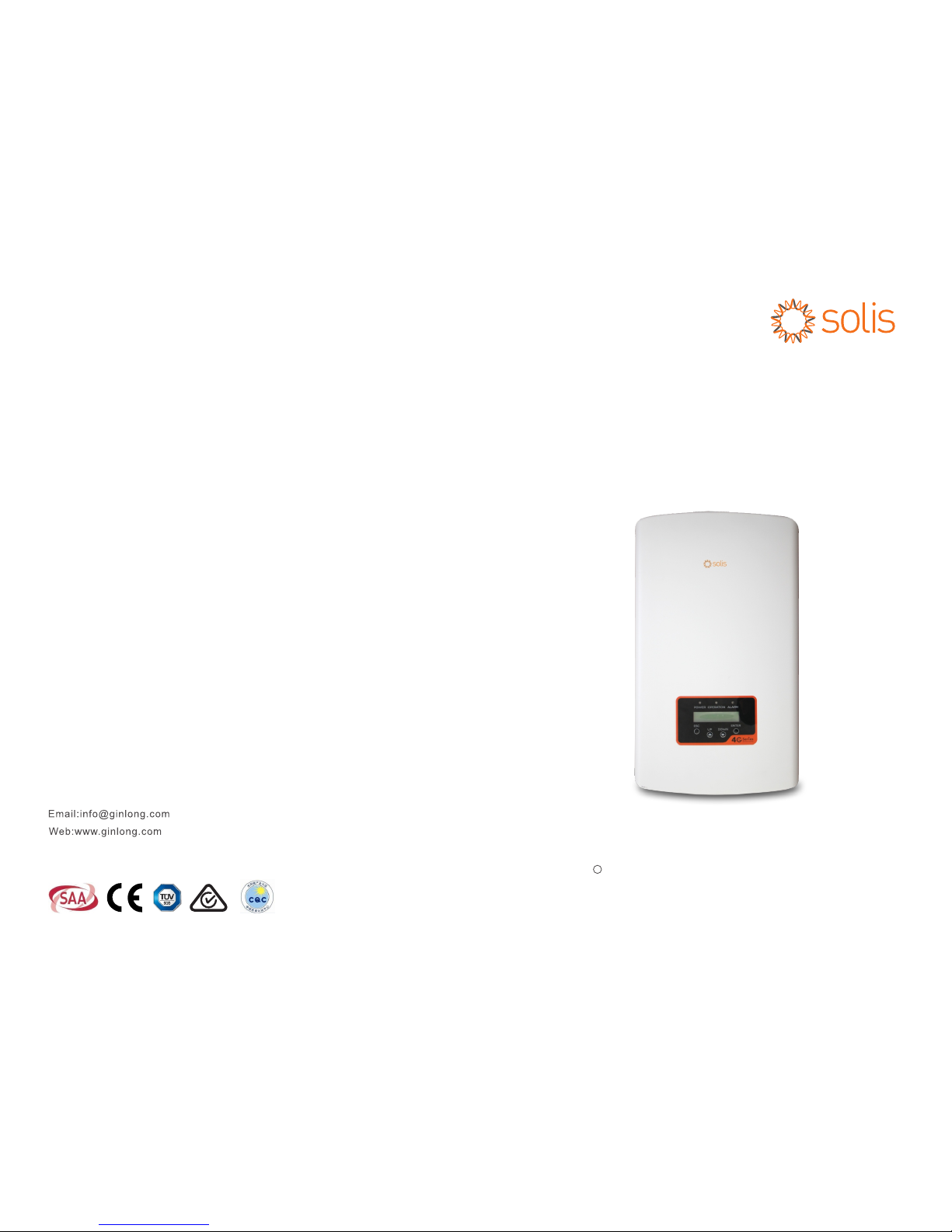

SOLIS 4G series User manual

Ningbo Ginlong Technologies Co., Ltd.
C
PV Grid Tie Inverter
Installation and Operation Manual
Solis 4G Single Phase Inverter
Ver 1.8
Ningbo Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: [phone]
Fax: [phone]
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
Solis-1P1K-4G, Solis-1P1.5K-4G, Solis-1P2K-4G, Solis-1P2.5K-4G,
Solis-1P3K-4G, Solis-1P3.6K-4G, Solis-1P4K-4G,
Solis-1P4.6K-4G,Solis-1P5K-4G,Solis-1P6K2-4G

1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instructions
2.3 Notice For Use
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
3.3 Keypad
3.4 LCD
4. Installation
4.1 Select Location for the Inverter
4.2 Mounting the Inverter
4.3 Electrical Connections
Contents
3
5
5
5
6
7
7
7
8
8
9
9
11
13
………………………
………………………………………
………………………………………………
………………………………
………………………
……………………………………………
…………………………………………………
………………………………………………
…………………
…………………………………
……………………………
6. Operation 24
………………………………………………
5. Start & Stop
5.1 Start the Inverter
5.2 Stop the Inverter
23
23
23
………………………………………
………………………………
…………………………………
………………………………………………
……………………………………
………………………………………
1.1 Product Description 3
…………………………………
1.2 Packaging 4
…………………………………………
4.3.1 Connect PV side of inverter 13
………………
4.3.2 Connect grid side of inverter 16
………………
4.3.3 External ground connection 18
………………
4.3.4 Max. overcurrent protection device (OCPD) 19
…
4.3.5 Inverter monitoring connection 19
……………
4.3.7 Meter Connection(optional) 20
……………
21
4.3.6 Electrical connection diagram 20
…………
4.3.8 CT connections(optional)
6.1 Main Menu 24
……………………………………………
6.2.1 Lock screen 26
……………………………………
6.2 Information 24
……………………………………………
21
4.3.9 DRED port connections(Only for AUS.)…
………………

1. Introduction
1.1 Product Description

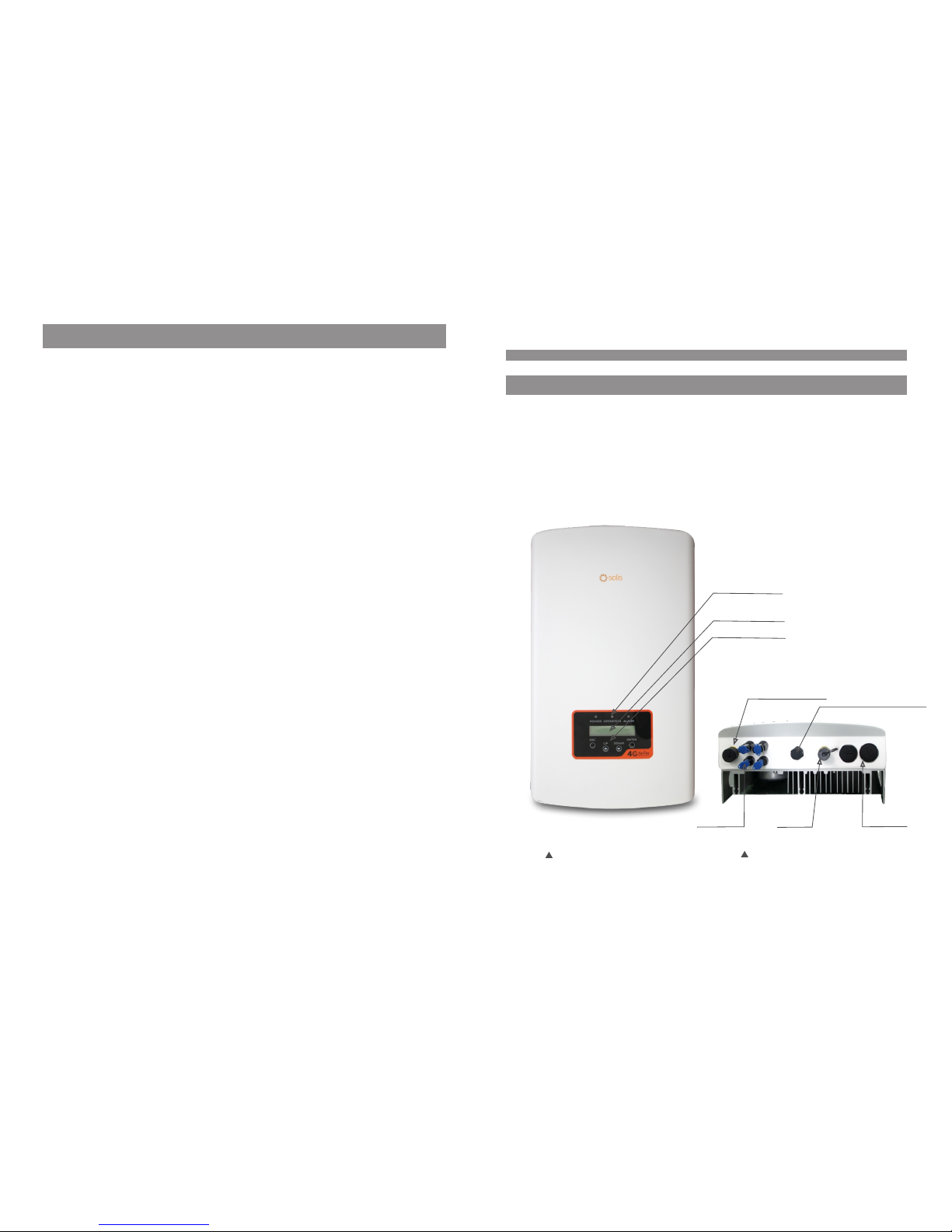

Figure 1.1 Front side view
.3.
Figure 1.2 Bottom side view
LCD display
4 buttons
LED lights
DC input AC output
RS 485
DC Switch(optional)
CT and Meter input
6.3 Settings
6.3.1 Set Time
6.3.2 Set Address
6.4 Advanced Info.
6.4.1 Alarm Message
Contents
26
26
26
27
27
………………………………………………
………………………………………
……………………………………
………………………………………
………………………………
6.4.3 Version
6.4.4 Daily Energy
6.4.5 Monthly Energy and Yearly Energy
28
28
28
…………………………………………
……………………………………
…………
6.4.2 Running Message 28
……………………………
6.4.6 Daily Record
6.4.7 Communication Data
29
29
……………………………………
…………………………
6.4.8 Warning Message 29
…………………………
6.5 Advanced Settings
6.5.1 Select Standard
6.5.2 Grid ON/OFF
29
30
31
…………………………………
………………………………
…………………………………
32
……………………………
6.5.3 Clear Energy
6.5.4 Reset Password
31
31
………………………………
…………………………………
6.5.5 Power Control
6.5.6 Calibrate Energy
31
32
………………………………
…………………………………
6.5.7 Special Settings
………………………
6.5.8 STD. Mode Settings
34
34
34
7. Maintenance
8. Troubleshooting
9. Specifications
39
39
42
………………………………………………
…………………………………………
……………………………………………
32
6.5.11 Export Power Set
6.5.9 Restore Settings
6.5.10 H MI Update
……………………………
…………………………………
……………………………
386.5.12 Restart HMI …………………………………
6.5.13 Debug Parameter
6.5.14 D SP Update
6.5.15 Power Parameter
…………………………
…………………………
38
38
38
…………………………………
Solis 4G single phase inverters integrate DRM and backflow power control function, that
could suitable for smart grid requirement.
Single phase 4G series inverter contain 10 models which are listed below:
Solis-1P1K-4G, Solis-1P1.5K-4G, Solis-1P2K-4G, Solis-1P2.5K-4G,
Solis-1P3K-4G, Solis-1P3.6K-4G, Solis-1P4K-4G,
Solis-1P4.6K-4G, Solis-1P5K-4G,Solis-1P6K2-4G

2.Safety Instructions
2.2 General Safety Instructions
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
.5.
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
Improper use may result in potential electric shock hazards or burns. This manual
contains important instructions that should be followed during installation and
maintenance. Please read these instructions carefully before use and keep them for
future reference.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
1. Introduction
.4.

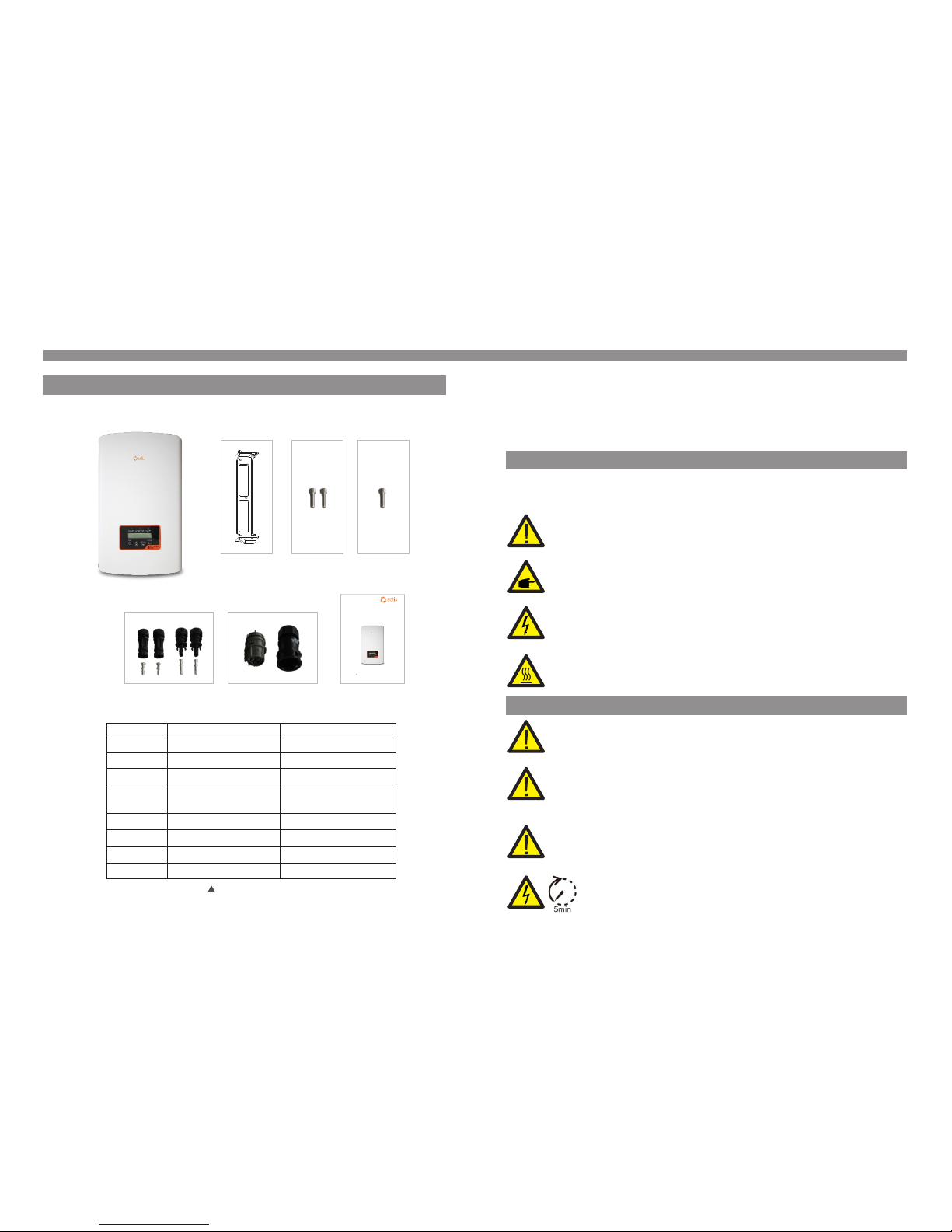

1.2 Packaging
1
7
32 4
When you receive the inverter, ensure that all the parts listed below are included:
56
WARNING:
Only devices in compliance with SELV (EN 69050) may be connected to the
RS485 and USB interfaces.
WARNING:
Do not touch any inner live parts until 5 minutes after disconnection from
the utility grid and the PV input.
Ningb o Ginlo ng Techno logie s Co., Lt d.
C
PV Gri d Tie Inve rter
Inst allat ion and Op erati on Manu al
Solis 4G Single Phase Inverter
Ver 1.8
Part #
1
Description
PV grid tie inverter
2
Wall/pole bracket
3
Locking screws
4
5
Number
1
1
2
2 pairs
Table 1.1 Parts list
Grounding screw
attached in ground point (
at side of inverter )
1
AC connector
61
Manual
71
DC connector
CT with cable or Meter
81
Solis- 1P1K- 4G, Sol is-1P 1.5K- 4G, Sol is-1P 2K-4G , Solis -1P2. 5K-4G ,
Solis- 1P3K- 4G, Sol is-1P 3.6K- 4G, Sol is-1P 4K-4G ,
Solis- 1P4.6K-4G, Solis-1P5K -4G,Solis -1P6K2-4G

3. Overview
3.1 Front Panel Display
Figure 3.1 Front Panel Display
3.2 LED Status Indicator Lights
There are three LED status indicator lights in the front panel of the inverter. Left LED:
POWER LED (red) indicates the power status of the inverter. Middle LED: OPERATION
LED (green) indicates the operation status. Right LED: ALARM LED (yellow) indicates
the alarm status. Please see Table 3.1 for details
Description
The inverter can detect DC power
No DC power or low DC power
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.
The inverter is operating properly.
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Light
POWER
OPERATION
ALARM
Table 3.1 Status Indicator Lights
.7.
2.Safety Instructions
2.3 Notice For Use
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications ONLY:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
5. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator shall be switched on. To stop the inverter, the Grid Supply
Main Switch (AC) must be switched off before the solar panel's DC isolator shall be
switched off.
.6.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when they are exposed to
sunlight.
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter. Do not
remove cover for 5 minutes after disconnecting all power sources(service technician
only). Warranty may be voided if the cover is removed without unauthorized .
CAUTION:
The surface temperature of the inverter can reach up to 75℃ (167 F).
To avoid risk of burns, do not touch the surface of the inverter while it’s operating.
Inverter must be installed out of the reach of children.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the Inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic source
and output circuit conductors shall have disconnects that comply with the NEC
Article 690, Part II. All Solis single phase inverters feature an integrated
DC switch.
CAUTION:
Risk of electric shock. Do not remove cover. There is no user serviceable
parts inside. Refer servicing to qualified and accredited service technicians.
PV module used with inverter must have an IEC 61730 Class A rating.

4. Installation
4.1 Select a Location for the Inverter
.9.
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
3. Overview
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
Inverter operation status and data;
Service messages for operator;
Alarm messages and fault indications.
.8.

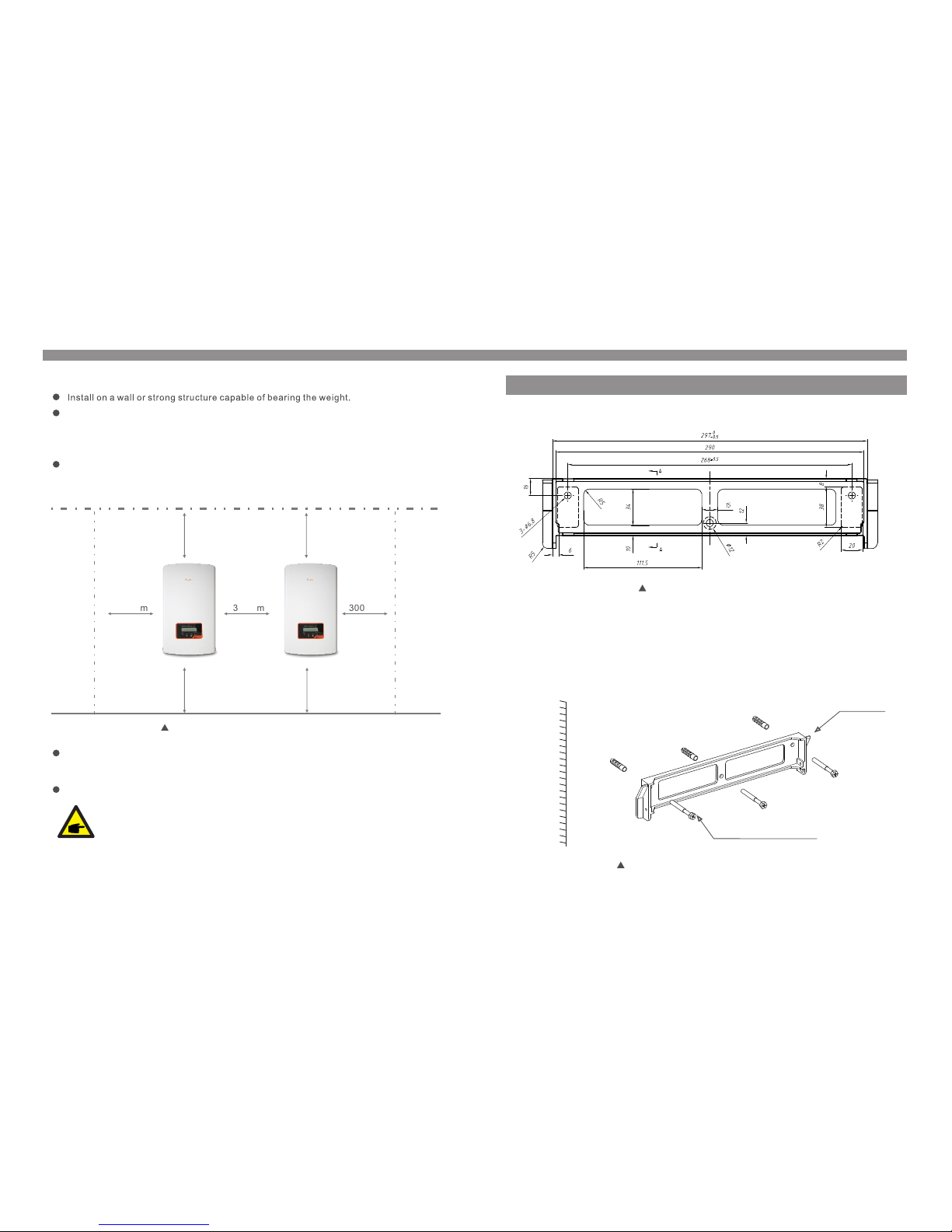

Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
To avoid over heating ambient air temperature must be considered when choosing the
inverter installation location. Ginlong recommends using a sun shade minimizing direct
sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.
Do not install in small closed spaces where air can not circulate freely. To avoid
overheating, always make sure the flow of air around the inverter is not blocked.
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Ginlong recommends inverter installed to avoid
direct sunlight or raining.

When 1 or more inverters are installed in one location, a minimum 12inchs clearance
should be kept between each inverter or other object. The bottom of the inverter should
be 20inchs clearance to the ground.
Visibility of the LED status indicator lights and the LCD located at the front panel of
the inverter should be considered.
Adequate ventilation must be provided if the inverter is to be installed in a confined space.
NOTE:
Nothing should be stored on or placed against the inverter.
300mm
300mm 300mm
300mm 300mm
300mm 300mm
Figure 4.2 Inverter Mounting clearance
Install vertically with a maximum incline of +/- 5°.If the mounted inverter is tilted to an
angle greater than the maximum noted, heat dissipation can be inhibited, and may result
in less than expected output power.
4. Installation4. Installation
.10. .11.
4.2 Mounting the Inverter
Please see Figure 4.4 and Figure 4.5 for instruction on mounting the inverter.
Figure 4.3 Inverter wall mounting
The inverter shall be mounted vertically. The steps to mount the inverter are listed below:
Suitable fixing screws
Bracket
1. According to the figure 4.2, select the mounting height of the bracket and mark the
mounting holes. For brick walls, the position of the holes should be suitable for the
expansion bolts.
Figure 4.4 Inverter wall mounting
Dimensions of wall bracket:

.13.
4. Installation4. Installation
.12.
WARNING:
The inverter must be mounted vertically.
4. Lift up the inverter (be careful to avoid body strain), and align the back bracket on the
inverter with the convex section of the mounting bracket. Hang the inverter on the
mounting bracket and make sure the inverter is secure (see Figure 4.5).

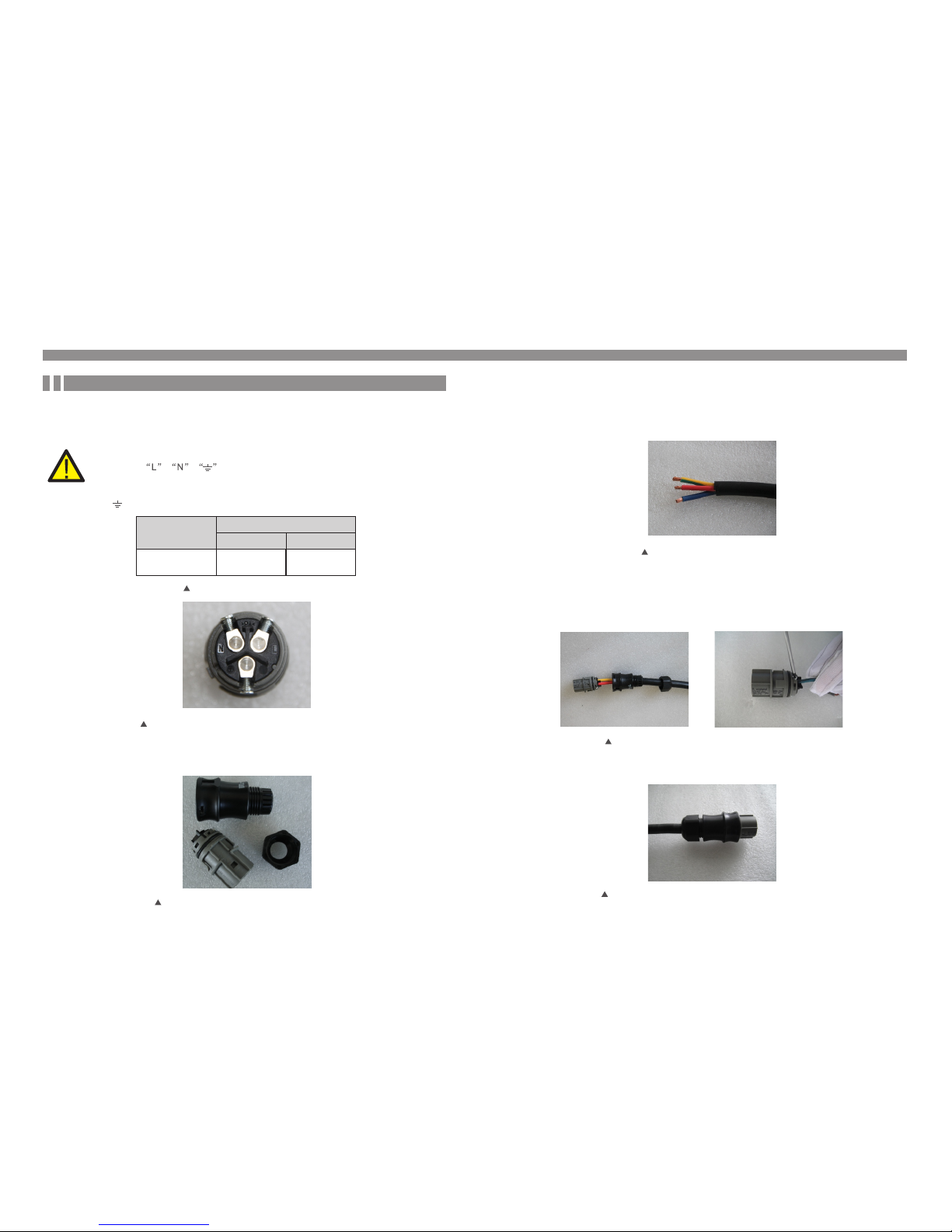

4.3 Electrical Connections
4.3.1 Connect PV side of inverter
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC Isolator OFF.
3. Assemble PV input connector to the Inverter.
Before connecting inverter, please make sure the PV array open circuit voltage is
within the limit of the inverter
2.Make sure the bracket is horizontal and the mounting holes (in Figure 4.4 )
are marked correctly. Drill the holes into the wall or pillar at your marks.
3. Use the suitable screws to fix the bracket to the wall.
Before connection, please make sure the polarity of the output voltage of PV array
matches the“DC+”and “DC-”symbols.
Maximum 550Voc for
Solis-1P1K-4G Solis-1P1.5K-4G
Solis-1P2K-4G Solis-1P2.5K-4G
Maximum 600Voc for
Solis-1P3K-4G Solis-1P3.6K-4G Solis-1P4K-4G
Solis-1P4.6K-4G Solis-1P5K-4G Solis-1P6K2-4G
Please don’t connect PV array positive or negative pole to the ground, it could
cause serious damages to the inverter.
Figure 4.6 DC+ Connector Figure 4.7 DC- Connector
5. Use M4*9 screws in accessory to lock the inverter to the mount bracket.
Locking screws
Figure 4.5 Wall Mount Bracket

iii) Crimp the contact pin to the wire using a proper wire crimper.
4. Installation4. Installation
.15..14.
Please use approved DC cable for PV system.
Cable type
4.0~6.0
Cross section
Range
Industry generic P V cab le
（model:PV1-F）
Recommended
value
4.0（12AWG）
（12~10AWG）
Table 4.1 D C cable
The steps to assemble the DC connectors are listed as follows:
I) Strip off the DC wire for about 7mm, Disassemble the connector cap nut.
ii) Insert the wire into the connector cap nut and contact pin.
Figure 4.8 Disassemble the Connector Cap nut
Figure 4.9 Insert the Wire into the Connector Cap nut and contact pin
Figure 4.10 Crimp the contact pin to the wire
iv) Insert the contact pin to the top part of the connector and screw up the cap nut to
the top part of the connector.
Figure 4.11 Connector with Cap nut Screwed on
Figure 4.12 Connect the DC Connectors to the Inverter
v) Then connect the DC connectors to the inverter. Small click will confirm connection.

The steps to assemble the AC grid terminal connectors are listed as follows:
a) Disassemble the AC connector. Strip the AC wires about 6mm.
Figure 4.15 Stripped AC Wires
4. Installation
For all AC connections, 2.5- 6mm 105 ℃ cable is required to be used. Please make sure
2
the resistance of cable is lower than 1 ohm. If the wire is longer than 20m, it's recommended
to use 6mm cable.
2
4. Installation
4.3.2 Connect grid side of inverter
.17..16.
c) Tighten up the cap on the terminal (see Figure 4.17).
Figure 4.17 Tighten up the Cap on the Terminal
b) Fix the green and yellow wire to the ground terminal. Fix the red(or brown) wire to L
(line) terminal. Fix the blue wire to N(Neutral). Tight the screws on the connector.
Please try to pull out the wire to make sure the it’s well connected.
Figure 4.16 Connect Wires to the Terminal
Figure 4.14 AC Grid Terminal Connector
Figure 4.13 AC Grid Terminal Connector Inside
Each Solis Mini Single Phase Inverter is supplied with an AC grid terminal connector.
There are symbols marked inside the connector , the Line
wire of grid must be connected to“L”terminal; the Neutral wireof grid must
be connected to“N”terminal; the Earth of grid must be connected
to“ ”(see Figure 4.13).
WARNING:
Cable type
2.5~6.0mm²
Cross section
Range
Industry generic
grid cable
Recommended
value
6mm²
Table 4.2 Grid cable size

4. Installation
d) Connect the AC grid terminal connector to the inverter. Small click will confirm
connection.
Figure 4.18 Connect the AC Connector to the Inverter
4. Installation
Note: Connection for Split phase grid.
When connect to 208/220/240V split phase, please connect L1 to “L” terminal,
L2 to “N” terminal. Also connect earth to ground terminal.
4.3.3 External ground connection
An external ground connection is provided at the right side of inverter.
Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal.
Connect the OT terminal with ground cable to the right side of inverter. The torque is
20 in-lbs (2Nm).
.19..18.
The inverter can be monitored via Wi-Fi or GPRS. All Solis communication
devices are optional (Figure 4.20). For connection instructions, please refer to the
Solis Monitoring Device installation manuals.
To protect the inverter's AC grid connection conductors, Solis recommends installing
breakers that will protect against overcurrent. The following table defines OCPD
ratings for the Solis 1-6kW single phase inverters.
Solis-1P1K-4G
Solis-1P4K-4G
Solis-1P3.6K-4G
Solis-1P3K-4G
Solis-1P2.5K-4G
Solis-1P2K-4G
Solis-1P1.5K-4G
Solis-1P4.6K-4G
4.3.4 Max. over current protection device (O CPD)
Table 4.3 Rating of grid OCPD
Solis-1P5K-4G
Solis-1P6K2-4G
4.3.5 Inverter monitoring connection
Figure4.19 Connect the external grounding conductor
Inverter Rated
voltage(V)
Current for protection
device (A)
10
25
30
30
40
20
15
10
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
220V/230V
Rated output
current (A)
4.5/4.3
6.8/6.5
9.1/8.7
16/15.7
18.2/17.4
20.9/20
22.7/21.7
27.3
11.4/10.9
13.6/13
15
20
Internet
GPRS monitoring
Wi-Fi monitoring
Smart phone monitoring
PC monitoring
Web server
Router
Wi-Fi monitoring
Wi-Fi box

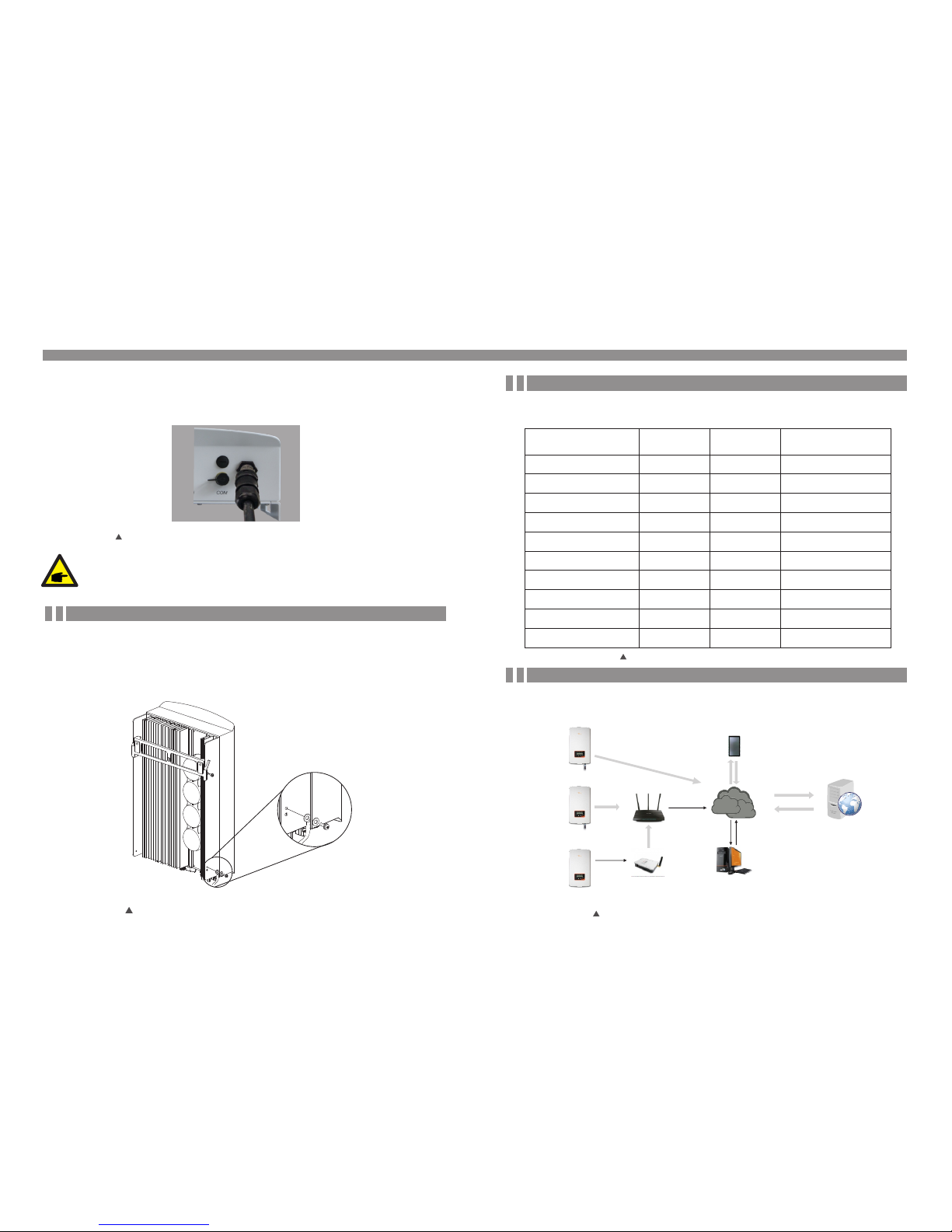

Figure4.20 Wi-Fi orGPRScommunication function

4. Installation4. Installation
.21..20.
4.3.7 Meter Connection(optional)
The inverter has intergrated export limitation functionality.
To use this function a power meter or a CT must be installed if use the power meter it should , , ,
be installed in the load side or in the grid side see Figure 4.22 and 4.23. After the inverter ,
power on please set the corresponding configuration as sections 6.5.11.1.2 and 6.5.11.1.3.,
1
5 6 7 8
MENU
1600 i mp/kW h
220V ~10(60) A
T1 T2 T3 DDSD 1352
L NL´N´
Communication
Figure 4.22 Meter in Load
Grid
Load
1
5 6 7 8
MENU
1600 i mp/kW h
220V ~10(60) A
T1 T2 T3 DDSD 1352
L NL´N´
Grid
Load
Figure 4.23 Meter in Grid
Communication
4.3.8 CT connections(optional)
Figure 4.24 Direction of CT
This inverter has integrated export limitation functionality. To use this function, a power
meter or a CT must be installed if use the CT please reference below picture. The CT , ,
should be fitted around the live conductor on the grid side of the main incoming consumer
unit. Use the directional flow indication arrow on the CT to ensure it is fitted in the correct
orientation. The arrow should be pointing towards the grid, not the load. when the inverter
power on, please set the corresponding configuration as sections 6.5.11.1.4.1 and 6.5.11.1.4.2.
CT
L
N
DRE D means demand response enable device. The A S/NZS 4777.2 required inverter :2015
need to support demand response mode(DRM). This function is for inverter that comply with
AS/NZ S 4777.2 standard. Solis 4G single phase inverter is fully comply with all DRM. :2015
A RJ45 terminal is used for DRM connection.
4.3.9 DRED port connections(Only for Australia)
4.3.6 Electrical connection diagram
Figure 4.21 Guidance for a Simple Installation of an Inverter Solar Energy System
Isolation switch
Solar supply
main switch
Consumers
mains
(to grid)
Main
switch
MAIN SWITCHBOARD
Circuits not
protected by
RCDs
Circuits Protected
by RCDs
Isolation device
Inverter with
integral grid
Protection device
Solar
(PV)
array
11
2
1. The RCD should be in parallel connection between the consumers mains and the solar supply.
2. More than one RCD may be used. Each RCD can protect one or more circuits.
Refer to figure 4.21, which is a simple guidance for installing a solar system with PV inverter.
A DC isolator is required to be installed in the system between PV panels with inverter.
Assignment for inverters capable
of both charging and discharging
Pin
1 DRM 1/5
2DRM 2/6
3DRM 3/7
4DRM 4/8
5 RefGen
6
7
8
Com/DRM0
V+
V-
Assignment for inverters capable
of both charging and discharging
Pin
A B
A B

4. Installation
NOTE:
Solis 4G inverter is designed to provide 12V power for DRED.
Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
(As shown in figure 4.25)
Figure 4.25 RJ45 communication connection terminals
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 4.26 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
3. Connect RJ45 to DRM port.

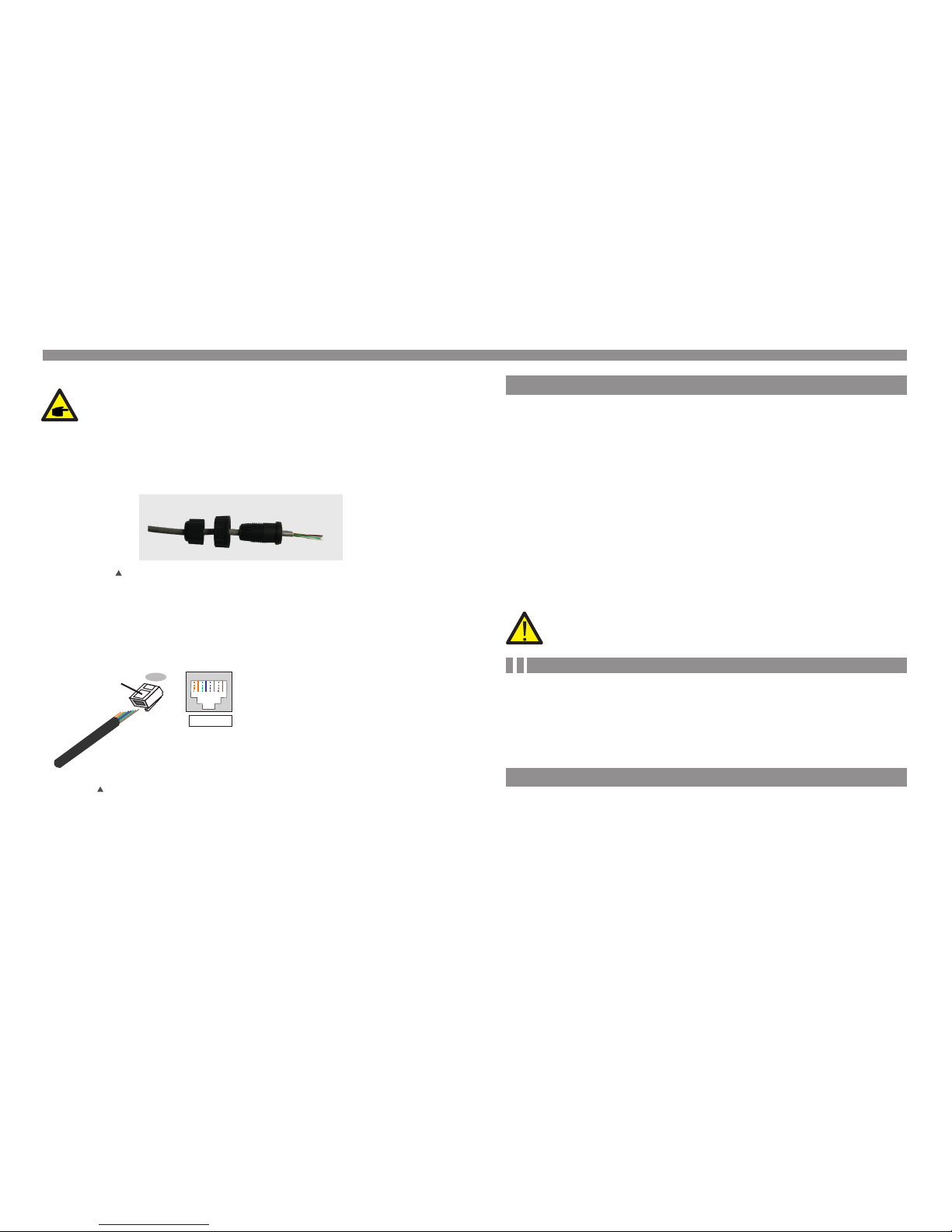

Figure 4.26 Strip the insulation layer and connect to R J45 plug
Correspondence between the
cables and the stitches of plug
Pin 1: white and orange ; Pin 2: orange
Pin 3: white and green； Pin 4: blue
Pin 5: white and blue； Pin 6: green
Pin 7: white and brown； Pin 8: brown
1--8
Rj45 plug Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
.23..22.
5. Start & Stop
During normal operation, the display alternately shows the power and the operation
status with each screen lasting for 10 seconds (see Figure 6.1). Screens can also be
scrolled manually by pressing the UP and DOWN keys. Press the ENTER key to
access to the Main Menu.
5.1 Start the Inverter
To start up the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will turn on. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
5.2 Stop the Inverter
To stop the Inverter, the following steps must be strictly followed:
1. Switch the Supply Main Switch (AC) OFF.
2. Wait 30 seconds. Switch the DC Switch OFF. All the LEDs of the inverter will be off in one
minute.
5.1.1 Inverter working status
Generating:Inverter is working normally
LimByTemp: Inverter power limited by over ambient temperature.
LimByFreq: Inverter power limited by over grid frequency
LimByVg: Inverter power limited by over grid voltage
LimByVar: Inverter power limited by generating reactive power.
When inverter working normally,there would be 5 status :

6. Operation
.25..24.
6. Operation
V_DC1 350.8V
I_DC1 5.1A
V_Grid 230.4V
I_Grid 8.1A
Status: Generating
Power: 1488W
Grid Frequency
F_Grid 60.06Hz
Total Energy
0258458 kwh
This Month: 0123kwh
Last Month: 0123kwh
Today: 15.1kwh
Yesterday: 13.5kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
V_DC1: Shows input 01 voltage value.
I_DC1: Shows input 01 current value.
V_Grid: Shows the grid's voltage value
I_Grid: Shows the grid's current value.
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
F_Grid: Shows the grid's frequency value.
Total generated energy value
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Table 6.1 Information list
Inverter SN
00000000000000 10 sec
10 sec
Display series number of the inverter.
Power of ERM.
Current of EPM.
V_ D C2 350.8V
I_ D C2 5.1A 10 sec V_DC2: Shows input 02 voltage value.
I_DC2: Shows input 02 current value.
10 sec Work Mode:The work mode of inverter.
DRM Number:Show the number 01-08.
Work Mode: NULL
DRM Number: 08
10 sec
6.1 Main Menu

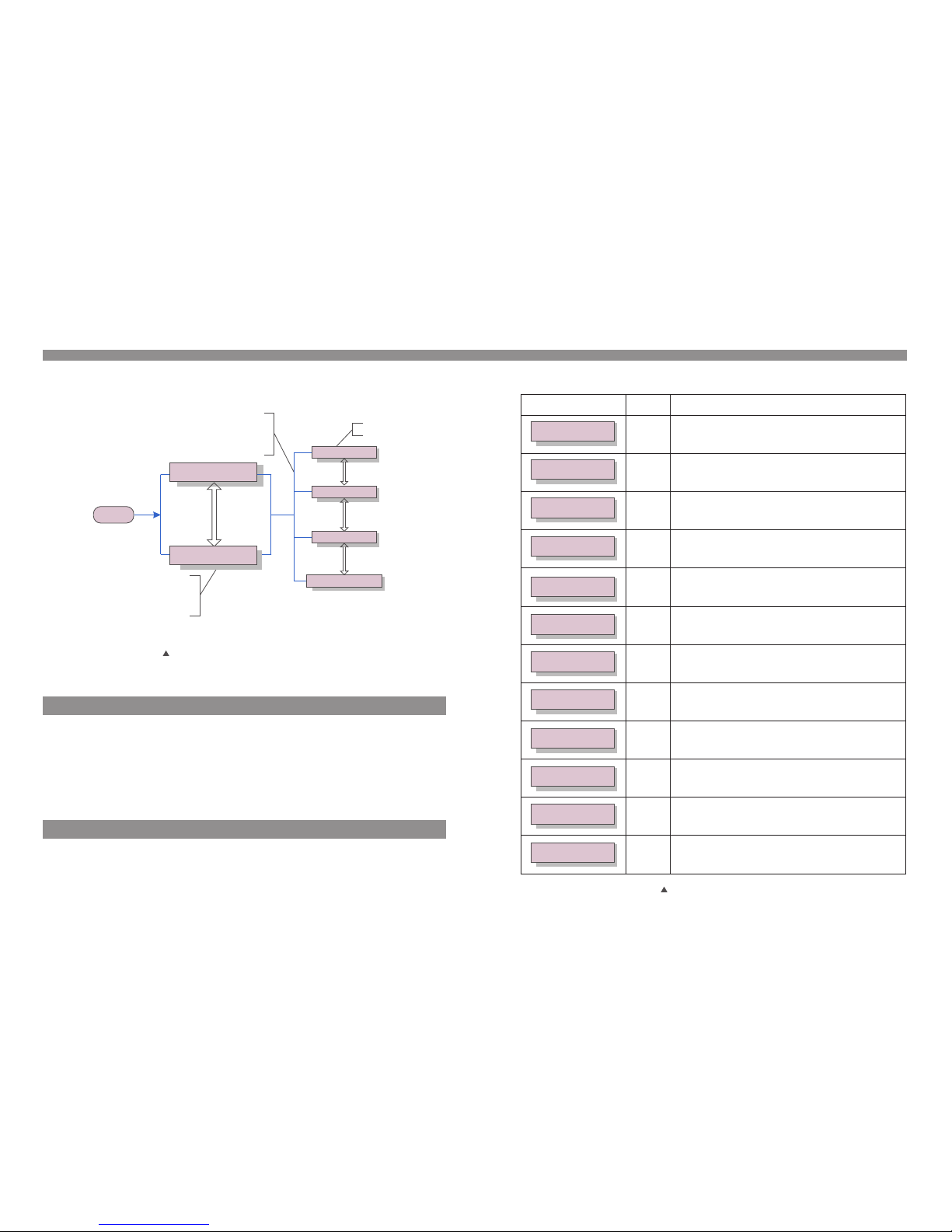

Figure 6.1 Operation Overview
5 sec
Start
Power 3424W
01-01-2014 12:04
Status: Generating
01-01-2014 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
There are four submenus in the Main Menu (see Figure 6.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
6.2 Information
The Solis Single Phase 4G Inverter main menu provides access to operational data and
information. The information is displayed by selecting "Information" from the menu
and then by scrolling up or down.
Meter EnergyP:The active power.
Meter EnergyP
0000000.00kWh
Export_P: +0000W
Export_I: 00.0A

6. Operation
.27..26.
6. Operation
6.3 Settings
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
6.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 6.3.
NEXT=<ENT> OK=<ESC>
01-01-2016 16:37
Figure 6.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
Figure 6.2 Locks and Unlocks the Screen of LCD
(b)(a)
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 6.2(a)) or unlocks (Figure 6.2 (b)) the screen.
5.2 Stop the Inverter
6.2.1 Lock screen
6.3.2 Set Address
This function is used to set the address when muti inverters are connected to single monitor.
The address number can be assigned from “01”to “99”(see Figure 6.4). The default address
number of Solis Single Phase Inverter is “01”.
6.4 Advanced Info - Technicians Only
After enter the correct password the Main Menu will display a screen and be able to access
to the following information.
1. Alarm Message 2. Running Message 3.Version 4. Daily Energy 5. Monthly Energy
6. Yearly Energy 7. Daily Record 8. Communication Data 9.Warning Message
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
6.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 6.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous
menu.
Alarm001: OV-G-V
Time: 27-11 Data: 7171
Figure 6.6 Alarm Message
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” （need password）.
YES=<ENT> NO=<ESC>
Password:0000
Figure 6.5 Enter password
Select “Advanced Info.” from the Main Menu. The screen will require the password as below
The default password is “0010". Please press “down” to move the cursor, press “up” to
select the number.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 6.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.

6. Operation
.29..28.
6. Operation
6.4.2 Running Message
6.4.3 Version
The screen shows the model version and the software version of the Inverter
(see Figure 6.7).
Model: 08
Software Version: D20001
Figure 6.7 Model Version and Software Version
This function is for maintaince person to get running message such as internal temperature,
Standard NO. etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
6.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Press DO WN key to move the cursor to day, month and year, press UP key to change the
digit. Press Enter after the date is fixed.
2015-02-22: 051.3kWh
2015-02-23: 061.5kWh
Press UP/D OWN key to move one date from another.
6.4.5 Monthly Energy and Yearly Energy
The two functions are for checking the energy generation for selected month and Year
Figure 6.8 Select date for daily energy
Figure 6.9 Daily energy
Figure 6.10 Select month for monthly energy Figure 6.11 Select year for yearly energy
YES=<EN T> NO=<ESC>
Select: 2015-02-23
YES=<EN T> NO=<ESC>
Select: 2015-02
YES=<EN T> NO=<ESC>
Select: 2015
6.4.7 Communication Data
The screen shows the internal data of the Inverter (see Figure 6.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 6.14 Communication Data
Press DO WN key to move the cursor, press U P key to change the digit.
Press Enter after the month/year is fixed.
2015-02: 0510kWh
2015-01: 0610kWh
Press UP/D OWN key to move one date from another.
2015: 0017513kWh
2014: 0165879kWh
Figure 6.12 Month energy Figure 6.13 Yearly energy
6.4.6 Daily record
The screen shows history of changing settings. Only for maintance personel.
6.4.8 Warning Message
The display shows the latest warn messages (see Figure 6.15). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Msg000:
T: 00-00 00:00 D:0000
Figure 6.15 Warning Message
6.5 Advanced Settings - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 6.4 to enter password to access this menu.
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3.Clear Energy 4. Reset Password
5. Power Control 6.Calibrate Energy 7.Special Settings 8.STD. Mode Settings
9.Restore Settings 10.HMI Update 11.Export Power Set 12.Restart HMI
13.Debug Parameter 14.DSP Update 15.Power Parameter

6. Operation
.31.
6. Operation
.30.
6.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Solis Single Phase
Inverter (see Figure 6.18).
Grid ON
Grid OFF
Figure 6.18 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
Enter the right password before set new password. Press the DOWN key to move the
cursor, Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
6.5.3 Clear Energy
Clear Energy can reset the history yield of inverter
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
6.5.5 Power Control
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
NOTE:
This function is for technicians use only.
Press the UP/DOWN keys to select the standard (AS4777-02,AS4777-15, VDE4105, VDE0126,
UL-240V-A, UL-208V-A, UL-240V, UL-208V, MEX-CFE, G83/2 (for 1-3.6kW models), G59/3
(for 4-5kW models), EN50438 DK, EN50438 IE, EN50438 NL and “User-Def” function).
Press the ENTER key to confirm the setting. Press the ESC key to cancel changes and returns
to previous menu.
Selecting the “User-Def” menu will access to the following submenu (see Figure 6.17),
Figure 6.17
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
OV-G-V1: 240---270V O V-G-F1: 50.2-53Hz(60.2-64Hz)
OV-G-V1-T: 0.1---9S OV-G-F1-T: 0.1---9S
OV-G-V2: 240---300V O V-G-F2: 50.2-53Hz(60.2-64Hz)
OV-G-V2-T: 0.1---1S OV-G-F2-T: 0.1---9S
UN-G-V1: 170---210V UN-G-F1: 47-49.5Hz(56-59.8Hz)
UN-G-V1-T: 0.1---9S UN-G-F1-T: 0.1---9S
UN-G-V2: 110---210V UN-G-F2: 47-49Hz(56-59.8Hz)
UN-G-V2-T: 0.1---1S UN-G-F2-T: 0.1---9S
OV-G-V1: 260V
OV-G-V1-T: 1S
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the
highlighted item. Press the UP/DOWN keys again to change the setting. Press the ENTER
key to save the setting. Press the ESC key to cancel changes and returns to the previous menu.
This function is used to select the grid's reference standard (see Figure 6.16).
YES=<ENT> NO=<ESC>
Standard:AS4777-02
Figure 6.16
6.5.1 Selecting Standard
Startup-T:10-600S Restore-T: 10-600S
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 6.19).
6.5.4 Reset Password
Figure 6.19 Reset password
YES=<ENT> NO=<ESC>
Password: 0000

6. Operation6. Operation
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
(see Figure 6.20).
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
6.5.6 Calibrate Energy
Figure 6.20 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
.33..32.
6.5.7 Special Settings
This functions is applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
6.5.8 STD. Mode Settings
This sub menu is enabled when the grid standard is set to A S4777. To comply with New A US/
NZ 4777.2, Solis 4G inverter could set different work mode to work with different
grid requirement.
There are 6 work mode in working mode submenu.
1.NULL 2.Volt-watt 3.Volt-var 4.Fixed-PF 5.Reac-power 6.Power-PF
There are 5 setting under STD. Mode settings.
1. Working mode 2. Power Rate limit 3. Freq. Derate set 4. 10mins OV-G-V set.
5.Initial Settings
The parameter in each model could be set as below:
This functions is applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
1. NULL(default)
Inverter not under any of below working mode.
The default setting of working mode is NULL.
2. Volt-Watt
Set Voltage1: 207-220V, Default 207V
Set P_Limit1: 20%-100%, Default 100%
Set Voltage2: 216-230V, Default 220V
Set P_Limit2: 20%-100%, Default 100%
Set Voltage3: 235-255V, Default 250V
Set P_Limit3: 20%-100%, Default 100%
Set Voltage4: 244-265V, Default 255V
Set P_Limit4: 20%-100%, Default 100%
3. Volt-Var
Set Voltage1: 207-220V, Default 207V
Set Voltage2: 216-230V, Default 220V
Set Voltage3: 235-255V, Default 250V
Set Voltage4: 244-265V, Default 255V
Set Leading: 0~+60%, Default +30%
Set Lagging: 0~-60%, Default -30%
6. Power-PF
Set Pb_Limit: 0-100%, Default 25%
Pc_Limit: 0-100%, Default 50%
Pc_Factor: (-0.8, +0.8), Default -0.95
4. Fixed PF
Set PF (-0.8, +0.8), Default 1, Resolution 0.01.
5. Reac. Power
Set reacive power (0, 60%), Default 0, Resolution 1%.

6. Operation6. Operation
.35..34.
The other 3 setting in are as below:STD. Mode settings
1. Power Rate limit
Wgra: 0-100%, Default 16%
2. Freq. Derate set
Set Derate Mode:01
Set Freq.: 51-52Hz, Default 52Hz
3. 10mins OV-G-V set
10mins Voltage: 244-258V, Default 255V
6.5.9 Restore Settings
Thescreenshowsasbelow:
Figure 6.21 Restore Settings
Are you sure?
YES=<ENT> NO=<ESC>
PresstheEnterkeytosavethesettingaftersettinggridoff.
PresstheESCkeytoreturnthepreviousmean.
Restore setting could set all item in 6.5.7 special setting to default.
6.5.11 Export Power Set
Select EPMSettings from the Main Menu to access the following options:
1. Model Select 2.Set Backflow Power 3.Fail safe ON/OFF
To access to this area is for fully qualified and accredited technicians only.
Pleasefollow6.4toenterpasswordtoaccessthismenu.
The default password is “0010". Please press “down” to move the cursor, press “up” to
selectthenumber.
6.5.11.1 Model Select
There are 4 settings in this menu as below:
1.OFF 2.Meter in Load 3.Meter in Grid 4.Current sensor
Figure 6.23
ON=<ENT> CANCEL=<ESC>
Meter in Load
6.5.11.1.2 Meter in Load
The submenu is used to set meter in Load as shown as 4.3.7 Meter connection(optional).
Figure 6.24
ON=<ENT> CANCEL=<ESC>
Meter in Grid
6.5.11.1.3 Meter in Grid
The submenu is used to set meter in Grid as shown as 4.3.7 Meter connection(optional).
Press Enter key to save the setting.
Press Enter key to save the setting.
Figure 6.25
ON=<ENT> CANCEL=<ESC>
Current Sensor
6.5.11.1.4 Current sensor
The submenu is used to set current sensor as shown as 4.3.8 CT connection(optional).
There are 2 modes shown as below: 1.CT Sampling Ratio 2.CT Link test
Figure 6.22
ON=<ENT> CANCEL=<ESC>
OFF
Press the ENTER key to set done.
Press the ESC key to the previous menu.
This function is used to shut down the Export Power Set.
6.5.11.1.1 OFF
6.5.10 HMI Update
This function is used for update the LCD program.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.

6. Operation
.36. .37.
6. Operation
6.5.11.1.4.1 CT Sampling Ratio
This function is used for change CT Sampling Ratio if customer select different CT.
The default radio is 3000:1.
-> CT Sampling Ratio
Figure 6.26 Set the CT Para of the EPM
Figure 6.27
YES=<ENT> NO=<ESC>
Ratio:3000:1
Press the UP/DOWN keys to set data.Press the ENTER key to set CT Para.
Press the ESC key to save the settings and return to the previous menu.
Figure 6.28 CT Link State
CT Link State
Correct
Press the ESC key to the previous menu.
Press the ENTER key to show the screen of CT Link Test .it will show as below when
the EPM was set ON :
NOTE:
There are three states in the CT Link State.
“Error” means CT reverse connection. Please change CT direction
“Can not judge” means load power is not enough, it should be more than 500W.
“Correct” means CT has been connected correctly.
Before pressing the CT Link Test menu, please check as follow:
1.Load power ≥ 500W
2.Inverter should be set Grid Off
3.CT should be connected
4.EPM should be set ON
6.5.11.2 Backflow Power
This submenu is used for set allowedpowerthatinvertercangeneratetogrid.
->Set Backflow Power
Figure 6. Set the power 29 backflow
Figure 6.30
YES=<ENT> NO=<ESC>
P_Backflow:-0001W
Press the UP/DOWN keys to set data.Press the ENTER key to set backflow power
Then press DOWN keys to move the cursor, press UP to change the number.
Press the ESC key to save the settings and return to the previous menu.
6.5.11.3 Fail safe ON/OFF
Figure 6.31 Set the Fail Safe ON/OFF
YES=<ENT> NO=<ESC>
Fail Safe Set:ON
Press the UP/DOWN keys to set ON/OFF.Press the ENTER key to set done .
Press the ESC key to the previous menu.
This function is used to remind whether the EPM is ON or not. The default setting is ON.
6.5.11.1.4.2 CT Link Test
