SOLIS Pytes E-BOX Series Manual

Installation and configuration manual
with Solis Hybrid Inverter
Pytes Lithium Battery
E-BOX series

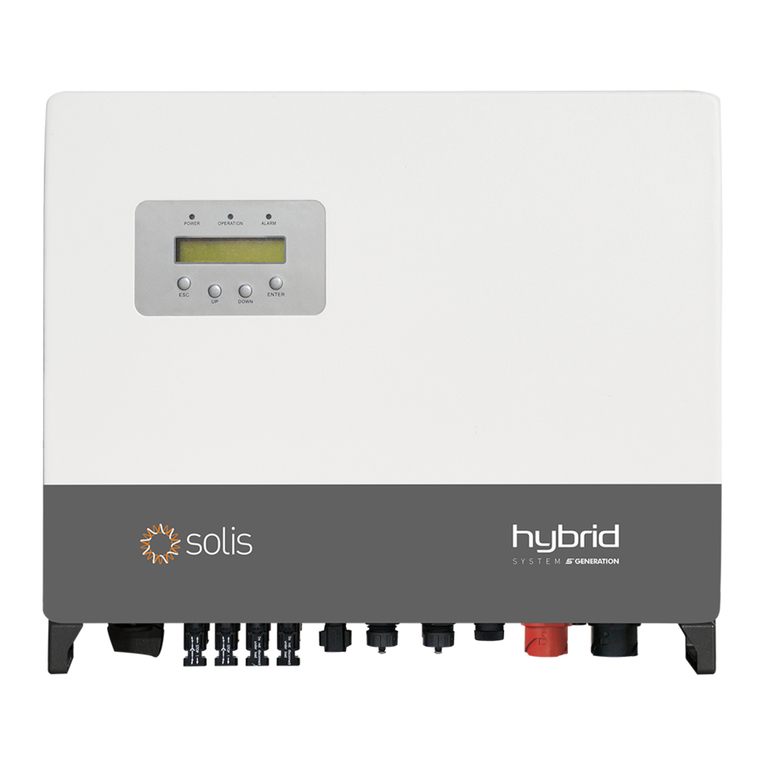

with Solis RHI Series Hybrid Inverter

2
CONTENTS
Bom List......................................................................................3
1 Power Cable Connection......................................................................6
Step1...................................................................................................6
Step2...................................................................................................6
Step3...................................................................................................6
2. Communication Cable Connection.........................................7
3. Set the Dip Switch..................................................................8
4. Start up the System................................................................8
5. Parameters Setting and Checking on the Inverter .................8
Step1...................................................................................................9
Step2...................................................................................................9
Step3.................................................................................................10
Step4.................................................................................................10
Step5.................................................................................................11
6. System Monitoring.................................................................11

3
BOM LIST
Before installation, you should prepare following items.
Item
Remarks
Quantity
Power Cable
(DC)
a): Conductor cross-section: 50 mm²
to 95 mm²
b): Cable diameters: 14 mm to 25
mm
c): Only copper cables may be used.
d): The DC cables must be sized for
the maximum battery voltage and the
maximum battery current (see battery
manufacturer documentation).
e): Power cables head must be
Amphenol type.
Depends on the number of
batteries and the
connection method
CAN Cable
CAN communicationTerminal (RJ45
port) follow CAN protocol, to output
batteries information
1
Battery
48100R / 48100C / 4850
Depends on the number of
batteries and the
connection method
Inverter
Solis
1

4
Definition CAN Port Pin for BMS is as follow.
Click here to tell the version of 48100R you have.
CAN port definition
Version of 48100R
Pin number of com. cable
A version
B and C version
CAN port definition

5
Power Cable Connection
Communication Cable
Connection
Parameters Setting
and Checking on the
Inverter
System Monitoring
HOW TO INSTALL
CAUTION: If you want to get more inverter-related settings, please refer to
the inverter user manual first.
Set the DIP Switch
Start up the System

6
1. Power Cable Connection
Step.1
Open the front housing of the Victron Energy Inverter/Charger.
Step.2
Connect the red cable and black cable to the inverter connector as
shown in Pic 1.1.
Pic 1.1
Step.3
At the other end of the power cable, connect to the battery as shown
Pic 1.2（Ensure that the battery power switch is off）
Pic 1.2
BATTERY+
BATTERY-
BATTERY+
BATTERY-

7
2. Communication Cable Connection
Insert inverter end of the CAN cable into the controller at CAN. Insert
battery end of the CAN cable into the battery at CAN. (Ensure the correct
sequence of wires inside the CAN cable). as shown in Pic 2.1.
Pic 2.1

8
3. Set the DIP Switch
Set the DIP switch according to the version of 48100R you have, as
shown in table below.
Version of 48100R
ADD setting
A and B version
C version
4. Start up the System
Start up the battery.
Firstly, press the power button on, next press the SW red ring button
as shown in pic 3.1.

9
Pic 3.1
5. Parameters Setting and Checking on the Inverter
※CAUTION: If you want more details about the batteries settings，
please check the operating manual of inverter.

10
Step1.
Check the inverter main page on the screen. as shown in pic 5.1.
Pic 5.1
Step2.
Enter the submenu, there are four submenu in the main menu. Please
set parameters respectively.
Click the Settings to set Time/Date, Address and Language as shown
in 5.2.
Pic 5.2

11
Step3.
Click the Advanced settings. Input Password number 0010, then enter
the submenu to set parameters as shown in 5.3.
There are many items in the submenu, please set them comply to the
inverter manual for the details.
The most important parameters setting is the Storage Energy Set,
click into the item and choose battery module DLG.
Pic 5.3
Step4.
Click the information and check parameters as shown in 5.4.

12
Pic 5.4
Step5.
Click the Advanced information and check Running Message as
shown in 5.5.
Pic 5.5
6. System Monitoring
※CAUTION: If you want more details about system monitoring，
please check the operating manual of inverters.
