SOLIS S6-GR1P7K2 User manual

Ginlong Technologies Co., Ltd.
Quick Installation Guide
Version 1.0
S6-GR1P(7-8)K2
Locking screws
2
Mounting Hole Size
3
Use a 10mm drill bit to drill a hole of 60mm depth.
Ensure the mounting bracket is horizontal and use a Phillips
screwdriver to fasten the expansion bolts.
Lift the inverter and hang it on the bracket.
Installation Clearance
Minimum clearance is required.
300mm
500mm 500mm
300mm 300mm
300mm 300mm
DC input DRMRS 485
DC Switch(optional) CT or meter input
AC output
Inverter Installation
4
5
DC Connector Wiring and Assemble
1
Bottom of the Inverter
Some models may have a different number of DC inputs,
please refer to datasheet/nameplate/actual product.
If no PV string connects to the DC input terminals, please install
the watertight cap onto the empty DC input terminals to guarantee
the inverter ingress protection rating.
For access to the manual please scan
the QR code below or you can go the URL
https://www.ginlong.com/global/
service.html
After entering the page, you can click " "
icon to change to preferred language.
Note: Installation Manual Download
（+）
（-）
outer diameter
2.5-4mm²7±0.5mm
Use a wire crimper to fasten the metal connector and insert it
into the top of the AMPHENOL connector. Use the AMPHENOL
special tool to fasten the AMPHENOL assembly.
7±0.5mm
outer diameter
2.5-4mm²
Crimping plier AMPHENOL special tool
Note: Locator wings should not be crimped

6
7
External Ground Connection
An external ground connection is provided at the right side of
the inverter. Prepare OT terminals: M4. Use proper tooling to
crimp the lug to the terminal.

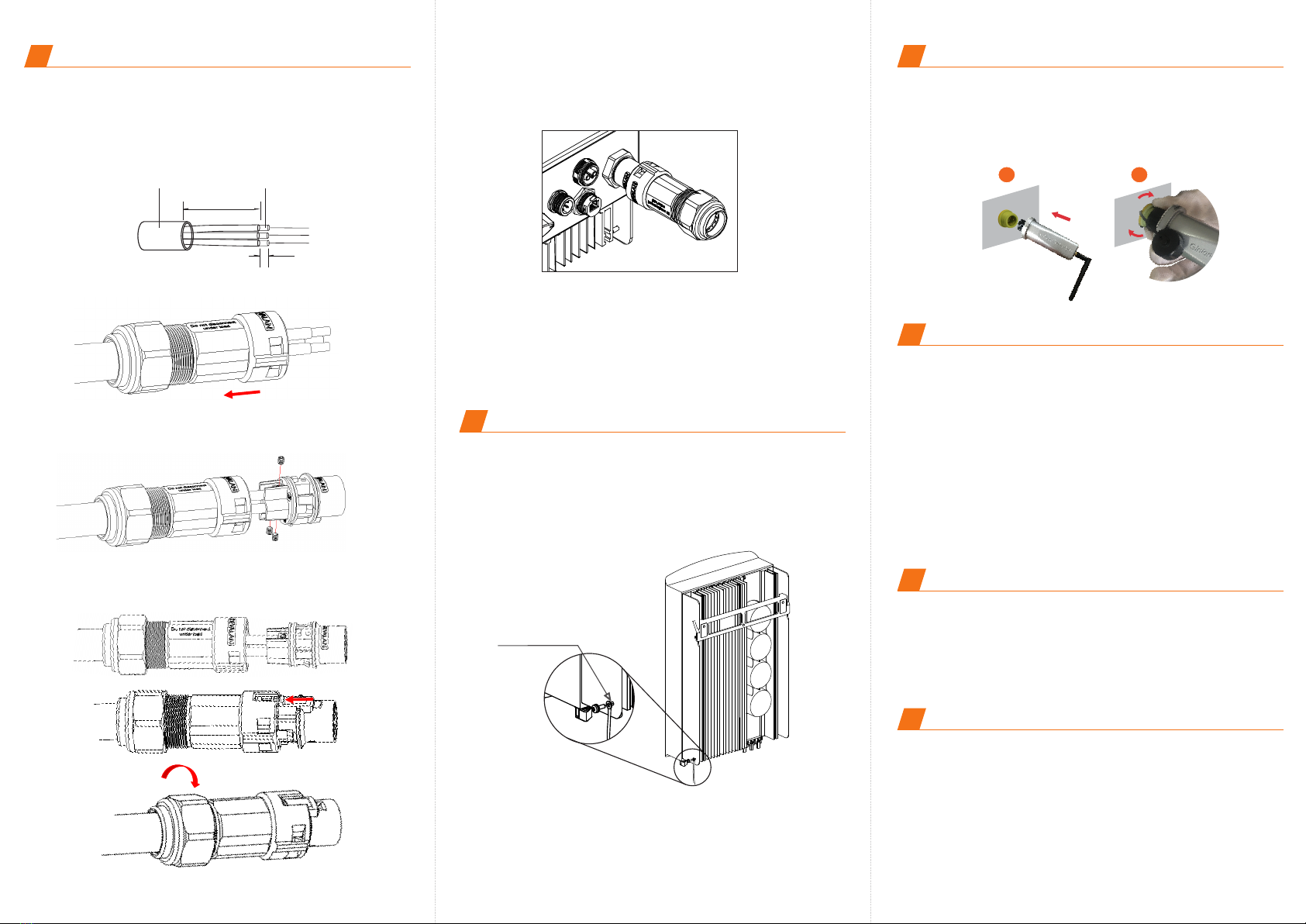

Assemble the AC Cable
Grounding screw
Install the Datalogger
8
Note: Turn off the AC and DC circuits before the installation
2
1
1. Insert communication stick to COM port.
2. Rotate the black circle clockwise while pushing the datalogger.
(do not rotate the datalogger housing directly)
The steps to assemble the AC grid terminal connectors are
listed as follows:
a) Disassemble the AC connector and strip the AC wires to
about 13mm.
Outside-diameters
12~18mm
47mm
x
PE
L
N
x=13mm
x
Cross-section
4~10mm²
b) Flee the sleeve into the cable.
c) Put the copper wire of the cable splitter into the plug
terminal and tighten the screw.
d) Insert the sleeves assembly into the plug then lock it with
a buckle, tighten the lock nut and the torque is 3.5-4N.m.
Note: Connection for Split phase grid.
When connected to 208/220/240V split phase, please connect L1 to
“L” terminal and L2 to “N” terminal.
Also connect earth wire to ground terminal.
Connect the AC grid connector to the inverter, until hearing
a slight click sound that indicates the connection succeed.
9
Commissioning
You have finished the initial installation.
You may use the Soliscloud APP to link the datalogger to
your local router. Please refer to the datalogger installation
manual for the detailed configuration.
Completion
10
1. Switch on the AC breaker.
2. Switch on the DC switch(If there is no DC switch, wait until
the string voltage is higher than the start up voltage of the
inverter).
When the string voltage is higher than the startup voltage
the inverter will initialize.
3. Inverter will start self check and the green LED will flash.
4. After the self check is completed, the inverter will start
generating power and the green LED will become
constantly on and the LCD will displays "Generating".
