Solplanet ASW H-S Series User manual

User Manual UM_ASW3000-5000H-S_EN_V01_0321 1
Solplanet inverterTable of Contents
1 Notes on this Manual ................................................................5
1.1 General Notes.....................................................................5
1.2 Area of validity ....................................................................5
1.3 Target group .......................................................................6
1.4 Symbols used in this manual ..............................................6
2 Safety........................................................................................8
2.1 Intended use .......................................................................8
2.2 Important safety information................................................9
2.3 Symbols on the label.........................................................12
3 Unpacking...............................................................................14
3.1 Scope of delivery ..............................................................14
3.2 Checking for transport damage.........................................15
4 Mounting .................................................................................15
4.1 Requirements for mounting...............................................15
4.2 Mounting the inverter ........................................................17
5 system solution .......................................................................20
5.1 system solution .................................................................20
5.2 System wiring diagram......................................................21
5.3 Working mode...................................................................22
5.3.1 Self-Consumption .......................................................22
5.3.2 Back-up ......................................................................24

2 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
5.3.3 Force time use custom ...............................................26
5.3.4 Off-GRID.....................................................................26
6 Electrical Connection ..............................................................27
6.1 Safety ................................................................................27
6.2 System layout of units without integrated DC switch.........28
6.3 Overview of the connection area.......................................29
6.4 AC connection...................................................................30
6.4.1 Conditions for the AC connection ...............................30
6.4.2 Grid connection ..........................................................34
6.5 EPS connection ................................................................37
6.6 Second protective grounding connection ..........................39
6.7 DC Connection..................................................................40
6.7.1 Requirements for the DC Connection .........................40
6.7.2 Assembling the DC connectors ..................................41
6.7.3 Connecting the PV array.............................................44
6.7.4 Disassembling the DC connectors..............................45
6.8 Battery connection ............................................................47
6.9 Communication equipment connection .............................49
6.9.1 Communication...........................................................49
6.9.2 BMS CAN cable connection.....................................50
6.9.3 DRED cable connection ...........................................51
6.9.4 Smart meter cable connection .................................52
6.9.5 WiFi antenna connection..........................................54
7 Communication .......................................................................55
7.1 System monitoring via WLAN ...........................................55

User Manual UM_ASW3000-5000H-S_EN_V01_0321 3
7.2 Inverter demand response modes (DRED) .......................56
7.3 Earth Fault Alarm ..............................................................57
8 Commissioning .......................................................................58
8.1 Electrical checks ...............................................................58
8.2 Mechanical checks............................................................60
8.3 Safety code check.............................................................60
8.4 Start-Up.............................................................................61
8.4.1 Smart meter set-up.....................................................61
8.4.2 AIHOME initialization set-up .......................................61
8.4.3 Starting conditions of different modes.........................62
8.4.4 Description of working state........................................62
9 Display ....................................................................................64
9.1 Overview of the panel .......................................................64
9.1.1 LEDs...........................................................................65
10 Disconnecting the Inverter from Voltage Sources .................67
11 Technical Data ......................................................................69
11.1 DC input data ..................................................................69
11.2 Batter input data..............................................................70
11.3 AC output data ................................................................71
11.4 EPS output data..............................................................73
11.5 General data ...................................................................74
11.6 Safety regulations ...........................................................76
11.7 Efficiency.........................................................................77

4 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
11.8 Power reduction ..............................................................82
11.8.1 Power reduction with increased ambient temperature
(ASW3000H-S) ....................................................................82
11.8. 2 Power reduction with increased ambient temperature
(ASW3680H-S) ....................................................................83
11.8.3 Power reduction with increased ambient temperature
(ASW4000H-S) ....................................................................84
11.8.4 Power reduction with increased ambient temperature
(ASW5000H-S) ....................................................................85
11.9 Tools and torque .............................................................86
12 Troubleshooting ....................................................................88
13 Maintenance .........................................................................92
13.1 Cleaning the contacts of the DC switch...........................92
13.2 Cleaning the heat sink.....................................................92
14 Recycling and disposal .........................................................93
15 EU Declaration of Conformity................................................93
16 Warranty ...............................................................................94
17 Contact..................................................................................94

User Manual UM_ASW3000-5000H-S_EN_V01_0321 5
1 Notes on this Manual
1.1 General Notes
Solplanet hybrid inverter is a high-quality inverter which can
convert solar energy to AC energy and store energy into battery.
The energy produced from the inverter shall be used to optimize
self-consumption, then charge battery, exceed power could
export to grid. Loads will be supported in priority by the system,
then battery power, exceed consumption power will be drained
from grid inverter. It can provide power for emergency use during
the grid lost by using the energy from battery and
inverter(generated from PV).
1.2 Area of validity
This manual describes mounting, installation, commissioning and
maintenance of the following Solplanet hybrid inverters:
ASW3000H-S
ASW3680H-S
ASW4000H-S
ASW5000H-S
Observe all documentation that accompanies the inverter. Keep
them in a convenient place and available at all times.

6 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
1.3 Target group
This manual is for qualified electricians only, who must perform
the tasks exactly as described.
All persons installing inverters must be trained and experienced
in general safety which must be observed when working on
electrical equipments. Installation personnel should also be
familiar with local requirements, rules and regulations.
Qualified persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated
with installing, repairing and using electrical devices and
installations
• Training in the installation and commissioning of electrical
devices.
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety
information.
1.4 Symbols used in this manual
Safety instructions will be highlighted with the following symbols:
DANGER indicates a hazardous situation which, if not be
avoided, will result in death or serious injury.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 7
WARNING indicates a hazardous situation which, if not be
avoided, can result in death or serious injury.
CAUTION indicates a hazardous situation which, if not be
avoided, can result in minor or moderate injury.
NOTICE indicates a situation which, if not be avoided, can
result in property damage.
INFORMATION that is important for a specific topic or goal,
but is not safety-relevant.

8 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
2 Safety
2.1 Intended use
1. The inverter converts the direct current from PV array into grid-
compliant alternating current.
2. The inverter is suitable for indoor and outdoor use.
3. The inverter must only be operated with PV arrays (PV
modules and cabling) of protection class II, in accordance with
IEC 61730, application class A. Do not connect any sources of
energy other than PV modules to the inverter.
4. PV modules with a high capacitance to ground must only be
used if their coupling capacitance is less than 1.5μF.
5. When the PV modules are exposed to sunlight, a DC voltage
is supplied to this inverter.
6. When designing the PV system, ensure that the values comply
with the permitted operating range of all components at all
times.
7. Battery negative(BAT-) on inveter side is not grounded as
default design. Connecting BAT- to EARTH are strictly
forbidden.
8. The battery used together with the inverter must only be that is
approved or released by AISWEI.
9. The inverter must only be used in countries for which it is
approved or released by AISWEI and the grid operator.
10. Use this inverter only in accordance with the information
provided in this documentation and with the locally applicable
standards and directives. Any other application may cause
personal injury or property damage.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 9
11. The type label must remain permanently attached to the
product.
2.2 Important safety information
Danger to life due to electric shock when live
components or cables are touched
• All work on the inverter must only be carried out by qualified
personnel who have read and fully understood all safety
information contained in this manual.
• Do not open the product.
• Children must be supervised to ensure that they do not play
with this device.

10 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous
DC voltage which is present in the DC conductors and the live
components of the inverter. Touching the DC conductors or
the live components can lead to lethal electric shocks. If you
disconnect the DC connectors from the inverter under load,
an electric arc may occur leading to electric shock and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only
by qualified persons with the appropriate skills.
•If an error occurs, have it rectified by qualified persons only.
•Prior to performing any work on the inverter, disconnect it
from all voltage sources as described in this document(see
Section 9 "Disconnecting the Inverter from Voltage Sources").
Risk of injury due to electric shock
Touching an ungrounded PV module or array frame can
cause a lethal electric shock.
• connect and ground the PV modules, array frame and
electrically conductive surfaces so that there is continuous
conduction.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 11
Risk of fire due to the electric power
Batteries deliver electric power, resulting in burns or a fire
hazard when they are short circuited, or wrongly installed.
• Do not wear watches, rings or similar metallic items during
battery replacement.
• Use insulated tools.
• Put on rubber shoes and gloves.
• Do not place metallic tools and similar metallic parts on the
batteries.
•Switch off load connected to the batteries before dismantling
battery connection terminals.
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• During operation, do not touch any parts except the
enclosure lid of the inverter.
Damage to the inverter due to electrostatic discharge
Internal components of the inverter can be irreparably
damaged by electrostatic discharge.
• Ground yourself before touching any component.

12 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321

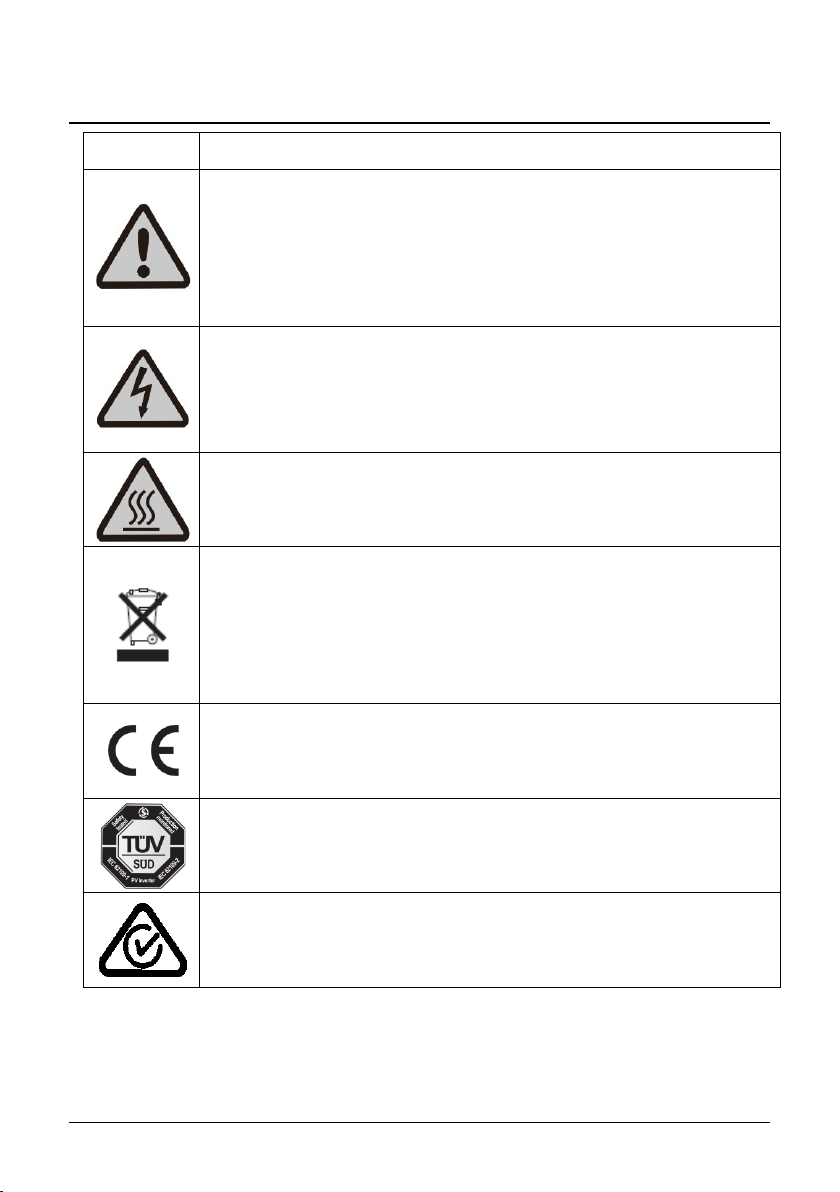

2.3 Symbols on the label
Symbol
Explanation
Beware of a danger zone
This symbol indicates that the product mus be
additionally grounded if additional grounding or
equipotential bonding is required at the installation
site.
Beware of high voltage and operating current
The inverter operates at high voltage and current.
Work on the inverter must only be carried out by
skilled and authorized electricians.
Beware of hot surfaces
The inverter can get hot during operation. Avoid
contact during operation.
WEEE designation
Do not dispose of the product together with the
household waste but in accordance with the
disposal regulations for electronic waste applicable
at the installation site.
CE marking
The product complies with the requirements of the
applicable EU directives.
Certification mark
The product has been tested by TUV and got the
quality certification mark.
RCM Mark
The product complies with the requirements of the
applicable Australian standards.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 13
Capacitors discharge
Before opening the covers, the inverter must be
disconnected from the grid and PV array. Wait at
least 5 minutes to allow the energy storage
capacitors to fully discharge.
Observe the documentation
Observev all documentation supplied with the
product

14 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
3 Unpacking

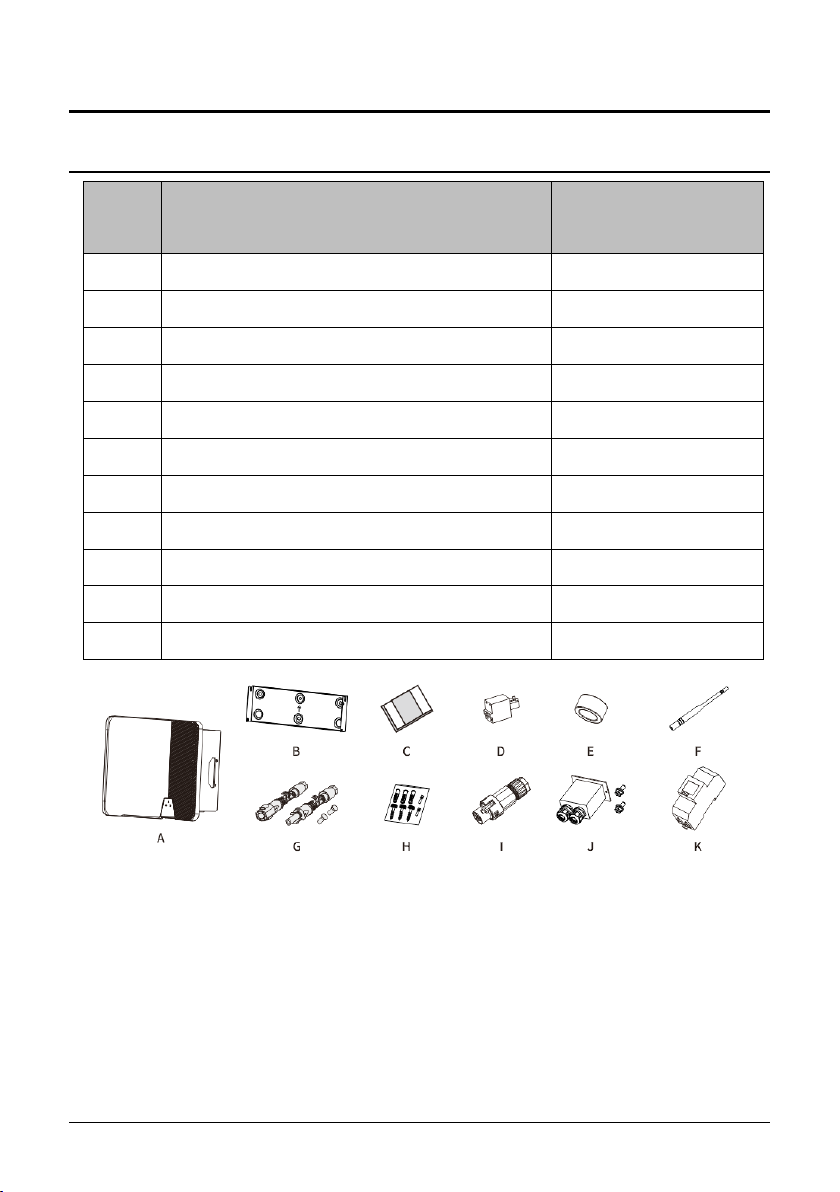

3.1 Scope of delivery
Obje
ct
Description
Quantity
A
Inverter
1 piece
B
Wall mounting bracket
1 piece
C
Documentation
1 set
D
Smart meter terminal
1 piece
E
Magnetic ring
1 piece
F
Antenna
1 piece
G
DC connector
2 pairs
H
Screw accessory
1 set
I
AC connector
2 pieces
J
Battery terminal cover
1 set
K
Smart meter
1 piece
Carefully check all of the components in the carton. If anything is
missing, contact your dealer.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 15
3.2 Checking for transport damage
Thoroughly inspect the packaging upon delivery. If you detect
any damage to the packaging which indicates the inverter may
have been damaged, inform the responsible shipping company
immediately. We will be glad to assist you if required.

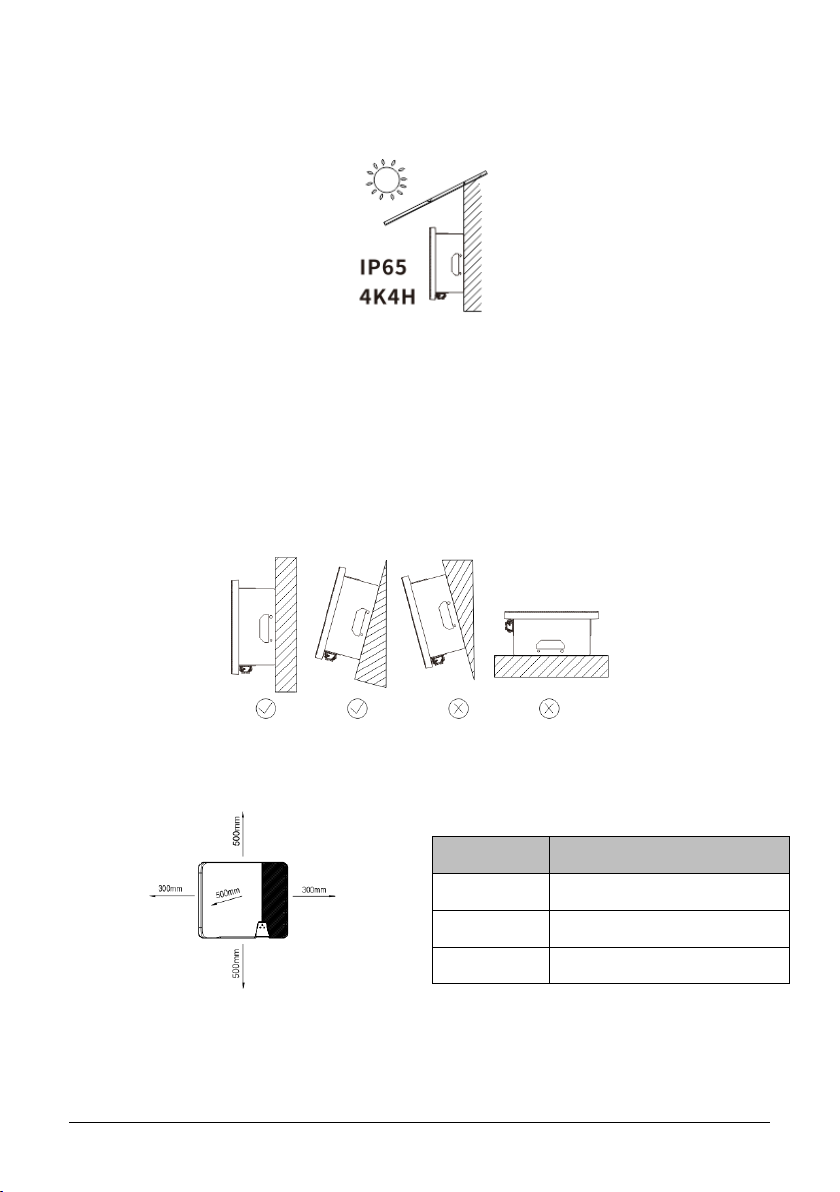

4 Mounting
4.1 Requirements for mounting
1. Ensure that the inverter is installed out of the reach of
children.
2. To ensure best operating status and prolonged service life,
the mounting ambient temperature of the inverter should be
≤45°C.
3. To avoid direct sunlight, rain, snow, ponding on the inverter, it
is suggested to mount the inverter in places with a top
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause
fires.
• Do not mount the inverter on flammable construction
materials.
• Do not mount the inverter in areas where flammable
materials are stored.
•Do not mount the inverter in areas where there is a risk of
explosion.

16 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
protective roof. Do not completely cover the top of the
inverter.
4. The mounting condition must be suitable for the weight and
size of the inverter. The inverter is suitable to be mounted on
solid wall that is vertical or tilted backwards (Max. 15°). It is
not recommended to install the inverter on the wall made of
plasterboards or similar materials. The inverter may make
noise when working.
5. To ensure adequate heat dissipation, the clearances between
the inverter and other objects are recommended as follows:
Clearances for one inverter
Direction
Min. clearance (mm)
above
500
below
500
sides
300

User Manual UM_ASW3000-5000H-S_EN_V01_0321 17
Clearances for multiple inverters
4.2 Mounting the inverter
Risk of injury when lifting the inverter, or if it is dropped
The weight of Solplanet inverter is max. 21.5 kg. There is risk
of injury if the inverter is lifted incorrectly or dropped while
being transported or when attaching it to or removing it from
the wall bracket.
• Transport and lift the inverter carefully.

18 User Manual UM0007_ASW3000-5000H-S_EN_V01_0321
Mounting procedure:
1. Use a Φ10mm bit to drill 3 holes at a depth of about 70mm
according to the location of the wall mounting bracket.
2. Insert wall plugs into the wall and fix the wall mounting bracket
Risk of injury due to damaged cables
There may be power cables or other supply lines (e.g. gas or
water) routed in the wall.
• Ensure that no lines are laid in the wall which could be
damaged when drilling holes.
Risk of injury due to the inverter falls down
If the depth and distance of the holes is not correct, the
inverter maybe fall down from the wall.
• Before inserting the wall anchors, measure the depth and
distance of the holes.

User Manual UM_ASW3000-5000H-S_EN_V01_0321 19
to the wall by screwing three self-tapping screws (SW10).
3. Hang the inverter to the wall mounting bracket. Secure the
inverter to the wall mounting bracket on both sides using M5
screws.
Screwdriver type: PH2, torque: 2.5Nm.
4. To protect the inverter from theft, attach the padlock provided
by customer through the wall mounting bracket and the
inverter.
