Solplanet ASW S-A Series User manual

UM0026_ASW5000-10000-S-A_EN_V01_0622 1
Solplanst inverter Table of Contents
1 Notes on this Manual........................................................................................4
1.1 General Notes.............................................................................................4
1.2 Area of validity............................................................................................4
1.3 Target group ...............................................................................................4
1.4 Symbols used in this manual...................................................................5
2 Safety ..................................................................................................................6
2.1 Intended use ...............................................................................................6
2.2 Important safety information ...................................................................7
2.3 Symbols on the label.................................................................................9
3 Unpacking ........................................................................................................10
3.1 Scope of delivery .....................................................................................10
3.2 Checking for transport damage.............................................................10
4 Mounting...........................................................................................................11
4.1 Ambient conditions .................................................................................11
4.2 Selecting the mounting location ...........................................................12
4.3 Mounting the inverter with the wall bracket........................................13
5 Electrical Connection.....................................................................................15
5.1 Safety.........................................................................................................15
5.2 System layout of units without integrated DC switch.......................16
5.3 Overview of the connection area ..........................................................17
5.4 AC connection..........................................................................................17
5.4.1 Conditions for the AC connection.................................................18
5.4.2 AC terminal connection...................................................................20

2UM0026_ASW5000-10000-S-A_EN_V01_0622
5.4.3 Second protective grounding connection ...................................22
5.5 DC Connection .........................................................................................23
5.5.1 Requirements for the DC Connection...........................................23
5.5.2 Assembling the DC connectors.....................................................24
5.5.3 Disassembling the DC connectors................................................26
5.5.4 Connecting the PV array .................................................................27
5.6 Communication equipment connection...............................................28
5.6.1 RS485 cable connection..................................................................28
5.6.2 Smart meter cable connection .......................................................30
5.6.3 WiFi/4G stick connection ................................................................31
6 Communication...............................................................................................32
6.1 System monitoring via WLAN/4G..........................................................32
6.2 Active power control with Smart meter................................................33
6.3 Inverter demand response modes (DRED)..........................................34
6.4 Communication with third-party devices.............................................35
6.5 Earth fault alarm.......................................................................................35
7 Commissioning ...............................................................................................35
7.1 Electrical checks......................................................................................35
7.2 Mechanical checks ..................................................................................36
7.3 Safety code check....................................................................................37
7.4 Start-Up......................................................................................................37
8 Operation..........................................................................................................39
8.1 Overview of the panel..............................................................................39
8.1.1 LEDs....................................................................................................40
9 Disconnecting the Inverter from Voltage Sources....................................41
10 Technical Data...............................................................................................42

UM0026_ASW5000-10000-S-A_EN_V01_0622 3
10.1 DC input data..........................................................................................42
10.2 AC output data........................................................................................43
10.3 General data............................................................................................44
10.4 Safety regulations..................................................................................45
10.5 Tools and torque....................................................................................46
10.6 Power reduction.....................................................................................47
11 Troubleshooting............................................................................................48
12 Maintenance...................................................................................................50
12.1 Cleaning the contacts of the DC switch.............................................50
12.2 Cleaning the heat sink ..........................................................................50
13 Recycling and disposal................................................................................51
14 EU Declaration of Conformity.....................................................................51
15 Warranty.........................................................................................................51
16 Contact............................................................................................................52

4UM0026_ASW5000-10000-S-A_EN_V01_0622
1 Notes on this Manual
1.1 General Notes
Solplanet inverter is a transformerless solar inverter with three independent
MPP trackers. It converts the direct current (DC) from a photovoltaic (PV)
array to grid-compliant alternating current (AC) and feeds it into the grid.
1.2 Area of validity
This manual describes the mounting, installation, commissioning and
maintenance of the following inverters:
ASW5000-S-A
ASW6000-S-A
ASW8000-S-A
ASW10000-S-A
Observe all documentation that accompanies the inverter. Keep them in a
convenient place and available at all times.
1.3 Target group
This manual is for qualified electricians only, who must perform the tasks
exactly as described.
All persons installing inverters must be trained and experienced in general
safety which must be observed when working on electrical equipment.
Installation personnel should also be familiar with local requirements, rules
and regulations.
Qualified persons must have the following skills:
• Knowledge of how an inverter works and is operated
• Training in how to deal with the dangers and risks associated with installing,
repairing and using electrical devices and installations
• Training in the installation and commissioning of electrical devices
• Knowledge of all applicable laws, standards and directives
• Knowledge of and compliance with this document and all safety information

UM0026_ASW5000-10000-S-A_EN_V01_0622 5
1.4 Symbols used in this manual
Safety instructions will be highlighted with the following symbols:
DANGER indicates a hazardous situation which, if not be avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not be avoided, can
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not be avoided, can
result in minor or moderate injury.
NOTICE indicates a situation which, if not be avoided, can result in
property damage.
INFORMATION that is important for a specific topic or goal, but is not
safety-relevant.

6UM0026_ASW5000-10000-S-A_EN_V01_0622
2 Safety
2.1 Intended use
1. The inverter converts the direct current from PV array into grid-compliant
alternating current.
2. The inverter is suitable for indoor and outdoor use.
3. The inverter must only be operated with PV arrays (PV modules and
cabling) of protection class II, in accordance with IEC 61730, application
class A. Do not connect any sources of energy other than PV modules to
the inverter.
4. PV modules with a high capacitance to ground must only be used if their
coupling capacitance is less than 1.0μF.
5. When the PV modules are exposed to sunlight, a DC voltage is supplied to
the inverter.
6. When designing the PV system, ensure that the values comply with the
permitted operating range of all components at all times.
7. The product must only be used in countries for which it is approved or
released by AISWEI and the grid operator.
8. Use this product only in accordance with the information provided in this
documentation and with the locally applicable standards and directives. Any
other application may cause personal injury or property damage.
9. The type label must remain permanently attached to the product.
10. The inverters shall not be used in multiple phase combinations.

UM0026_ASW5000-10000-S-A_EN_V01_0622 7
2.2 Important safety information
Danger to life due to electric shock when live components or cables are
touched
• All work on the inverter must only be carried out by qualified personnel
who have read and fully understood all safety information contained in this
manual.
• Do not open the product.
• Children must be supervised to ensure that they do not play
with this device.
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DC voltage
which is present in the DC conductors and the live components of the
inverter. Touching the DC conductors or the live components can lead to
lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock and
burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by qualified
persons with the appropriate skills.
•If an error occurs, have it rectified by qualified persons only.
•Prior to performing any work on the inverter, disconnect it from all voltage
sources as described in this document(see Section 9 "Disconnecting the
Inverter from Voltage Sources").

8UM0026_ASW5000-10000-S-A_EN_V01_0622
Risk of injury due to electric shock
Touching an ungrounded PV module or array frame can cause a lethal
electric shock.
• connect and ground the PV modules, array frame and electrically
conductive surfaces so that there is continuous conduction.
Risk of burns due to hot enclosure parts
Some parts of the enclosure can get hot during operation.
• During operation, do not touch any parts other than the enclosure lid of
the inverter.
Damage to the inverter due to electrostatic discharge
Internal components of the inverter can be irreparably damaged by
electrostatic discharge.
• Ground yourself before touching any component.

UM0026_ASW5000-10000-S-A_EN_V01_0622 9
2.3 Symbols on the label
Symbol
Explanation
Beware of a danger zone
This symbol indicates that the product mus be additionally grounded if
additional grounding or equipotential bonding is required at the installation site.
Beware of high voltage and operating current
The inverter operates at high voltage and current. Work on the inverter must
only be carried out by skilled and authorized electricians.
Beware of hot surfaces
The inverter can get hot during operation. Avoid contact during operation.
WEEE designation
Do not dispose of the product together with the household waste but in
accordance with the disposal regulations for electronic waste applicable at the
installation site.
CE marking
The product complies with the requirements of the applicable EU directives.
Certification mark
The product has been tested by TUV and got the quality certification mark.
RCM Mark
The product complies with the requirements of the applicable Australian
standards.
Capacitors discharge
Before opening the covers, the inverter must be disconnected from the grid and
PV array. Wait at least 5 minutes to allow the energy storage capacitors to fully
discharge.
Observe the documentation
Observe all documentation supplied with the product

10 UM0026_ASW5000-10000-S-A_EN_V01_0622
3 Unpacking
3.1 Scope of delivery
Object
Description
Quantity
A
Inverter
1 piece
B
Wall mounting bracket
1 piece
C
Wall anchors and hexagon bolts (3×)
M5 screw (2×)
1 set
D
DC connector
3 pairs
E
AC Plug connector
1 piece
F
WiFi stick
1 piece
G
RS 485 COM plug
2 pieces
H
Documentation
1 set
I
Smart meter terminal
1 piece
A
B
C
D
E
F
G
H
I
Carefully check all components. If anything is missing, contact your dealer.
3.2 Checking for transport damage
Thoroughly inspect the packaging upon delivery. If you detect any damage to
the packaging which indicates the inverter may have been damaged, inform
the responsible shipping company immediately. We will be glad to assist you if
required.

UM0026_ASW5000-10000-S-A_EN_V01_0622 11
4 Mounting
4.1 Ambient conditions
1. Be sure the inverter is installed out of the reach of children.
2. Install the inverter in areas where it cannot be touched inadvertently.
3. Install the inverter in a high traffic area where the fault is likely to be seen.
4. Ensure good access to the inverter for installation and possible service.
5. Make sure that heat can dissipate, observe the following minimum
clearance to walls, other inverters, or objects:
6. The ambient temperature is recommended below 40°C to ensure optimal
operation.
7. Recommend to mount the inverter under the shaded site of the building or
mount an awning above the inverter.
8. Avoid exposing the inverter to direct sunlight, rain and snow to ensure
optimal operation and extend service life.
Direction
Min. clearance
（mm）
above
500
below
500
sides
300

12 UM0026_ASW5000-10000-S-A_EN_V01_0622
9. The mounting method, location and surface must be suitable for the
inverter's weight and dimensions.
10. If mounted in a residential area, we recommend mounting the inverter on
a solid surface. Plasterboard and similar materials are not recommended
due to audible vibrations when in use.
11. Do not put any objects on the inverter.
12. Do not cover the inverter.

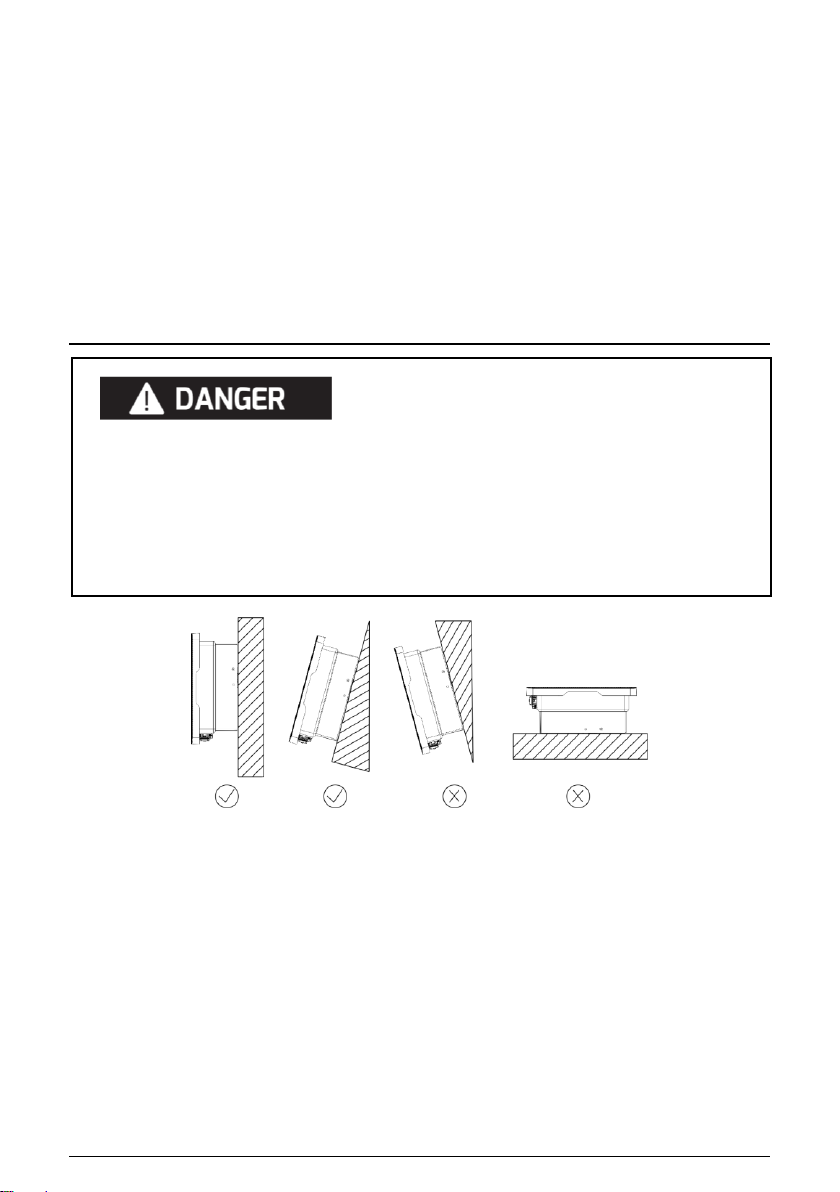

4.2 Selecting the mounting location
1. Mount the inverter vertically or tilted backward by a maximum of 15°.
2. Never mount the inverter tilted forward or sideways.
3. Never mount the inverter horizontally.
4. Mount the inverter at eye level to make it easy to operate and to read the
display.
5. The electrical connection area must point downwards.
Danger to life due to fire or explosion
• Do not mount the inverter on flammable construction materials.
• Do not mount the inverter in areas where flammable materials are
stored.
• Do not mount the inverter in areas where there is a risk of explosion.

UM0026_ASW5000-10000-S-A_EN_V01_0622 13

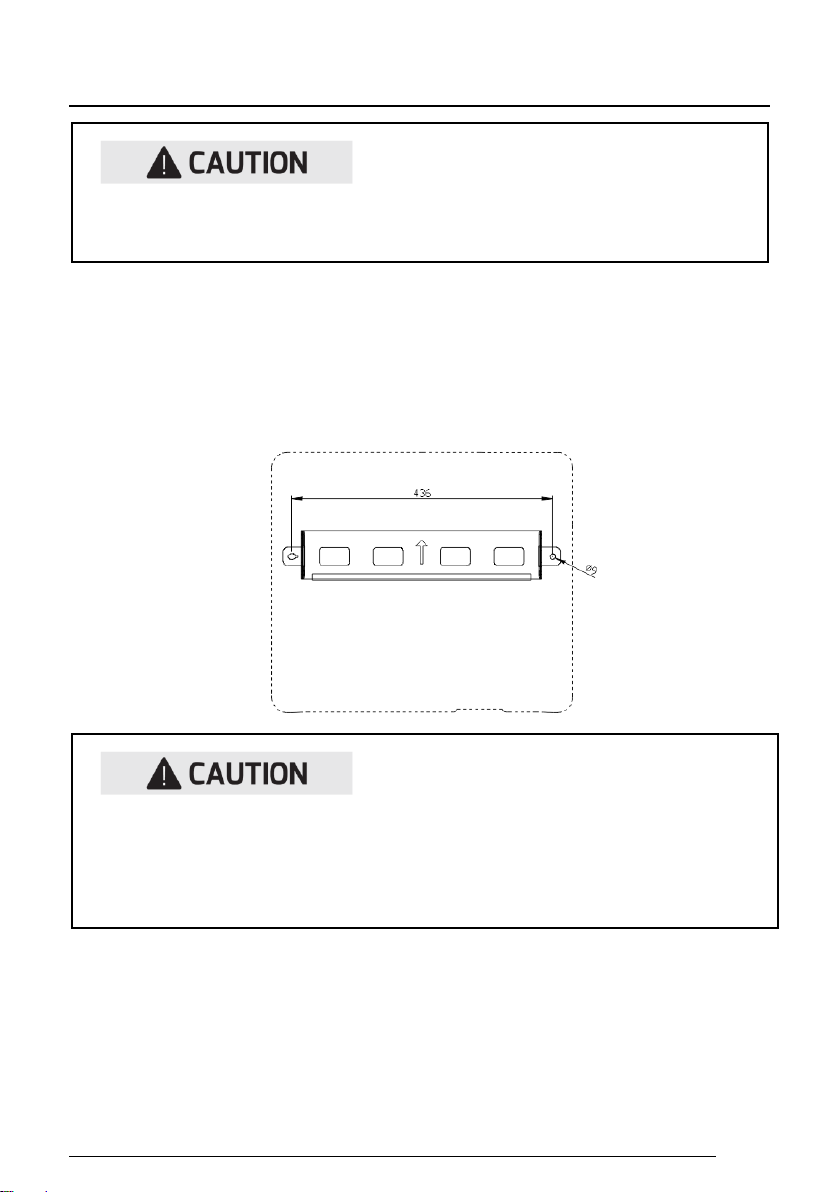

4.3 Mounting the inverter with the wall bracket
Mounting procedures:
1.Use the wall bracket as a drilling template and mark the positions of the drill
holes. Drill 2 holes with a 10 mm drill. The holes must be about 70 mm
deep. Keep the drill vertical to the wall, and hold the drill steady to avoid
tilted holes.
2.After drilling holes in the wall, place three screw anchors into the holes, then
attach the wall mounting bracket to the wall using the self-tapping screws
delivered with the inverter.
Risk of injury due to the weight of the inverter
•When mounting, be careful that the inverter weighs approx.:18.5kg.
7.5kg.
Risk of injury due to the inverter falls down
•Before inserting the wall anchors, measure the depth and distance of the
holes.
•If the measured values do not meet the hole requirements, redrill holes.

14 UM0026_ASW5000-10000-S-A_EN_V01_0622
3.Position and hang the inverter onto the wall bracket ensuring the two studs
located on the outer ribs of the inverter are slotted into the respective slots
in the wall bracket.
4.Check both sides of the heat sink to ensure that it is securely in place. insert
one screw M5x12 each into the lower screw hole on both sides of the
inverter anchorage bracket respectively and tighten them.
If a second protective conductor is required in installation site, ground the
inverter and secure it so that it cannot drop from the housing (see section
5.4.3 “Second protective grounding connection”).
Dismante the inverter in reverse order.

UM0026_ASW5000-10000-S-A_EN_V01_0622 15
5 Electrical Connection
5.1 Safety
Danger to life due to high voltages of the PV array
When exposed to sunlight, the PV array generates dangerous DC voltage
which is present in the DC conductors and the live components of the
inverter. Touching the DC conductors or the live components can lead to
lethal electric shocks. If you disconnect the DC connectors from the
inverter under load, an electric arc may occur leading to electric shock
and burns.
• Do not touch non-insulated cable ends.
• Do not touch the DC conductors.
• Do not touch any live components of the inverter.
• Have the inverter mounted, installed and commissioned only by qualified
persons with the appropriate skills.
• If an error occurs, have it rectified by qualified persons only.
• Prior to performing any work on the inverter, disconnect it from all
voltage sources as described in this document(see Section 9
"Disconnecting the Inverter from Voltage Sources").
Risk of injury due to electric shock
• The inverter must be installed only by trained and authorized electricians.
• All electrical installations must be done in accordance with the National
Wiring Rules standards and all locally applicable standards and
directives.

16 UM0026_ASW5000-10000-S-A_EN_V01_0622
5.2 System layout of units without integrated DC switch
Local standards or codes may require that PV systems are fitted with an
external DC switch on the DC side. The DC switch must be able to safely
disconnect the open-circuit voltage of the PV array plus a safety reserve of
20%.
Install a DC switch to each PV string to isolate the DC side of the inverter. We
recommend the following electrical connection:
DC BOX
(optional) AC BOX
DC INPUT AC OUTPUT
To Grid
TO grounding electrode
+
-
+
+
-
-
PE
L N PE
INVERTER
+
-
Second
grounding
+ -
+-
LPE N
Damage to the inverter due to electrostatic discharge
Touching electronic components can cause damage to or destroy the
inverter through electrostatic discharge.
• Ground yourself before touching any component.

UM0026_ASW5000-10000-S-A_EN_V01_0622 17
5.3 Overview of the connection area
A B C D E F G
Objec t
Description
A
DC SWITCH: switch on or off for PV-load.
B
DC input: plug-in connector to connect the strings.
C
COM: Network port with protective cap.
D
Connector for meter.
E
WiFi: transmit and Wi-Fi signal.
F
Connection point for an additional grounding.
G
AC OUTPUT: plug-in connector, connect the grid.
5.4 AC connection
Danger to life due to high voltages in the inverter
• Before establishing the electrical connection, ensure that the miniature
circuit-breaker is switched off and cannot be reactivated.

18 UM0026_ASW5000-10000-S-A_EN_V01_0622
5.4.1 Conditions for the AC connection
Cable Requirements
The grid connection is established using three conductors (L, N, and PE).
We recommend the following specifications for stranded copper wire. The AC
plug housing has the lettering of length for stripping cable..
Object
Description
Value
A
External diameter
14 to 20mm
B
Conductor cross-section
6 to 16 mm²
C
Stripping length of the insulated conductors
approx. 16 mm
D
Stripping length of the outer sheath of cable
approx. 46 mm
Larger cross-sections should be used for longer cables.
Cable design
The conductor cross-section should be dimensioned to avoid power loss in
cables exceeding 1% of rated output power.
The higher grid impedance of the AC cable makes it easier to disconnect from
the grid due to excessive voltage at the feed-in point.
The maximum cable lengths depend on the conductor cross-section as
follows:
Conducto
r cross-
section
Maximum cable length
ASW5000-S-A
ASW6000-S-A
ASW8000-S-A
ASW10000-S-A
8 mm²
15m
15m
11 m
9m
10 mm²
18m
18m
14 m
11m
The required conductor cross-section depends on the inverter rating, ambient
temperature, routing method, cable type, cable losses, applicable installation
requirements of the country of installation, etc.
Residual current protection

UM0026_ASW5000-10000-S-A_EN_V01_0622 19
The product is equipped with an integrated universal current-sensitive residual
current monitoring unit inside. The inverter will disconnect immediately from
the mains power as soon as fault current with a value exceeding the limit.
Overvoltage category
The inverter can be used in grids of overvoltage category III or lower in
accordance with IEC 60664-1. This means that it can be permanently
connected at the grid-connection point in a building. In installations involving
long outdoor cable routing, additional measures to reduce overvoltage
category IV to overvoltage category III are required.
AC circuit breaker
In PV systems with multiple inverters, protect each inverter with a separate
circuit breaker. This will prevent residual voltage being present at the
corresponding cable after disconnection.
No consumer load should be applied between AC circuit breaker and the
inverter.
The selection of the AC circuit breaker rating depends on the wiring design
(wire cross-section area), cable type, wiring method, ambient temperature,
inverter current rating, etc. Derating of the AC circuit breaker rating may be
necessary due to self-heating or if exposed to heat.
The maximum output current and the maximum output overcurrent protection
of the inverters can be found in section 10 "Technical data".
Grounding conductor monitoring
The inverter is equipped with a grounding conductor monitoring device. This
grounding conductor monitoring device detects when there is no grounding
If an external residual-current protection device is required, please install
a type B residual-current protection device with a protection limit of not
less than 100mA.
