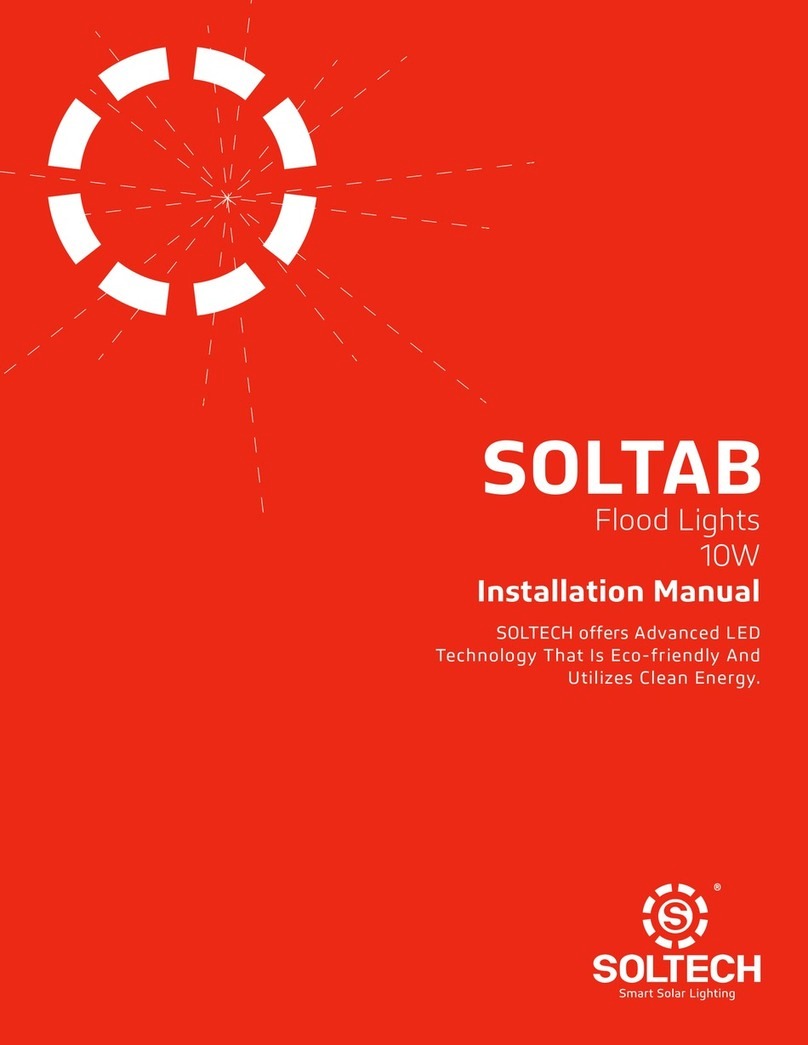

Soltech SOLTAB User manual

SPECIFICATIONS
0210W / 1,100LM
7.2AH 3.7V
SMD 2835 X 55PCS
6.5Wp+6.5Wp Double Side,
Mono-crystalline Silicon
120° / <19.7ft (PIR Sensor)
-4 °F to 122 °F
4 Different Modes
9.8ft
6–30Hrs
IP65
3 YEARS
35,000 hrs
4,000K
POWER / LUMEN
LED
LI-ION BATTERY
SOLAR PANEL
DETECTION ANGLE / AREA
OPERATING TEMPERATURE
WORKING MODE
CABLE LENGTH
RUN TIME@FULL POWER
IP DEGREE
WARRANTY
LIFESPAN
CCT
Copyright©2021–2022 SOLTECH LLC, All Rights Reserved.
SOLTECH LLC reserves the right to update all product data sheets at any time. Consult
SOLTECH marketing specialists for publication updates at www.soltechlighting.com
SOLTECH offers
advanced LED
technology that
is eco-friendly
and utilizes
clean energy.
011
INTRODUCTION
Features
• Change the operating modes using the silicon rubber on/off button.
• The light can be used separately or connected to the solar panel
with the water tight quick connector
• Use outdoor as a flood light or wall pack
• Use indoor as a desk light or emergency light
• Use as a portable work light or camping light
• Use as your power bank with solar recharging and a USB port
• Tempered-glass laminated, reliable and durable for portable
usage. Double-sided solar panel achieves a higher
conversion efficiency.
• Tools-free rotator enables solar panel angle adjustment or
light direction adjustment, with just bare hands
• Clear Indicator of Battery Capacity: 25% 50% 75% 100%. It
quickly shows the battery capacity at any time. Enables better
planning for your activities
• Lenses for superior optical control, enhanced lighting efficiency
and reduced glare
Warning
1. The SOLTAB will provide optimal usage where there is enough sunshine.
2. Non-professionsals please do not disassemble the lamp.
3. Please do not dispose the battery with household garbage to avoid explosion.
SOLTAB
1460 Park Avenue.
Emeryville CA 94608 USA
www.soltechlighting.com
Please read and follow all instructions to operate. Save this
manual for future reference.
SOLAR
LED FLOOD
LIGHT
10W 1,100LM 4,000K

INSTALLATION
03
04
OPERATING
MODES
Connect
ACCORDING TO THE CONNECTION OF THE
LIGHT AND SOLAR PANEL, THE LAMP WILL
AUTOMATICALLY RECOGNIZE THE SENSOR
MODE & CONSTANT LIGHTING MODE & POWER
BANK FUNCTION.
MODE A: CONSTANT MODE
(Lamp NOT Connected With Solar Panel)
Under this work mode, the PIR sensor & Photocell
control will not work.
MODE B: SENSOR MODE
(Lamp Connected With Solar Panel)
Under this work mode, the lamp will automatically
turn on at night and turn off at day time.
POWER BANK FUNCTION
USB Output: 5.0V/1.0A
DC-Micro Input: 5.0V/1.0A
Indicator of Battery Capacity: 25%, 50%, 75%, 100%.
CONSTANT MODE 01
Press 1 time, it turns on to 30%
constant brightness.
SENSOR MODE 01
Press 1 time, automatically turns on to 100% brightness (1,100lm) when
motion is detected in range ≤19.6ft and then turns to 5% brightness in 20
seconds of no motion.
SENSOR MODE 02
Press 2 times, automatically turns on & remain 100% brightness
(1100lm) for 5hrs. After 5hrs or when battery capacity is less than 30%, it
turns to SENSOR MODE 01.
1. Take out all of the parts
from the package. Confirm
the installation location and
wire length.
2. Use the card to mark hole
positions, then drill 4 holes
of 0.3 inch diameter and 2.4
inches depth.
3. Drive expansion screw into the
holes leaving enough room
to slide the brackets onto the
screws. Then secure the Panel
and Fixture.
4. Open the silicon cover at the
bottom of the light, connect
the cable from the solar panel
to the cable from the light and
screw together tightly.
5. Adjust the solar panel and
LED light to the right angles
according to the local latitude
and the desired direction for
the light.
CONSTANT MODE 02
Press 2 times, it turns on to 100%
constant brightness.
CONSTANT MODE TURN OFF
Press 3 times, it turns off.
120° 120°
120°
5hrs
120°
