SOLTEK SL-65KV2-T User manual

SL-65KV2-T User Manual V1.1
R

NOTICE
• Intel, Celeron, Pentium II, Pentium III are trademarks of Intel Corporation.
• VIA, VT82C694T and VT82C686 are trademarks of VIA Corporation.
his Users’ Guide & Technical Reference is to help system
manufacturers and end-users set up and install the mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for print-
ing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for identifi-
cation purpose only. Product names appearing in this manual may
or may not be registered trademarks or copyrights of their respec-
tive companies.
Soltek Computer inc. provides this manual “As is “ without war-
ranty of any kind, either express or implied, including but not limited
to the implied warranties or conditions of merchantability or fitness
for a particular purpose. In no event shall Soltek Computer inc. be
liable for any loss or profits, loss of business, loss of use or data,
interruption of business, or for indirect, special, incidental, or con-
sequential damages of any kind, even if Soltek Computer inc. has
been advised of the possibility of such damages arising from any
defect or error in this manual or product.
Copyrig t © 2001 Soltek Computer Inc. All Rig ts Reserved.
T
Product Model : SL-65KV2-T
Manual Revision : V1.1
Release Date : Au ust 2001

SOLTEK AROUND THE WORLD
SOLTEK COMPUTER INC.
Address : 7F, No. 306-3, Ta-Tung Rd, Sec.1, Hsi-Chih, Taipei-
Hsien, Taiwan, R.O.C.
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltek.com.tw
SOUL TECHNOLOGY EUROPE B.V.
Address : Hongkongstraat 55 3047 R, Rotterdam, The
Netherlands
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soultech-europe.com

65KV2-T
4
C O N T E N T
CHAPTER 1 INTRODUCTION ......................................... 8
1- 1 MAIN OARD SPECIFICATION ................................................... 9
1-1-1 CPU ..................................................................................................... 9
1-1-2 CHIPSET ............................................................................................. 9
1-1-3 ADVANCED HIGH-PERFORMANCE DRAM CONTROLLER ............ 9
1-1-4 FULL FEATURED ACCELERATED GRAPHICS PORT (AGP)
CONTROLLER .................................................................................... 9
1-1-5 MULTI-I/O FUNCTION ...................................................................... 10
1-1-6 EXPANSION SLOTS ......................................................................... 10
1-1-7 AWARD IOS V6.0, SUPPORTING ................................................. 10
1-1-8 SOUND CONTROLLER .................................................................... 10
1-1-9 POWER MANAGEMENT .................................................................. 11
1-1-10 FORM FACTOR .............................................................................. 11
1-1-11 HARDWARE MONITORING ........................................................... 11
1-1-12 OTHERS ......................................................................................... 11

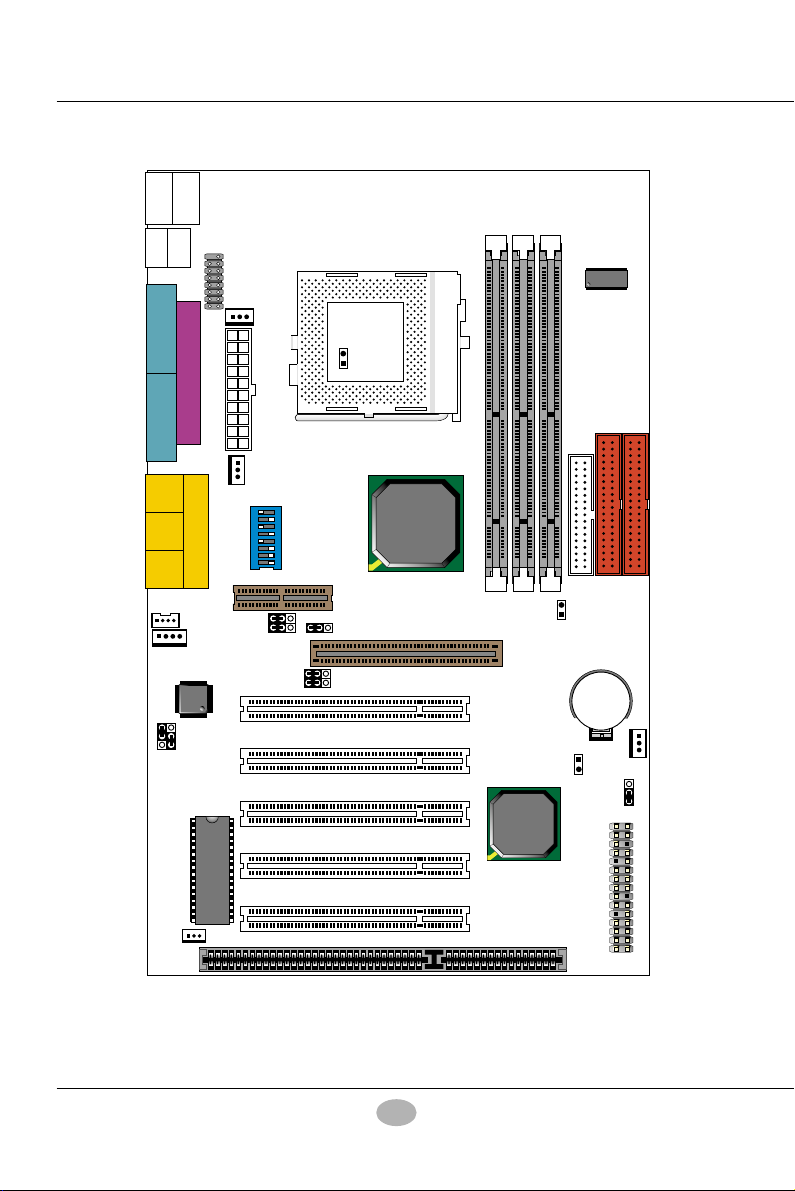

1-2 MOTHER OARD LAYOUT --- 65KV2-T ..................................... 12
1-3 CHIPSET SYSTEM LOCK DIAGRAM...................................... 13
CHAPTER 2 HARDWARE SETUP................................. 15
2- 1 CPU INSTALLATION ................................................................. 16

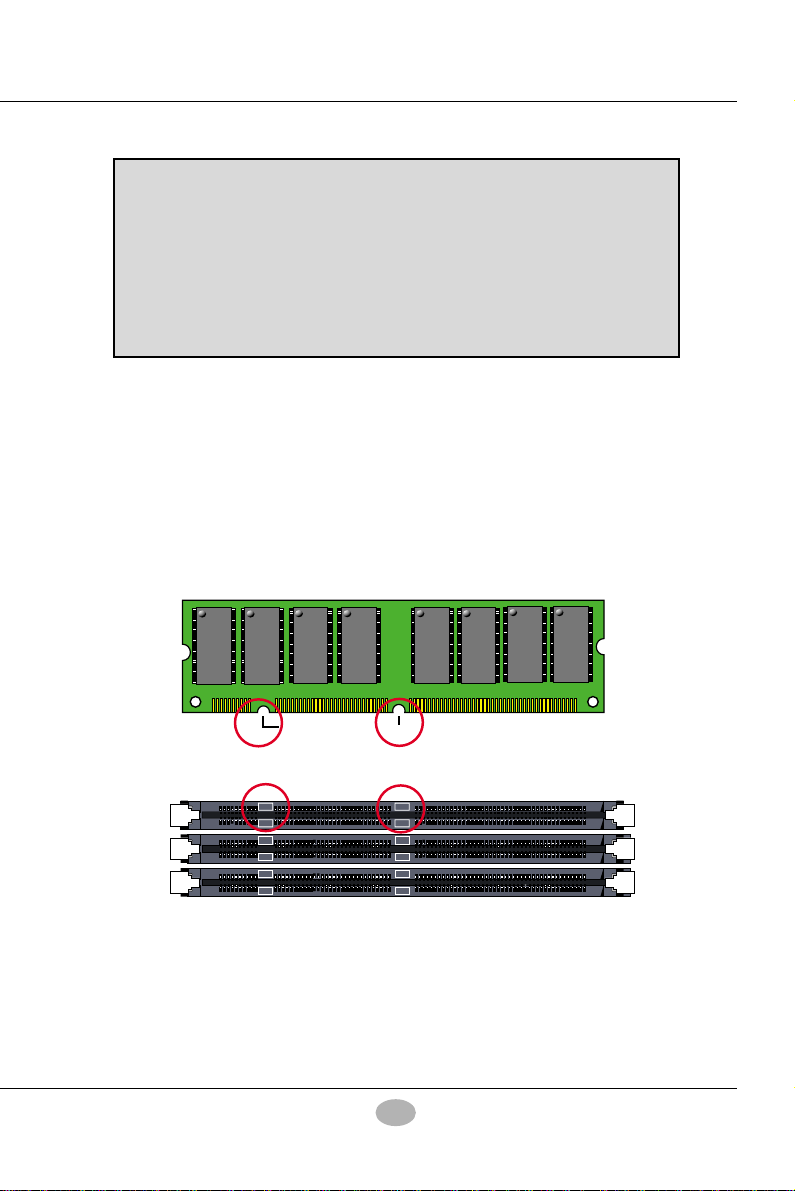

2- 2 MEMORY INSTALLATION ......................................................... 17

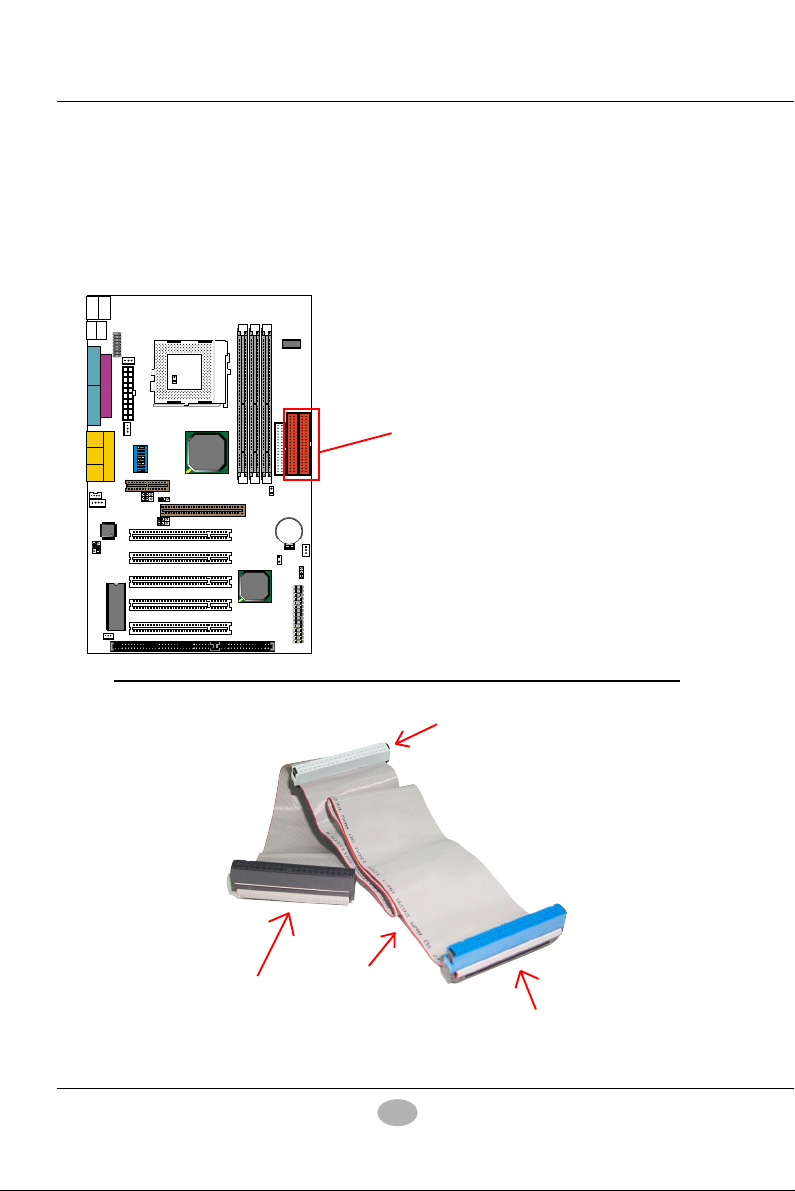

2- 3 HDD/FDD INSTALLATION ......................................................... 18

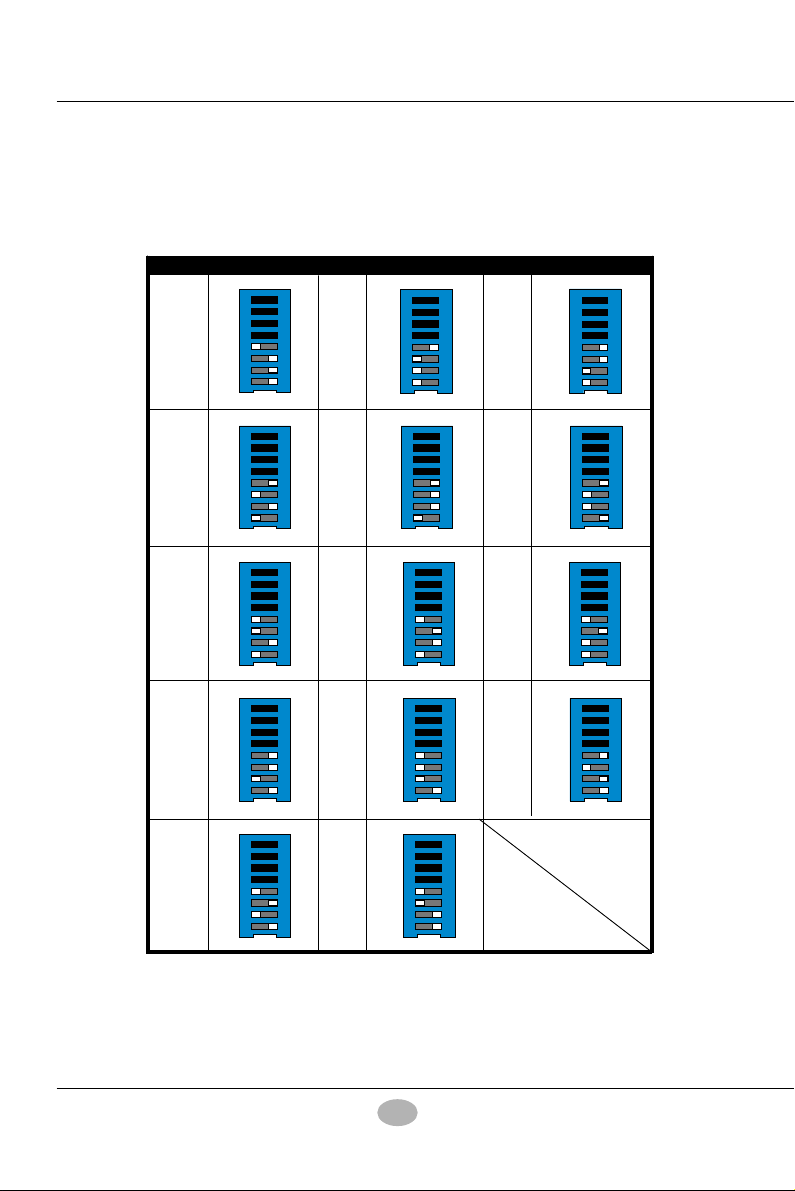

2-4 CPU US RATIO SELECT ( Y SW1 DIP1~DIP4) ..................... 20
2-4-1 FS FREQUENCY SELECT ( Y SW1 DIP5~DIP8) ......................... 21
2- 5 JUMPER SETTING FOR DEVICES ON OARD: ..................... 22
2-5-1 JUMPER J AT1 FOR CLEARING CMOS DATA: ............................. 22
2-5-2 US 2 HEADER SELECT-1 ( Y JP3/JP4) ........................................ 23
2-5-3 ON OARD AC’97 CODEC SELECT ( Y JP5/JP9) .......................... 23
2-5-4 US 1 SELECT-2 ( Y JP6/JP7) ....................................................... 24

Content
5
2-5-5 POWER LOST RESUME ( Y JP8) ................................................... 24
2-5-6 FACTORY TEST ( Y JP14) .............................................................. 25
2-6 CONNECTORS CONFIGURATIONS ......................................... 26
2-6-1 ON OARD FAN CONNECTOR (FAN1/FAN2) .................................. 26
2-6-3 WAKE ON LAN (JWOL1) .................................................................. 27
2-6-2 CD-ROM AUDIO CONNECTOR (CD_IN1/CD_IN2) ......................... 27
2-6-4 THERMAL SENSOR CONNECTOR (RT2) ....................................... 28
2-6-5 COMPLEX HEADER J2&J3 ............................................................. 29
2-6-6 CHASSIS PANEL CONNECTOR ...................................................... 30
2-6-7 ATX POWER SUPPLY CONNECTOR .............................................. 31
2-6-8 PS/2 MOUSE AND PS/2 KEY OARD .............................................. 31
2-6-9 SECOND US HEADER (US 2) ...................................................... 32
2-6-10 IRQS DESCRIPTION FOR VARIOUS DEVICES............................ 33
CHAPTER 3 SOFTWARE SETUP .................................35
3-1 VIA CHIPSET DRIVER INSTALLATION (4-IN-1 DRIVER) ......... 36
3-2 AC97 AUDIO CODEC DRIVER INSTALLATION ........................ 39
3-3 HARDWARE MONITOR DRIVER INSTALLATION .................... 40
CHAPTER 4 BIOS SETUP ............................................. 42
4-1 WHAT IS IOS SETUP ............................................................... 43
4-2 HOW TO RUN IOS SETUP ...................................................... 43
4-3 WHAT IS CMOS ......................................................................... 43
4-4 WHAT IS POST .......................................................................... 43
4-5 IOS UPGRADE......................................................................... 43
4-5-1 EFORE UPGRADING IOS ........................................................... 44
4-5-2 UPGRADE PROCESS ...................................................................... 44
4-6 IOS SETUP-- CMOS SETUP UTILITY ..................................... 48
4-6-1 STANDARD CMOS SETUP .............................................................. 49
4-6-2 ADVANCED IOS FEATURES ......................................................... 52
4-6-3 ADVANCED CHIPSET FEATURES .................................................. 57

65KV2-T
6
4-6-4 INTEGRATED PERIPHERALS ......................................................... 63
4-6-5 POWER MANAGEMENT SETUP ..................................................... 67
4-6-6 PNP / PCI CONFIGURATION ........................................................... 74
4-6-7 PC HEALTH STATUS ........................................................................ 77
4-6-8 FREQUENCY/VOLTAGE CONTROL ................................................ 78
4-6-9 LOAD OPTIMIZED DEFAULTS......................................................... 80
4-6-10 SET SUPERVISOR / USER PASSWORD ...................................... 81
4-6-11 SAVE & EXIT SETUP ...................................................................... 82
4-6-12 EXIT WITHOUT SAVING ................................................................ 82
APPENDICES ................................................................. 83
APPENDIX-1 TECHNICAL TERMS INTRODUCTION .................... 84
APPENDIX-2 IDENTIFYING IOS VERSION AND IOS PART
NUM ER.................................................................... 85
APPENDIX-3 IDENTIFYING MAIN OARD / MODEL NUM ER ..... 87

Content
7
Mainboard
Support CD
User’s Manual
undled onus Pack CD
undled onus Pack Manual
Temperature Sensor Cable
ATA66/100 IDE Cable
RS232 Cable
FDD Cable
======ITEM LIST CHECKUP

65KV2-T
8
CHAPTER 1
INTRODUCTION
• This chapter briefly introduces the characteristics of this mainboard. It
includes the information regarding the chipset, CPU types, built-in
functions and layout. Users will have more ideas about mainboards after
reading this chapter.
1-1 MAINBOARD SPECIFICATION
1-2 MAINBOARD LAYOUT
1-3 CHIPSET DIAGRAM
THIS CHAPTER CONTAINS THE FOLLOWING TOPICS :

Chapter 1 Introduction
9
1- 1 MAINBOARD SPECIFICATION
1-1-1 CPU
• Supporting Intel® FC-PGA Pentium!!!TM up to 1GHz.
• Supporting Intel® FC-PGA 370 Celeron up to 850MHz.
• Supporting Intel® FC-PGA2 Tualatin processors.
• Supporting VIA Cyrix!!! up to 800MHz.
• Supporting 66 to 200 MHz system bus speed.
• Supporting CPU voltage Auto-Detect circuit.
1-1-2 CHIPSET
• North ridge - VIA VT82C694T.
• South ridge - VIA VT82C686 .
1-1-3 ADVANCED HIGH-PERFORMANCE DRAM
CONTROLLER
• Supporting FP, SDRAM, and VCM SDRAM memory types up to 3 DIMMs.
• 64-bit data width and 3.3V DRAM interface.
• Supporting up to 1.5 G memory space.
• Different DRAM types may be used in mixed combinations.
• PCI-2.2 compliant, 32 bit 3.3V PCI interface with 5V tolerant inputs .
• DRAM interface synchronous with host CPU (66/100/133 MHz) or AGP
(66MHz) for most flexible configuration.
• DRAM interface may be faster than CPU by 33MHz to allow use of PC100
memory modules with 66MHz Celeron or use of PC133 with 100MHz
Pentium III.
• DRAM interface may be slower than CPU by 33 MHz to allow use of older
memory modules with newer CPUs (e.g., PC66 memory modules with
100 MHz Pentium III).
1-1-4 FULL FEATURED ACCELERATED GRAPHICS PORT
(AGP) CONTROLLER
• Synchronous and pseudo-synchronous with the host CPU bus with
optimal skew control PCI AGP CPU Mode 33/66/100 MHz DDR 3x
synchronous.
• Supporting 66MHz 1x/2x/4x modes for AD and S A signaling.
• AGP v2.0 compliant.

65KV2-T
10
1-1-5 MULTI-I/O FUNCTION
• Two Ultra DMA-33 / 66 / 100 Master Mode PCI EIDE ports.
• Two UARTs for Complete Serial Ports.
• One dedicated IR connector:
--- Third serial port dedicated to IR function either through the two complete serial
ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK (Amplitude
Shift Keyed) IR.
• Multi-mode parallel connector supporting:
--- Standard mode, ECP and EPP.
• Floppy Disk connector supporting:
--- Two FDDs with drive swap function.
• Universal Serial us connector supporting:
--- US v1.1 and Intel Universal HCI v1.1 compatible.
--- 2 built-in US connectors, in addition to one internal US header which requires
a US cable to support 2 more optional US ports.
• PS/2 Keyboard connector.
• PS/2 Mouse connector.
1-1-6 EXPANSION SLOTS
• Five PCI bus Mater slots.
• One ISA slot.
• One AMR slot.
• One AGP 4x mode slot.
• Three DIMM slots.
1-1-7 AWARD BIOS V6.0, SUPPORTING
• Plug & Play V1.0.
• Flash Memory for easy upgrade.
• Year 2000 compliant.
• IOS writing protection.
1-1-8 SOUND CONTROLLER
• Sound laster Pro Hardware and Direct Sound Ready AC’97 Digital
Audio Controller with Codec onboard.

Chapter 1 Introduction
11
1-1-9 POWER MANAGEMENT
• ACPI 1.0 compliant (Advanced Configuration and Power Interface).
• APM V1.2 compliant (Legacy power management).
• System event monitoring with two event classes.
• Supporting PS/2 Keyboard & Mouse power on.
• Supporting Wake On LAN (WOL) & Wake On Modem.
• Supporting real time clock (RTC) with date alarm, month alarm, and
century field.
1-1-10 FORM FACTOR
• ATX form factor, 4 layer PC .
• Motherboard size: 19.0cm X 30.5cm.
1-1-11 HARDWARE MONITORING
• Programmable control, status, to provide monitoring and alarm for flexible
desktop management of hardware temperature. (software included in
support CD).
• 5 positive voltage statuses monitoring.
• 2 fan speeds statuses monitoring.
• 2 temperature statuses monitoring.
1-1-12 OTHERS
• Clock generator supporting 1 MHz linear clock setting.

65KV2-T
12
1-2 MOTHERBOARD LAYOUT --- 65KV2-T
1 3
1 3
JP6
JP7
3
1
3
1
JP8 JP9
1 3
1 3 1 3
1 4
1 4
JP3
JP4 JP5
3
1
JBAT1
FAN2
FAN1
LPT1
COM2 COM1
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
JWOL1
SW1
CD_IN2
CD_IN1
AMR
AGP 4X
ISA
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
DIMM1 DIMM2 DIMM3
FDC1 IDE2 IDE1
SOCKET 370
RT2
JP14
RT1
ATX POWER
FLASH BIOS
Li
Battery
USB2
1
16
AC'97
Codec
Clock
Generator
ON DIP
1 2 3 4 5 6 7 8
PS/2 MOUSE PS/2 K/B
upper
lower
USB1 USB0
upper
lower
VIA
VT82C
694T
VIA
VT82C
686B
SPK RST PWR/LED SUSLED
HDD/LED IR PWR SMI
J2 J3
++
--
+-
1 15 1 15
FAN3

Chapter 1 Introduction
13
1-3 CHIPSET SYSTEM BLOCK DIAGRAM
Diagram of Pro133T System Block Using t e VT82C686B Sout Bridge
VT82C
694T
Pro133T
Nort Bridge
552 BGA
Super Sout
Sout Bridge
352 BGA
VT82C
686B
Power Plane & Perip eral Control
GPIO and ACPI Events
Hardware Monitoring Inputs
Keyboard / PS2 Mouse
Serial Ports 1 and 2
Parallel Port
Floppy Drive Interface
MIDI / Game Ports
RTC Crystal
PCLK
SMBus
Clock
Generator
PCISTP#
CPUSTP#
MCLK
SDRAM
Clock
Buffer
GCLK
SMIACT#
AGP Bus
PCI Bus
SUSCLK,
SUSST1#
PCKRUN#
ATA 33/66/100
USB Ports 0 - 3
ISA Bus
AC97 Link
Memory Bus
CKE#
HCLK
PCLK
HCLK
SMI#, STPCLK#, SLP#
Socket-370 or
Slot-1 Host CPU
3D Grap ics
Controller
AC97 Audio Codec
BIOS ROM

65KV2-T
14
MEMO
MEM
O

Chapter 2 Hardware Setup
15
CHAPTER 2
ATTENTION !!!
1. Please refer to your processor installation or ot er
documentation attac ed wit your CPU for more
detailed installing instruction.
2. Installing a eat sink and cooling fan is necessary for
proper eat dissipation from your CPU. Incorrect
installation may result in over eating and damage of
your CPU.
3. Before c anging t e setting of CPU Vcore from BIOS
program, user SHOULD make sure of correct specifi-
cation bot of CPU CLOCK and RATIO. Incorrect set-
ting may cause damage to your CPU.
HARDWARE SETUP
2-1 CPU INSTALLATION
2-2 MEMORY INSTALLATION
2-3 HDD/FDD INSTALLATION
2-4 FOR CPU FREQUENCY AND VOLTAGE
2-5 FOR DEVICE ON BOARD
2-6 CONNECTORS CONFIGURATION
THIS CHAPTER CONTAINS THE FOLLOWING TOPICS :

65KV2-T
16
2- 1 CPU INSTALLATION
WARNING !!!
Never run you processor without the heat sink properly and firmly
attached.
PERMANENT DAMAGE ILL RESULT!
SOCKET 370
• Pull out the lever from the
socket, and then raise the le-
ver up to a 90-degree angle.
1
SOCKET 370
• Take notice of the red circles
as shown below. While in-
serting the CPU into the
socket, you can find out
there is a definite pin orien-
tation for CPU and socket.
2
SOCKET 370
• Make sure that the CPU is
placed into the socket tightly.
Then lower down the lever
to complete the CPU
installation.
3

Chapter 2 Hardware Setup
17
Installing DIMM
• Make sure you have the correct memory module type for your mainboard.
• Insert the module(s) as shown below, DIMMs have 168-pins and two
notches that will be matched by the onboard DIMM socket. Memory mod-
ules are installed by inserting them straight into the slot until they “click” in
the right place. They only fit in one direction, so do not force them in by a
wrong direction.
Removing DIMM
• Press down the holding clips on both sides of a DIMM socket and the
module will be released from it.
WARING !!!
• Make sure that you unplug your power supply when adding or removing
memory modules or other system components, failure to do so may
cause severe damage to both your mainboard and expansion cards.
• Be careful when inserting or removing DIMM, forcing a DIMM in or
out of a socket can be damaged the memory module or the socket. Some
of DIMMs contain EDO or FTP DRAM that accept only 5V power. These
DIMM types are incompliant with the mainboard, the M/B only supports
3.3V true SDRAM DIMMs.
2- 2 MEMORY INSTALLATION
168-Pin DIMM Notc Key Definitions(3.3V)
DRAM Key Position Voltage Key Position
Unbuffered 3.3V

65KV2-T
18
2- 3 HDD/FDD INSTALLATION
• To install HDD (Hard Disk Drive), you may connect the cable’s blue
connector to the mainboard’s primary (IDE1) or secondary IDE connector,
and then connect the gray connector to your slave device and the black
connector to your master device. If you install two hard disks , you must
configure the second drive to Slave mode by setting its jumper accordingly.
Please refer to your hard disk documentation for the jumper settings.
black connector
gray connector
blue connector
IDE Cable
red line
Hard Disk Drive Connector:
Orient the red line on the IDE ribbon
cable to Pin1.
1 3
1 3
JP6
JP7
3
1
3
1
JP8 JP9
1 3
1 3 1 3
1 4
1 4
JP3
JP4 JP5
3
1
JBAT1
FAN2
FAN1
LPT1
COM2 COM1
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
JWOL1
SW1
CD_IN2
CD_IN1
AMR
AGP 4X
ISA
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
DIMM1 DIMM2 DIMM3
FDC1 IDE2 IDE1
SOCKET 370
RT2
JP14
RT1
ATX POWER
FLASH BIOS
Li
Battery
USB2
1
16
AC'97
Codec
Clock
Generator
ON DIP
1 2 3 4 5 6 7 8
PS/2 MOUSE PS/2 K/B
upper
lower
USB1 USB0
upper
lower
VIA
VT82C
694T
VIA
VT82C
686B
SPK RST PWR/LED SUSLED
HDD/LED IR PWR SMI
J2 J3
++
--
+-
1 15 1 15
FAN3

Chapter 2 Hardware Setup
19
FDD Cable
To 1st Floppy Drive To mainboard
To 2nd Floppy Drive
red line
• To install FDD (Floppy Disk Drive), connect the end with single connector
to the mainboard, and connect other end with two connectors to the floppy
drives.
Floppy Disk Drive Connector:
Orient the red line on the
floppy ribbon cable to Pin1.
1 3
1 3
JP6
JP7
3
1
3
1
JP8 JP9
1 3
1 3 1 3
1 4
1 4
JP3
JP4 JP5
3
1
JBAT1
FAN2
FAN1
LPT1
COM2 COM1
GAME/MIDI PORT
LINE OUT
LINE IN
MIC
JWOL1
SW1
CD_IN2
CD_IN1
AMR
AGP 4X
ISA
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
DIMM1 DIMM2 DIMM3
FDC1 IDE2 IDE1
SOCKET 370
RT2
JP14
RT1
ATX POWER
FLASH BIOS
Li
Battery
USB2
1
16
AC'97
Codec
Clock
Generator
ON DIP
1 2 3 4 5 6 7 8
PS/2 MOUSE PS/2 K/B
upper
lower
USB1 USB0
upper
lower
VIA
VT82C
694T
VIA
VT82C
686B
SPK RST PWR/LED SUSLED
HDD/LED IR PWR SMI
J2 J3
++
--
+-
1 15 1 15
FAN3

65KV2-T
20
2-4 CPU BUS RATIO SELECT (BY SW1 DIP1~DIP4)
• Normally, the us Ratio (Frequency Multiplier) of your processor is locked
by processor’s Vendor and setting of the CPU us Ratio will have no
effect.
• The us Ratio Setting is available on unlocked processors only.
SW1 DIP1 ~ DIP4 SETTING
5.5x 6.0x 6.5x
7.0x 7.5x
8.5x 9.5x
11.0x10.5x
8.0x
9.0x
10.0x
11.5x 12.0x
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
ON DIP
1 2 3 4 5 6 7 8
(default)
