Sonel MRU-120HD User manual

USER MANUAL
EARTH RESISTANCE METER
MRU-120HD
SONEL S.A.
Wokulskiego 11
58-100 Świdnica
Version 1.04 28.07.2021

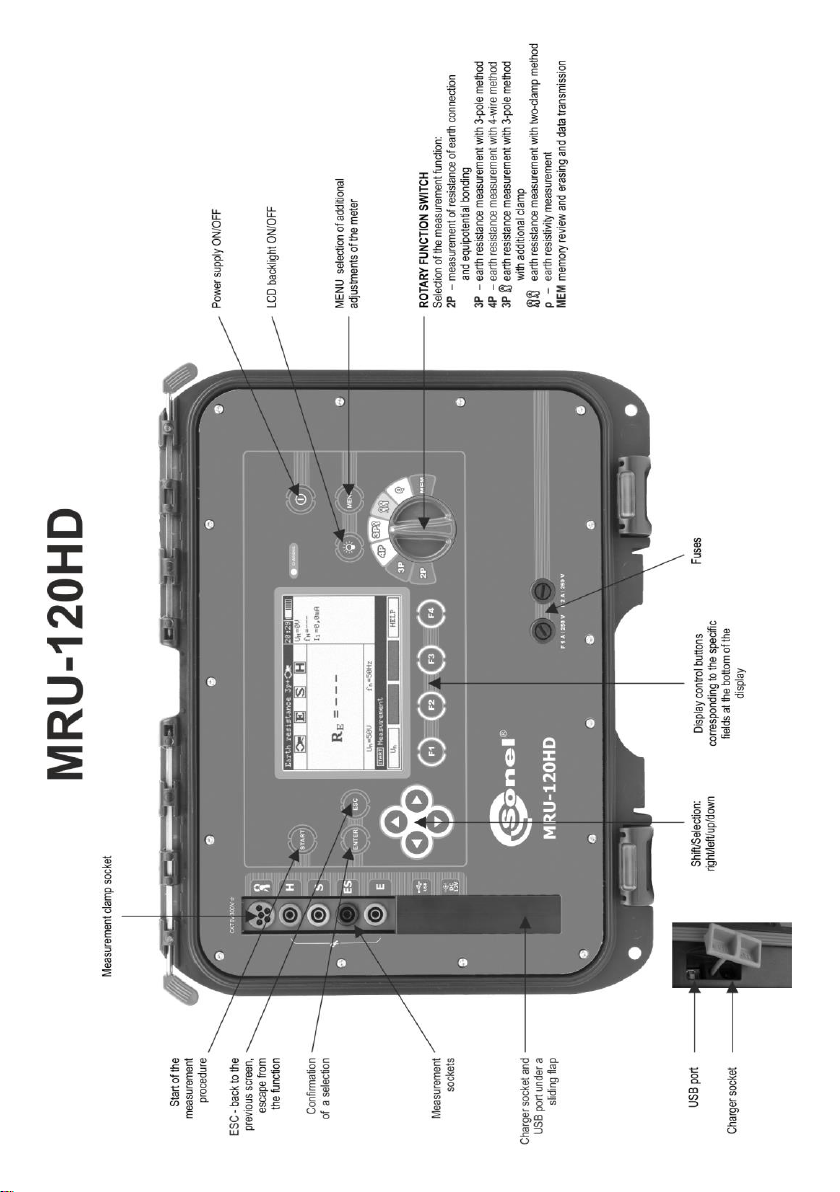

MRU-120HD –USER MANUAL
2
The MRU-120HD meter is a modern, easy and safe measuring device. Please acquaint yourself with
the present manual in order to avoid measuring errors and prevent possible problems related to oper-
ation of the meter.

MRU-120HD –USER MANUAL
3
CONTENTS
1Safety ................................................................................................................5
2Menu..................................................................................................................6
2.1 Measurement settings.............................................................................................. 6
2.1.1 Mains frequency................................................................................................................7
2.1.2 Calibration of the measurement clamp C-3 .......................................................................7
2.1.3 Earth resistivity settings.....................................................................................................9
2.2 Meter settings...........................................................................................................9
2.2.1 LCD contrast...................................................................................................................10
2.2.2 AUTO-OFF settings ........................................................................................................10
2.2.3 Display settings...............................................................................................................10
2.2.4 Date and time..................................................................................................................10
2.2.5 Battery discharging .........................................................................................................11
2.2.6 Program update ..............................................................................................................11
2.3 Language choice.................................................................................................... 11
2.4 Information on the manufacturer............................................................................ 11
3Measurements................................................................................................12
3.1 Measurement of resistance of earth connection and equipotential bonding (2P)......... 12
3.2 Calibration of the test leads.................................................................................... 14
3.2.1 Auto-zeroing on...............................................................................................................14
3.2.2 Auto-zeroing off...............................................................................................................15
3.3 Earth resistance measurement with 3-pole method (RE3P) ................................... 16
3.4 Earth resistance measurement with 4-wire method (RE4P).................................... 19
3.5 Earth resistance measurement with 3-pole method with additional clamp (RE3P+C)... 22
3.6 Earth resistance measurement with two-clamp method (2C)................................. 25
3.7 Earth resistivity measurement (ρ)........................................................................... 27
4Memory ...........................................................................................................30
4.1 Saving of the measurement results in the memory................................................ 30
4.2 Memory erasing ..................................................................................................... 31
4.3 Memory browsing................................................................................................... 32
5Data transmission..........................................................................................33
5.1 Computer connection accessories......................................................................... 33
5.2 Connection of the meter to a computer.................................................................. 33
6Power supply..................................................................................................34
6.1 Monitoring of the power supply voltage.................................................................. 34
6.2 Fuse replacement .................................................................................................. 34
6.3 Charging of rechargeable batteries........................................................................ 35
6.4 Discharging of rechargeable batteries.................................................................... 36
6.5 General principles regarding using Ni-MH rechargeable batteries......................... 37
7Cleaning and maintenance ...........................................................................38
8Storage............................................................................................................38
9Dismantling and disposal .............................................................................38
10 Technical data................................................................................................39

MRU-120HD –USER MANUAL
4
10.1 Basic data .............................................................................................................. 39
10.2 Additional data ....................................................................................................... 41
10.2.1 Influence of the serial interference voltage UNupon earth resistance measurements for
functions RE3P, RE4P, RE3P+C.......................................................................................41
10.2.2 Influence of the serial interference voltage UNupon earth resistance measurements for
function ρ........................................................................................................................41
10.2.3 Influence of the auxiliary electrodes upon earth resistance measurements for
function RE3P, RE4P, RE3P+C.........................................................................................41
10.2.4 Influence of the auxiliary electrodes upon earth resistance measurements for function ρ41
10.2.5 Influence of the interference current Ilupon the result of the earth resistance measurement
RE3P+C...........................................................................................................................42
10.2.6 Influence of interference current upon the result of the earth resistance measurement
using two clamps.............................................................................................................42
10.2.7 Influence of the relation of the resistance measured with clamp for the multiple earthing
branch to the resultant resistance (3P + clamp)...............................................................42
10.2.8 Additional uncertainties in accordance with IEC 61557-4 (2P).........................................42
10.2.9 Additional uncertainties in accordance with IEC 61557-5 (RE3P, RE4P, RE3P+C)...........43
11 Accessories....................................................................................................43
11.1 Standard accessories (non-Australian model version)........................................... 43
11.2 Standard accessories (Australian model version).................................................. 43
11.3 Optional accessories.............................................................................................. 44
12 Manufacturer ..................................................................................................46
13 Laboratory services.......................................................................................47

MRU-120HD –USER MANUAL
5
1 Safety
The MRU-120HD meter has been designed to realize measurements whose results determine
the safety conditions of the installation. Therefore, in order to provide conditions for correct operation
and the correctness of the obtained results, the following recommendations must be observed:
Before you proceed to operate the meter, acquaint yourself thoroughly with the present
manual and observe the safety regulations and specifications determined by the producer,
in particular concerning accessories.
The MRU-120HD meter has been designed for the purpose of measurements of earth connection
and equipotential bonding, ground resistivity, as well as clamps current measurements. Any appli-
cation that differs from those specified in the present manual may result in a damage to the device
and constitute a source of danger for the user.
The device must be operated solely by appropriately qualified personnel with relevant certificates
to realize measurements of electric installation. Operation of the meter realized by unauthorized
personnel may result in damage to the device and constitute a source of danger for the user.
Using this manual does not exclude the need to comply with occupational health and safety regu-
lations and with other relevant fire regulations required during the performance of a particular type
of work. Before starting the work with the device in special environments, e.g. potentially fire-
risk/explosive environment, it is necessary to consult it with the person responsible for health and
safety.
It is unacceptable to operate the following:
a damaged meter which is completely or partially out of order,
a meter with damaged test leads insulation,
a meter stored for an excessive period of time in disadvantageous conditions (e.g. exces-
sive humidity). If the meter has been transferred from a cool to a warm environment of
a high level of relative humidity, do not realize measurements until the meter has
been warmed up to the ambient temperature (approximately 30 minutes).
Before measurements may commence, make sure the test leads are connected to the appropriate
measurement sockets.
The meter’s inputs are electronically protected from power surge, as a result for example, of acci-
dental connection to the power supply source:
- for all input combinations –up to 276 V for 30 seconds.
Repairs may be realized solely by an authorized service point.
The device complies with the following norms: EN 61010-1 and EN 61557-1, -4, -5.
The manufacturer reserves the right to modify the appearance, accessories and tech-
nical data of the meter.

MRU-120HD –USER MANUAL
6

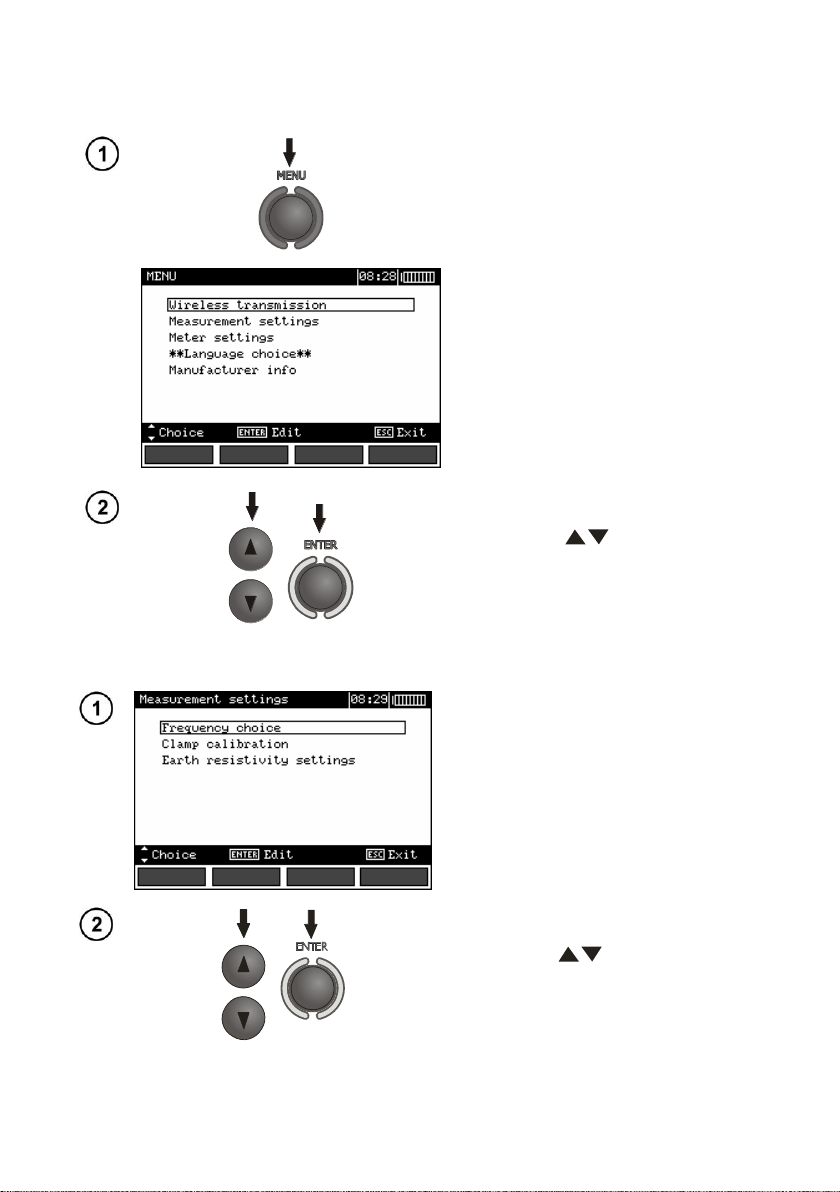

2 Menu
The menu is available at any position of the knob.
Press MENU.
Using buttons highlight
the required position.
Press ENTER to select the option.
2.1 Measurement settings
Using buttons highlight
the required position.
Press ENTER to select the option.

MRU-120HD –USER MANUAL
7

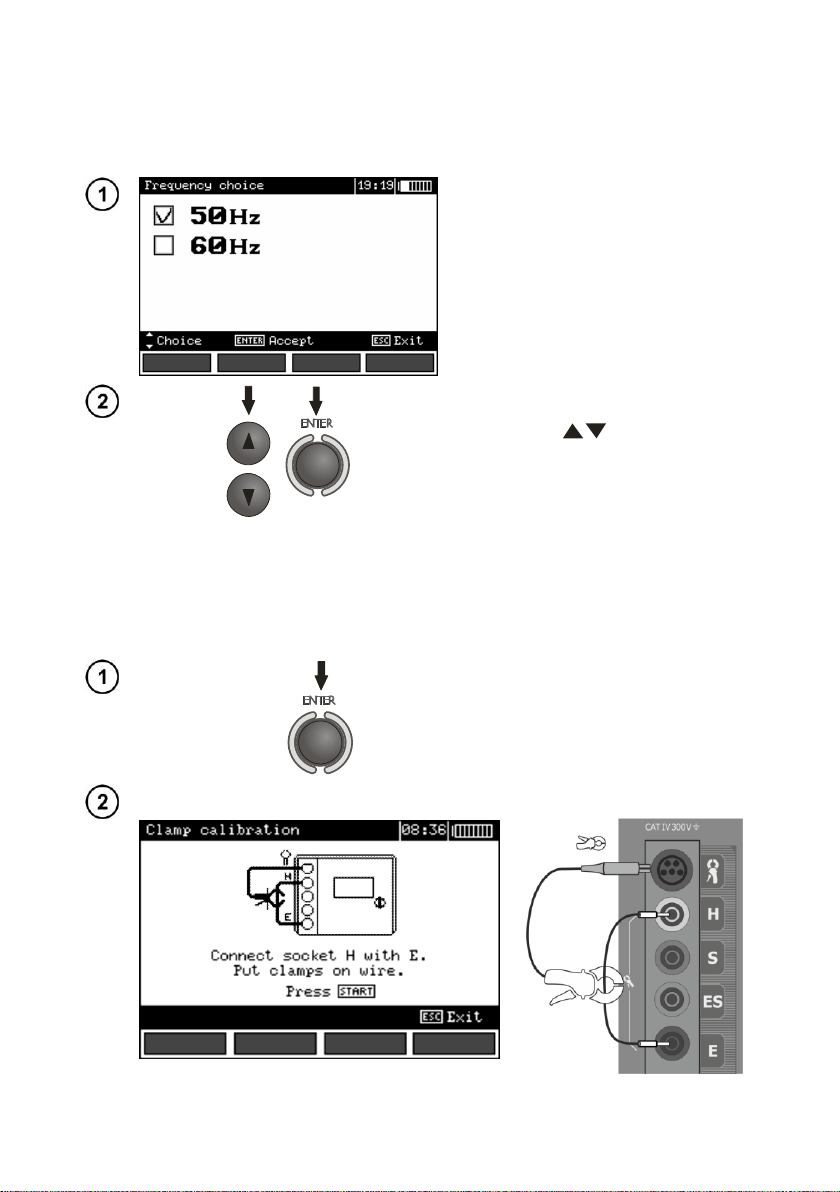

2.1.1 Mains frequency
It is necessary to determine the frequency of the mains which is the source of potential interfer-
ence in order to select the appropriate frequency of the measurement signal. Solely measurements
based upon the correct frequency of the measurement signal will guarantee the optimum interference
filtering. The meter is adapted for filtering of interference from 50 Hz and 60 Hz networks.
Using buttons select
the frequency and
press ENTER to select the option.
2.1.2 Calibration of the measurement clamp C-3
The clamp bought apart for a meter that was purchased before must be calibrated before it is
used for the first time. It may be periodically calibrated in order to avoid the influence of the ageing el-
ements upon the resolution of measurements. The procedure of calibration must be realized also after
clamp has been replaced.
Having read the preliminary infor-
mation ENTER.
Follow the displayed instructions.

MRU-120HD –USER MANUAL
8
Once the calibration has been successfully concluded, the following will be displayed.
The meter has determined the correction factor for connected clamp. The factor is saved in the
memory also when the power supply of the meter is off until the following successful calibration of the
clamp has been performed.
Notes:
- Make sure the test lead passes centrally through the clamp.
Additional information displayed by the meter
Message
Cause
Procedure
ERROR: CLAMP NOT CONNECTED
OR NOT PUT ON WIRE
CONNECTED TO H AND E SOCKET!
CALIBRATION ABORTED.
PRESS ENTER
The clamp is not
connected
Check whether the
clamp is connected
to the device or
whether it is placed
upon the test lead
used by the meter
to force the passage
of current.
ERROR: WIRE NOT CONNECTED
TO H AND E TERMINAL!
CALIBRATION ABORTED.
PRESS ENTER
No wire
Revise the connec-
tions
ERROR: CALIBRATION
COEFFICIENT OUT OF RANGE.
CALIBRATION ABORTED.
PRESS ENTER
Incorrect calibra-
tion factor
Check the quality of
the connections
and/or replace the
clamp.

MRU-120HD –USER MANUAL
9
2.1.3 Earth resistivity settings
Using buttons ▲▼◄►select
the result and the distance unit
and press ENTER to confirm.
2.2 Meter settings
Using buttons select re-
quired item. Press ENTER to
confirm.

MRU-120HD –USER MANUAL
10
2.2.1 LCD contrast
Using the buttons set the contrast value and press ENTER.
2.2.2 AUTO-OFF settings
The setting determines the time before the automatic turning-off of the device when it is not in use.
Use buttons to set the time or AUTO-OFF disable, press ENTER.
2.2.3 Display settings
The setting permits to turn on/off the setting bar display. Use buttons to set the display of
the setting bar (measurement parameters), press ENTER.
Visible bar
Hidden bar
2.2.4 Date and time
Use buttons to select the
value to be modified (Day,
month, hour, minute).
Use buttons to set the
value. Once the date and time
have been set, press ENTER.

MRU-120HD –USER MANUAL
11
2.2.5 Battery discharging
The procedure is fully described in chapter 6.4.
2.2.6 Program update
NOTE!
Before you proceed to programming, charge the rechargeable batteries.
During programming do not turn the meter off or disconnect the transmission cable.
Before you proceed to updating the program download from the manufacturer’s web page
(www.sonel.pl) the meter programming software, install it in the computer and connect the meter to the
computer.
Having chosen the Program update in the MENU, proceed in accordance with the instructions
displayed by the program.
2.3 Language choice
Use buttons to select **Language choice** in the main MENU and press ENTER.
Use buttons to select the language and press ENTER.
2.4 Information on the manufacturer
Use buttons in order to select Product info and press ENTER.

MRU-120HD –USER MANUAL
12
3 Measurements
During measurements the status bar is displayed.

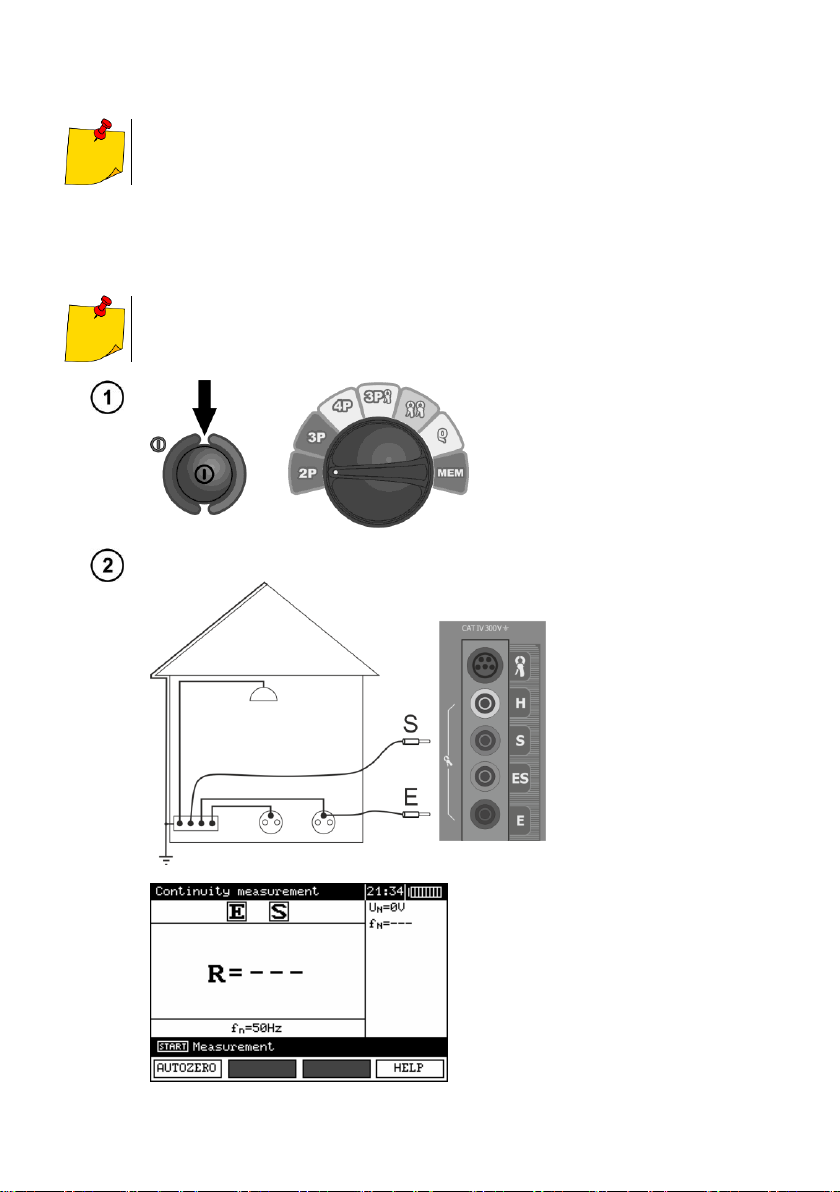

3.1 Measurement of resistance of earth connection and equipotential
bonding (2P)
The measurement complies with the requirements specified in the norm EN 61557-4
(U < 24 V, I > 200 mA for R ≤ 10 Ω).

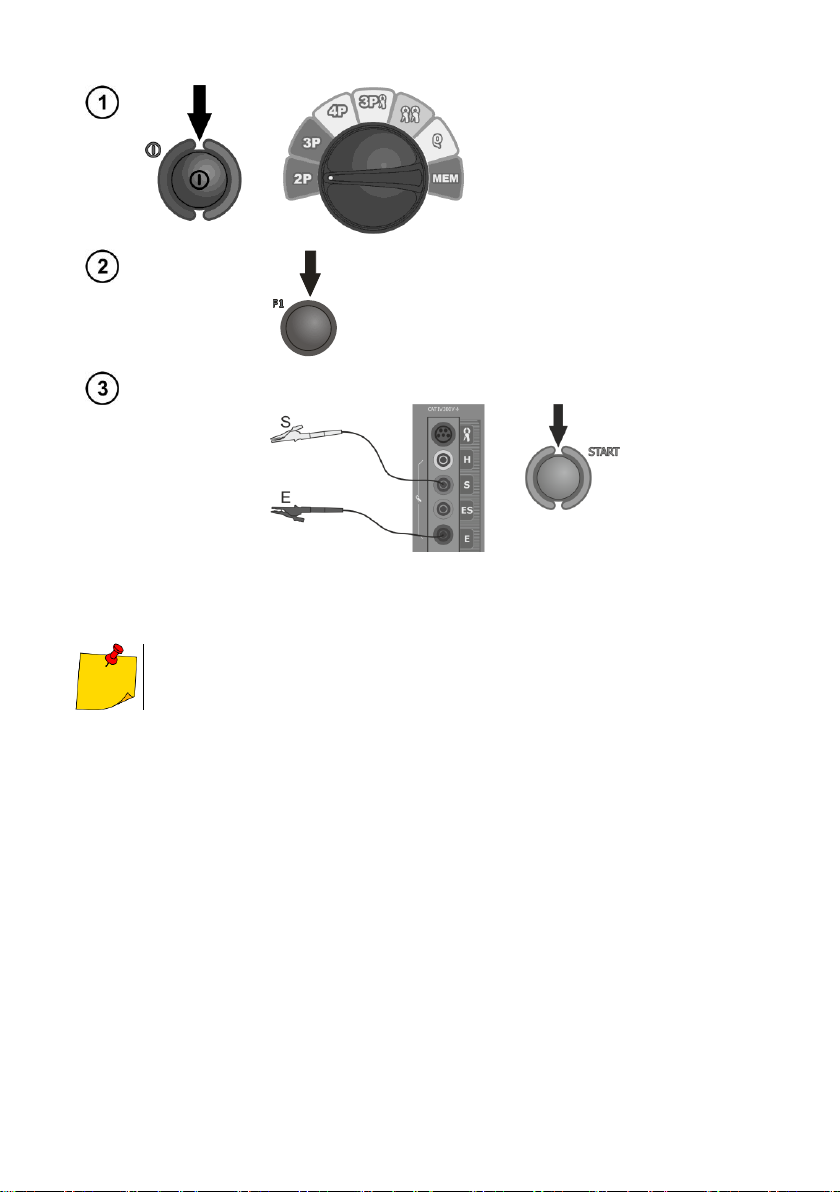

Turn the meter on.
Set the rotational
function selector at 2P.
Connect the object being measured to the terminals Sand Eof the meter.
The meter is ready for measurement.
The auxiliary display shows the value
of the interference voltage and fre-
quency. The setting bar shows the
mains frequency set in the MENU.

MRU-120HD –USER MANUAL
13
Press START in order for the test to
commence.
Read out the result.
The result is displayed for 20 s.
It may be displayed again when ENTER is pressed.
Additional information displayed by the meter
R>20,0kΩ
Measurement range exceeded
UN>40V! and a con-
tinuous sonic signal

The voltage on the measurement points exceeds 40 V,
the measurement is blocked
UN>24V!
The voltage on the measurement points exceeds 24 V
but it is lower than 40 V, the measurement is blocked
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty

MRU-120HD –USER MANUAL
14
3.2 Calibration of the test leads
In order to eliminate the influence of the resistance of the test leads over the result of the
measurement, it is possible to realize its compensation (auto-zeroing). In order to do so the measure-
ment function 2P includes the AUTOZERO subfunction.
3.2.1 Auto-zeroing on
Turn the meter on.
Set the rotational
function selector at 2P.
Press F1.
Follow the displayed instructions.
Once the auto-reset function has concluded the following will be displayed:
Auto-zeroing is signaled by the legend AUTOZERO on the right-hand side of the dis-
play.

MRU-120HD –USER MANUAL
15
3.2.2 Auto-zeroing off
Turn the meter on.
Set the rotational
function selector at 2P.
Press F1.
Separate the test leads. Press START.
Once the auto-zeroing function has been turned off, the legend AUTOZERO will be
no longer displayed.
It is sufficient to realize compensation once for the given test leads. It is also remem-
bered once the meter has been turned off.

MRU-120HD –USER MANUAL
16
3.3 Earth resistance measurement with 3-pole method (RE3P)
The basic kind of the earth resistance measurement is three-pole measurement.
Disconnect the tested earth electrode for the object installation.
Turn the meter on.
Set the rotational
function selector at 3P.
Connect the current electrode driven into ground to the Hsocket of the meter.
Connect the voltage electrode driven into ground to the Ssocket of the meter.
Connect the tested earth electrode to the Esocket of the meter.
The tested earth electrode as well as the current electrode and voltage electrode
should be aligned.
The meter is ready for measurement.
The auxiliary display shows the value
of the interference voltage and fre-
quency. The setting bar shows the
mains frequency set in the MENU.

MRU-120HD –USER MANUAL
17
Press F1 in order to modify the
measuring voltage.
Use buttons to set the meas-
uring voltage and press ENTER.
Press START in order for the test to
commence measurement.
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by the
resistance of the electrodes
Displayed, when δ>30%
The result is displayed for 20 s. It
may be displayed again when
ENTER is pressed.
S
Repeat the measurements (see points 3, 7 and 8) moving
the voltage electrode by a couple of meters: approaching it to
and moving it away from the tested earth electrode.
If the REtest results differ more than 3%, then it is necessary
to increase significantly the distance between the current
electrode from the earth electrode in question and repeat the
measurement.

MRU-120HD –USER MANUAL
18
NOTE!
Earth resistance measurement may be realized if the interference voltage does not
exceed 24 V. The interference voltage is measured up to 100 V. Do not connect the
meter to a voltage exceeding 100 V.
Pay particular attention to the quality of the connection of the tested object with the
test leads –the contact area must be cleaned of paint, rust, etc.
If the resistance of the auxiliary electrodes is too high, then the measurement of the
REearth electrode will be distorted by additional uncertainty. A particularly high
measurement uncertainty is generated if we measure a low value of the earth re-
sistance with electrodes of a weak contact with the ground (such a situation occurs
often if the earth electrode is properly made and the upper layer of the ground is dry
and characterized by a low conductivity). Then the relation between the electrode
resistance and the resistance of the measured earthing is very high, and so is the
case of the measurement uncertainty which depends on it. What may be done then
is to perform, in accordance with the formulae specified in chapter 10.2, calcula-
tions, which will permit to evaluate the influence of the measurement conditions. It is
also possible to improve the contact of the electrode with the ground, for example by
means of moistening of the place when the electrode is driven, its driving into the
ground in another place or using a 80-centimeter electrode. Check also the test
leads and make sure the insulation is not damaged and the contacts: test lead –ba-
nana plug –electrode are not corroded or loosened. In most cases the achieved
resolution of the measurement is sufficient, but it is necessary to be conscious of the
uncertainty the measurement is burdened with.
If the resistance of Hand Selectrodes or one of them exceeds 19.9 kΩ, an appro-
priate message is displayed: "R_H and R_S electrodes resistance are higher
than 19.9 kΩ! Measurement impossible!".
Manufacturer’s calibration doesn’t include the resistance of test leads. Displayed re-
sult is sum of measured object and test leads resistance.
Additional information displayed by the meter
RE>20,0kΩ
Measurement range exceeded.
UN>40V! and a con-
tinuous sonic signal

The voltage on the measurement points exceeds 40 V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24 V
but lower than 40 V, the measurement is blocked.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncer-
tainties calculated on the basis of the measured values)
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
