Sony DR-BT1 User manual

DR-BT1/BT1K
US Model
SERVICE MANUAL
BLUETOOTH EARSET SYSTEM
SPECIFICATIONS
Ver. 1.1 2005.01
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
9-879-223-02
2005A02-1
© 2005.01
General
Bluetooth Compliance: Bluetooth standard Ver. 1.1
Output power: Bluetooth standard Power Class2
Frequency band: 2.4GHz band ( 2.4000 GHz – 2.4835
GHz )
Max. Communication range:
Line of sight approx. 10 m
Supplied accessory: AC power adaptor (1),
Hanger (S) (1), Car attachment (1)
Battery charger (1) (BT1 only)
Bluetooth earset DR-BT1
Supported Bluetooth Profiles:
Headset Profile, Hands-free Profile
Power source: DC 3.7 V: Built-in Li-ion rechargeable
battery
Typical Talk time: 7 hours
Typical Standby Time: 160 hours
Mass: Approx. 20 g
Receiver
Type: Open air, dynamic
Driver unit: 13.5 mm dome type (CCAW Voice
Coil)
Sensitivity: 104 dB/mW
Impedance: 16 Ωat 1 kHz
Power handling capacity: 50 mW (IEC)
Reproduction frequency range:
50 – 20,000 Hz
Microphone
Type: Flexible pipe microphone
Unit: Electret condenser
Output impedance: Under 2.2 kΩ
Open circuit voltage level: -42 dB(0 dB = 1 V/Pa)
Effective frequency range: 100 – 5,000 Hz
Bluetooth earset adaptor DRC-BT1 (BT1K only)
Supported Bluetooth Profiles:
Headset Profile
Power source: DC 1.2 V: Built-in Ni-MH rechargeable
battery
Typical Talk time: 5 hours
Typical Standby Time: 100 hours
Cord: 0.20 m (Max. stretch length 0.7m)
Plug: 2.5 mm tri-pole plug
Mass: Approx. 35 g (without cord)
Design and specifications are subject to change without notice.
Photo : DR-BT1K

DR-BT1/BT1K
2
TABLE OF CONTENTS
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to
be applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set
to about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder
may also be added to ordinary solder.
1. SERVICING NOTES ........................................................ 3
2. GENERAL ........................................................................... 3
3. DIAGRAMS
3-1. Block Diagrams ···························································· 5
3-2. Printed Wiring Boards – Headset Board– ···················· 6
3-3. Schematic Diagram – Headset Board– ························ 7
3-4. Printed Wiring Boards
– Adaptor Board (BT1K only)– ·································· 8
3-5. Schematic Diagram – Adaptor Board (BT1K only)– ··· 9
3-6. Printed Wiring Boards
– Charger Board (BT1 only)– ··································· 10
3-7. Schematic Diagram – Charger Board (BT1 only)–···· 11
4. EXPLODED VIEWS
4-1. Headset Section ·························································· 12
4-2. Adaptor Section (BT1K) ············································ 13
4-3. Charger Section (BT1) ··············································· 14
5. ELECTRICAL PARTS LIST........................................ 15
•MOD2 (bluetooth module), IC7 (+2.8V REG) on
HEADSET board cannot be replaced individually.
Replace it with “HEADSET BOARD, COMPLETE”.
•MOD1 (bluetooth module) on ADAPTOR board cannot be
replaced individually.
Replace it with “ADAPTOR BOARD, COMPLETE”.

DR-BT1/BT1K
3
SECTION 1
SERVICING NOTES

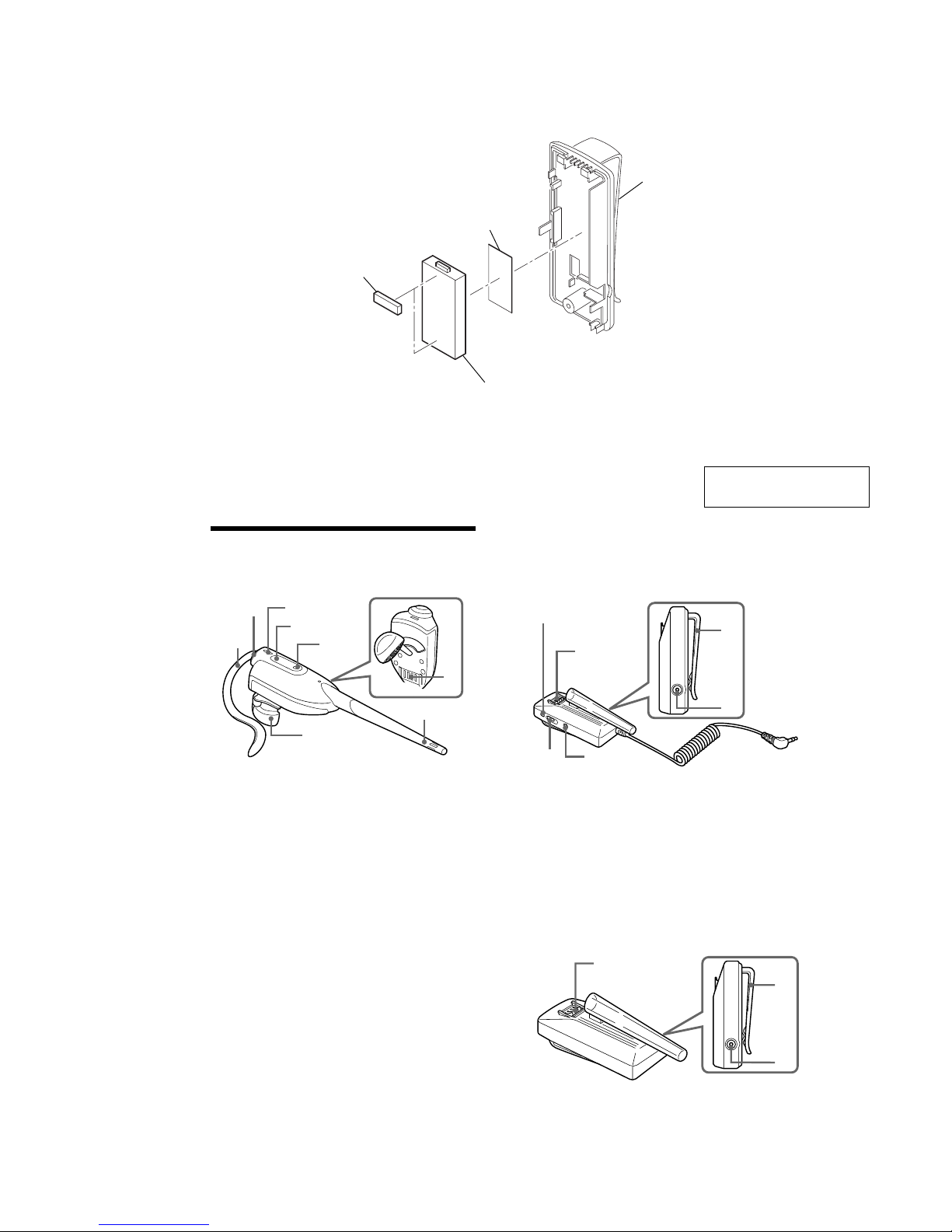

In case of replacing a nickel hydrogen battery in the adaptor (BT-1K), replace two battery pads and a battery sheet at the same time.
two battery pads
battery sheet
cabinet (lower
)
nickel hydrogen battery
SECTION 2
GENERAL This section is extracted
from instruction manual.
Identifying
Bluetoothearset
R
L
1
23
4
5
6
7
8
1Hanger
2Multifunction button
Controls various functions of the Bluetooth earset.
3LED indicator
Indicates the status of the Bluetooth earset.
4VOLUME +
5VOLUME -
6Pipe microphone
7Housing
8Contact terminals
Bluetoothearset adaptor (BT1K only)
1
3
4
5
6
2
1LED indicator
Indicates the status of the Bluetooth earset adaptor.
2Power on button
3Pairing / Power off button
4Contact pins
5Belt clip
6DC IN 4.5 V jack
Battery charger (BT1 only)
1
2
3
1Contact pins
2Belt clip
3DC IN 4.5 V jack

DR-BT1/BT1K
4
SECTION 3
DIAGRAMS
For schematic diagrams.
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4 W or less unless otherwise
specified.
•%: indicates tolerance.
•C: panel designation.
•A: B+ Line.
•Power voltage are dc 3.7 V (Headset) or dc 1.2 V (Adap-
tor) and fed with regulated dc power supply from battery
terminal.
•Voltages are dc with respect to ground under tolerances.
no mark : STANDBY
(): TALKING
<>: AC ADAPTOR IN
•Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
Caution:
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•MOD2 (bluetooth module), IC7 (+2.8V REG) on HEADSET board
cannot be replaced individually.
Replace it with “HEADSET BOARD, COMPLETE”.
•MOD1 (bluetooth module) on ADAPTOR board cannot be replaced
individually.
Replace it with “ADAPTOR BOARD, COMPLETE”.
•MOD2 (bluetooth module), IC7 (+2.8V REG) on HEADSET board
cannot be replaced individually.
Replace it with “HEADSET BOARD, COMPLETE”.
•MOD1 (bluetooth module) on ADAPTOR board cannot be replaced
individually.
Replace it with “ADAPTOR BOARD, COMPLETE”.
•HEADSET board is four-layer pritnted board.However, the patterns
of flayer 2 and 3 have not been included in this diagrams.

DR-BT1/BT1K
55
DR-BT1/BT1K

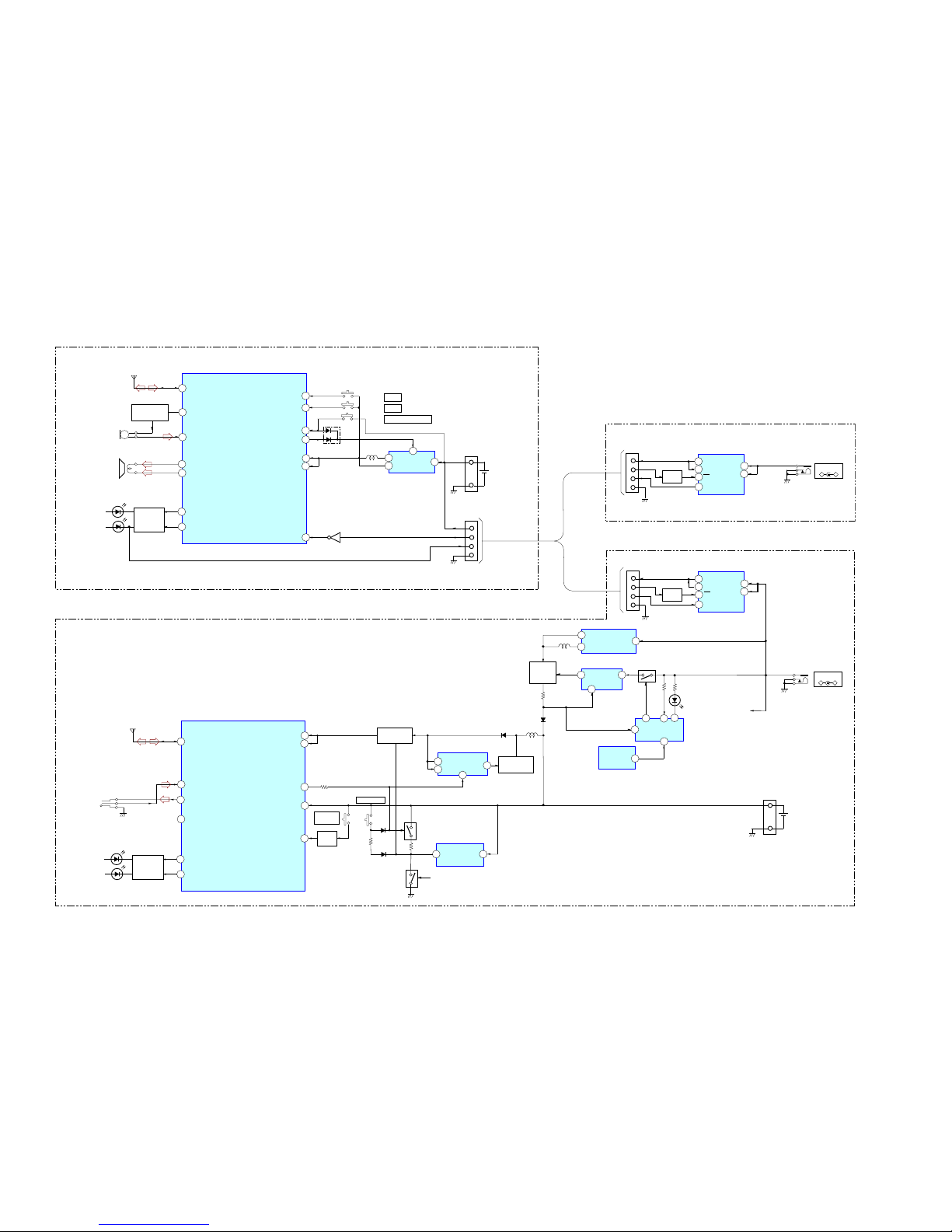

3-1. BLOCK DIAGRAM
•Signal path
F: AUDIO
D10
(BLUE) PIO1
10
14
2
23
3
1
2
+1.5V REG.
IC3
29
MIC1
MIC
ANT
INH
IC2
BATT
30
ANT2
ANTENNA
SPEAKER
6
3
12
7
8
CHGN
MIC_N
PIO0
VDD_IO
RESETB
DC/DC CONVERTER
IC9
5
1
4
CN2
IC4
1 2
SP1
S4
MULITI FUNCTION
4
3
LED DRIVER
Q16
D11
(GREEN)
26
15
24
PIO4
IC7
PIO3
3
4
22
6
1+2.8V REG.
D9
PIO5 S3 VOL +
S2
VOL -
P1O9
VREG_IN
CHARGE
TERMINAL
RECHAGEABLE
BATTERY (LI-ION)
3.7V
1
2
3
4
B2
Q14
INV.
Q15
DELAY SWITCH 1PIO11
MOD2
RECEIVER/TRANSMITTER,
MIC AMP,AF AMP,
BLUETOOTH CONTROL
SPKR_P
SPKR_N
PIO10
10
29
2
25
ANT
1
ANT1
ANTENNA
5MIC_P
PIO11
VDD_IO
CN1
3
LED DRIVER
Q8
11
POWER ON
IC5
61
2DC/DC CONVERTER
+B SWITCH
Q4,5
Pairing/
Power off
PIO9
PIO1
BATTERY
LEVEL DETECT
RECHARGEABLE
BATTERY (NI-MH)
1.2V
B1
28 PIO2
MOD1
RECEIVER,TRANSMITTER
MIC AMP,AF AMP,
BLUETOOTH CONTROL
SPKR_P
P1
PHONE MIC_P
PHONE SPKR_P
(PHONE PLUG)
Q17,18
BUFFER
CN3
4
SWITCHING
Q6 IC1 3
STAT1
IC6
BATT
91
2
7
3
OUT
LI-ION BATTERY
CHARGE MANAGEMENT
TEMPERATURE
DETECT
TIME LEDN
D8
(CHARGE)
BATTERY
CHARGER
J1
DC IN 4.5V
10
BUFFER
Q13 CE
IN
VCC
1
2
3
4
1
2
3
4
CN3
STAT1
IC6
BATT
91
2
7
3
OUT
LI-ION BATTERY
CHARGE MANAGEMENT
10
BUFFER
Q13 SE
IN
VCC
(BT1K ONLY)
ADAPTOR
HEAD SET
J1
DC IN 4.5V
Q1,3
(BT1 ONLY)
CHARGER
D5
(BLUE)
D6
(GREEN)
S1
S5
D7
D4
Q7(2/2)
Q7(1/2)
14
VDD_IO 15
VREG_IN
D3
D2
CURRENT
CONTROL
Q2
+VB
+VB
-+
-+

DR-BT1/BT1K
66
DR-BT1/BT1K

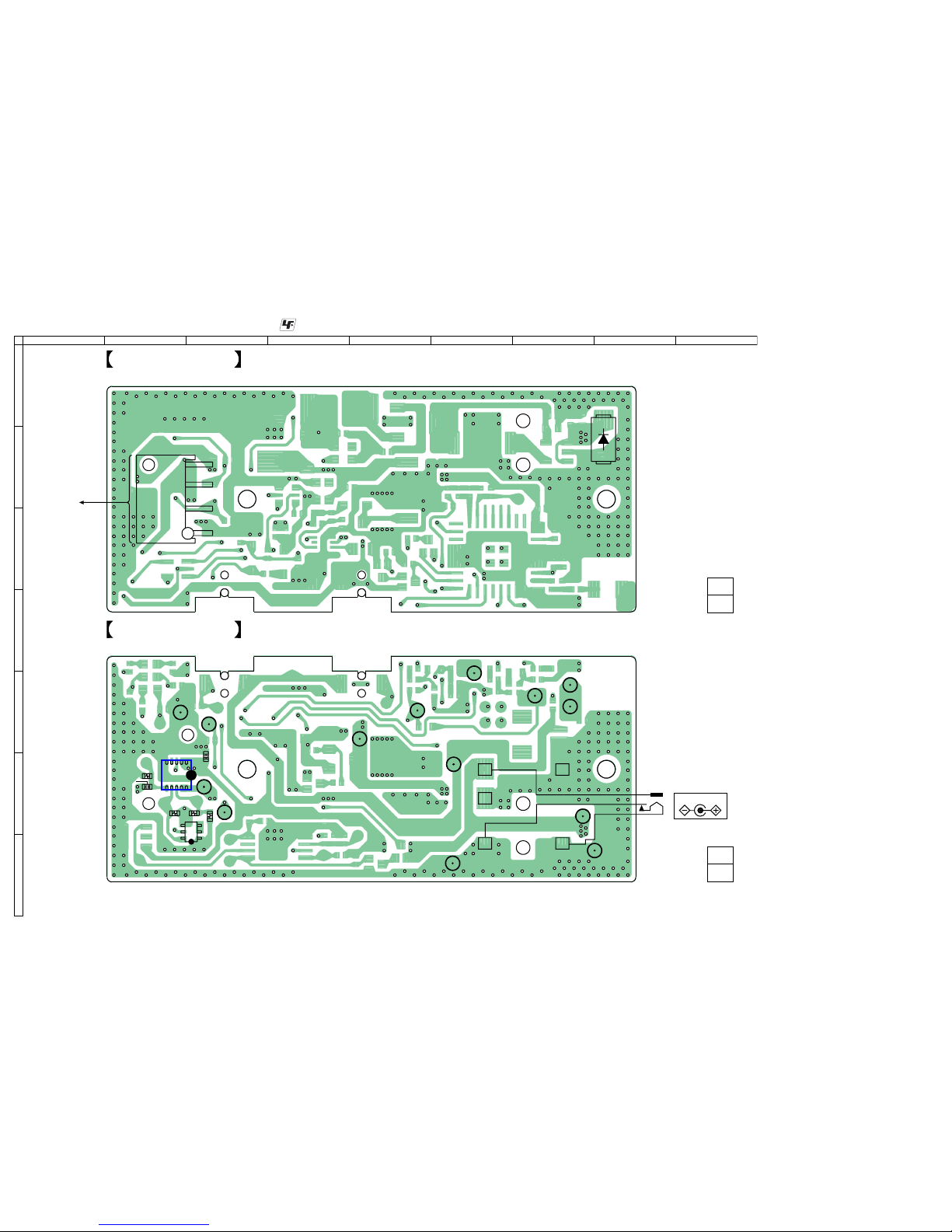

3-2. PRINTED WIRING BOARD – HEADSET BOARD – : Uses unleaded solder.
Ref. No. Location
D9 D-3
D10 D-2
D11 D-2
IC7 A-4
MOD2 B-2
Q14 B-4
Q15 B-4
Q16 D-2
•Semiconductor Location
HEADSET BOARD
11
(11)
1-864-044-
11
(11)
1-864-044-
11
(11)
1-864-046-
11
(11)
1-864-046-
(SIDE A)
HEADSET BOARD
CONNECTOR BOARD
(SIDE A)
CONNECTOR BOARD
(SIDE B)(SIDE B)
1
1
2
8
9
15
1623
24
30
E
E
1
3
6
4
1
5
3
4
C23
R43
D9
S3
R50
D11
C24
R47
R49
R48
R38
R42
C33
R41
D10
R46
Q16
R63
MIC1
SP1
SPEAKER
C34
L5 L6
C27
IC7
C20
C19
L2
MOD2
C22
R39
R44
C21
ANT2
R55
R45
R40
S2
C25
R56
C38
C40
C35
CN2
Q15
Q14
R64
C53
MULTI
FUNCTION
B2
RECHARGEABLE
BATTERY(LI-ION)
+3.7V
E
VOL +
S4
VOL
-
ADAPTOR
(Page 8)
BT1K
CHARGER
(Page 10)
BT1
23 4 5 6 7 8
A
1
B
C
D
E

DR-BT1/BT1K
77
DR-BT1/BT1K
3-3. SCHEMATIC DIAGRAM – HEADSET BOARD –
C20
C40
R56
C38
CN2
R55
R49
R50
R48
R47
R46 R45
C33
C25
C24 C23
R43
MIC1
R41
R42
C21
C22
R39
R38
S4
S3
C34
C35
R40
Q16
ANT2
Q14
B2
S2
D9
C19
R44
Q15
D10
D11
IC7
L5 L2
C53
R64
R63
L6
C27 4.7
100p
47k
0.01
10k
470
100
47k
15k
22k 22k
0.1
2.2
0.1 0.1
1k
100k
220k
0.1
0.1
220k
100k
0.1
0.1
150k
RN1704-TE85R
LED DRIVER
ANTENNA
DTC114EE
INVERTER
RB715W
4.7
100k
2SC4617
DELAY SWITCH
CL-191HB1-D-T
(BLUE)
CL-196SYG-CD-T
(GREEN)
XC9216A28CDR
0
0.01
1k
33
27P
1.8nH
BLUETOOTH CONTROL
MIC AMP,RF AMP,
RECEIVER/TRANSMITTER,
+2.8V REG
RECHARGEABLE
BATTERY
(LI-ION)
CHARGE
TERMINAL
ADAPTOR
CHARGER
BT1
BT1K
+3.7V
(Page 9)
(Page 11)
SP1
SPEAKER

DR-BT1/BT1K
88
DR-BT1/BT1K
3-4. PRINTED WIRING BOARD – ADAPTOR BOARD (BT1K only)– : Uses unleaded solder.
Ref. No. Location
D1 B-8
D2 B-4
D3 B-5
D4 C-4
D5 E-2
D6 E-2
D7 C-3
D8 E-2
IC1 G-2
IC2 G-4
IC3 B-4
IC4 B-4
IC5 C-4
IC6 F-2
IC9 B-7
MOD1 C-6
Q1 G-5
Q2 A-5
Q3 G-5
Q4 F-4
Q5 F-4
Q6 C-5
Q7 B-4
Q8 C-2
Q13 F-3
Q17 C-5
Q18 C-5
•Semiconductor Location
(SIDE A)
(SIDE B)
ADAPTOR BOARD
ADAPTOR BOARD
11
(11)
1-864-045-
11
(11)
1-864-045-
4
1
1
3
5
4
1
DSG
E
E
3
6
4
3
4
2
1
1
1
3
6
4
2
43
34
51
18
9
15
1623
24
30
1
1
5
8
4
1
5
106
3
6
4
E
E
E
E
1
2
DC 4.5V
IN
3
1
4
6
B
E
B
C
C
E
B
C
C
B
E
C1
R52
R51
S1
C2
R1
IC1
Q5
IC6
Q1
C48
Q13
CN1
Q4
R8
R9
R3
D8
R2
Q3
C16
R37R34
R35
C15
S5
R36
IC2
C10
R18
C47
R16
C9
R23
R17
D6 R22
C5
D5
J1
R19
R57
C46
C36
R26
L11 C8
L10
L9
L8
L12
C3
L1
C30
C32
R53
R6
D2
L7
D1
C43
C28
R24
Q6
C4
R14
R15
D3
D7
R11
R10
R12
D4
C18
R7
R20
C31
Q17
C26
MOD1
Q8
L4
C7
C17
L3
C6
ANT1
Q7
IC3
IC5
R33
Q18
CN3
IC4
C29
C42
C44
C45
Q2
R54
IC9
C11
R5
C51
C52
R55
HEADSET
(Page 6)
P1
(PHONE PLUG)
B1
RECHARGEABLE
BATTERY(NI-MH)
+1.2V
POWER ON
Pairing /
Power off
23 4 5 6 7 89
A
1
B
C
D
E
F
G

DR-BT1/BT1K
99
DR-BT1/BT1K
3-5. SCHEMATIC DIAGRAM – ADAPTOR BOARD (BT1K only)–
R36
C15
R37 R34
R35
CN3
C2
R52
R2
C42
C44
D2
C3 R6
R24
R23 R22
C32
R53
C6
C7
R51
C31
C10
R18 C9
C36 R16
C8
C48
R26
R9
R8 R14 C4
R15
C5
C18
R20
R7
D4
C17
R11
D3 L1
R12
L7
IC9
R19
R57
C1 R1
D1
J1
CN1
D7
R10
R17
C47
Q8
Q17
Q18
Q5
Q4
Q6
Q3
Q1
D8
IC4
IC2
IC6
Q13
IC3
Q2
Q7
D5
D6
B1
ANT1
IC5
IC1
R3
C43
C45
C30
C29
C16
R33 C28
C46
R54
L8
L12
L9
L3
L4
C26
C51
C52
R5 C11
P1
L10 L11
S1
S5
5.6k
1
22k 22k
22k
0.1
1M
100k
4.7
0.1
RB160M-30
0.1 1
1W
22k
100 220
0.1
22k
0.1
0.1
220k
0.1
0.1
10k 0.1
0.022 100
0.1
4.7
2.2k
4.7k
10k 220k 33p
100k
4.7
0.1
1M
100k
MA2Z748
0.1
220k
MA2Z748
22k
XC9216A24CMR
1k
100
0.01 100k
RB051L-40TE25
MA2Z748
150k
100
4.7
RN1704-TE85R
LED DRIVER
DTA144EE
BUFFER
DTC114TE
BUFFER
2SC4617TL-Q
+B SWITCH
2SB1690KT146
+B SWITCH
XP151A13A0MR
SWITCHING
DTA144EE-TL
CHARGE
SWITCH
2SC4617TL-Q
CHARGE
SWITCH
CL-196SYG-CD-T
(CHARGE)
XC61CN0902NR
SM6781BV
BQ24014
UMD12N-TR
BUFFER
S-817A15ANB-CUE-
2SD1766
CURRENT
CONTROL
UMH2N
SWITCH
CL-191HB1-D-T
(BLUE)
CL-196SYG-CD-T
(GREEN)
ANTENNA
XC9105D095DR
SM6611BBH
22k
4.7
0.1
100
6.3V
220
6.3V
0.1
22k 0.1
0.1
220
0
0
0
0
3.3nH
1.5pF
0.1
0.1
22k 0.1
(PHONE PLUG)
00
CHARGE
TEMPERATURE
DETECT
MANAGEMENT
BATTERY
CHARGER
+1.5V REG
BATTERY LEVEL
DETECT
BLUETOOTH CONTROL
MIC AMP,RF AMP,
RECHARGEABLE
BATTERY
+1.2V
LI-ION BATTERY
RECEIVER/TRANSMITTER,
DC IN 4.5V
DC/DC CONVERTER
(NI-MH)
(Page 7)
HEADSET
CONVERTER
DC/DC

DR-BT1/BT1K
1010
DR-BT1/BT1K
3-6. PRINTED WIRING BOARD – CHARGER BOARD (BT1 only)– : Uses unleaded solder.
(SIDE A)
(SIDE B)
CHERGER BOARD
CHERGER BOARD
11
(11)
1-864-045-
11
(11)
1-864-045-
4
1
1
3
1
4
6
5
106 DC 4.5V
IN
E
B
C
C
B
E
IC6
Q13
C16
R35
C15
R36
R34
R37
J1
D1
CN3
HEADSET
(Page 6)
23 4 5 6 7 89
A
1
B
C
D
E
F
G

DR-BT1/BT1K
11

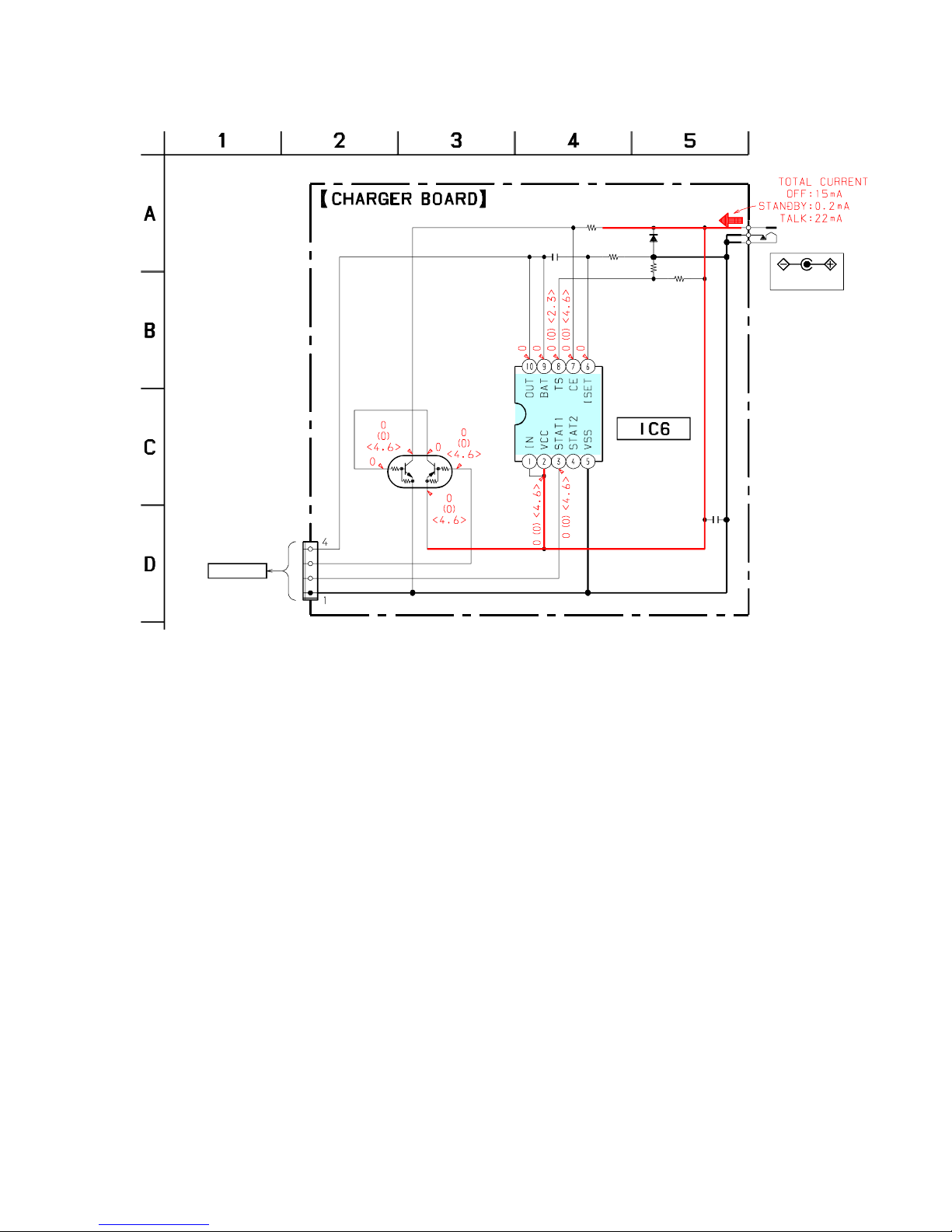

3-7. SCHEMATIC DIAGRAM – CHARGER BOARD (BT1 only)–
CN3
R37
R36
C15
D1
R34
R35
IC6
Q13
C16
J1
22k
5.6k
1
RB051L-40TE25
22k
22k
BQ24014
UMD12N-TR
BUFFER 0.1
CHARGE
MANAGEMENT
LI-ION BATTERY
DC IN 4.5V
(Page 7)
HEADSET

12
DR-BT1/BT1K
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 4
EXPLODED VIEWS
4-1. HEADSET SECTION
NOTE:
•-XX, -X mean standardized parts, so they may
have some differences from the original one.
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•The mechanical parts with no reference number
in the exploded views are not supplied.
9
3
4
10
11
12
13
6
not supplied
MIC1
1
2
5
7
20
815
16
18
19
14
17
12-177-362-01 BUTTON (B)
22-177-360-01 COVER, CABINET
32-177-363-01 PLATE, LIGHT GUIDE
42-177-361-01 BUTTON (A)
52-177-358-01 CABINET (UPPER)
6A-1072-238-A HEADSET BOARD, COMPLETE
71-756-502-21 BATTERY, LITHIUM (ION) STORAGE
82-177-364-01 HOLDER, BATTERY
9X-2024-415-1 PIPE MIC ASSY
10 2-179-697-01 STOPPER PIPE MIC
11 A-1088-258-A CONNECTOR BOARD, COMPLETE
12 3-254-014-11 SCREW
13 2-177-367-01 WASHER
14 2-177-368-01 SHEET, WASHER
15 2-177-359-01 CABINET (LOWER)
16 3-252-825-11 SCREW (1.7)
17 3-254-083-11 SCREW
18 X-2048-720-1 HOUSING SUB ASSY (including SP1)
19 2-177-355-01 HANGER (M)
20 3-831-441-99 CUSHION (LCD)
MIC1 1-542-601-11 MICROPHONE, ELECTRET CAP

13
DR-BT1/BT1K

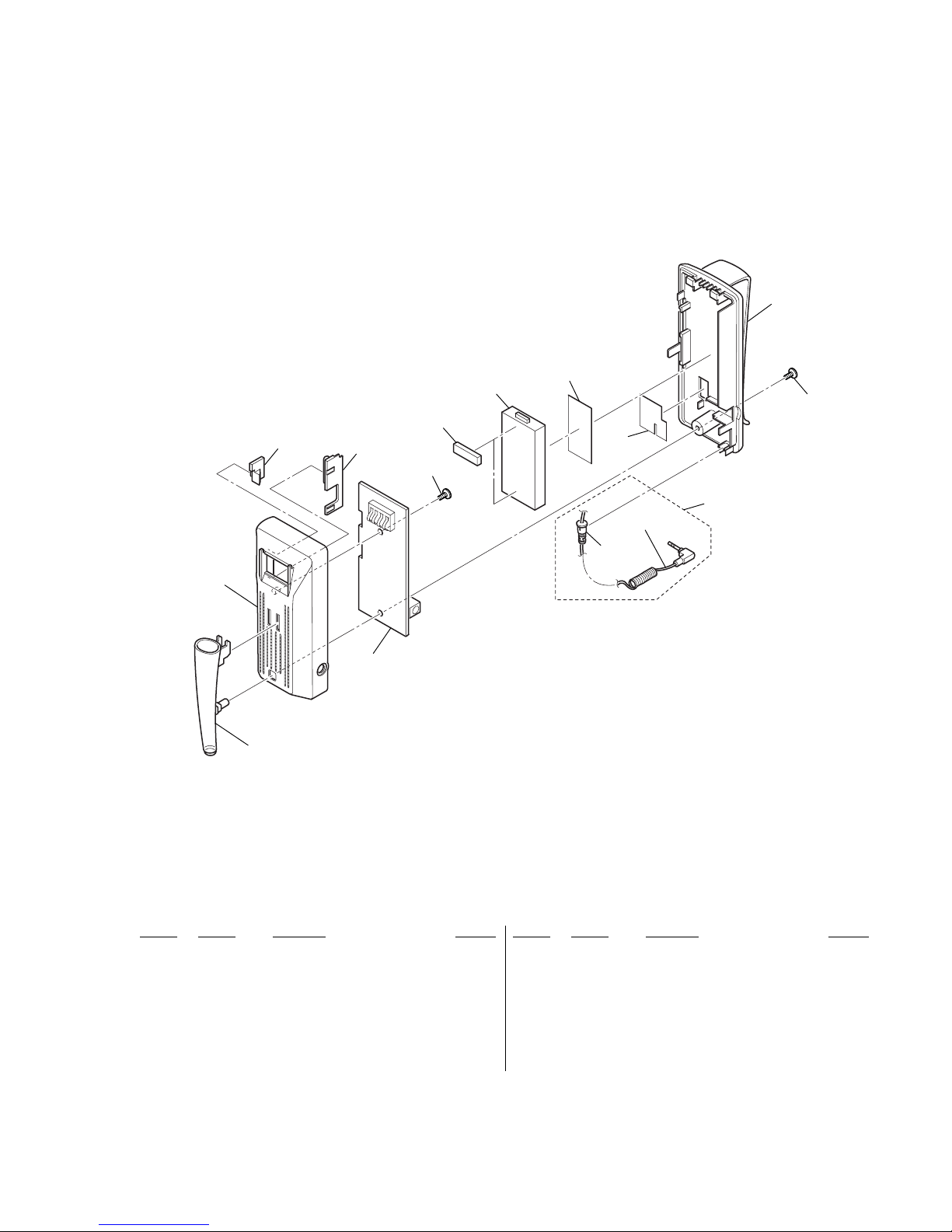

4-2. ADAPTOR SECTION (BT1K)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51
52
53 54
55
56
57
58
59
60
61
62
63
56
not supplied
51 2-177-373-01 HOLDER, PIPE, MIC
52 2-177-371-01 CABINET (UPPER)
53 2-177-400-01 PLATE, LIGHT GUIDE
54 2-177-399-01 BUTTON
55 A-1072-243-A ADAPTOR BOARD, COMPLETE
56 3-254-083-11 SCREW
57 2-189-405-01 BATTERY, PAD
58 1-756-499-21 BATTERY, NICKEL HYDROGEN
59 2-342-355-01 SHEET, BATTERY
60 2-177-372-01 CABINET (LOWER)
61 2-177-401-01 BUSHING
62 X-2024-413-1 BUSHING ASSY
63 2-349-986-01 SHEET

14
DR-BT1/BT1K
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

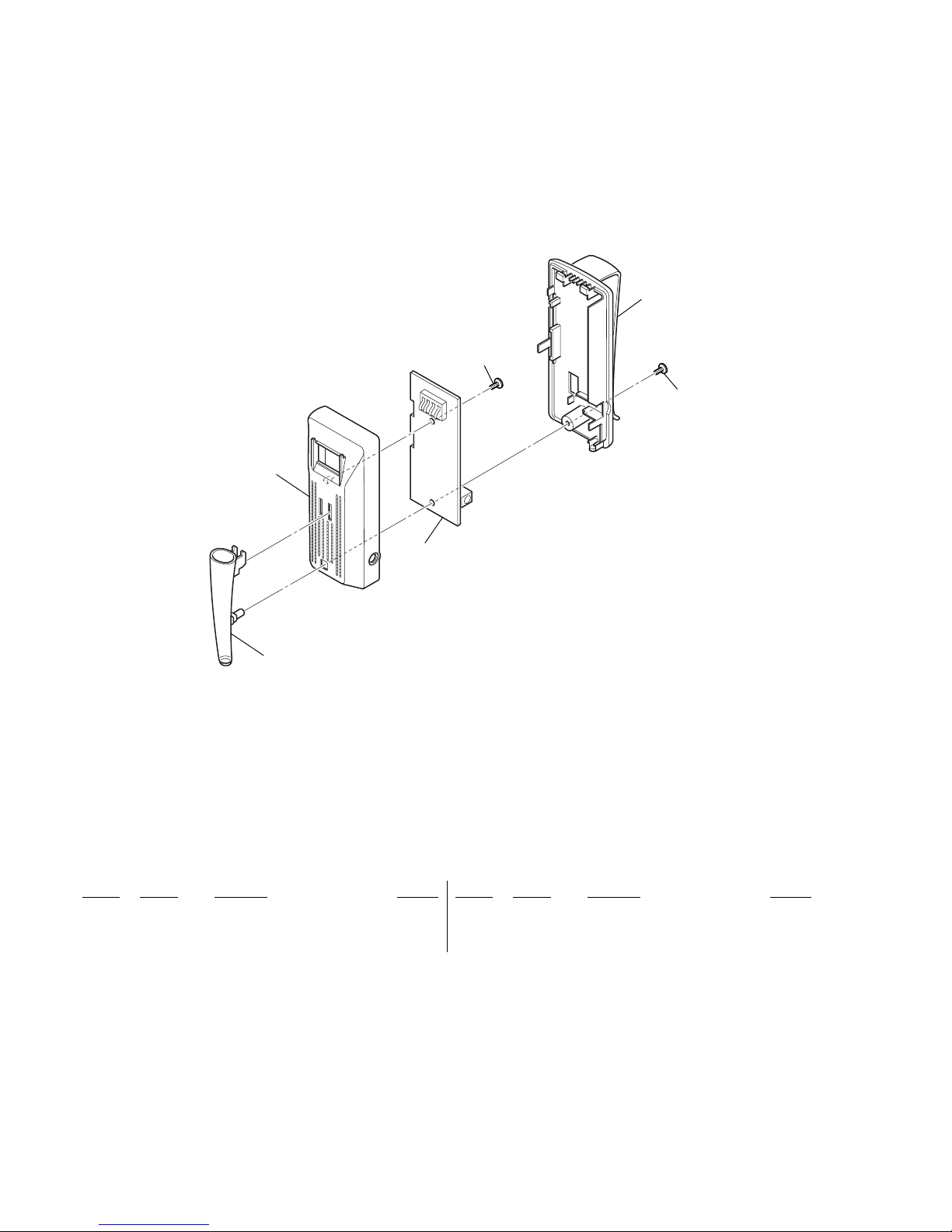

4-3. CHARGER SECTION (BT1)
101
102
103
104
105
104
101 2-177-373-01 HOLDER, PIPE, MIC
102 2-177-371-11 CABINET (UPPER)
103 A-1072-244-A CHARGER BOARD, COMPLETE
104 3-254-083-11 SCREW
105 2-177-372-11 CABINET (LOWER)

15
DR-BT1/BT1K
SECTION 5
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX, -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS:
uF: µF
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•COILS
uH: µH
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
When indicating parts by reference
number, please include the board.
The components identified by mark 0
or dotted line with mark 0are critical
for safety.
Replace only with part number specified.
A-1072-243-A ADAPTOR BOARD, COMPLETE (BT1K)
**********************
< ANTENNA >
ANT1 1-754-351-21 ANTENNA (CHIP MULTILAYER)
< CAPACITOR >
C1 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
C2 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C3 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C4 1-164-862-11 CERAMIC CHIP 33PF 5% 50V
C5 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C6 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C7 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C8 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C9 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C10 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C11 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C15 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C16 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C17 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C18 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C26 1-164-841-11 CERAMIC CHIP 1.5PF 0.25PF 50V
C28 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C29 1-128-829-91 TANTAL. CHIP 220uF 20% 6.3V
C30 1-128-964-91 TANTAL. CHIP 100uF 20% 6.3V
C31 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C32 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C36 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V
C42 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C43 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C44 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C45 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C46 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C47 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C48 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C51 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C52 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
CN3 1-818-738-11 CONNECTOR (CHARGE USE)
< DIODE >
D1 8-719-066-98 DIODE RB051L-40TE25
D2 8-719-081-34 DIODE RB160M-30TR
D3 8-719-072-27 DIODE MA2Z748001S0
D4 8-719-072-27 DIODE MA2Z748001S0
D5 6-500-887-01 DIODE CL-191HB1-D-T
D6 6-500-594-01 DIODE CL-196SYG-CD-T
D7 8-719-072-27 DIODE MA2Z748001S0
D8 6-500-594-01 DIODE CL-196SYG-CD-T
< IC >
IC1 6-706-868-01 IC SM6611BBH-G-EL
IC2 6-706-866-01 IC SM6781BV-G-ET
IC3 8-759-667-94 IC S-817A15ANB-CUE-T2
IC4 8-759-690-72 IC XC61CN0902NR
IC5 6-706-795-01 IC XC9105D095DR
IC6 6-706-809-01 IC BQ24014DRCR
IC9 6-707-092-01 IC XC9216A24CMR
< JACK >
J1 1-750-849-21 JACK, EXTERNAL POWER (DC IN 4.5V)
< COIL >
L1 1-416-669-11 INDUCTOR 22uH
L3 1-218-990-11 SHORT CHIP 0
L4 1-456-365-11 INDUCTOR 3.3nH
L7 1-416-669-11 INDUCTOR 22uH
L8 1-218-990-11 SHORT CHIP 0
L9 1-218-990-11 SHORT CHIP 0
L10 1-218-990-11 SHORT CHIP 0
L11 1-218-990-11 SHORT CHIP 0
L12 1-218-990-11 SHORT CHIP 0
< TRANSISTOR >
Q1 8-729-927-99 TRANSISTOR 2SC4617R
Q2 8-729-048-28 TRANSISTOR 2SD1766-T100-QR
Q3 8-729-928-27 TRANSISTOR DTA144EE
Q4 6-550-363-01 TRANSISTOR 2SB1690KT146
Q5 8-729-927-99 TRANSISTOR 2SC4617R
Q6 8-729-052-37 TRANSISTOR XP151A13A0MR
Q7 8-729-427-47 TRANSISTOR XP4213-TXE
Q8 8-729-426-30 TRANSISTOR XP1213-TXE
Q13 8-729-047-48 TRANSISTOR UMD12N-TR
ADAPTOR

16
DR-BT1/BT1K
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Q17 8-729-928-27 TRANSISTOR DTA144EE
Q18 8-729-929-26 TRANSISTOR DTC114TE
< RESISTOR >
R1 1-218-977-11 RES-CHIP 100K 5% 1/16W
R2 1-218-977-11 RES-CHIP 100K 5% 1/16W
R3 1-218-969-11 RES-CHIP 22K 5% 1/16W
R5 1-218-969-11 RES-CHIP 22K 5% 1/16W
R6 1-245-697-21 RES-CHIP 1 1% 1W
R7 1-218-977-11 RES-CHIP 100K 5% 1/16W
R8 1-218-965-11 RES-CHIP 10K 5% 1/16W
R9 1-218-961-11 RES-CHIP 4.7K 5% 1/16W
R10 1-218-979-11 RES-CHIP 150K 5% 1/16W
R11 1-218-981-11 RES-CHIP 220K 5% 1/16W
R12 1-218-969-11 RES-CHIP 22K 5% 1/16W
R14 1-218-981-11 RES-CHIP 220K 5% 1/16W
R15 1-218-977-11 RES-CHIP 100K 5% 1/16W
R16 1-218-941-81 RES-CHIP 100 5% 1/16W
R17 1-218-941-81 RES-CHIP 100 5% 1/16W
R18 1-218-965-11 RES-CHIP 10K 5% 1/16W
R19 1-218-953-11 RES-CHIP 1K 5% 1/16W
R20 1-218-989-11 RES-CHIP 1M 5% 1/16W
R22 1-218-945-11 RES-CHIP 220 5% 1/16W
R23 1-218-941-81 RES-CHIP 100 5% 1/16W
R24 1-218-969-11 RES-CHIP 22K 5% 1/16W
R26 1-218-957-11 RES-CHIP 2.2K 5% 1/16W
R33 1-218-969-11 RES-CHIP 22K 5% 1/16W
R34 1-218-969-11 RES-CHIP 22K 5% 1/16W
R35 1-218-969-11 RES-CHIP 22K 5% 1/16W
R36 1-218-962-11 RES-CHIP 5.6K 5% 1/16W
R37 1-218-969-11 RES-CHIP 22K 5% 1/16W
R51 1-218-981-11 RES-CHIP 220K 5% 1/16W
R52 1-218-989-11 RES-CHIP 1M 5% 1/16W
R53 1-218-969-11 RES-CHIP 22K 5% 1/16W
R54 1-218-945-11 RES-CHIP 220 5% 1/16W
R57 1-218-941-81 RES-CHIP 100 5% 1/16W
< SWITCH >
S1 1-786-293-21 SWITCH, TACTILE (POWER ON)
S5 1-786-293-21 SWITCH, TACTILE (PAIRING/POWER OFF)
******************************************************
A-1072-244-A CHARGER BOARD, COMPLETE (BT1)
**********************
< CAPACITOR >
C15 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V
C16 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
CN3 1-818-738-11 CONNECTOR (CHARGE USE)
< DIODE >
D1 8-719-066-98 DIODE RB051L-40TE25
< IC >
IC6 6-706-809-01 IC BQ24014DRCR
< JACK >
J1 1-750-849-21 JACK, EXTERNAL POWER (DC IN 4.5V)
< TRANSISTOR >
Q13 8-729-047-48 TRANSISTOR UMD12N-TR
< RESISTOR >
R34 1-218-969-11 RES-CHIP 22K 5% 1/16W
R35 1-218-969-11 RES-CHIP 22K 5% 1/16W
R36 1-218-962-11 RES-CHIP 5.6K 5% 1/16W
R37 1-218-969-11 RES-CHIP 22K 5% 1/16W
******************************************************
A-1088-258-A CONNECTOR BOARD, COMPLETE
************************
< CAPACITOR >
C53 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V
< RESISTOR >
R64 1-218-953-11 RES-CHIP 1K 5% 1/16W
*****************************************************
A-1072-238-A HEADSET BOARD, COMPLETE
*********************
< ANTENNA >
ANT2 1-754-351-11 ANTENNA (CHIP MULTILAYER)
< CAPACITOR >
C19 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C20 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V
C21 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C22 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C23 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C24 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C25 1-165-884-91 CERAMIC CHIP 2.2uF 10% 6.3V
C27 1-400-844-11 INDUCTOR 1.8nH
C33 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C34 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C35 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C38 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C40 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
< CONNECTOR >
CN2 1-784-650-21 CONNECTOR 2P
< DIODE >
D9 8-719-082-45 DIODE RB715W-TL
D10 6-500-887-01 DIODE CL-191HB1-D-T
D11 6-500-594-01 DIODE CL-196SYG-CD-T
CHARGER CONNECTOR HEADSETADAPTOR

17
DR-BT1/BT1K
Ref. No. Part No. Description Remarks
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
< COIL >
L2 1-400-786-21 INDUCTOR 22uH
L5 1-218-990-11 SHORT CHIP 0
L6 1-164-860-11 CERAMIC CHIP 27PF 5% 50V
< TRANSISTOR >
Q14 8-729-928-90 TRANSISTOR DTC114EE
Q15 8-729-927-99 TRANSISTOR 2SC4617R
Q16 8-729-426-30 TRANSISTOR XP1213-TXE
< RESISTOR >
R38 1-218-977-11 RES-CHIP 100K 5% 1/16W
R39 1-218-981-11 RES-CHIP 220K 5% 1/16W
R40 1-218-979-11 RES-CHIP 150K 5% 1/16W
R41 1-218-977-11 RES-CHIP 100K 5% 1/16W
R42 1-218-981-11 RES-CHIP 220K 5% 1/16W
R43 1-218-953-11 RES-CHIP 1K 5% 1/16W
R44 1-218-977-11 RES-CHIP 100K 5% 1/16W
R45 1-218-969-11 RES-CHIP 22K 5% 1/16W
R46 1-218-969-11 RES-CHIP 22K 5% 1/16W
R47 1-218-967-11 RES-CHIP 15K 5% 1/16W
R48 1-218-973-11 RES-CHIP 47K 5% 1/16W
R49 1-218-949-11 RES-CHIP 470 5% 1/16W
R50 1-218-941-81 RES-CHIP 100 5% 1/16W
R55 1-218-965-11 RES-CHIP 10K 5% 1/16W
R56 1-218-973-11 RES-CHIP 47K 5% 1/16W
R63 1-218-935-11 RES-CHIP 33 5% 1/16W
< SWITCH >
S2 1-786-293-21 SWITCH, TACTILE (MULTI FUNCTION)
S3 1-786-015-21 SWITCH, TACTILE (VOL +)
S4 1-786-015-21 SWITCH, TACTILE (VOL -)
******************************************************
MISCELLANEOUS
*************
71-756-502-21 BATTERY, LITHIUM (ION) STORAGE
18 X-2048-720-1 HOUSING SUB ASSY (including SP1)
58 1-756-499-21 BATTERY, NICKEL HYDROGEN (BT1K)
62 X-2024-413-1 BUSHING ASSY
MIC1 1-542-601-11 MICROPHONE, ELECTRET CAP
******************************************************
ACCESSORIES
***********
01-478-434-11 ADAPTOR, AC (AC-ES455K)
1-543-798-11 FILTER, CLAMP (FERRITE CORE) (BT1K)
2-177-356-01 HANGER (S)
2-186-671-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(BT1K)
2-186-672-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(BT1)
2-320-195-01 HOOK (L)
2-320-196-01 HOOK (S)
2-345-738-01 SPACER
HEADSET
Ver. 1.1

DR-BT1/BT1K
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2004.10 New
1.1 2005.01 Addition of hook (L), hook (S) and spacer for accessories. (SPM-04164)
