Sony DR-BT10CX User manual

SONY:
2-698-598-41(1)
Wireless Stereo
Headset
Operating Instructions I!m
Manual de instrucciones m
o Bluetooth"
DR-BT10CX
©2006 Sony Corporation

2
us

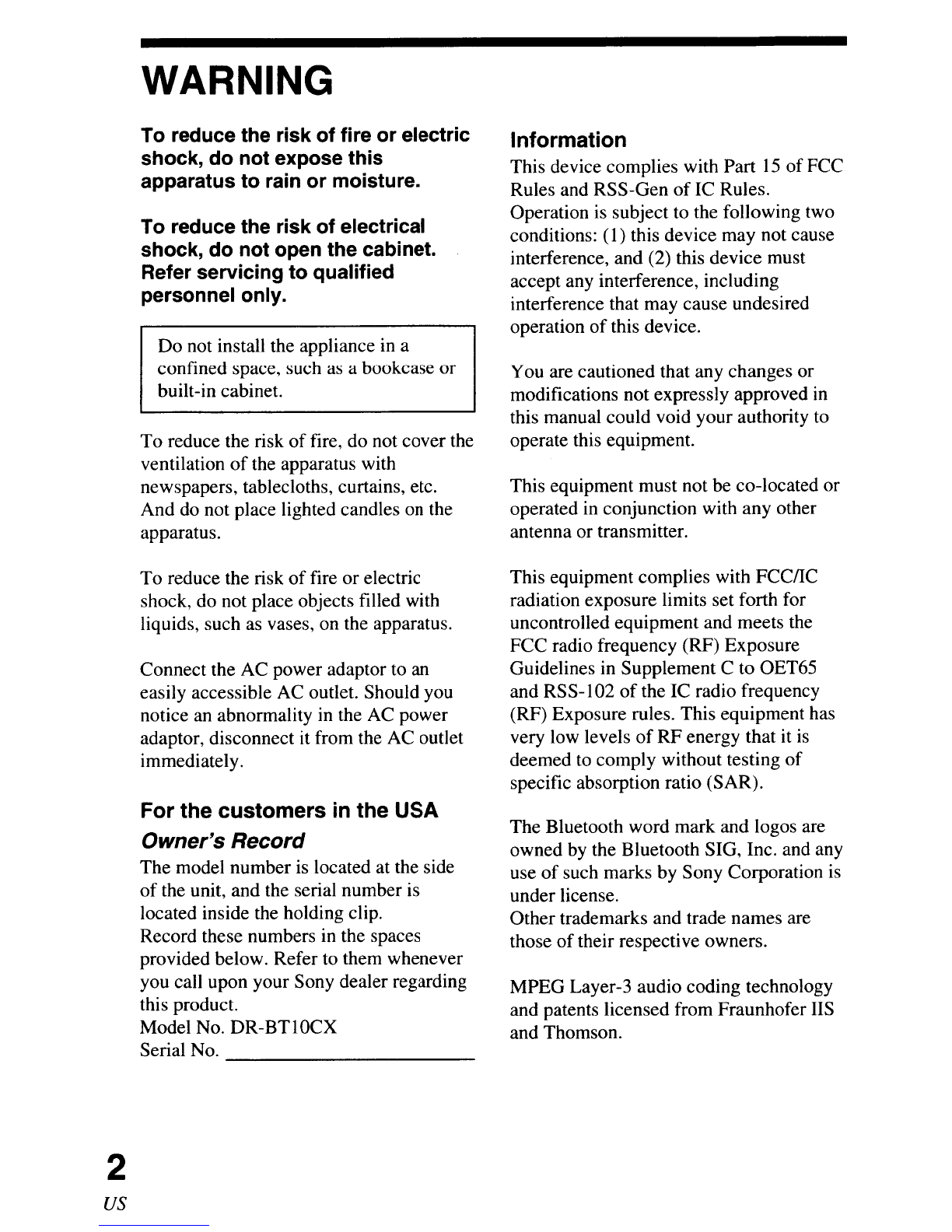

WARNING
To reduce the risk of fire or electric
shock,
do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
Do not install the appliance in a
confined space, such as abookcase or
built-in cabinet.
To reduce the risk of fire, do not cover the
ventilation
of the apparatus with
newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the
apparatus.
To reduce the risk
of fire or electric
shock, do not place objects filled with
liquids, such
as vases, on the apparatus.
Connect the AC power adaptor to an
easily accessible
AC outlet. Should you
notice an abnormality in the
AC power
adaptor, disconnect it from the
AC outlet
immediately.
For the customers in the USA
Owner's Record
The model number is located at the side
of the unit, and the serial number is
located inside the holding clip.
Record these numbers in the spaces
provided below. Refer to them whenever
you call upon your Sony dealer regarding
this product.
Model No. DR-BTIOCX
Serial
No.
------------
Information
This device complies with Part 15 of FCC
Rules and RSS-Gen
of IC Rules.
Operation
is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including
interference that may cause undesired
operation
of this device.
You are cautioned that any changes or
modifications not expressly approved
in
this manual could void your authority to
operate this equipment.
This equipment must not be co-located or
operated
in conjunction with any other
antenna or transmitter.
This equipment complies with FCC/IC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement Cto OET65
and RSS-I02
of the IC radio frequency
(RF) Exposure rules. This equipment has
very low levels of RF energy that it is
deemed to comply without testing of
specific absorption ratio (SAR).
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use
of such marks by Sony Corporation is
under license.
Other trademarks and trade names are
those of their respective owners.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer lIS
and Thomson.

For the customers in the USA
and Canada
RECYCLING LITHIUM-ION
BATTERIES
Lithium- Ion batteries are recyclable.
You can help preserve
our environment
by
returning your used
rechargeable batteries to
the collection and
recycling location nearest
you.
For more information regarding recycling
of rechargeable batteries, call
toll free 1-
800-822-8837, or visit
http://www.rbrc.org/
Caution:
Do not handle damaged or
leaking Lithium-Ion batteries.
Pour les utilisateurs au Canada
Informations
Cet appareil est can forme a la section 15 de la
reglementation FCC ainsi qu' a la RSS-Gen de la
reglementation Ie. Son utilisation est autorisee
seulement aux conditions suivantes :(I) il ne doit
pas produire de brouillage et (2) l'utilisateur du
dispositif doit etre pret a accepter tout brouillage
radioelectrique relfu, meme si ce brouillage est
susceptible de compromettre Ie fonctionnement du
dispositif.
Vous devez savoir que tout changement au
toute modification
non expressement
approuve
dans ce mode d' emploi risque
d'annuler votre pouvoir d'utiliser cet appareil.
Cet emetteur est conforme aux limitations
concernant l'exposition
aux radiations etablies
par
la FCCIIC definies dans un environnement
non controle ainsi qu'aux directives relatives a
l'exposition aux frequences radio (RF) FCC
du supplement C du bulletin OET65 et au
reglement RSS-I 02 relatif a I' exposition aux
radiofrequences (RF) Ie. Cet equipement
presente
des niveaux d'energie RF tres bas
consideres comme conformes et ne necessite
pas de test du debit d'absorption specifique
(SAR).

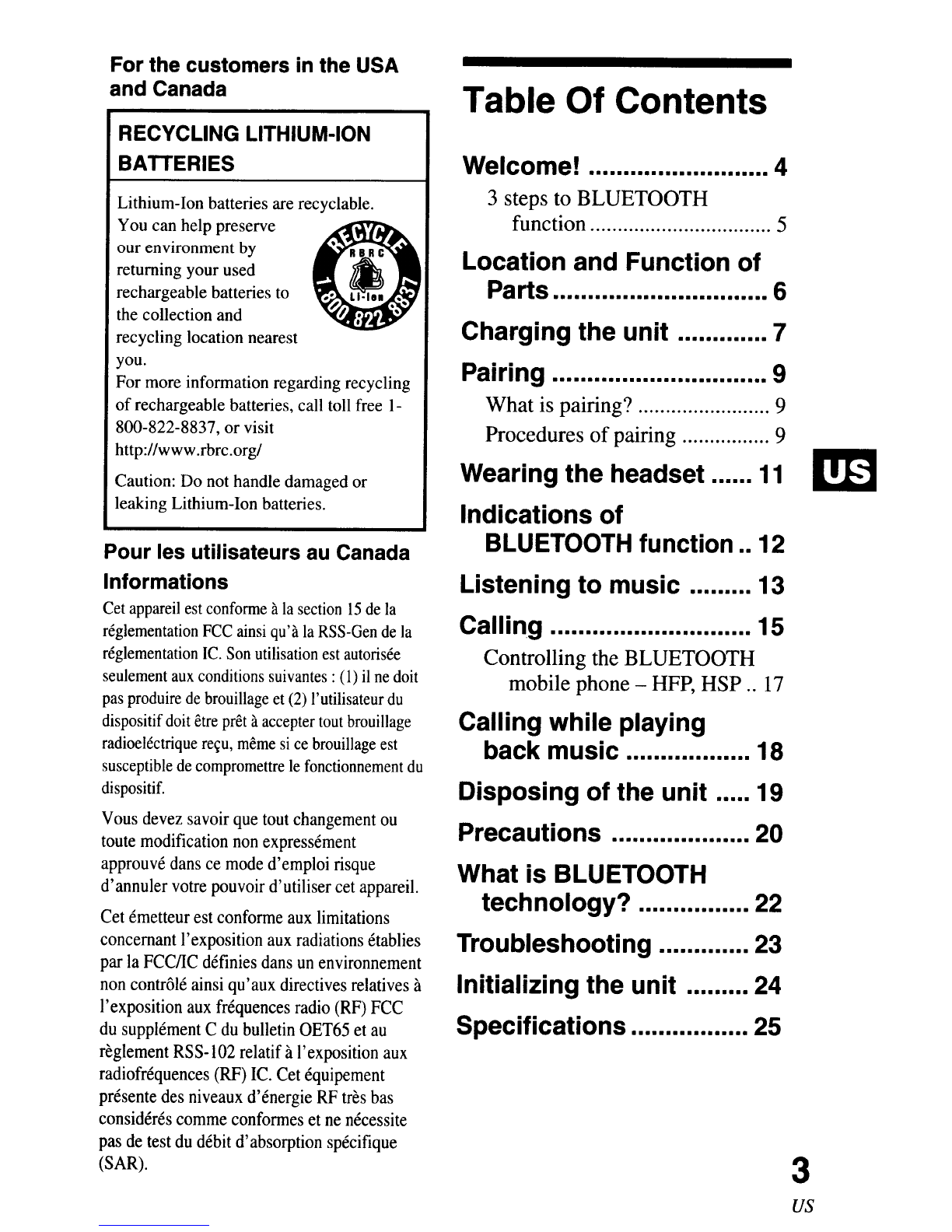

Table Of Contents
Welcome! 4

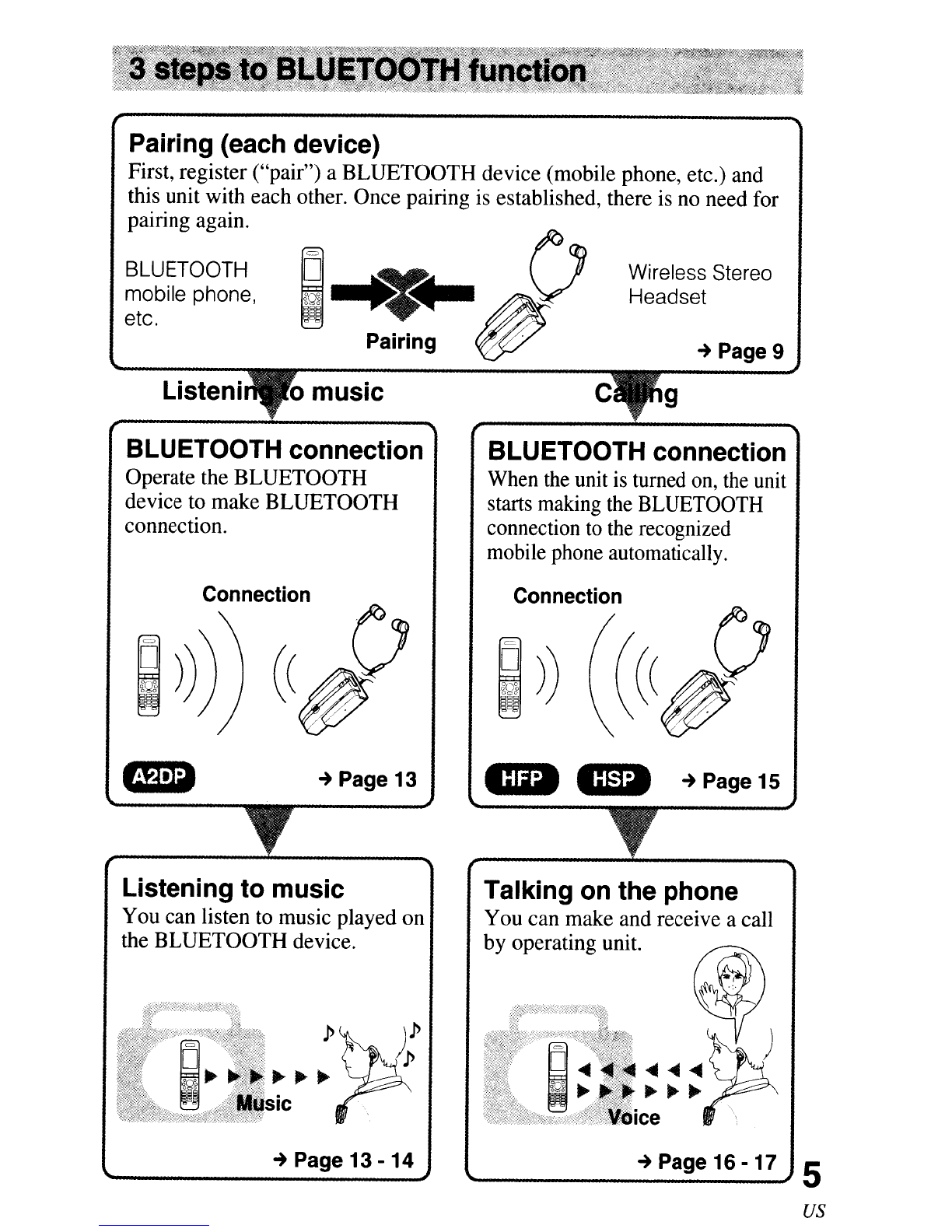

3steps to BLUETOOTH
function 5
Location and Function of
Parts 6
Charging the unit 7
Pairing
~
Wh
' .. ?9
at IS
patnng. . .
Procedures
of pairing 9

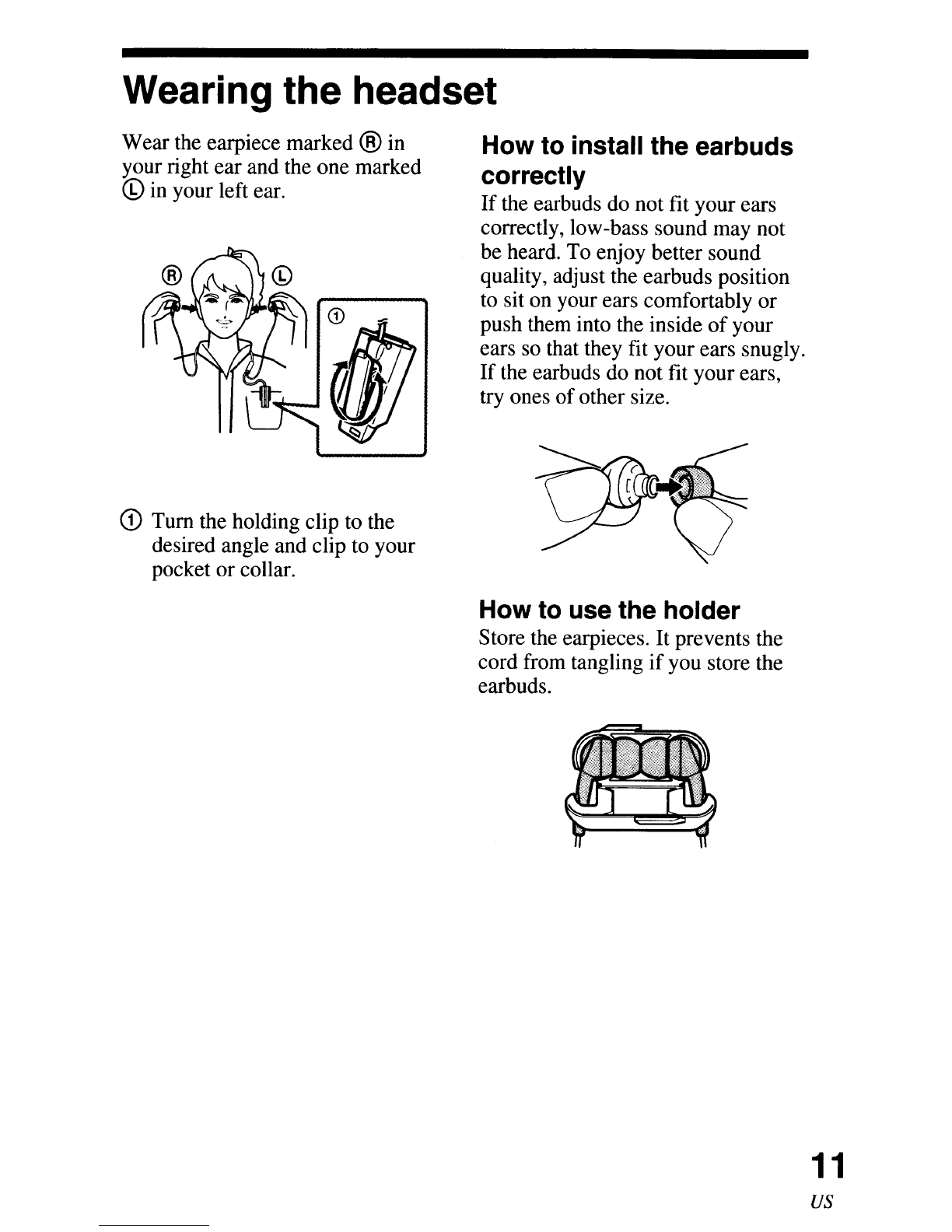

Wearing the headset 11 ~

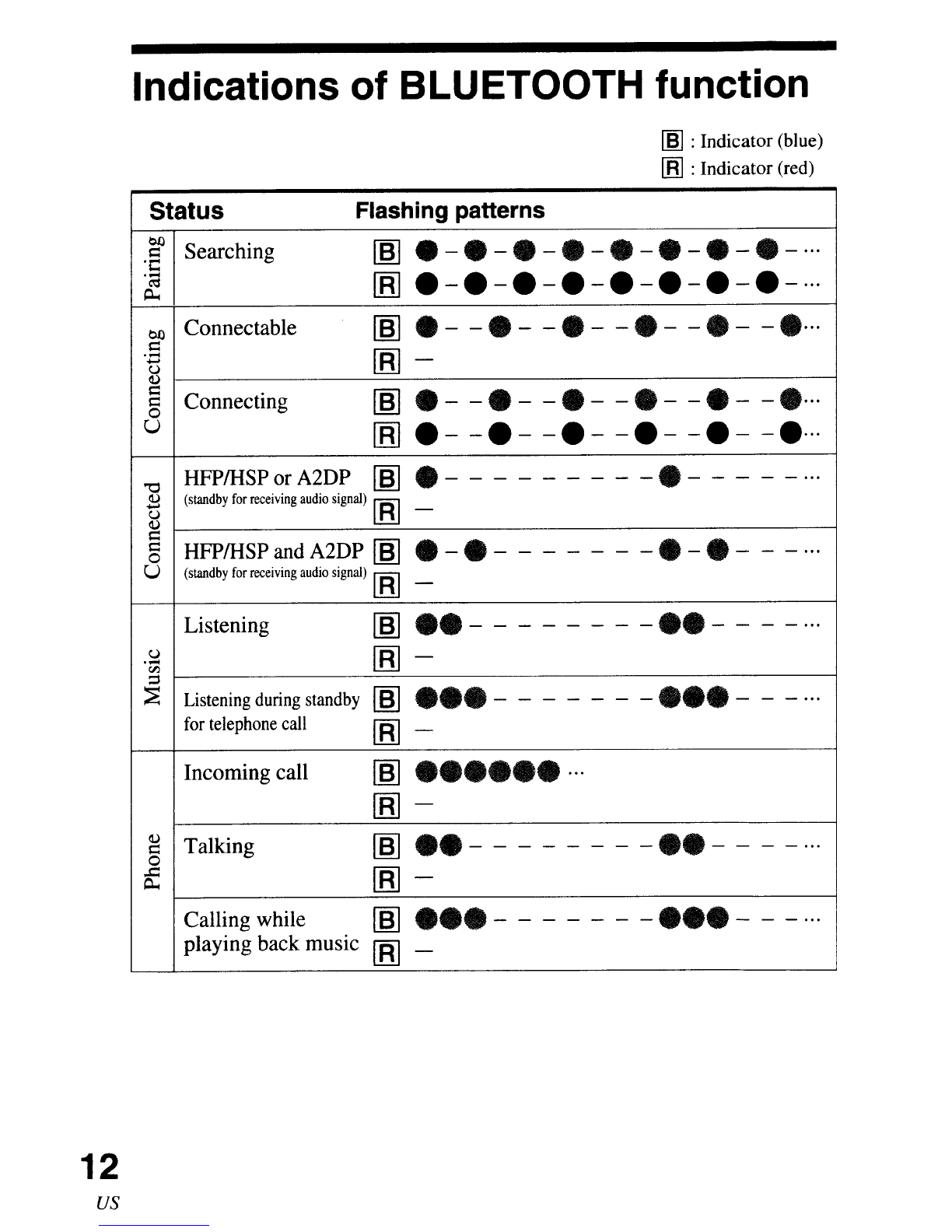

Indications of
BLUETOOTH function
.. 12
Listening to music 13
Callin.g 1!i
Controlling the BLUETOOTH
mobile phone -HFP, HSP
.. 17

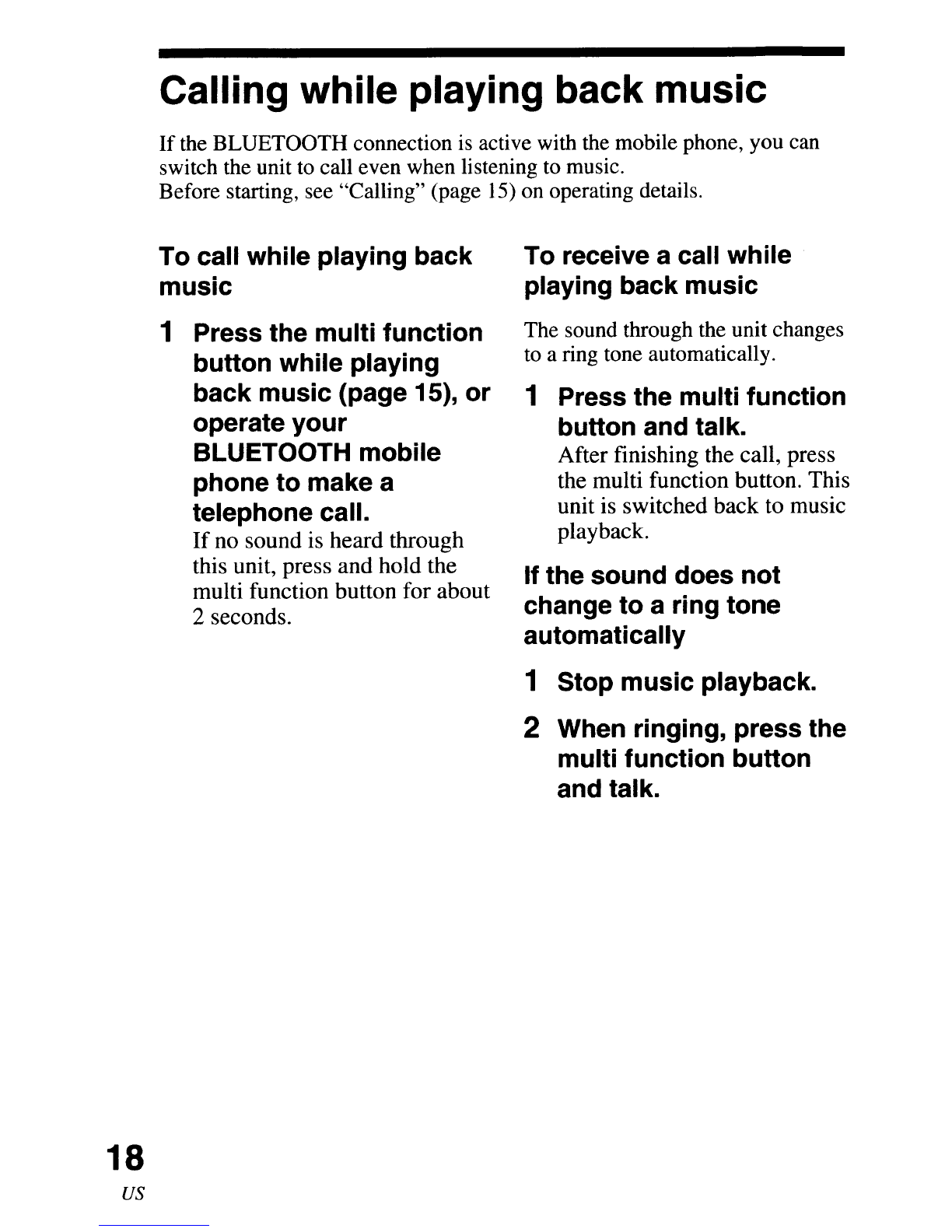

Calling while playing
back music 18
Disposing of the unit 1 ~
Precautions 20
What is BLUETOOTH
technology? 22
Troubleshooting 23
Initializing the unit 24
Specifications 2!i
3
us

4
us

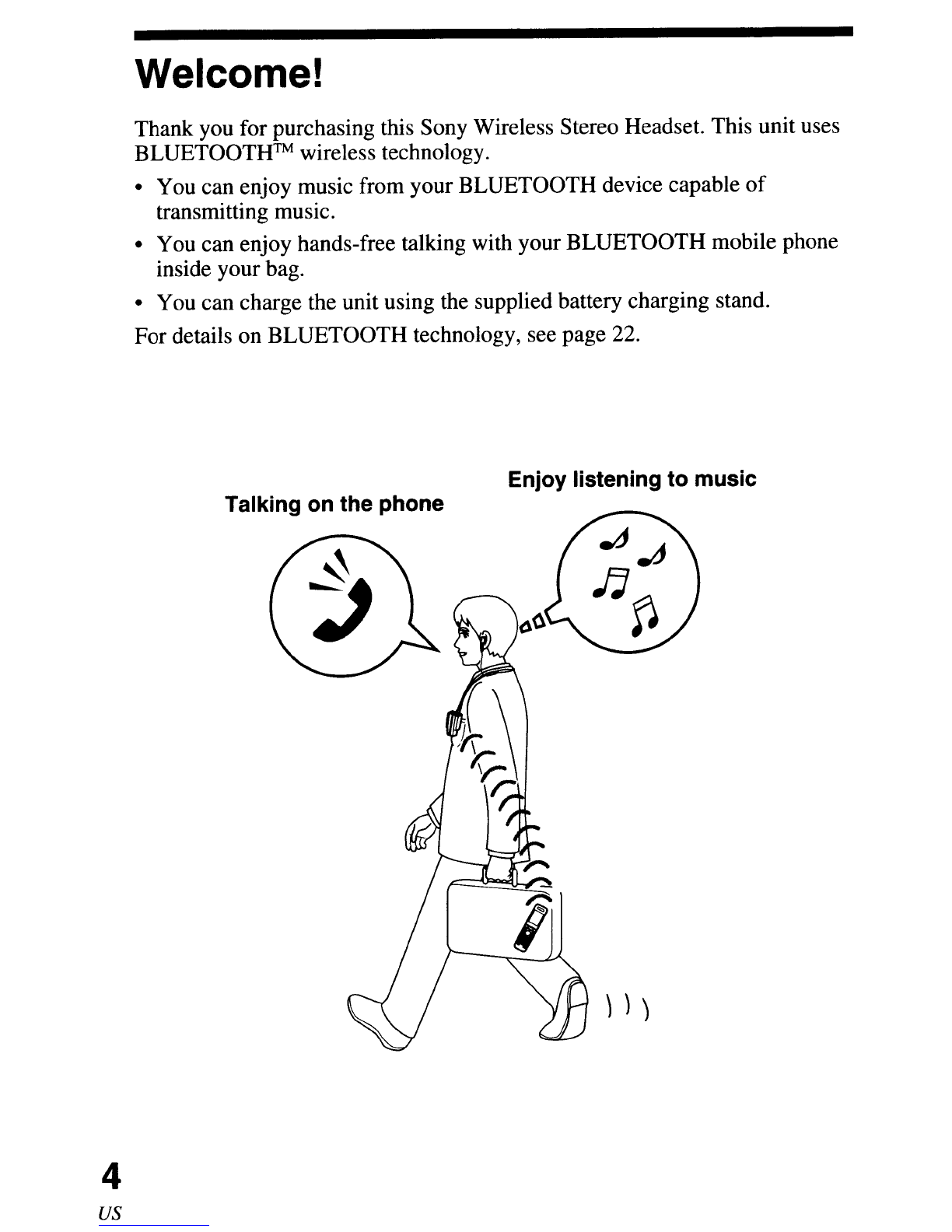

Welcome!
Thank you for purchasing this Sony Wireless Stereo Headset. This unit uses
BLUETOOTHTM wireless technology.
•You can enjoy music from your BLUETOOTH device capable
of
transmitting music.
•You can enjoy hands-free talking with your BLUETOOTH mobile phone
inside your bag.
•You can charge the unit using the supplied battery charging stand.
For details on BLUETOOTH technology, see page 22.
Enjoy listening to music
Talking on the phone

Pairing (each device)
First, register ("pair") aBLUETOOTH device (mobile phone, etc.) and
this unit with each other. Once pairing is established, there is no need for
. . .
patnng agam.
BLUETOOTH
mobile phone,
etc.
Wireless Stereo
Headset
-+ Page 9
Listeni cg
BLUETOOTH connection
Operate the BLUETOOTH
device to make BLUETOOTH
connection.
BLUETOOTH connection
When the unit is turned on, the unit
starts making the BLUETOOTH
connection
to the recognized
mobile phone automatically.
-+ Page 13
Connection
CD cm:I -+ Page 15
Talking on the phone
You can make and receive acall
by operating unit.
.P
~~~
sic
Listening to music
You can listen to music played on
the BLUETOOTH device.
-+ Page 13 - 14
-+ Page 16 -17 5
us

GETTING STARTED

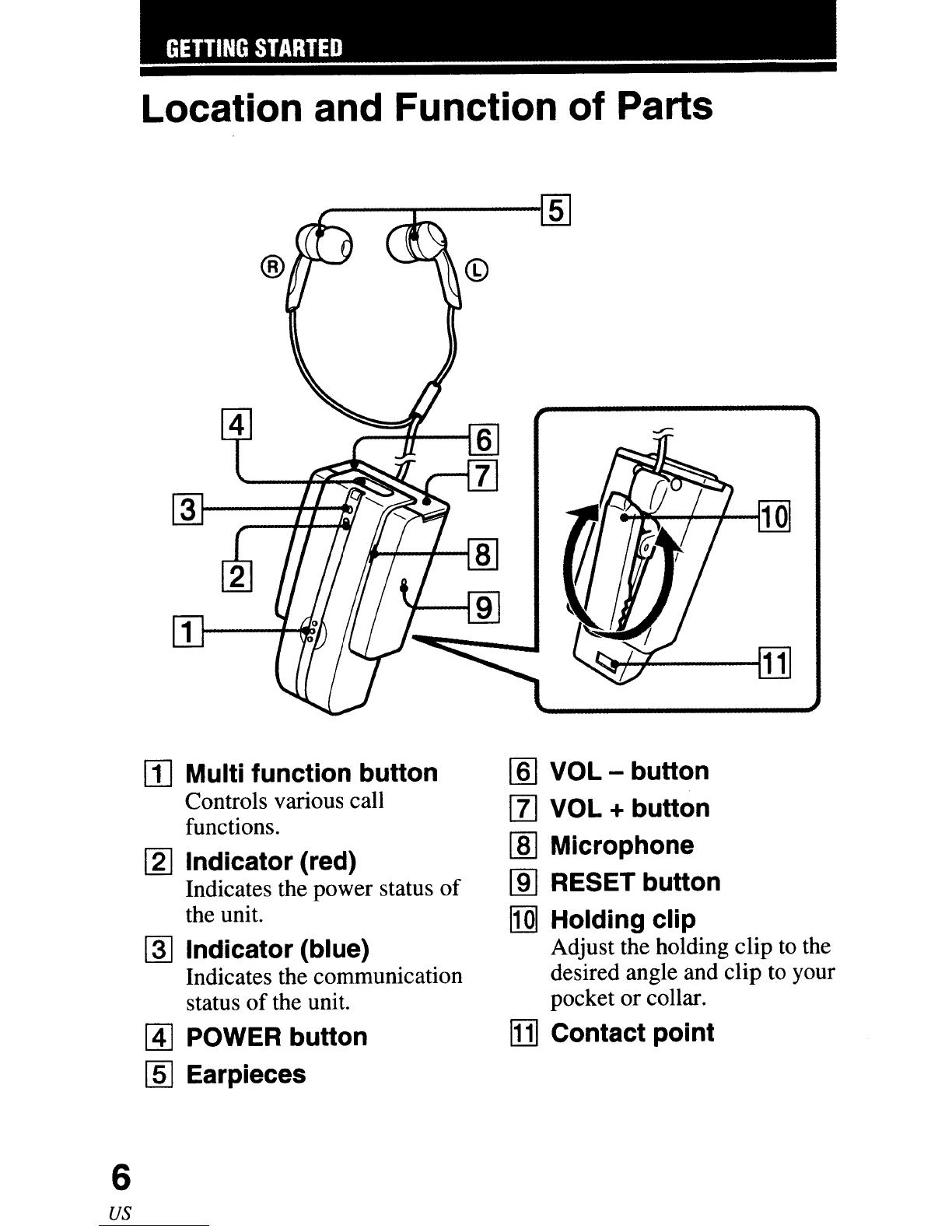

Location and Function of Parts
---..----15
6
us
[I] Multi function button
Controls various call
functions.
~ Indicator (red)
Indicates the power status of
the unit.
~ Indicator (blue)
Indicates the communication
status
of the unit.
[!] POWER button
~ Earpieces
[§] VOL -button
[lJ VOL +button
[ID Microphone
[ID RESET button
[Ql Holding clip
Adjust the holding clip to the
desired angle and clip to your
pocket or collar.
[j] Contact point

Charging the unit
The unit contains arechargeable Lithium-Ion battery, which should be
charged before using for the first time.
1Connect the supplied
AC power adaptor with
the battery charging
stand.
3Put the unit on the
battery charging stand.
Wireless Stereo
Headset
Battery charging
stand (supplied)
To an AC
outlet
Contact pin
Note
If the holding clip is turned, the
unit cannot be set on the battery
charging stand and charging does
not start.
Tum the holding clip
back to the original position before
charging.
Rest the unit on the battery
charging stand so that the unit's
contact point meets the contact pin
on the battery charging stand, and
make sure that the indicator (red)
lights up.
Charging is completed in about 3
hours* and the indicator (red) goes
offautomatically.
*Time required for empty battery to
recharge.
Tip
When charging the battery, the unit is
turned off automatically.
AC power
adaptor
(supplied)
Battery charging
stand (supplied) (Rear)
2Connect the supplied
AC power adaptor to an
AC outlet.
Continued 7
us

*Time stated above may vary, depending
on ambient temperature or conditions
of
use.
Checking the remaining
battery
When pressing the POWER button
while the unit
is turned on, the
indicator (red) flashes. You can
check the remaining battery by the
number
of times the indicator (red)
flashes.

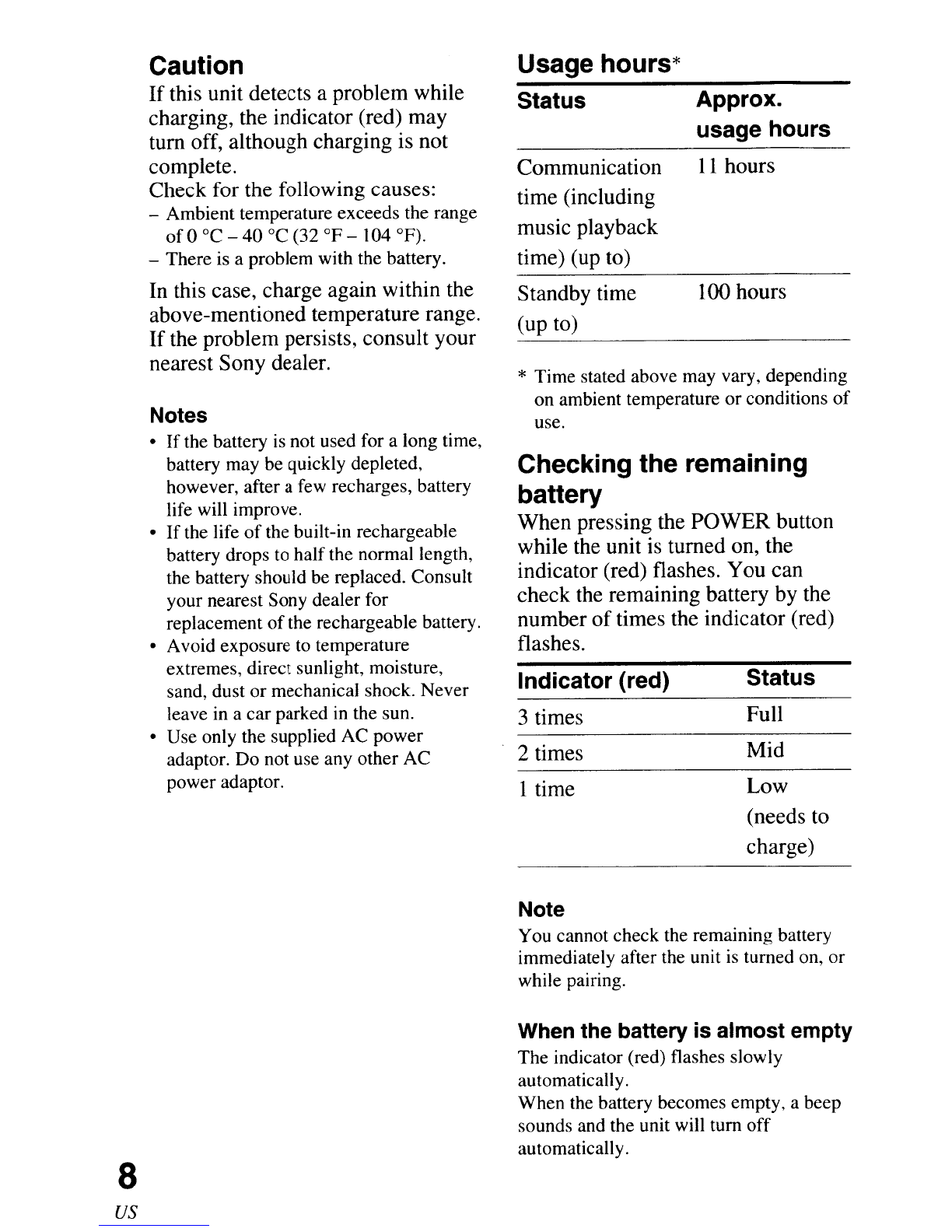

Caution
If this unit detects aproblem while
charging, the indicator (red) may
turn off, although charging is not
complete.
Check for the following causes:
-Ambient temperature exceeds the range
of 0°C - 40°C (32 of -104 OF).
-There is aproblem with the battery.
In this case, charge again within the
above-mentioned temperature range.
If the problem persists, consult your
nearest Sony dealer.
Notes
• If the battery is not used for along time,
battery may be quickly depleted,
however, after afew recharges, battery
life will improve.
• If the life of the built-in rechargeable
battery drops
to half the normal length,
the battery should be replaced. Consult
your nearest Sony dealer for
replacement
of the rechargeable battery.
• Avoid exposure
to temperature
extremes, direct sunlight, moisture,
sand, dust or mechanical shock. Never
leave in acar parked
in the sun.
•Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor.
Usage hours*
Status
Communication
time (including
music playback
time) (up to)
Standby time
(up to)
Indicator (red)
3times
2times
1time
Approx.
usage hours
11 hours
100 hours
Status
Full
Mid
Low
(needs to
charge)
8
us
Note
You cannot check the remaining battery
immediately after the unit is turned on, or
while pairing.
When the battery is almost empty
The indicator (red) flashes slowly
automatically.
When the battery becomes empty, abeep
sounds and the unit will tum
off
automatically.

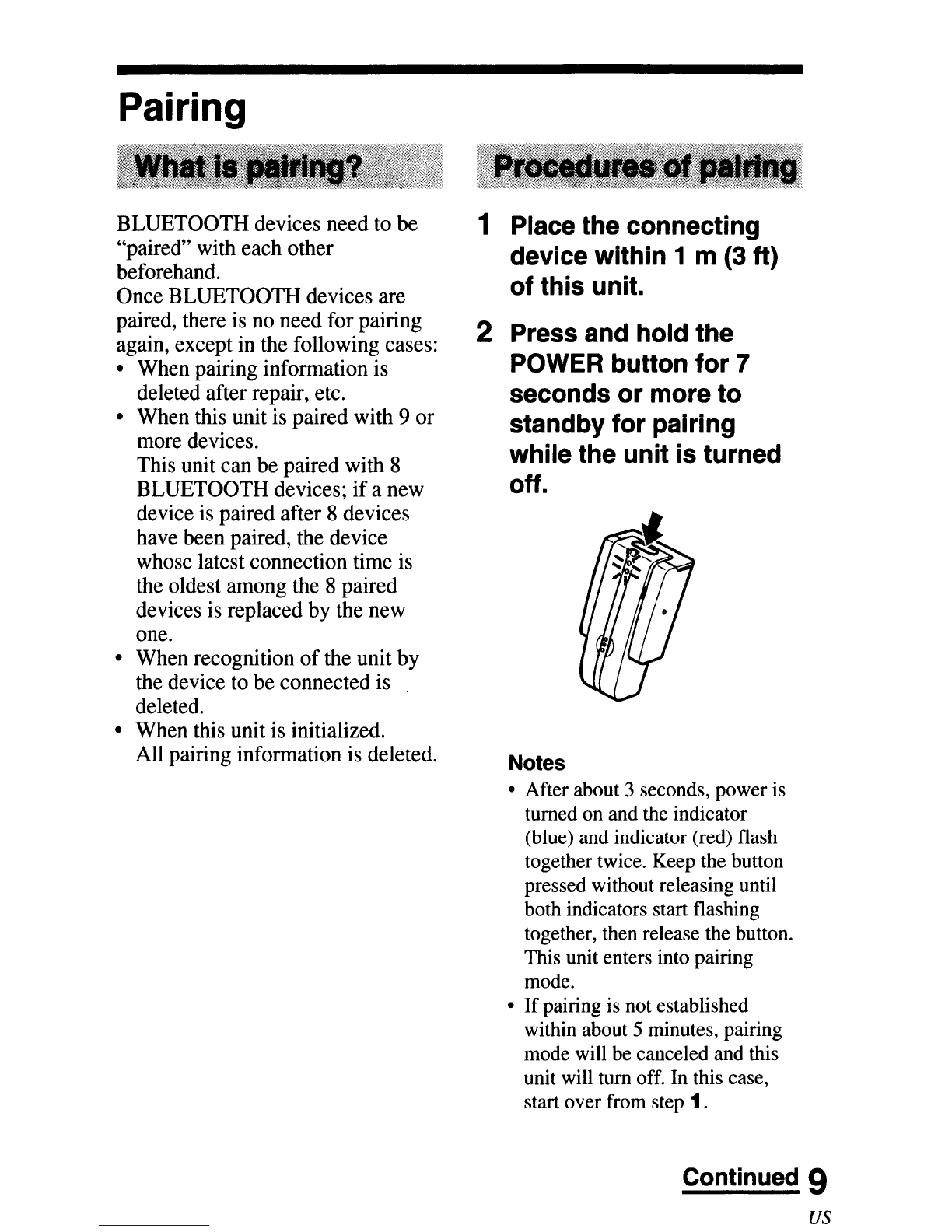

Pairing
BLUETOOTH devices need to be
"paired" with each other
beforehand.
Once BLUETOOTH devices are
paired, there is no need for pairing
again, except in the following cases:
•When pairing information is
deleted after repair, etc.
•When this unit is paired with 9
or
more devices.
This unit can be paired with 8
BLUETOOTH devices;
if anew
device is paired after 8devices
have been paired, the device
whose latest connection time is
the oldest among the 8paired
devices is replaced by the new
one.
•When recognition
of the unit by
the device to be connected is
deleted.
•When this unit is initialized.
All pairing information is deleted.
1Place the connecting
device within 1 m (3 ft)
of this unit.
2Press and hold the
POWER button for 7
seconds or more to
standby for pairing
while the unit is turned
off.
Notes
•After about 3seconds, power is
turned on and the indicator
(blue) and indicator (red) flash
together twice. Keep the button
pressed without releasing until
both indicators start flashing
together, then release the button.
This unit enters into pairing
mode.
•
If pairing is not established
within about 5minutes, pairing
mode will be canceled and this
unit will tum off. In this case,
start over from step 1 .
Continued 9
us

10
us

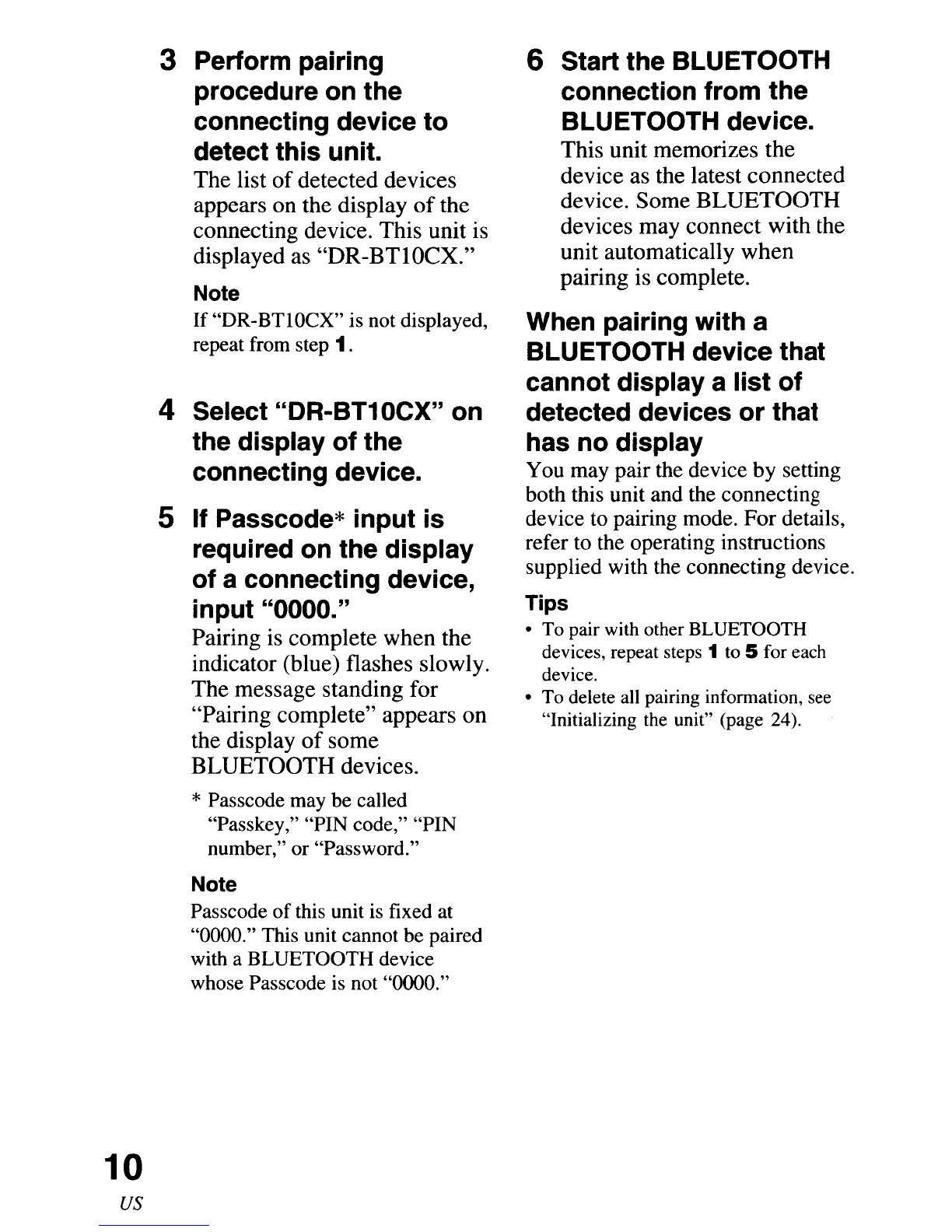

3Perform pairing
procedure on the
connecting device to
detect this unit.
The list of detected devices
appears on the display of the
connecting device. This unit is
displayed as "DR-BTIOCX."
Note
If "DR-BTIOCX" is not displayed,
repeat from step 1.
4Select "DR-BT10CX" on
the display of the
connecting device.
SIf Passcode* input is
required on the display
of aconnecting device,
input "0000."
Pairing is complete when the
indicator (blue) flashes slowly.
The message standing for
"Pairing complete" appears on
the display of some
BLUETOOTH devices.
*Passcode may be called
"Passkey," "PIN code," "PIN
number," or "Password."
Note
Passcode of this unit is fixed at
"0000." This unit cannot be paired
with aBLUETOOTH device
whose Passcode is not "0000."
6Start the BLUETOOTH
connection from the
BLUETOOTH device.
This unit memorizes the
device as the latest connected
device. Some BLUETOOTH
devices may connect with the
unit automatically when
pairing is complete.
When pairing with a
BLUETOOTH device that
cannot display alist of
detected devices or that
has no display
You may pair the device by setting
both this unit and the connecting
device to pairing mode.
For details,
refer to the operating instructions
supplied with the connecting device.
Tips
•To pair with other BLUETOOTH
devices, repeat steps 1to 5for each
device.
•To delete all pairing information, see
"Initializing the unit" (page 24).

Wearing the headset
Wear the earpiece marked ®in
your right ear and the one marked
©in your left ear.
CD Tum the holding clip to the
desired angle and clip to your
pocket or collar.
How to install the earbuds
correctly
If the earbuds do not fit your ears
correctly, low-bass sound may not
be heard. To enjoy better sound
quality, adjust the earbuds position
to sit on your ears comfortably or
push them into the inside
of your
ears
so that they fit your ears snugly.
If the earbuds do not fit your ears,
try ones
of other size.
How to use the holder
Store the earpieces. It prevents the
cord from tangling
if you store the
earbuds.
11
us

12
us
Indications of BLUETOOTH function
[6] :Indicator (blue)
[B] :Indicator (red)
Status Flashing patterns
eo
Searching
~
e-e-e-e-e-e-.-e-···
Q
·c
.....
[fl]
e-e-e-e-e-.-.-e-···
CI3
~
eo
Connectable
~
e- -e- -e--e- -e- - •...
=
[fl]
.....
-
~
u
Q)
=Connecting
~
.- -e--e- -e- -e- - •...
=
0
U
[fl]
e- -e- -e- -.- -.- - •...
"'0 HFPIHSP or A2DP
~
.- - - - - - - - -e- - - - - ...
Q)
(standby for receiving audio signal) [fl]
~
-
U
Q)
=HFPIHSP and A2DP
[6J
.-e- -- -- - -e-.- -- ...
=0
U
(standby for receiving audio signal) [fl]
-
Listening
[6J
•• - - - - - - - -ee- - - - ...
u
[fl]
-
.....
CJ)
:::J
:E
Listening during standby [6J
•• e------- ••• ---···
for telephone call
[fl]
-
Incoming call ~
•••••••••
[fl]
-
Q)
Talking
~
•• -------- •• ---- ...
=
0
..c::
[BJ
-
0.-
Calling while
[6J
••• -------e •• ---···
playing back music
[fl]
-

OPERATING THE UNIT
Listening to music
Check the following before
operating the unit.
-The BLUETOOTH device is
turned on.
-Pairing
of this unit and the
BLUETOOTH device is complete.
-The BLUETOOTH device
supports the transmitting music
function (profile: A2DP).
1Press and hold the
POWER button for
about 3seconds while
the unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice and the unit
is turned on.
Note
Do not press and hold the POWER
button for more than 7seconds,
otherwise pairing mode is entered.
VOL-
button
-- POWER button
VOL +button 3Start playback on the
BLUETOOTH device.
Notes
•When you play music by connecting the
unit to aBLUETOOTH device using
HSP (Headset ProfiJe)*, sound quality
will not be high. For better sound,
change the BLUETOOTH connection
to A2DP (Advanced Audio Distribution
Profile)* by operating the
BLUETOOTH device.
•This unit cannot control music playback
functions
of the connected device.
*For detail on profiles, see page 22.
To adjust the volume
Press the VOL +or -button while
listening to the music.
Tips
•When the volume level is low, raise the
volume of the connected device. The
sound
wi)) be clearer.
•Volume level for listening to music and
calling can be set independently.
Note
You cannot adjust the volume of the
BLUETOOTH device by the unit VOL
buttons.
2Make the BLUETOOTH
connection (A2DP) from
aBLUETOOTH device to
this unit.
Refer to the operating
instructions supplied with the
BLUETOOTH device on how
to operate it.
Continued 13
us

14
us
To stop use
1Terminate the
BLUETOOTH
connection
by operating
the BLUETOOTH device.
2Press and hold the
POWER button for
about 3seconds.
The indicator (blue) and
indicator (red) light up
together, and the unit turns
off.
Tip
When you finish playing music, the
BLUETOOTH connection may terminate
automatically, depending on the
BLUETOOTH device.

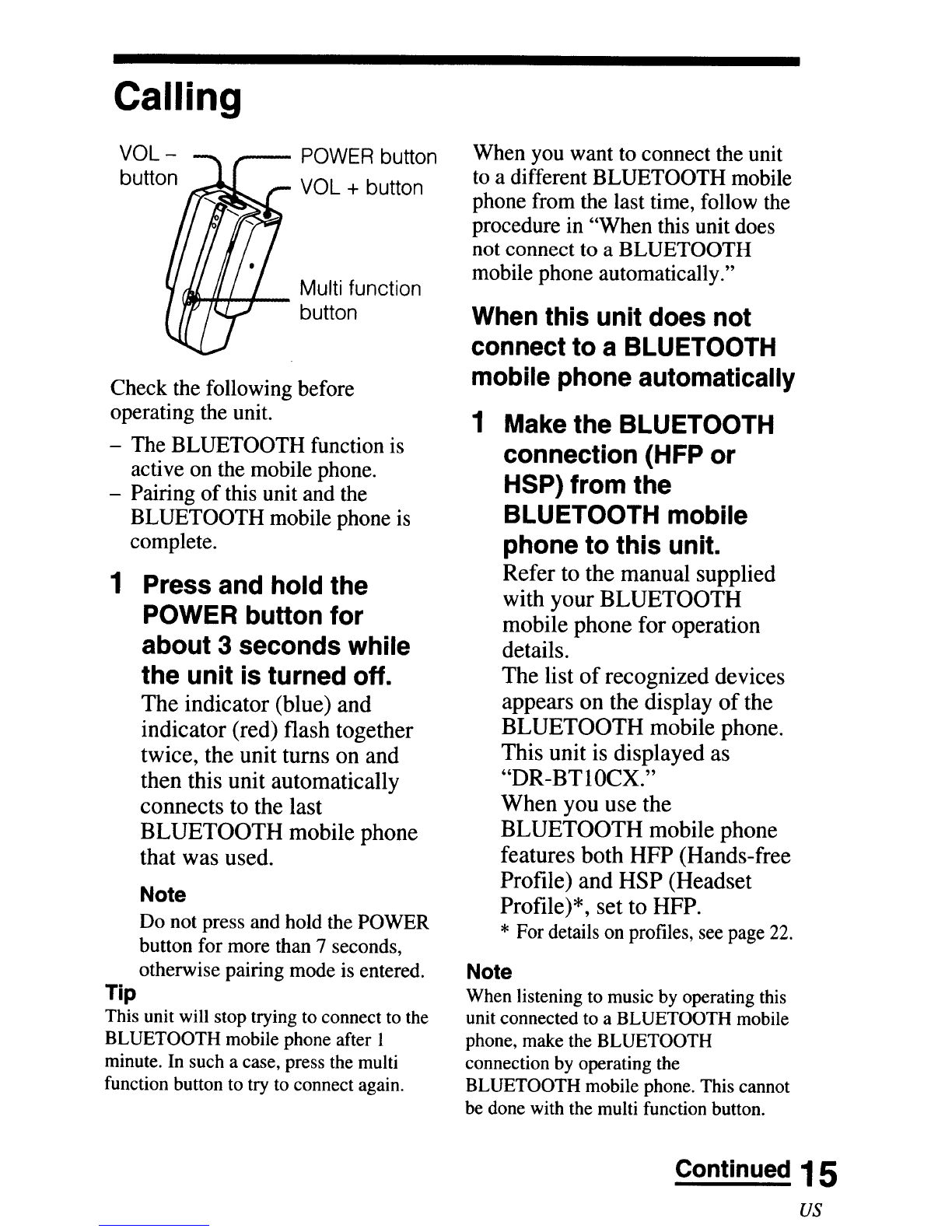

Calling
Check the following before
operating the unit.
-The BLUETOOTH function is
active on the mobile phone.
-Pairing
of this unit and the
BLUETOOTH mobile phone
is
complete.
1Press and hold the
POWER button
for
about 3seconds while
the
unit is turned off.
The indicator (blue) and
indicator (red) flash together
twice, the unit turns on and
then this unit automatically
connects to the last
BLUETOOTH mobile phone
that was used.
Note
Do not press and hold the POWER
button for more than 7seconds,
otherwise pairing mode is entered.
Tip
This unit will stop trying to connect to the
BLUETOOTH mobile phone after I
minute. In such acase, press the multi
function button to try to connect again.
VOL-
button
.-- POWER button
VOL +button
Multi function
lM-+l-+-I--
button
When you want to connect the unit
to adifferent BLUETOOTH mobile
phone from the last time, follow the
procedure in "When this unit does
not connect to aBLUETOOTH
mobile phone automatically."
When this unit does not
connect
to aBLUETOOTH
mobile phone automatically
1Make the BLUETOOTH
connection (HFP
or
HSP) from the
BLUETOOTH mobile
phone
to this unit.
Refer to the manual supplied
with your BLUETOOTH
mobile phone for operation
details.
The list
of recognized devices
appears on the display
of the
BLUETOOTH mobile phone.
This unit is displayed as
"DR-BTIOCX."
When you use the
BLUETOOTH mobile phone
features both HFP (Hands-free
Profile) and HSP (Headset
Profile)
*, set to HFP.
*For details on profiles, see page 22.
Note
When listening to music by operating this
unit connected to aBLUETOOTH mobile
phone, make the BLUETOOTH
connection by operating the
BLUETOOTH mobile phone. This cannot
be done with the multi function button.
Continued 15
us

16
us

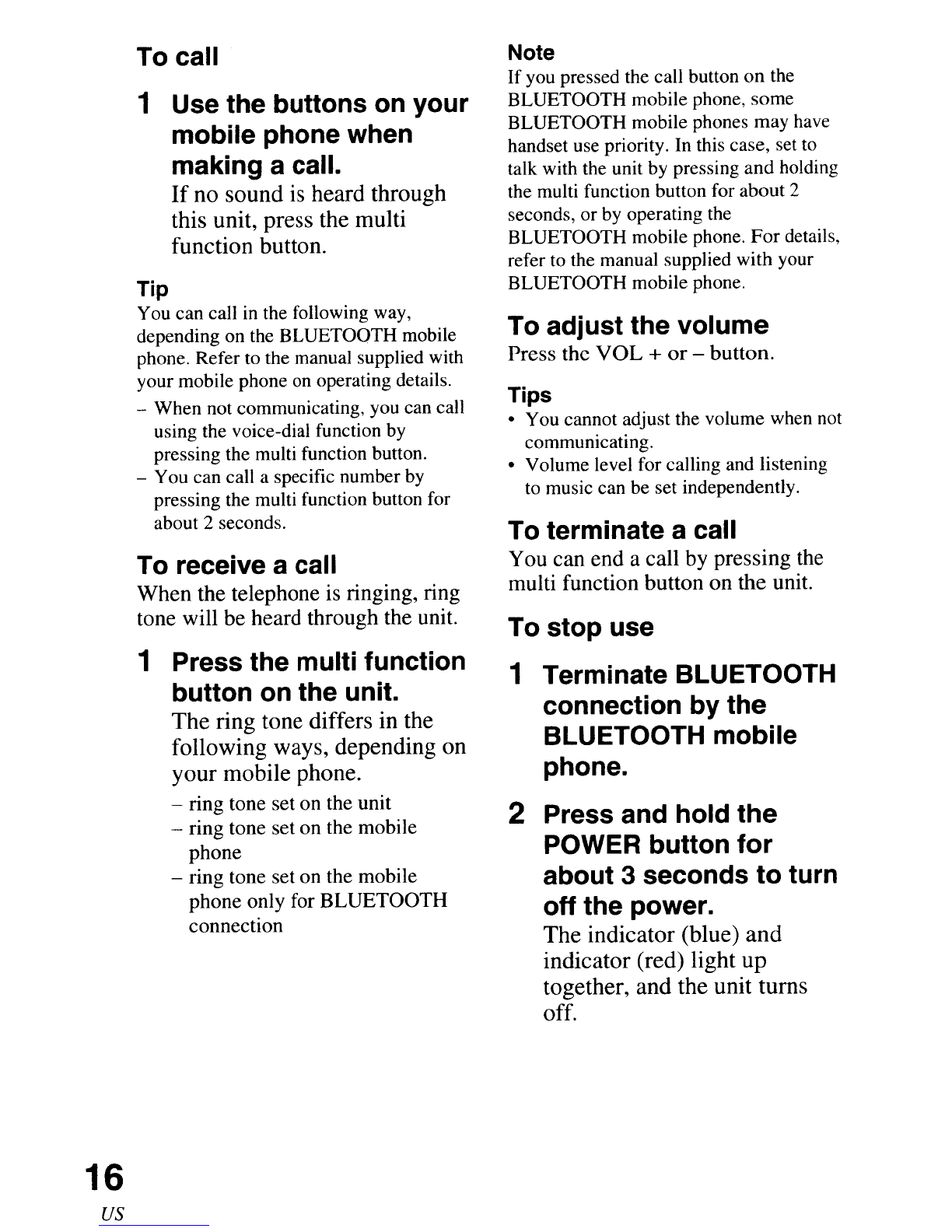

To call
1Use the buttons on your
mobile phone when
making acall.
If no sound is heard through
this unit, press the multi
function button.
Tip
You can call in the following way,
depending on the BLUETOOTH mobile
phone. Refer to the manual supplied with
your mobile phone on operating details.
-When not communicating, you can call
using the voice-dial function by
pressing the multi function button.
-You can call aspecific number by
pressing the multi function button for
about 2seconds.
To receive acall
When the telephone is ringing, ring
tone will be heard through the unit.
1Press the multi function
button on the unit.
The ring tone differs in the
following ways, depending on
your mobile phone.
-ring tone set on the unit
- ring tone set on the mobile
phone
-ring tone set on the mobile
phone only for BLUETOOTH
connection
Note
If you pressed the call button on the
BLUETOOTH mobile phone, some
BLUETOOTH mobile phones may have
handset use priority.
In this case, set to
talk with the unit by pressing and holding
the multi function button for about 2
seconds,
or by operating the
BLUETOOTH mobile phone.
For details,
refer to the manual supplied with your
BLUETOOTH mobile phone.
To adjust the volume
Press the VOL +or -button.
Tips
•You cannot adjust the volume when not
communicating.
•Volume level for calling and listening
to music can be set independently.
To terminate acall
You can end acall by pressing the
multi function button on the unit.
To stop use
1Terminate BLUETOOTH
connection by the
BLUETOOTH mobile
phone.
2Press and hold the
POWER button for
about 3seconds to turn
off the power.
The indicator (blue) and
indicator (red) light up
together, and the unit turns
off.

The operation of the buttons on this
unit varies depending on your
mobile phone.
HFP (Hands-free Profile) or HSP
(Headset Profile) is used for
BLUETOOTH mobile phone. Refer
to the operating instructions
supplied with your BLUETOOTH
mobile phone on supported
BLUETOOTH profiles or how to
operate.
HFP (Hands-free Profile)
Status Multi function button
Short Press Long Press
Standby Start Voice Last number
Dial redial
Voice Dial Cancel Voice -
active Dial
Outgoing call End outgoing -
call
Incoming call Answer Reject
During call End call Change active
device
HSP (Headset Profile)
Status Multi function button
Short Press Long Press
Standby -Dial*1
Outgoing call End outgoing End outgoing
call*1 call or change
active device to
headset*2
Incoming call Answer -
During call End call*3 Change active
device to
headset
*1 Some functions may not be supported
depending on the
BLUETOOTH
mobile phone.
*2 This may vary, depending on the
BLUETOOTH mobile phone.
*3 Some functions may not be supported
when calling using the BLUETOOTH
mobile phone.
17
us

Calling while playing back music
If the BLUETOOTH connection is active with the mobile phone, you can
switch the unit
to call even when listening to music.
Before starting, see "Calling" (page
15) on operating details.
18
us
To call while playing back
music
1Press the multi function
button while playing
back music (page 15), or
operate your
BLUETOOTH mobile
phone to make a
telephone call.
If no sound is heard through
this unit, press
and hold the
multi function button for about
2seconds.
To receive acall while
playing back music
The sound through the unit changes
to aring tone automatically.
1Press the multi function
button and tal
k.
After finishing the call, press
the multi function button. This
unit is switched
back to music
playback.
If the sound does not
change to aring tone
automatically
1Stop music playback.
2When ringing, press the
multi function button
and talk.

ADDITIONAL INFORMATION
Disposing of the unit
For environmental conservation, be sure to remove the built-in rechargeable
battery from the unit before disposing, and dispose
of the battery
appropriatel
y.
1Remove 2screws.
2Open the case and
detach the connector.
3Removethe
rechargeable battery
and dispose of it.
Rechargeable
battery
19
us

20
us
Precautions
On BLUETOOTH communication
•BLUETOOTH wireless technology
operates within arange
of about 10m
(about 30 ft).
Maximum communication range may
vary depending on obstacles (person,
metal, wall, etc.) or electromagnetic
environment.
•The antenna
of this unit is built into the
unit. The sensitivity
of BLUETOOTH
communication will improve by placing
aconnected BLUETOOTH device near
the unit.
•The following conditions may affect the
sensitivity
of BLUETOOTH
communication.
-There is an obstacle such as aperson,
metal, or wall between this unit and
BLUETOOTH device.
- A device using 2.4 GHz frequency,
such as awireless LAN device,
cordless telephone, or microwave
oven, is
in use near this unit.
•Because BLUETOOTH devices and
wireless LAN (IEEE802.11big) use the
same frequency, microwave
interference may occur and resulting in
communication speed deterioration,
noise, or invalid connection if this unit
is used near awireless LAN device. In
such as case, perform the following.
-Use this unit at least 10 m(about 30
ft) away from the wireless LAN
device.
- If this unit is used within 1O In (about
30 ft)
of awireless LAN device, tum
offthe wireless LAN device.
-Install this unit and BLUETOOTH
device as near to each other as
possible.
•Microwaves emitting from a
BLUETOOTH device may affect the
operation
of electronic medical devices.
Tum off this unit and other
BLUETOOTH devices
in the
following locations, as it may cause
an accident.
-where inflammable gas
is present,
in ahospital, train, airplane, or a
petrol station
-near automatic doors or afire alarm
•This unit supports security
capabilities that comply with
the
BLUETOOTH standard to provide a
secure connection when the
BLUETOOTH wireless technology is
used, but security may not be enough
depending on the setting. Be careful
when communicating using
BLUETOOTH wireless technology.
•We do not take any responsibility for
the leakage
of information during
BLUETOOTH communication.
•Connection with all BLUETOOTH
devices cannot be guaranteed.
- A device featuring BLUETOOTH
function
is required to conform to
the BLUETOOTH standard
specified by BLUETOOTH SIG,
and be authenticated.
-Even if the connected device
conforms to the above mentioned
BLUETOOTH standard, some
devices may not be connected or
work correctly, depending
on the
features or specifications of the
device.
-While talking on the phone hands
free, noise may occur, depending
on the device or communication
environment.
•Depending on the device to
be
connected, it may require some time
to start communication.
