Sony SRP-X500P User manual

Digital Powered Mixer
SRP-X500P

FEATURES
An All-in-One
Digital A/V Powered Mixer -
Providing an Effective Solution for
Smooth Multimedia Presentations
In 2002, Sony introduced the SRP-X700P Digital
Powered Mixer, a new “all-in-one” system concept for
multimedia presentations. Designed to function as
the central control hub for the integration of video,
audio and PC media sources, the SRP-X700P allows
for rich content and multimedia presentation systems
to be easily configured, without integrating several
separate A/V presentation devices.
Expanding upon this concept, Sony is now introducing
the SRP-X500P, a cost-effective and ideal choice for
use in small to mid-scale presentation systems - for
conference rooms, corporate boardrooms and
classrooms to houses of worship. Within its compact
chassis the SRP-X500P has seven major presentation
devices - including an RGB/video switcher, audio
mixer, wireless tuner slots, sound processor, and
digital power amplifier. For smooth control over
presentations there is an easy-to-use front-panel
layout, providing instant access controls for
compatible Sony VCRs, DVD players, projectors and
PCs. Plus, the built-in digital mixer offers important
DSP functions, including a feedback reducer and
equalizer for high-quality audio.
Eliminating complicated operations, cumbersome
installation procedures, and complex adjustments of
A/V parameters for optimized visuals and sound, the
SRP-X500P is an efficient A/V presentation system for
conveying your messages as effectively as possible.

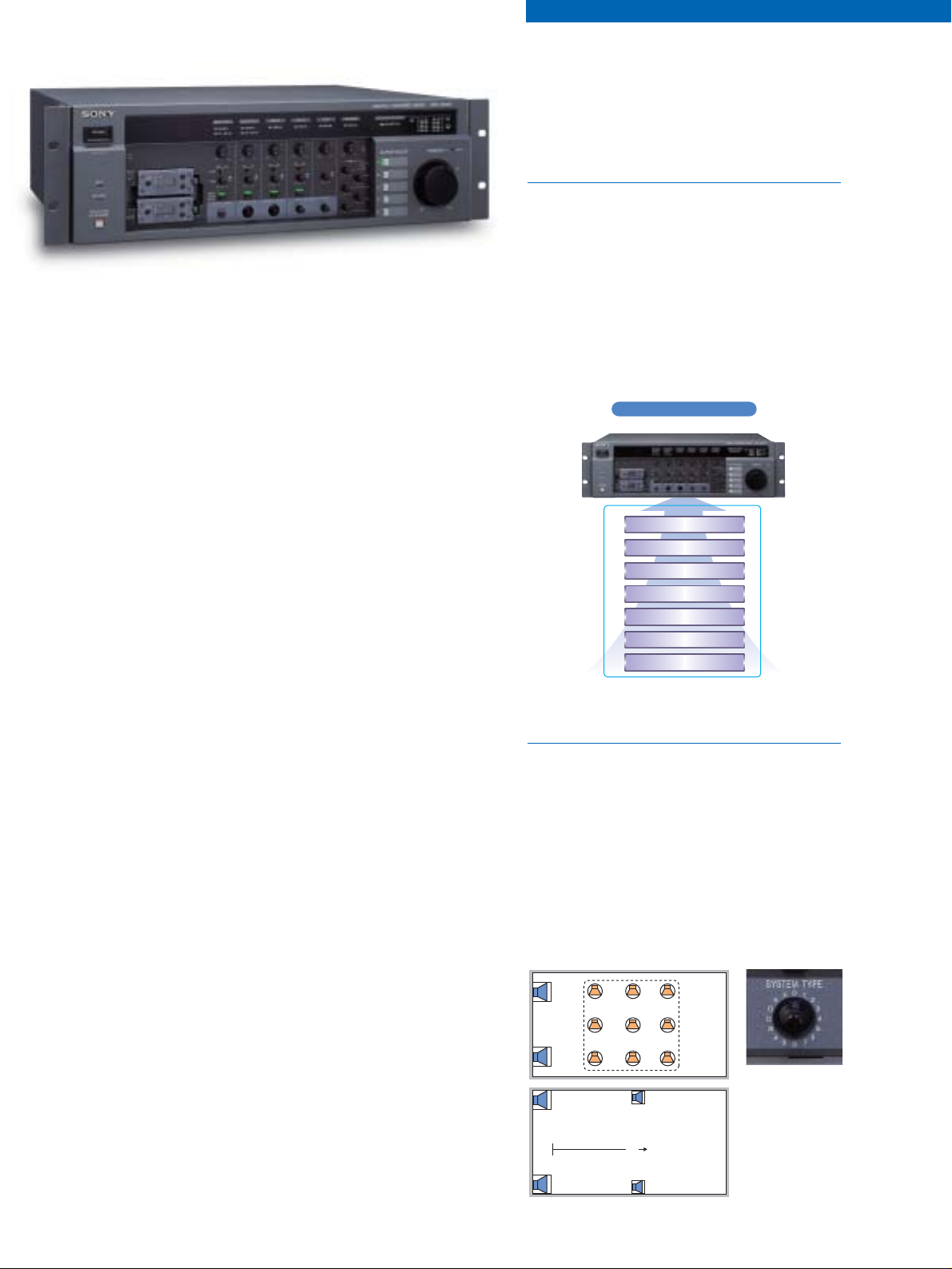

All-in-One Design
The SRP-X500P incorporates the functionality of
seven presentation devices in a compact 3U
high, 19-inch rack-mountable chassis, enabling
modern presentations using a wide variety of
A/V sources. Compared to purchasing these
devices separately, the SRP-X500P presents a
large reduction in system cost and eliminates
time-consuming wiring and adjustments
between such devices.
Nine System Presets
Setting up audio parameters of a presentation
system can be a difficult task, especially to
deliver high-clarity audio to all areas of the
venue. The SRP-X500P offers nine factory-
default system settings in its memory, enabling
more efficient audio adjustment. Speaker
system configurations are also included in these
settings, allowing quick setup of the audio
system by recalling the one best suited for the
venue.
SRP-X500P
ALL IN ONE DESIGN
Digital Processing
RGB SWITCHER
VIDEO SWITCHER
WIRELESS TUNER BASE UNIT
AUDIO MIXER
POWER AMPLIFIER
FEEDBACK REDUCER
EQ
Traditional System
70 V LINE
SP 2
SP 1
SP 2
SP 1
SP 4
SP 3
A

Comprehensive Remote Control
For integrated control of the presentation
system the SRP-X500P offers a variety of
control interfaces - to control peripheral
equipment or to be controlled from an external
control system. These include RS-232C,
Control S and PARALLEL ports.
An optional RM-AV3000 Series Wireless
Remote Commander®also provides basic
control functions for both the SRP-X500P and
connected projector.
Remote Control of the SRP-X500P:
•RS-232C (REMOTE): Various settings of the
SRP-X500P can be altered from a PC running the
supplied SRP-X500P Manager. Third-party system
controllers can also be connected to this port to
control the SRP-X500P.
Remote Control of Peripheral Equipment
From the SRP-X500P
•RS-232C (PROJECTOR CONTROL): For remote
control of Power ON/STANDBY and input selection
of Sony projectors.
•Control S (PROJECTOR CONTROL): For remote
control of Power ON/STANDBY and input selection
of the Sony LCD Data Projector VPL-PX15.
Remote Control of Peripheral Equipment
From an External Parallel Interface Box
•PARALLEL (REMOTE): For remote control of
peripheral devices such as video screens
(up/down), window curtains (open/close), and
lighting (on/off).
High-Quality Digital Sound
The SRP-X500P is equipped with a number of
digital signal sound processing functions
including Auto Gain Control (AGC), equalizer,
compressor and feedback reducer, helping to
bring professional sound quality into
multimedia presentations. Each microphone
input channel integrates a digital feedback
reduction function. At the touch of a button,
the audio frequency in which howling is likely
to occur, is detected and suppressed, reducing
unwanted microphone feedback.*
Consequently operators can raise the amplifier’s
volume without concern over microphone
howling. The SRP-X500P also incorporates an
A/D and D/A converter with a 24-bit, 48-kHz
sampling frequency for high-quality digital
sound. The four-channel digital amplifier also
maximizes the sound quality of the SRP-X500P.
*When a microphone position is changed,
the feedback reduction function has to be set again.
Integrated Wireless Tuner Unit Slots
The SRP-X500P can accommodate two optional
wireless tuner units, selectable from the
Sony UWP-X series or the
WRU-806A/806B, making it
simple to establish a high-
quality wireless microphone
system for the presentation.
Front Panel

Wireless Control of the SRP-X500P or
Peripheral Equipments
Using the optional RM-AV3000 Series Remote
Commander, frequently accessed operations of the
SRP-X500P and connected projector can be wirelessly
controlled:
SRP-X500P
•AV/RGB selection
•Master volume adjustment
•Master volume muting
Projector
•Projector Power ON/STANDBY
Versatile Interfaces
The SRP-X500P offers an array of video, PC,
and audio I/Os. In addition to conventional
composite and component video inputs, it
supports computer RGB input and output, both
of which accommodate up to SXGA resolution.
As for audio, four microphone inputs and two
stereo line inputs are available, each which can
be freely assigned to the four audio outputs.
Built-in Four-Channel
Digital Power Amplifier
The SRP-X500P is equipped with a four-channel
digital power amplifier that can be switched
between high and low impedance modes to
suit various room types.
Low impedance mode:
90 W + 90 W + 50 W + 50 W (4 Ω, 8 Ω)*
High impedance (70 V line) mode:
90 W + 90 W (4 Ω, 8 Ω)* + 60 W (82 Ω)
*The same power rating can be acquired for both 8 Ω
and 4 Ωspeaker impedance. Connect the speakers so
the total speaker impedance is 4 Ωor higher.
PC Control With Easy-to-Use GUI
For system setup and operation from a PC, the
SRP-X500P is supplied with the Windows-based
SRP-X500P Manager software.* From its easy-
to-use GUI, operators can control detailed
settings such as the equalizer, AGC, and
compressor, before the presentation.
* System requirements:
OS: Microsoft®Windows®Me, 2000 Professional,
XP Professional or XP Home Edition
CPU: Intel®Celeron®400 MHz or higher
RAM: 128 MB or greater
Available hard disk space: 20 MB or higher
Rear Panel
SRP-X500P Manager Block Screen

SYSTEM CONFIGURATIONS
OPTIONAL ACCESSORIES
AN-820A
UHF Antenna
M
M
Document Camera
Desktop PC
Mobile PC
DVD Player
VCR
MD Recorder
Wireless Microphone
UWP-X Series/WRT-Series
IR Remote Commander
Microphone
Wireless Tuner
UWP-X Series
WRU-806A/806B
or
Control Panel
Touch Panel
& Controller
RGB
Component Video
Composite Video
Audio
Parallel Remote
Control-S
RF
RS-232C Remote
I/F BOX
Lights
Screen
Window
Curtain
Projector
*
Speakers
High-impedance
Speakers
* For the VPL-PX15 LCD data projector only
Antenna
AN-820A
SRP-X500P
WRU-806A/806B
UHF Synthesized Tuner Unit
UWP-X1/X2
UHF Wireless Microphone
Package (photo shows a
tuner unit included in the
UWP-X Series package)
RM-AV3000 Series
Remote Commander
BLOCK DIAGRAM

MK10172V1OHB05FEB
Distributed by ©2005 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design and specifications are subject to change without notice.
All non-metric weight and measurements are approximate.
Sony and Remote Commander are a registered trademarks of Sony Corporation.
All other trademarks are property of their respective owners.
SPECIFICATIONS
SRP-X500P
General
Power requirements AC 120 V, 60 Hz (for the U.S.A and Canada)
AC 220 V, 50/60 Hz (for China)
AC 230 V, 50/60 Hz (for other countries)
Power consumption 120 W
Operating temperature 0 to +40 °C (+32 to +104 °F)
Storage temperature -20 to +60 °C (-4 to +140 °F)
Dimensions (W x H x D) 482 x 132 x 357 mm (19 x 5 1/4 x 14 inches)
Mass Approx. 12 kg (26 lb 3 oz)
Supplied accessories
AC power cord (1), operation manual (1), foot (4),
SRP-X500P Manager Software CD-ROM (1), antenna (2)
Electrical characteristics
Composite video
Color system NTSC/PAL/SECAM
Frequency response 50 Hz to 10 MHz
Level 1.0 Vp-p (75 Ω)
Component video
Color system NTSC/PAL
Frequency response 50 Hz to 150 MHz
Level Y: 1.0 Vp-p (75 Ω), R-Y/B-Y: 0.7 Vp-p (75 Ω)
RGB
Frequency response 50 Hz to 150 MHz
Resolution SXGA: 1280 x 1024 pixels, 60 Hz,
supporting 480p/1080i
Level R/G/B: 0.7 Vp-p (75 Ω), Sync/HD, VD: 1 to 5 Vp-p
(47 kΩ) sync positive/negative
Audio (analog)
Frequency response Line input to Line output: 20 Hz to 20 kHz ±0.5 dB
(1 kHz reference)
T.H.D. Line input to Line output: Less than 0.01% (1 kHz)
S/N ratio Line input to Line output: More than 94 dB (IHF A)
Crosstalk Line input to Line output: Less than -80 dB (1 kHz)
Others
Antenna in (a/b) BNC x2, DC +9 V out
Microphone power supply DC +48 V, MIC 1 to 4 inputs
Audio inputs
Input Connector Circuit Channel Reference/peak level Impedance
MIC/WL 1, 2 XLR-3-31 type Balanced Mono -60 to -30 dBu/-37 to -7 dBu More than 2.2 kΩ
MIC 3, 4 XLR-3-31 type Balanced Mono -60 to -30 dBu/-37 to -7 dBu More than 2.2 kΩ
LINE Phono x 2 Unbalanced Stereo -30 to 0 dBu/+10 dBu More than 10 kΩ
AV/RGB (A to E)
Phono x 2 Unbalanced Stereo -30 to 0 dBu/+10 dBu More than 10 kΩ
Audio output
Output Connector Circuit Channel Reference/peak level Load impedance
LINE 1 to 4 Phono x 1 Unbalanced Mono -5 dBu/+15 dBu More than 10 kΩ
Speaker outputs
Output Connector Speaker impedance Rated power
CH1/CH2 Screw-type binding terminal x 4 4 to 16 Ω90 W (4 Ω,8Ω)*
CH3/CH4 (70 V LINE) Screw-type binding terminal x 4 4 to 16 Ω (at low impedance) 50 W (4 Ω,8Ω)*
82 to 10 kΩ(at 70 V LINE) 60 W (82 Ω)
*The same power rating can be acquired for both 8 Ωand 4 Ωspeaker impedance.
Connect the speakers so the total speaker impedance is 4 Ωor higher.
AV/RGB inputs
Input Connector Signal type
VIDEO (A to C) Phono x 1 Composite
COMPONENT/RGB (D, E) D-sub 15-pin Component/RGB
AV/RGB outputs
Output Connector Signal type
VIDEO Phono x 1 Composite
COMPONENT/RGB D-sub 15-pin Component/RGB
Remote control terminal
RS-232C ports Connector Function
PROJECTOR CONTROL
D-sub 9-pin (male) Input selection, Power on/standby
REMOTE D-sub 9-pin (male) Setting of SRP-X500P audio and switch functions
from a PC running the SRP-X500P Manager software
Parallel I/O ports Connector Function Type
PARALLEL IN D-sub 25 pin (female) AV selection, Power on/off, Scene recall, Make-contact
Volume, Volume up/down, Muting CMOS level,
active low
PARALLEL OUT Output status of Parallel input function Open collector
Control-S ports Connector Function
PROJECTOR IN* Mini jack For the connection of projector remote commander
PROJECTOR OUT* Mini jack Input selection, Power on/standby
*For the VPL-PX15 LCD data projector only
Use of Sony wireless devices in the United States of America is regulated by
the Federal Communications Commission as described in Parts 15 and 74 of
the FCC regulations. Users authorized thereby are required to obtain an
appropriate license.
482 (19)
430 (17)
132 (5 1/4)
22 (7/8)
30 (1 3/16)
3 (1/8)
350 (13 7/8)
7 (9/32)
DIMENSIONS
Unit: mm (inches)
