UP-DF550 FilmStation™Dual Tray Film Imager
The Sony FilmStation Dual Tray Imager is a unique multi-film imager built on the design platform of
the UP-DF500 FilmStation Imager. The Dual Tray film imager incorporates many of the same unique
features of our UP-DF500 model and adds a second output tray to accommodate multiple film
sizes including 8 x 10", 10 x 12" and 11 x 14".
This added featuregives the end user the built-in capability to produce film prints for a variety of
modalities as well as low cost copies ideal for patient referrals. The UP-DF550 can be mounted
horizontally or vertically which is a major advantage over other large centralized film imagers.
The UP-DF550 Dual Tray Film Imager is an ideal choice for many modalities such as CT, MR, DR, CR
and X-Ray.
•Ideal for many modalities including CT, MR,
CR, DR and Ultrasound
•Two trays to accommodate multiple film sizes
•Second tray supports 8 x 10", 10 x 12", 11 x 14" sizes
•Fast throughput – 70 films per hour
•Outputs economical patient referral copies
•Built-in DICOM 3.0 Interface
•Intelligent Memory – printer settings including
IP address can be saved on Memory Stick®media
in the event of a swap out
•Unique vertical installation option saves space

©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice. All non-metric weights and measures are approximate.
Sony, FilmStation and Memory Stick are registered trademarks of Sony Electronics. Windows is a registered trademark of Microsoft Corporation.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.
ME-UPDF550
Print Media
Sony Electronics Inc.
1Sony Drive
Park Ridge, NJ 07656
www.sony.com/medical
UPT-517BL Media (14 x 17”)
Blue Thermal Film Printing Pack
Contents: 125 sheets per pack
UPT-514BL Media (11 x 14”)
Blue Thermal Film Printing Pack
Contents: 125 sheets per pack
UPT-512BL Media (10 x 12”)
Blue Thermal Film Printing Pack
Contents: 125 sheets per pack
UPT-510BL Media (8 x 10”)
Blue Thermal Film Printing Pack
Contents: 125 sheets per pack
Sony engineered thermal
film media was specifically designed
for use with the FilmStation imager.
Multiple Film Sizes UP-DF550 Rear Panel

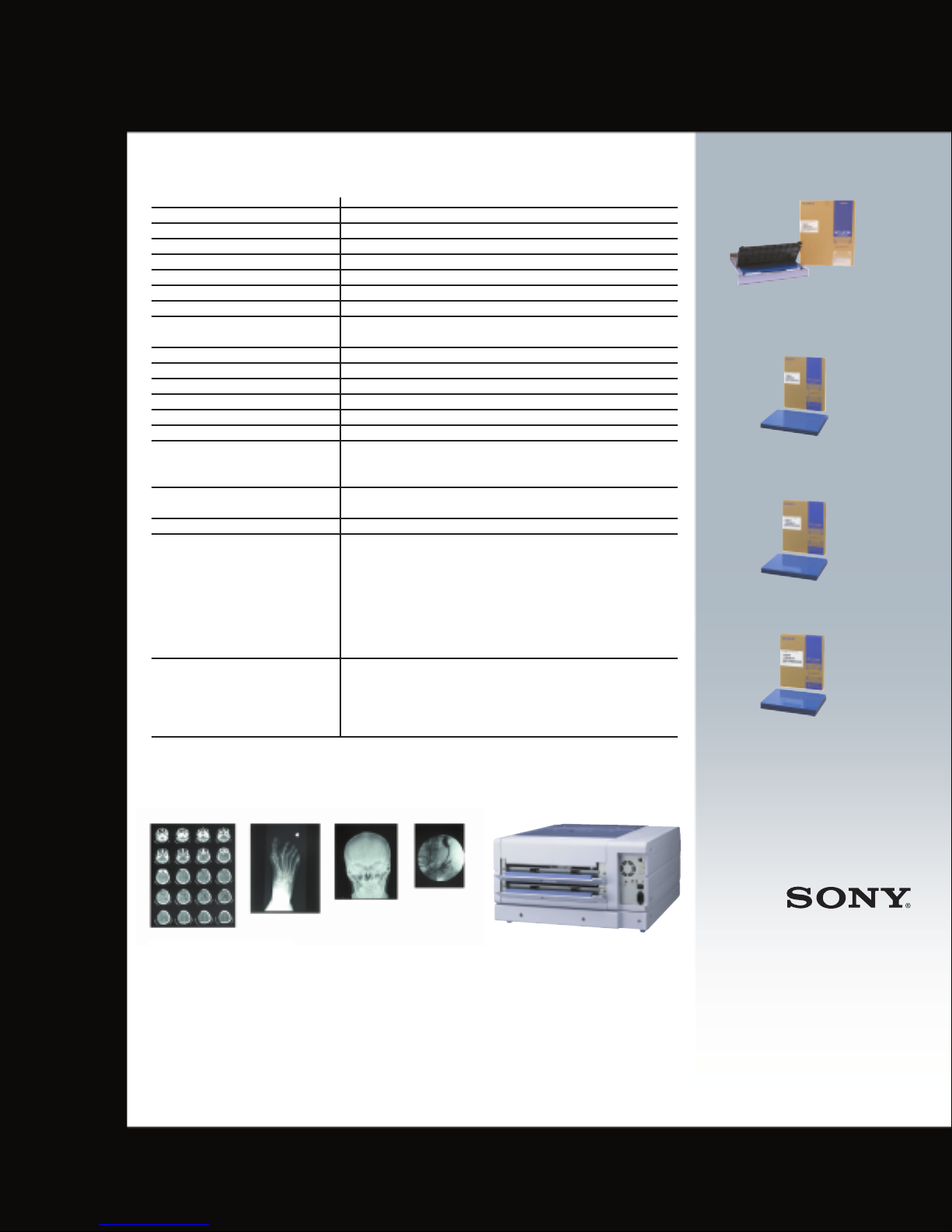

Specifications
Power Requirements 100 to 240 V AC, 50/60 Hz
Input Current 4.4 to 1.8 A
Operating Temperature 10ºC to 30ºC (50ºF to 86ºF)
Operating Humidity 20% to 80% (no condensation allowed)
Operating Pressure 700 hPa to 1060 hPa
Storage and Transport Temperature -20ºC to +60ºC ( -4ºF to +140ºF)
Storage and Transport Humidity 20% to 80% (no condensation allowed)
Storage and Transport Pressure 700 hPa to 1060 hPa
Dimensions About 600 x 316 x686 mm (w/h/d)
(23 5/8 x 12 1/2 x 27 1/2 inches)
Mass Approx. 63 kg (138 lb 14 oz)
Printing System Thermal Printing
Resolution 12.59 dot/mm (320 dpi)
Gradations 4,096 levels
Maximum Print Size 401.8 x 335.4 mm (when using the UPT-517BL)
Picture Elements 4,360 x 5,232 dots (w/h)
Printing Time Approx. 70 sheets/hour
(excluding the time for cooling the head
and when using the UPT-517BL)
Digital Interface Networkportx1(RJ-45 Modular jack),
Conforming to 100BASE-TX standard
Input Connector AC IN (for power)
Accessories Supplied Media starter pack – UPT-517BL (125 sheets)
Cleaning Kit (1)
Caster for setting the printer vertically (2)
Stopper sheet (1)
Operating Guide(1)
CD-ROM (1)
FloppyDisk (1)
Warranty card (1) (for the customer in the U.S.A and Canada)
Accessories Supplied Separately Blue Thermal Film Printing Pack UPT-517BL (14 x 17")
Blue Thermal Film Printing Pack UPT-514BL (11 x 14")
Blue Thermal Film Printing Pack UPT-512BL (10 x 12")
Blue Thermal Film Printing Pack UPT-510BL (8 x 10")
Cleaning Kit UPA-500
Design and specifications are subject to change without notice.
