Sony VPH-V20U User manual

ColorVideo
Projector
3-865-080-11(1)
VPH-V20M/V20U
VPH-V22M
Installation Manual for Dealers GB
1998 by Sony Corporation
CAUTION
THIS INSTALLATION MANUAL IS FOR USE BY QUALIFIED PERSONNEL
ONLY.

2Installation
Before Installing
Installation
Before Installing ................................................................ 3
Projector Dimensions..............................................................3
Installation Procedures............................................................6
Installation Diagrams ........................................................ 8
Floor Installation Using Front Projection Flat Screen ............8
Ceiling Installation Using Front Projection Flat Screen .........9
When the Screen Size is Not Described in the Diagrams .....10
Floor Installation Using Rear Projection Screen...................11
Ceiling Installation Using Rear Projection Screen ...............12
Level Projection, Floor Installation ......................................13
Level Projection, Ceiling Installation ...................................14
Modifications of Parts ..................................................... 15

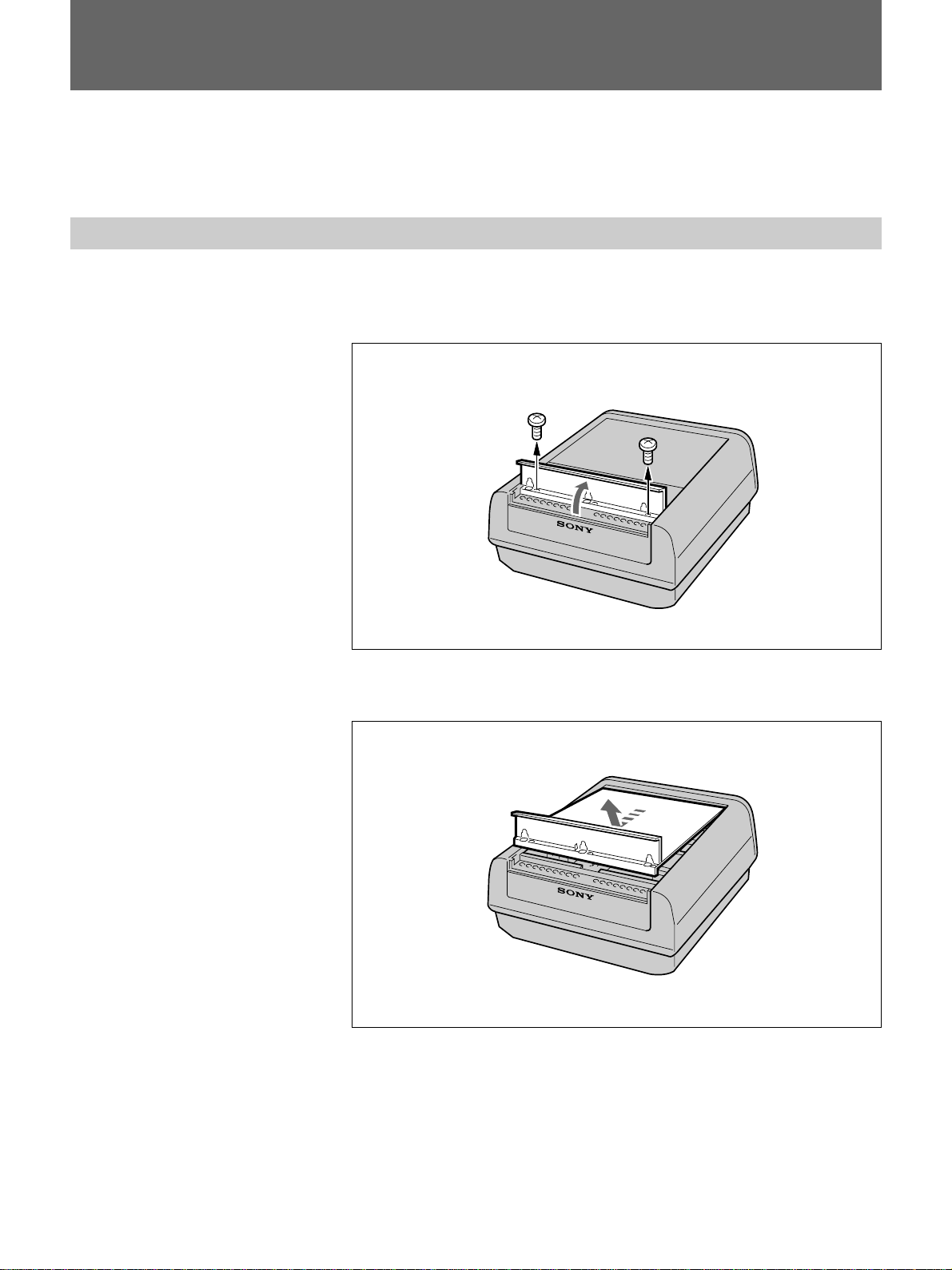

Opening the Top Panel ..........................................................15

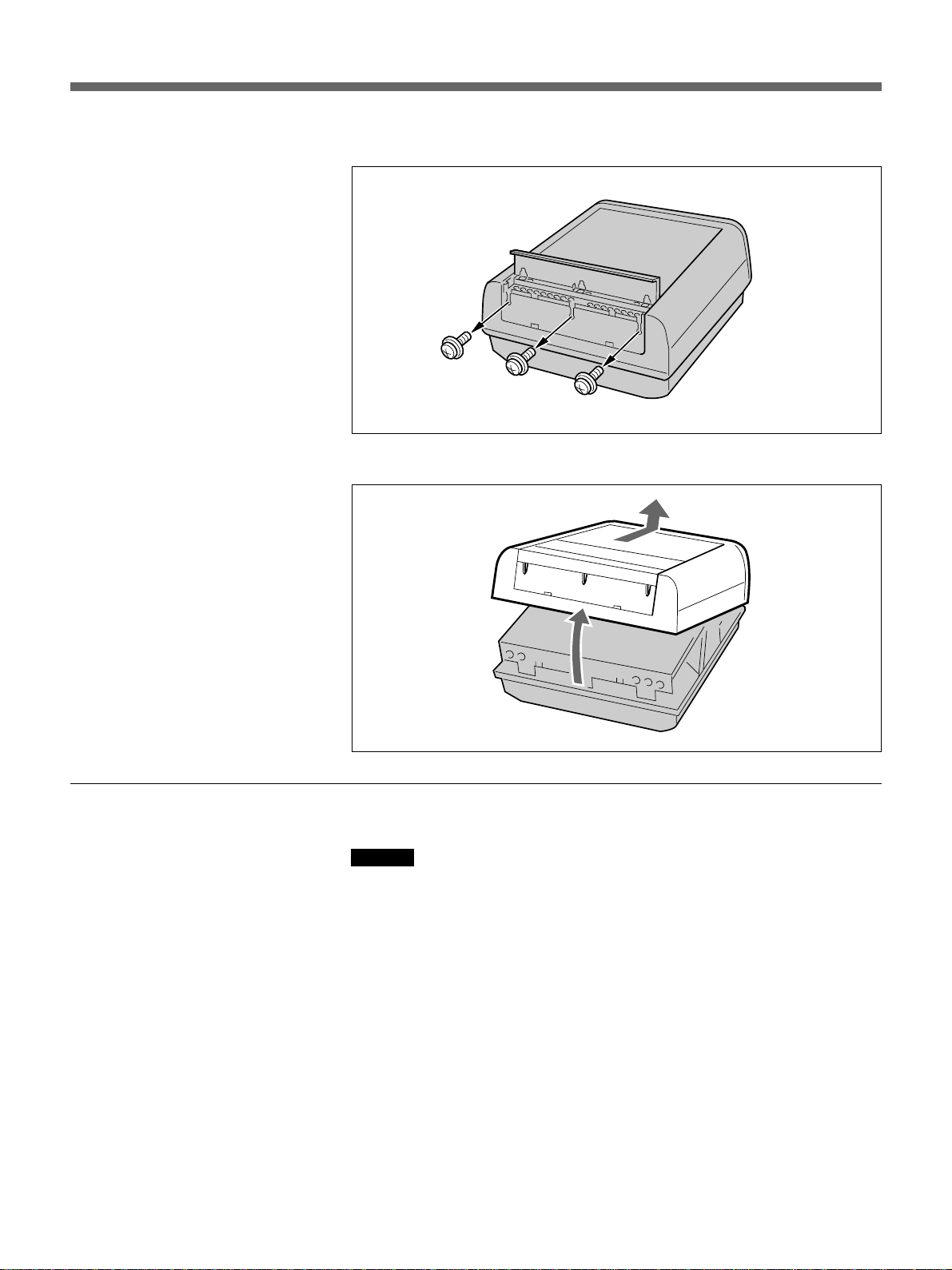

Removing the Cabinet...........................................................16
Detaching the Lens Block .....................................................18

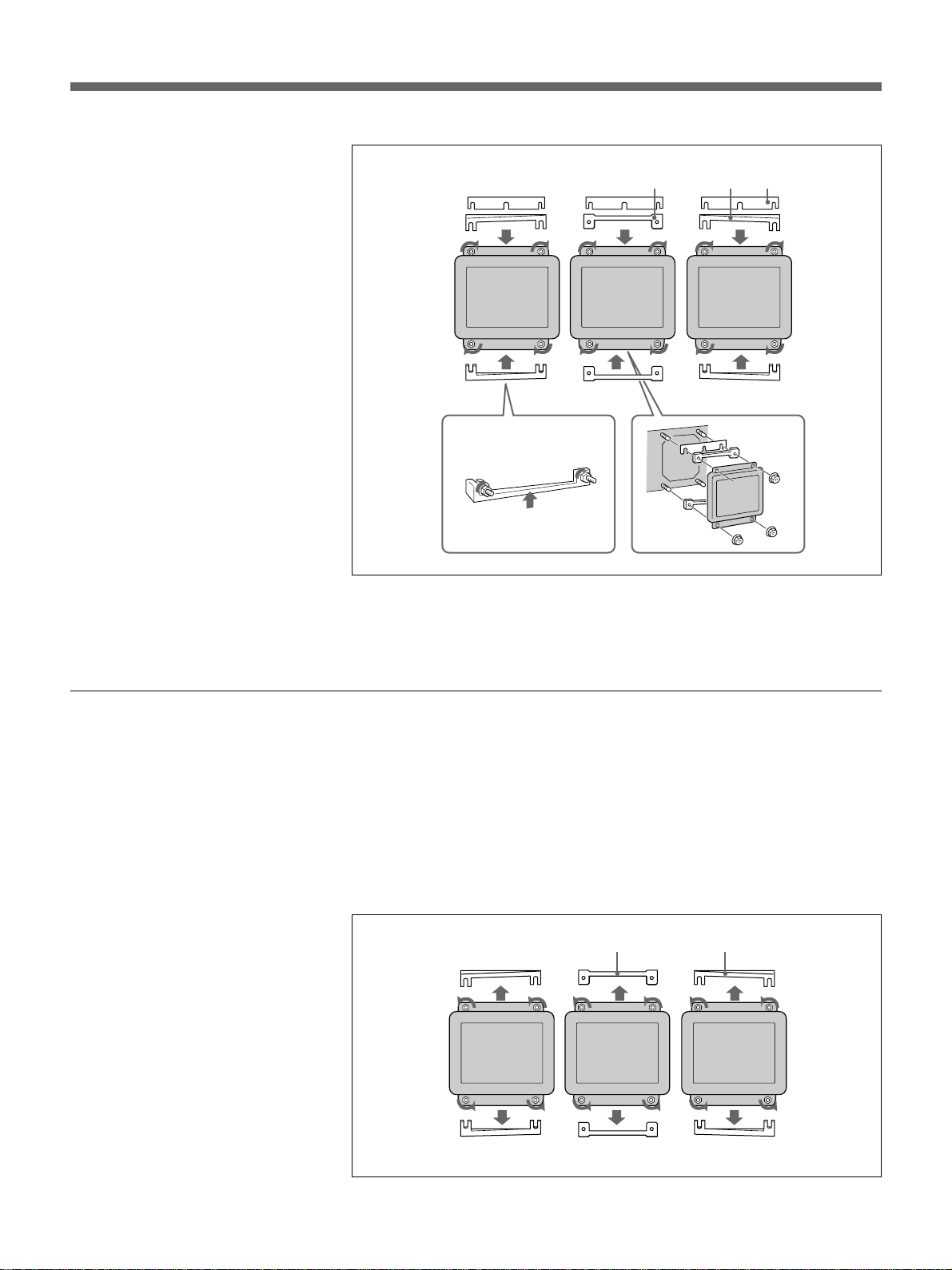

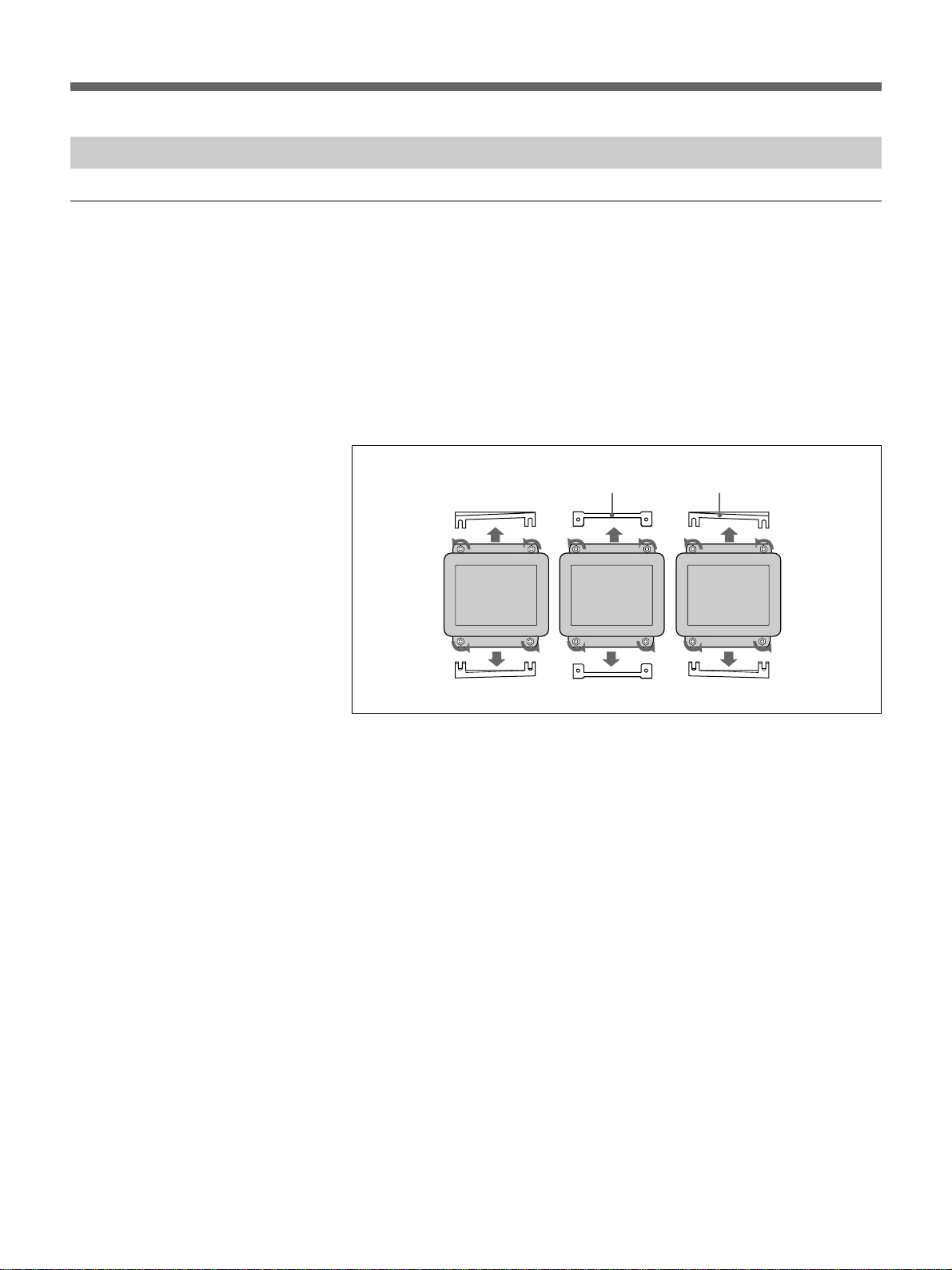

Changing the CRT Spacer.....................................................19
Adjusting the Lens Spacer for 150- to 250-inch
Projection ..............................................................................23
Changing the Polarity............................................................24
Adjustment
Lens Focus Adjustment.................................................. 25
Preparation ............................................................................25
Adjusting the Lens Focus......................................................26
Registration Adjustment................................................. 27
Preparations...........................................................................28
Adjusting the Red Registration .............................................28
Adjusting Blue Registration..................................................29
When the Registration Adjustment is Complete...................29
English Table of Contents
Table of contents

Installation 3
Before Installing
Projector Dimensions
Side
Front
Rear
GB
Unit: mm (inches)
Center of the green lens
Unit: mm (inches)
Unit: mm (inches)
28.5 (1 1/8)
60 (2 3/8) 60 (2 3/8)
578 (22 7/8)
597.5 (23 5/8)
19.5 (25/32)
186.5 (7 3/8)
87.5 (3 1/2)
239 (9 1/2)
288.5 (11 3/8)
302 (12)
86 (3 1/2)
16 (21/32)
59 (2 3/8)
150 (6)
154.5 (5 3/4)
25 (1) 340 (13 1/2) 25 (1)
16 (21/32)
533 (21)
English

4Installation
Before Installing

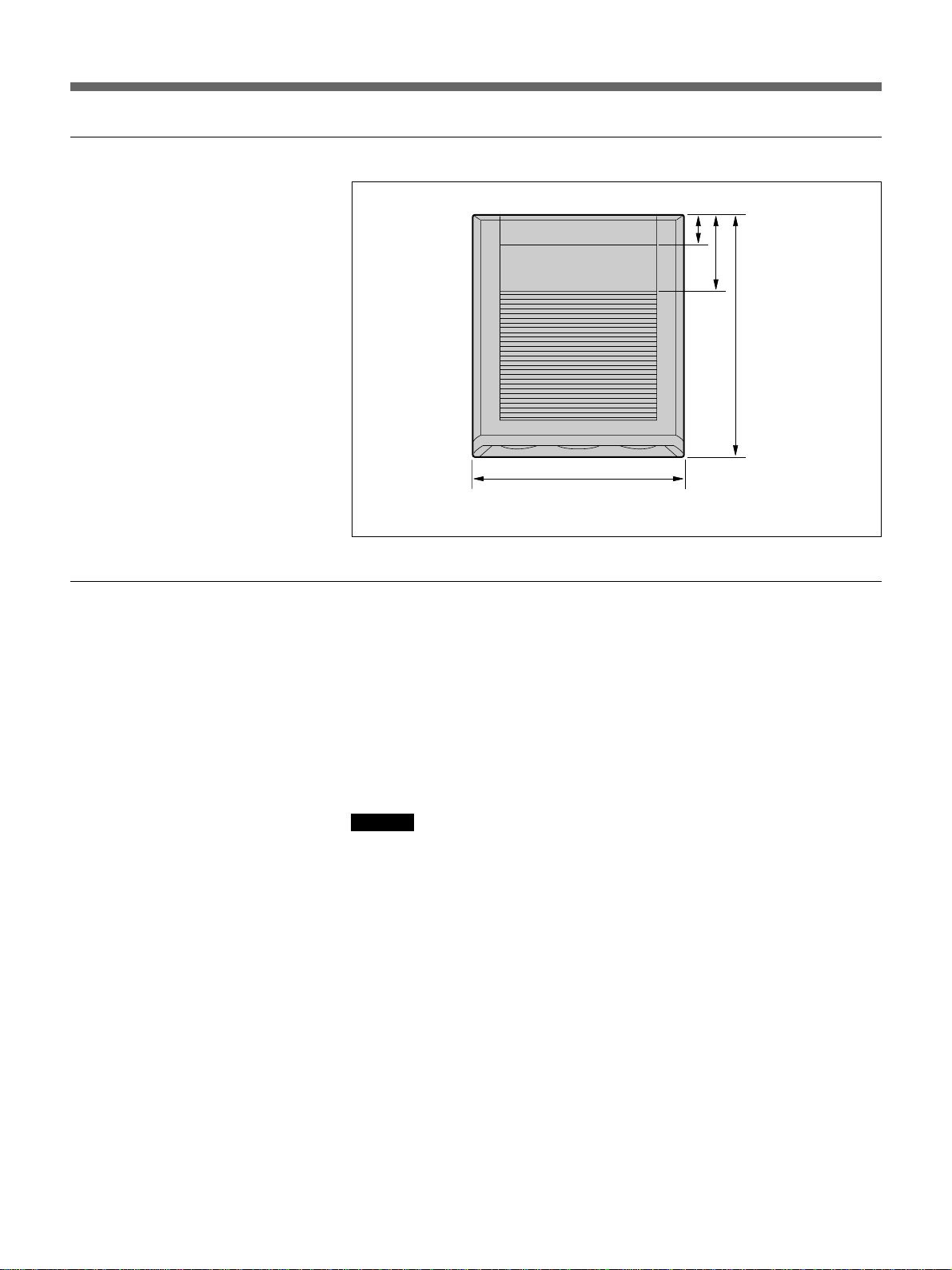

Top
Illumination
To obtain a clear picture, the screen should not be exposed to illumination
or sunlight directly from the front.
•Ceiling mounted spot lighting is recommended. Use a construction over
light scattering illumination such as fluorescent lamps.
•Cover the windows that face the screen with opaque draperies.
•It is desirable to install the projector in a room whose floor and walls are
of reflecting material, it would be desirable to change to a dark carpet and
wall paper.
Caution
Take care not to touch portions of the projector other than those indicated
in this manual because dangerous high voltages are present. To change the
polarity, first turn the MAIN POWER switch off.
Unit: mm (inches)
72(2 7/8)
189 (7 1/2)
598 (23 5/8)
533 (21)

Installation 5
Necessary Clearance for Maintenance
When you install the projector, be sure to provide the clearance around it
as shown for maintenance service.
Necessary Dimensions for Ceiling Installation
Raise the brackets at the bottom.
*R:Radius
Unit: mm (inches)
Unit: mm (inches)
You may reattach the
nameplate upside down.
Bracket
Hole used for installation
on the ceiling
630 (24 7/8)
150 (6)
730 (28 3/4)
R569 (22 1/2)*
63.5 (2 1/2)
320 (12 5/8)
37.6 (1 1/2)
251 (10)
11 (7/16)
3 (1/8)362 (14 3/8)3 (1/8)
93.5 (5 3/4)

6Installation
Before Installing
Ceiling Installation Using Front Projection
Flat Screen
Installation Procedures
This projector is adjusted at the factory for projection
on a 100-inch front projection type screen when the
projector is installed on the floor/desk. If you install
the projector under other conditions, modifications of
some parts in the projector are required. Therefore,
installation procedures vary depending on the screen
size, installation method and type of screen.
Floor Installation Using Front Projection
Flat Screen
70-149 inches 150-250 inches
Select the screen size.
Change the CRT spacers.
(Page 19)
Adjust the lens spacers.
(Page 23)
Install the screen and the projector in accordance with the
standard measurements. (Page 8)
Adjust the lens focus. (Page 26)
Adjust the registration. (Page 27)
70-149 inches 150-250 inches
Select the screen size.
Change the CRT spacers.
(Page 19)
Adjust the lens spacers.
(Page 23)
Install the screen and the projector in accordance with the
standard measurements. (Page 9)
Adjust the lens focus. (Page 26)
Adjust the registration. (Page 27)
Change the polarity. (Page 24)

Installation 7

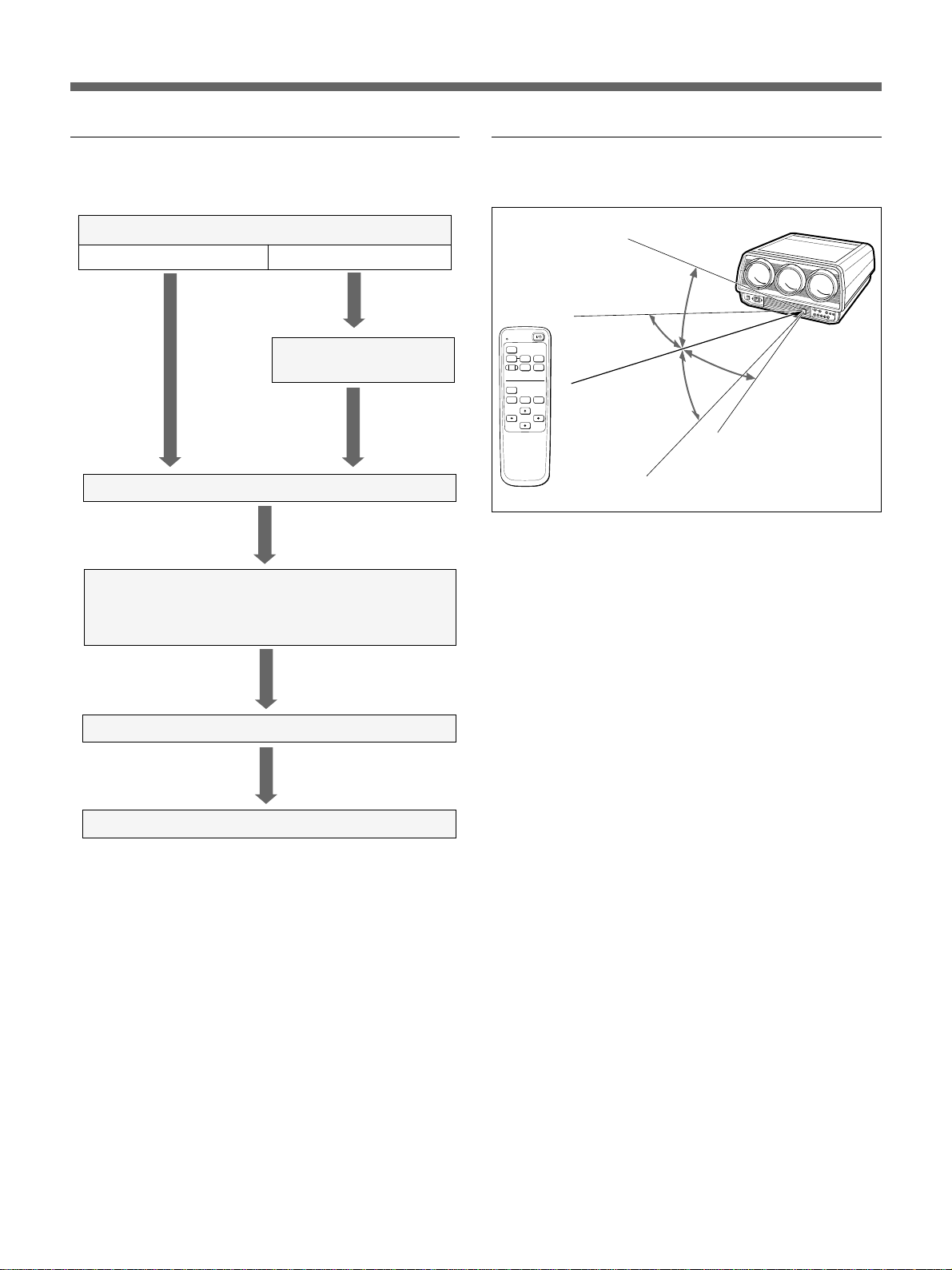

Operable range of the Remote
Commander
Floor or Ceiling Installation Using Rear
Projection Flat Screen
Approx. 7 m (23 feet) (max.)
12° 0° or 2°
Determine the angle of optical axis.
Change the CRT spacers.
(Page 19)
Install the screen and the projector in accordance with the
standard measurements.
• Floor installation (pages 11, 13)
• Ceiling installation (pages 12, 14)
Adjust the lens focus. (Page 26)
Adjust the registration. (Page 27)
Change the polarity. (Page 24)
30°
30°
30°
30°
MUTING
INPUT SELECT
PIC
VIDEO
S VIDEO INPUT A
TEST
R CENT B CENT
PAGE
M SEL
ASPECT
RESET

8Installation
Installation Diagrams
Installation Diagrams

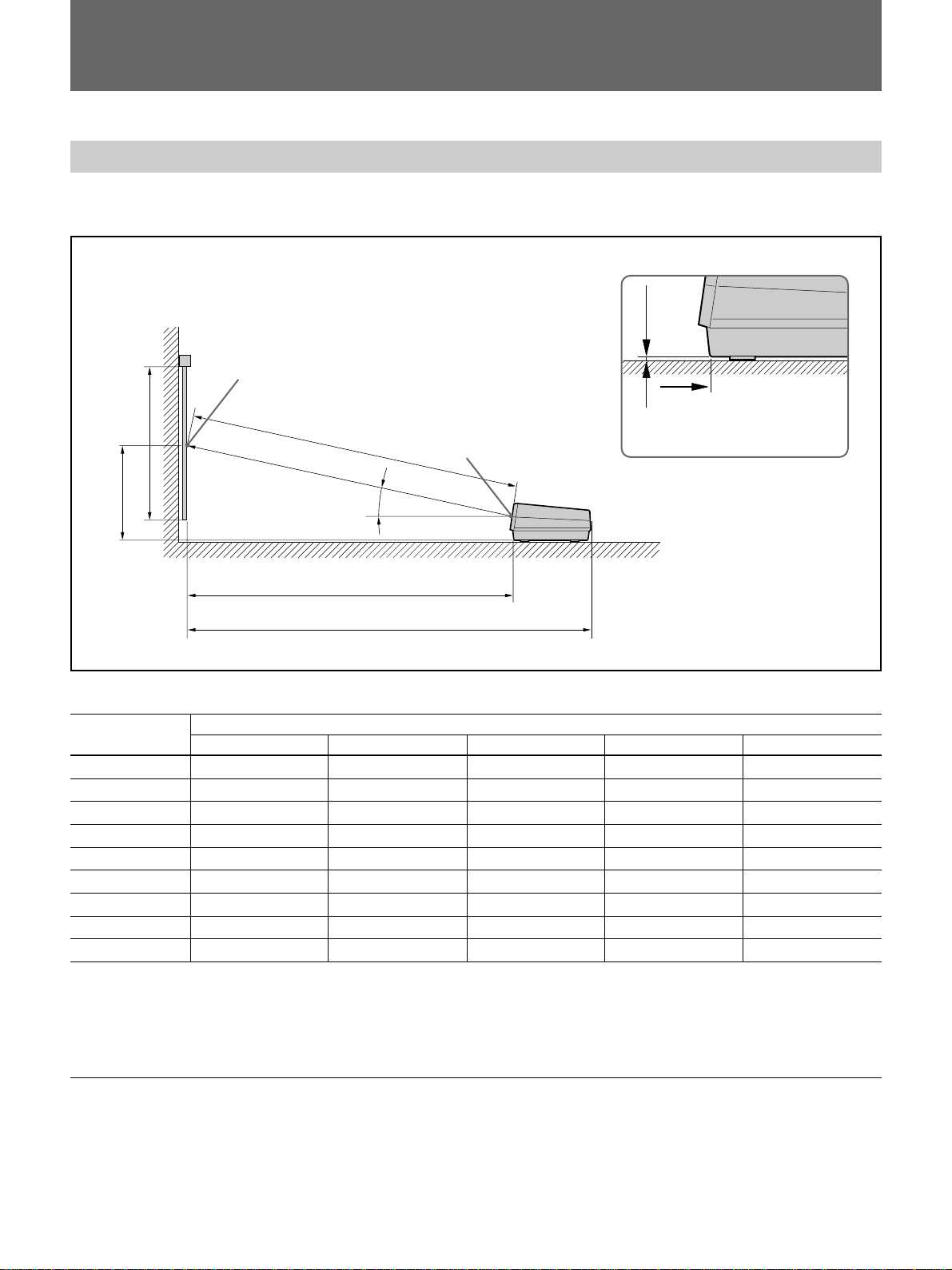

Floor Installation Using Front Projection Flat Screen
Be sure that the projector is parallel to the floor.
A
B
C
E
12°
D
D
B
Tolerance in length:±1%
Screen size Length: mm (inches)
(inches) A B C D E
70 1,067 (421 /8) 674 (265 /8) 2,406 (943 /4) 2,363 (931 /8) 2,934 (1155 /8)
72 1,097 (431 /4) 685 (27) 2,480 (97 3 /4) 2,441 (961 /8) 3,012 (1185 /8)
80* 1,219 (48) 740 (291 /4) 2,734 (1073 /4) 2,681 (1055 /8) 3,252 (1281 /8)
100* 1,524 (601/8) 873 (343 /8) 3,368 (1325 /8) 3,301 (130) 3,872 (1521 /2)
120** 1,829 (721 /8) 1,006 (395 /8) 4,004 (15711 /16) 3,923 (1541 /2) 4,494 (177)
150 2,286 (901 /8) 1,214 (477 /8) 4,961 (1953 /8) 4,857 (1911 /4) 5,428 (2133 /4)
180 2,743 (1081 /8) 1,414 (553 /4) 5,918 (2311 /8) 5,793 (2281 /8) 6,364 (2505/8)
200 3,048 (1201 /16) 1,544 (607 /8) 6,555 (2581 /8) 6,417 (2523 /4) 6,988 (2751 /4)
250 3,810 (1501 /8) 1,884 (741 /4) 8,142 (3205 /8) 7,967 (3133 /4) 8,538 (3361 /4)
*Sony screen VPS-80FH
**Sony screen VPH-100FH
***Sony screen VPS-120FH
Necessary modifications of parts(only for use of the 150- to 250-inch screens)
•CRT spacer change (page 19)
•Lens spacer adjustment (Page 23)
Center of the screen
Center of the green lens
Floor
Wall
“B” and “D” correspond to
those in the illustration below.
16 mm

Installation 9
Ceiling Installation Using Front Projection Flat Screen
Be sure that the projector is parallel to the ceiling. Use the Sony PSS-722
projector suspension support.
Screen size Length: mm (inches)
(inches) A B C D E F
70 1,067 (421 /8) 813 (321 /8) 2,406 (943 /4) 2,614 (103) 2,934 (1155 /8) 139 (51 /2)
72 1,097 (431 /4) 824 (321 /2) 2,480 (97 3 /4) 2,692 (106) 3,012 (1185 /8) 139 (51 /2)
80* 1,219 (48) 879 (345 /8) 2,734 (1073 /4) 2,932 (1143 /4) 3,252 (1281 /8) 139 (51 /2)
100* 1,524 (601/8) 1,012 (397 /8) 3,368 (1325 /8) 3,552 (1397 /8) 3,872 (1521 /2) 139 (51 /2)
120** 1,829 (721 /8) 1,145 (451 /8) 4,004 (15711 /16) 4,174 (1643 /8) 4,494 (177) 139 (51 /2)
150 2,286 (901 /8) 1,350 (531 /4) 4,961 (1953 /8) 5,108 (2011 /8) 5,428 (2133 /4) 136 (53 /8)
180 2,743 (1081 /8) 1,550 (611 /8) 5,918 (2311 /8) 6,044 (238) 6,364 (2505/8) 136 (53 /8)
200 3,048 (1201 /16) 1,680 (661 /4) 6,555 (2581 /8) 6,668 (2625/8) 6,988 (2751 /4) 136 (53 /8)
250 3,810 (1501 /8) 2,020 (799 /16) 8,142 (3205 /8) 8,218 (3235 /8) 8,538 (3361 /4) 136 (53 /8)
*Sony screen VPS-80FH
**Sony screen VPS-100FH
***Sony screen VPS-120FH
Necessary modification of parts
•CRT spacer change (only for use of 150- to 250-inch screens) (page 19)
•Lens spacer adjustment (only for use of 150- to 250-inch screens) (page
23)
•Horizontal and vertical deflection changes (page 24)
B
A
C
D
E
Ceiling
Rotation axis of the
PSS-722
PSS-722
Center of the green lens
Center of the screen
Tolerance in length:±1%

10 Installation
Installation Diagrams

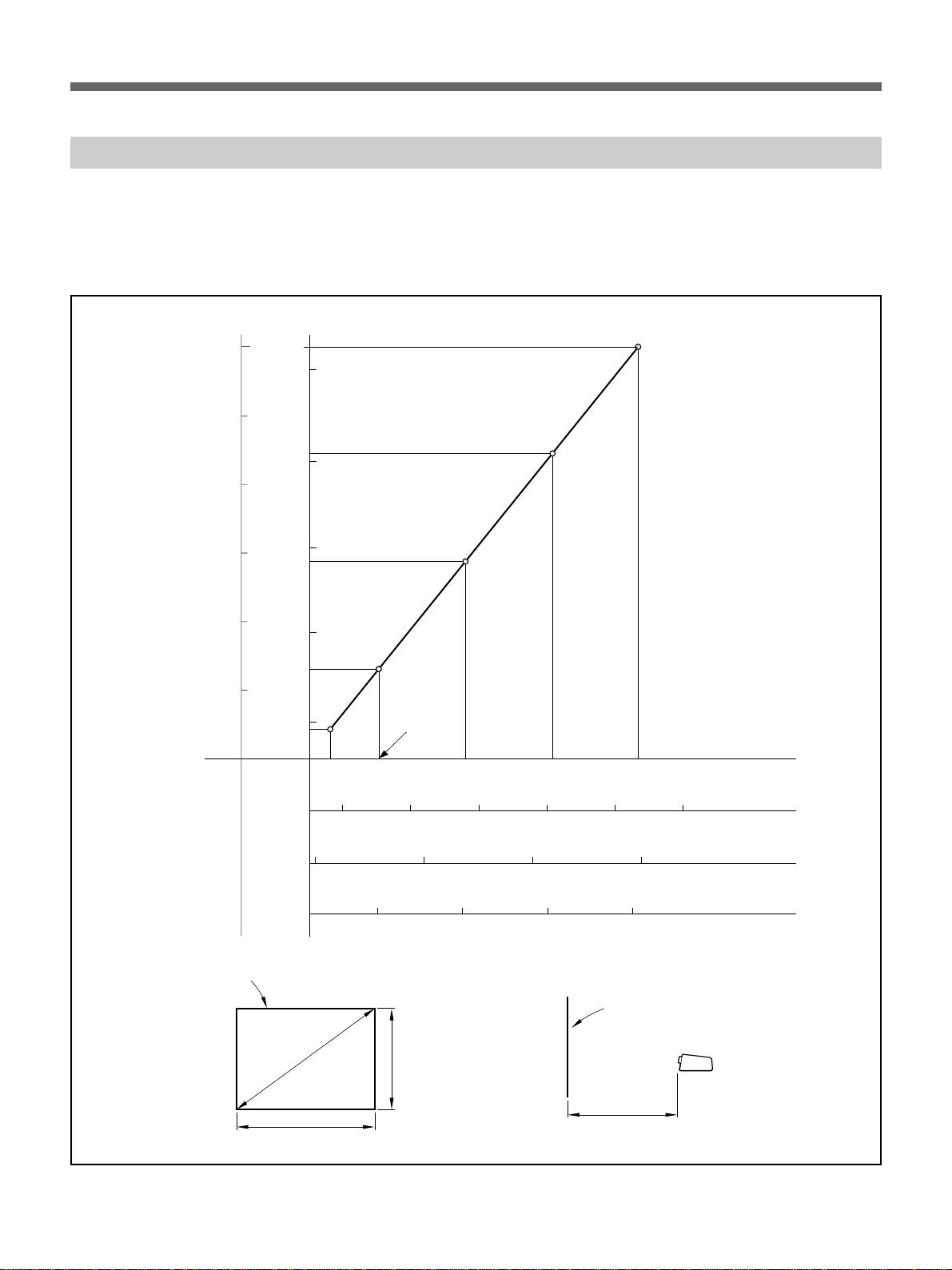

When the Screen Size is Not Described in the Diagrams
When using the front projection flat screen for floor and ceiling
installations, use the following graph to decide the distance between the
screen and the projector (L).
L m L inches
72 100 150 200 250
234567
2345
50 100 150 200
8
7
6
5
4
3
300
250
200
150
100
factory-preset
A inches
A m
B inches
B m
Viewable area of the screen
Screen
Center of the green lens
A
B
3/4B
L

Installation 11

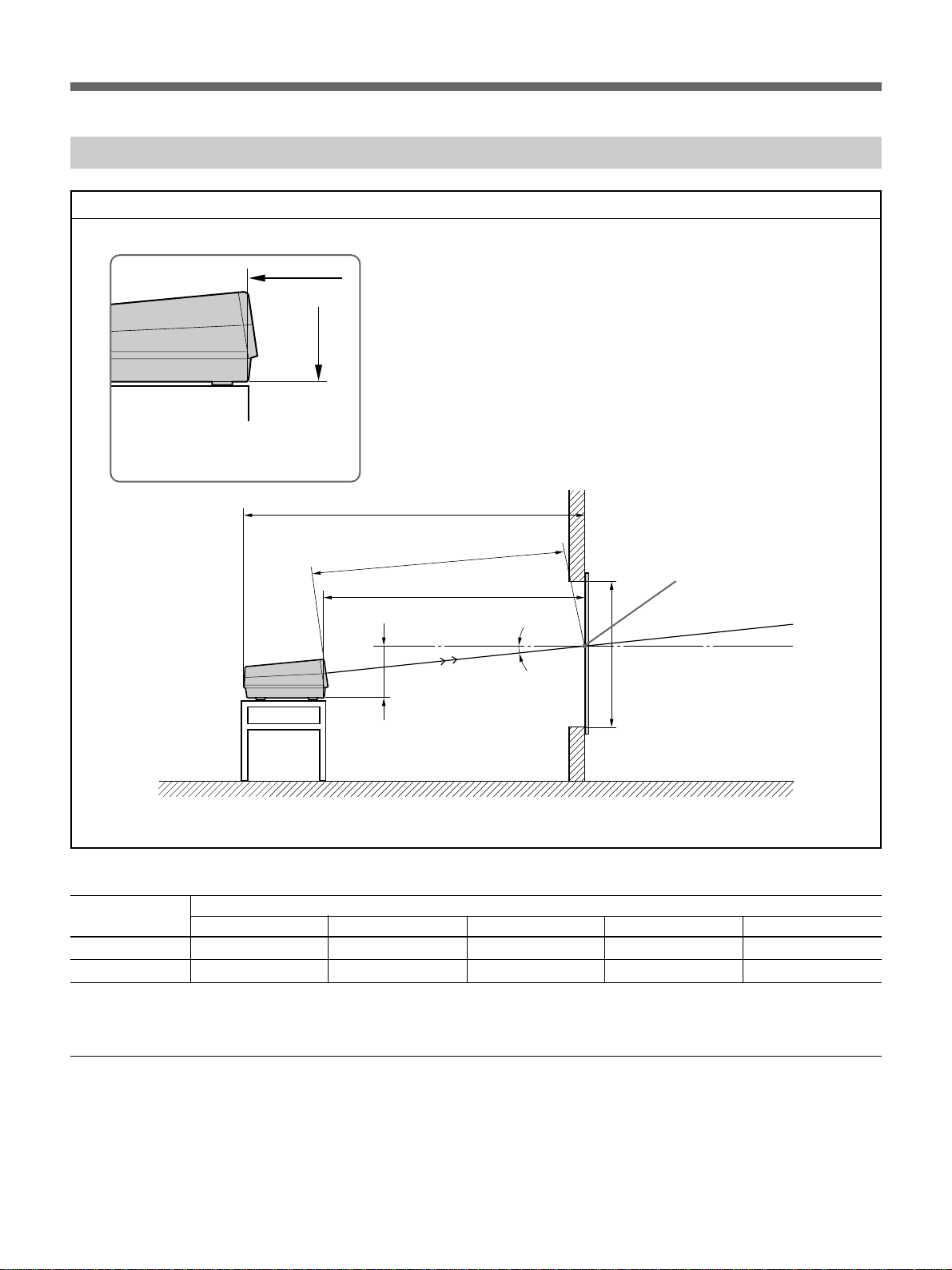

Floor Installation Using Rear Projection Flat Screen
When the angle of optical axis is 12°
C
B
BA
C
D
E
a
Screen size Length: mm (inches)
(inches) A B C D E
70* 1,067 (421 /8) 690 (271 /4) 2,363 (931 /8) 2,406 (943 /4) 2,934 (1155 /8)
100 1,524 (601/8) 889 (35) 3,301 (130) 3,368 (132 5 /8) 3,872 (1521 /2)
*Sony screen VPS-702R
Necessary modifications of parts
•Horizontal deflection change (page 24)
“B” and “C” correspond to those in
the illustration below.
Wall
Floor
Center of the screen
a (angle of optical axis) =12°
Tolerance in length:±1%

12 Installation
Installation Diagrams

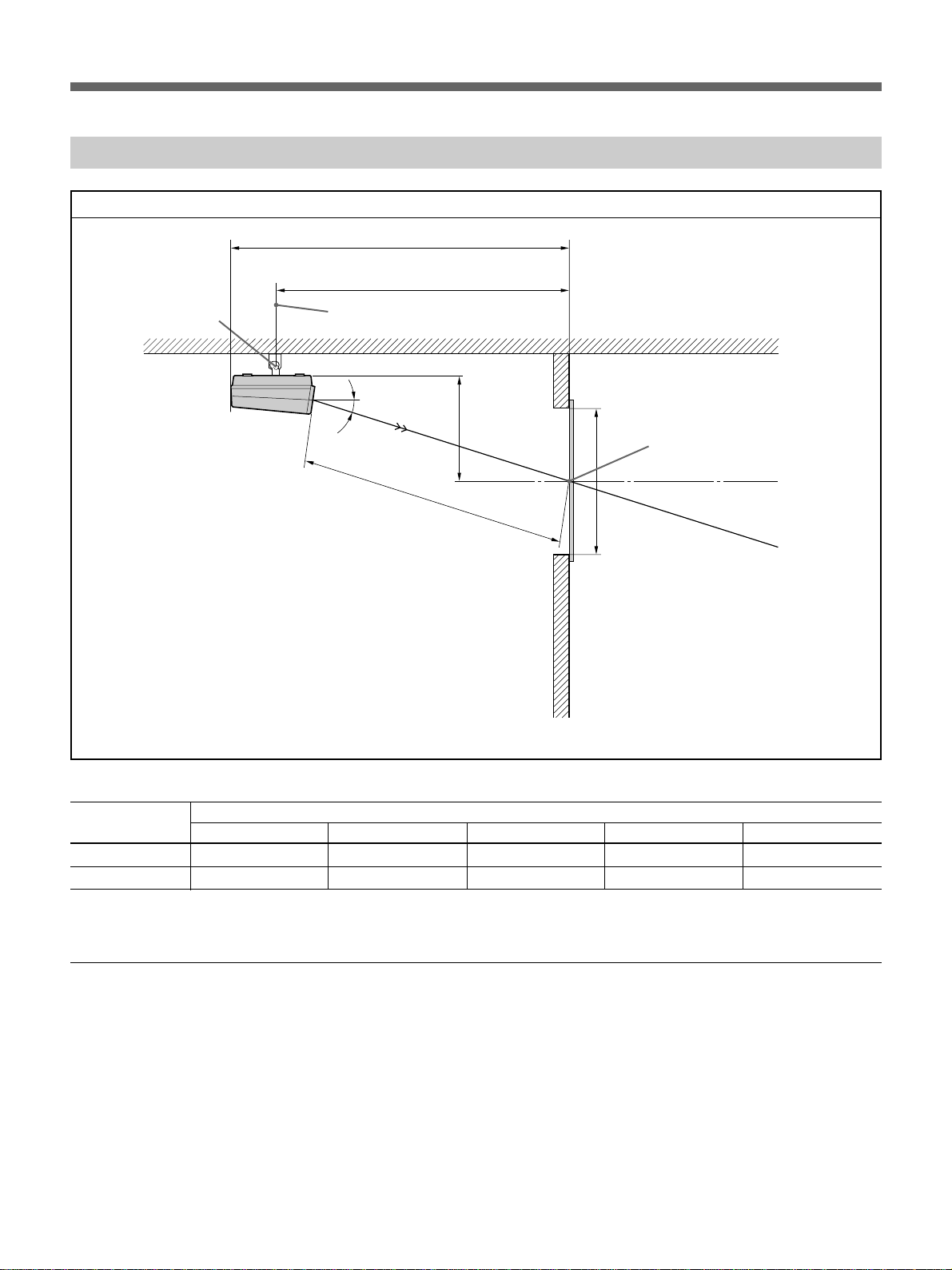

Ceiling Installation Using Rear Projection Flat Screen
A
B
D
C
E
a
Screen size Length: mm (inches)
(inches) A B C D E
70* 1,067 (421 /8) 674 (265 /8) 2,614 (103) 2,406 (943 /4) 2,934 (1155 /8)
100 1,524 (601/8) 873 (343 /8) 3,552 (1397 /8) 3,368 (132 5 /8) 3,872 (1521 /2)
*Sony screen VPS-702R
Necessary modifications of parts
•Vertical deflection change (page 24)
a (angle of optical axis)=12°
Rotation axis of the PSS-722 Ceiling
Center of the screen
Wall
PSS-722
Tolerance in length:±1%
When the angle of optical axis is 12°

Installation 13
Level Projection, Floor Installation
When the angle of optical axis is 0° or 2°
B
D
C
A
B
b
a
D
E
Screen size Length: mm (inches) Angle (°)
(inches) A B C D E a b
1,067 (421 /8) 165 (61 /2) 2,397 (933 /4) 2,439 (103) 2,982 (1163 /4)0 12
1,067 (421 /8) 676 (265 /8) 2,450 (953 /4) 2,433 (957 /8) 2,982 (1163 /4)2 10
1,524 (601/8) 167 (65/8) 3,368 (1325 /8) 3,402 (134) 3,954 (1553 /4)0 12
1,524 (601/8) 715 (281 /4) 3,441 (1351 /2) 3,402 (134) 3,951 (1555 /8)2 10
*Sony screen VPS-702R
Necessary modifications of parts
•CRT spacer change (page 20)
•Horizontal deflection change (page 24)
“B” and “D” correspond to those in
the illustration below.
Floor
Wall
Center of the screen
Tolerance in length:±1%
a (angle of optical axis)=0° or 2°
70*
100

14 Installation
Installation Diagrams
Level Projection, Ceiling Installation
When the angle of optical axis is 0° or 2°
F
E
A
B
D
a
b
C
B
C
Wall
a(angle of optical axis)=0° or 2°
Tolerance in length:±1%
Center of the screen
Screen size Length: mm (inches) Angle (°)
(inches) A B C D E F a b
1,067 (421 /8) 165 (61 /2) 2,397 (933 /4) 2,439 (103) 2,698 (106 1 /4) 2,982 (1163 /4)012
1,067 (421 /8) 676 (265 /8) 2,450 (943 /4) 2,433 (957 /8) 2,691 (106) 2,982 (1163 /4)210
1,524 (601/8) 167 (65/8) 3,368 (1325 /8) 3,402 (134) 3,669 (1441 /2) 3,954 (1553 /4)012
1,524 (601/8) 715 (281 /4) 3,441 (1351 /2) 3,402 (134) 3,661 (1441 /4) 3,951 (1555 /8)210
*Sony screen VPS-702R
Necessary modifications of parts
•CRT spacer change (page 20)
•Vertical deflection change (page 24)
70*
100
“B” and “C” correspond to those in
the illustration below.
Center of the screen

Installation 15
When modifying certain parts in the projector, such as changing polarity,
open the top panel, remove the cabinet, or detaching the lens block.
Opening theTop Panel
Use a medium size Philips head screwdriver.
1Open the control panel cover and remove the two screws.
2Pull the top panel slightly toward you and remove it.
Modifications of Parts
Panel cover

16 Installation
Modifications of parts
Removing the Cabinet
1Open the control panel cover and remove the three screws on the
control panel.
2Slide the nameplate upward and pull it toward you to remove.
3Remove the two connectors from the control panel and remove the
control panel.

Installation 17
4Remove the three screws.
5Raise the cabinet and slide it away from you to remove.
To reinstall the cabinet
Caution
Make sure that the cables inside the projector are not caught when
replacing the cabinet or the control panel.
1Replace the cabinet.
2Tighten the three screws on the nameplate attachment portion.
3Connect the two connectors to the control panel, then replace the control
panel.
4Insert the nameplate.
5Tighten the three screws on the control panel.

18 Installation
Modifications of parts
Detaching the Lens Block
1Remove the cabinet.
2Remove the 4 screws from the sides and the 4 screws from the lens
base of the projector.
3Pull the lens block out toward you.

Installation 19
Changing the CRT Spacer
To change the CRT spacers for 150- to 250- inch projection
Use an 8 mm nutdriver.
1Remove the cabinet. (See “Removing the cabinet”.)
2Detach the lens block. (See “Detaching the lens block”.)
3Loosen the four nuts and remove the two spacers from the top and the
bottom of each CRT.
4Insert the supplied spacers for 200" front projection, 0.2 mm spacers
tand G spacers as follows:
Red and blue CRTs:A spacer for 200" and a 0.2 mm spacer tfor the
top, a spacer for 200" for the bottom
Insert the spacer for 200” front projection with the thinner end toward the
center CRT.
Green CRT:The G spacer removed in step 3 and a 0.2 mm spacer tfor
the top, the G spacer removed in step 3 for the bottom
G BR
G spacer Spacer for 100" projection

20 Installation
Modifications of parts
5Tighten the four nuts of each CRT securely for accurate lens angles.
6Reinstall the lens block, the cabinet and the top panel.
To change the CRT spacers for rear projection
Use an 8 mm nutdriver.
1Remove the cabinet. (See “Removing the cabinet”.)
2Detach the lens block. (See “Detaching the lens block.”)
3Loosen the four nuts and remove two spacers from the top and the
bottom of each CRT.
R G B
G spacer Spacer for 200" front projection
(supplied) 0.2 mm spacer t
(supplied)
G spacer Spacer for 100" projection
R G B
