VPL-EX4/ES4
Entry Level Business Projector
sony.com/projectors

Both the Sony VPL-EX4 and VPL-ES4 are extremely affordable data projectors that are ideal for a number of
applications, especially in education and businesses. These projectors are not only stylish but also provide a brightness
of 2100 lumens (VPL-EX4) and 2200 lumens (VPL-ES4). Capable of projecting high-quality images, the VPL-EX4 offers
native XGA resolution while the VPL-ES4 offers SVGA resolution. Both the VPL-EX4 and VPL-ES4 come equipped with a
short focal-length lens enabling large screen projection from a very short distance. And the supplied card-type
Remote Commander®unit enables quick and effective control of the projector.
Because these projectors were designed primarily for education and business, they are very quiet, include security
features such as a password authentication system and a security bar, and include a variety of interfaces such as a
monitor output, audio output, and RS-232C for control. All of these features combine to make the VPL-EX4 and
VPL-ES4 ideal for both classrooms and conference rooms.
Bright, Stylish, and Easy to Use – The Affordable
VPL-EX4 and VPL-ES4 Data Projectors Are
Excellent Choices for Both Education and Business
Front View (VPL-EX4) Rear View (VPL-EX4)

High Picture Quality and Bright Images
The VPL-EX4 and VPL-ES4 incorporate three high aperture
0.63-inch LCD Panels, offering native XGA (1024 x 768)
and SVGA (800 x 600) resolution, respectively. A
brightness level of 2100 (VPL-EX4) and 2200 (VPL-ES4)
lumens is achieved resulting from the combination of a
highly efficient optical system and a 165W lamp.
3LCD Projection System
Because the VPL-EX4 and VPL-ES4 use a 3LCD projection
system, projected images are bright and natural. 3LCD is a
projection system using three LCD panels (also known as
high-temperature polysilicon or HTPS). This system provides
high light transmission and excellent color reproduction. It
also provides smooth gradients in dark areas, and even
helps prevent color breakup.
Short Projection Distance
The VPL-EX4 and VPL-ES4 come equipped with a short
focal-length lens, which makes it possible to project
images from a shortdistance. For example, an 80-inch
image*1 can be projected from a distance of
approximately 7-1/2 feet (2.3 meters).
Quiet Operation (Low Fan Noise)
Both the VPL-EX4 and VPL-ES4 have a very low fan noise
allowing audiences to concentrate on the speaker
during presentations.
Quick Start
Approximately four seconds*2 after power is applied to
the VPL-EX4 and VPL-ES4, the projector's “start up image”
is displayed and your presentation appears shortly
thereafter.
High-Security (Control Panel KeyLock, Password
Authentication System, Security Bar, and
Kensington Lock)
Both the VPL-EX4 and VPL-ES4 haveacontrol panel key
lock and a password authentication system to help
prevent unauthorized use of the projector. Also, a built-in
security bar or Kensington®lock can be used to help
prevent theft.
FEATURES
Useful Remote Commander Unit
The supplied card-type Remote Commander unit can
be used to adjust the VPL-EX4 and VPL-ES4 projector
settings such as digital zoom and audio volume or to
activate APA, picture muting, and picture freeze
functions. Also, because IR receivers are located on
both the front and rear of the projector, the Remote
Commander unit is effective from almost anywhere in
the room.
Input Flexibility
(Multiscan Converter)
The VPL-EX4 and VPL-ES4 accept a wide variety of video
input signals from standard definition (SD) to high
definition (HD), including composite, S-Video (Y/C), and
analog RGB/component via the HD D-sub 15 pin
interfaces.*3In addition, the unit can accept computer
signals from VGA up to SXGA+ (1400 x 1050).
Other Features
•Monitor Output
•Digital Zoom Function (Up to 4x)
•Image Freeze Function
•Seven Picture Modes
•Dynamic Detail Enhancer (DDE) for Video Signals
•Smart APA (Auto Pixel Alignment)
•Vertical Keystone Adjustment
•Multi Language OSD
•RS-232C Control
•Audio Output
•Ceiling Mount Design*4
*1 Viewable area measured diagonally.
*2 The startup time may vary depending lamp condition.
*3 The VPL-ES4 has one D-sub 15 pin interface supporting both
RGB and component signals.The VPL-EX4 has two D-sub 15
pin interfaces; however, only one supports both RGB and
component signals, while the other supports RGB only.
*4 Requires an optional ceiling mount kit. Please contact your
local Sonysales office for details.
Front View (VPL-EX4)

DI-0119
MK10401V1 Printed in U.S.A. 6/07
©2007 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications aresubject to change without notice.
All non-metric weights and measurements are approximate.
Sony and Remote Commander are trademarks of Sony. Kensington Lock is a
trademark of Kensington Computer Products Group, an ACCO Brands company.
Sony Electronics Inc.
One Sony Drive • Park Ridge, NJ 07656
sony.com/projectors
MK10392V1IW07MAR

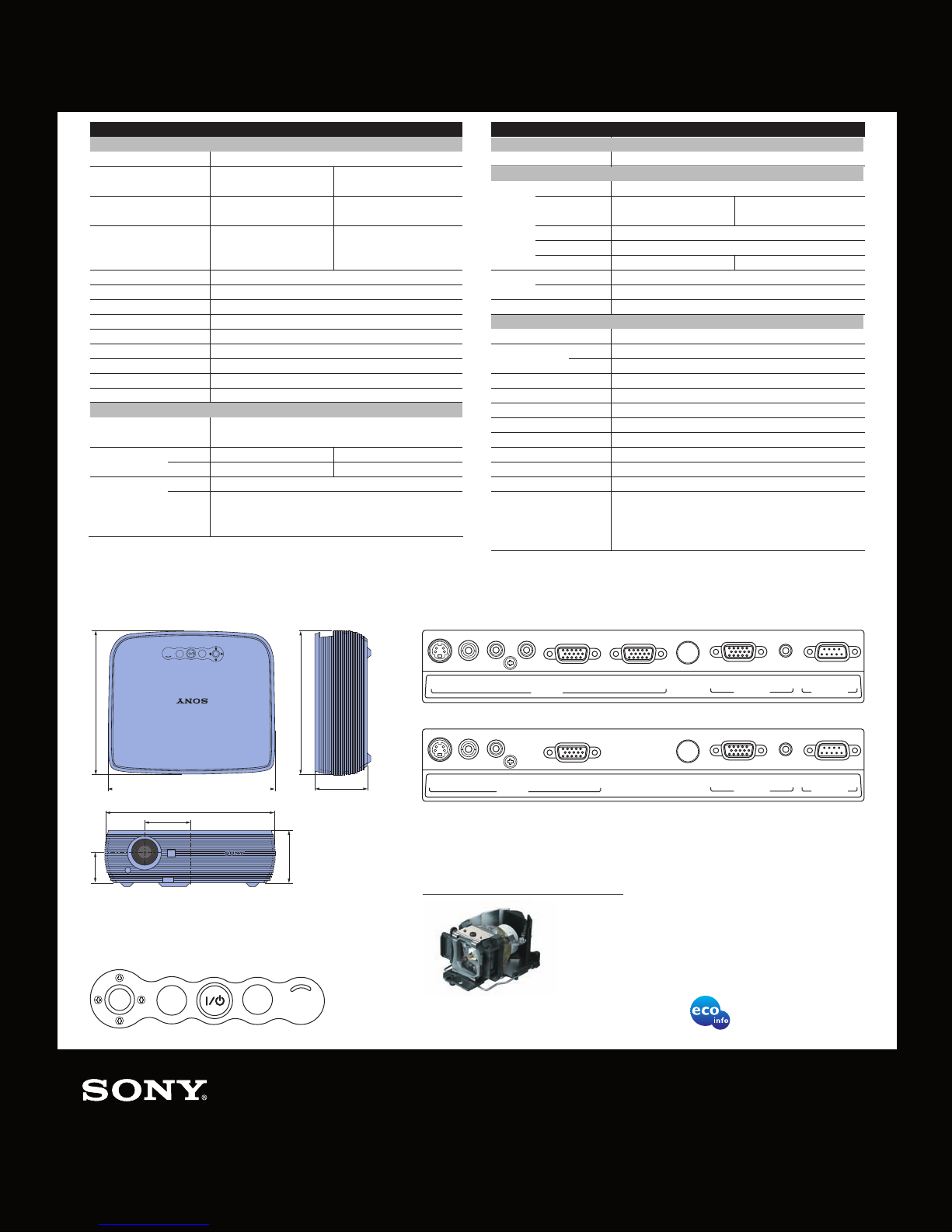

CONNECTOR PANEL
VPL-EX4 VPL-ES4
Optical
Projection System 3 LCD panels, 1 lens projection system
Panel 0.63-inch TFT LCD 2,359,296 0.63-inch TFT LCD 1,440,000
pixels (786,432 pixels x 3) pixels (480,000 pixels x 3)
Projection lens 1.2 times zoom lens, f18.9 1.2 times zoom lens,
to 22.7 mm, F1.6 to 1.90 f18.8 to 22.6 mm, F1.6 to 1.94
Light Output 2100 lm (lamp mode high), 2200 lm (lamp mode high),
Approximately 1500 lm Approximately 1500 lm
(lamp mode standard) (lamp mode standard)
Lamp 165 W Ultra high-pressure lamp
Screen Coverage 40'' to 300'' (viewable area measured diagonally)
Throwing Distance 40-inch 3.9 to 4.6 feet (1.2 to 1.4 m)
80-inch 7.5 to 9.2 feet (2.3 to 2.8 m)
100-inch 9.5 to 11.8 feet (2.9 to 3.6 m)
150-inch 14.4 to 17.7 feet (4.4 to 5.4 m)
200-inch 19.4 to 23.6 feet (5.9 to 7.2 m)
250-inch 24.0 to 29.5 feet (7.3 to 9.0 m)
300-inch 28.9 to 35.1 feet (8.8 to 10.7 m)
Signal
Color System NTSC3.58,PAL, SECAM, NTSC4.43,PAL-M, PAL-N, PAL60
(automatically/manually selected)
Resolution Video 750 TV lines 500 TV lines
RGB 1024 x 768 800 x 600
Acceptable Computer fH: 19-92kHz, fV: 48-92Hz (up to SXGA+ 60Hz)
Input Signals Video 15kHz RGB/Component 50/60Hz, Progressive Component
50/60Hz DTV (480/60i, 575/50i, 1080/60i, 480/60p, 575/50p,
1080/50i, 720/60p, 720/50p) Composite video, Y/C video
OPTIONAL ACCESSORY
CONTROL PANEL
VPL-EX4 VPL-ES4
Speaker
Speaker Mono 1 W (max.) x1
Inputs/Outputs
Input RGB/Component Analog RGB, HD D-sub 15 pin x1 (Input A)
RGB Analog RGB, HD D-sub 15 –
pin x1 (Input B)
S-Video Mini DIN 4pin x1
Composite RCA pin x1
Audio Mono (stereo mini jack x2) Mono (stereo mini jack x1)
Output RGB HD D-sub 15 pin x1
Audio (variable out) Stereo mini jack x1
Remote In/Out RS-232C D sub 9-pin
General
Power Requirements AC 100 to 240V, 50/60 Hz
Power Max 220 W
Consumption Standby 5 W
Operating Temperature 32 to 95 ºF (0 to 35ºC)
Operating Humidity 35% to 85% (no condensation)
Storage Temperature -4 to 140 ºF (-20 to 60 ºC)
Storage Humidity 10% to 90% (no condensation)
Dimension (W x H x D) 12 1/4x37/8x10 5/8inches (308 x 98 x 267 mm), excl. projections
Weight Approx. 6 lb 10 oz (3 kg)
Heat Dissipation 750.7 BTU
Picture Modes Dynamic/Standard/Natural/Game/Living (room)/Cinema/Presentation
Supplied Accessories Remote Commander Unit (RM-PJ4), Lithium battery CR2025,
HDD-sub 15 pin cable 1.8m, Soft carrying case, AC Power cord,
Operating Instructions (CD-ROM), Quick reference manual, Safety
regulation booklet, Security label, Warranty card
AUDIO AUDIOINPUT A MONITOR RS232C
INPUT OUTPUT REMOTE
VIDEOS VIDEO
AUDIO AUDIO A/B AUDIOINPUT A INPUT B MONITOR RS232C
INPUT OUTPUT REMOTE
VIDEO SVIDEO
INPUT LAMP/
COVER
MENU
ENTER
LMP-C162
Projector Lamp (for replacement)
Halogenated flame retardants
arenot used in cabinets or
printed wiring boards.
DIMENSIONS
INPUT LAMP/
COVER
MENU
ENTER
12 1/4(308)
33/8(83)
10 3/4(267)
21/4(57) 10 3/4(267)
37/8(98)
37/8(98)
12 1/4(308)
Unit: inches (mm)
VPL-EX4
VPL-ES4
SPECIFICATIONS
