Sony PFV-D10 User manual

DIGITAL INTERFACE UNIT
PFV-D10
OPERATION MANUAL [Japanese/English]
1st Edition (Revised 2)
Serial No. 10001 and Higher
電気製品は、安全のための注意事項を守らないと、火災
や人身事故になることがあります。
このオペレーションマニュアルには、事故を防ぐための重要な注意事項と製
品の取り扱いかたを示してあります。このオペレーションマニュアルをよく
お読みのうえ、製品を安全にお使いください。お読みになったあとは、いつ
でも見られるところに必ず保管してください。
警告

1 (E)
WARNING
To prevent fire or shock hazard, do not expose the unit to
rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
VORSICHT
Um Feuergefahr und die Gefahr eines elektrischen Schlages
zu vermeiden, darf das Gerät weder Regen noch
Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schlag zu vermeiden, darf das
Gehäuse nicht geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur einem Fachmann.
For the customers in the USA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: THIS WARNING IS APPLICABLE FOR USA
ONLY.
If used in USA, use the UL LISTED power cord specified
below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SJT, three 16 or 18 AWG wires
Length Less than 2.5 m (8 ft. 3in.)
Rating Minimum 10 A, 125 V
Using this unit at a voltage other than 120 V may require the
use of a different line cord or attachment plug, or both. To
reduce the risk of fire or electric shock, refer servicing to
qualified service personnel.
For the Customers in the United Kingdom
WARNING
THIS APPARATUS MUST BE EARTHED.
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Yor coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
English

2 (E)
Overview............................................................... 3(E)
Features ............................................................ 3(E)
Optional Boards................................................ 3(E)

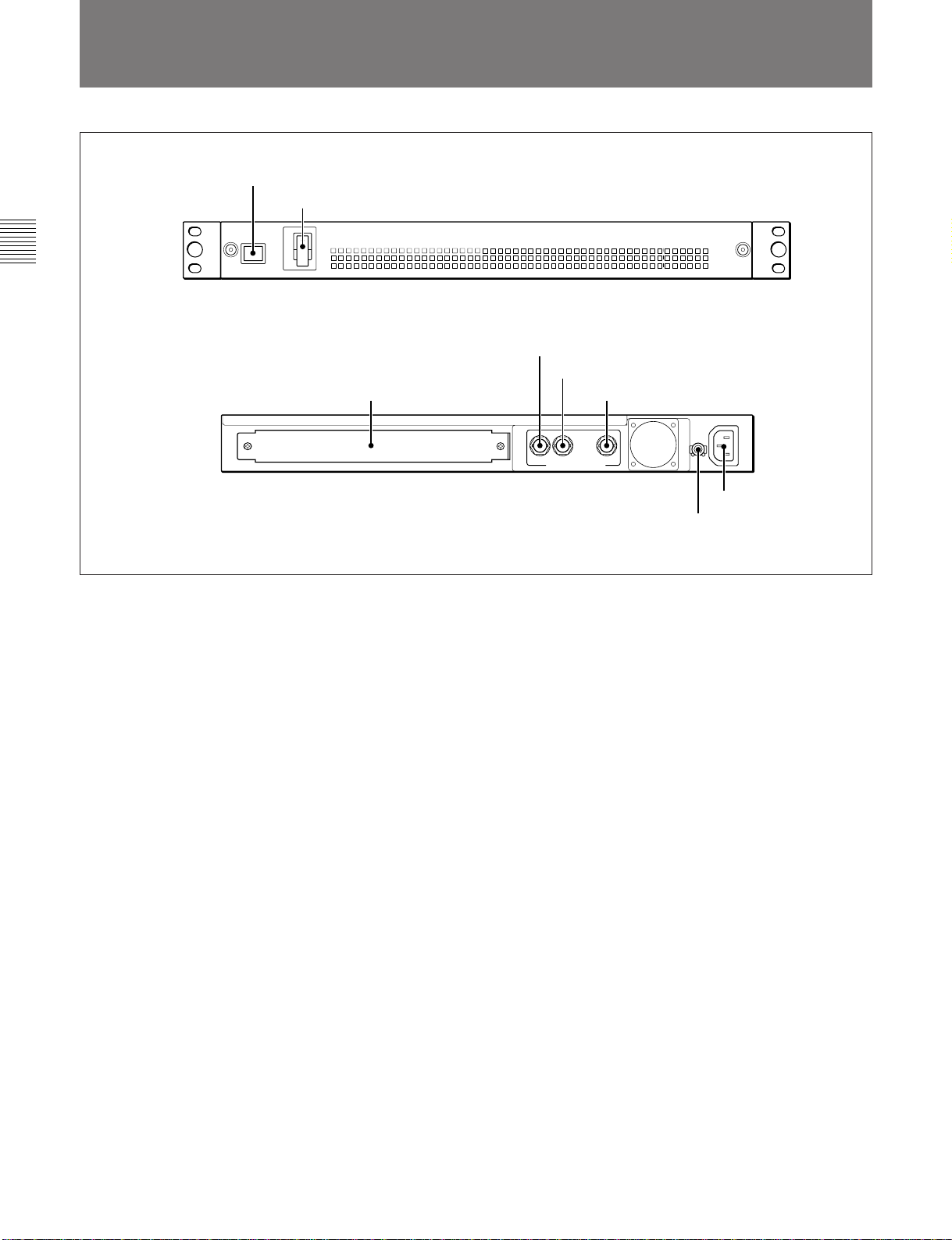

Location and Function of Parts.......................... 6(E)
Specifications........................................................ 7(E)
For the customers in Europe
This product with the CE marking complies with both the
EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European standards:
• EN60950: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environment(s):
E1 (residential), E2 (commercial and light industrial), E3
(urban outdoors) and E4 (controlled EMC environment, ex.
TV studio).
Pour les clients européens
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) (89/
336/CEE) et à la Directive sur les basses tensions (73/23/
CEE) émises par la Commission de la Communauté
Européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
• EN60950: Sécurité des produits
• EN55103-1: Interférences électromagnétiques (émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans les
environnements électromagnétiques suivants:
E1 (résidentiel), E2 (commercial et industrie légère),
E3 (urbain extérieur) et E4 (environnement EMC contrôlé ex.
studio de télévision).
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt
sowohl die EMV-Direktive (89/336/EEC) der EG-Kommission
als auch die Direktive Niederspannung (73/23/EEC).
Die Erfüllung dieser Direktiven bedeutet Konformität für die
folgenden Europäischen Normen:
• EN60950: Produktsicherheit
• EN55103-1: Elektromagnetische Interferenz (Emission)
• EN55103-2: Elektromagnetische Empfindlichkeit
(Immunität)
Dieses Produkt ist für den Einsatz unter folgenden
elektromagnetischen Bedingungen ausgelegt:
E1 (Wohnbereich), E2 (kommerzieller und in beschränktem
Maße industrieller Bereich), E3 (Stadtbereich im Freien) und
E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio).
Table of Contents

3 (E)
Overview
The PFV-D10 Digital Interface Unit is an apparatus
for interfacing various kinds of equipment to process
analog and digital video and audio signals. When an
optional board is installed into the slot, the power is
supplied from the PFV-D10 to the board, and the
function of the board is activated. Select the
appropriate optional boards and install them into the
PFV-D10, allowing the unit to execute various signal
processing functions.
Features
Various kinds of signal processing with
optional boards
Installing the appropriate optional board, various
functions regarding serial digital video signals can be
processed in the single PFV-D10 unit.
For the optional boards, see “Optional Boards”.
Rack mounting
The unit can be mounted in a 19-inch standard rack.
Optional Boards
Select boards with the required functions, and install
them in slots of the PFV-D10.
BKPF-101A/101P A/D Converter Board
(Composite)
This board converts a composite analog video signal
into a composite serial digital video signal.
BKPF-101CB A/D Converter Board
(Component)
This board converts a component analog video signal
into a component serial digital video signal.
BKPF-102/102P D/A Converter Board
(Composite)
This board converts a composite serial digital video
signal into a composite analog video signal.
BKPF-102CB D/A Converter Board
(Component)
This board converts a component serial digital video
signal into a component analog video signal.
BKPF-103 Video Distribution Amplifier Board
This board distributes a composite or component serial
digital video signal to seven outputs.
BKPF-104/104P Digital Video Delay Line Board
(Composite)
This board delays a composite serial digital video
signal for the specified phase.
BKPF-104C Digital Video Delay Line Board
(Component)
This board delays a component serial digital video
signal for the specified phase.
BKPF-105P Audio/Video Multiplexer Board
(PAL Composite)
This board multiplexes AES/EBU-format digital audio
signals to a composite serial digital video signal.
BKPF-105A Audio/Video Multiplexer Board
(Component/NTSC Composite)
This board multiplexes AES/EBU-format digital audio
signals to a serial digital video signal.

4 (E)
BKPF-106P Audio/Video Demultiplexer Board
(PAL Composite)
This board demultiplexes a composite serial digital
video signal and AES/EBU-format digital audio
signals from a serial digital signal.
BKPF-106A Audio/Video Demultiplexer Board
(Component/NTSC Composite)
This board demultiplexes a serial digital video signal
and AES/EBU-format digital audio signals from a
serial digital signal.
BKPF-107 Line Synchronizer Board (NTSC
composite)
This board synchronizes a composite serial digital
video signal with a reference video signal.
BKPF-107C Line Synchronizer Board
(Component)
This board synchronizes a component serial digital
video signal with a reference video signal.
BKPF-108 Frame Synchronizer Board (NTSC
composite)
This board synchronizes a composite serial digital
video signal with a reference video signal.
BKPF-108C Frame Synchronizer Board
(Component)
This board synchronizes a component serial digital
video signal with a reference video signal.
BKPF-109 Serial-Parallel Interface Board
This board converts a serial digital video signal to a
parallel digital signal.
BKPF-110 Parallel-Serial Interface Board
This board converts a parallel digital video signal to a
serial digital signal.
BKPF-111 Video Distribution Amplifier Board
This board distributes three serial digital video signals
into two outputs each.
BKPF-112 Video Distribution Amplifier Board
This board distributes two serial digital video signals
into four outputs each.
BKPF-131B/131BP Decoder Board
This board converts a composite analog video signal
into a component serial digital video signal
synchronized with a reference video signal.
BKPF-132B/132BP Encoder Board
This board converts a component serial digital video
signal into a composite analog video signal
synchronized with a reference video signal.
BKPF-152 D/A Converter Board (NTSC
composite)
This board converts a composite serial digital video
signal into a composite analog video signal
synchronized with a reference video signal.
BKPF-152C D/A Converter Board (Component)
This board converts a component serial digital video
signal into a component analog video signal
synchronized with a reference video signal.
BKPF-012 4:2:2/4fsc NTSC Converter Board
This board converts a component serial digital video
signal into a composite serial digital video signal.
BKPF-021 4fsc NTSC/4:2:2 Converter Board
This board converts a composite serial digital video
signal into a component seiral digital video signal.
BKPF-201/201R Audio A/D Converter Board
This board converts two-channel analog audio signals
into AES/EBU-format digital audio signals.
BKPF-202/202R Audio D/A Converter Board
This board converts AES/EBU-format digital audio
signals into two-channel analog audio signals.
BKPF-205 Audio /Video Multiplexer Board
(Component/NTSC Composite)
This board convers analog audio signals into digital
audio signals and multiplexes it on serial digital video
signals.
BKPF-206 Audio /Video Demultiplexer Board
(Component/NTSC Composite)
This board demultiplexes serial digital video signals on
which digital audio signals are multiplexed into analog
audio signals and serial digital video signals.
BKPF-R70 Rouiting Switcher Controller Board
This board controls a routing switcher.
BKPF-300 DIGITAL VIDEO 8 ×2 Selector
This board is a selector of composite or component
serial digital video signals.
Overview

5 (E)
BKPF-301 Analog Video 8 ×2 Selector
This board is a selector of analog video signals.
BKPF-350 Digital Analog 8 ×2 Selector
This board is a selector of AES/EBU format digital
audio signal.
BKPF-351 Analog Audio 8 ×1 Stereo Selector
This board is a selector of analog audio signals.

6 (E)
y
⁄AC IN
REF IN REMOTE
ROUTING SWITCHER
Location and Function of Parts
8~AC IN connector
1Indicator
2POWER switch
Front panel
Rear panel
7y(signal ground) terminal
4REF IN connector
1Indicator
Lights in green when this unit is turned on.
Flashes in red in the following cases:
•The temperature inside the unit has risen to a
specified level.
•The ventilation fans have stopped rotating.
•Trouble occurs with the output voltage on the
negative side.
May flash in green in the following cases:
•The rotation of the ventilation fans slows down
drastically.
•Until the rotation of the ventilation fans becomes
stable just after the power is turned on.
2POWER switch
Turns on and off the power of this unit.
3Cover plates
Remove the corresponding plates to install the optional
boards.
4REF IN (reference signal) input connector (BNC
type)
When an optional board such as a BKPF-300-series
board that requires a reference signal input to the PFV-
D10 is installed, input an analog black burst signal as a
reference signal.
POWER
DIGITAL VIDEO INTERFACE UNIT PFV-D10
I
O
S
3Cover plates
5Loop-through output connector
6REMOTE connector
5Loop-through output connector (BNC type)
The reference signal input to the REF IN connector is
supplied as it is. When this connector is not used,
connect a 75-ohm terminator.
6REMOTE connector (BNC type)
For controlling a routing switcher, connect an S-BUS
line when an optional board such as a BKPF-300-
series board that requires an S-BUS protocol input to
the PFV-D10 is installed.
7y(signal ground) terminal
For signal ground. Connect to a ground wire as
required.
8~AC IN connector
Connect to an AC power supply using a power cord
below:
Model available in North America:
DK-2401 AC Power Cord
Model available in the United Kingdom:
Parts No. 1-590-910-11

7 (E)
Specifications
Power requirements 100 to 240 V AC, 50/60 Hz
Current drain 100 V: 0.8 A, 240 V: 0.4 A
Power supply capacity +5 V DC: max. 2.4 A
–5 V DC: max. 2.4 A
Peak inrush current
(1) Power ON, current probe method:
12 A (240 V)
(2) Hot switching inrush current, measured in
accordance with European standard EN55103-1:
60 A (230 V)
Operating temperature 5°C to 40°C (41°F to 104°F)
Storage temperature –20°C to +60°C (–4°F to
+140°F)
Operating humidity 10% to 90%
Dimensions 424 ×44 ×426 mm (w/h/d)
(16 3/4×1 3/4×16 7/8inches)
Mass Approx. 5 kg (11 lb 4 oz)
(not including the optional
boards)
Supplied accessories Operation Manual (1)
Installation Manual (1)
Design and specifications are subject to change
without notice.

The material contained in this manual consists of
information that is the property of Sony Corporation and is
intended solely for use by the purchasers of the equipment
described in this manual.
Sony Corporation expressly prohibits the duplication of any
portion of this manual or the use thereof for any purpose
other than the operation or maintenance of the equipment
described in this manual without the express written
permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation et
sont destinées exclusivement à l’usage des acquéreurs de
l’équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de quelque
partie que ce soit de ce manuel ou son emploi pour tout
autre but que des opérations ou entretiens de l’équipement
à moins d’une permission écrite de Sony Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der in
dieser Anleitung beschriebenen Ausrüstung bestimmt sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als die
Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche schriftliche
Erlaubnis der Sony Corporation.

PFV-D10 (SY, 和, 英)
3-861-561-03 (1)
Printed in Japan
2000.05.13
1997
Sony Corporation
Communication System Solutions Network Company
