Multi-format Capability in HD and SD
The PMW-1000 comes standard with a highly flexible, multi-format
capability. Users can select recording and playback formats from HD
(XAVC, MPEG HD422, and MPEG HD420) and SD (MPEG IMX50/40/30
2
and DVCAM) in a variety of frame frequencies. By supporting XAVC Intra
100-Mbps, XDCAM HD workflow can be enhanced with PMW-F5/F55
camera operation. In addition, with its up- and down-conversion
function, the PMW-1000 is ideal for integration into an existing SD
production system and also for future HD operation.
2Playback only.
Similar Operability to Tape-based Devices
The PMW-1000 is equipped with a jog/shuttle dial
and RS-422 control, providing VTR-like operation
(Jog: -1 to +1 times normal speed; Variable: -2 to
+2 times normal speed; Shuttle: -20 to +20 times
normal speed). This gives the PMW-1000 a very
familiar feel, and enables easy migration from tape-
based operation.
Variety of Interfaces
The PMW-1000 is a perfect addition to an existing
NLE system, thanks to its versatile input and output
interfaces:
•RS-422 9-pin remote
control interface to be
used as a feeder for linear
editing
•Gigabit Ethernet for high-
speed file transfer for
network operation
•HDMI monitoring output
for more flexible operation
on any occasion
External USB Storage
The PMW-1000 is equipped with a USB interface for connection to an
external USB HDD. This enables users to copy clips directly to a USB HDD
without employing any other devices; helping to reduce storage costs,
and means that users can make copies and backups simply and quickly.
Three-way Power Source Selection
The PMW-1000 can operate on AC, DC, and battery power, making it
highly versatile and suitable for both in-house and field operations (for
example, in a studio or OB vehicle).
Sony proudly introduces the PMW-1000 studio recorder with
two SxS®card slots providing a wide range of AV and IT
interfaces including HD-SDI, SD-SDI, HDMI®, and composite
outputs. The PMW-1000 provides outstanding MPEG HD422
picture quality as well as an uncompromising eight-channel
(HD-SDI), 24-bit audio recording capability, all packed in a
compact half-rack-size deck. In addition to MPEG HD422,
XAVC™ Intra HD Record/Playback is supported
1
, as well as
MPEG IMX™ and DVCAM®formats in the SD domain. What’s
more, the RS-422 interface and Gigabit Ethernet enables the
PMW-1000 to be used as a player deck for linear editing and a
feeder deck for non-linear editing.
14K is not supported.
Features
PMW-1000
XDCAM®HD422 Recording Deck

©2013 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features, design, and specifications are subject to change without notice.
Weights and measurements are approximate.
Sony, XDCAM, XAVC, MPEG IMX, DVCAM, SxS, SxS Pro, Memory Stick and
the Sony make.believe logo are trademarks of Sony.
All other trademarks are the trademarks of their respective owners.

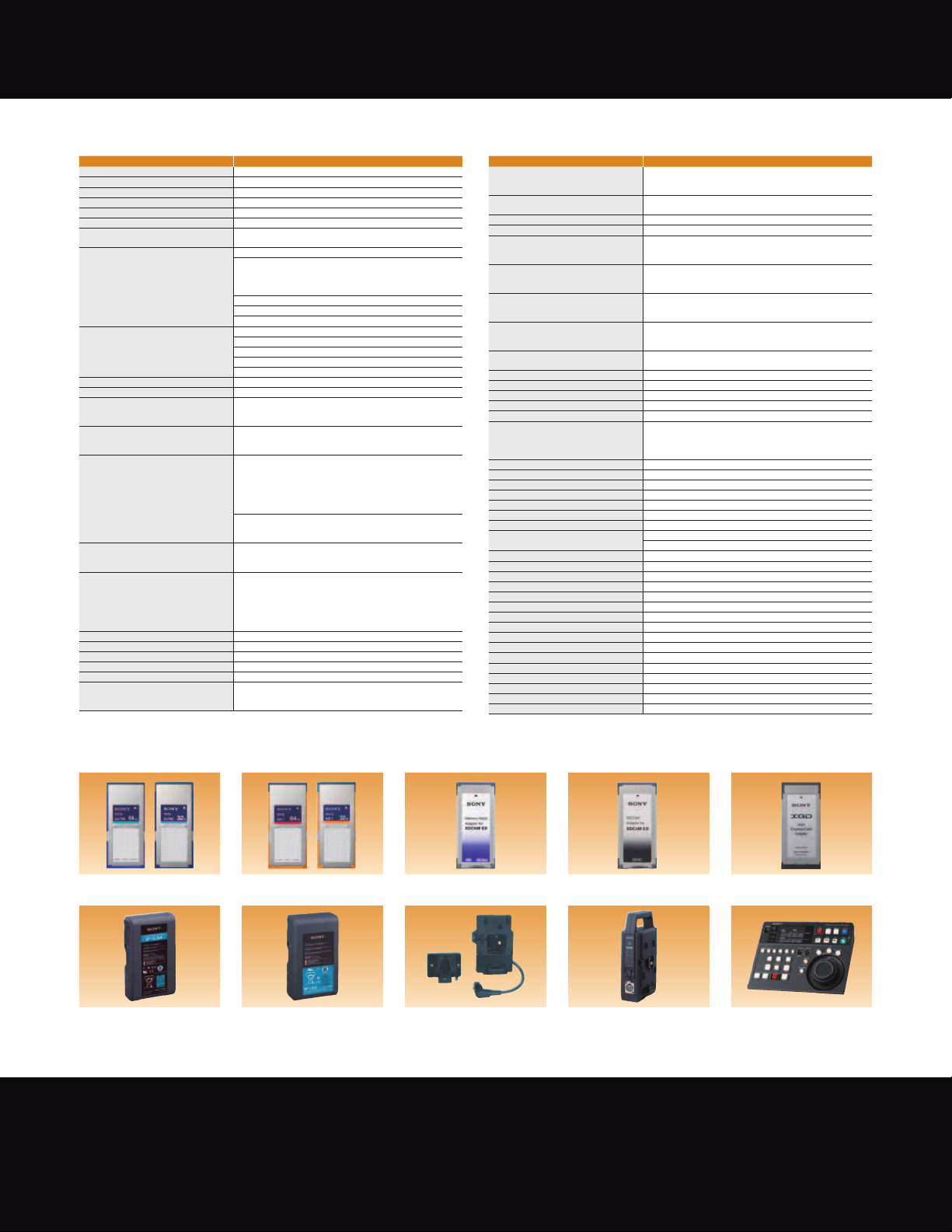

Optional Accessories
Specifications
SBP-64A/32
SxS Pro™ Memory Card
BP-L80S/L60S/L551
Lithium-ion Battery Pack
SBS-64G1A/32G1A
SxS-1 Memory Card
BC-L70
Lithium-ion Battery Charger
MEAD-MS01
Memory Stick®Adaptor
RM-280
Editing Controller (Ver 2.03 or later)
MEAD-SD01
SD Card Adaptor
BKP-L551
Lithium-ion Battery Adaptor
QDA-EX1
XQD Adaptor
BP-GL95A/GL65A
Lithium-ion Battery Pack
PMW-1000
Power Requirements AC 100 V to 240 V, 50/60 Hz, DC 12 V
Power Consumption AC: 80 W, DC: 12V 5.7A
Operating Temperature 42°F to 104°F (5°C to 40°C)
Storage Temperature -4°F to +140°F (-20°C to +60°C)
Humidity 20% to 90% (relative humidity)
Weight 11 lb 2 oz (5.0 kg)
Dimensions (W x H x D) 18 3/8 x 5 1/4 x 16 1/2 inches (excluding protrusions)
210 x 132 x 418 mm (excluding protrusions)
Recording/Playback Format (Video) MPEG HD422 (CBR, 50 Mbps)
MPEG HD:
- HQ mode (VBR, maximum bit rate: 35 Mbps)
- SP mode (CBR, 25 Mbps) *2
- LP mode (VBR, maximum bit rate: 18 Mbps) *2
MPEG IMX (CBR, 50/40/30 Mbps) *2
DVCAM (CBR, 25 Mbps)
XAVC (CBR, 100 Mbps)
Recording/Playback Format (Audio) MPEG HD422: 8 ch/24 bits/48 kHz
MPEG HD: 4 ch/16 bits/48 kHz
MPEG IMX: 8 ch/16 bits/48 kHz or 4 ch/24 bits/48 kHz *2
DVCAM: 4 ch/16 bits/48 kHz
XAVC: 8 ch/24 bits/48 kHz
Recording/Playback Format (Proxy Video) MPEG-4
Recording/Playback Format (Proxy Audio) A-law (8 ch/8 bits/8 kHz)
Recording/Playback Time (XAVC) exFAT/MXF (100 Mbps CBR):
Approx. 120 min (128GB), Approx. 60 min (64GB),
Approx. 30 min (32GB), Approx. 15 min (16GB)
Recording/Playback Time (MPEG HD422) UDF/MXF (50 Mbps CBR):
Approx. 240 min (128GB), Approx. 120 min (64GB),
Approx. 60 min (32GB), Approx. 30 min (16GB)
Recording/Playback Time (MPEG HD) UDF/MXF (35Mbps VBR):
Approx. 360 min (128GB), Approx. 180 min (64GB),
Approx. 90 min (32GB), Approx. 45 min (16GB)
FAT/MP4 (35Mbps VBR) *2:
Approx. 400 min (128GB), Approx. 200 min (64GB),
Approx. 100 min (32GB), Approx. 50 min (16GB),
FAT/MP4 (25Mbps CBR) *2:
Approx. 560 min (128GB), Approx. 280 min (64GB),
Approx. 140 min (32GB), Approx. 70 min (16GB),
Playback Time (MPEG IMX) UDF/MXF (50Mbps Intra) *2:
Approx. 240 min (128GB), Approx. 120 min (64GB),
Approx. 60 min (32GB), Approx. 30 min (16GB)
Recording/Playback Time (DVCAM) UDF/MXF (25Mbps CBR):
Approx. 440 min (128GB), Approx. 220 min (64GB),
Approx. 110 min (32GB), Approx. 55 min (16GB)
FAT/AVI (25Mbps CBR) *2:
Approx. 520 min (128GB), Approx. 260 min (64GB),
Approx. 130 min (32GB), Approx. 65 min (16GB)
Search Speed Range (Shuttle Mode) -20 times to +20 times normal speed (max +/-50 by Remote)
Search Speed Range (Variable Mode) -2 times to +2 times normal speed
Search Speed Range (Jog Mode) -1 time to +1 time normal speed (-2 to +2 by Remote)
Search Speed Range
(Fast Forward/Reverse) -35/+35 times normal speed (max +/-50 by Remote)
Media Type SxS Memory Card Drive, ExpressCard/34 (x2)
Reference Input BNC (x2) (including loop-through),
HD Tri-level sync (0.6 Vp-p/75 Ω/negative) or SD blackburst/
composite sync (0.286 Vp-p/75 Ω/negative)
PMW-1000
HD-SDI Input BNC (x1) (HD/SD switchable)
HD-SDI: SMPTE 292M (w/embedded audio)
SD-SDI: SMPTE 259M (w/embedded audio)
Analog Audio Input XLR-type 3-pin (female) (x2) (channel selectable),
+4/0/-3/-6 dBu (selectable), 10 kΩ, balanced
Digital Audio Input (AES/EBU)
Timecode Input BNC (x1), SMPTE timecode, 0.5 Vp-p to 18 Vp-p/3.3 kΩ/unbalanced
Analog Composite Output BNC (x2),
1: 1.0 Vp-p/75 Ω/negative, SMPTE 170M
2: 1.0 Vp-p/75 Ω/negative, SMPTE 170M, character On/Off
HD-SDI Output BNC (x2),
1: SMPTE 292M (w/embedded audio)
2: SMPTE 292M (w/embedded audio), character on/off
SD-SDI Output BNC (x2),
1: SMPTE 259M (w/embedded audio)
2: SMPTE 259M (w/embedded audio), character on/off
HDMI Monitor TYPE A 19-pin (x1)
Video : 1080i, 720P, 480i, 480P, 576i, 576P
Audio : 2 ch/16 bits/48 kHz
Analog Audio Output XLR-type 3-pin (male) (x2) (channel selectable),
+4/0/-3/-6 dBu (selectable), 600 Ω, Lo-z, balanced
Analog Audio Monitor XLR-type 3-pin (male) (x2), +4 dBu, 600 Ω, Lo-Z, balanced
Digital Audio Output (AES/EBU)
Headphone Output JM-60 Stereo phone jack (x1), -13 dBu, 8 Ω, unbalanced
Timecode Output BNC (x1), SMPTE timecode, 1.0 Vp-p/75 Ω/unbalanced
Video Control
Ethernet RJ-45 (x1)
1000BASE-T: IEEE 802.3ab
100BASE-TX: IEEE 802.3u
10BASE-T: IEEE 802.3
Remote Input (9-pin) D-sub 9-pin (female) (x1), RS-422A
USB Front: (x1) USB 3.0
Maintenance Rear: (x2) for Maintenance, USB Keyboard, USB Mouse
DC Input (12 V) XLR-type 4-pin (male) (x1)
DC Output (12 V) 4-pin (female) (x1), DC 12 V, 7.5 W
AC Input AC Input (x1), 100 V to 240 V, 50/60Hz
Sampling Frequency Y: 74.25 MHz, Pb/Pr: 37.125MHz
Quantization HD422, MPEG HD, IMX, DVCAM: 8 bits/sample
XAVC: 10 bits/sample
Error Correction Reed Solomon Code
Video Level -∞ to +3 dB
Chroma Level -∞ to +3 dB
Set Up/Black Level -30 IRE to +30 IRE/-210 mV to +210 mV
Chroma Phase -30° to +30°
System Sync Phase -15 μs to +15 μs
System SC Phase 0 ns to 400 ns
Sampling Frequency 48 kHz
Quantization 24 bits
Frequency Response 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
Dynamic Range More than 90 dB
Distortion Less than 0.05% (at 1 kHz)
Headroom 20/18/16/12/9 dB (selectable)
Built-in Display 4.3-inch3type color LCD monitor
Built-in Speaker Monaural (x1)
Supplied Accessories Operation guide (1)
1The values for dimensions are approximate.
2Playback only.
3Viewable area measured diagonally.
